Model Maytag MMV4205FZ2 MICROWAVE HOOD, 2.0 CUBIC FOOT – Common Parts & Diagrams
01 - COVER SHEET

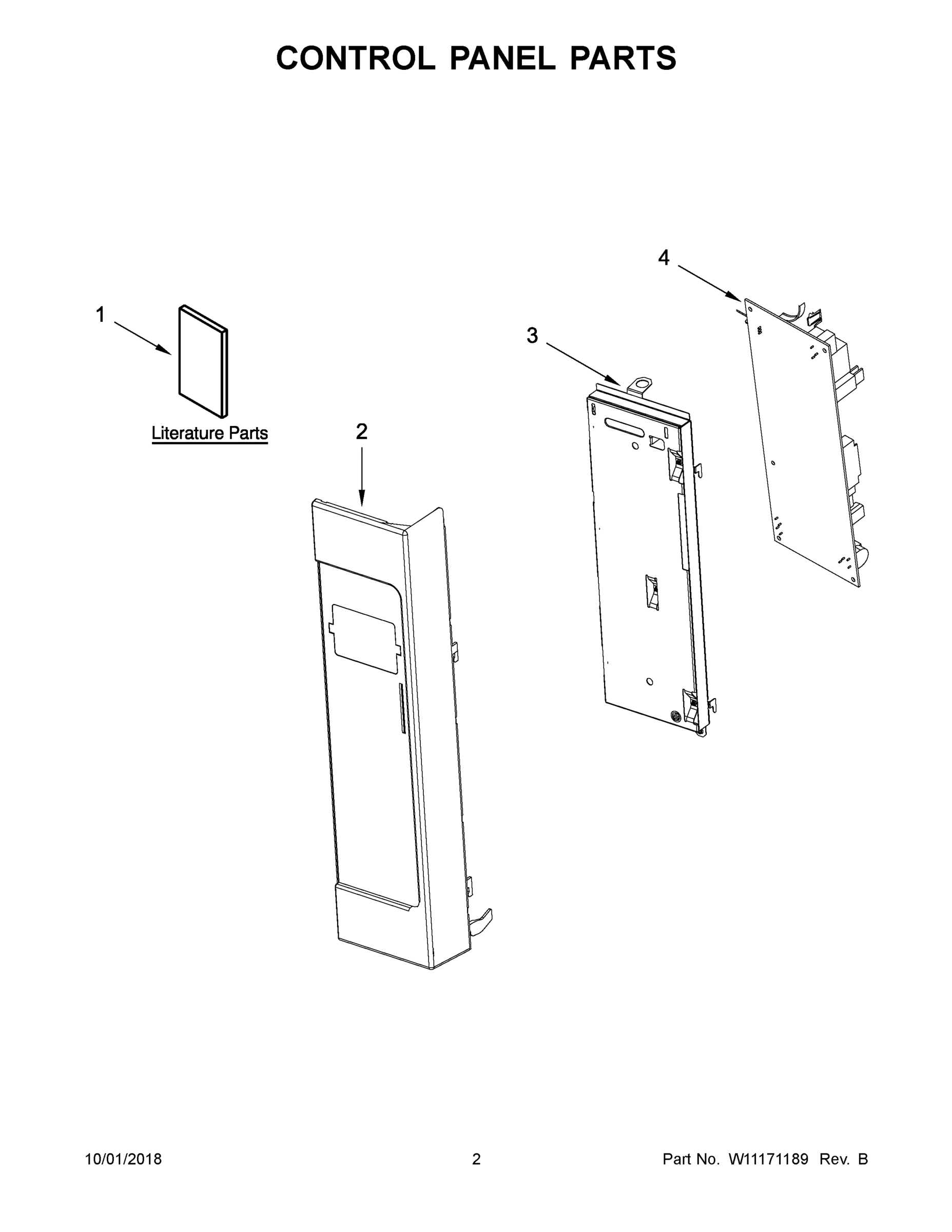

02 - CONTROL PANEL PARTS

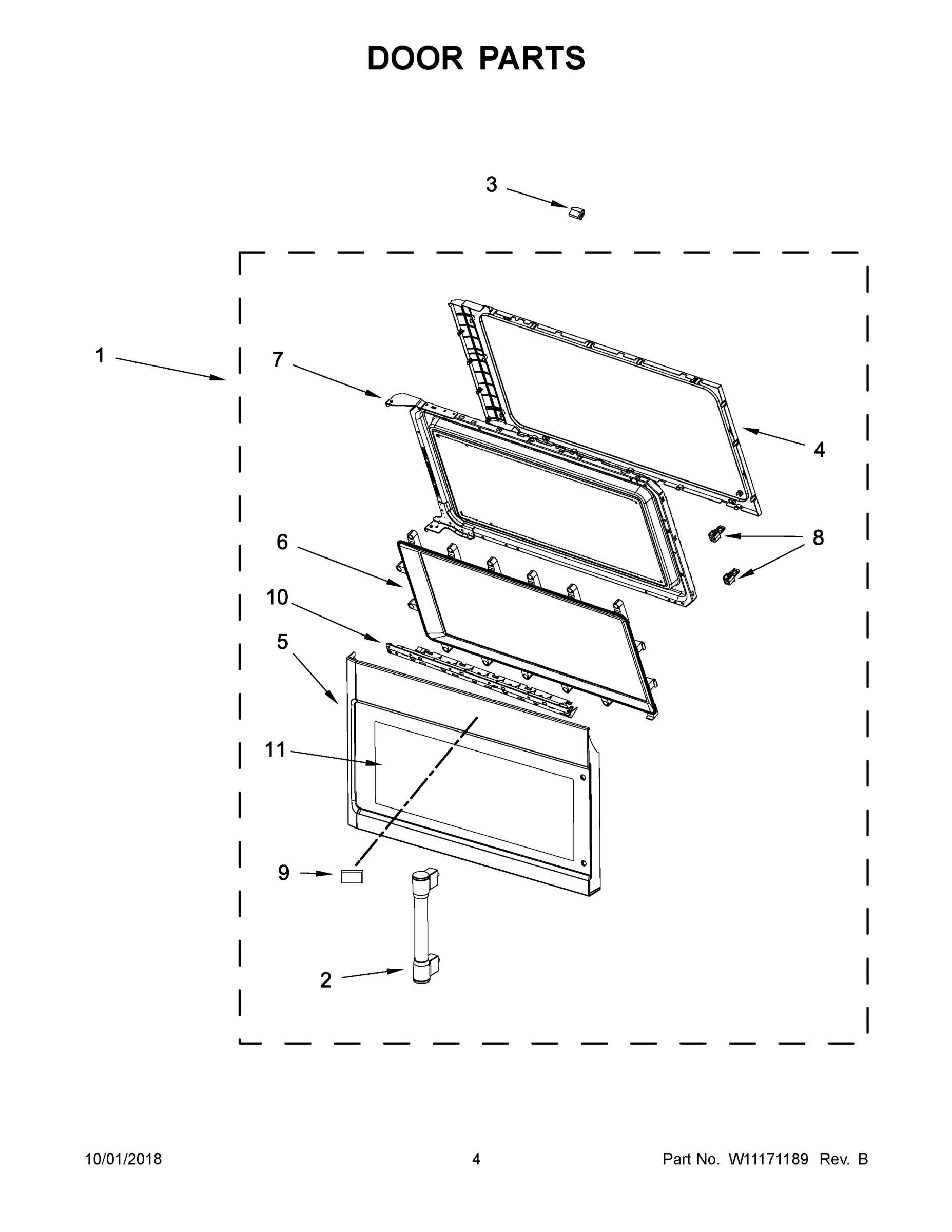

03 - DOOR PARTS

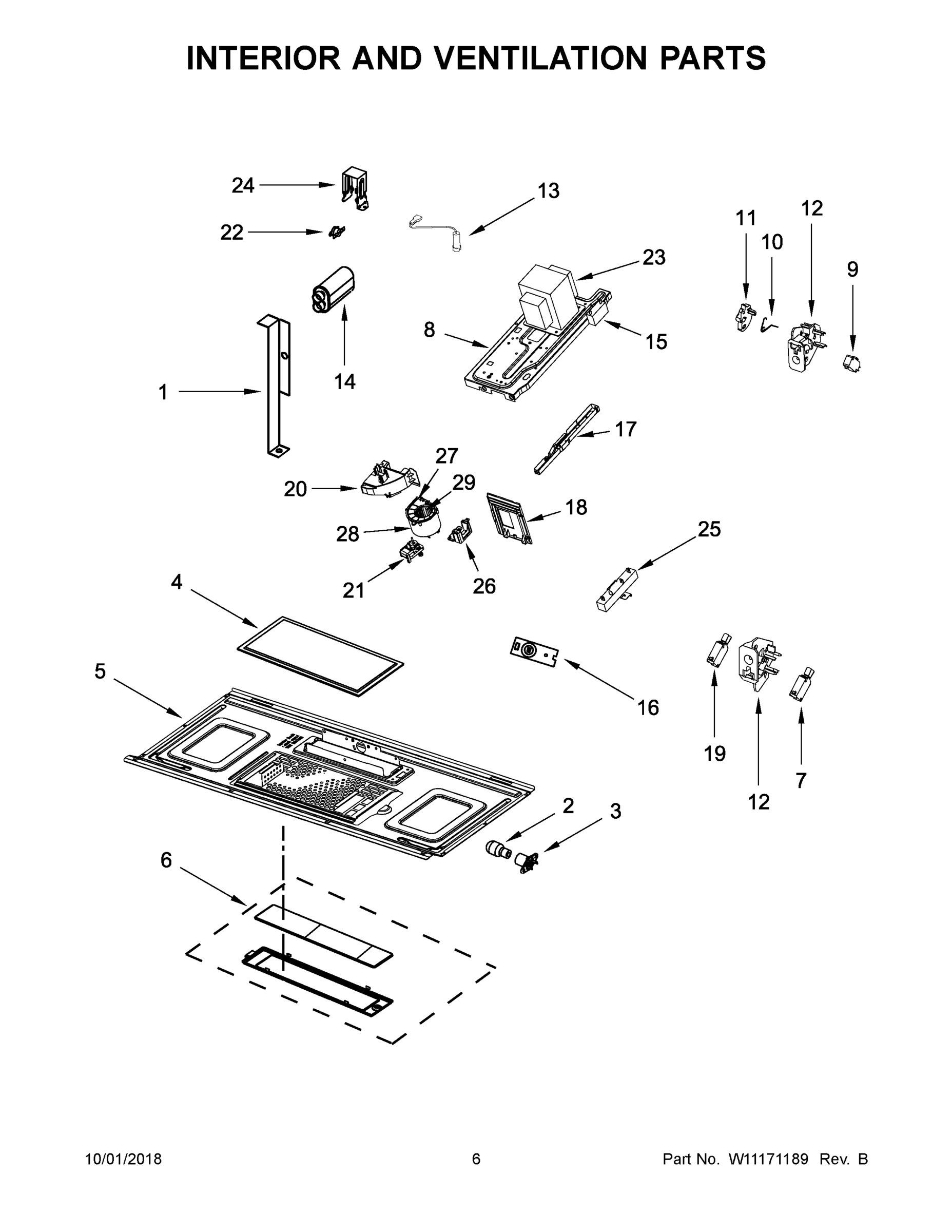

04 - INTERIOR AND VENTILATION PARTS

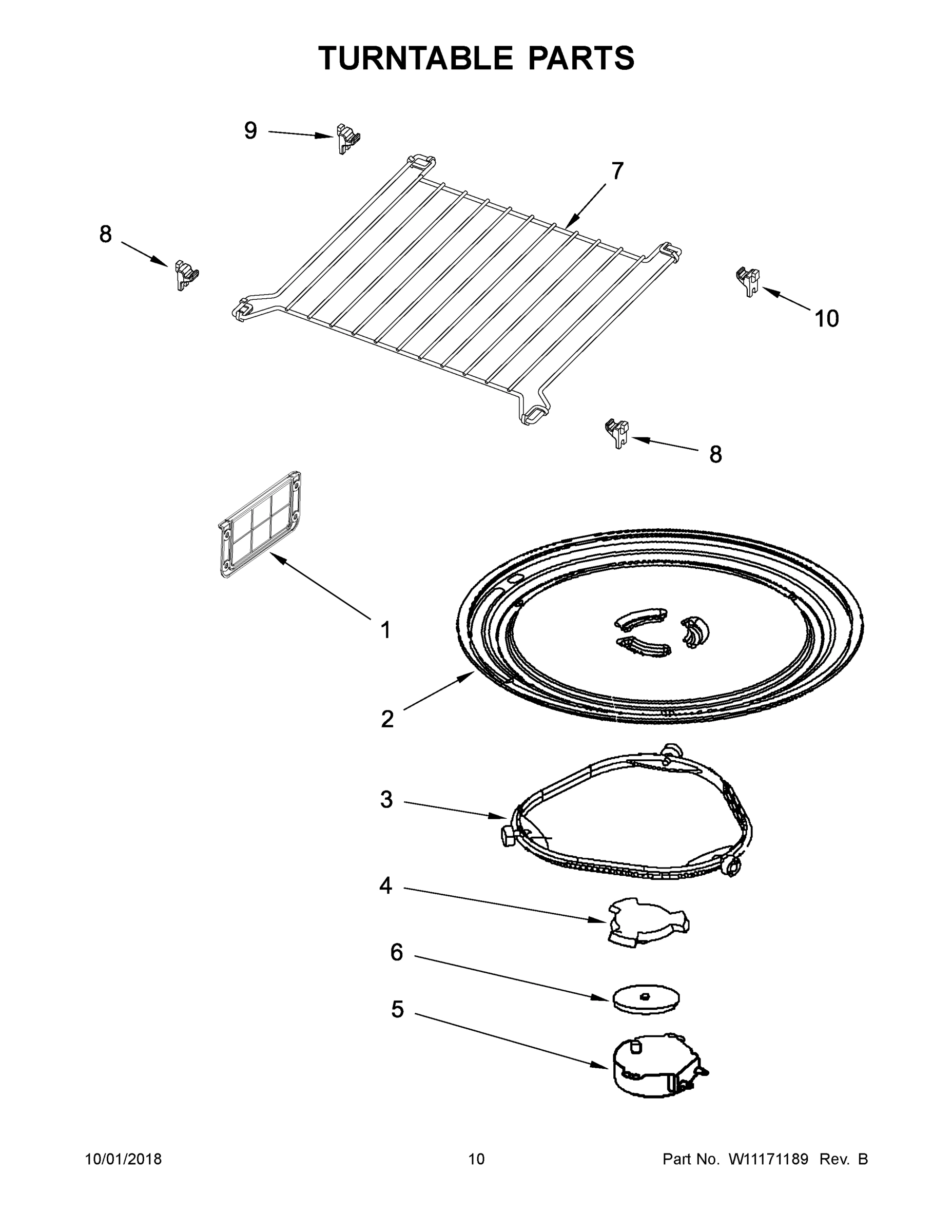

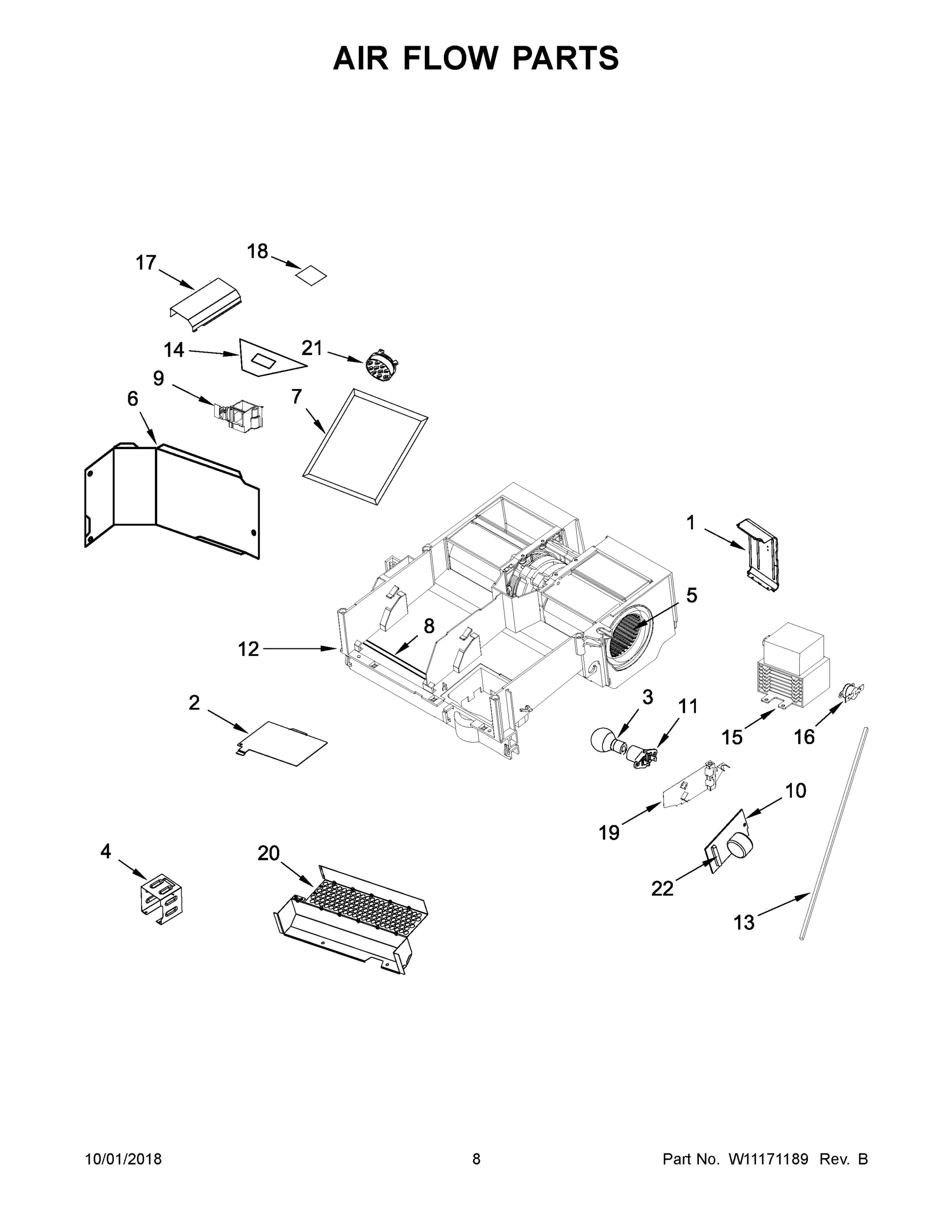

05 - AIR FLOW PARTS
06 - TURNTABLE PARTS

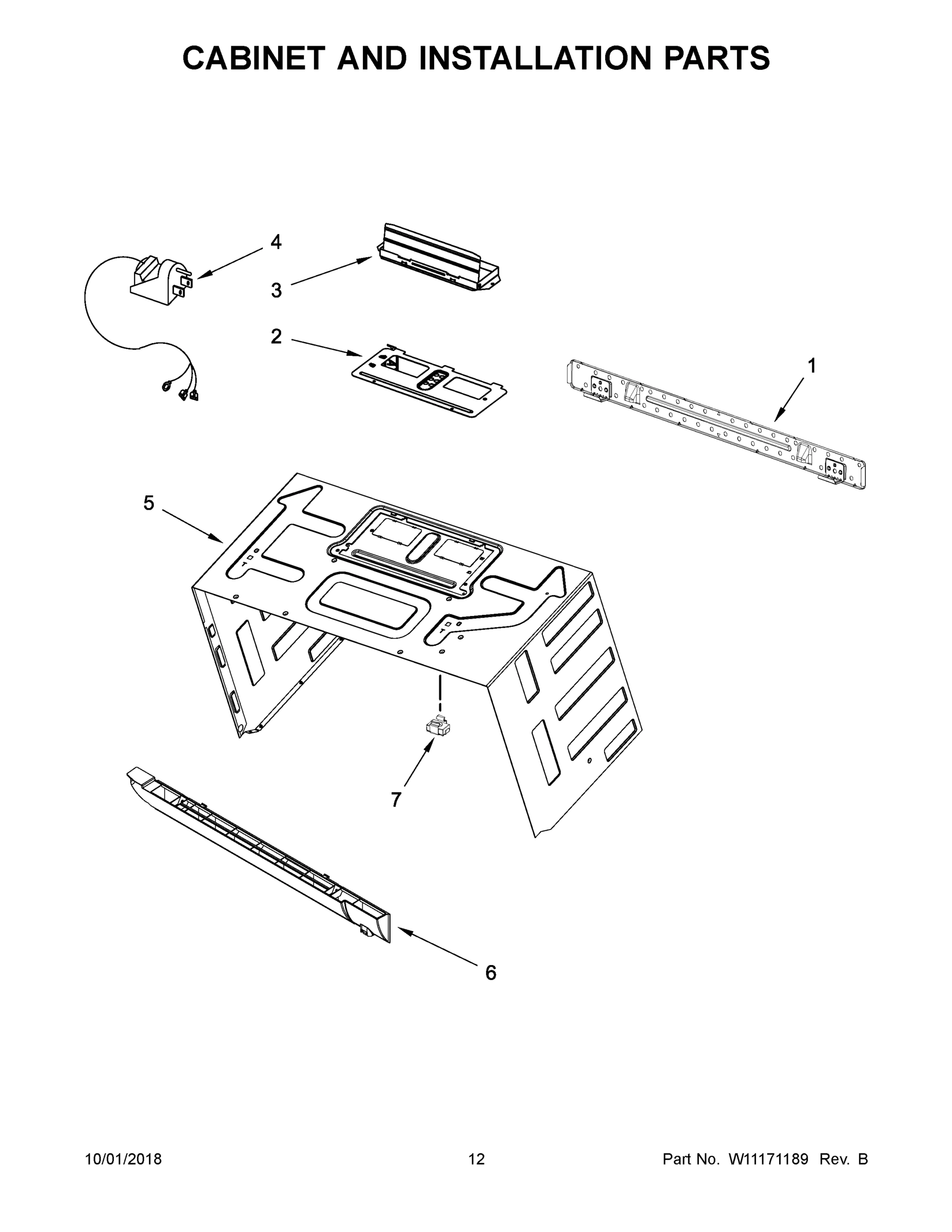

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag MMV4205FZ2 MICROWAVE HOOD, 2.0 CUBIC FOOT
1
INSTALLATION INSTRUCTIONS MAY W10823835 Contact Us For Availability
1
DOOR, COMPLETE (WHITE) MAY W11041340 Contact Us For Availability
1
BRACKET, TOP CAVITY MAY W10540715 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10631697 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W10533497 Contact Us For Availability
1
PLATE, MOUNTING MAY W11025649 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10841421 Contact Us For Availability
1A
DOOR, COMPLETE (BLACK) MAY W11041341 Contact Us For Availability
1B
GUIDE, QUICK REFERENCE MAY W10666960 Contact Us For Availability
1B
DOOR, COMPLETE (STAINLESS) MAY W11041339 Contact Us For Availability
1C
TECH SHEET MAY W10917913 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (WHITE) MAY W11023935 Contact Us For Availability
2
HANDLE (WHITE) MAY W10890417 Contact Us For Availability
2
LAMP, 40 WATT MAY 8206232 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
TURNTABLE MAY W10531726 Contact Us For Availability
2
COVER, FAN MOTOR MAY W10625423 Contact Us For Availability
2A
ASSEMBLY, CONTROL PANEL (BLACK) MAY W11023936 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10890418 Contact Us For Availability
2B
ASSEMBLY, CONTROL PANEL (STAINLESS) MAY W10866698 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY W10858177 Contact Us For Availability
3
BACKER, CONTROL PANEL MAY W10771573 Contact Us For Availability
3
STOPPER, DOOR MAY W10643974 Contact Us For Availability
3
HOLDER, LAMP MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
RING, TURNTABLE MAY W10679311 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
MICROCOMPUTER MAY W10881542 Contact Us For Availability
4
FRAME, INNER MAY W10648086 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
HOUSING, DAMPER MAY W10556824 Contact Us For Availability
4
DRIVER, TURNTABLE MAY W10337248 Contact Us For Availability
4
CORD, POWER MAY W10654511 Contact Us For Availability
5
ASSEMBLY, DOOR FRAME (WHITE) MAY W10888477 Contact Us For Availability
5
PLATE, BOTTOM MAY W10571127 Contact Us For Availability
5
MOTOR, FAN MAY W10726505 Contact Us For Availability
5
MOTOR, TURNTABLE MAY W10642989 Contact Us For Availability
5
CASE, OUTER (WHITE) MAY W10571409 Contact Us For Availability
5A
ASSEMBLY, DOOR FRAME (BLACK) MAY W10888476 Contact Us For Availability
5A
CASE, OUTER (BLACK) MAY W10571408 Contact Us For Availability
5B
ASSEMBLY, DOOR FRAME (STAINLESS) MAY W10866697 Contact Us For Availability
6
PLATE, STEAM PROTECTION MAY W10514243 Contact Us For Availability
6
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
6
PLATE, AIR DEFLECTOR MAY W10889794 Contact Us For Availability
6
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
6
GRILLE, VENT (WHITE) MAY W10701696 Contact Us For Availability
6A
GRILLE, VENT (BLACK) MAY W10701697 Contact Us For Availability
7
FOIL, DOOR MAY W10647793 Contact Us For Availability
7
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
7
FILTER, CHARCOAL MAY 8206230 Contact Us For Availability
7
RACK, MICROWAVE MAY W10637159 Contact Us For Availability
7
ASSEMBLY, MOUNTING NUT MAY W10596040 Contact Us For Availability
8
HOOKS, DOOR MAY W10489272 Contact Us For Availability
8
CHASSIS MAY W10908575 Contact Us For Availability
8
SEAL, AIR GUIDE MAY W10626456 Contact Us For Availability
8
HOOK, MICROWAVE (LEFT FRONT & RIGHT FRONT) MAY W10740485 Contact Us For Availability
9
BADGE MAY W10612925 Contact Us For Availability
9
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
9
OUTLET, CAVITY (FRONT) (FOR WHITE MODELS) MAY W10892382 Contact Us For Availability
9
HOOK, MICROWAVE (LEFT REAR) MAY W10749119 Contact Us For Availability
9A
OUTLET, CAVITY (FRONT) (BLACK AND STAINLESS M MAY W10570208 Contact Us For Availability
10
TRIM, DOOR (WHITE) MAY W10892376 Contact Us For Availability
10
SPRING, INTERLOCK MAY W10156812 Contact Us For Availability
10
BOARD, FILTER MAY W10531156 Contact Us For Availability
10
HOOK, MICROWAVE (RIGHT REAR) MAY W10749120 Contact Us For Availability
10A
TRIM, DOOR (BLACK) MAY W10892375 Contact Us For Availability
11
ASSEMBLY, DOOR GLASS (WHITE) MAY W10860864 Contact Us For Availability
11
PLATE, CAM MAY W10156811 Contact Us For Availability
11
SOCKET, CAVITY LAMP MAY W10210878 Contact Us For Availability
11A
ASSEMBLY, DOOR GLASS (BLACK) MAY W10860865 Contact Us For Availability
12
SUPPORT, INTERLOCK (TOP) MAY 8206419 Contact Us For Availability
12
BASEPLATE, AIR GUIDE MAY W10892373 Contact Us For Availability
12A
SUPPORT, INTERLOCK (BOTTOM) MAY W10156813 Contact Us For Availability
13
DIODE, HIGH VOLTAGE MAY W10575765 Contact Us For Availability
13
SEAL, FOAM MAY W10571180 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE MAY W10561770 Contact Us For Availability
14
SOCKET, MOTOR WIRE MAY W10810142 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10605897 Contact Us For Availability
15
MAGNETRON MAY W10754514 Contact Us For Availability
16
THERMISTOR, PCBA MAY W10536989 Contact Us For Availability
16
THERMOSTAT, MAGNETRON MAY W10598693 Contact Us For Availability
17
BRACKET, CAVITY MAY W10540718 Contact Us For Availability
17
OUTLET, CAVITY (BACK) MAY W10533111 Contact Us For Availability
18
DEFLECTOR, AIR MAY W10533481 Contact Us For Availability
18
GLASS, LAMP MAY W10531724 Contact Us For Availability
19
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
19
COVER, DUCT (RIGHT) MAY W10869222 Contact Us For Availability
20
AIR GUIDE, MAGNETRON MAY W10631700 Contact Us For Availability
20
SHIELD, FINGER (INCLUDES SEAL) MAY W10629803 Contact Us For Availability
21
MOTOR, COOLING MAY W10536556 Contact Us For Availability
21
SENSOR, HUMIDITY MAY W10557536 Contact Us For Availability
22
THERMOSTAT, CAVITY MAY W10840013 Contact Us For Availability
22
FUSE MAY W10138793 Contact Us For Availability
23
TRANSFORMER, HIGH VOLTAGE MAY W11087316 Contact Us For Availability
24
BRACKET, CAPACITOR MAY W10633730 Contact Us For Availability
25
RESISTOR, CEMENT MAY W10568805 Contact Us For Availability
26
HOLDER, NTC MAY W10533480 Contact Us For Availability
27
COVER, COOLING FAN MAY W10533502 Contact Us For Availability
28
HOUSING, COOLING FAN MAY W10533501 Contact Us For Availability
29
WHEEL, COOLING FAN MAY W10533503 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND T MAY W10710692 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10821385 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN MAY W11087323 Contact Us For Availability
× ![]()
