Model Maytag MMV1174FB0 MICROWAVE HOOD, 1.7 CUBIC FOOT – Common Parts & Diagrams
01 - COVER SHEET

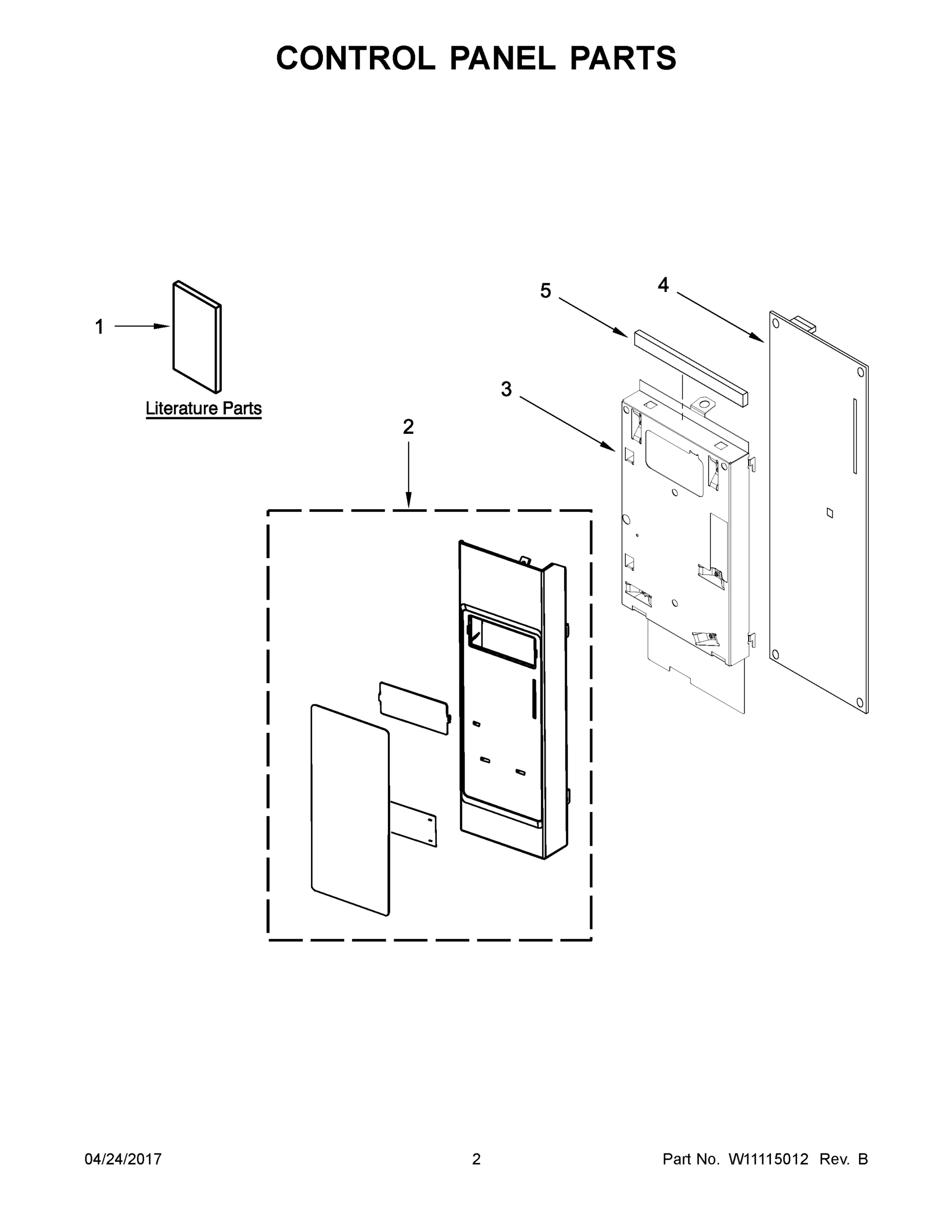

02 - CONTROL PANEL PARTS

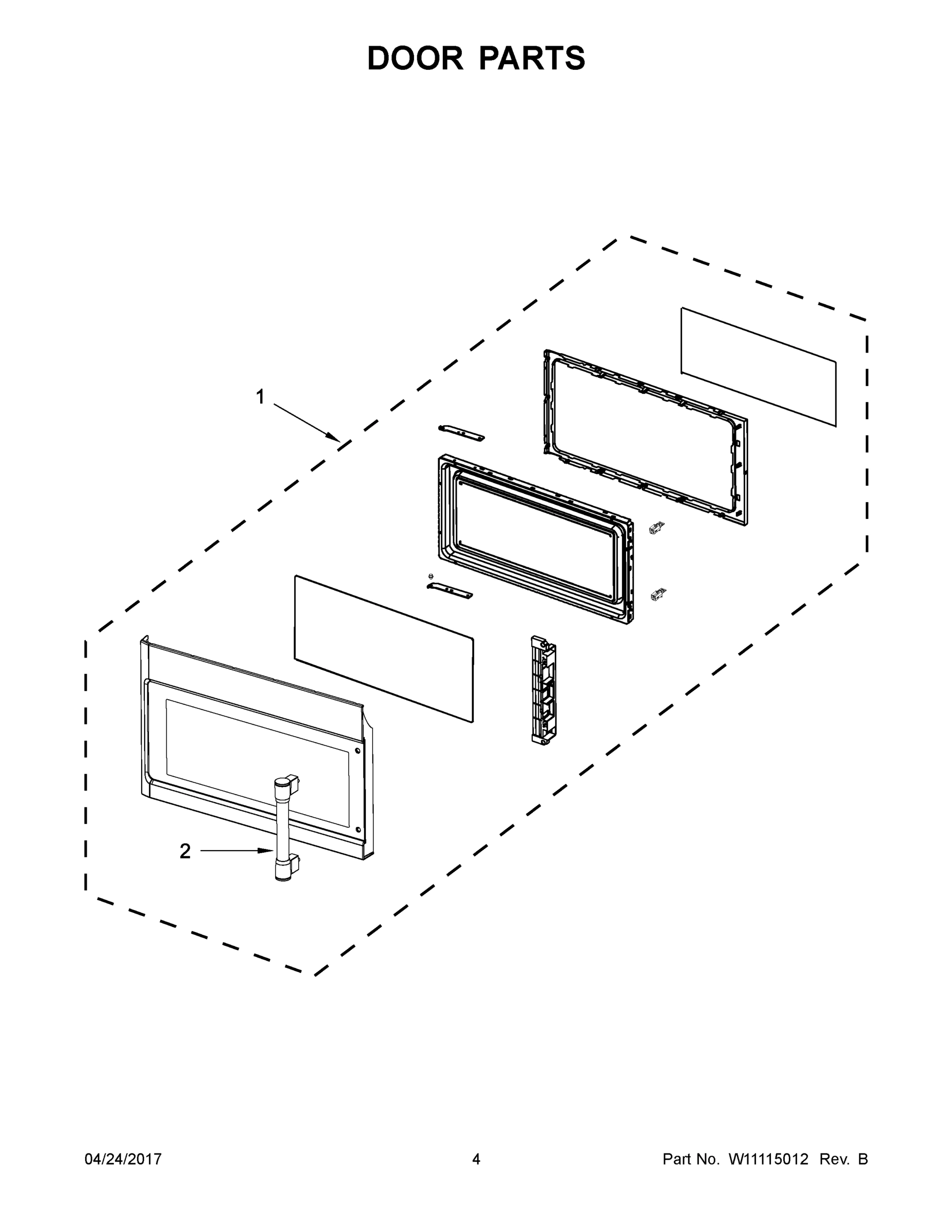

03 - DOOR PARTS

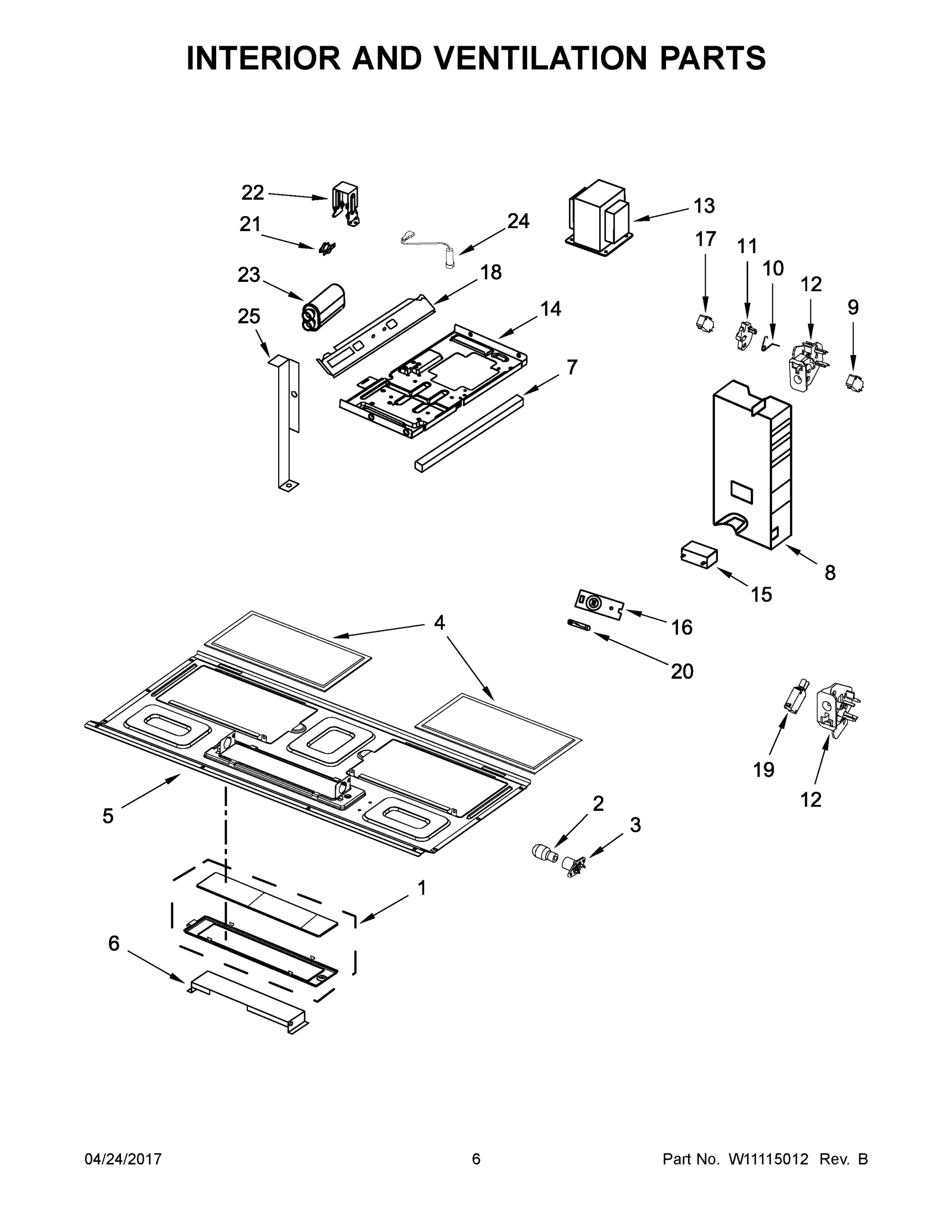

04 - INTERIOR AND VENTILATION PARTS

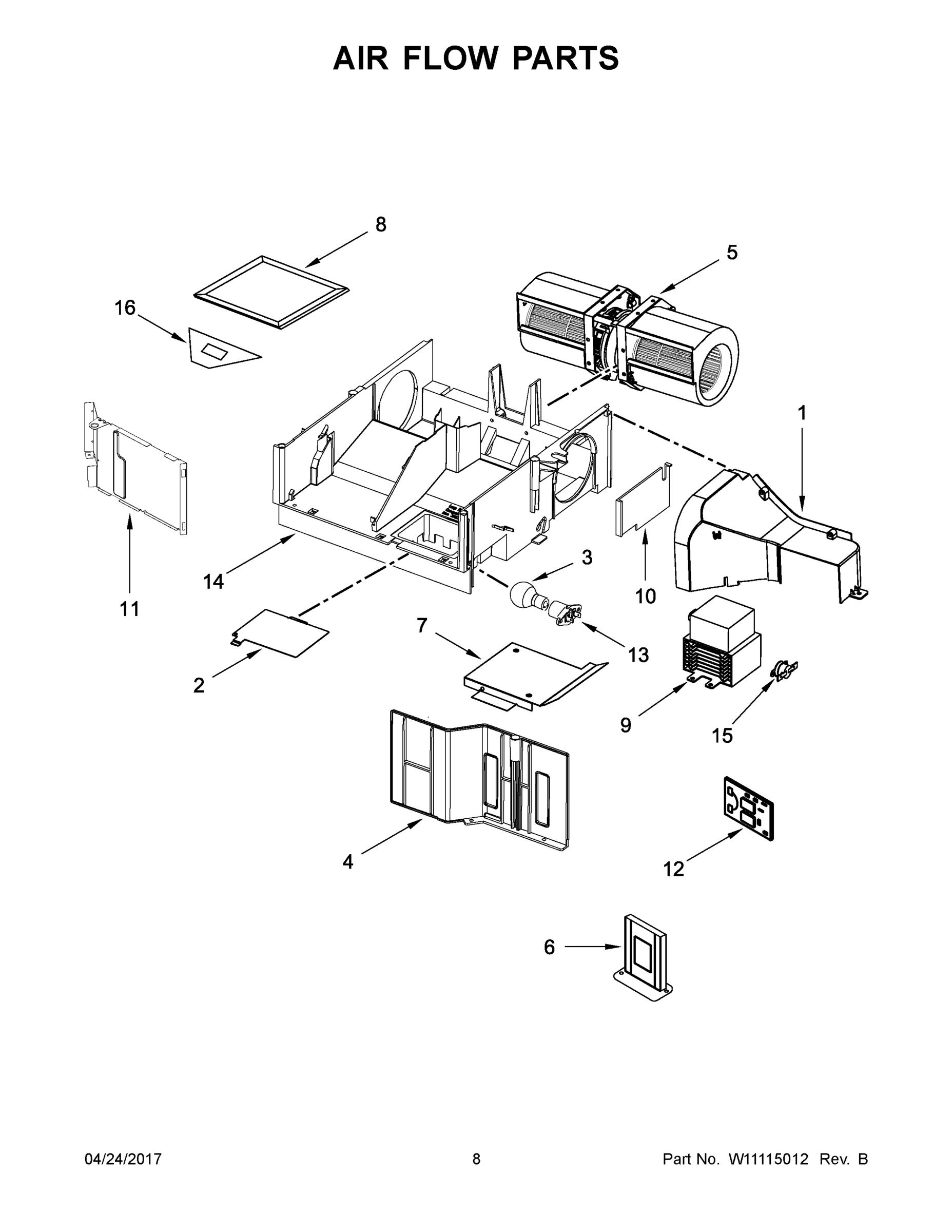

05 - AIR FLOW PARTS

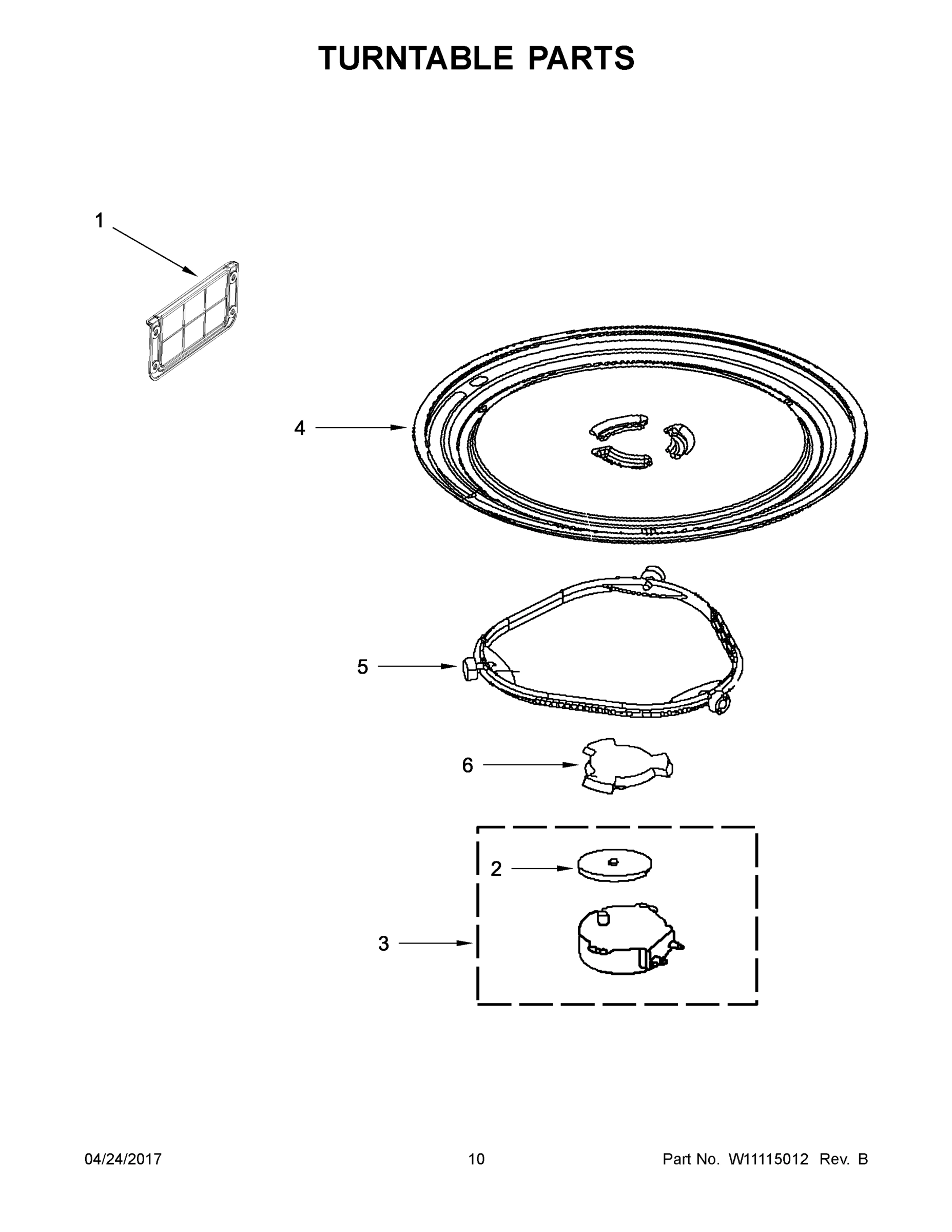

06 - TURNTABLE PARTS

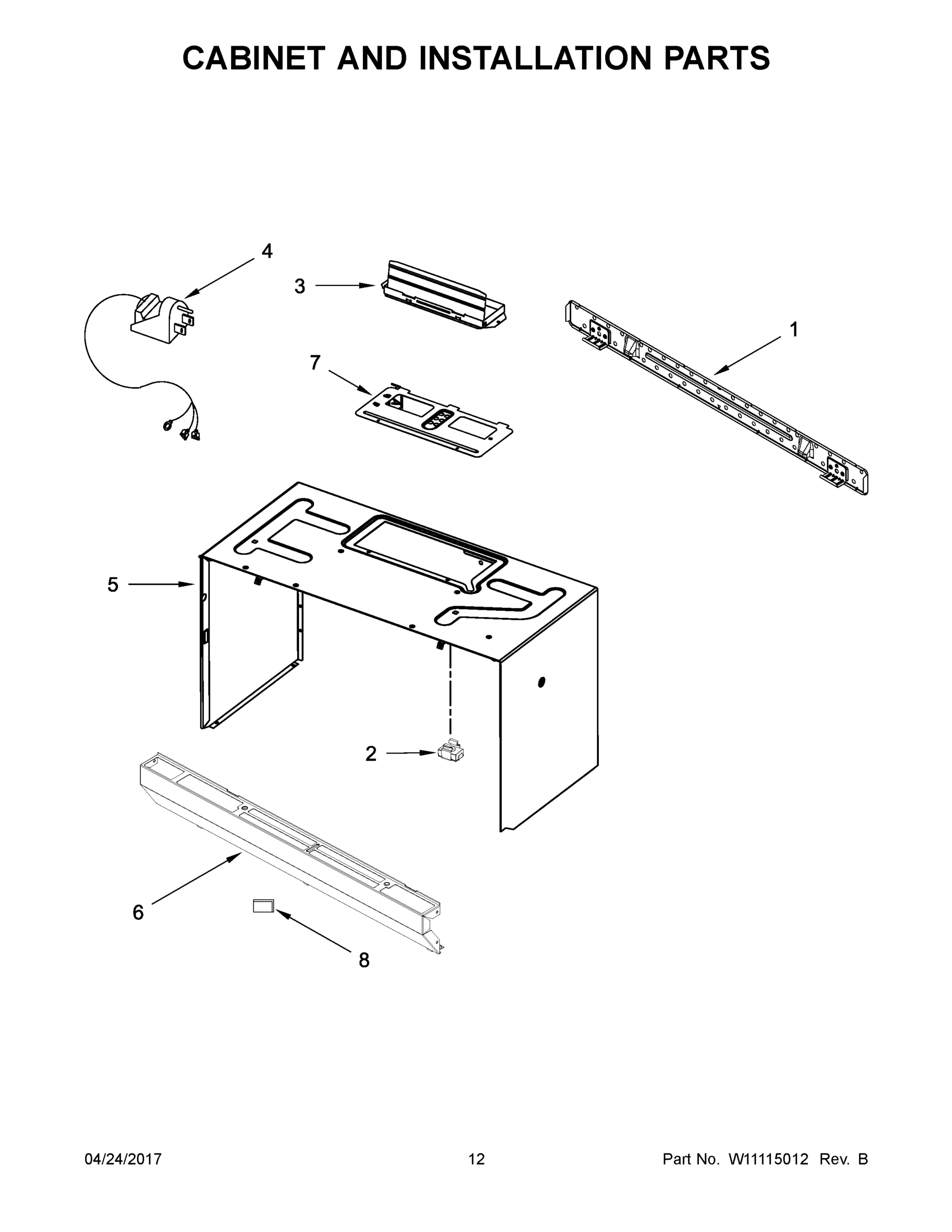

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag MMV1174FB0 MICROWAVE HOOD, 1.7 CUBIC FOOT
1
MAY W10918334 MAY W10918334 Contact Us For Availability
1
MAY W11037844 MAY W11037844 Contact Us For Availability
1
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10471570 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W10313272 Contact Us For Availability
1
PLATE, MOUNTING MAY W10440498 Contact Us For Availability
1A
MAY W10918346 MAY W10918346 Contact Us For Availability
1A
MAY W11037845 MAY W11037845 Contact Us For Availability
1B
COOK GUIDE LABEL MAY W10835580 Contact Us For Availability
1B
DOOR, COMPLETE (STAINLESS) MAY W11037847 Contact Us For Availability
1C
TECH SHEET MAY W10867019 Contact Us For Availability
2
MAY W11037843 MAY W11037843 Contact Us For Availability
2
HANDLE (WHITE) MAY W10890417 Contact Us For Availability
2
LAMP 40 WATT MAY 8206232 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
2
ASSEMBLY, MOUNTING NUT MAY W10596040 Contact Us For Availability
2A
MAY W11037842 MAY W11037842 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10890418 Contact Us For Availability
2B
ASSEMBLY, CONTROL BOX (STAINLESS) MAY W10899481 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY W10858177 Contact Us For Availability
3
BACKER, CONTROL MAY W10833365 Contact Us For Availability
3
HOLDER, LAMP MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
MOTOR, TURNTABLE MAY W10642989 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
MAY W10849834 MAY W10849834 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
SHIELD, FINGER MAY W10342991 Contact Us For Availability
4
TURNTABLE MAY W10337247 Contact Us For Availability
4
CORD, POWER MAY W10654511 Contact Us For Availability
5
SEAL, CONTROL MAY W10833531 Contact Us For Availability
5
PLATE, BOTTOM MAY W10245196 Contact Us For Availability
5
MOTOR, HOOD FAN MAY W10825649 Contact Us For Availability
5
RING, TURNTABLE (WITH ROLLERS) MAY W10654906 Contact Us For Availability
5
CASE, OUTER (WHITE) MAY W10846309 Contact Us For Availability
5A
CASE, OUTER (BLACK) MAY W10845689 Contact Us For Availability
6
REFLECTOR, LAMP MAY W10250586 Contact Us For Availability
6
PLATE, WATERPROOF MAY W10770968 Contact Us For Availability
6
DRIVER, TURNTABLE MAY W10337248 Contact Us For Availability
6
GRILLE, VENT (WHITE) MAY W10845642 Contact Us For Availability
6A
GRILLE, VENT (BLACK) MAY W10845643 Contact Us For Availability
7
SEAL, COOLING MAY W10571179 Contact Us For Availability
7
GUIDE, AIR MAY W10138797 Contact Us For Availability
7
COVER, FAN MOTOR MAY W10625423 Contact Us For Availability
8
AIR GUIDE, LOWER MAY W10771884 Contact Us For Availability
8
FILTER, CHARCOAL MAY W10845250 Contact Us For Availability
8
BADGE MAY W10685340 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
9
MAGNETRON MAY W10693025 Contact Us For Availability
10
SPRING, INTERLOCK MAY W10156812 Contact Us For Availability
10
COVER, RIGHT DUCT MAY W10700156 Contact Us For Availability
11
PLATE, CAM MAY W10562613 Contact Us For Availability
11
PLATE, AIR GUIDE SEALING MAY W10827148 Contact Us For Availability
12
SUPPORT, INTERLOCK (TOP) MAY 8206419 Contact Us For Availability
12
FILTER, NOISE MAY W10422269 Contact Us For Availability
12A
SUPPORT, INTERLOCK (BOTTOM) MAY W10156813 Contact Us For Availability
13
TRANSFORMER, HIGH VOLTAGE MAY W10754523 Contact Us For Availability
13
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
14
CHASSIS MAY W10827115 Contact Us For Availability
14
PLATE, AIR GUIDE BASE MAY W10828030 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10210855 Contact Us For Availability
15
THERMOSTAT, MAGNETRON MAY W10832024 Contact Us For Availability
16
THERMISTOR MAY W10163422 Contact Us For Availability
16
SOCKET, MOTOR WIRE MAY W10810142 Contact Us For Availability
17
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
18
SUPPORT, NTC MAY W10476124 Contact Us For Availability
19
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
20
FUSE MAY W10138793 Contact Us For Availability
21
THERMOSTAT, CAVITY MAY W10269232 Contact Us For Availability
22
BRACKET, CAPACITOR MAY W10532063 Contact Us For Availability
23
CAPACITOR, HIGH VOLTAGE MAY W10343300 Contact Us For Availability
24
DIODE, HIGH VOLTAGE MAY W10886077 Contact Us For Availability
25
BRACKET, TOP CAVITY MAY W10313275 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HI MAY W10498567 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10821385 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN MAY W10872453 Contact Us For Availability
× ![]()
