Model Maytag MMV1174DS3 MICROWAVE, HOOD COMBO – Common Parts & Diagrams
01 - COVER SHEET

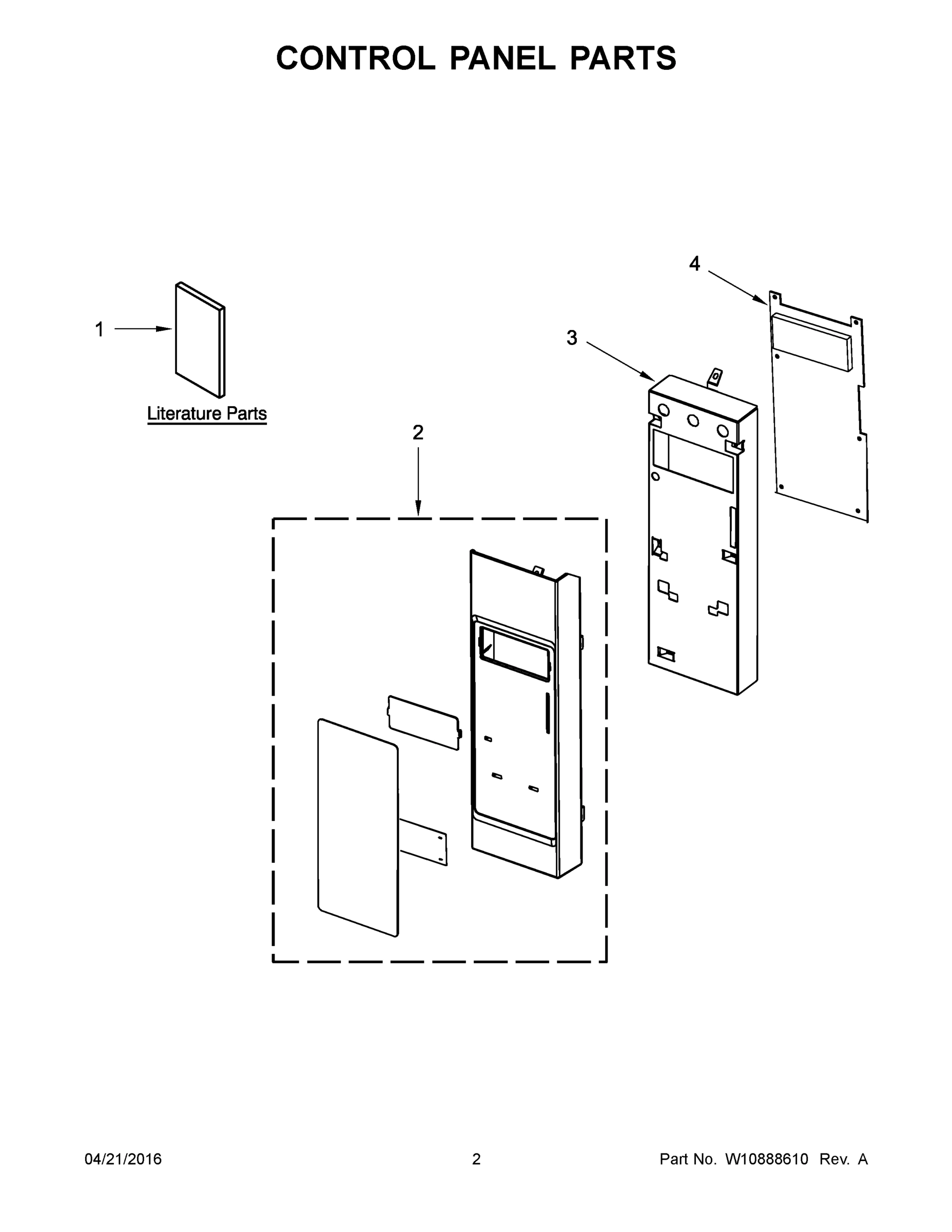

02 - CONTROL PANEL PARTS

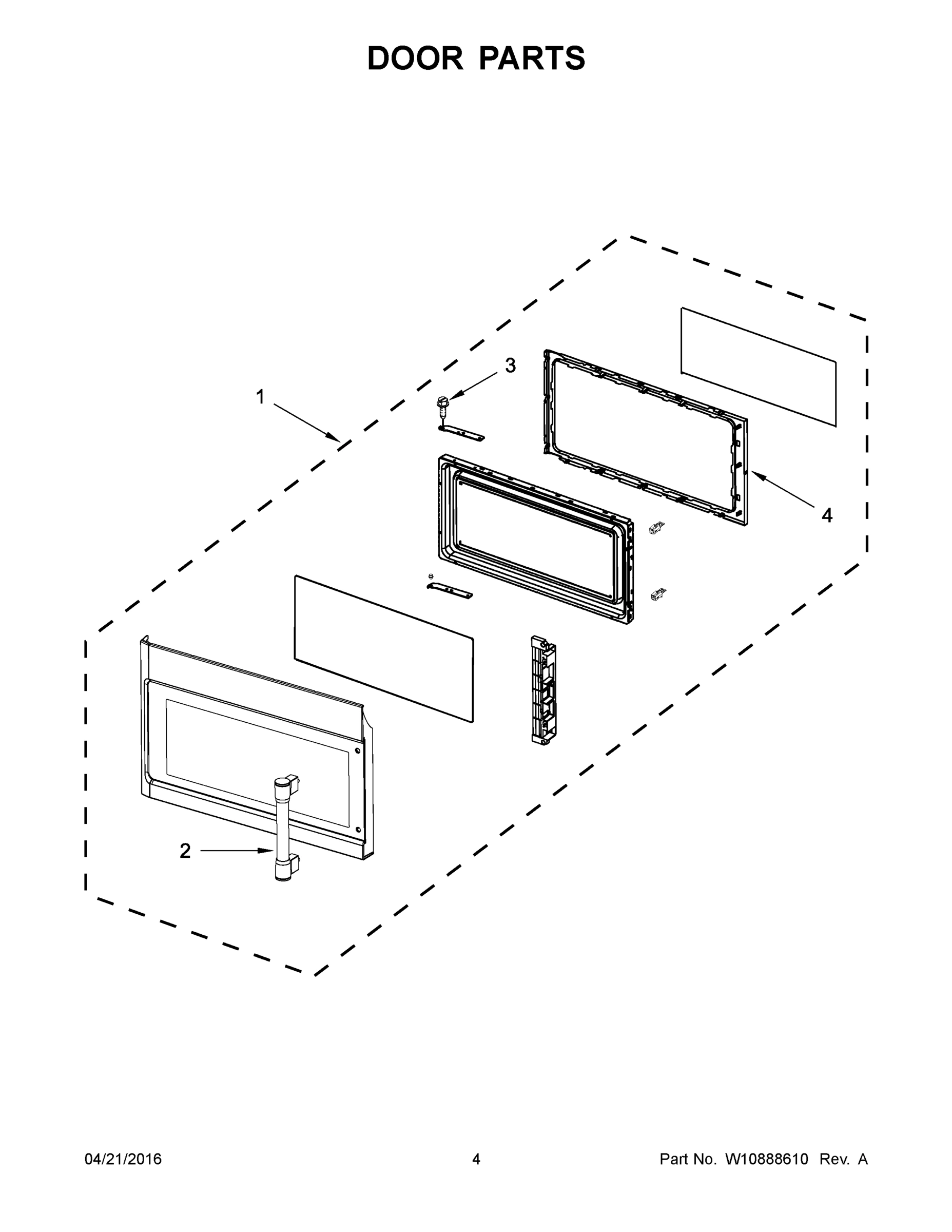

03 - DOOR PARTS

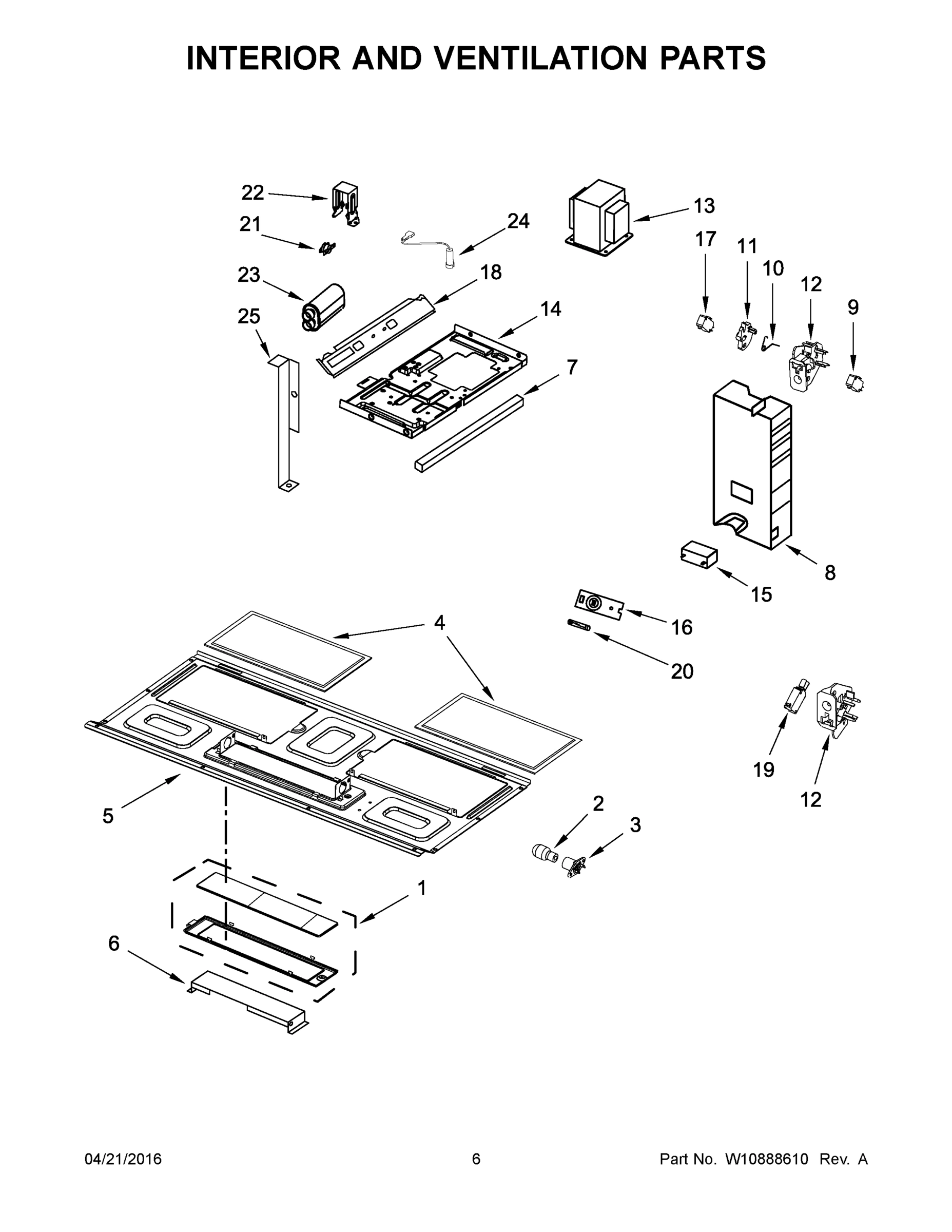

04 - INTERIOR AND VENTILATION PARTS

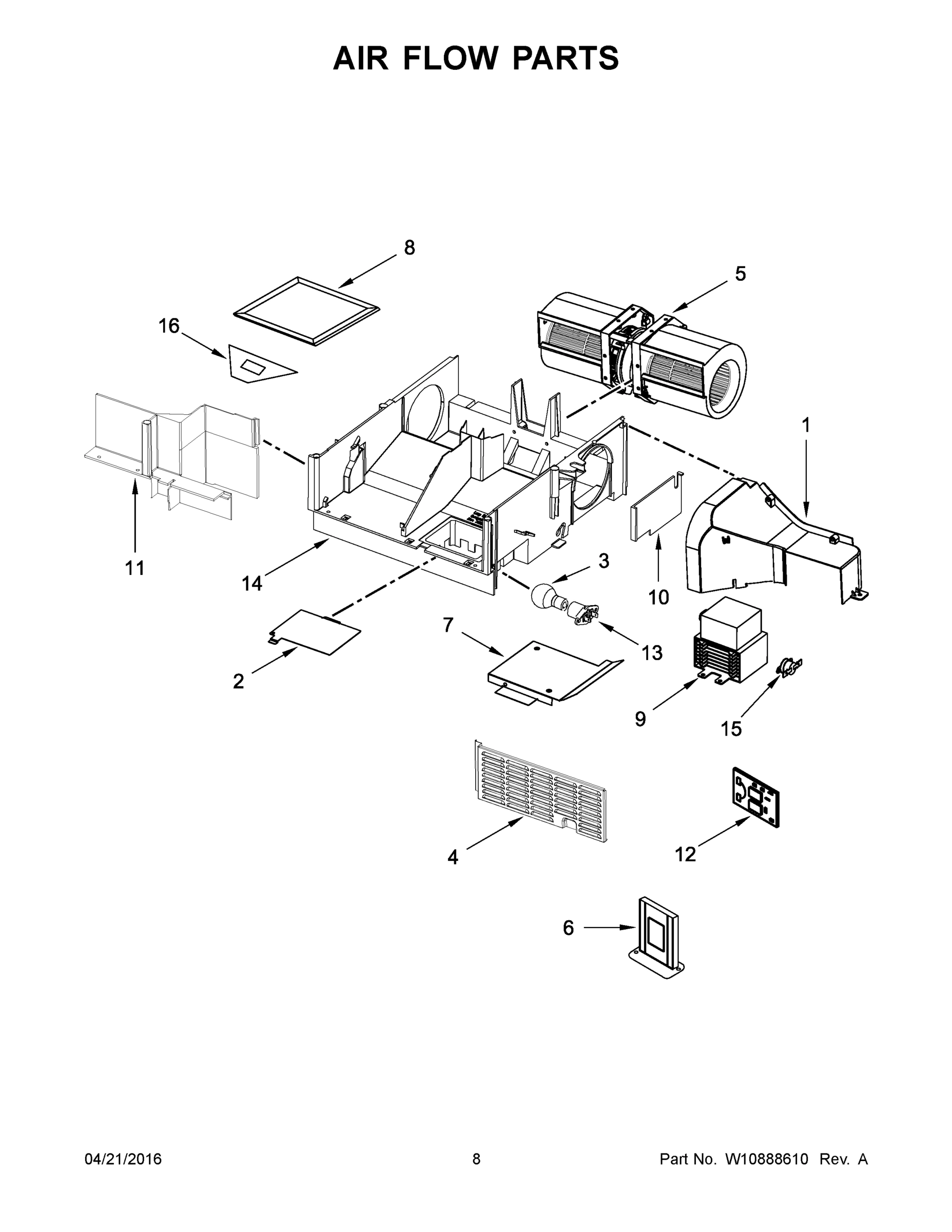

05 - AIR FLOW PARTS

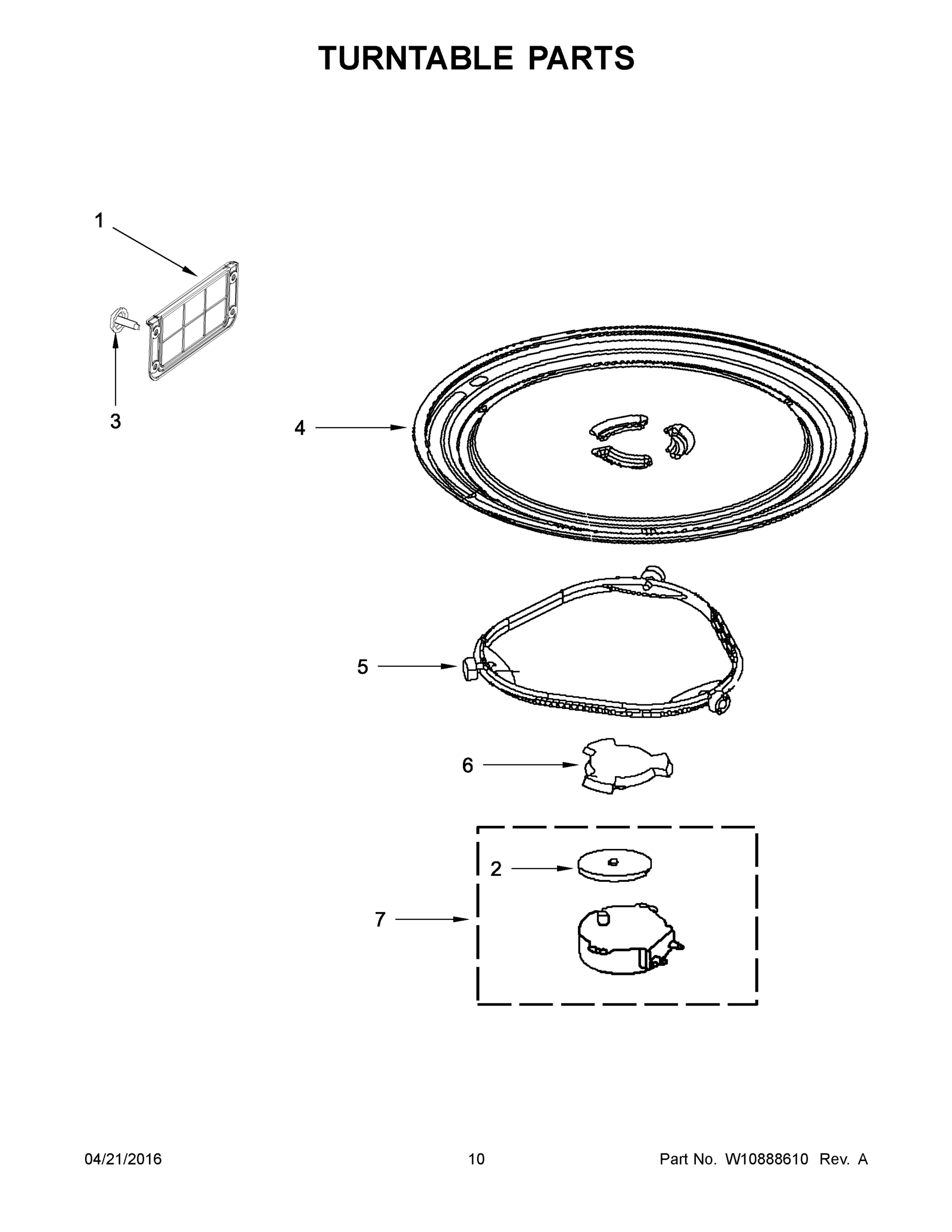

06 - TURNTABLE PARTS

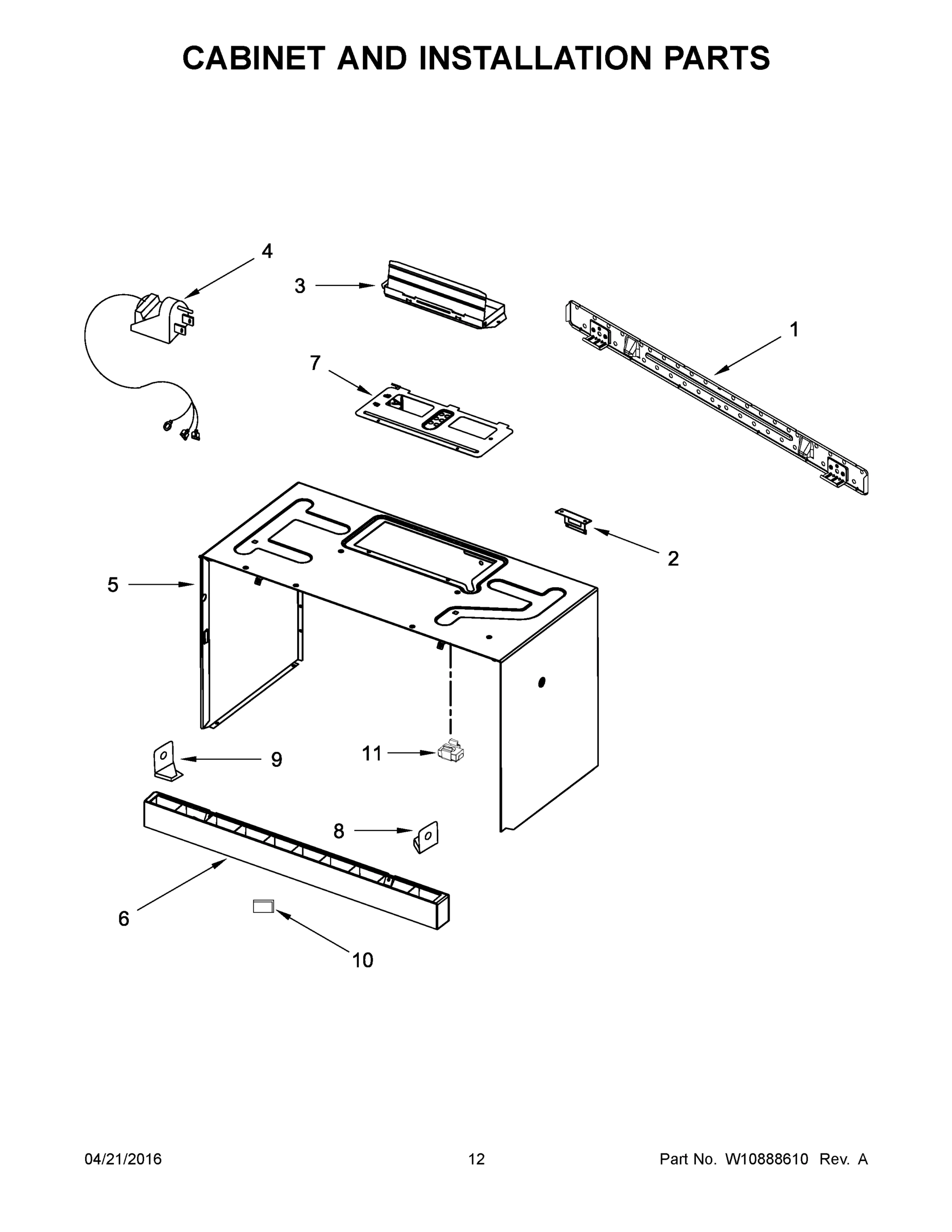

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag MMV1174DS3 MICROWAVE, HOOD COMBO
1
MAY W10823831 MAY W10823831 Contact Us For Availability
1
MAY W10673098 MAY W10673098 Contact Us For Availability
1
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
1
MAY W10471570 MAY W10471570 Contact Us For Availability
1
COVER, WAVEGUIDE (INCLUDES NAILS AND BUSHINGS MAY W10313272 Contact Us For Availability
1
MAY W10440498 MAY W10440498 Contact Us For Availability
1A
MAY W10721264 MAY W10721264 Contact Us For Availability
1A
MAY W10673100 MAY W10673100 Contact Us For Availability
1B
MAY W10612338 MAY W10612338 Contact Us For Availability
1B
MAY W10673099 MAY W10673099 Contact Us For Availability
1C
TECH SHEET MAY W10742543 Contact Us For Availability
2
MAY W10615652 MAY W10615652 Contact Us For Availability
2
MAY W10679297 MAY W10679297 Contact Us For Availability
2
LAMP 40 WATT MAY 8206232 Contact Us For Availability
2
MAY 8206382 MAY 8206382 Contact Us For Availability
2
MAY 8184109 MAY 8184109 Contact Us For Availability
2
MAY 8206385 MAY 8206385 Contact Us For Availability
2A
MAY W10673097 MAY W10673097 Contact Us For Availability
2A
MAY W10679298 MAY W10679298 Contact Us For Availability
2B
MAY W10673096 MAY W10673096 Contact Us For Availability
3
MAY W10723871 MAY W10723871 Contact Us For Availability
3
MAY W10138802 MAY W10138802 Contact Us For Availability
3
MAY W10210871 MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
RIVETS MAY W10138801 Contact Us For Availability
3
MAY W10748710 MAY W10748710 Contact Us For Availability
4
MAY W10740801 MAY W10740801 Contact Us For Availability
4
MAY W10640812 MAY W10640812 Contact Us For Availability
4
MAY W10208631 MAY W10208631 Contact Us For Availability
4
SHIELD, FINGER MAY W10342991 Contact Us For Availability
4
MAY W10337247 MAY W10337247 Contact Us For Availability
4
MAY W10654511 MAY W10654511 Contact Us For Availability
5
MAY W10245196 MAY W10245196 Contact Us For Availability
5
MAY W10836180 MAY W10836180 Contact Us For Availability
5
MAY W10654906 MAY W10654906 Contact Us For Availability
5
MAY W10838183 MAY W10838183 Contact Us For Availability
5A
MAY W10837530 MAY W10837530 Contact Us For Availability
6
MAY W10250586 MAY W10250586 Contact Us For Availability
6
MAY W10770968 MAY W10770968 Contact Us For Availability
6
MAY W10337248 MAY W10337248 Contact Us For Availability
6
MAY W10718218 MAY W10718218 Contact Us For Availability
6A
MAY W10245217 MAY W10245217 Contact Us For Availability
6B
MAY W10245218 MAY W10245218 Contact Us For Availability
7
MAY W10313276 MAY W10313276 Contact Us For Availability
7
GUIDE, AIR MAY W10138797 Contact Us For Availability
7
MAY W10642989 MAY W10642989 Contact Us For Availability
7
COVER, HOOD FAN MOTOR MAY W10210832 Contact Us For Availability
8
MAY W10771884 MAY W10771884 Contact Us For Availability
8
MAY 8206230 MAY 8206230 Contact Us For Availability
8
VENT GRID HOLDER, RIGHT SIDE (STAINLESS & WHI MAY W10703282 Contact Us For Availability
8A
VENT GRID HOLDER, RIGHT SIDE (BLACK) MAY W10703283 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
9
MAY W10693025 MAY W10693025 Contact Us For Availability
9
VENT GRID HOLDER, LEFT SIDE (STAINLESS & WHIT MAY W10703284 Contact Us For Availability
9A
VENT GRID HOLDER, LEFT SIDE (BLACK) MAY W10703285 Contact Us For Availability
10
MAY W10156812 MAY W10156812 Contact Us For Availability
10
MAY W10700156 MAY W10700156 Contact Us For Availability
10
MAY W10685340 MAY W10685340 Contact Us For Availability
11
MAY W10562613 MAY W10562613 Contact Us For Availability
11
MAY W10771885 MAY W10771885 Contact Us For Availability
11
MAY W10596040 MAY W10596040 Contact Us For Availability
12
MAY 8206419 MAY 8206419 Contact Us For Availability
12
MAY W10605455 MAY W10605455 Contact Us For Availability
12A
MAY W10156813 MAY W10156813 Contact Us For Availability
13
MAY W10754523 MAY W10754523 Contact Us For Availability
13
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
14
MAY W10269456 MAY W10269456 Contact Us For Availability
14
MAY W10771886 MAY W10771886 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10210855 Contact Us For Availability
15
MAY W10491433 MAY W10491433 Contact Us For Availability
16
THERMISTOR MAY W10163422 Contact Us For Availability
16
MAY W10810142 MAY W10810142 Contact Us For Availability
17
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
18
MAY W10476124 MAY W10476124 Contact Us For Availability
19
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
20
MAY W10138793 MAY W10138793 Contact Us For Availability
21
THERMOSTAT, CAVITY MAY W10269232 Contact Us For Availability
22
MAY W10532063 MAY W10532063 Contact Us For Availability
23
CAPACITOR, HIGH VOLTAGE MAY W10343300 Contact Us For Availability
24
MAY W10492278 MAY W10492278 Contact Us For Availability
25
BRACKET, TOP CAVITY MAY W10313275 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER MAY W10190018 Contact Us For Availability
NI
MAY W10498567 MAY W10498567 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MAY W10821385 MAY W10821385 Contact Us For Availability
NI
MAY W10872453 MAY W10872453 Contact Us For Availability
× ![]()
