Model LG MMC5086AAS – Common Parts & Diagrams

*01
LGE 3828W5A2748
LGE 3828W5A2748 LGE 3828W5A2748 Contact Us For Availability
View on Model
*04
MANUAL,INSTALLATION
MANUAL,INSTALLATION LGE 3828W5U0181 Contact Us For Availability
View on Model
*06
LGE 4922W5A037A
LGE 4922W5A037A LGE 4922W5A037A Contact Us For Availability
View on Model
*10
BOX,YELLOW
BOX,YELLOW LGE 3890W3Y420D Contact Us For Availability
View on Model
50CZZH
CAPACITOR,[HIGH VOLTAGE]
CAPACITOR,[HIGH VOLTAGE] LGE 0CZZW1H001P Contact Us For Availability
View on Model
50FZZA
FUSE
FUSE LGE 3B70856G Contact Us For Availability
View on Model

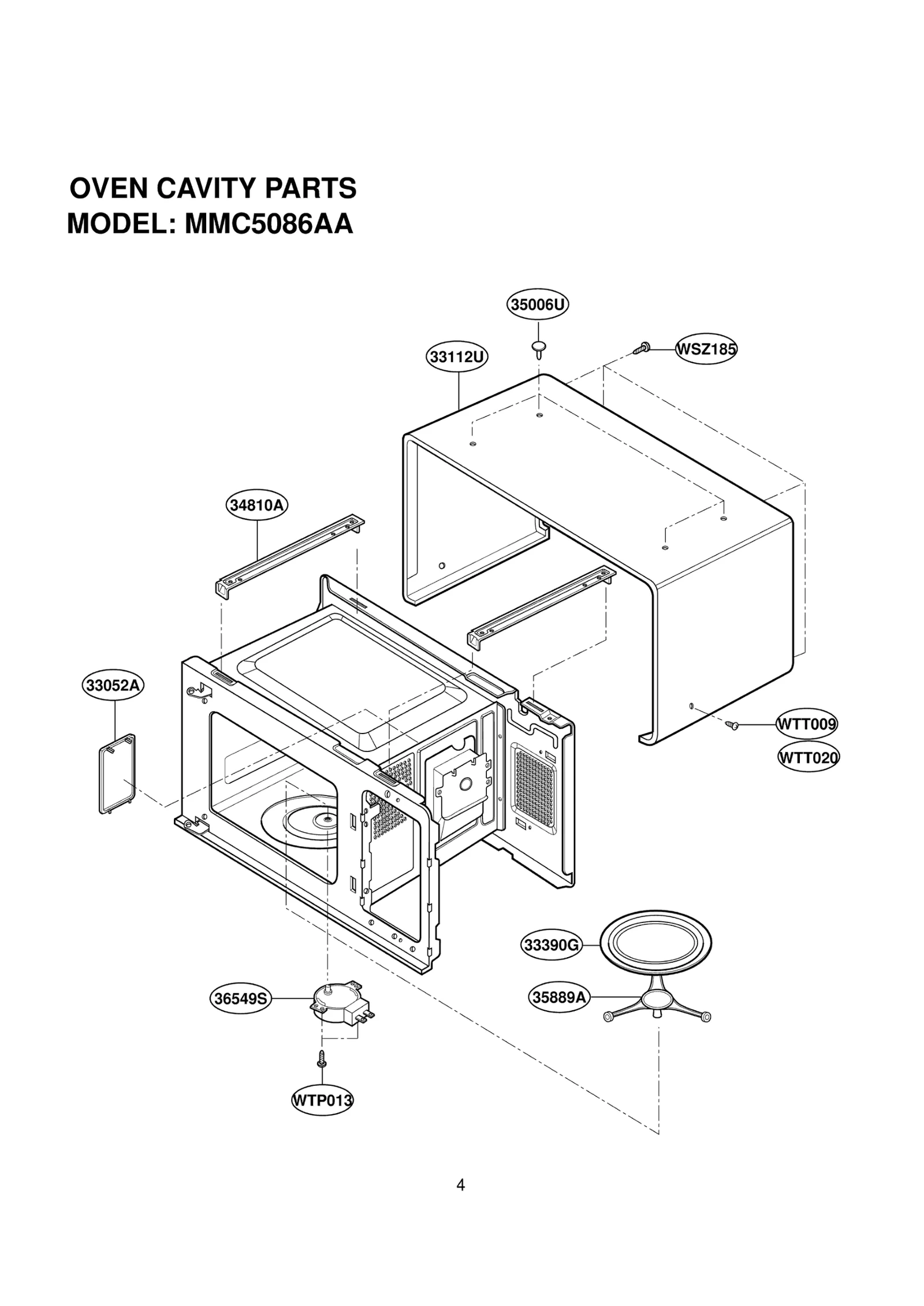

33390G
TRAY,GLASS
TRAY,GLASS LGE 3390W1A015B Contact Us For Availability
View on Model
34810Q
LGE 3B70716A
LGE 3B70716A LGE 3B70716A Contact Us For Availability
View on Model

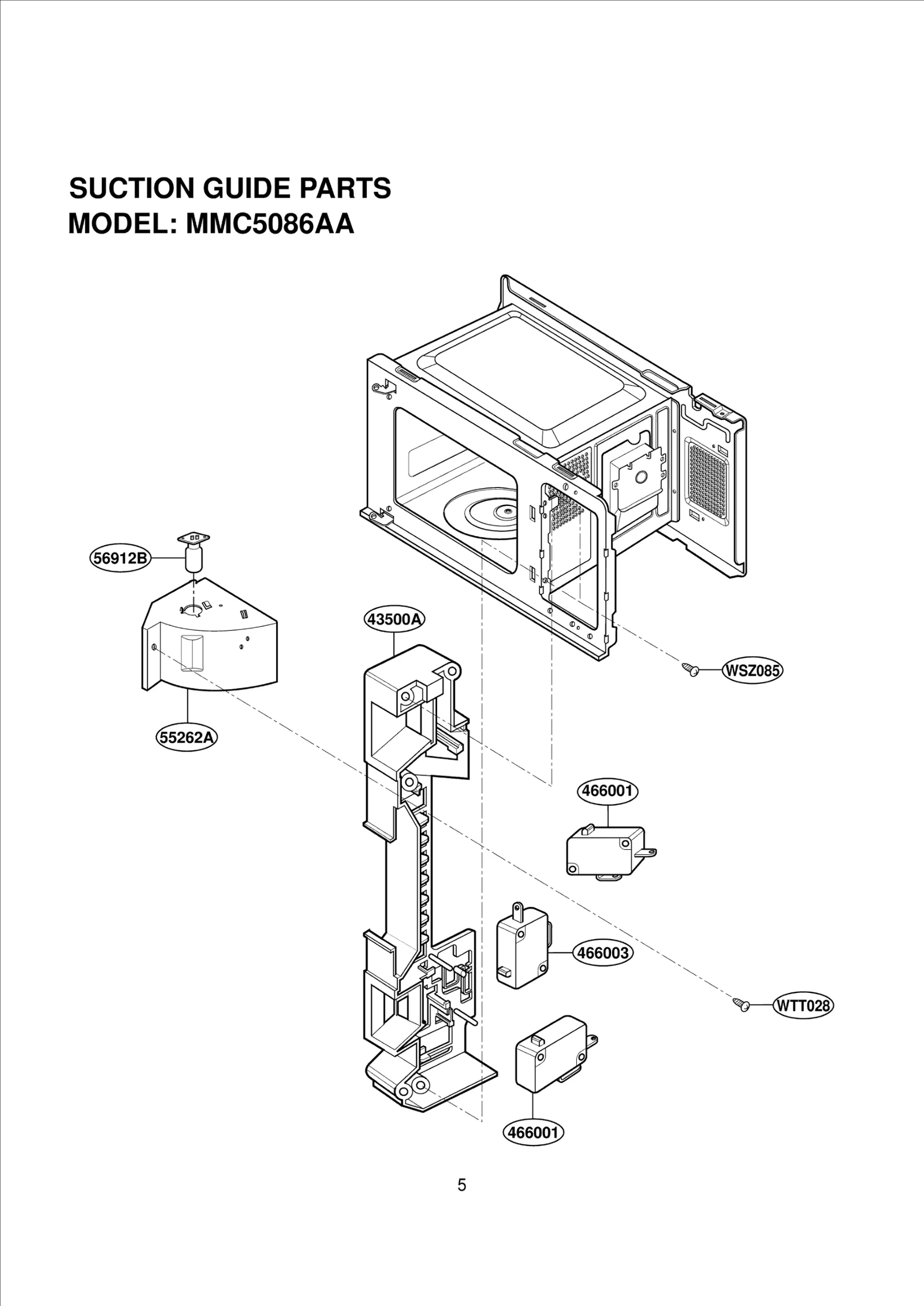

43500A
BOARD LATCH
BOARD LATCH LGE 3500W1A007A Contact Us For Availability
View on Model
54974S
GUIDE,[SUCTION]
GUIDE,[SUCTION] LGE 4974W1S056A Contact Us For Availability
View on Model
55006F
CAP,FUSE
CAP,FUSE LGE 5006WRA002D Contact Us For Availability
View on Model
55262A
AIR DUCT
AIR DUCT LGE 5262W2A044A Contact Us For Availability
View on Model
56170D
TRANSFORMER,HIGH VOLTAGE
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D071A Contact Us For Availability
View on Model
56411A
POWER CORD ASSY
POWER CORD ASSY LGE 6411W1A012A Contact Us For Availability
View on Model
56549F
MOTOR(CIRC),FAN
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
View on Model
63302A
BASE PLATE
BASE PLATE LGE 3302W0A019G Contact Us For Availability
View on Model
63303A
BASE PLATE ASSEMBLY
BASE PLATE ASSEMBLY LGE 3303W1A044H Contact Us For Availability
View on Model
63861A
LGE 3861W3A001P
LGE 3861W3A001P LGE 3861W3A001P Contact Us For Availability
View on Model
568771
HARNESS
HARNESS LGE 6877W1A227G Contact Us For Availability
View on Model

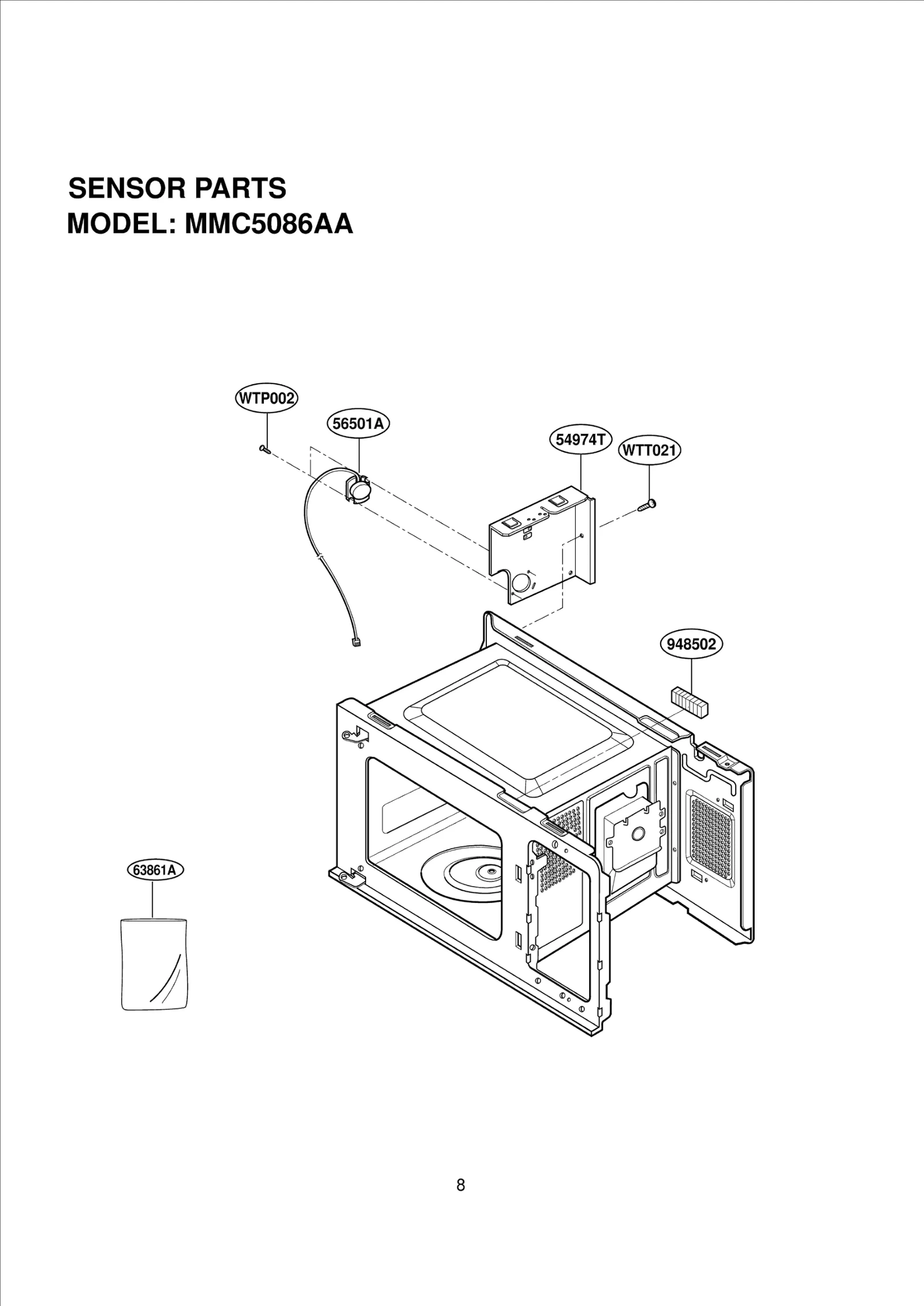

948502
CUSHION
CUSHION LGE 4850W1A001F Contact Us For Availability
View on Model
BZ1
BUZZER,PIEZO CERAMIC
BUZZER,PIEZO CERAMIC LGE 6908W3YA01B Contact Us For Availability
View on Model
