Model Electrolux MLXG62RBD1 LAUNDRY CENTER – Common Parts & Diagrams
02 - DRYER - CABINET, DRUM, HEATER

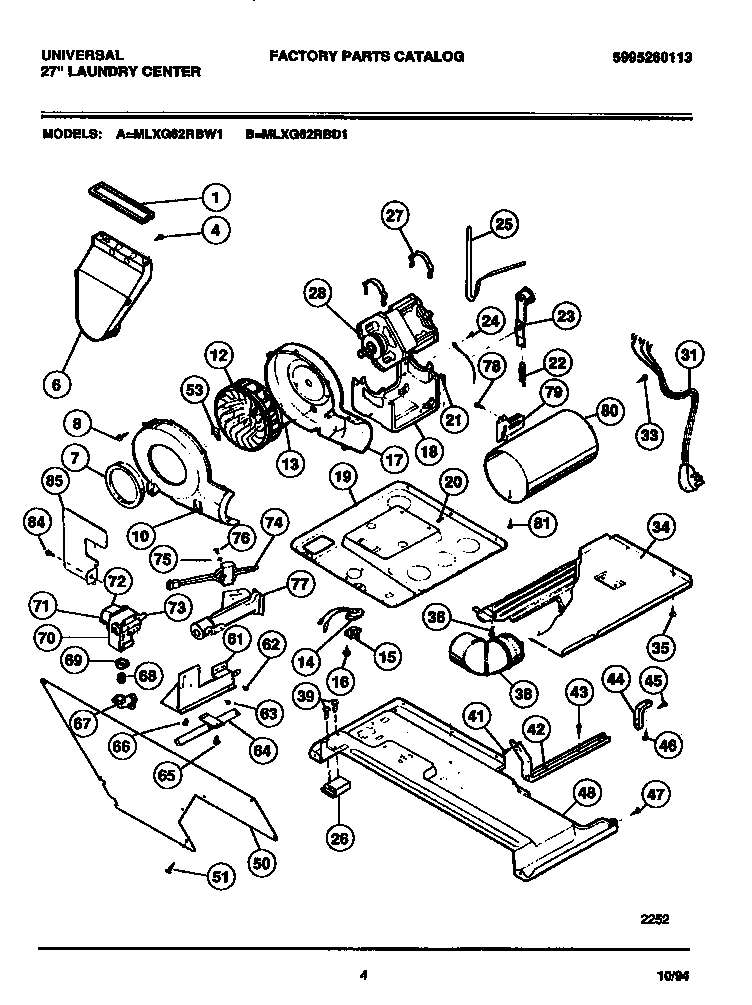

03 - DRYER - MOTOR, BLOWER, BELT

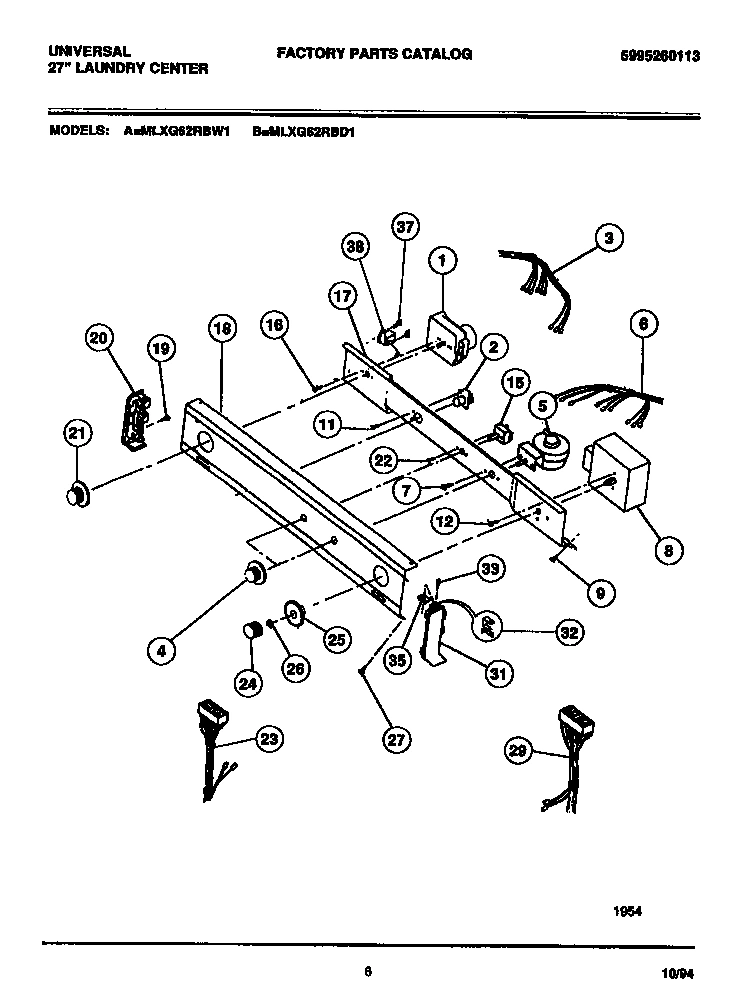

04 - CONSOLE & CONTROLS

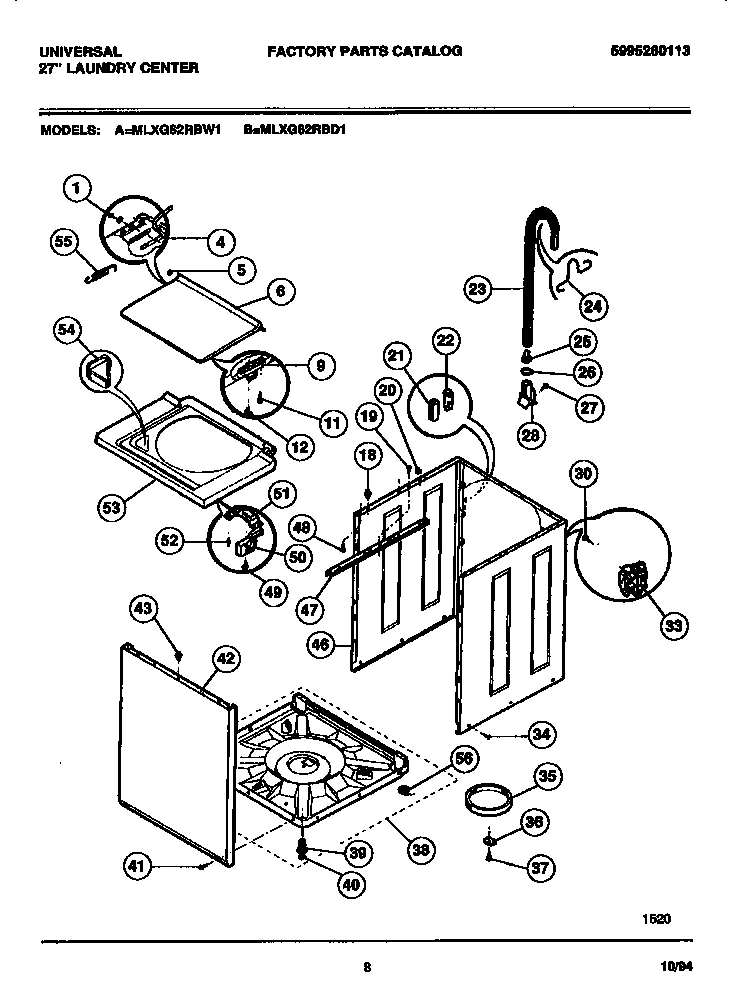

05 - WASHER - CABINET, TOP PANEL, BASE

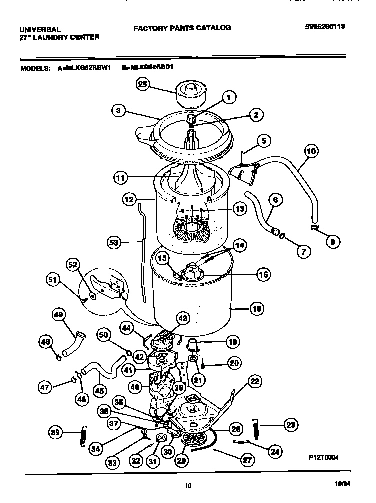

06 - WASHER - TUBS, HOSES, MOTOR

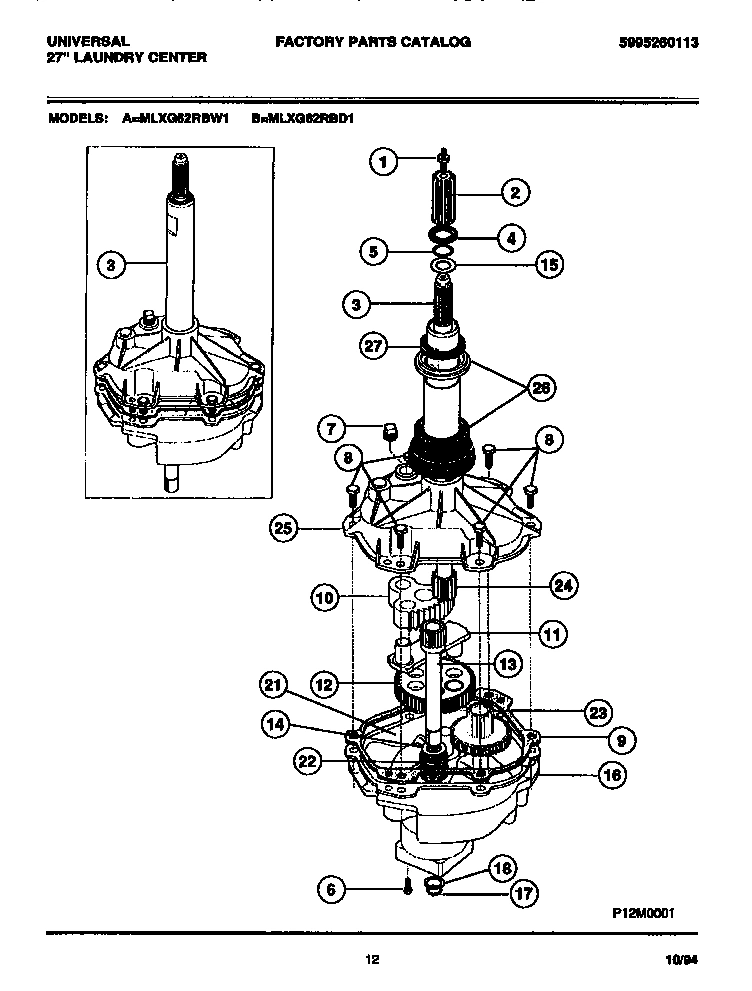

07 - TRANSMISSION
Common parts from model Electrolux MLXG62RBD1 LAUNDRY CENTER
*87523
INSERT-SPRING ADJ WCI 5303212877 Contact Us For Availability
1
STUD CAP WCI 131206800 Contact Us For Availability
1
WCI 5303297139 WCI 5303297139 Contact Us For Availability
1
SCREW (2) WCI 5303211089 Contact Us For Availability
2
SEAL-AGITATOR CAP WCI 3204396 Contact Us For Availability
2
WCI 5303209890 WCI 5303209890 Contact Us For Availability
6
WCI 5303212873 WCI 5303212873 Contact Us For Availability
7
WCI 5303161224 WCI 5303161224 Contact Us For Availability
8
SCREW (6) WCI 3205245 Contact Us For Availability
8
SCREW WCI 08002804 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
10
NOZZLE & HOSE ASSY WCI 3204400 Contact Us For Availability
10
GEAR-SECTOR WCI 5308011268 Contact Us For Availability
11
WCI 3204401 WCI 3204401 Contact Us For Availability
11
ROD-CONNECTING WCI 5303161169 Contact Us For Availability
12
SPIN TUB WCI 131099500 Contact Us For Availability
12
WCI 530815496 WCI 530815496 Contact Us For Availability
13
SHAFT-LOWER WCI 5308014905 Contact Us For Availability
14
WASHER-THRUST WCI 5303161226 Contact Us For Availability
15
CONTROL THERMOSTAT WCI 131322600 Contact Us For Availability
15
HEATER ASSEMBLY WCI 5303207394 Contact Us For Availability
15
SWITCH-TEMP -WASHER WCI 5308008463 Contact Us For Availability
16
WCI 1313622000 WCI 1313622000 Contact Us For Availability
17
WCI 5303161223 WCI 5303161223 Contact Us For Availability
18
LOCATING PIN WCI 131346400 Contact Us For Availability
18
WCI 131330600 WCI 131330600 Contact Us For Availability
18
WCI 5304404 WCI 5304404 Contact Us For Availability
18
WCI 5308002475 WCI 5308002475 Contact Us For Availability
20
WCI 5303209671 WCI 5303209671 Contact Us For Availability
21
WCI 5308014903 WCI 5308014903 Contact Us For Availability
21
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
22
WCI 3161259 WCI 3161259 Contact Us For Availability
22
BRACKET WCI 5303161252 Contact Us For Availability
22
LEG & DOME ASSY WCI 131373600 Contact Us For Availability
22
WCI 131375100 WCI 131375100 Contact Us For Availability
23
IDLER ARM ASSY WCI 3205242 Contact Us For Availability
23
DRAIN HOSE WCI 131210200 Contact Us For Availability
23
WCI 131305600 WCI 131305600 Contact Us For Availability
23
GEAR-IDLER WCI 5303161175 Contact Us For Availability
24
HORIZONTAL SPRING (3) WCI 131373900 Contact Us For Availability
24
RETAINER WCI 5303204987 Contact Us For Availability
24
KNOB-WASHER TIMER WCI 5303210341 Contact Us For Availability
24
WCI 5308015507 WCI 5308015507 Contact Us For Availability
25
INDICATOR-WASHER TIMER WCI 5303209901 Contact Us For Availability
25
FABRIC DISPENSER WCI 3205405 Contact Us For Availability
25
WCI 503206931 WCI 503206931 Contact Us For Availability
26
SEAL-TUB WCI 5303279394 Contact Us For Availability
26
SPACER-SHAFT WCI 3205248 Contact Us For Availability
26
WCI 131127616 WCI 131127616 Contact Us For Availability
27
SCREW WCI 3205253 Contact Us For Availability
27
THRUST WASHER WCI 5303161232 Contact Us For Availability
28
GUIDE CLIP (4) WCI 5303281074 Contact Us For Availability
28
WCI 5303283288 WCI 5303283288 Contact Us For Availability
28
WCI 3204376 WCI 3204376 Contact Us For Availability
29
WCI 131200500 WCI 131200500 Contact Us For Availability
29
TRANSMISSION PULLEY WCI 131361800 Contact Us For Availability
30
WCI 131312800 WCI 131312800 Contact Us For Availability
31
MOTOR PULLEY WCI 3204423 Contact Us For Availability
31
WCI 5303210650 WCI 5303210650 Contact Us For Availability
32
WCI 3204424 WCI 3204424 Contact Us For Availability
32
WCI 3204357 WCI 3204357 Contact Us For Availability
33
TORSION SPRING WCI 3204425 Contact Us For Availability
34
WCI 3204426 WCI 3204426 Contact Us For Availability
35
SNUBBER RING WCI 5308002385 Contact Us For Availability
35
CLIP (4) WCI 5308014350 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
36
SHIPPING BLOCK WCI 3204380 Contact Us For Availability
37
SPRING WASHER WCI 5303161306 Contact Us For Availability
37
SHIPPING SCREW WCI 131102900 Contact Us For Availability
38
WCI 5303286537 WCI 5303286537 Contact Us For Availability
38
WCI 5303300247 WCI 5303300247 Contact Us For Availability
38
HEX NUT (4) WCI 5303283079 Contact Us For Availability
40
PAD-LEVELING LEG WCI 5303004083 Contact Us For Availability
40
MOTOR - WASHER WCI 5303284905 Contact Us For Availability
41
MOTOR SHIELD WCI 131081700 Contact Us For Availability
42
WCI 5303931754 WCI 5303931754 Contact Us For Availability
42
WCI 3204451 WCI 3204451 Contact Us For Availability
43
WCI 131208500 WCI 131208500 Contact Us For Availability
44
WCI 131217100 WCI 131217100 Contact Us For Availability
45
WCI 3204454 WCI 3204454 Contact Us For Availability
46
HANDLE-DOOR-ALMOND WCI 131063601 Contact Us For Availability
46
WCI 5303931758 WCI 5303931758 Contact Us For Availability
46
CLIP-HOSE TO LEG WCI 3204455 Contact Us For Availability
49
WCI 3204458 WCI 3204458 Contact Us For Availability
50
WCI 3205646 WCI 3205646 Contact Us For Availability
50
CLAMP WCI 3204456 Contact Us For Availability
51
BRACKET-LID LOCK WCI 5303306138 Contact Us For Availability
51
WCI 3204459 WCI 3204459 Contact Us For Availability
52
RIVET (3) WCI 08002420 Contact Us For Availability
52
WASHER (3) WCI 131315800 Contact Us For Availability
53
PANEL TOP-ALMOND WCI 5303212875 Contact Us For Availability
54
WCI 3204394 WCI 3204394 Contact Us For Availability
64
WCI 5303207405 WCI 5303207405 Contact Us For Availability
× ![]()
