Model Electrolux MLXG62RBD0 LAUNDRY CENTER – Common Parts & Diagrams

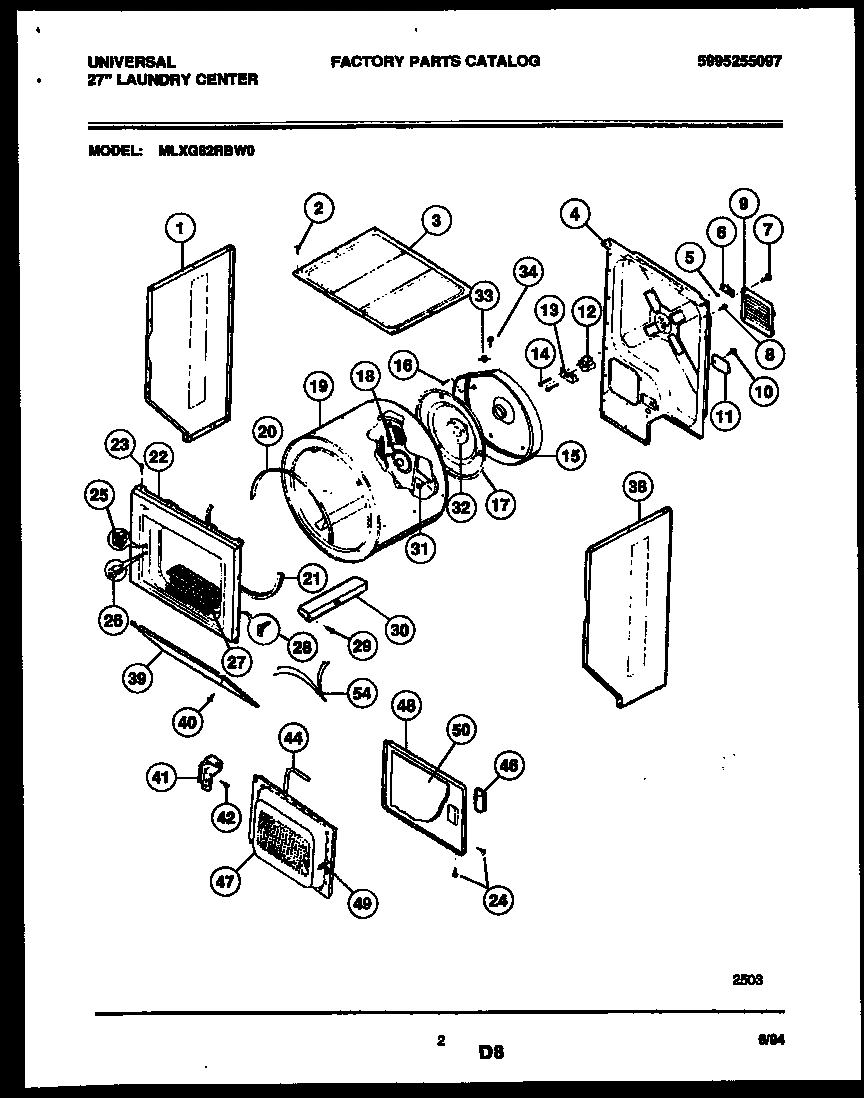

02 - CABINET AND COMPONENT PARTS

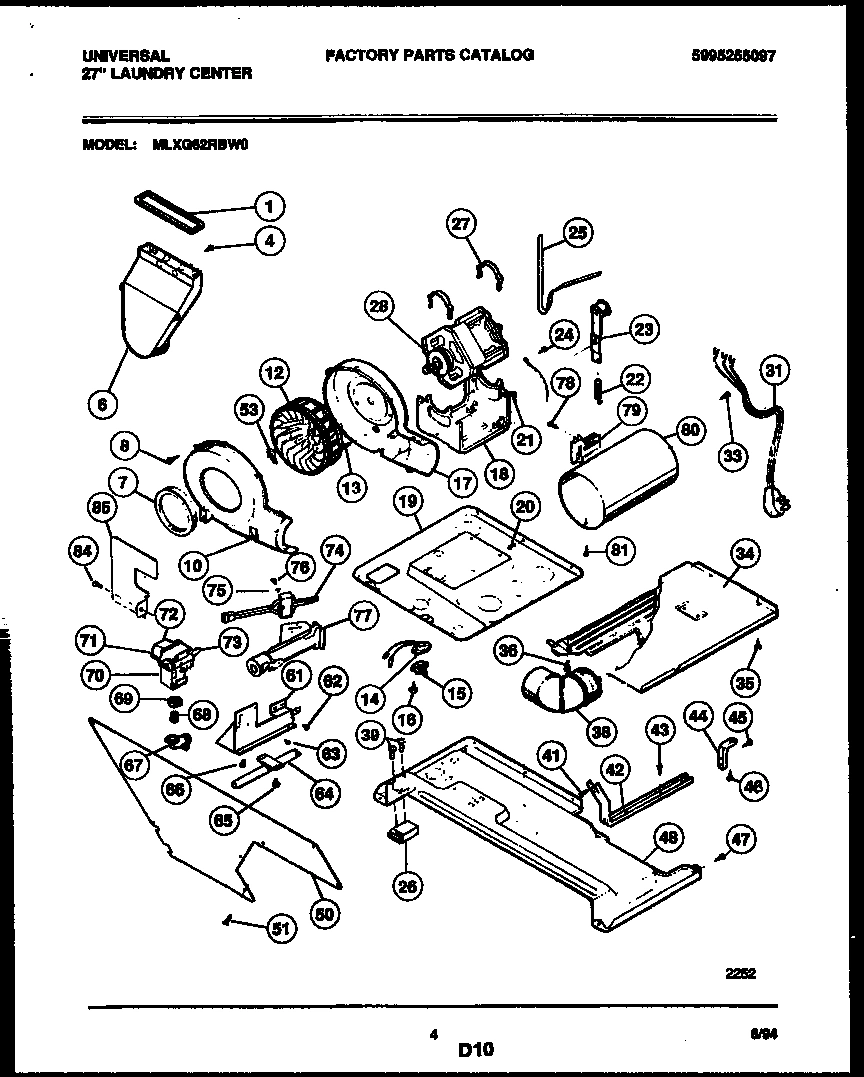

03 - MOTOR, BLOWER AND CABINET PARTS

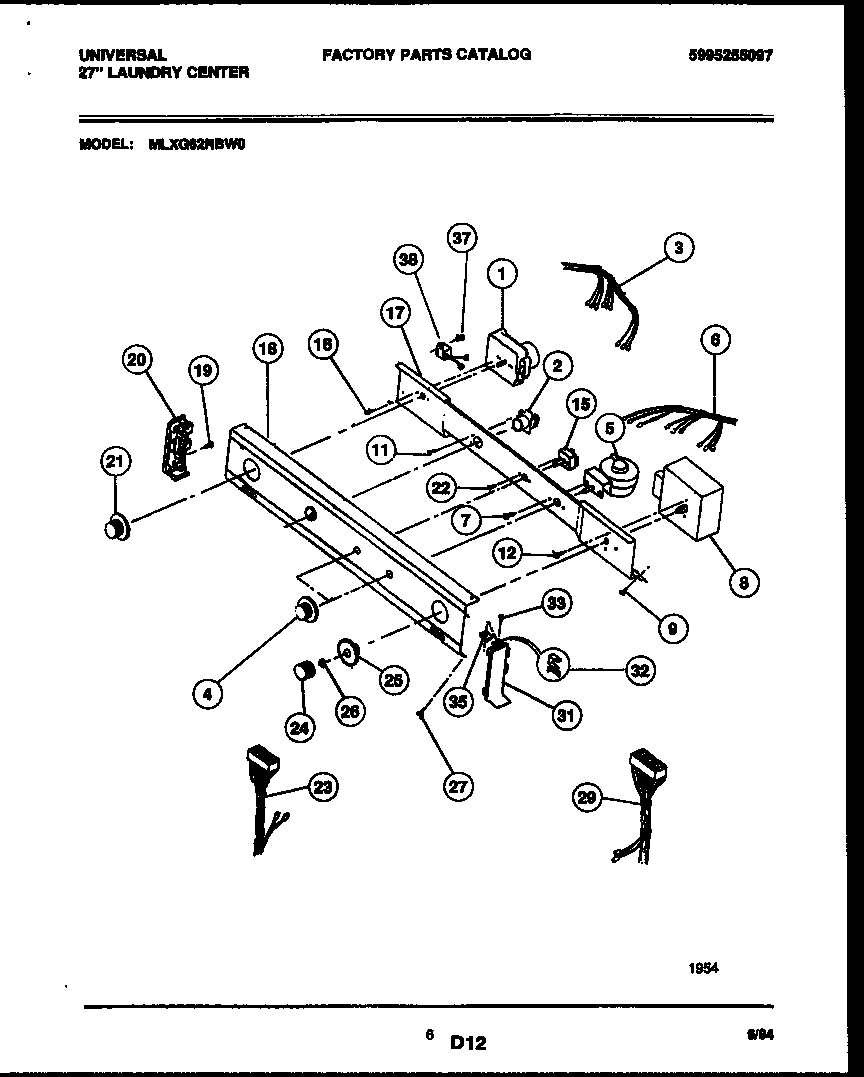

04 - CONSOLE AND CONTROL PARTS

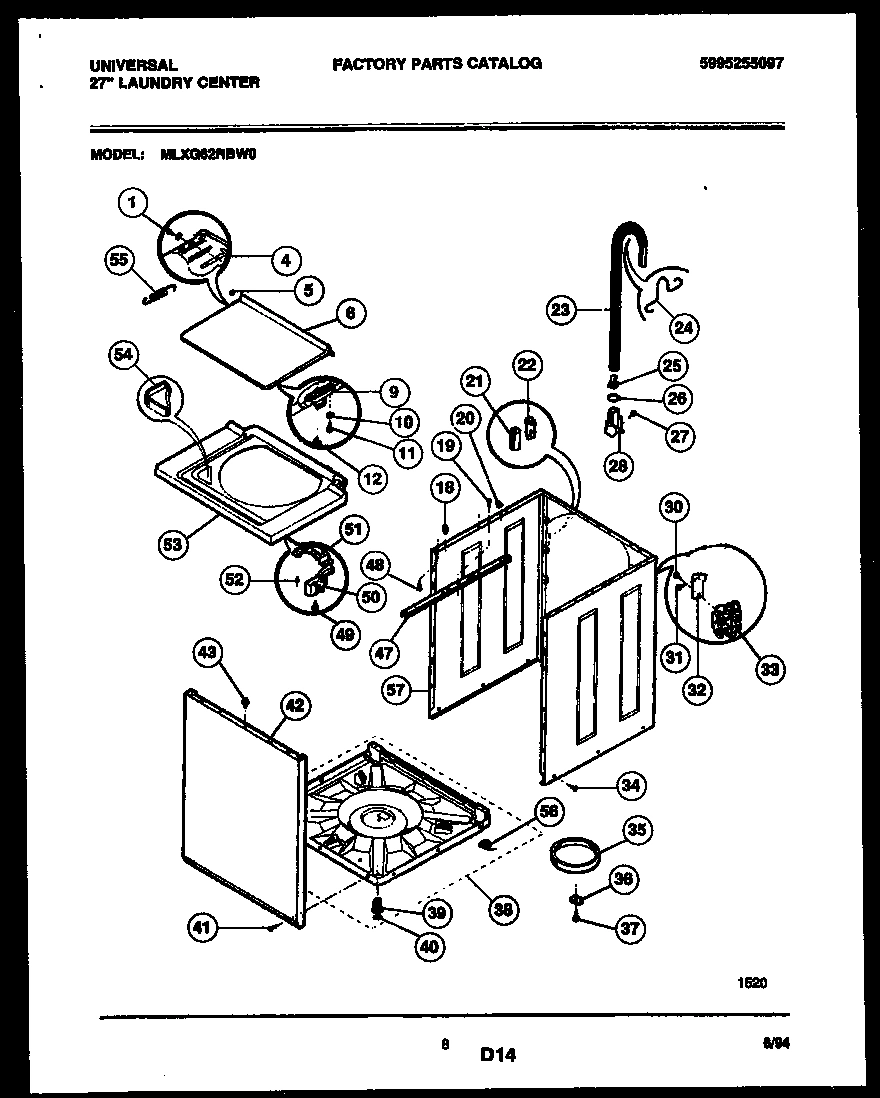

05 - CABINET PARTS

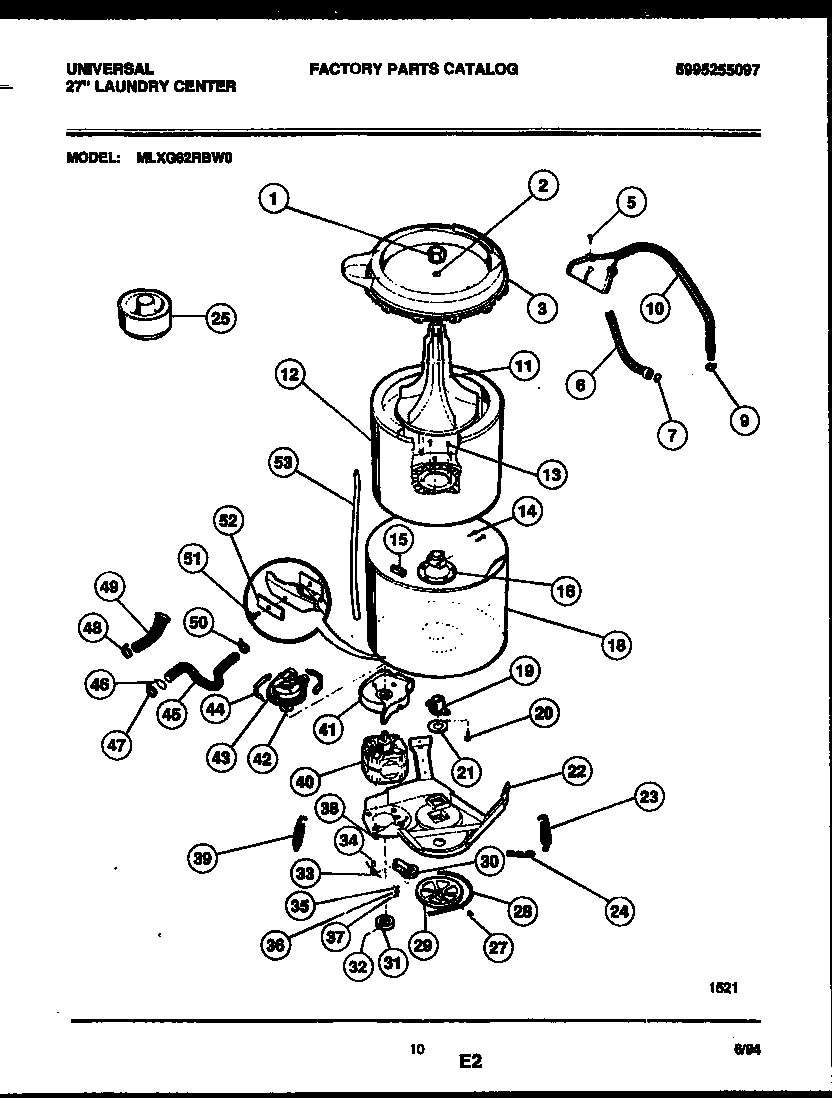

06 - TUB DETAIL

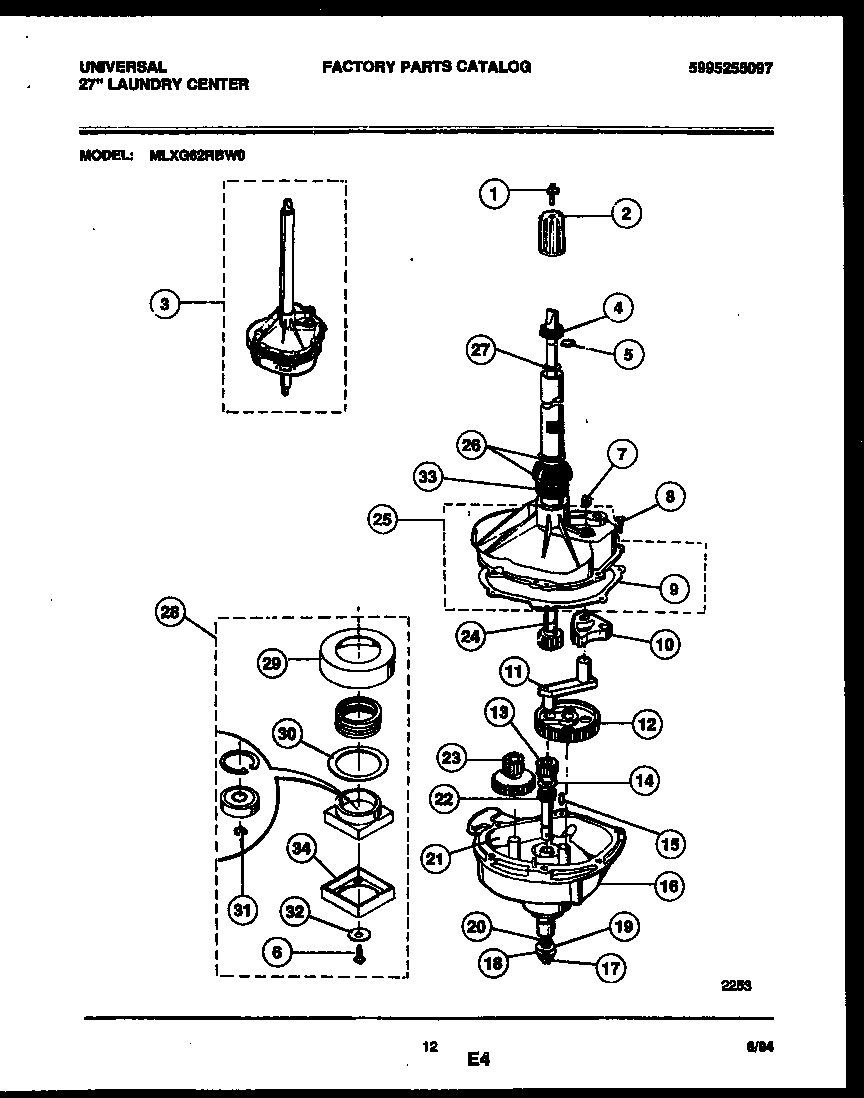

07 - TRANSMISSION PARTS
Common parts from model Electrolux MLXG62RBD0 LAUNDRY CENTER
*10001
SPACER-PAD WCI 5303210651 Contact Us For Availability
*10001
WCI 5303270950 WCI 5303270950 Contact Us For Availability
*10003
INSERT-SPRING ADJ WCI 5303212877 Contact Us For Availability
*10004
SHIM-DRIVE HUB WCI 5303161222 Contact Us For Availability
1
STUD WCI 131206800 Contact Us For Availability
1
WCI 5303297139 WCI 5303297139 Contact Us For Availability
1
SCREW (2) WCI 5303211089 Contact Us For Availability
2
SEAL WCI 3204396 Contact Us For Availability
2
WCI 5303209890 WCI 5303209890 Contact Us For Availability
3
WCI 131324100 WCI 131324100 Contact Us For Availability
4
FASTENER WCI 131088600 Contact Us For Availability
5
SWITCH - PRESSURE WCI 5303209894 Contact Us For Availability
6
WCI 131205700 WCI 131205700 Contact Us For Availability
6
WCI 5303212873 WCI 5303212873 Contact Us For Availability
6
WCI 5308027582 WCI 5308027582 Contact Us For Availability
7
PLUG-PIPE WCI 5303161224 Contact Us For Availability
8
SCREW (6) WCI 3205245 Contact Us For Availability
8
WCI 131294000 WCI 131294000 Contact Us For Availability
8
SCREW (6) WCI 08002804 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
9
WCI 131122006 WCI 131122006 Contact Us For Availability
10
WCI 5308002408 WCI 5308002408 Contact Us For Availability
10
NOZZLE & HOSE ASSY WCI 3204400 Contact Us For Availability
10
GEAR-SECTOR WCI 5308011268 Contact Us For Availability
11
WCI 3204401 WCI 3204401 Contact Us For Availability
11
ROD-CONNECTING WCI 5303161169 Contact Us For Availability
12
WCI 131099500 WCI 131099500 Contact Us For Availability
12
GEAR-CRANK WCI 5308015496 Contact Us For Availability
13
SHAFT-LOWER WCI 5308014905 Contact Us For Availability
15
THERMOSTAT CONTROL WCI 131322600 Contact Us For Availability
15
HEATER ASSEMBLY WCI 5303207394 Contact Us For Availability
15
SWITCH-TEMP -WASHER WCI 5308008463 Contact Us For Availability
15
PIN WCI 5303161227 Contact Us For Availability
16
HOUSING-LOWER WCI 5303912535 Contact Us For Availability
17
RING-RETAINING WCI 5303161223 Contact Us For Availability
17
BRACKET-CONTROL WCI 131288002 Contact Us For Availability
18
WCI 131330600 WCI 131330600 Contact Us For Availability
18
LOCATING PIN WCI 3204373 Contact Us For Availability
18
TUB SPLASH & BEARING ASSEMBLY WCI 3204404 Contact Us For Availability
18
WASHER-SPACER WCI 5308002475 Contact Us For Availability
19
WASHER-THRUST WCI 5303161226 Contact Us For Availability
20
WCI 5303209671 WCI 5303209671 Contact Us For Availability
21
WCI 5308014903 WCI 5308014903 Contact Us For Availability
21
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
22
WCI 5303161174 WCI 5303161174 Contact Us For Availability
22
WCI 3161259 WCI 3161259 Contact Us For Availability
22
BRACKET WCI 5303161252 Contact Us For Availability
22
LEG & DOME WCI 3204408 Contact Us For Availability
23
ARM-IDLER WCI 3205242 Contact Us For Availability
23
DRAIN HOSE WCI 131210200 Contact Us For Availability
23
WCI 131315600 WCI 131315600 Contact Us For Availability
23
GEAR-IDLER WCI 5303161175 Contact Us For Availability
24
RETAINER WCI 5303204987 Contact Us For Availability
24
WCI 5303210341 WCI 5303210341 Contact Us For Availability
24
SPRING-HORIZONTAL (3) WCI 5303208859 Contact Us For Availability
24
WCI 5308015507 WCI 5308015507 Contact Us For Availability
25
INDICATOR-WASHER TIMER WCI 5303209901 Contact Us For Availability
25
FABRIC DISPENSER WCI 3205405 Contact Us For Availability
25
WCI 5303205527 WCI 5303205527 Contact Us For Availability
26
SEAL-TUB WCI 5303279394 Contact Us For Availability
26
SPACER-SHAFT WCI 3205248 Contact Us For Availability
26
WCI 131127616 WCI 131127616 Contact Us For Availability
27
CLAMP WCI 5303212834 Contact Us For Availability
27
SCREW WCI 3205253 Contact Us For Availability
27
WASHER WCI 5303161232 Contact Us For Availability
28
GUIDE CLIP (4) WCI 5303281074 Contact Us For Availability
28
WCI 5303283288 WCI 5303283288 Contact Us For Availability
28
WCI 3204376 WCI 3204376 Contact Us For Availability
28
BEARING-HOUSING PKG WCI 5308950058 Contact Us For Availability
29
WCI 131200500 WCI 131200500 Contact Us For Availability
29
WCI 5303272070 WCI 5303272070 Contact Us For Availability
29
WCI 5303161182 WCI 5303161182 Contact Us For Availability
30
WCI 131122100 WCI 131122100 Contact Us For Availability
30
IDLER ARM WCI 131312800 Contact Us For Availability
30
WCI 5308057430 WCI 5308057430 Contact Us For Availability
31
WCI 3204423 WCI 3204423 Contact Us For Availability
31
WCI 5303210650 WCI 5303210650 Contact Us For Availability
31
RING-RETAINING WCI 5308015536 Contact Us For Availability
32
WCI 3204424 WCI 3204424 Contact Us For Availability
32
WCI 3204357 WCI 3204357 Contact Us For Availability
32
WCI 3204378 WCI 3204378 Contact Us For Availability
32
RUBBER SPACER (2) WCI 5303207426 Contact Us For Availability
33
TORSION SPRING WCI 3204425 Contact Us For Availability
33
SLINGER WCI 5303272073 Contact Us For Availability
34
WCI 3204426 WCI 3204426 Contact Us For Availability
34
WCI 5377009100 WCI 5377009100 Contact Us For Availability
35
CLIP (4) WCI 5308014350 Contact Us For Availability
35
WCI 5303002385 WCI 5303002385 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
36
SHIPPING BLOCK WCI 3204380 Contact Us For Availability
37
WASHER-SPRING WCI 5303161306 Contact Us For Availability
37
SHIPPING SCREW WCI 131102900 Contact Us For Availability
38
WCI 5303286537 WCI 5303286537 Contact Us For Availability
38
WCI 5303300247 WCI 5303300247 Contact Us For Availability
38
NUT-HEX (4) WCI 5303209678 Contact Us For Availability
40
PAD-LEVELING LEG WCI 5303004083 Contact Us For Availability
40
MOTOR WCI 5303284905 Contact Us For Availability
41
WCI 131081700 WCI 131081700 Contact Us For Availability
42
WCI 5303931754 WCI 5303931754 Contact Us For Availability
42
WCI 3204451 WCI 3204451 Contact Us For Availability
43
PIN-LOCATING WCI 131150000 Contact Us For Availability
43
PUMP-COMPLETE WCI 131208500 Contact Us For Availability
44
WCI 131217100 WCI 131217100 Contact Us For Availability
45
WCI 3204454 WCI 3204454 Contact Us For Availability
46
WCI 131063601 WCI 131063601 Contact Us For Availability
46
CLIP-HOSE TO LEG WCI 3204455 Contact Us For Availability
47
BRACKET- RH WCI 131106701 Contact Us For Availability
47A
BRACKET- LH WCI 131091001 Contact Us For Availability
48
SCREW WCI 08001578 Contact Us For Availability
50
WCI 3205646 WCI 3205646 Contact Us For Availability
50
CLAMP WCI 3204456 Contact Us For Availability
51
WCI 3204391 WCI 3204391 Contact Us For Availability
51
WCI 3204459 WCI 3204459 Contact Us For Availability
52
RIVET (3) WCI 08002420 Contact Us For Availability
52
PLATE, LEG BOLT WCI 131315800 Contact Us For Availability
53
PANEL TOP-ALMOND WCI 5303212875 Contact Us For Availability
54
WCI 3204394 WCI 3204394 Contact Us For Availability
56
PAD-SELF LEVEL (2) WCI 5303201463 Contact Us For Availability
57
WCI 131207101 WCI 131207101 Contact Us For Availability
64
WCI 5303207405 WCI 5303207405 Contact Us For Availability
84
SCREW WCI 3281134 Contact Us For Availability
85
WCI 5303212889 WCI 5303212889 Contact Us For Availability
× ![]()
