Model Maytag MLG27PDBXW1 COMMERCIAL GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

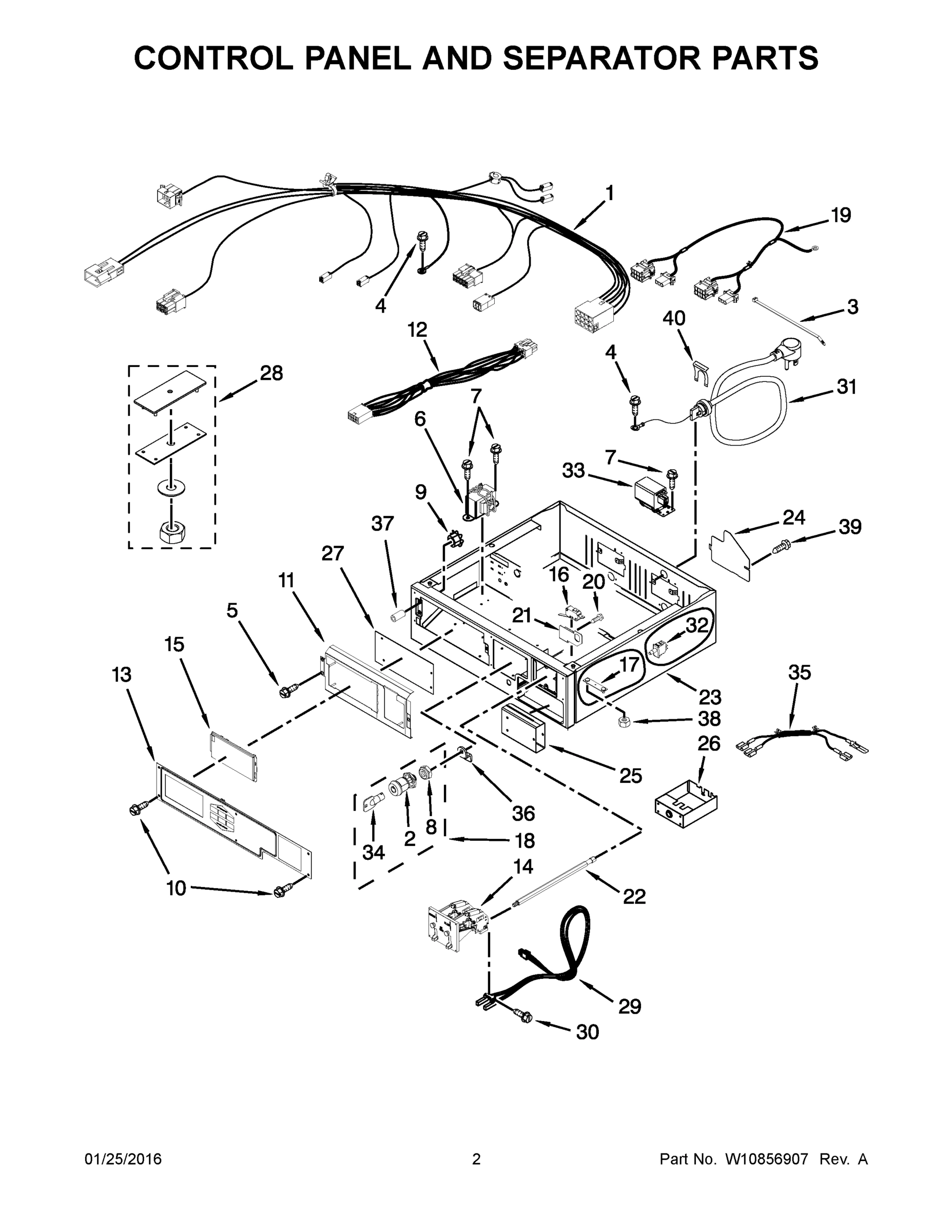

02 - CONTROL PANEL AND SEPARATOR PARTS

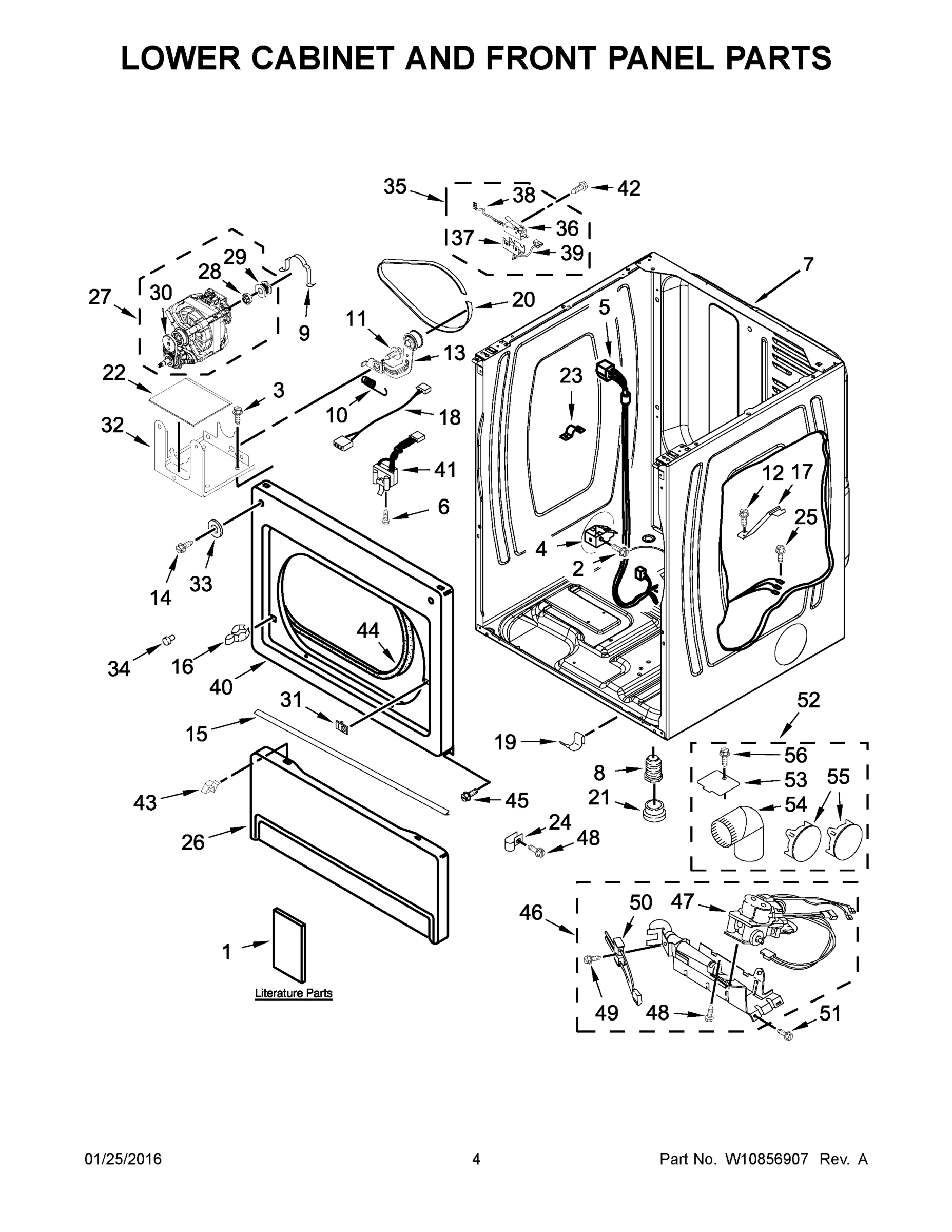

03 - LOWER CABINET AND FRONT PANEL PARTS

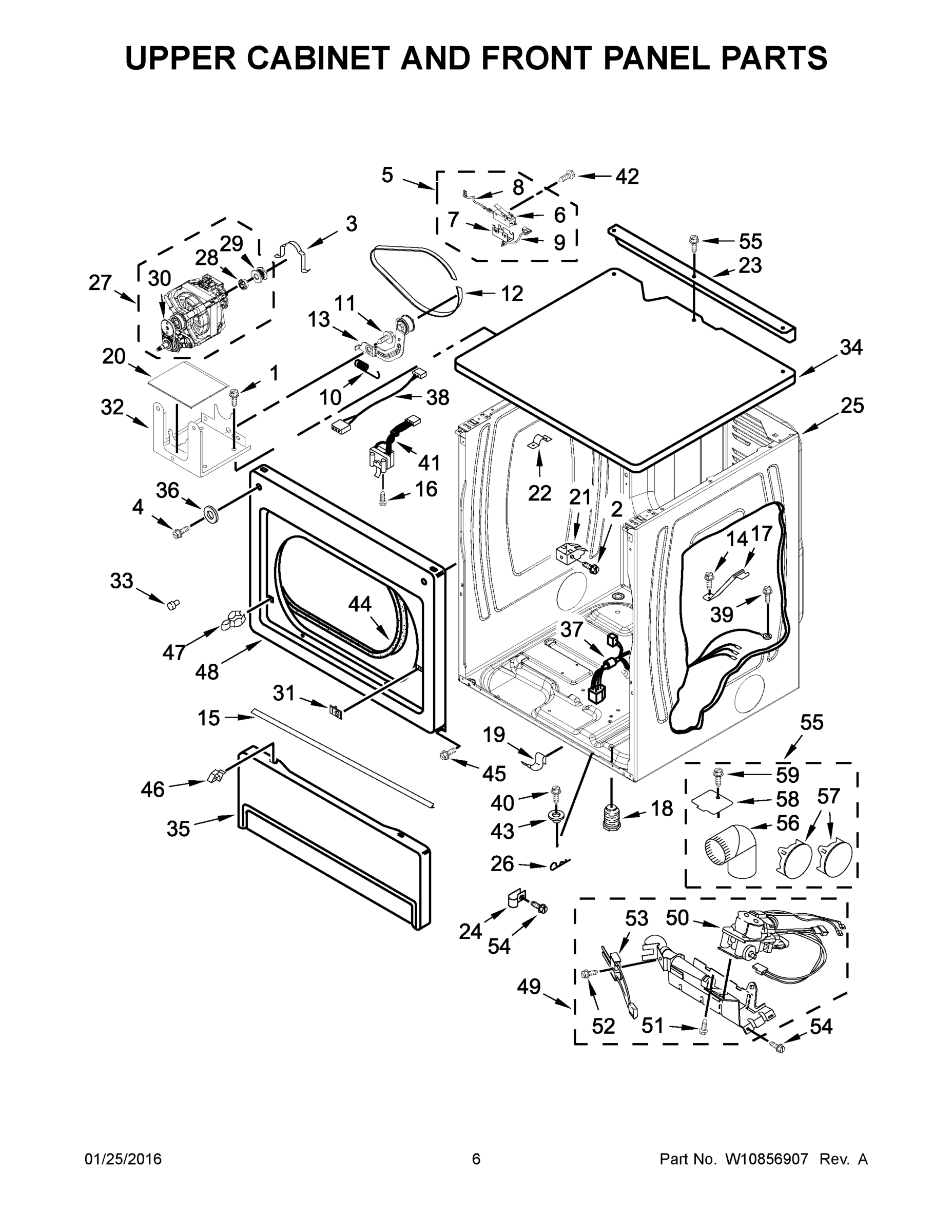

04 - UPPER CABINET AND FRONT PANEL PARTS

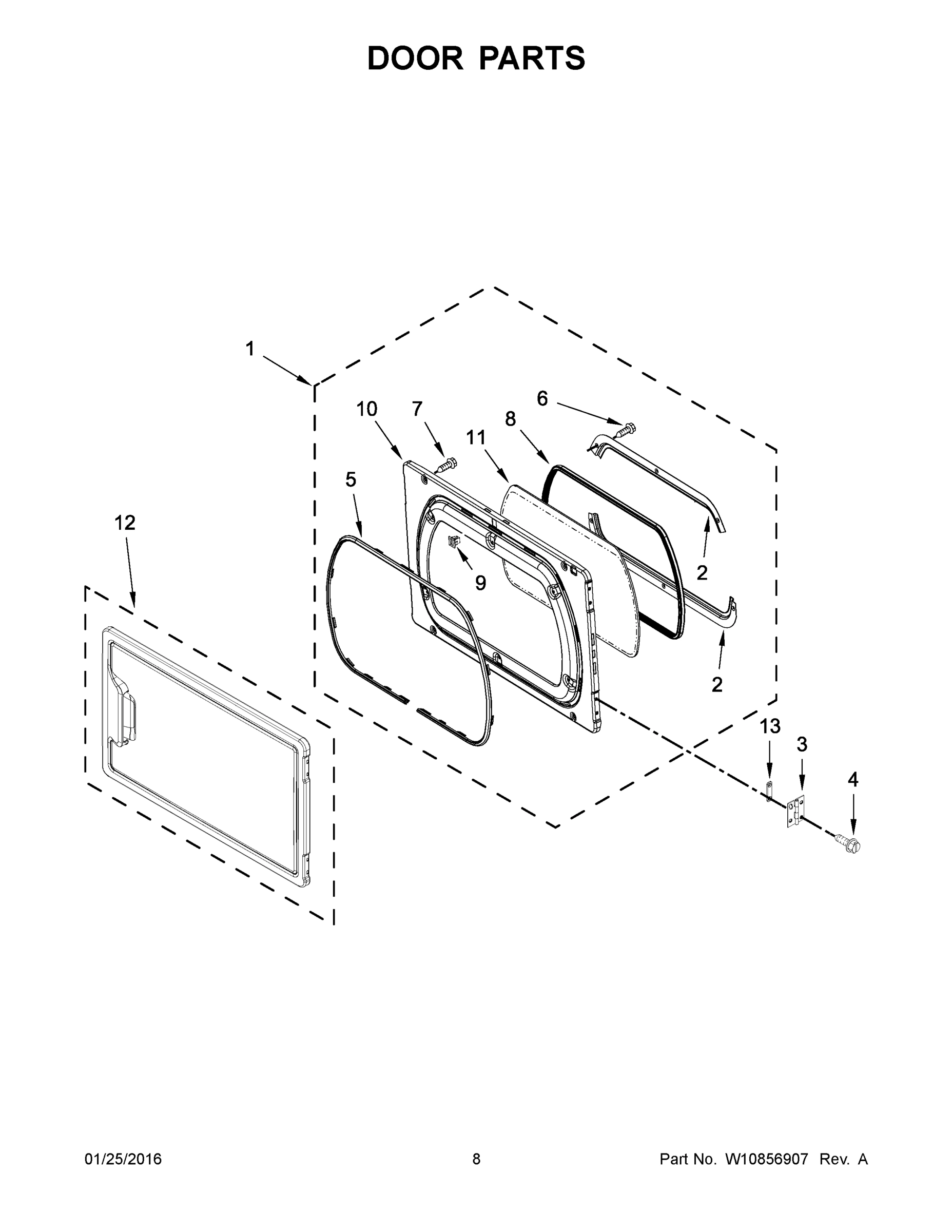

05 - DOOR PARTS

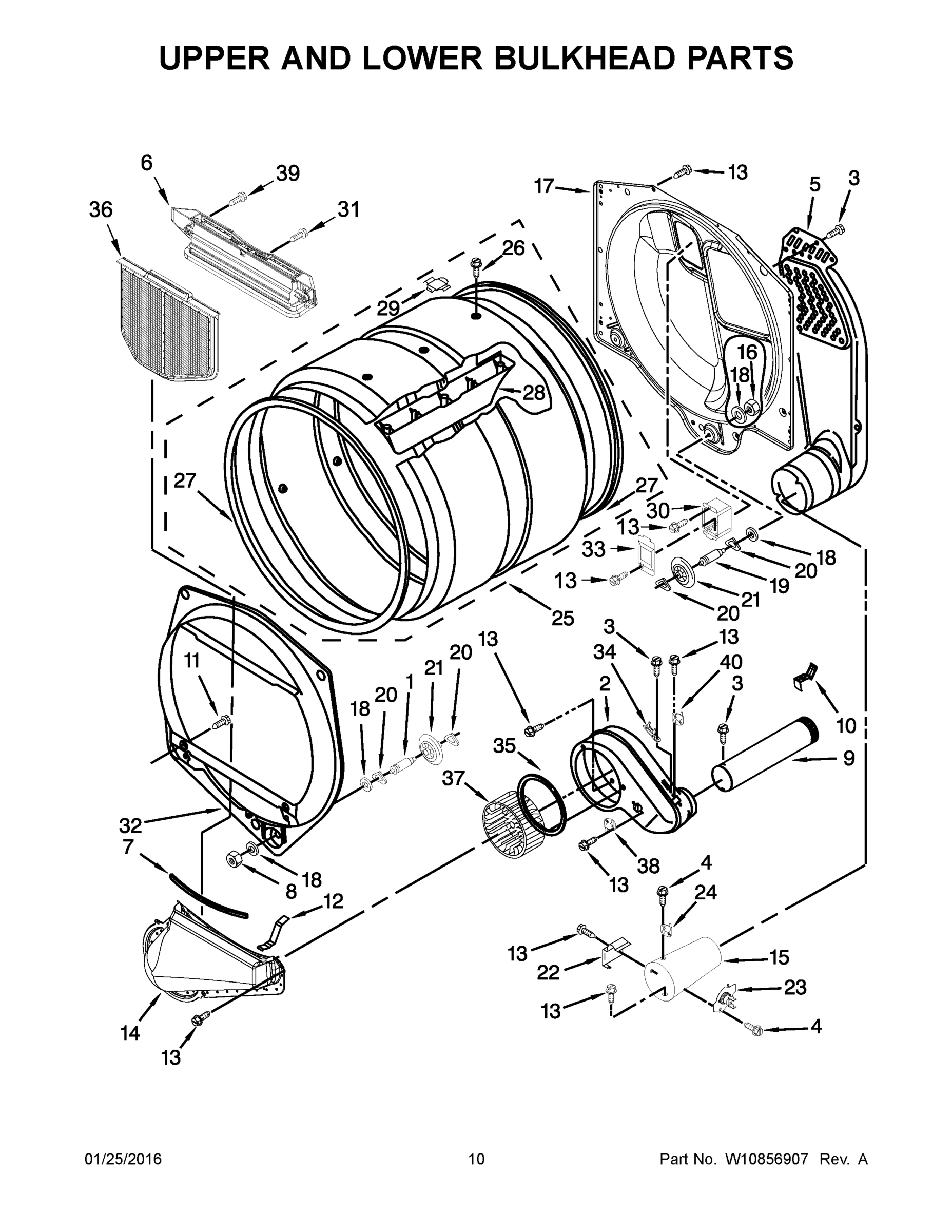

06 - UPPER AND LOWER BULKHEAD PARTS

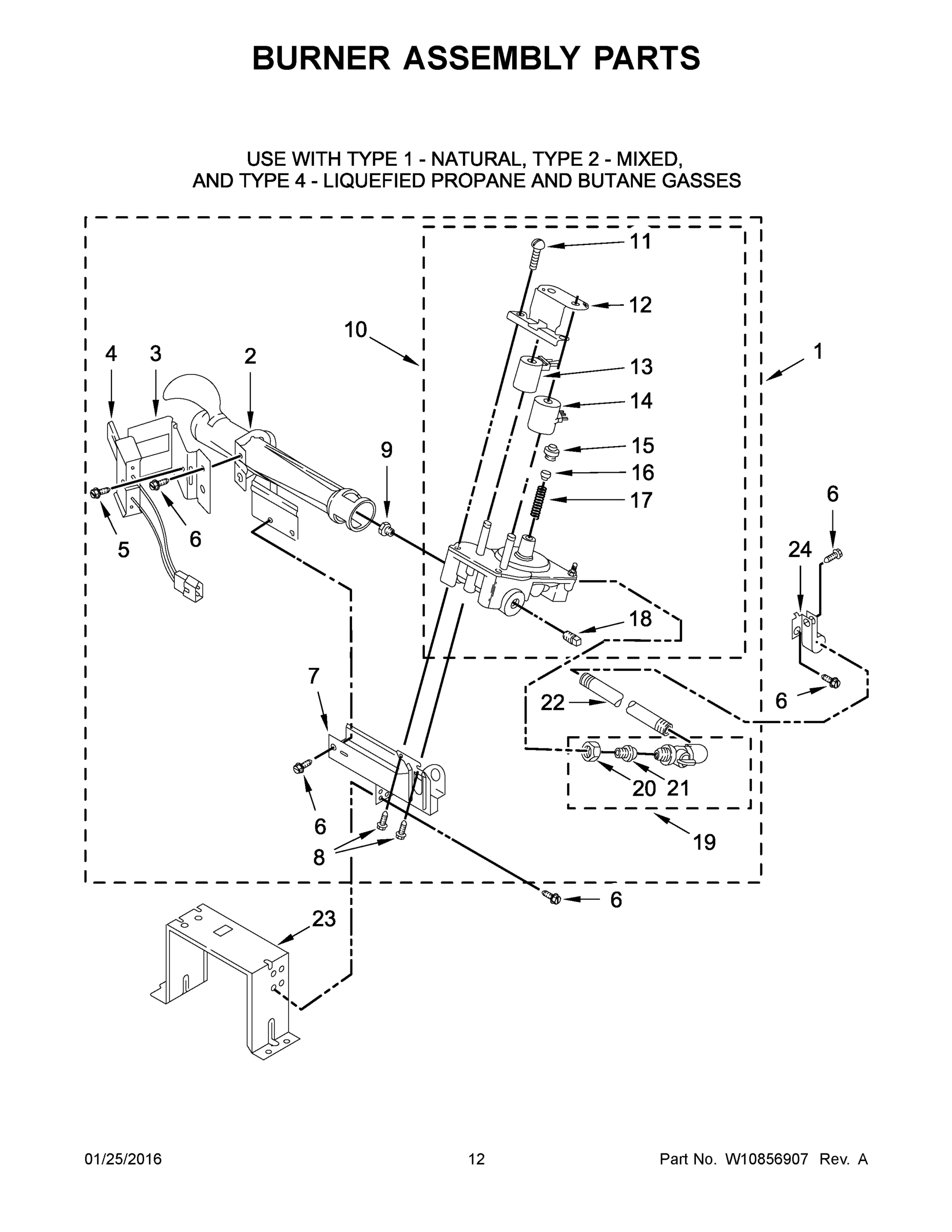

07 - BURNER ASSEMBLY PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLG27PDBXW1 COMMERCIAL GAS DRYER
1
MAY W10807484 MAY W10807484 Contact Us For Availability
1
MAY W10761035 MAY W10761035 Contact Us For Availability
1
SCREW MAY 3390663 Contact Us For Availability
1
BURNER ASSEMBLY (60 HZ) MAY W10135231 Contact Us For Availability
1
MAY W10513690 MAY W10513690 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1A
MAY W10135168 MAY W10135168 Contact Us For Availability
2
NUT, HEX MAY W10139762 Contact Us For Availability
2
SCREW MAY 3391915 Contact Us For Availability
2
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
2
MAY 8544362 MAY 8544362 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY W10155270 MAY W10155270 Contact Us For Availability
3
SCREW MAY 8533971 Contact Us For Availability
3
MAY 660658 MAY 660658 Contact Us For Availability
3
HINGE & PIN ASSEMBLY (SILVER) MAY W10279703 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY W10773242 MAY W10773242 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
MAY 342055 MAY 342055 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
SCREW MAY 90767 Contact Us For Availability
5
MAY W10140652 MAY W10140652 Contact Us For Availability
5
MAY W10155571 MAY W10155571 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
5
MAY W10354795 MAY W10354795 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 3394346 Contact Us For Availability
6
MAY W10133285 MAY W10133285 Contact Us For Availability
6
ASSEMBLY, SWITCH AND ACTUATOR MAY 8564010 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
SCREW MAY 3393258 Contact Us For Availability
6
MAY W10181929 MAY W10181929 Contact Us For Availability
7
MAY 8564011 MAY 8564011 Contact Us For Availability
7
MAY W10192860 MAY W10192860 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
8
NUT, HEX MAY W10177242 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
MAY W10167613 MAY W10167613 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
MAY W10284122 MAY W10284122 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
NUT MAY W10139046 Contact Us For Availability
9
MAY 8539892 MAY 8539892 Contact Us For Availability
9
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
9
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 234870 Contact Us For Availability
9A
MAY 234868 MAY 234868 Contact Us For Availability
10
MAY W10386302 MAY W10386302 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
VALVE, GAS (60 HZ - COMPLETE) MAY W10141728 Contact Us For Availability
10
MAY W10470571 MAY W10470571 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
MAY W10657185 MAY W10657185 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10284121 MAY W10284121 Contact Us For Availability
11
SCREW MAY 3357011 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
MAY W10111027 MAY W10111027 Contact Us For Availability
12
MAY W10131172 MAY W10131172 Contact Us For Availability
12
DOOR, OUTER ASSEMBLY (WHITE) MAY W10284127 Contact Us For Availability
12
MAY W10345456 MAY W10345456 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
13
MAY W10684165 MAY W10684165 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
PLUG-HINGE SCREW (WHITE) MAY W10191265 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
ASSEMBLY, DUAL COIN DROP MAY W10198395 Contact Us For Availability
14
SCREW MAY 693995 Contact Us For Availability
14
MAY 8066168 MAY 8066168 Contact Us For Availability
14
MAY 694539 MAY 694539 Contact Us For Availability
15
MAY W10133268 MAY W10133268 Contact Us For Availability
15
MAY W10576519 MAY W10576519 Contact Us For Availability
15
MAY 8573824 MAY 8573824 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
MAY W10447152 MAY W10447152 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
SCREW MAY 697773 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
MAY W10159907 MAY W10159907 Contact Us For Availability
17
MAY 8529757 MAY 8529757 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
ASSEMBLY, LOCK ACCESS DOOR MAY W10133264 Contact Us For Availability
18
FOOT, DRYER PLASTIC MAY 689172 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
MAY 239822 MAY 239822 Contact Us For Availability
19
MAY W10807493 MAY W10807493 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
VALVE, GAS MAY 697441 Contact Us For Availability
20
MAY 3400408 MAY 3400408 Contact Us For Availability
20
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY 233076 MAY 233076 Contact Us For Availability
21
MAY W10160652 MAY W10160652 Contact Us For Availability
21
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
21
MAY 3391943 MAY 3391943 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY 3393767 MAY 3393767 Contact Us For Availability
22
BOLT, HEX BAR MAY W10137319 Contact Us For Availability
22
CLIP MAY 98997 Contact Us For Availability
22
MAY 338906 MAY 338906 Contact Us For Availability
22
MAY W10110395 MAY W10110395 Contact Us For Availability
23
MAY W10862445 MAY W10862445 Contact Us For Availability
23
MAY 3979115 MAY 3979115 Contact Us For Availability
23
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
23
MAY 3389889 MAY 3389889 Contact Us For Availability
24
COVER, TERMINAL BLOCK MAY 3396795 Contact Us For Availability
24
MAY 3387561 MAY 3387561 Contact Us For Availability
24
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
25
MAY W10133258 MAY W10133258 Contact Us For Availability
25
MAY W10547697 MAY W10547697 Contact Us For Availability
25
MAY W10545923 MAY W10545923 Contact Us For Availability
26
MAY W10133248 MAY W10133248 Contact Us For Availability
26
MAY W10117347 MAY W10117347 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10678217 MAY W10678217 Contact Us For Availability
27
MAY W10396034 MAY W10396034 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY W10169579 MAY W10169579 Contact Us For Availability
28
MAY 3393657 MAY 3393657 Contact Us For Availability
28
BAFFLE, DRUM MAY 697693 Contact Us For Availability
29
COIN OPTIC SENSOR ASSEMBLY (WHITE) MAY W10247389 Contact Us For Availability
29
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
29
PLUG, DRUM HOLE MAY 8066086 Contact Us For Availability
29A
COIN OPTIC SENSOR ASSEMBLY (BLACK) MAY W10247388 Contact Us For Availability
30
SCREW MAY W10142655 Contact Us For Availability
30
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
30
MAY 8578825 MAY 8578825 Contact Us For Availability
31
MAY W10239314 MAY W10239314 Contact Us For Availability
31
MAY W10521429 MAY W10521429 Contact Us For Availability
31
SCREW MAY 695240 Contact Us For Availability
32
MAY W10131838 MAY W10131838 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
MAY 697557 MAY 697557 Contact Us For Availability
33
FILTER, RFI MAY W10306592 Contact Us For Availability
33
MAY 693152 MAY 693152 Contact Us For Availability
33
MAY 3402841 MAY 3402841 Contact Us For Availability
34
KEY, ACCESS DOOR MAY W10140858 Contact Us For Availability
34
TOP (WHITE) MAY 3389351 Contact Us For Availability
34
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
35
MAY W10188051 MAY W10188051 Contact Us For Availability
35
MAY 697215 MAY 697215 Contact Us For Availability
35
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
36
MAY W10133266 MAY W10133266 Contact Us For Availability
36
WASHER MAY 3392186 Contact Us For Availability
36
SCREEN, LINT (WHITE) MAY W10596627 Contact Us For Availability
37
STANDOFF, CIRCUIT BOARD MAY W10133514 Contact Us For Availability
37
MAY W10807483 MAY W10807483 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
JUMPER, DOOR SWITCH MAY 8283298 Contact Us For Availability
38
MAY W10193019 MAY W10193019 Contact Us For Availability
39
SCREW MAY 3390814 Contact Us For Availability
39
SCREW MAY 3387230 Contact Us For Availability
40
MAY 694415 MAY 694415 Contact Us For Availability
40
BOLT, SECURITY MAY 3400523 Contact Us For Availability
40
MAY W10131836 MAY W10131836 Contact Us For Availability
41
SWITCH, DOOR MAY 3406109 Contact Us For Availability
42
SCREW MAY 98129 Contact Us For Availability
43
MAY 3389233 MAY 3389233 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
46
RETAINER MAY 3388229 Contact Us For Availability
47
STRIKE, DOOR MAY 3403431 Contact Us For Availability
48
MAY W10694688 MAY W10694688 Contact Us For Availability
55
MAY 279818 MAY 279818 Contact Us For Availability
56
ELBOW MAY 49026 Contact Us For Availability
57
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
58
MAY 3394331 MAY 3394331 Contact Us For Availability
59
MAY 488729 MAY 488729 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 AND 2) TO TYPE L.P.G. MAY W10135245 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, SECURITY MAY 285875 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 4392067 MAY 4392067 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
× ![]()
Login and Registration Form
