Model Maytag MLG27PDBGW0 COMMERCIAL GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

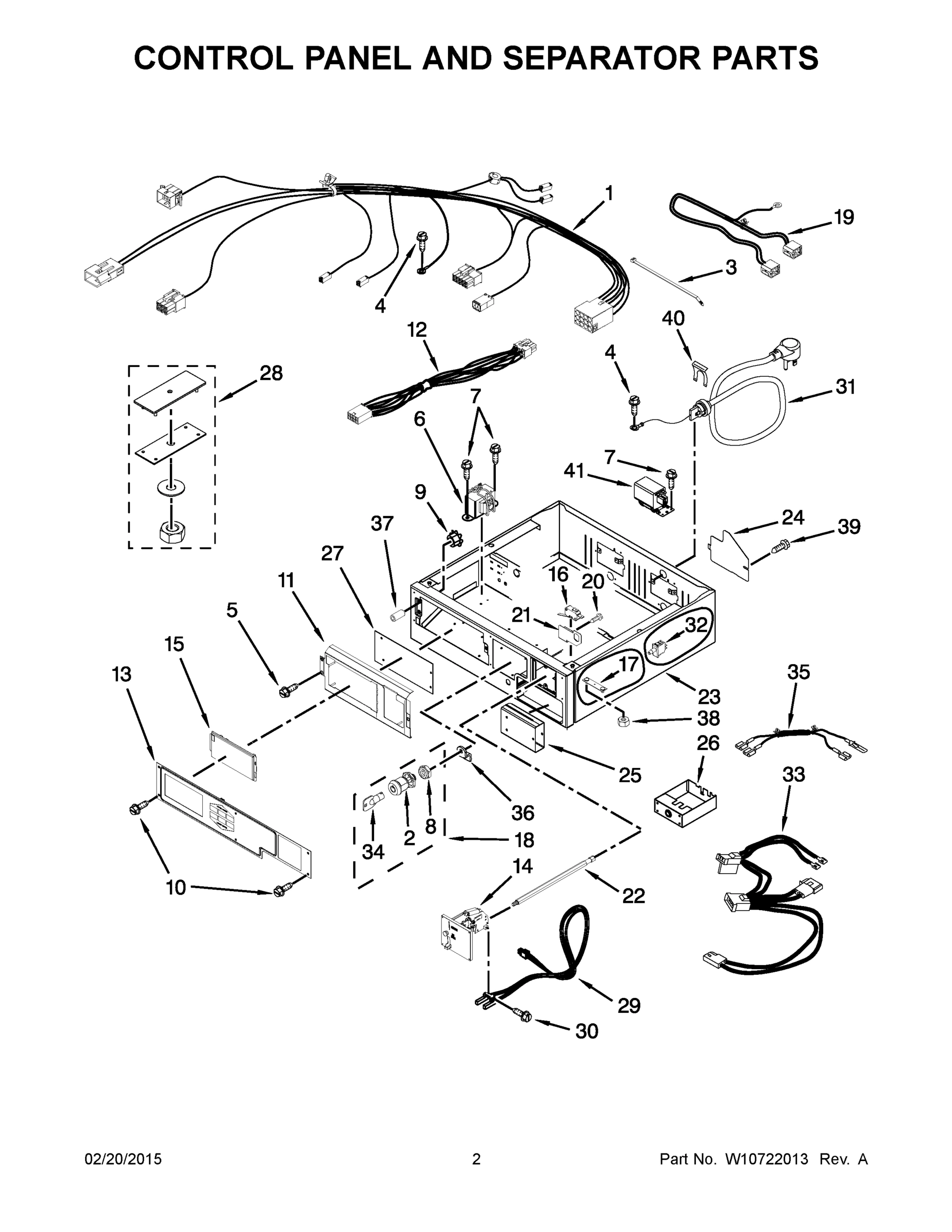

02 - CONTROL PANEL AND SEPARATOR PARTS

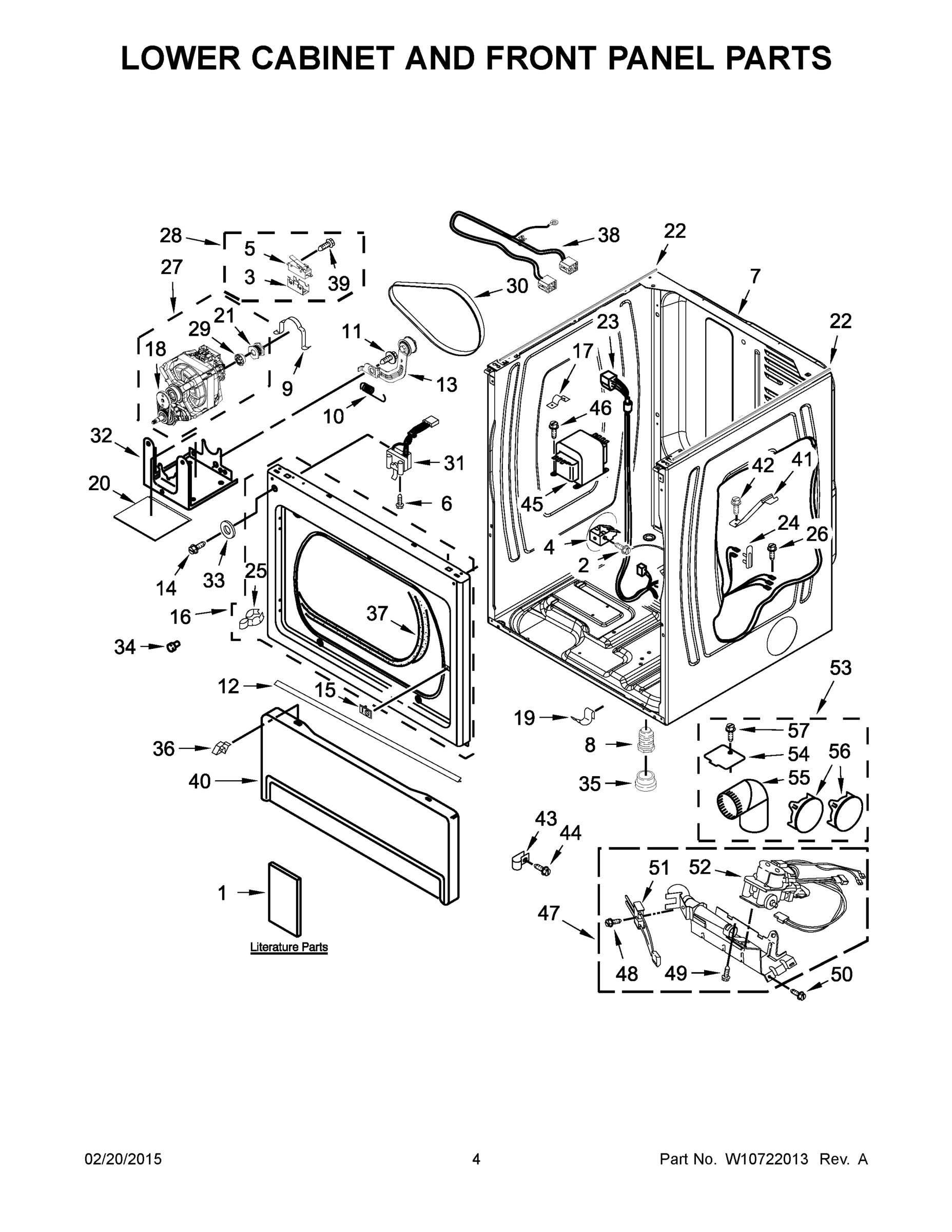

03 - LOWER CABINET AND FRONT PANEL PARTS

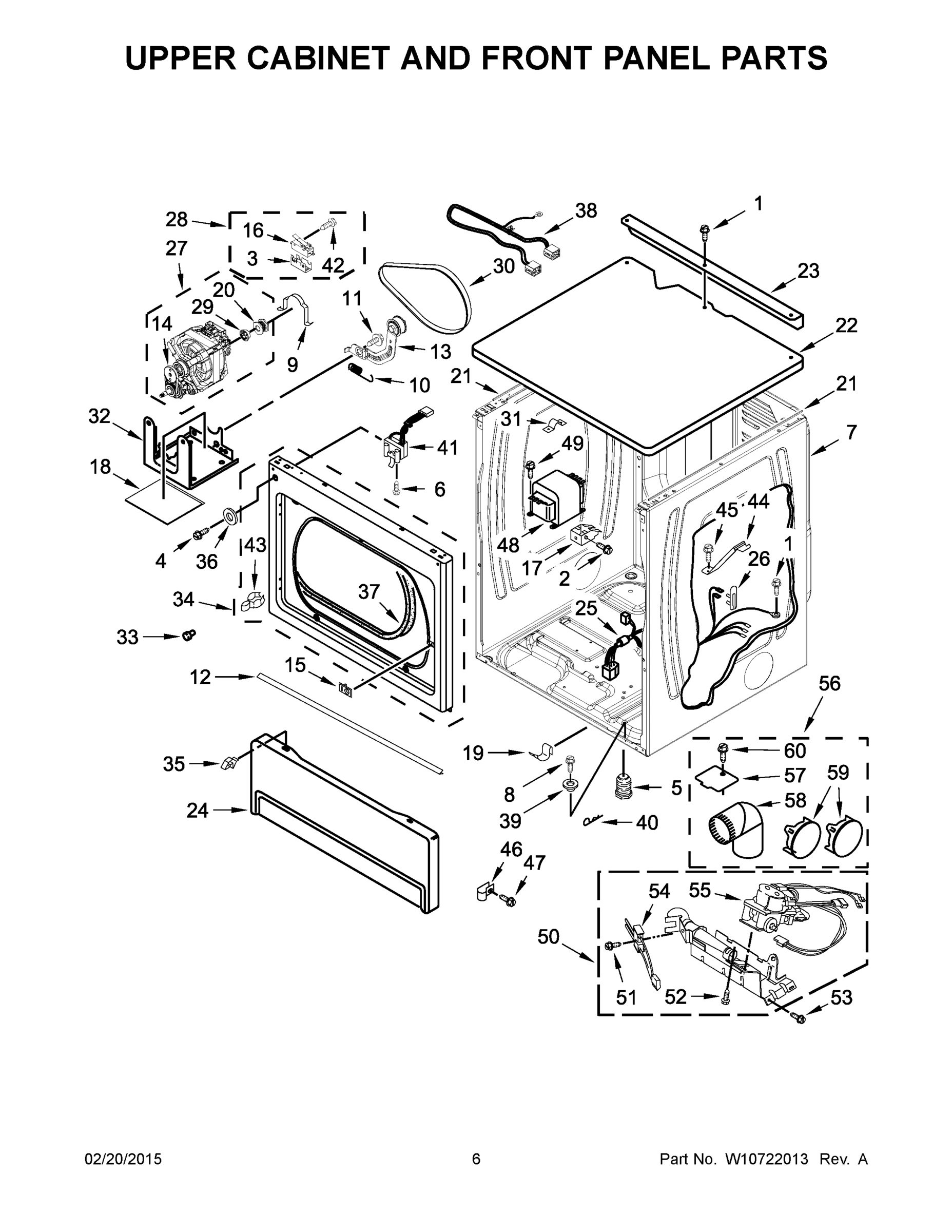

04 - UPPER CABINET AND FRONT PANEL PARTS

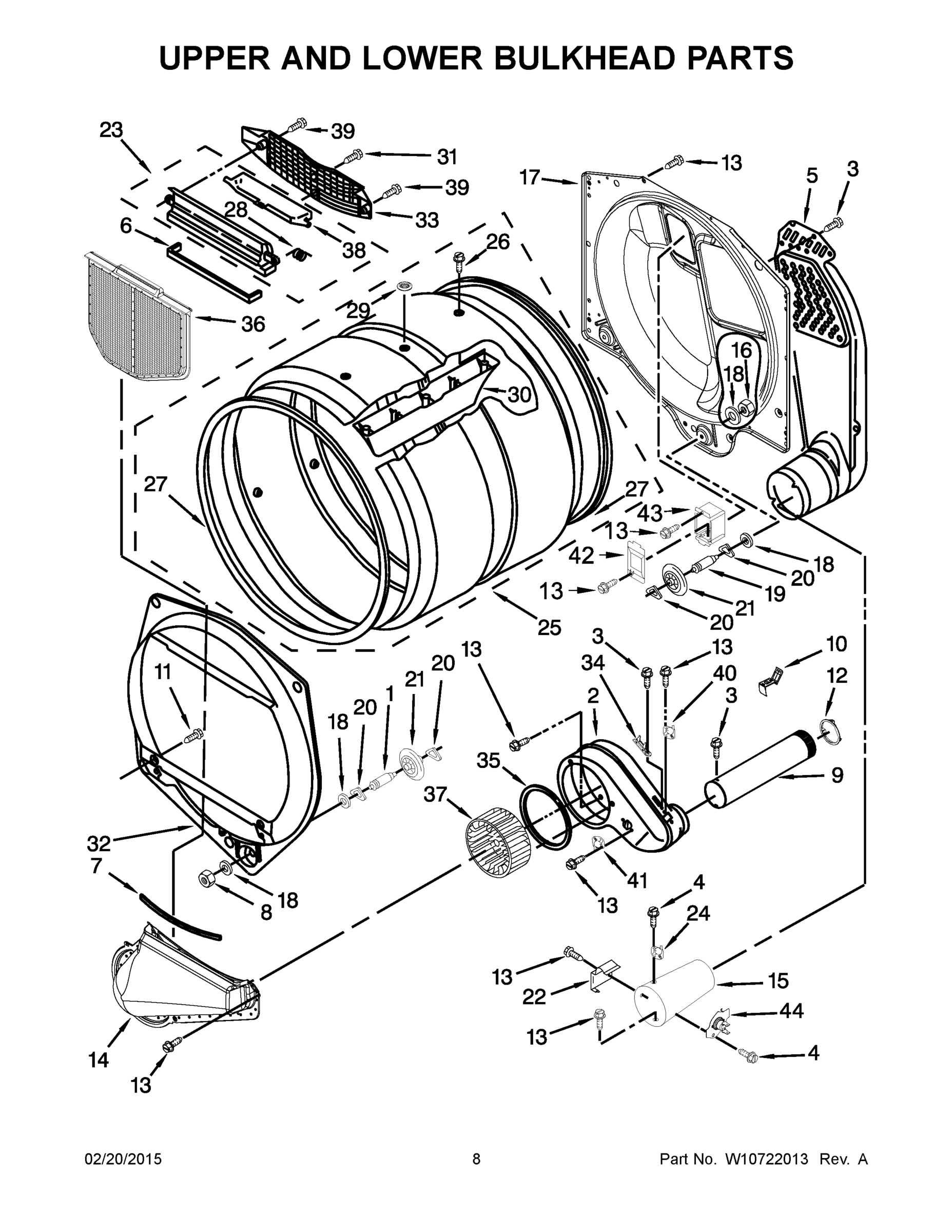

05 - UPPER AND LOWER BULKHEAD PARTS

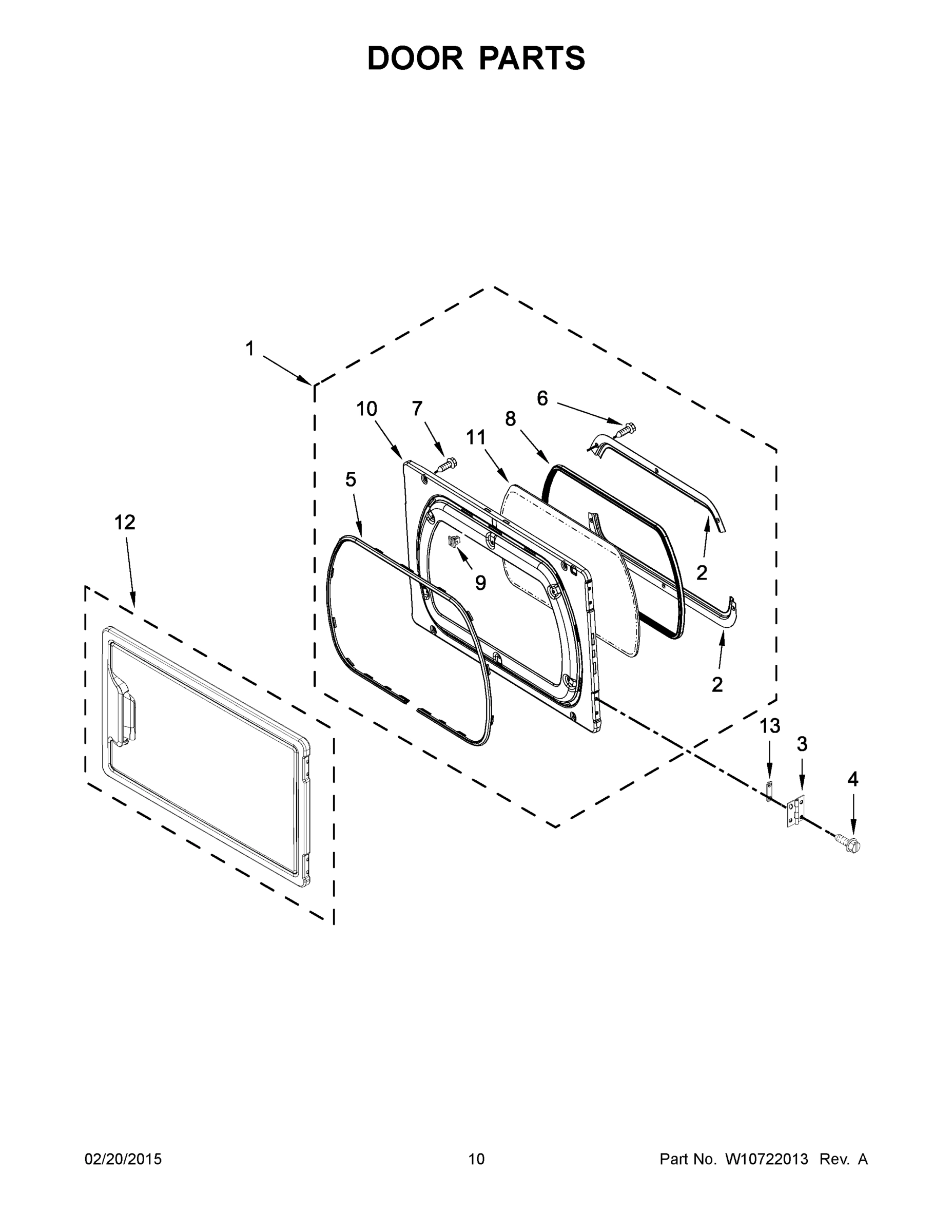

06 - DOOR PARTS

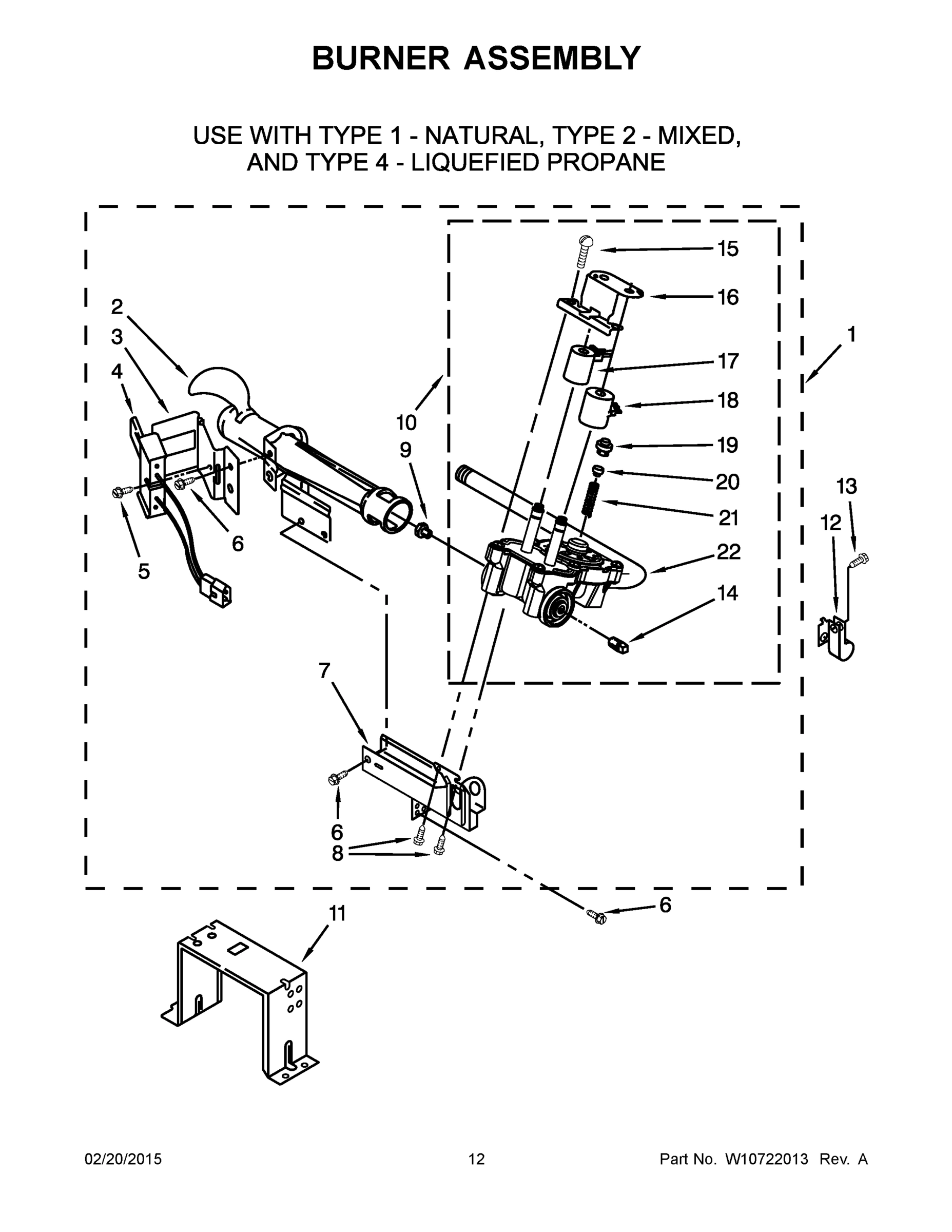

07 - BURNER ASSEMBLY
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLG27PDBGW0 COMMERCIAL GAS DRYER
1
MAY W10702047 MAY W10702047 Contact Us For Availability
1
MAY W10722015 MAY W10722015 Contact Us For Availability
1
BURNER ASSEMBLY 50 HZ. (TYPE 1 AND 2) MAY W10096909 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10513690 MAY W10513690 Contact Us For Availability
1A
MAY W10722022 MAY W10722022 Contact Us For Availability
1B
MAY W10184546 MAY W10184546 Contact Us For Availability
2
NUT, HEX MAY W10139762 Contact Us For Availability
2
SCREW MAY 3391915 Contact Us For Availability
2
MAY W10119255 MAY W10119255 Contact Us For Availability
2
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY 8529895 MAY 8529895 Contact Us For Availability
3
SCREW MAY 8533971 Contact Us For Availability
3
MAY 8564011 MAY 8564011 Contact Us For Availability
3
HINGE & PIN ASSEMBLY (SILVER) MAY W10279703 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY 8533974 MAY 8533974 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
SCREW MAY 90767 Contact Us For Availability
4
MAY 342055 MAY 342055 Contact Us For Availability
5
MAY W10140652 MAY W10140652 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
5
FOOT, DRYER PLASTIC MAY 689172 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 3394346 Contact Us For Availability
5
MAY W10354795 MAY W10354795 Contact Us For Availability
6
MAY W10133285 MAY W10133285 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
SCREW MAY 3393258 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY W10192860 MAY W10192860 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
8
NUT, HEX MAY W10177242 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
BOLT, SECURITY MAY 3400523 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10284122 MAY W10284122 Contact Us For Availability
9
NUT MAY W10139046 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY W10121167 MAY W10121167 Contact Us For Availability
9
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 234660 Contact Us For Availability
9A
MAY 234868 MAY 234868 Contact Us For Availability
10
MAY W10386302 MAY W10386302 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY 8281918 MAY 8281918 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
10
MAY W10470571 MAY W10470571 Contact Us For Availability
11
MAY W10657185 MAY W10657185 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 3357011 Contact Us For Availability
11
MAY W10284121 MAY W10284121 Contact Us For Availability
11
MAY 3389889 MAY 3389889 Contact Us For Availability
12
MAY W10111027 MAY W10111027 Contact Us For Availability
12
MAY W10576519 MAY W10576519 Contact Us For Availability
12
MAY W10344699 MAY W10344699 Contact Us For Availability
12
DOOR, OUTER ASSEMBLY (WHITE) MAY W10284127 Contact Us For Availability
12
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
13
MAY W10684165 MAY W10684165 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
PLUG-HINGE SCREW (WHITE) MAY W10191265 Contact Us For Availability
14
ASSEMBLY, SINGLE COIN DROP MAY W10133242 Contact Us For Availability
14
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
14
MAY 8066168 MAY 8066168 Contact Us For Availability
14
MAY W10295523 MAY W10295523 Contact Us For Availability
15
MAY W10133268 MAY W10133268 Contact Us For Availability
15
MAY W10521429 MAY W10521429 Contact Us For Availability
15
MAY 8573824 MAY 8573824 Contact Us For Availability
15
SCREW, COIL MAY 694421 Contact Us For Availability
16
MAY W10447152 MAY W10447152 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY W10410873 MAY W10410873 Contact Us For Availability
16
MAY 694538 MAY 694538 Contact Us For Availability
17
MAY W10159907 MAY W10159907 Contact Us For Availability
17
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
COIL, 50 HZ. MAY 695297 Contact Us For Availability
18
ASSEMBLY, LOCK ACCESS DOOR MAY W10133264 Contact Us For Availability
18
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
COIL, 50 HZ. (SPLIT) MAY 695298 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY 694424 MAY 694424 Contact Us For Availability
20
MAY 3400408 MAY 3400408 Contact Us For Availability
20
MAY W10167237 MAY W10167237 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY 694423 MAY 694423 Contact Us For Availability
21
MAY W10160652 MAY W10160652 Contact Us For Availability
21
SEAL, FOAM MAY 8318396 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY 694422 MAY 694422 Contact Us For Availability
22
BOLT, HEX BAR MAY W10137319 Contact Us For Availability
22
TOP (WHITE) MAY 3389351 Contact Us For Availability
22
MAY 338906 MAY 338906 Contact Us For Availability
22
MAY W10097610 MAY W10097610 Contact Us For Availability
23
MAY W10159849 MAY W10159849 Contact Us For Availability
23
MAY 3979115 MAY 3979115 Contact Us For Availability
23
MAY W10685669 MAY W10685669 Contact Us For Availability
24
COVER, TERMINAL BLOCK MAY 3396795 Contact Us For Availability
24
MAY 697215 MAY 697215 Contact Us For Availability
24
THERMOSTAT, HIGH-LIMIT MAY W10206703 Contact Us For Availability
25
MAY W10133258 MAY W10133258 Contact Us For Availability
25
MAY W10702051 MAY W10702051 Contact Us For Availability
25
MAY W10545922 MAY W10545922 Contact Us For Availability
26
MAY W10133248 MAY W10133248 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10678217 MAY W10678217 Contact Us For Availability
27
MAY W10747112 MAY W10747112 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY W10169579 MAY W10169579 Contact Us For Availability
28
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
28
SPRING, LINT SCREEN DOOR MAY 3394986 Contact Us For Availability
29
COIN OPTIC SENSOR ASSEMBLY (WHITE) MAY W10247389 Contact Us For Availability
29
MAY 3393657 MAY 3393657 Contact Us For Availability
29
CAP, PLUG MAY W10128544 Contact Us For Availability
30
SCREW MAY W10142655 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
BAFFLE, DRUM MAY 697693 Contact Us For Availability
31
MAY W10239314 MAY W10239314 Contact Us For Availability
31
CLIP MAY 98997 Contact Us For Availability
31
SCREW MAY 695240 Contact Us For Availability
32
MAY W10131838 MAY W10131838 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
MAY 697557 MAY 697557 Contact Us For Availability
33
MAY W10250902 MAY W10250902 Contact Us For Availability
33
MAY 693152 MAY 693152 Contact Us For Availability
33
MAY W10692558 MAY W10692558 Contact Us For Availability
34
KEY, ACCESS DOOR MAY W10140858 Contact Us For Availability
34
MAY W10694721 MAY W10694721 Contact Us For Availability
34
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
35
MAY W10188051 MAY W10188051 Contact Us For Availability
35
MAY 3391943 MAY 3391943 Contact Us For Availability
35
RETAINER MAY 3388229 Contact Us For Availability
35
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
36
MAY W10133266 MAY W10133266 Contact Us For Availability
36
MAY W10223794 MAY W10223794 Contact Us For Availability
36
SCREEN, LINT (WHITE) MAY W10596627 Contact Us For Availability
37
STANDOFF, CIRCUIT BOARD MAY W10133514 Contact Us For Availability
37
MAY 3387242 MAY 3387242 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
MAY W10702055 MAY W10702055 Contact Us For Availability
38
MAY W10685668 MAY W10685668 Contact Us For Availability
39
MAY 3389233 MAY 3389233 Contact Us For Availability
39
SCREW MAY 3387230 Contact Us For Availability
40
MAY 694415 MAY 694415 Contact Us For Availability
40
MAY W10117347 MAY W10117347 Contact Us For Availability
40
THERMOSTAT, CYCLING (140F) MAY W10194158 Contact Us For Availability
41
FILTER, RFI MAY W10306592 Contact Us For Availability
41
MAY W10237959 MAY W10237959 Contact Us For Availability
41
THERMOSTAT, ELECTRONIC (155F) MAY W10206206 Contact Us For Availability
42
ASSEMBLY, SCREW AND INSULATOR MAY 3400934 Contact Us For Availability
42
MAY 3402841 MAY 3402841 Contact Us For Availability
43
MAY 696144 MAY 696144 Contact Us For Availability
43
MAY 8578825 MAY 8578825 Contact Us For Availability
44
MAY W10181903 MAY W10181903 Contact Us For Availability
44
CUT-OFF, THERMAL MAY W10181549 Contact Us For Availability
45
SCREW MAY 693995 Contact Us For Availability
46
MAY 3387561 MAY 3387561 Contact Us For Availability
48
MAY 3977633 MAY 3977633 Contact Us For Availability
49
SCREW MAY 3400000 Contact Us For Availability
56
MAY 279818 MAY 279818 Contact Us For Availability
57
MAY 3394331 MAY 3394331 Contact Us For Availability
58
ELBOW MAY 49026 Contact Us For Availability
59
PLUG, MULTIVENT (WHITE) MAY 49252 Contact Us For Availability
60
MAY 488729 MAY 488729 Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
10A CORD ADAPTOR (AUSTRAILIAN) MAY W10476818 Contact Us For Availability
NI
MAY W10476820 MAY W10476820 Contact Us For Availability
NI
10A CORD ADAPTER (EUROPEAN) MAY W10476822 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CONVERSION KIT, LP MAY W10233219 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, SECURITY MAY 285875 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 4392067 MAY 4392067 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
× ![]()
Login and Registration Form
