Model Maytag MLG20PDBGW3 COMMERCIAL STACKED – Common Parts & Diagrams
01 - COVER SHEET

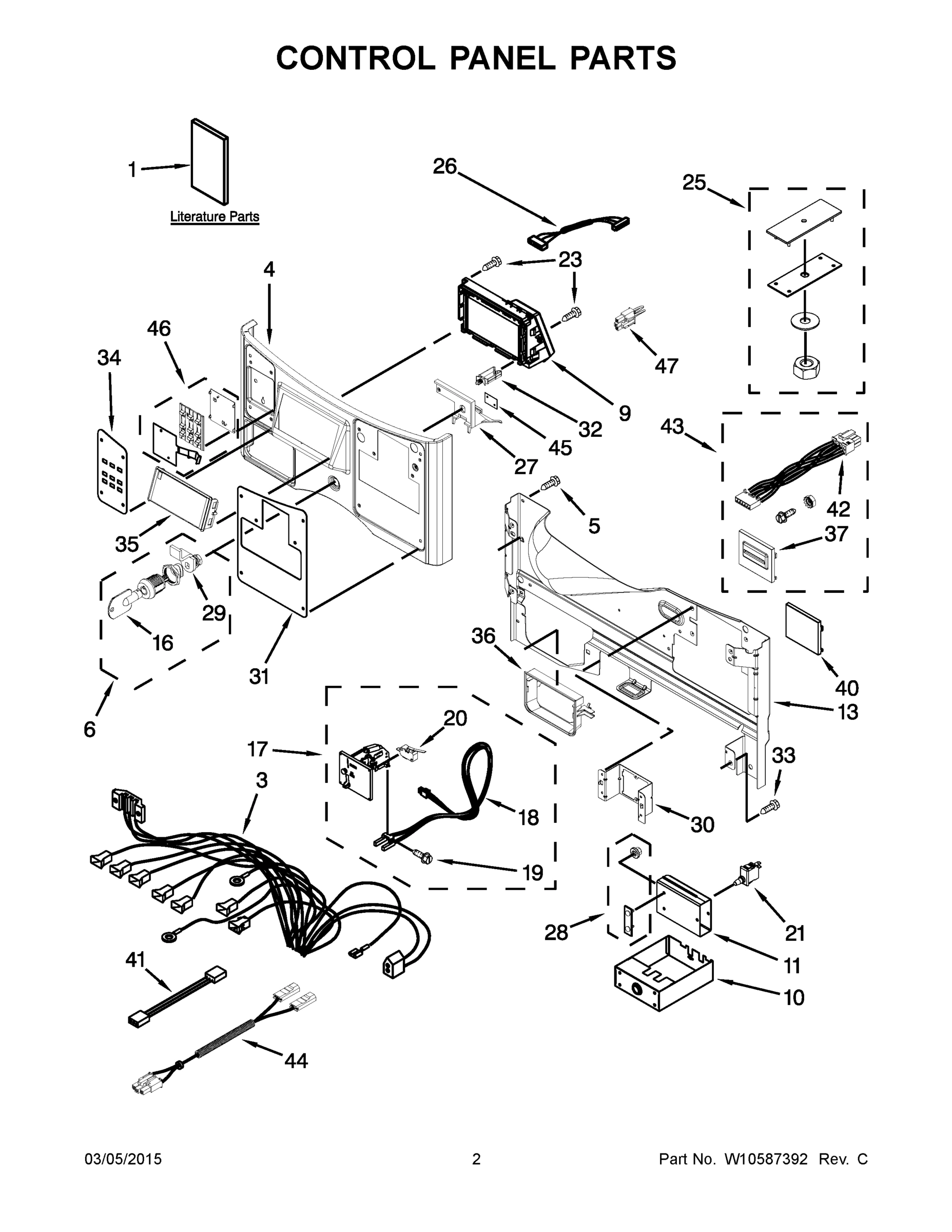

02 - CONTROL PANEL PARTS

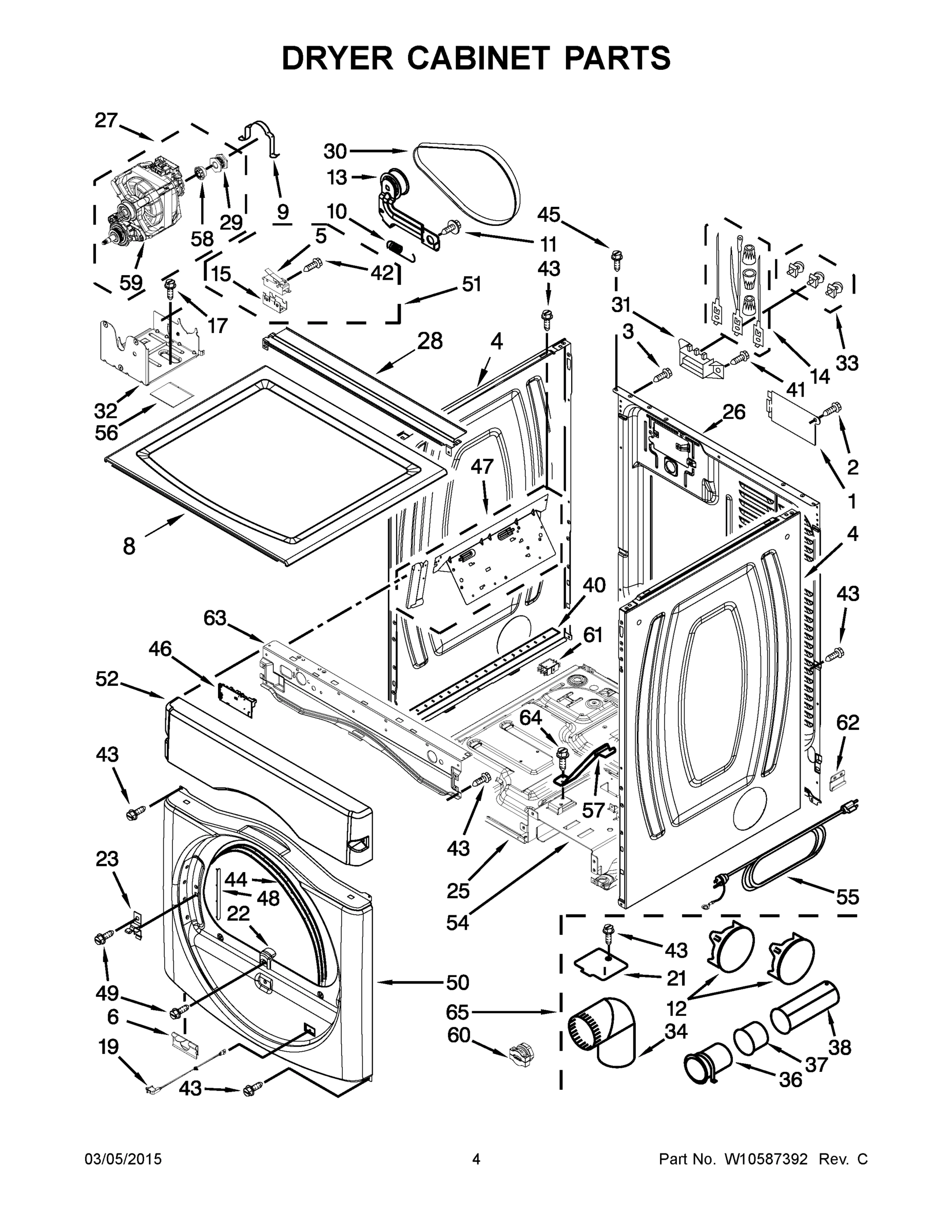

03 - DRYER CABINET PARTS

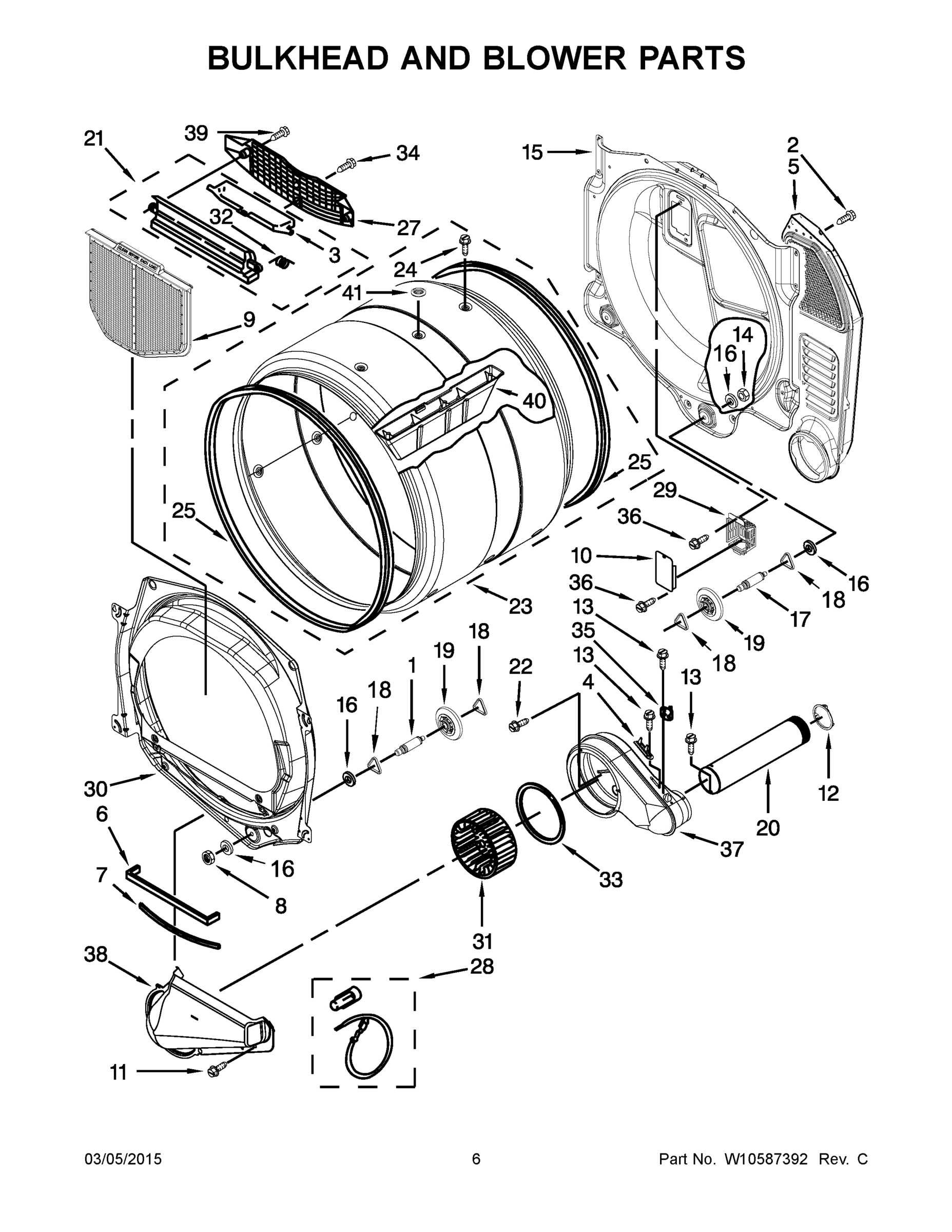

04 - BULKHEAD AND BLOWER PARTS

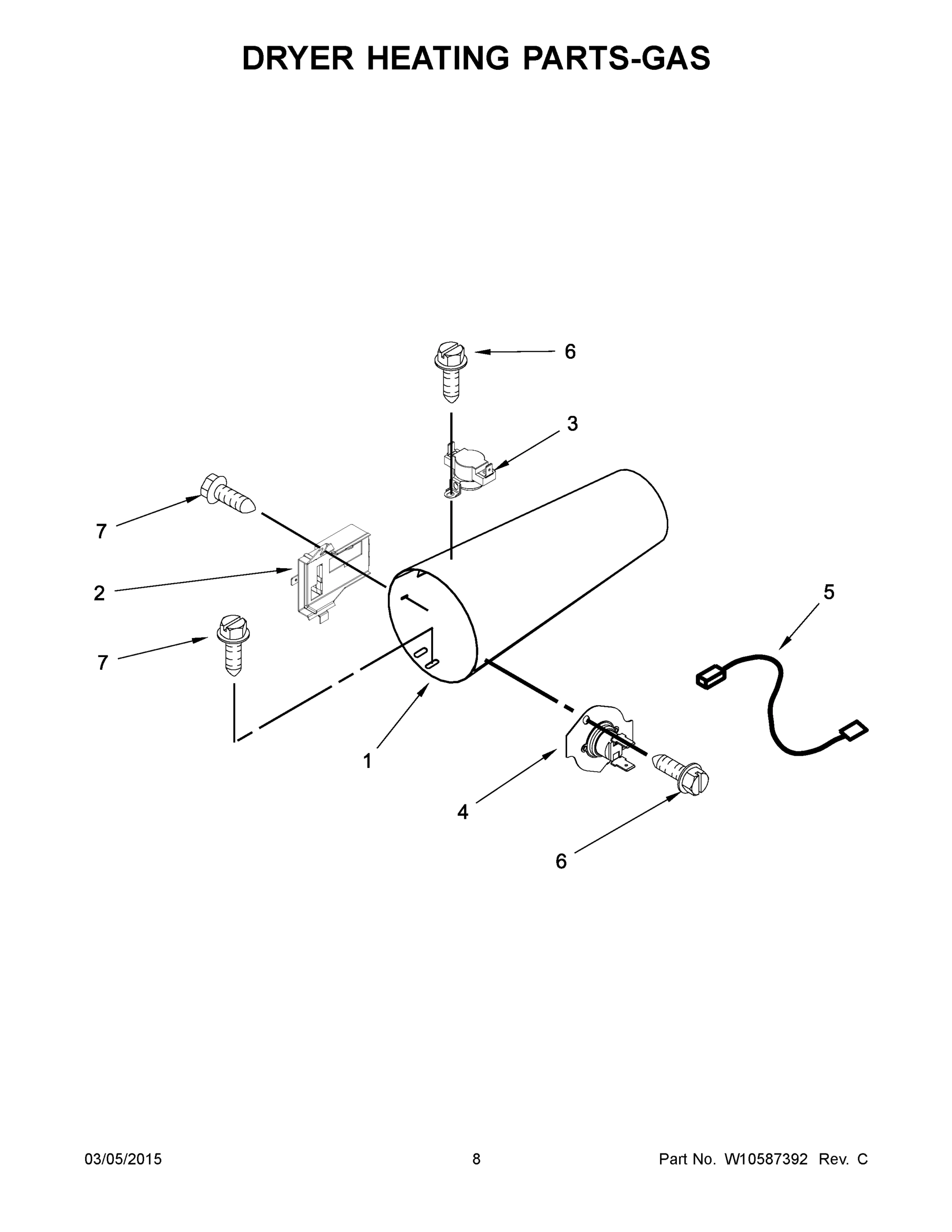

05 - DRYER HEATING PARTS-GAS

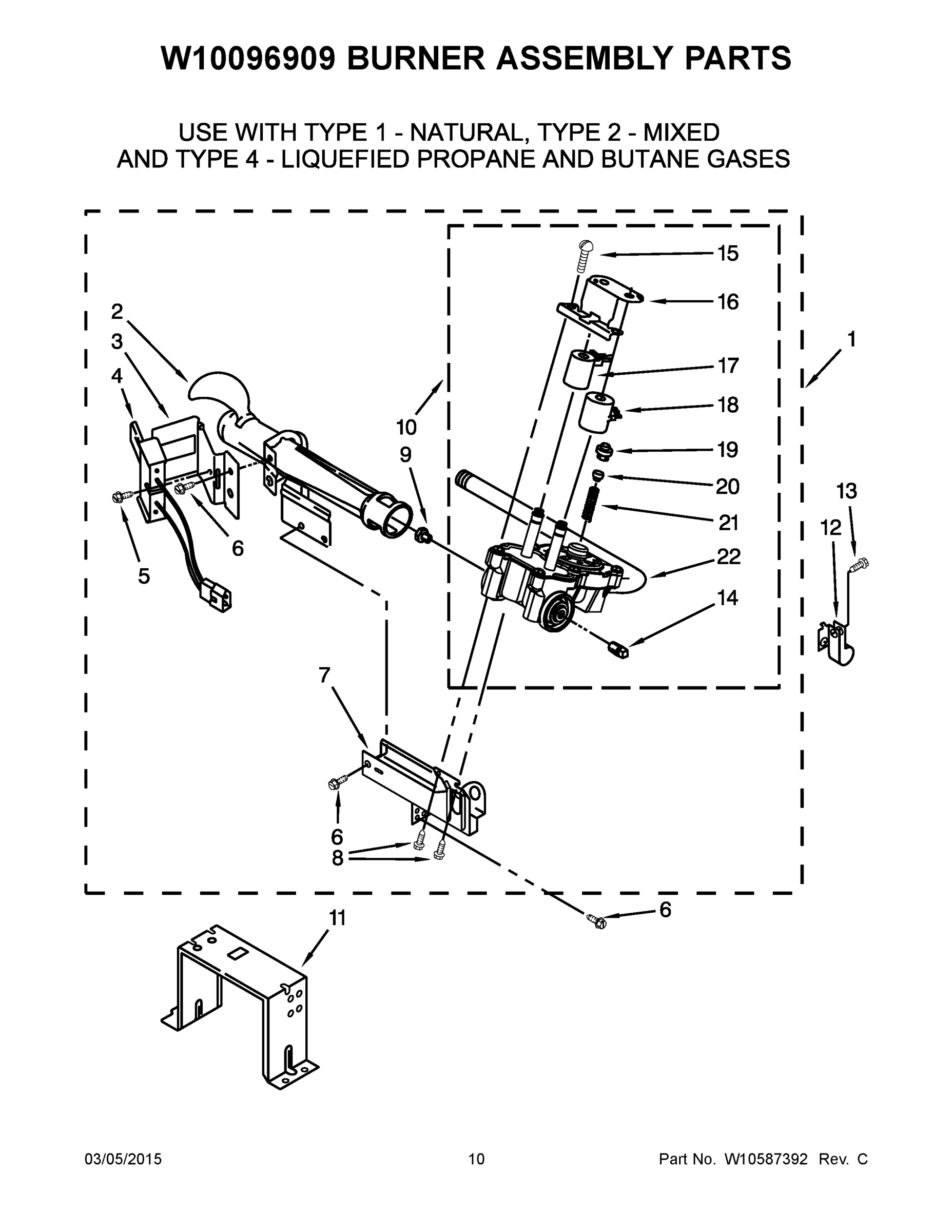

06 - W10096909 BURNER ASSEMBLY PARTS

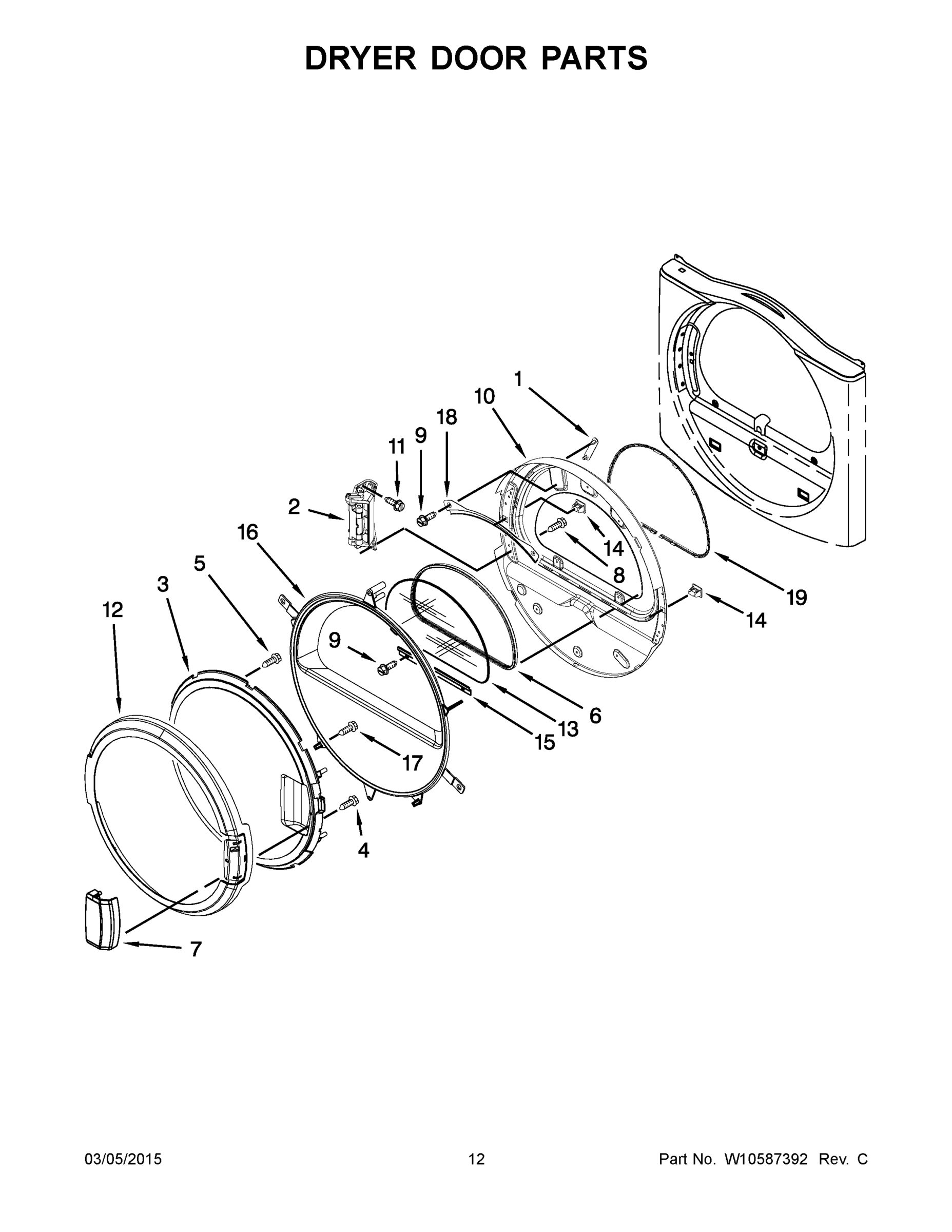

07 - DRYER DOOR PARTS

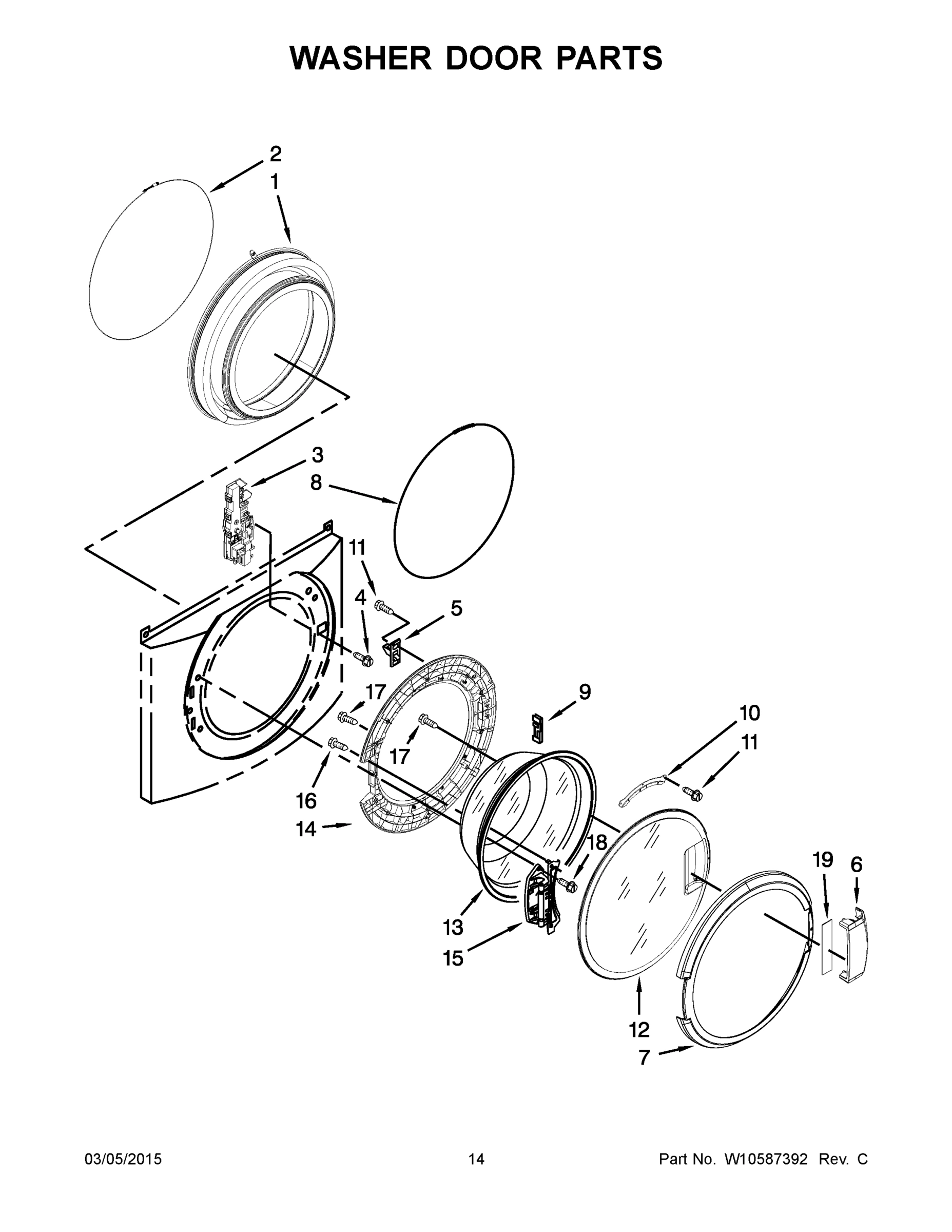

08 - WASHER DOOR PARTS

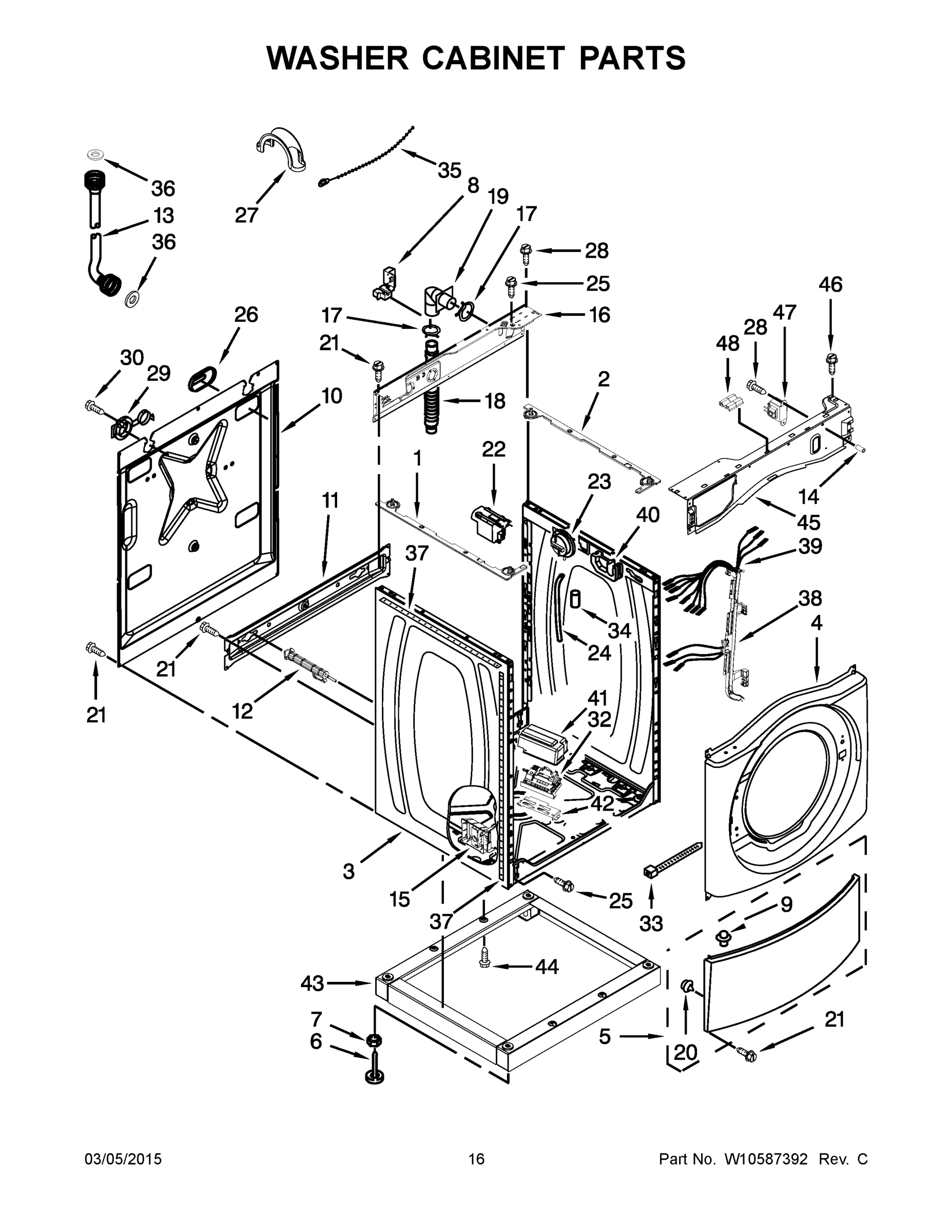

09 - WASHER CABINET PARTS

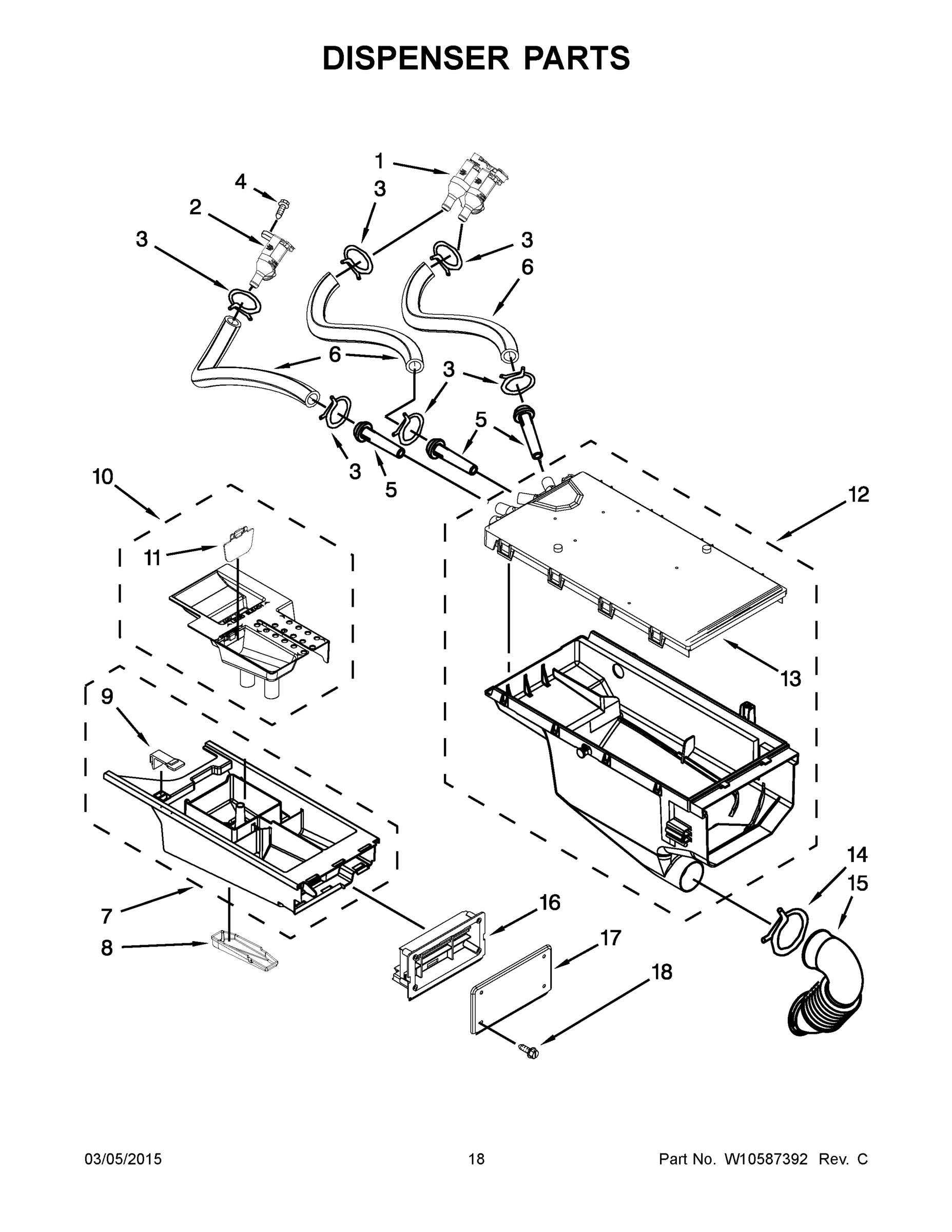

10 - DISPENSER PARTS

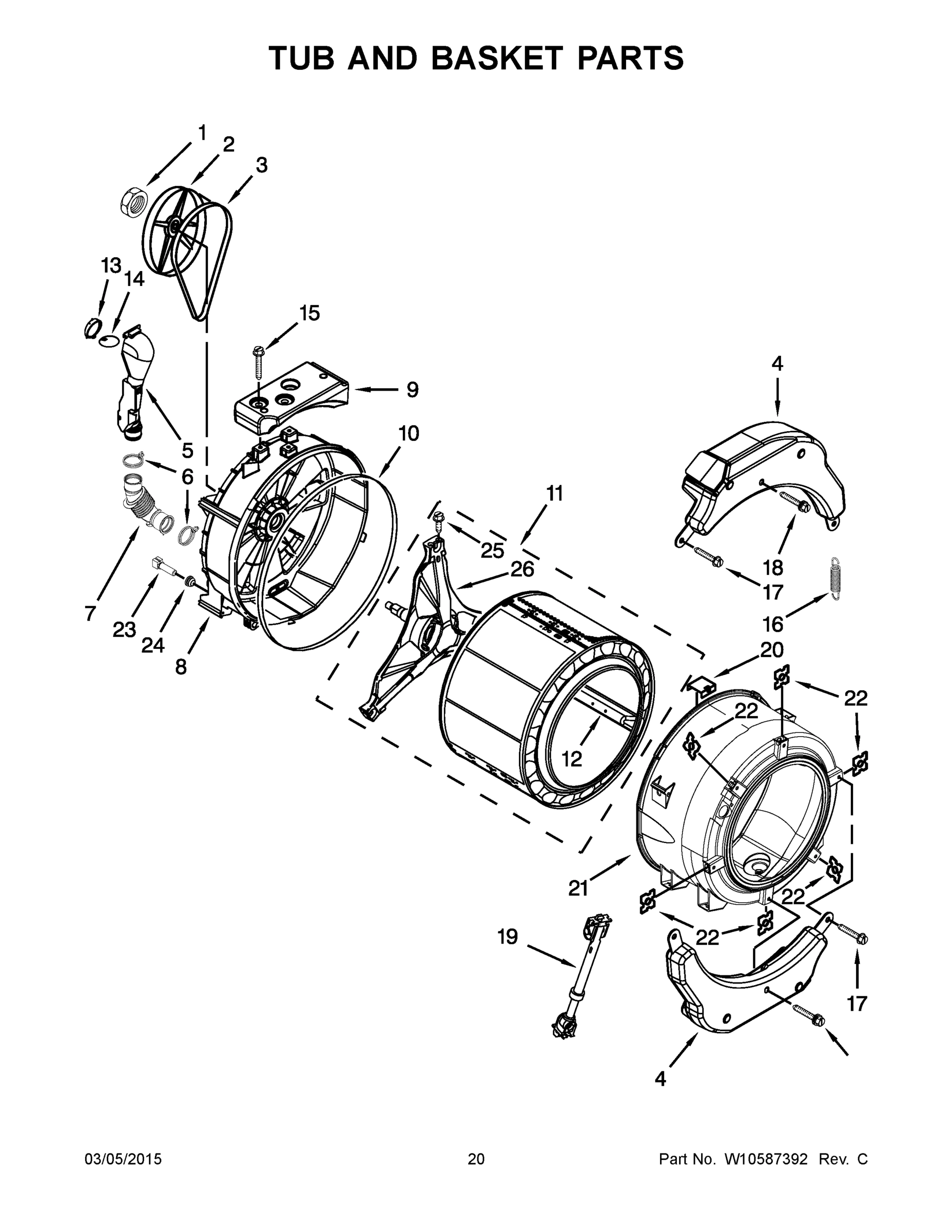

11 - TUB AND BASKET PARTS

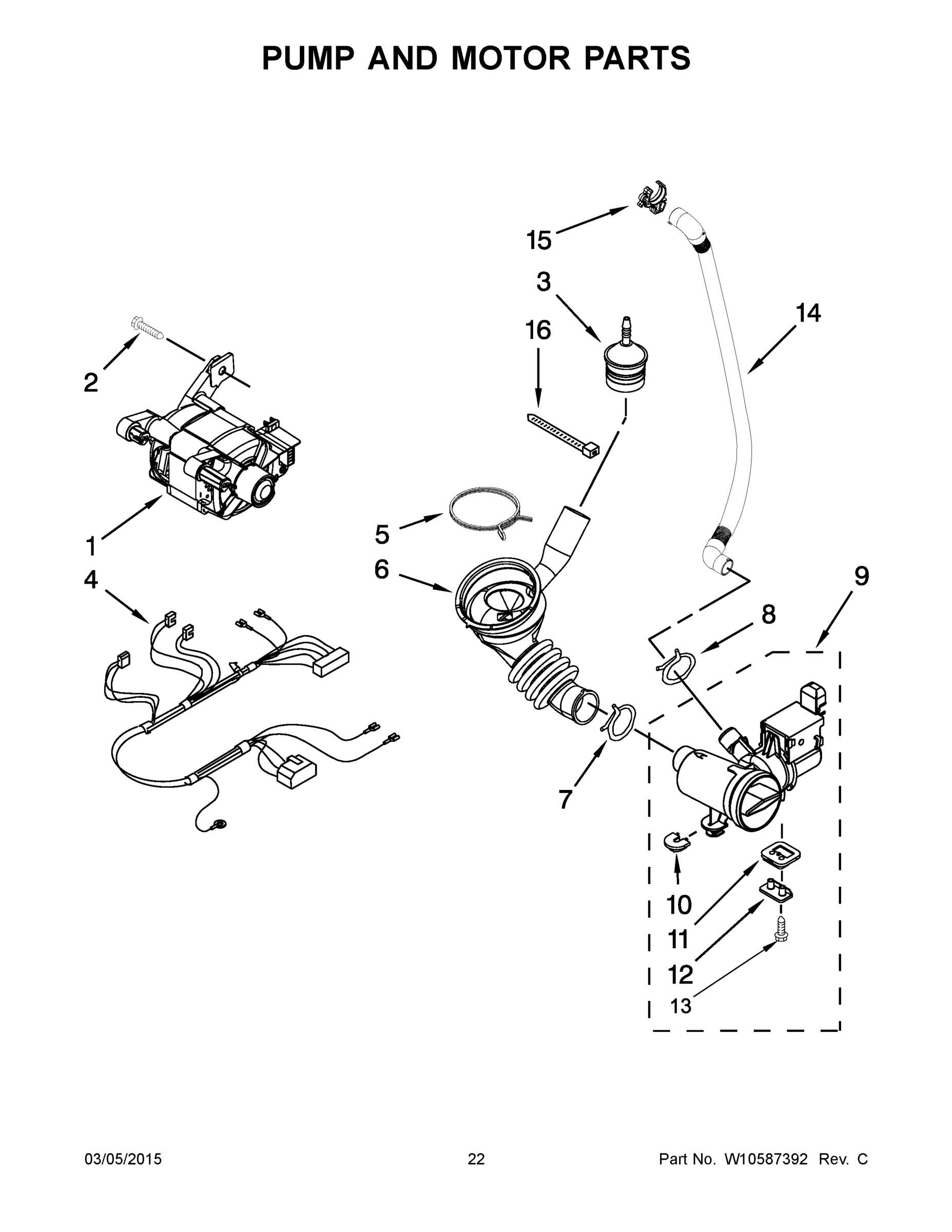

12 - PUMP AND MOTOR PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLG20PDBGW3 COMMERCIAL STACKED
1
INSTRUCTIONS, INSTALLATION MAY W10335466 Contact Us For Availability
1
MAY W10096918 MAY W10096918 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY 8573824 MAY 8573824 Contact Us For Availability
1
BURNER ASSEMBLY 50 HZ. (TYPE 1 AND 2) MAY W10096909 Contact Us For Availability
1
HOLE COVER, HINGE MAY 8565119 Contact Us For Availability
1
MAY W10311051 MAY W10311051 Contact Us For Availability
1
MAY W10405229 MAY W10405229 Contact Us For Availability
1
MAY W10316929 MAY W10316929 Contact Us For Availability
1
MAY 8533999 MAY 8533999 Contact Us For Availability
1
MAY W10171927 MAY W10171927 Contact Us For Availability
1A
MAY W10335470 MAY W10335470 Contact Us For Availability
1B
MAY W10404629 MAY W10404629 Contact Us For Availability
2
SCREW MAY 3390814 Contact Us For Availability
2
MAY 338906 MAY 338906 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2
MAY W10198424 MAY W10198424 Contact Us For Availability
2
MAY 8540108 MAY 8540108 Contact Us For Availability
2
MAY W10405223 MAY W10405223 Contact Us For Availability
2
MAY W10316932 MAY W10316932 Contact Us For Availability
2
MAY 8540088C MAY 8540088C Contact Us For Availability
2
MAY 8540134 MAY 8540134 Contact Us For Availability
3
HARNESS, MAIN MAY W10555304 Contact Us For Availability
3
MAY 8533974 MAY 8533974 Contact Us For Availability
3
MAY W10181925 MAY W10181925 Contact Us For Availability
3
THERMOSTAT, HIGH-LIMIT MAY W10206703 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
MAY W10137467 MAY W10137467 Contact Us For Availability
3
MAY W10196671 MAY W10196671 Contact Us For Availability
3
MAY W10096852 MAY W10096852 Contact Us For Availability
3
MAY W10260319 MAY W10260319 Contact Us For Availability
3
MAY W10405608 MAY W10405608 Contact Us For Availability
4
ASSEMBLY, PANEL MAY W10198203 Contact Us For Availability
4
MAY W10542714 MAY W10542714 Contact Us For Availability
4
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
4
CUT-OFF, THERMAL MAY W10181549 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
SCREW MAY 9742177 Contact Us For Availability
4
MAY 8540725 MAY 8540725 Contact Us For Availability
4
MAY W10306505 MAY W10306505 Contact Us For Availability
4
MAY W10223198 MAY W10223198 Contact Us For Availability
4
MAY W10364668 MAY W10364668 Contact Us For Availability
5
MAY W10410873 MAY W10410873 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 3394346 Contact Us For Availability
5
JUMPER, WIRE MAY 3401707 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
5
SCREW MAY 3400618 Contact Us For Availability
5
MAY 8540221 MAY 8540221 Contact Us For Availability
5
MAY 8540664 MAY 8540664 Contact Us For Availability
5
MAY 8183181 MAY 8183181 Contact Us For Availability
5
MAY W10142720 MAY W10142720 Contact Us For Availability
5
MAY W10273037 MAY W10273037 Contact Us For Availability
6
MAY W10198223 MAY W10198223 Contact Us For Availability
6
MAY 8519459 MAY 8519459 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
SCREW MAY 90767 Contact Us For Availability
6
MAY 8579663 MAY 8579663 Contact Us For Availability
6
HANDLE, DOOR MAY W10117474 Contact Us For Availability
6
MAY W10245373 MAY W10245373 Contact Us For Availability
6
MAY W10212611 MAY W10212611 Contact Us For Availability
6
MAY W10273034 MAY W10273034 Contact Us For Availability
6
MAY 8540012 MAY 8540012 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7
MAY W10112976 MAY W10112976 Contact Us For Availability
7
MAY W10198440 MAY W10198440 Contact Us For Availability
7
NUT, HEX MAY 3359452 Contact Us For Availability
7
MAY W10376660 MAY W10376660 Contact Us For Availability
7
MAY 8540019 MAY 8540019 Contact Us For Availability
7
MAY W10273036 MAY W10273036 Contact Us For Availability
8
LID & BUMPER ASSEMBLY (WHITE) MAY W10336080 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
8
MAY W10217563 MAY W10217563 Contact Us For Availability
8
MAY W10110676 MAY W10110676 Contact Us For Availability
8
MAY 356138 MAY 356138 Contact Us For Availability
8
COVER, DETERGENT MAY 8540399 Contact Us For Availability
8
MAY W10303574 MAY W10303574 Contact Us For Availability
9
ASSEMBLY, TECHBOX MAY W10198219 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
SCREEN, LINT (WHITE) MAY W10596627 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 234660 Contact Us For Availability
9
SCREW MAY 3393258 Contact Us For Availability
9
MAY 8540115 MAY 8540115 Contact Us For Availability
9
MAY 8518891 MAY 8518891 Contact Us For Availability
9
MAY W10198458 MAY W10198458 Contact Us For Availability
9
MAY W10200747 MAY W10200747 Contact Us For Availability
9
MAY W10183441 MAY W10183441 Contact Us For Availability
9A
MAY 234868 MAY 234868 Contact Us For Availability
10
MAY W10133248 MAY W10133248 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY 8281918 MAY 8281918 Contact Us For Availability
10
MAY W10564648 MAY W10564648 Contact Us For Availability
10
MAY 8540114 MAY 8540114 Contact Us For Availability
10
MAY W10258342 MAY W10258342 Contact Us For Availability
10
MAY W10407371 MAY W10407371 Contact Us For Availability
10
MAY 8540090 MAY 8540090 Contact Us For Availability
10
MAY W10191886 MAY W10191886 Contact Us For Availability
11
MAY W10133258 MAY W10133258 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY 359625 MAY 359625 Contact Us For Availability
11
MAY 3389889 MAY 3389889 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
11
MAY 8540513 MAY 8540513 Contact Us For Availability
11
MAY W10189659 MAY W10189659 Contact Us For Availability
11
MAY W10298953 MAY W10298953 Contact Us For Availability
11
MAY W10303571 MAY W10303571 Contact Us For Availability
11
MAY W10191880 MAY W10191880 Contact Us For Availability
12
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
12
MAY W10344699 MAY W10344699 Contact Us For Availability
12
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
12
MAY W10198431 MAY W10198431 Contact Us For Availability
12
MAY W10137404 MAY W10137404 Contact Us For Availability
12
MAY W10251449 MAY W10251449 Contact Us For Availability
12
MAY W10212603 MAY W10212603 Contact Us For Availability
12
MAY W10118982 MAY W10118982 Contact Us For Availability
12
MAY W10190649 MAY W10190649 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
MAY W10198369 MAY W10198369 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
SCREW MAY 8533971 Contact Us For Availability
13
MAY W10286878 MAY W10286878 Contact Us For Availability
13
MAY W10388315 MAY W10388315 Contact Us For Availability
13
HOSE, WATER INLET (COLD) MAY W10352644 Contact Us For Availability
13
MAY W10212604 MAY W10212604 Contact Us For Availability
13
MAY W10142721 MAY W10142721 Contact Us For Availability
13
MAY W10167905 MAY W10167905 Contact Us For Availability
13A
HOSE, WATER INLET (WARM) MAY W10352594 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
14
MAY W10295523 MAY W10295523 Contact Us For Availability
14
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
14
MAY W10198442 MAY W10198442 Contact Us For Availability
14
CAP PLUG MAY W10018050 Contact Us For Availability
14
MAY W10273032 MAY W10273032 Contact Us For Availability
14
MAY W10142722 MAY W10142722 Contact Us For Availability
14
MAY W10272563 MAY W10272563 Contact Us For Availability
15
MAY 8564011 MAY 8564011 Contact Us For Availability
15
MAY W10080170 MAY W10080170 Contact Us For Availability
15
SCREW, COIL MAY 694421 Contact Us For Availability
15
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
15
MAY W10198417 MAY W10198417 Contact Us For Availability
15
MAY W10385821 MAY W10385821 Contact Us For Availability
15
MAY 8540063 MAY 8540063 Contact Us For Availability
15
MAY W10246531 MAY W10246531 Contact Us For Availability
15
MAY W10003290 MAY W10003290 Contact Us For Availability
16
MAY W10114740 MAY W10114740 Contact Us For Availability
16
WASHER MAY 3387459 Contact Us For Availability
16
MAY 694538 MAY 694538 Contact Us For Availability
16
DOOR, INTERMEDIATE (STATIONARY) MAY 8580059 Contact Us For Availability
16
MAY 8540284 MAY 8540284 Contact Us For Availability
16
MAY W10244560 MAY W10244560 Contact Us For Availability
16
MAY W10405607 MAY W10405607 Contact Us For Availability
16
MAY W10010360 MAY W10010360 Contact Us For Availability
16
MAY 2262071 MAY 2262071 Contact Us For Availability
17
ASSEMBLY, DUAL COIN DROP MAY W10133245 Contact Us For Availability
17
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
17
COIL, 50 HZ. MAY 695297 Contact Us For Availability
17
MAY 8534022 MAY 8534022 Contact Us For Availability
17
MAY 8540282 MAY 8540282 Contact Us For Availability
17
MAY W10198450 MAY W10198450 Contact Us For Availability
17
SCREW MAY W10094780 Contact Us For Availability
17A
ASSEMBLY, SINGLE COIN DROP MAY W10133242 Contact Us For Availability
18
COIN OPTIC SENSOR ASSEMBLY (WHITE) MAY W10247389 Contact Us For Availability
18
MAY W10512946 MAY W10512946 Contact Us For Availability
18
COIL, 50 HZ. (SPLIT) MAY 695298 Contact Us For Availability
18
RETAINER, WINDOW (UPPER) MAY 8519356 Contact Us For Availability
18
MAY W10106460 MAY W10106460 Contact Us For Availability
18
MAY W10137456 MAY W10137456 Contact Us For Availability
18
MAY W10259288 MAY W10259288 Contact Us For Availability
18A
COIN OPTIC SENSOR ASSEMBLY (BLACK) MAY W10247388 Contact Us For Availability
19
SCREW MAY W10142655 Contact Us For Availability
19
MAY W10459028 MAY W10459028 Contact Us For Availability
19
MAY W10314171 MAY W10314171 Contact Us For Availability
19
MAY 694424 MAY 694424 Contact Us For Availability
19
MAY W10407973 MAY W10407973 Contact Us For Availability
19
MAY W10112927 MAY W10112927 Contact Us For Availability
19
MAY W10003260 MAY W10003260 Contact Us For Availability
19
MAY W10015830 MAY W10015830 Contact Us For Availability
20
MAY W10133281 MAY W10133281 Contact Us For Availability
20
PIPE, EXHAUST MAY W10225179 Contact Us For Availability
20
MAY 694423 MAY 694423 Contact Us For Availability
20
MAY 238614 MAY 238614 Contact Us For Availability
20
MAY 8540092 MAY 8540092 Contact Us For Availability
21
SWITCH, VAULT SERVICE DOOR MAY W10133289 Contact Us For Availability
21
PLATE, COVER MAY 8066115 Contact Us For Availability
21
ASSEMBLY, OUTLET HOUSING MAY W10181928 Contact Us For Availability
21
MAY 694422 MAY 694422 Contact Us For Availability
21
MAY W10266965 MAY W10266965 Contact Us For Availability
22
MAY 8580015 MAY 8580015 Contact Us For Availability
22
SCREW MAY 489463 Contact Us For Availability
22
MAY W10097610 MAY W10097610 Contact Us For Availability
22
MAY W10398805 MAY W10398805 Contact Us For Availability
22
MAY 8540072 MAY 8540072 Contact Us For Availability
23
MAY W10192860 MAY W10192860 Contact Us For Availability
23
STRIKE, DOOR MAY 8565122 Contact Us For Availability
23
MAY W10549541 MAY W10549541 Contact Us For Availability
23
MAY W10292407 MAY W10292407 Contact Us For Availability
23
MAY W10176659 MAY W10176659 Contact Us For Availability
24
MAY W10219342 MAY W10219342 Contact Us For Availability
24
MAY 8540294 MAY 8540294 Contact Us For Availability
24
MAY 8540766 MAY 8540766 Contact Us For Availability
25
MAY W10169579 MAY W10169579 Contact Us For Availability
25
BASE, CABINET MAY W10198309 Contact Us For Availability
25
MAY W10521118 MAY W10521118 Contact Us For Availability
25
MAY 8540479 MAY 8540479 Contact Us For Availability
25
MAY 8540382 MAY 8540382 Contact Us For Availability
26
MAY W10242897 MAY W10242897 Contact Us For Availability
26
MAY W10225180 MAY W10225180 Contact Us For Availability
26
MAY 8540268 MAY 8540268 Contact Us For Availability
26
MAY 8540342 MAY 8540342 Contact Us For Availability
27
MAY W10198375 MAY W10198375 Contact Us For Availability
27
ASSEMBLY, MOTOR 50 HZ. MAY W10289662 Contact Us For Availability
27
MAY W10181926 MAY W10181926 Contact Us For Availability
27
MAY 8577378 MAY 8577378 Contact Us For Availability
28
MAY W10159907 MAY W10159907 Contact Us For Availability
28
MAY W10198224 MAY W10198224 Contact Us For Availability
28
MAY 279457 MAY 279457 Contact Us For Availability
28
MAY 8540329 MAY 8540329 Contact Us For Availability
29
MAY W10233256 MAY W10233256 Contact Us For Availability
29
MAY W10167237 MAY W10167237 Contact Us For Availability
29
MAY W10465334 MAY W10465334 Contact Us For Availability
29
MAY 8540728 MAY 8540728 Contact Us For Availability
30
MAY W10198322 MAY W10198322 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY 8565061 MAY 8565061 Contact Us For Availability
30
MAY 8540727 MAY 8540727 Contact Us For Availability
31
FASCIA MAY W10198334 Contact Us For Availability
31
MAY 3397659 MAY 3397659 Contact Us For Availability
31
MAY W10349492 MAY W10349492 Contact Us For Availability
32
CLIP, WIRE MAY W10129069 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
SPRING, LINT SCREEN DOOR MAY 3394986 Contact Us For Availability
32
MAY W10475424 MAY W10475424 Contact Us For Availability
33
MAY W10386302 MAY W10386302 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
SEAL, PLATE COVER MAY W10181918 Contact Us For Availability
33
MAY 3429563 MAY 3429563 Contact Us For Availability
34
BUTTONS, FASCIA MAY W10198284 Contact Us For Availability
34
ELBOW MAY 49026 Contact Us For Availability
34
SCREW MAY 695240 Contact Us For Availability
34
MAY 2161302 MAY 2161302 Contact Us For Availability
35
MAY W10198390 MAY W10198390 Contact Us For Availability
35
THERMISTOR MAY 8577274 Contact Us For Availability
35
TIE, CABLE (BEADED) MAY 3347868 Contact Us For Availability
36
MAY W10198345 MAY W10198345 Contact Us For Availability
36
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
36
WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
37
MAY W10198367 MAY W10198367 Contact Us For Availability
37
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
37
SEAL, FOAM MAY 8318396 Contact Us For Availability
37
MAY W10119255 MAY W10119255 Contact Us For Availability
38
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
38
ASSEMBLY, LINT DUCT MAY W10286419 Contact Us For Availability
38
MAY W10168546 MAY W10168546 Contact Us For Availability
39
SCREW MAY 3387230 Contact Us For Availability
39
MAY W10475435 MAY W10475435 Contact Us For Availability
40
MAY W10198366 MAY W10198366 Contact Us For Availability
40
MAY W10153409 MAY W10153409 Contact Us For Availability
40
MAY 8540643 MAY 8540643 Contact Us For Availability
41
MAY W10342230 MAY W10342230 Contact Us For Availability
41
CAP, PLUG MAY W10128544 Contact Us For Availability
41
MAY W10405233 MAY W10405233 Contact Us For Availability
42
MAY W10239515 MAY W10239515 Contact Us For Availability
42
ASSEMBLY, SCREW AND INSULATOR MAY 3400934 Contact Us For Availability
42
MAY W10198280 MAY W10198280 Contact Us For Availability
43
MAY W10198451 MAY W10198451 Contact Us For Availability
44
MAY W10300896 MAY W10300896 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY W10346892 MAY W10346892 Contact Us For Availability
45
MAY W10151156 MAY W10151156 Contact Us For Availability
45
MAY 3393008 MAY 3393008 Contact Us For Availability
45
MAY W10294428 MAY W10294428 Contact Us For Availability
46
MAY W10198198 MAY W10198198 Contact Us For Availability
46
MAY W10166380 MAY W10166380 Contact Us For Availability
46
MAY W10015090 MAY W10015090 Contact Us For Availability
47
JUMPER, SWITCH SERVICE/VAULT MAY W10133282 Contact Us For Availability
47
BRACKET, CONTROL MAY 8563727 Contact Us For Availability
47
MAY W10198470 MAY W10198470 Contact Us For Availability
48
PLUG, FRONT PANEL MAY 8565043 Contact Us For Availability
48
MAY W10198373 MAY W10198373 Contact Us For Availability
49
SCREW MAY 3357011 Contact Us For Availability
50
FRONT PANEL ASSEMBLY (WHITE) MAY W10551281 Contact Us For Availability
51
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
52
MAY W10198379 MAY W10198379 Contact Us For Availability
54
MAY W10133261 MAY W10133261 Contact Us For Availability
55
MAY W10476824 MAY W10476824 Contact Us For Availability
56
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
57
MAY W10198376 MAY W10198376 Contact Us For Availability
58
MAY 3393657 MAY 3393657 Contact Us For Availability
59
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
60
MAY 8316644 MAY 8316644 Contact Us For Availability
61
SWITCH, CENTRIFUGAL MAY 3388235 Contact Us For Availability
62
MAY W10198461 MAY W10198461 Contact Us For Availability
63
MAY 8565237 MAY 8565237 Contact Us For Availability
64
SCREW MAY 693995 Contact Us For Availability
65
MAY 279818 MAY 279818 Contact Us For Availability
NI
THE FOLLOWING CABLE SETS: (NOT ILLUSTRATED) MAY N/P Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
10A CORD ADAPTOR (AUSTRAILIAN) MAY W10476818 Contact Us For Availability
NI
MAY W10476820 MAY W10476820 Contact Us For Availability
NI
10A CORD ADAPTER (EUROPEAN) MAY W10476822 Contact Us For Availability
NI
CONVERSION KIT, LP MAY W10233219 Contact Us For Availability
NI
ACCESSORY PARTS, PEDESTAL (WHITE) MAY W10103350 Contact Us For Availability
NI
MAY W10342219 MAY W10342219 Contact Us For Availability
NI
MAY W10342220 MAY W10342220 Contact Us For Availability
NI
MAY W10342223 MAY W10342223 Contact Us For Availability
NI
MAY W10342229 MAY W10342229 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
× ![]()
Login and Registration Form
