Model Whirlpool MLG15PDCXA GAS DRYER – Common Parts & Diagrams

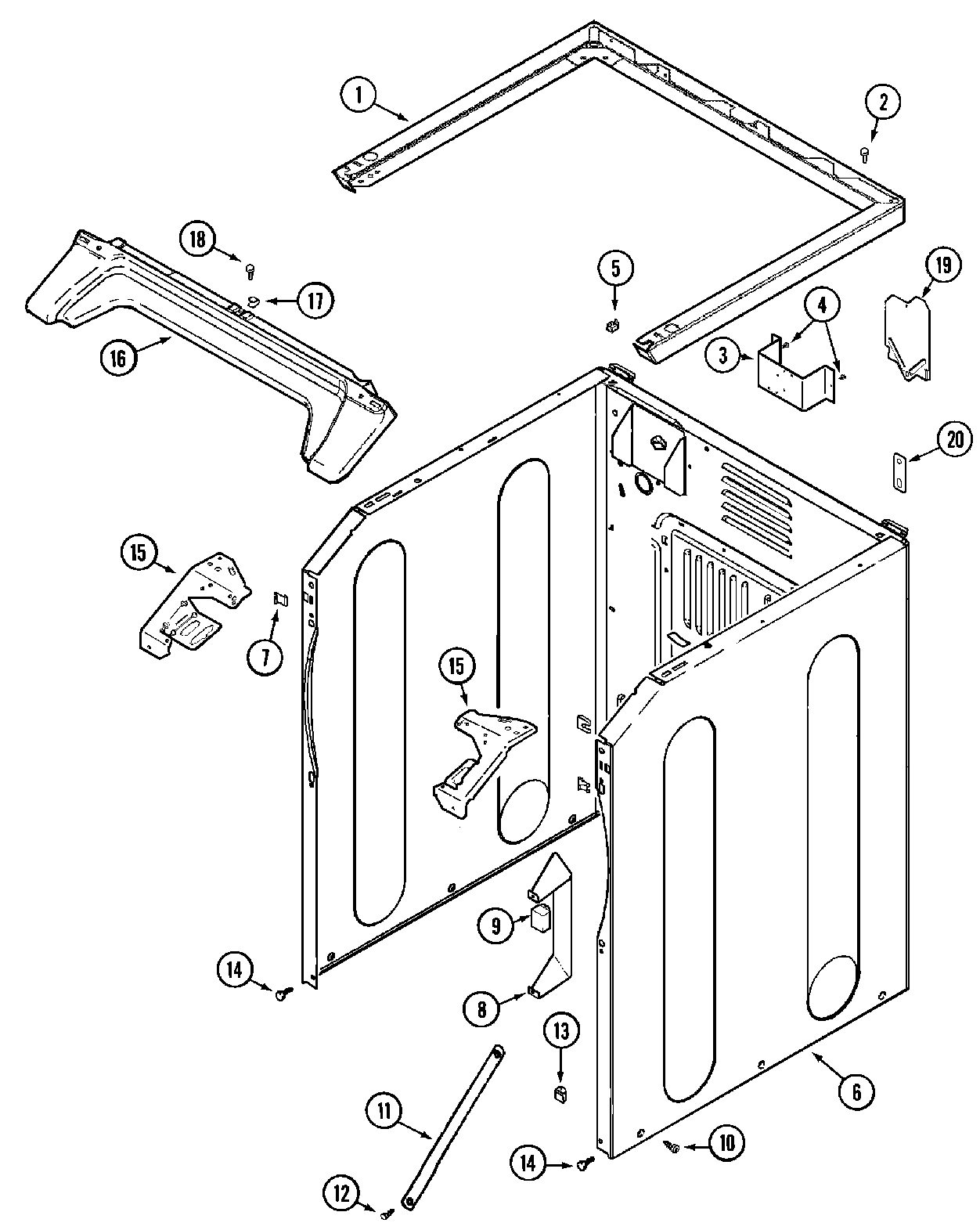

01 - CABINET-FRONT (LOWER)
Common parts from model Whirlpool MLG15PDCXA GAS DRYER
001
SUPPORT (WHT) WPL 33002005 Contact Us For Availability
001
(BSQ) WPL 33002446 Contact Us For Availability
002
SCREW, SUPPORT WPL 22001883 Contact Us For Availability
006
CABINET ASSY. (WHT) WPL NLA Contact Us For Availability
006
CABINET ASSY. (WHT AS PK) WPL 22003639 Contact Us For Availability
008
BRACKET, RELAY WPL 314627 Contact Us For Availability
008
SCREW, RELAY BRACKET WPL Y310632 Contact Us For Availability
008
SCREW, RELAY BRACKET WPL Y313561 Contact Us For Availability
009
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
011
BRACE, CROSS WPL 22002259 Contact Us For Availability
013
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
015
BRACKET, CORNER (LT) WPL 33002009 Contact Us For Availability
015
(RT) WPL 33002010 Contact Us For Availability
016
COVER, ACCESS (BSQ) WPL 22002664 Contact Us For Availability
016
(WHT) WPL 33002011 Contact Us For Availability
016
(ALM) WPL 33002012 Contact Us For Availability
017
FASTENER, ACCESS COVER WPL 33002013 Contact Us For Availability
019
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
020
BRACKET, SECURITY WPL 33002060 Contact Us For Availability
021
RETAINER, WIRE HARNESS WPL 33001989 Contact Us For Availability
021
WIRE HARNESS, MAIN (LWR) WPL 33002064 Contact Us For Availability
× ![]()
