Model Maytag MHWE250XL00 WASHER – Common Parts & Diagrams

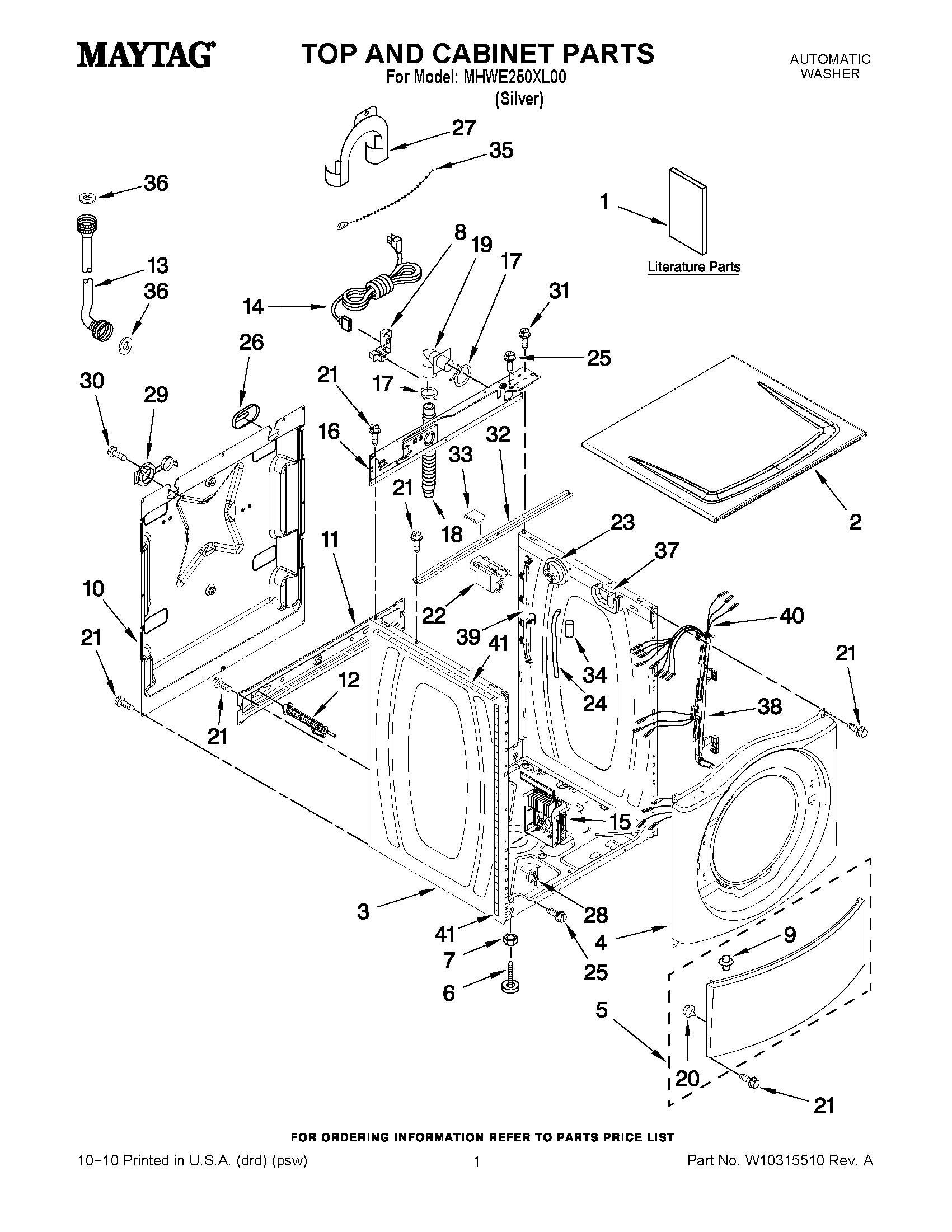

01 - TOP AND CABINET PARTS

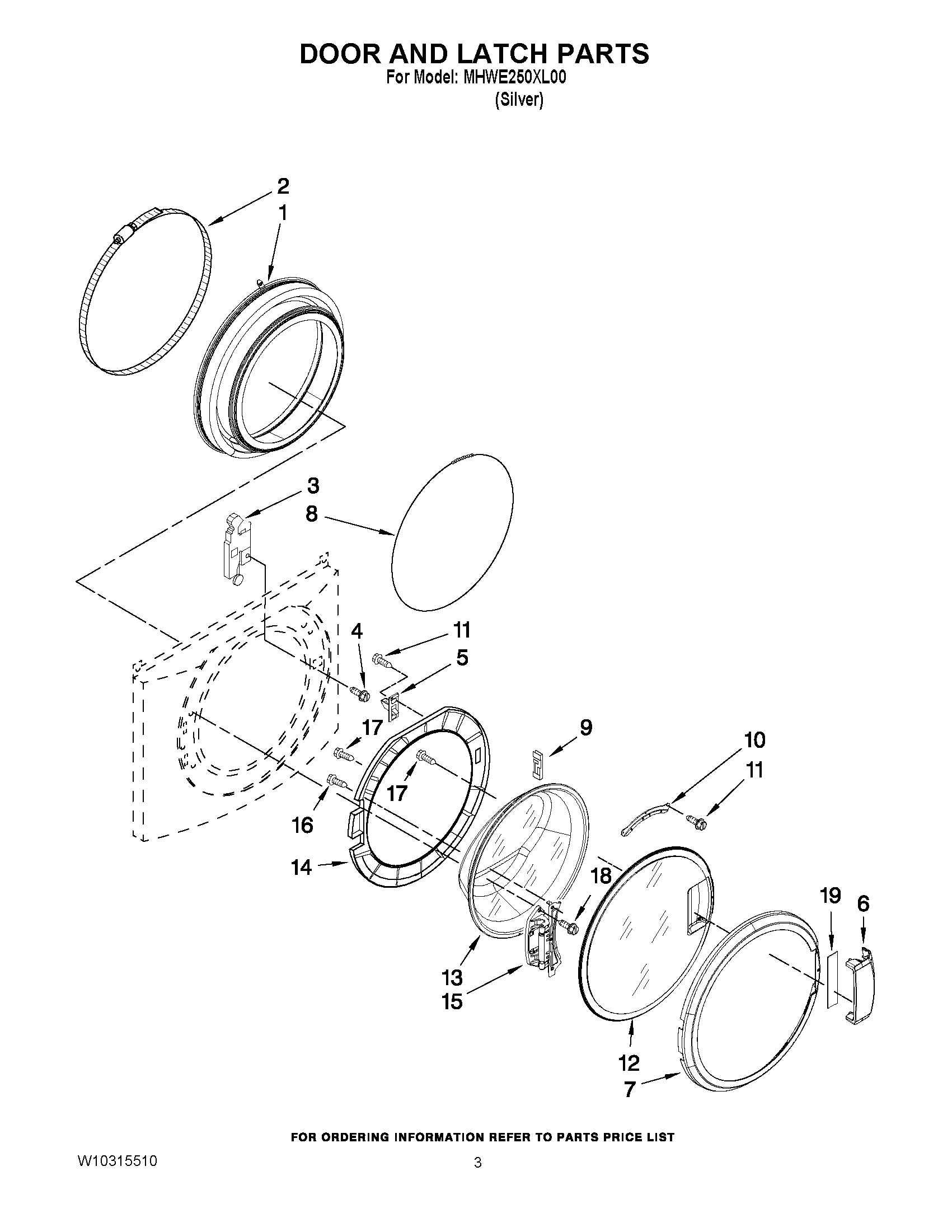

02 - DOOR AND LATCH PARTS

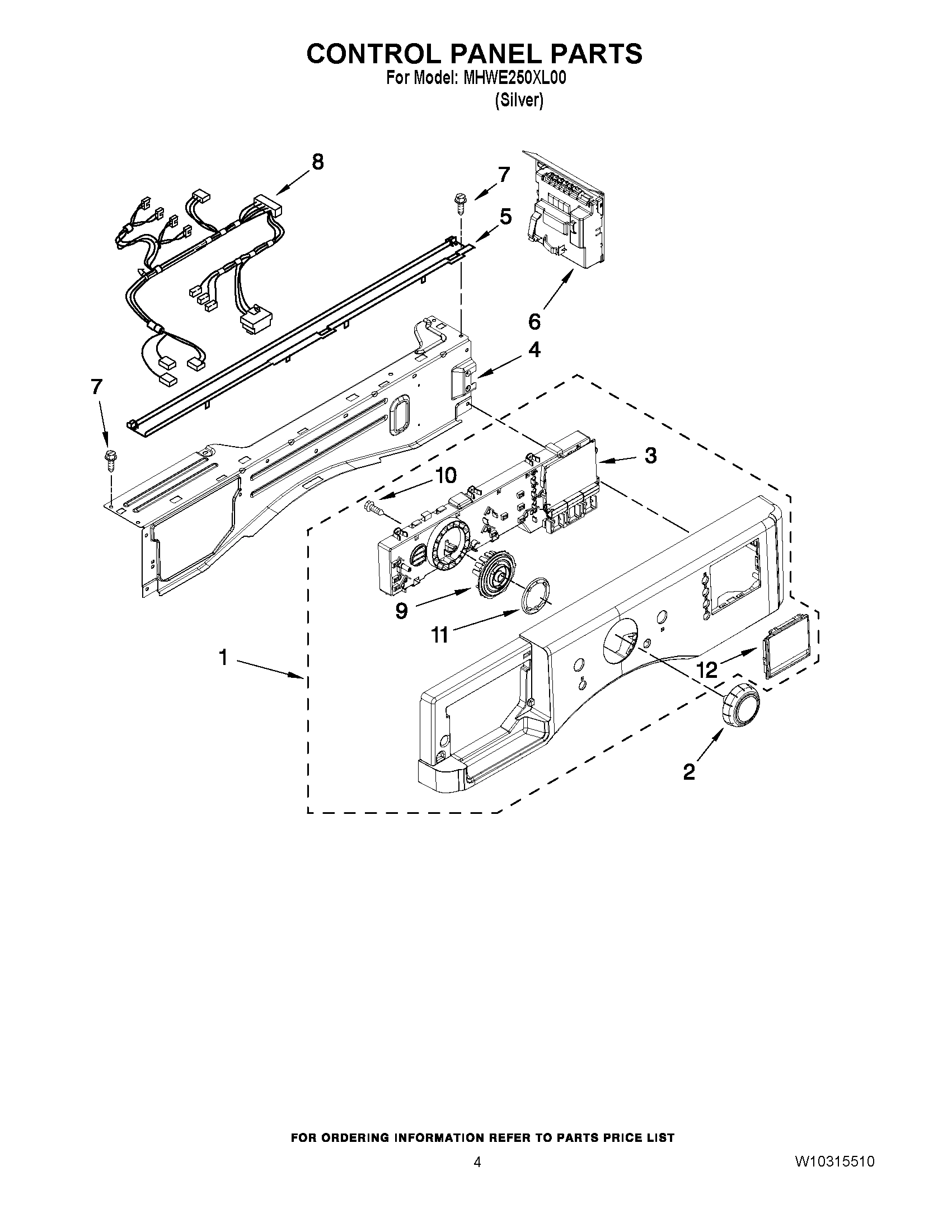

03 - CONTROL PANEL PARTS

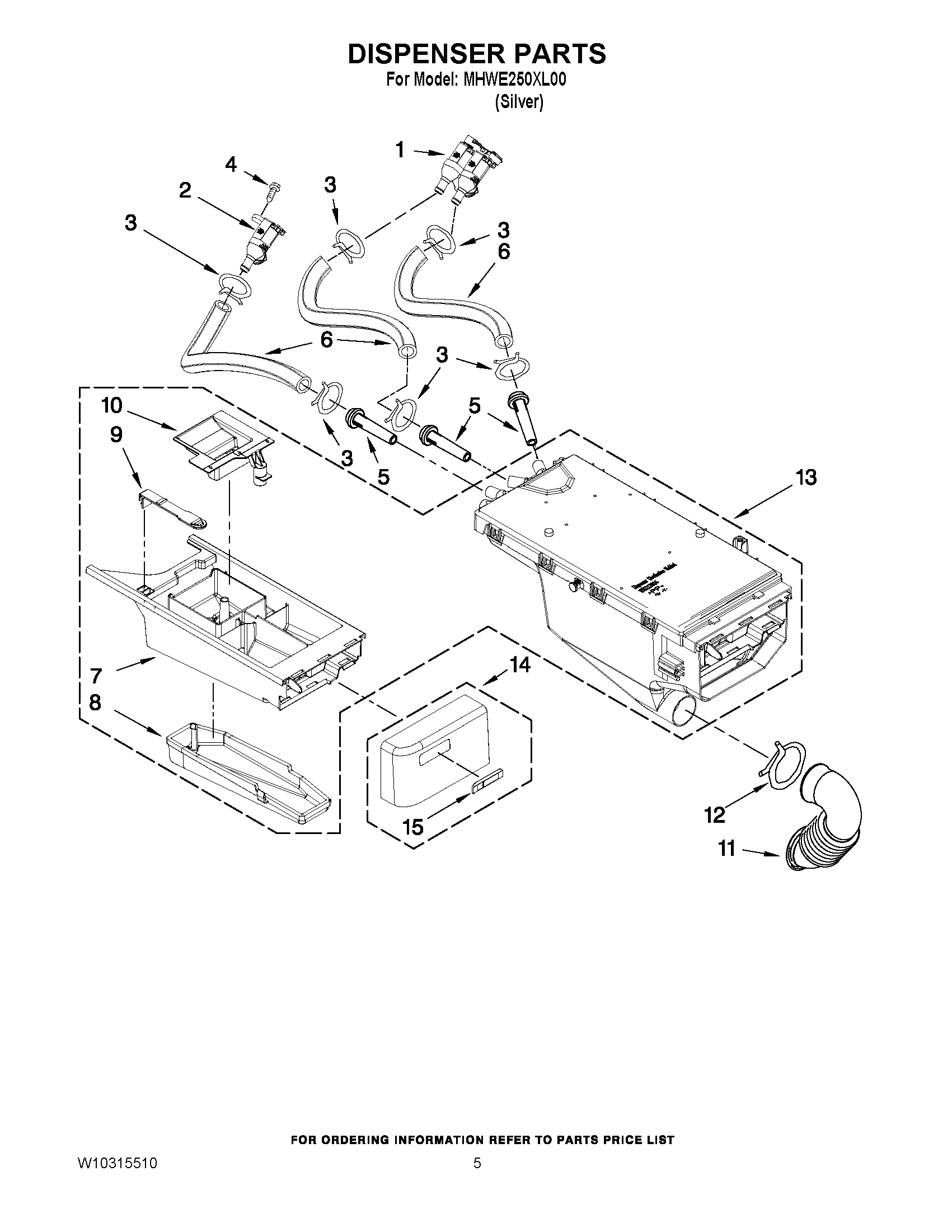

04 - DISPENSER PARTS

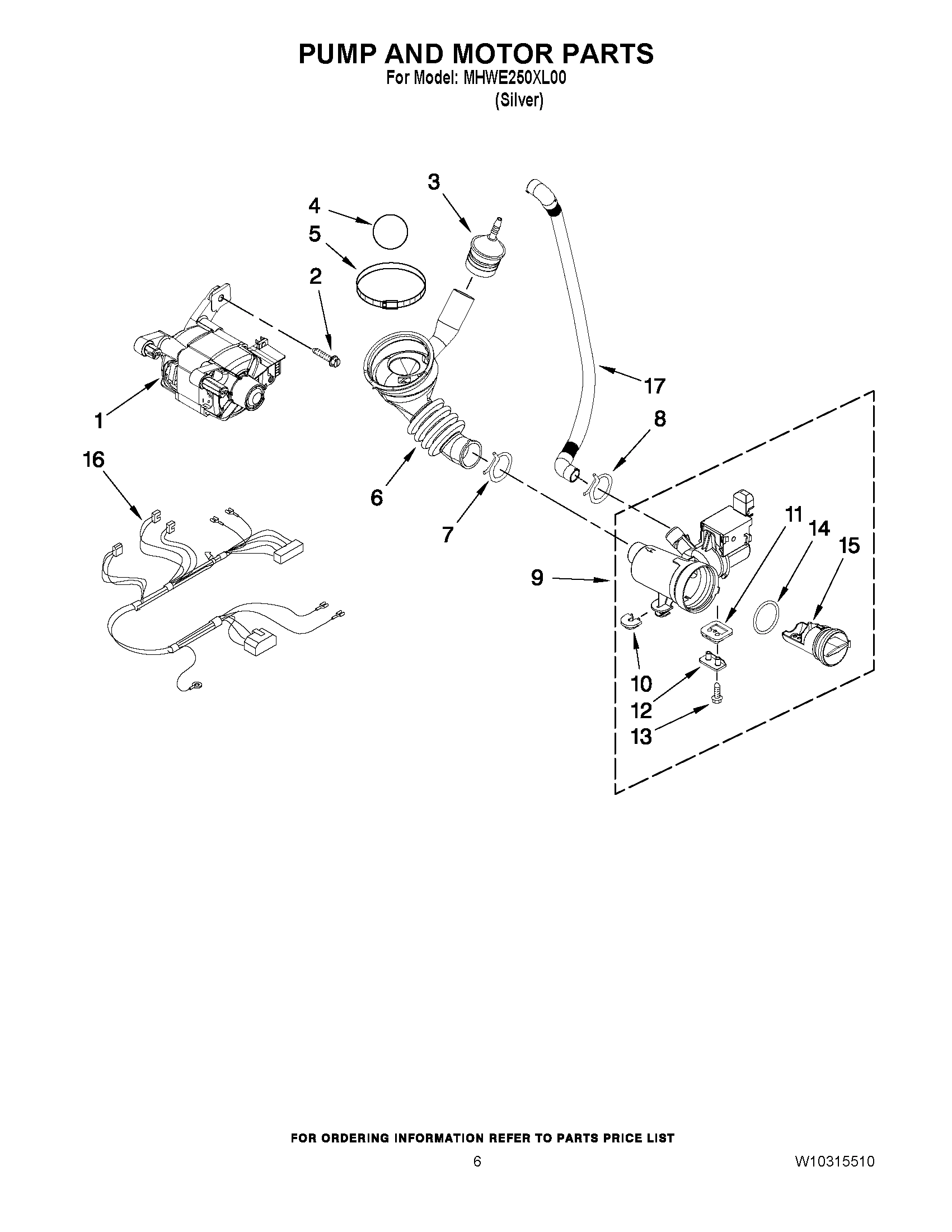

05 - PUMP AND MOTOR PARTS

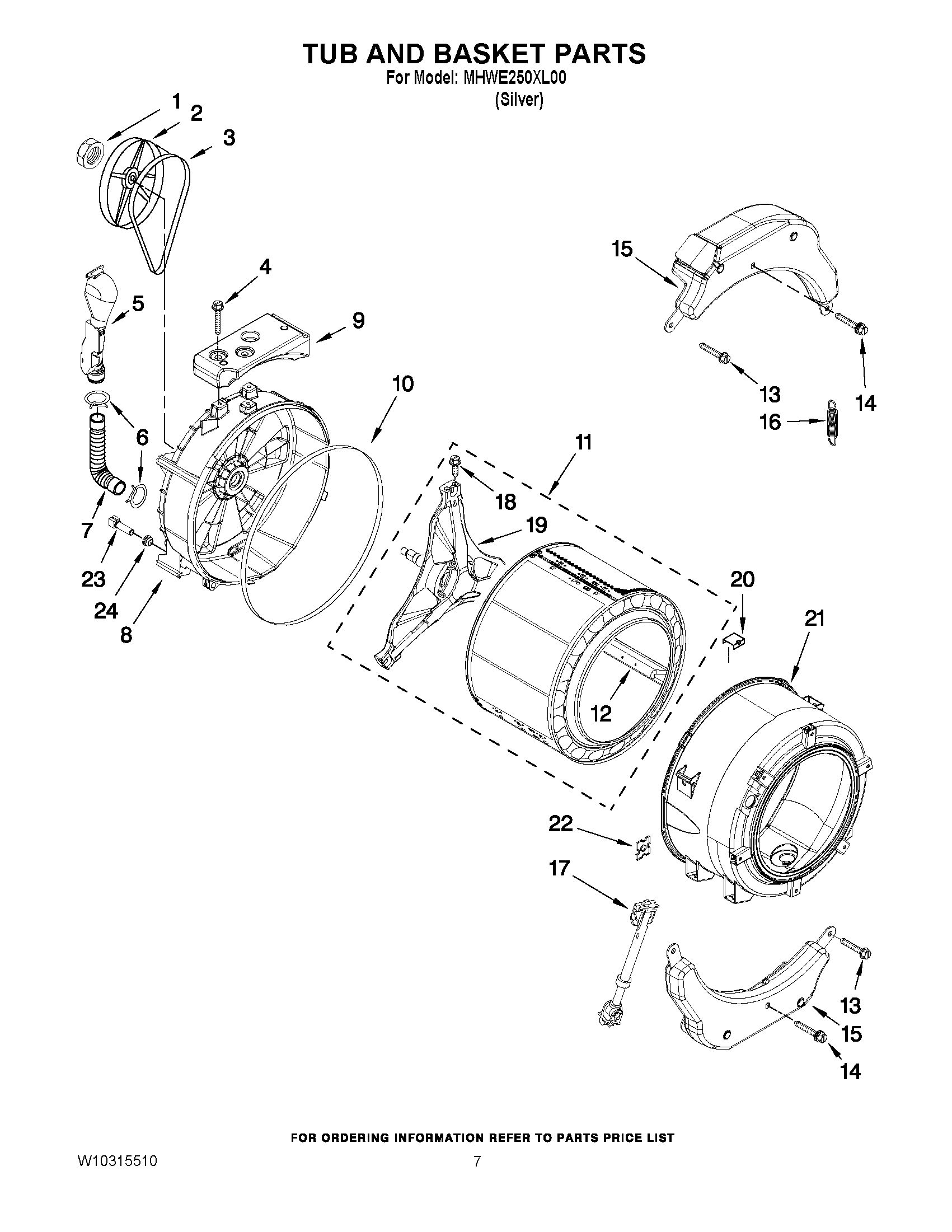

06 - TUB AND BASKET PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MHWE250XL00 WASHER
1
MAY W10252711 MAY W10252711 Contact Us For Availability
1
MAY W10326415 MAY W10326415 Contact Us For Availability
1
MAY W10326417 MAY W10326417 Contact Us For Availability
1
MAY W10290499 MAY W10290499 Contact Us For Availability
1
MAY W10325704 MAY W10325704 Contact Us For Availability
1
MAY W10212596 MAY W10212596 Contact Us For Availability
1
MAY W10171902 MAY W10171902 Contact Us For Availability
1
MAY 8533999 MAY 8533999 Contact Us For Availability
2
TOP MAY W10255320 Contact Us For Availability
2
MAY 8540108 MAY 8540108 Contact Us For Availability
2
KNOB, CONTROL MAY W10215799 Contact Us For Availability
2
MAY W10212598 MAY W10212598 Contact Us For Availability
2
MAY 8540134 MAY 8540134 Contact Us For Availability
2
MAY 8540088C MAY 8540088C Contact Us For Availability
3
CABINET MAY W10251611 Contact Us For Availability
3
MAY W10253483 MAY W10253483 Contact Us For Availability
3
MAY W10212771 MAY W10212771 Contact Us For Availability
3
MAY 370450 MAY 370450 Contact Us For Availability
3
MAY 8540180 MAY 8540180 Contact Us For Availability
3
MAY W10260319 MAY W10260319 Contact Us For Availability
4
MAY W10326402 MAY W10326402 Contact Us For Availability
4
MAY 8540725 MAY 8540725 Contact Us For Availability
4
SCREW, VALVE MAY 8540513 Contact Us For Availability
4
MAY W10240776 MAY W10240776 Contact Us For Availability
4
MAY 8540013 MAY 8540013 Contact Us For Availability
4
MAY W10246531 MAY W10246531 Contact Us For Availability
5
TOE PANEL MAY W10254153 Contact Us For Availability
5
MAY 8540221 MAY 8540221 Contact Us For Availability
5
MAY 8540839 MAY 8540839 Contact Us For Availability
5
MAY 8183181 MAY 8183181 Contact Us For Availability
5
MAY 8181734 MAY 8181734 Contact Us For Availability
5
MAY W10142720 MAY W10142720 Contact Us For Availability
6
MAY W10245373 MAY W10245373 Contact Us For Availability
6
HANDLE, DOOR (INCLUDES ITEM 19) MAY W10117475 Contact Us For Availability
6
MAY W10294680 MAY W10294680 Contact Us For Availability
6
MAY W10212611 MAY W10212611 Contact Us For Availability
6
MAY 8540012 MAY 8540012 Contact Us For Availability
6
MAY 8540010 MAY 8540010 Contact Us For Availability
7
NUT, LOCK MAY 3359452 Contact Us For Availability
7
Screw, 8-18 x 5/8 MAY W10015090 Contact Us For Availability
7
MAY W10150081 MAY W10150081 Contact Us For Availability
7
MAY 8540402 MAY 8540402 Contact Us For Availability
7
MAY 370448 MAY 370448 Contact Us For Availability
7
MAY 8540019 MAY 8540019 Contact Us For Availability
8
MAY W10110676 MAY W10110676 Contact Us For Availability
8
MAY W10217563 MAY W10217563 Contact Us For Availability
8
MAY W10269290 MAY W10269290 Contact Us For Availability
8
MAY 8540399 MAY 8540399 Contact Us For Availability
8
MAY W10245724 MAY W10245724 Contact Us For Availability
8
MAY W10200751 MAY W10200751 Contact Us For Availability
9
MAY 8518891 MAY 8518891 Contact Us For Availability
9
MAY 8540115 MAY 8540115 Contact Us For Availability
9
LIGHT GUIDE, CYCLE MAY W10215797 Contact Us For Availability
9
MAY W10003170 MAY W10003170 Contact Us For Availability
9
MAY W10130913 MAY W10130913 Contact Us For Availability
9
MAY W10200747 MAY W10200747 Contact Us For Availability
10
MAY W10258341 MAY W10258341 Contact Us For Availability
10
MAY 8540114 MAY 8540114 Contact Us For Availability
10
SCREW, M3-1.12X12 MAY W10006580 Contact Us For Availability
10
MAY 8540429 MAY 8540429 Contact Us For Availability
10
MAY W10034820 MAY W10034820 Contact Us For Availability
10
MAY 8540090 MAY 8540090 Contact Us For Availability
11
MAY W10189657 MAY W10189657 Contact Us For Availability
11
MESA MAY W10325706 Contact Us For Availability
11
MAY 8540063 MAY 8540063 Contact Us For Availability
11
MAY W10034830 MAY W10034830 Contact Us For Availability
11
MAY W10205253 MAY W10205253 Contact Us For Availability
12
MAY W10251449 MAY W10251449 Contact Us For Availability
12
MAY W10119007 MAY W10119007 Contact Us For Availability
12
WINDOW, DISPLAY MAY W10215794 Contact Us For Availability
12
MAY 8281276 MAY 8281276 Contact Us For Availability
12
MAY 8540033 MAY 8540033 Contact Us For Availability
12
MAY W10112972 MAY W10112972 Contact Us For Availability
13
Hose, Water Inlet (Hot Water) MAY 8571378 Contact Us For Availability
13
Hose, Water Inlet (Cold Water) MAY W10194208 Contact Us For Availability
13
MAY W10205548 MAY W10205548 Contact Us For Availability
13
MAY W10212602 MAY W10212602 Contact Us For Availability
13
SCREW, 10-16 X 1.25 MAY 8533964 Contact Us For Availability
13
BOLT, COUNTERWEIGHT MAY W10094780 Contact Us For Availability
14
MAY W10205500 MAY W10205500 Contact Us For Availability
14
Frame, Door Back Support MAY W10138523 Contact Us For Availability
14
MAY W10325710 MAY W10325710 Contact Us For Availability
14
MAY 8540025 MAY 8540025 Contact Us For Availability
14
MAY W10259288 MAY W10259288 Contact Us For Availability
15
MAY W10289776 MAY W10289776 Contact Us For Availability
15
MAY W10118967 MAY W10118967 Contact Us For Availability
15
BADGE ASSEMBLY MAY W10177245 Contact Us For Availability
15
Filter Assembly (Includes Item 14) MAY 8540996 Contact Us For Availability
15
MAY W10223198 MAY W10223198 Contact Us For Availability
16
MAY W10244560 MAY W10244560 Contact Us For Availability
16
MAY 8540284 MAY 8540284 Contact Us For Availability
16
MAY W10201879 MAY W10201879 Contact Us For Availability
16
SPRING, SUSPENSION (SET OF 2) MAY W10010360 Contact Us For Availability
17
MAY 356138 MAY 356138 Contact Us For Availability
17
MAY 8540282 MAY 8540282 Contact Us For Availability
17
HOSE, DRAIN- INNER MAY W10272563 Contact Us For Availability
17
SHOCK ABSORBER MAY W10015830 Contact Us For Availability
18
MAY W10281257 MAY W10281257 Contact Us For Availability
18
MAY 8540382 MAY 8540382 Contact Us For Availability
19
Connector, Drain Hose MAY W10003260 Contact Us For Availability
19
MAY W10112927 MAY W10112927 Contact Us For Availability
19
CROSSPIECE ASM MAY W10202464 Contact Us For Availability
20
MAY 238614 MAY 238614 Contact Us For Availability
20
MAY 8540092 MAY 8540092 Contact Us For Availability
21
MAY W10289875 MAY W10289875 Contact Us For Availability
22
MAY W10355868 MAY W10355868 Contact Us For Availability
22
MAY 8540072 MAY 8540072 Contact Us For Availability
23
MAY W10239066 MAY W10239066 Contact Us For Availability
23
NEGATIVE THERMISTOR CONTROL MAY W10176659 Contact Us For Availability
24
MAY 8540294 MAY 8540294 Contact Us For Availability
24
MAY 8540766 MAY 8540766 Contact Us For Availability
25
MAY 8540479 MAY 8540479 Contact Us For Availability
26
MAY 8540268 MAY 8540268 Contact Us For Availability
27
MAY 8540021 MAY 8540021 Contact Us For Availability
28
MAY W10085220 MAY W10085220 Contact Us For Availability
29
MAY 8540728 MAY 8540728 Contact Us For Availability
30
Screw, 3 x 8 mm MAY 8540727 Contact Us For Availability
31
MAY 8540329 MAY 8540329 Contact Us For Availability
32
MAY 8540720 MAY 8540720 Contact Us For Availability
33
MAY 8283273 MAY 8283273 Contact Us For Availability
34
Sleeve, Pressure Switch Hose MAY 2161302 Contact Us For Availability
35
MAY 3347868 MAY 3347868 Contact Us For Availability
36
WASHER, WATER INLET HOSE 1-1/16 X 5/8 MAY 3976300 Contact Us For Availability
37
BRACKET-SUSPENSION SPRING MAY 8540644 Contact Us For Availability
38
MAY W10168546 MAY W10168546 Contact Us For Availability
39
MAY W10168547 MAY W10168547 Contact Us For Availability
40
MAY W10239822 MAY W10239822 Contact Us For Availability
41
SEAL-FOAM (IEC) MAY 8318396 Contact Us For Availability
NI
MAY 1903WH MAY 1903WH Contact Us For Availability
NI
Drain Extension MAY 285863 Contact Us For Availability
NI
ALL PURPOSE APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Braided Hoses W/Strai MAY 8212487RP Contact Us For Availability
NI
WASHER DRIP TRAY MAY 8212526 Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE MAY 8212638RP Contact Us For Availability
NI
STACK KIT MAY 8572546 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (MERCURY SILVER) MAY W10268217 Contact Us For Availability
× ![]()
