Model Maytag MHW5100DC0 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams
01 - COVER SHEET

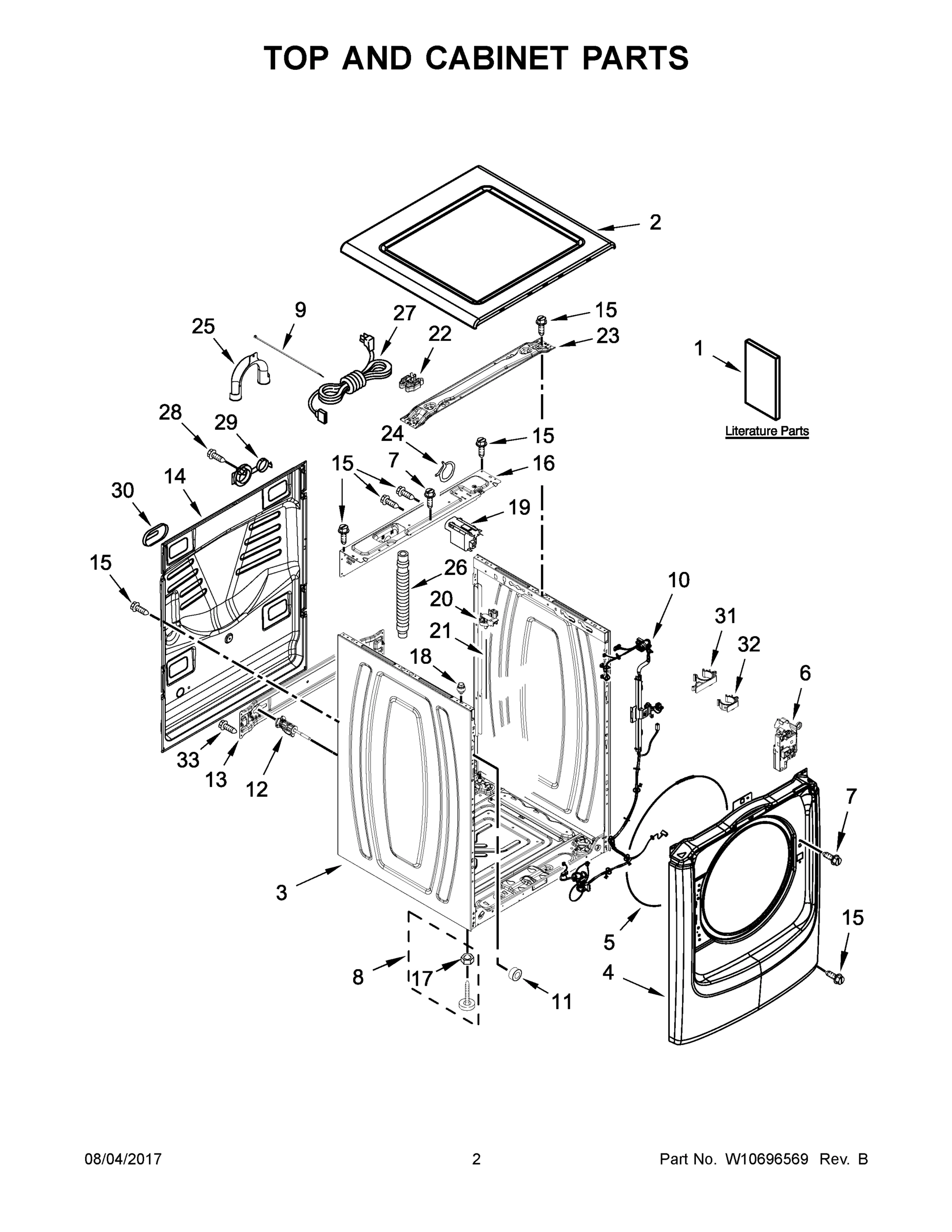

02 - TOP AND CABINET PARTS

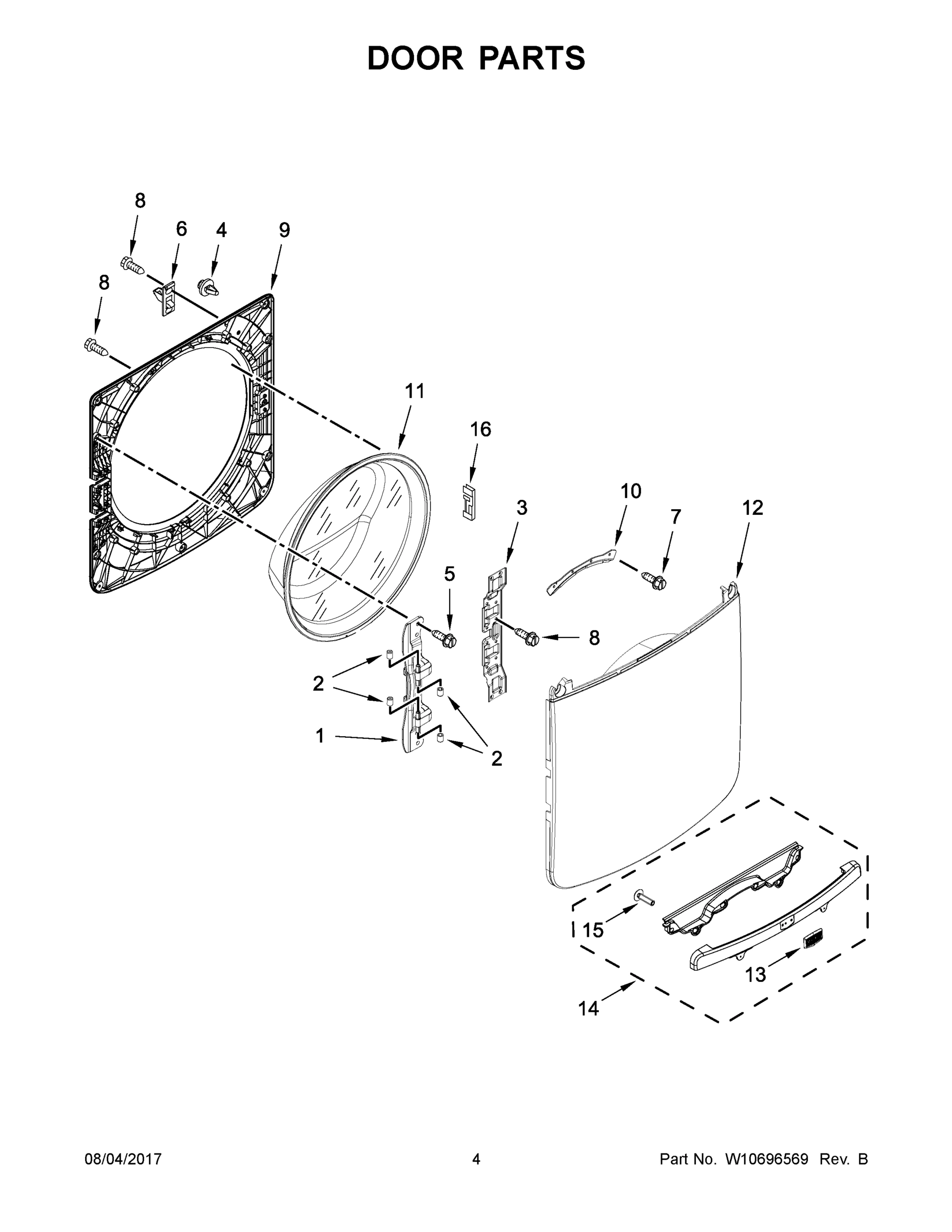

03 - DOOR PARTS

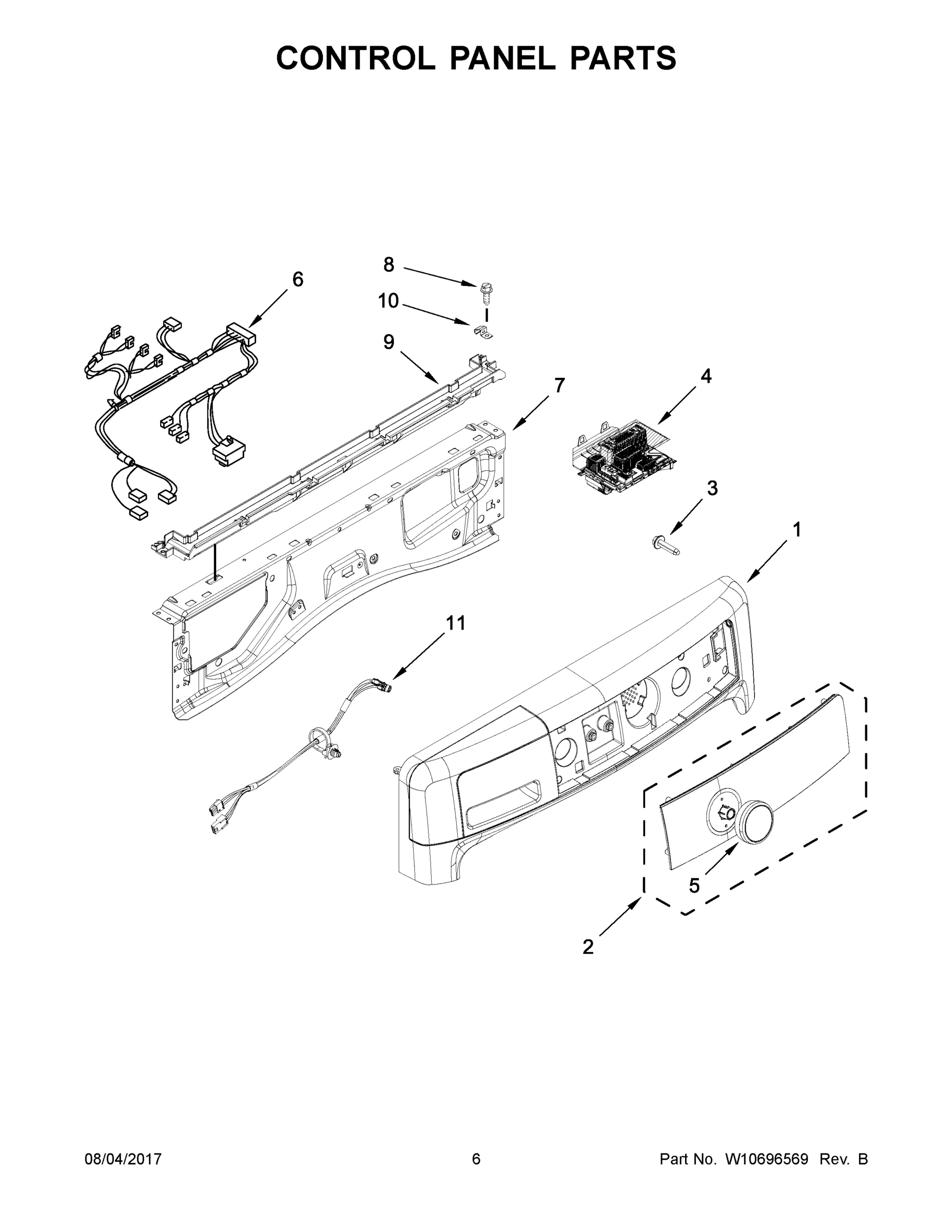

04 - CONTROL PANEL PARTS

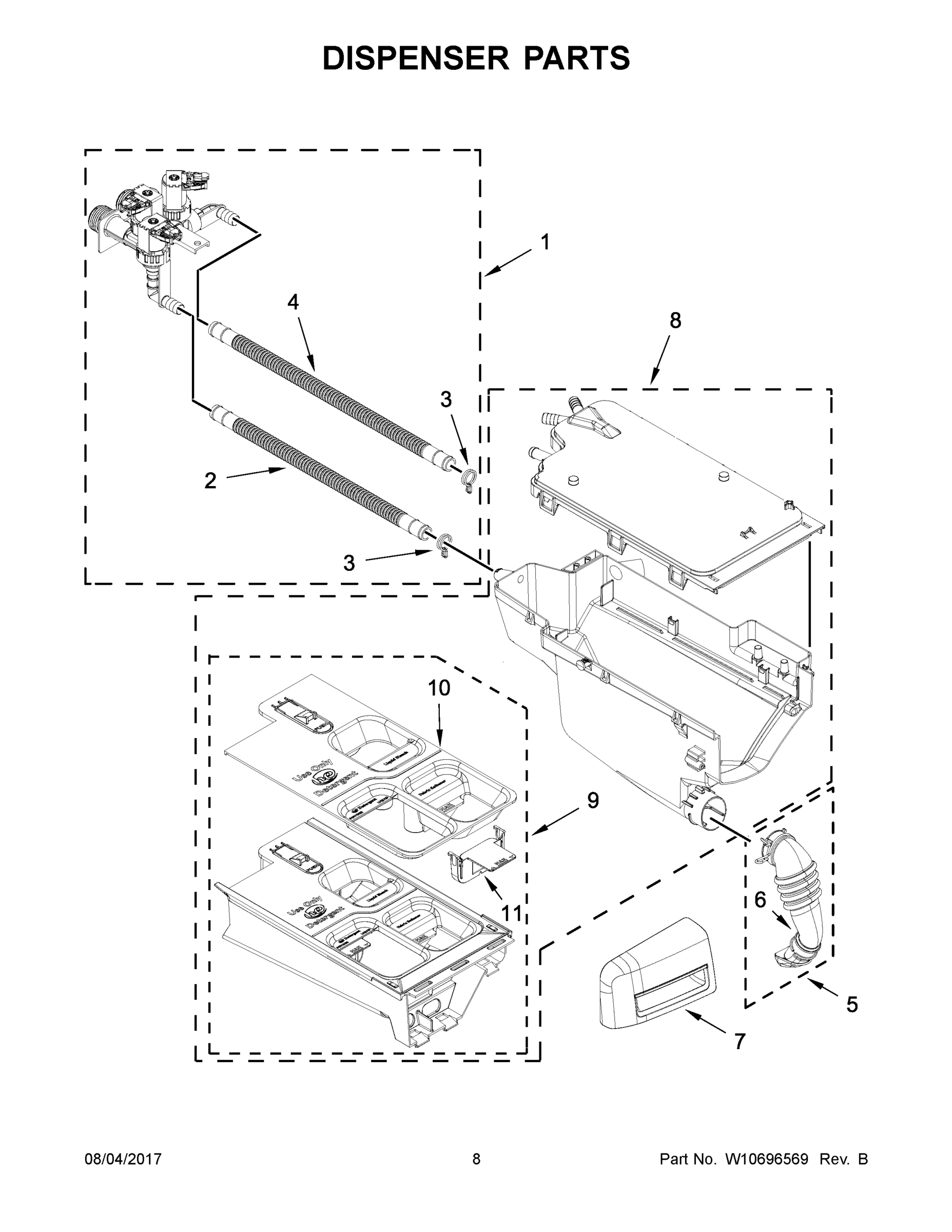

05 - DISPENSER PARTS

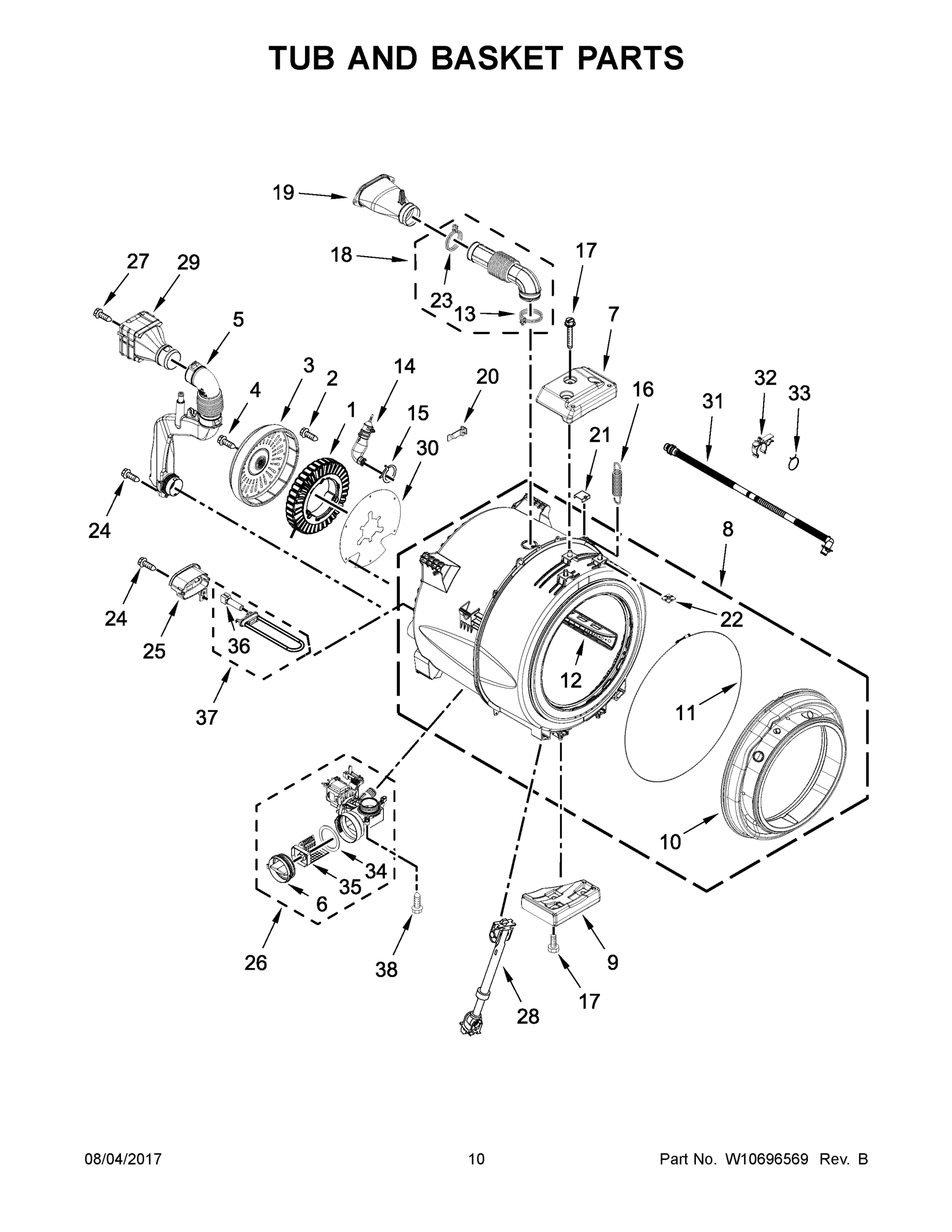

06 - TUB AND BASKET PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MHW5100DC0 LAUNDRY, RESIDENTIAL, WASHER
1
OWNERS MANUAL MAY W10649235 Contact Us For Availability
1
HINGE, BASE MAY W10208415 Contact Us For Availability
1
MAY W10774409 MAY W10774409 Contact Us For Availability
1
VALVE, INLET ASSEMBLY MAY W10509710 Contact Us For Availability
1
STATOR, MOTOR MAY W10657810 Contact Us For Availability
1A
TECH SHEET MAY W10602465 Contact Us For Availability
1A
MAY W10774407 MAY W10774407 Contact Us For Availability
1B
INSTALLATION INSTRUCTIONS MAY W10631155 Contact Us For Availability
1C
MAY W10743497 MAY W10743497 Contact Us For Availability
2
TOP (WHITE) MAY W10208373 Contact Us For Availability
2
CAP, HINGE MAY W10208398 Contact Us For Availability
2
MAY W10748420 MAY W10748420 Contact Us For Availability
2
HOSE, GREY MAY W10577770 Contact Us For Availability
2
SCREW, STATOR MOUNTING MAY W10253476 Contact Us For Availability
2A
TOP (CHROME SHADOW) MAY W10460693 Contact Us For Availability
2A
MAY W10748421 MAY W10748421 Contact Us For Availability
3
CABINET (WHITE) MAY W10441110 Contact Us For Availability
3
PLATE, HINGE RETAINER MAY W10312805 Contact Us For Availability
3
SCREW MAY W10489172 Contact Us For Availability
3
CLAMP, HOSE MAY W10096851 Contact Us For Availability
3
ROTOR, MOTOR MAY W10544980 Contact Us For Availability
3A
CABINET (CHROME SHADOW) MAY W10441105 Contact Us For Availability
4
PANEL, FRONT (WHITE) MAY W10650837 Contact Us For Availability
4
BUMPER, DOOR MAY 8572266 Contact Us For Availability
4
MAY W10908724 MAY W10908724 Contact Us For Availability
4
HOSE, BLACK MAY W10577787 Contact Us For Availability
4
SCREW, ROTOR MOUNTING MAY W10253477 Contact Us For Availability
4A
PANEL, FRONT (CHROME SHADOW) MAY W10650838 Contact Us For Availability
5
RETAINER, BELLOW (TO FRONT PANEL) MAY W10237503 Contact Us For Availability
5
SCREW MAY W10288126 Contact Us For Availability
5
ASSEMBLY, CONTROL KNOB (CHROME) MAY W10727011 Contact Us For Availability
5
HOSE, DISPENSER TO BELLOW MAY W10239966 Contact Us For Availability
5
MAY W10604969 MAY W10604969 Contact Us For Availability
6
LOCK, DOOR MAY W10443885 Contact Us For Availability
6
STRIKE, DOOR MAY W10488048 Contact Us For Availability
6
HARNESS, MAIN (UPPER) MAY W10685626 Contact Us For Availability
6
CLAMP, HOSE MAY W10239910 Contact Us For Availability
6
CAP, FILTER MAY W10365898 Contact Us For Availability
7
SCREW MAY 8540513 Contact Us For Availability
7
BRACKET, CONSOLE MAY W10208197 Contact Us For Availability
7
MAY W10774402 MAY W10774402 Contact Us For Availability
7
COUNTERWEIGHT, TOP MAY W10253014 Contact Us For Availability
7A
MAY W10774405 MAY W10774405 Contact Us For Availability
8
LEVELING LEG ASSEMBLY MAY W10073890 Contact Us For Availability
8
SCREW MAY 8534022 Contact Us For Availability
8
SCREW MAY W10142290 Contact Us For Availability
8
HOUSING, DISPENSER ASSEMBLY MAY W10853531 Contact Us For Availability
8
MAY W10820070 MAY W10820070 Contact Us For Availability
9
TIE, CABLE MAY W10339879 Contact Us For Availability
9
FRAME, DOOR BACK SUPPORT MAY W10272396 Contact Us For Availability
9
MAY W10796900 MAY W10796900 Contact Us For Availability
9
DRAWER, DETERGENT (COMPLETE) MAY W10365885 Contact Us For Availability
9
COUNTERWEIGHT, BOTTOM MAY W10237535 Contact Us For Availability
10
HARNESS, WIRING (LOWER MAIN) MAY W10746378 Contact Us For Availability
10
CLAMP, GLASS MAY W10003440 Contact Us For Availability
10
CLIP, SPRING MAY W10317566 Contact Us For Availability
10
SIPHON, BLEACH/SOFTENER MAY W10365887 Contact Us For Availability
10
BELLOW MAY W10340443 Contact Us For Availability
11
SPACER, FRONT PANEL MAY W10615477 Contact Us For Availability
11
GLASS, DOOR MAY W10607723 Contact Us For Availability
11
HARNESS, UI MAY W10442440 Contact Us For Availability
11
SEPARATOR, WITH SELECTION SLIDER MAY W10411442 Contact Us For Availability
11
RETAINER, BELLOW TO TUB MAY W10237502 Contact Us For Availability
12
BOLT, SHIPPING MAY W10538711 Contact Us For Availability
12
DOOR, OUTER ASSEMBLY MAY W10424239 Contact Us For Availability
12
BAFFLE, TUB MAY W10597205 Contact Us For Availability
13
BRACE, TRANSPORT MAY W10237498 Contact Us For Availability
13
BADGE, MAYTAG MAY W10639171 Contact Us For Availability
13
CLAMP, HOSE MAY W10353599 Contact Us For Availability
14
PANEL, REAR MAY W10386102 Contact Us For Availability
14
HANDLE, DOOR (BLACK) MAY W10626041 Contact Us For Availability
14
AIRTRAP ASSEMBLY MAY W10831586 Contact Us For Availability
15
SCREW MAY 357640 Contact Us For Availability
15
SCREW MAY 9742177 Contact Us For Availability
15
CLAMP, HOSE MAY 371499 Contact Us For Availability
16
BRACE, REAR MAY W10467483 Contact Us For Availability
16
CLAMP, GLASS SUPPORT MAY W10003430 Contact Us For Availability
16
SPRING, SUSPENSION (SET OF 2) MAY W10312146 Contact Us For Availability
17
NUT, HEX MAY 3359452 Contact Us For Availability
17
SCREW, COUNTERWEIGHT MAY W10261496 Contact Us For Availability
18
SCREW AND BUSHING ASSEMBLY MAY W10208380 Contact Us For Availability
18
VENT HOSE COUPLING ASSEMBLY MAY W10568614 Contact Us For Availability
19
FILTER, RFI MAY W10367632 Contact Us For Availability
19
VENT TUBE AND COVER MAY W10352818 Contact Us For Availability
20
SENSOR, PRESSURE MAY W10448876 Contact Us For Availability
20
CLIP, HARNESS DIVERTER MAY W10316388 Contact Us For Availability
21
HOSE, PRESSURE SWITCH MAY W10525781 Contact Us For Availability
21
CLAMP, TUB MAY W10793364 Contact Us For Availability
22
RETAINER, SPRING MAY W10245452 Contact Us For Availability
22
NUT, PUSH-IN MAY 8540072 Contact Us For Availability
23
BRACE, TOP MAY W10467484 Contact Us For Availability
23
CLAMP, VENT HOSE MAY W10273034 Contact Us For Availability
24
CLAMP, HOSE MAY 356138 Contact Us For Availability
24
SCREW MAY W10306501 Contact Us For Availability
25
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
25
SHIELD, HEATER MAY W10318155 Contact Us For Availability
26
HOSE, DRAIN (EXTERNAL) MAY W10267638 Contact Us For Availability
26
PUMP (COMPLETE) MAY W10799064 Contact Us For Availability
27
SCREW MAY 8540282 Contact Us For Availability
27
POWER CORD MAY W10632346 Contact Us For Availability
28
SCREW MAY 3351614 Contact Us For Availability
28
SHOCK ABSORBER MAY W10312625 Contact Us For Availability
29
COVER, POWER CORD-TRANSPORT MAY W10275820 Contact Us For Availability
29
ENCLOSURE, VENT MAY W10467494 Contact Us For Availability
30
COVER, TRANSPORT MAY 8540268 Contact Us For Availability
30
SHIELD, MOTOR MAY W10490826 Contact Us For Availability
31
RETAINER, DRAIN HOSE MAY W10441646 Contact Us For Availability
31
DRAIN HOSE (INTERNAL) MAY W10562025 Contact Us For Availability
32
RETAINER, HOSE MAY W10822038 Contact Us For Availability
32
BRACKET, MOUNTING MAY W10798323 Contact Us For Availability
33
SCREW MAY W10567155 Contact Us For Availability
33
CLAMP, HOSE MAY W10151157 Contact Us For Availability
34
SEAL, FILTER CAP MAY W10365899 Contact Us For Availability
35
FILTER, ELEMENT MAY W10365897 Contact Us For Availability
36
SENSOR, TEMPERATURE MAY W10467289 Contact Us For Availability
37
HEATER MAY W10570145 Contact Us For Availability
38
SCREW MAY W10004910 Contact Us For Availability
NI
ACCESSORY PARTS, LAUNDRY SUPPLY STORAGE CART MAY 1903WH Contact Us For Availability
NI
ACCESSORY PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
ACCESSORY PARTS, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, REAR GUARD MAY 4396899 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, STACK MAY W10298318 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) MAY W10446202 Contact Us For Availability
× ![]()
