Model Maytag MHN30PNAGW0 WASHER – Common Parts & Diagrams

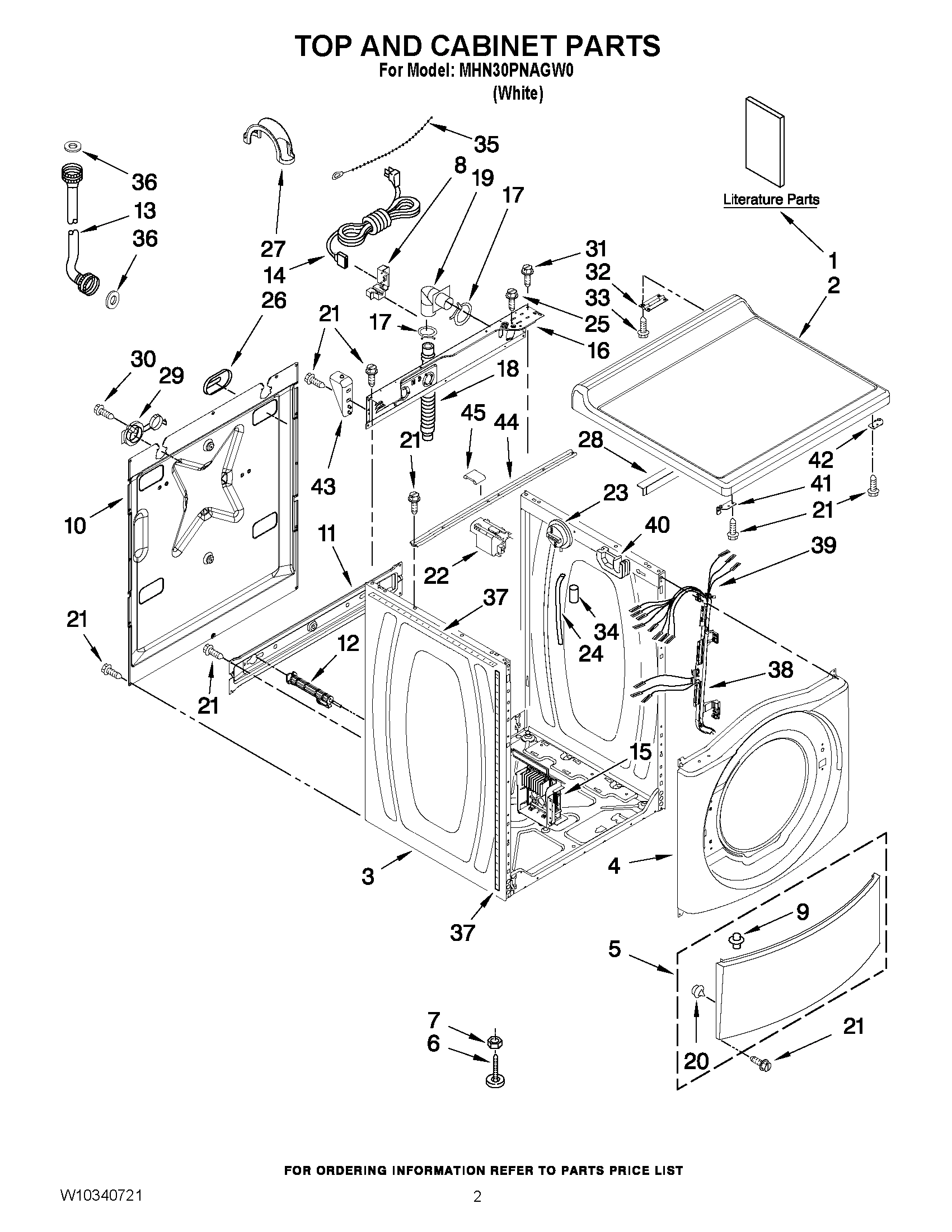

01 - TOP AND CABINET PARTS

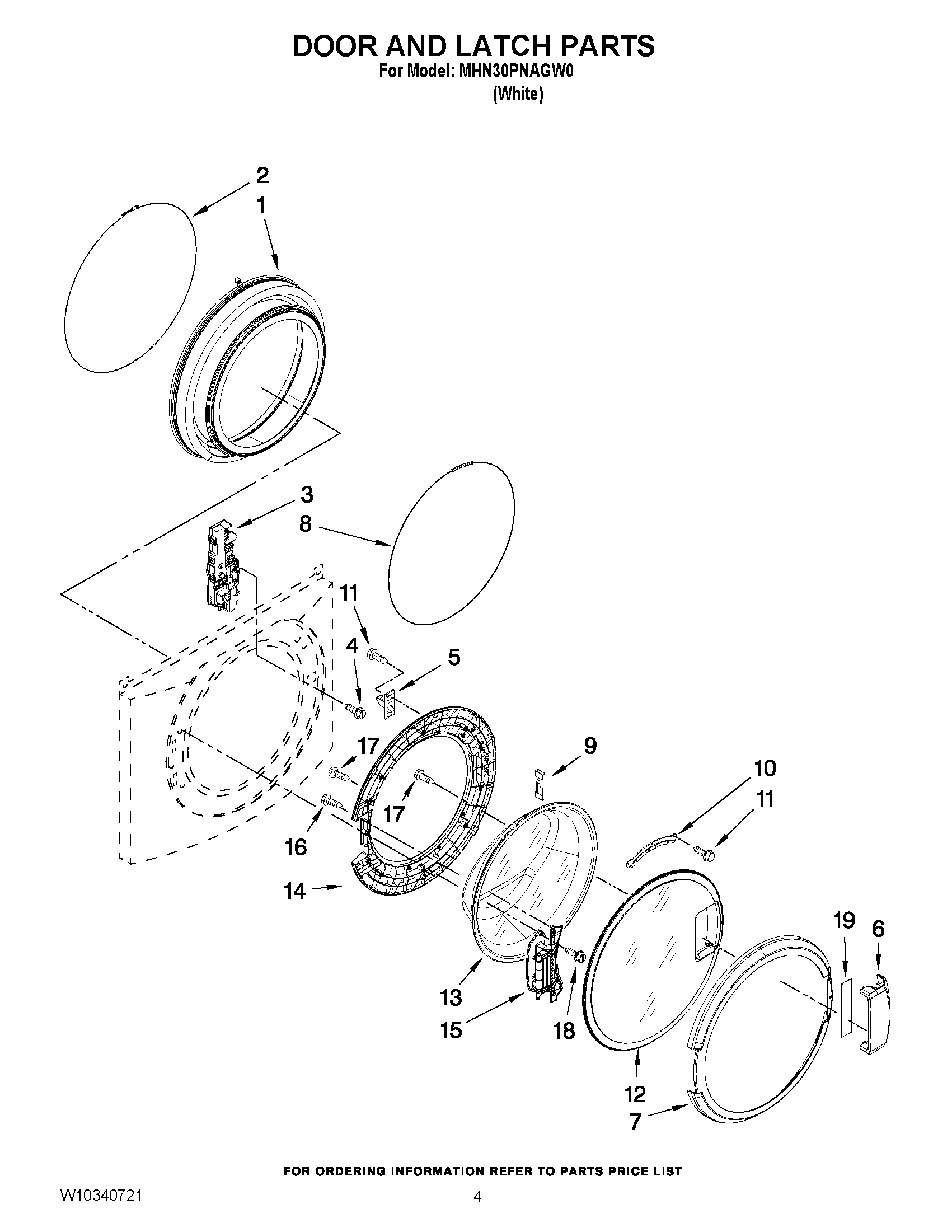

02 - DOOR AND LATCH PARTS

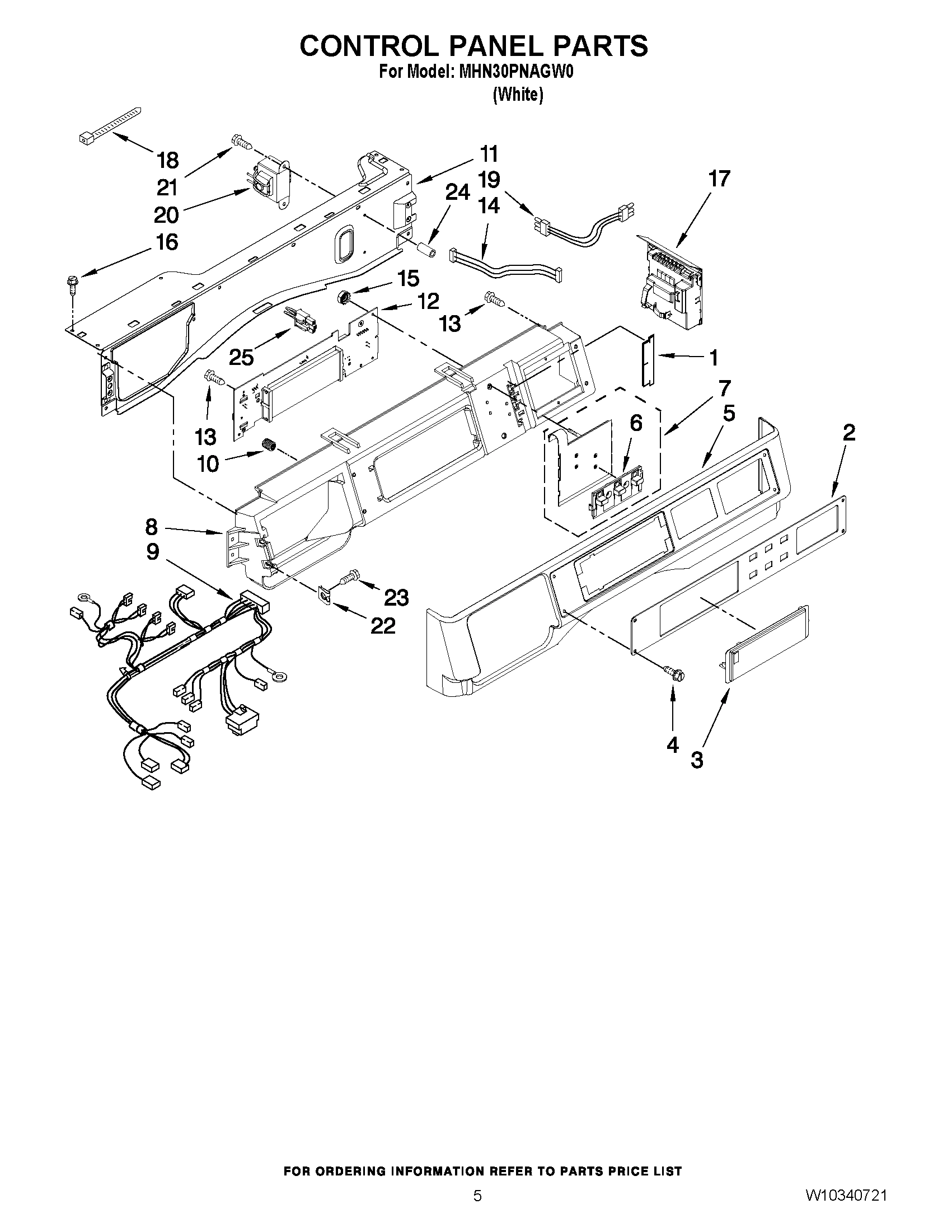

03 - CONTROL PANEL PARTS

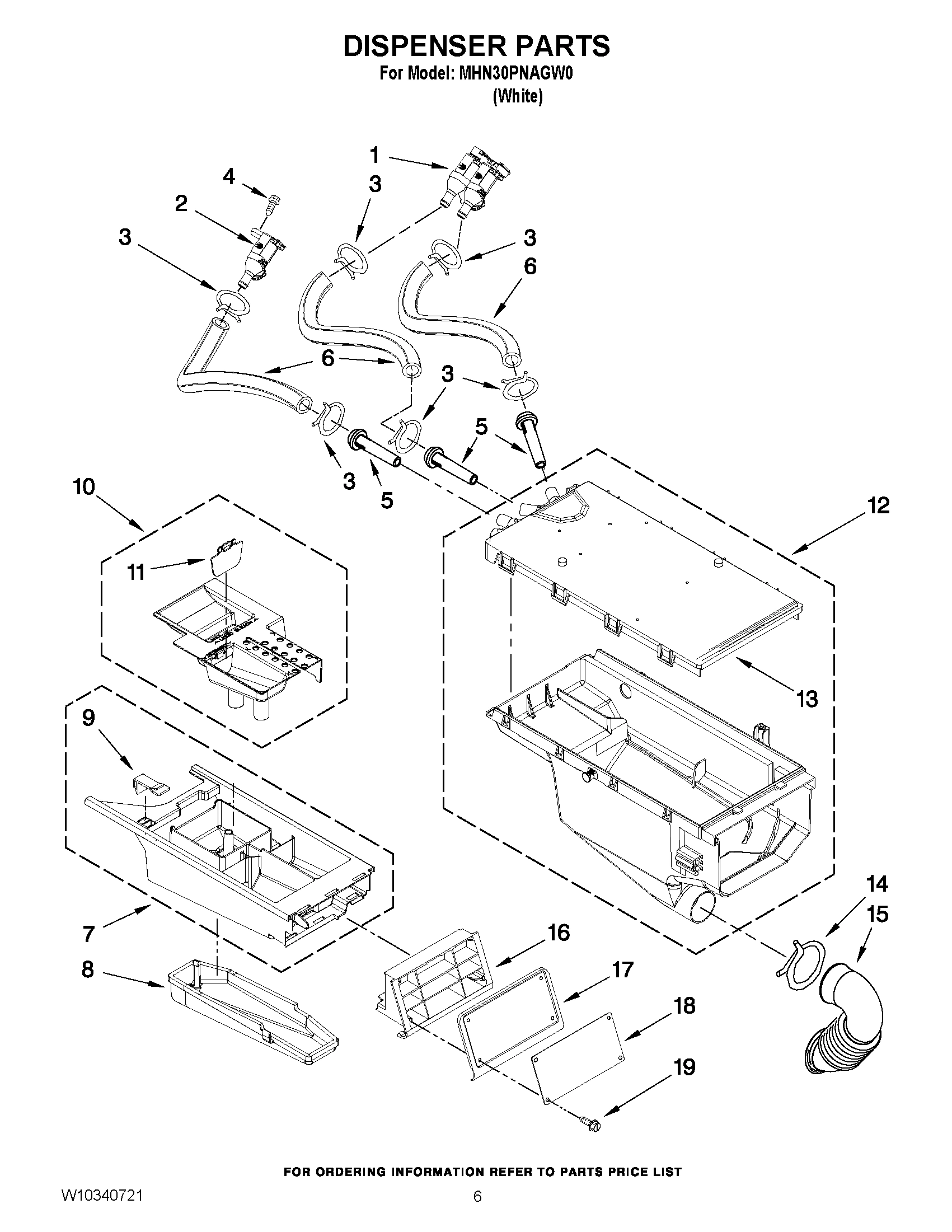

04 - DISPENSER PARTS

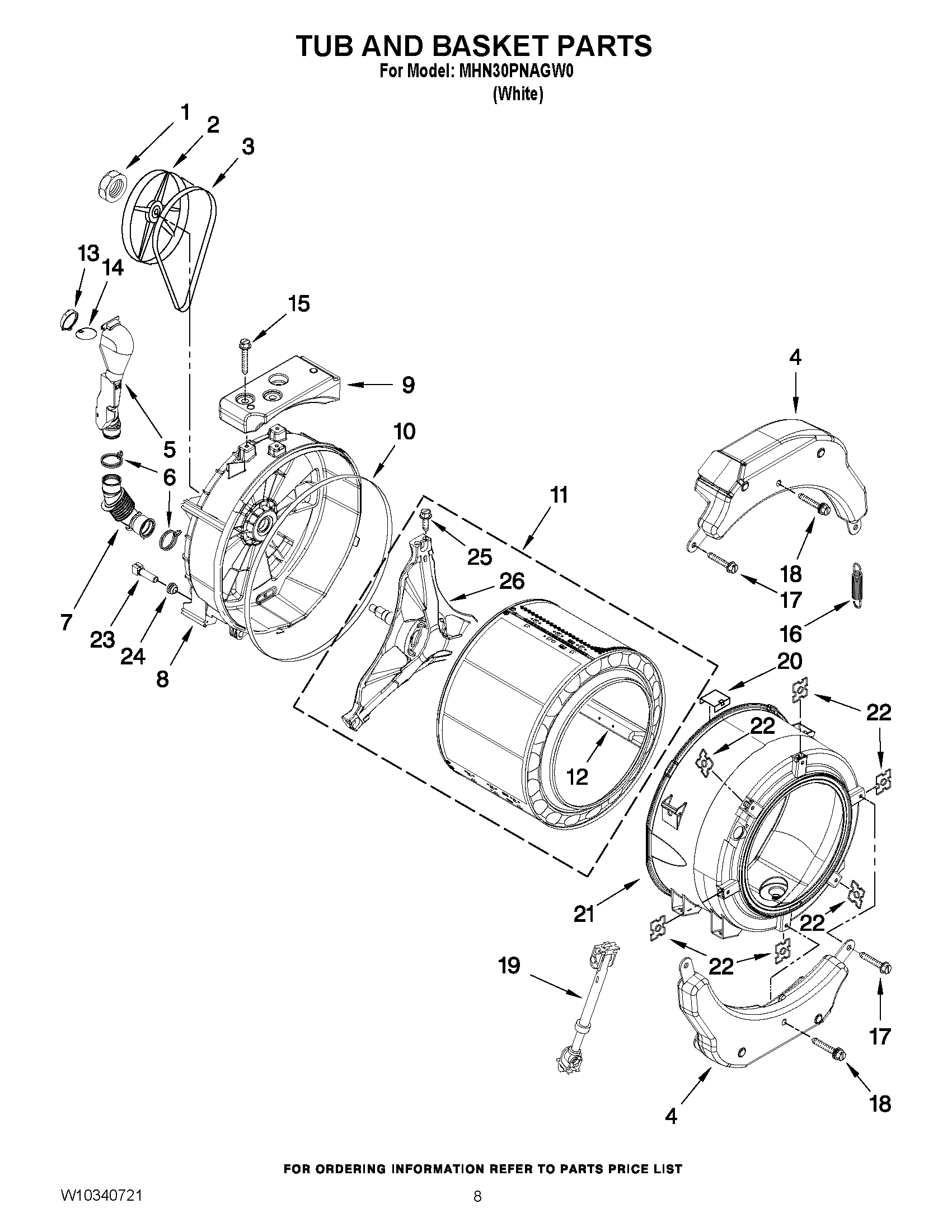

05 - TUB AND BASKET PARTS

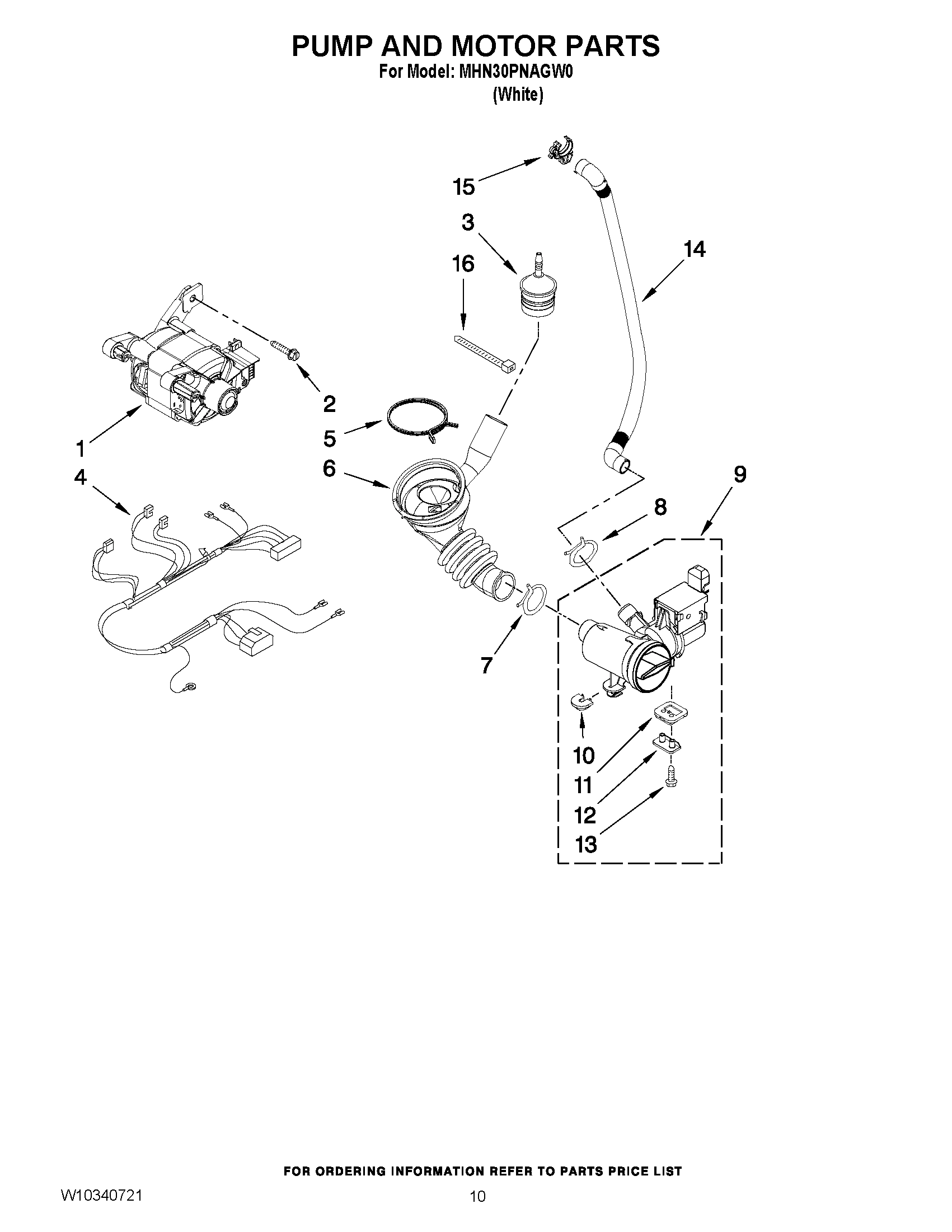

06 - PUMP AND MOTOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MHN30PNAGW0 WASHER
1
MAY W10340707 MAY W10340707 Contact Us For Availability
1
MAY W10340709 MAY W10340709 Contact Us For Availability
1
MAY W10340714 MAY W10340714 Contact Us For Availability
1
MAY W10340721 MAY W10340721 Contact Us For Availability
1
MAY W10340722 MAY W10340722 Contact Us For Availability
1
MAY W10311051 MAY W10311051 Contact Us For Availability
1
SEAL-CONSOLE MAY W10187276 Contact Us For Availability
1
MAY W10316929 MAY W10316929 Contact Us For Availability
1
MAY 8533999 MAY 8533999 Contact Us For Availability
1
MAY W10171927 MAY W10171927 Contact Us For Availability
2
MAY W10137410 MAY W10137410 Contact Us For Availability
2
MAY 8540108 MAY 8540108 Contact Us For Availability
2
MAY W10313091 MAY W10313091 Contact Us For Availability
2
MAY W10316932 MAY W10316932 Contact Us For Availability
2
MAY 8540088C MAY 8540088C Contact Us For Availability
2
MAY 8540134 MAY 8540134 Contact Us For Availability
3
CABINET MAY W10225458 Contact Us For Availability
3
MAY W10196671 MAY W10196671 Contact Us For Availability
3
COVER, DISPLAY MAY W10267645 Contact Us For Availability
3
MAY W10096852 MAY W10096852 Contact Us For Availability
3
MAY W10260319 MAY W10260319 Contact Us For Availability
3
AIR TRAP (INCLUDES ITEM 18) MAY 8540180 Contact Us For Availability
4
PANEL, FRONT MAY W10306505 Contact Us For Availability
4
MAY 8540725 MAY 8540725 Contact Us For Availability
4
MAY 8540282 MAY 8540282 Contact Us For Availability
4
Screw, 8-32 X 1/2 MAY W10137457 Contact Us For Availability
4
MAY W10223198 MAY W10223198 Contact Us For Availability
4
MAY W10364668 MAY W10364668 Contact Us For Availability
5
Toe Panel MAY 8540813 Contact Us For Availability
5
MAY 8540221 MAY 8540221 Contact Us For Availability
5
MAY W10137458 MAY W10137458 Contact Us For Availability
5
MAY 8183181 MAY 8183181 Contact Us For Availability
5
MAY W10142720 MAY W10142720 Contact Us For Availability
5
MAY W10273037 MAY W10273037 Contact Us For Availability
6
MAY W10245373 MAY W10245373 Contact Us For Availability
6
MAY W10117474 MAY W10117474 Contact Us For Availability
6
Push Button MAY W10131113 Contact Us For Availability
6
MAY W10212611 MAY W10212611 Contact Us For Availability
6
MAY W10273034 MAY W10273034 Contact Us For Availability
6
MAY 8540012 MAY 8540012 Contact Us For Availability
7
NUT, LOCK MAY 3359452 Contact Us For Availability
7
MAY W10198440 MAY W10198440 Contact Us For Availability
7
MAY W10135389 MAY W10135389 Contact Us For Availability
7
MAY W10376660 MAY W10376660 Contact Us For Availability
7
MAY 8540019 MAY 8540019 Contact Us For Availability
7
MAY W10273036 MAY W10273036 Contact Us For Availability
8
MAY W10110676 MAY W10110676 Contact Us For Availability
8
Clamp, Drain Hose MAY 356138 Contact Us For Availability
8
MAY W10217563 MAY W10217563 Contact Us For Availability
8
MAY W10137426 MAY W10137426 Contact Us For Availability
8
MAY 8540399 MAY 8540399 Contact Us For Availability
8
TUB, REAR (INCLUDES ITEMS 10 & 22) MAY W10303574 Contact Us For Availability
9
MAY 8518891 MAY 8518891 Contact Us For Availability
9
MAY 8540115 MAY 8540115 Contact Us For Availability
9
MAY W10340894 MAY W10340894 Contact Us For Availability
9
MAY W10198458 MAY W10198458 Contact Us For Availability
9
MAY W10200747 MAY W10200747 Contact Us For Availability
9
MAY W10183441 MAY W10183441 Contact Us For Availability
10
MAY W10258342 MAY W10258342 Contact Us For Availability
10
MAY 8540114 MAY 8540114 Contact Us For Availability
10
Insert MAY W10189313 Contact Us For Availability
10
MAY W10275869 MAY W10275869 Contact Us For Availability
10
MAY 8540090 MAY 8540090 Contact Us For Availability
10
MAY W10191886 MAY W10191886 Contact Us For Availability
11
MAY W10189659 MAY W10189659 Contact Us For Availability
11
MAY 8540513 MAY 8540513 Contact Us For Availability
11
MAY W10294428 MAY W10294428 Contact Us For Availability
11
MAY W10298953 MAY W10298953 Contact Us For Availability
11
MAY W10303571 MAY W10303571 Contact Us For Availability
11
MAY W10191880 MAY W10191880 Contact Us For Availability
12
BOLT, SHIPPING MAY W10251449 Contact Us For Availability
12
MAY W10137404 MAY W10137404 Contact Us For Availability
12
MAY W10311755 MAY W10311755 Contact Us For Availability
12
MAY W10212603 MAY W10212603 Contact Us For Availability
12
MAY W10118982 MAY W10118982 Contact Us For Availability
12
MAY W10190649 MAY W10190649 Contact Us For Availability
13
MAY W10276793 MAY W10276793 Contact Us For Availability
13
HOSE, WATER INLET (HOT WATER) MAY W10276795 Contact Us For Availability
13
MAY W10205548 MAY W10205548 Contact Us For Availability
13
Screw, 3-24 X 3/8 MAY 489136 Contact Us For Availability
13
MAY W10212604 MAY W10212604 Contact Us For Availability
13
CONNECTOR - VENTILATION MAY W10142721 Contact Us For Availability
13
SCREW, 10-16 X 1.25 MAY W10167905 Contact Us For Availability
14
MAY W10045597 MAY W10045597 Contact Us For Availability
14
MAY W10198442 MAY W10198442 Contact Us For Availability
14
MAY W10155150 MAY W10155150 Contact Us For Availability
14
MAY W10273032 MAY W10273032 Contact Us For Availability
14
Flap - Ventilation MAY W10142722 Contact Us For Availability
14
HOSE, DRAIN- INNER MAY W10272563 Contact Us For Availability
15
MAY W10385821 MAY W10385821 Contact Us For Availability
15
MAY W10198417 MAY W10198417 Contact Us For Availability
15
NUT, 6-32 MAY W10139046 Contact Us For Availability
15
MAY 8540063 MAY 8540063 Contact Us For Availability
15
MAY W10246531 MAY W10246531 Contact Us For Availability
15
MAY W10003290 MAY W10003290 Contact Us For Availability
16
MAY W10244560 MAY W10244560 Contact Us For Availability
16
Screw, 8-18 x 5/8 MAY W10015090 Contact Us For Availability
16
MAY 8540284 MAY 8540284 Contact Us For Availability
16
MAY W10137432 MAY W10137432 Contact Us For Availability
16
SPRING, SUSPENSION (SET OF 2) MAY W10010360 Contact Us For Availability
16
CABLE TIE MAY 2262071 Contact Us For Availability
17
MAY W10340566 MAY W10340566 Contact Us For Availability
17
MAY W10137460 MAY W10137460 Contact Us For Availability
17
Bolt, Counterweight Mtg. MAY W10094780 Contact Us For Availability
18
HOSE, DRAIN- OUTER MAY W10106460 Contact Us For Availability
18
Cable Tie MAY 3429563 Contact Us For Availability
18
FACIA/OVERLAY, DRAWER MAY W10137430 Contact Us For Availability
18
MAY W10259288 MAY W10259288 Contact Us For Availability
19
MAY W10003260 MAY W10003260 Contact Us For Availability
19
MAY W10112927 MAY W10112927 Contact Us For Availability
19
MAY W10330606 MAY W10330606 Contact Us For Availability
19
Screw, 8-18 X 1/2 MAY W10137456 Contact Us For Availability
19
SHOCK ABSORBER MAY W10015830 Contact Us For Availability
20
MAY 238614 MAY 238614 Contact Us For Availability
20
MAY W10205520 MAY W10205520 Contact Us For Availability
20
MAY 8540092 MAY 8540092 Contact Us For Availability
21
Screw, 8-18 X 7/16 MAY 8540329 Contact Us For Availability
21
TUB, FRONT (INCLUDES ITEMS 10 & 22) MAY W10266965 Contact Us For Availability
22
MAY W10398805 MAY W10398805 Contact Us For Availability
22
NUT, U-TYPE MAY 9781235 Contact Us For Availability
22
MAY 8540072 MAY 8540072 Contact Us For Availability
23
MAY W10292407 MAY W10292407 Contact Us For Availability
23
Screw, 8-18 x 1/2 MAY W10131119 Contact Us For Availability
23
NEGATIVE THERMISTOR CONTROL MAY W10176659 Contact Us For Availability
24
MAY 8540294 MAY 8540294 Contact Us For Availability
24
MAY W10018050 MAY W10018050 Contact Us For Availability
24
MAY 8540766 MAY 8540766 Contact Us For Availability
25
MAY 8540479 MAY 8540479 Contact Us For Availability
25
Jumper, Service Vault Switch MAY W10133282 Contact Us For Availability
25
MAY 8540382 MAY 8540382 Contact Us For Availability
26
MAY 8540268 MAY 8540268 Contact Us For Availability
26
Crosspiece Assembly MAY 8540342 Contact Us For Availability
27
MAY 8577378 MAY 8577378 Contact Us For Availability
28
ANGLE, SUPPORT-TOP MAY W10279059 Contact Us For Availability
29
MAY 8540728 MAY 8540728 Contact Us For Availability
30
Screw, 3 x 8 mm MAY 8540727 Contact Us For Availability
32
MAY 8565018 MAY 8565018 Contact Us For Availability
33
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
34
Sleeve, Pressure Switch Hose MAY 2161302 Contact Us For Availability
35
MAY 3347868 MAY 3347868 Contact Us For Availability
36
WASHER, WATER INLET HOSE 1-1/16 X 5/8 MAY 3976300 Contact Us For Availability
37
SEAL-FOAM (IEC) MAY 8318396 Contact Us For Availability
38
MAY W10168546 MAY W10168546 Contact Us For Availability
39
MAY W10330592 MAY W10330592 Contact Us For Availability
40
MAY 8540643 MAY 8540643 Contact Us For Availability
41
BRACKET, TOP PANEL (LEFT) MAY W10137445 Contact Us For Availability
42
BRACKET, TOP PANEL (RIGHT) MAY W10137444 Contact Us For Availability
43
MAY W10137398 MAY W10137398 Contact Us For Availability
44
MAY 8540721 MAY 8540721 Contact Us For Availability
45
MAY 8283273 MAY 8283273 Contact Us For Availability
NI
MAY W10153836 MAY W10153836 Contact Us For Availability
NI
MAY W10200773 MAY W10200773 Contact Us For Availability
NI
DOOR LOCK- POWER MAY W10200775 Contact Us For Availability
NI
10A CORD ADAPTERS: (AUSTRALIAN) MAY W10223804 Contact Us For Availability
NI
MAY W10223807 MAY W10223807 Contact Us For Availability
NI
MAY W10223809 MAY W10223809 Contact Us For Availability
NI
CCU TO MCU-SERIALCOMMUNICATION (3 POLE) MAY W10330605 Contact Us For Availability
NI
MAY W10340897 MAY W10340897 Contact Us For Availability
NI
MAY W10340898 MAY W10340898 Contact Us For Availability
NI
Drain Extension MAY 285863 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
PEDESTAL, COMMERCIAL MAY W10103350 Contact Us For Availability
× ![]()
