Model Electrolux MH424F2SB ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS

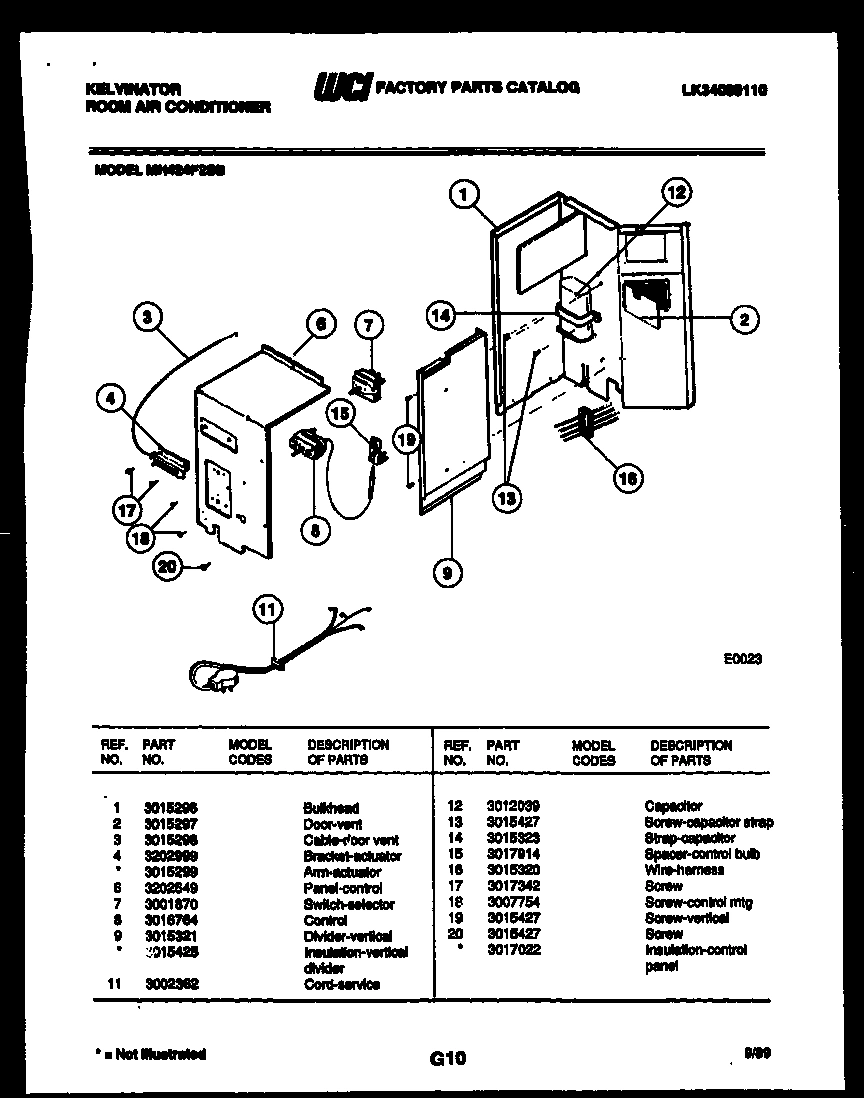

03 - ELECTRICAL PARTS

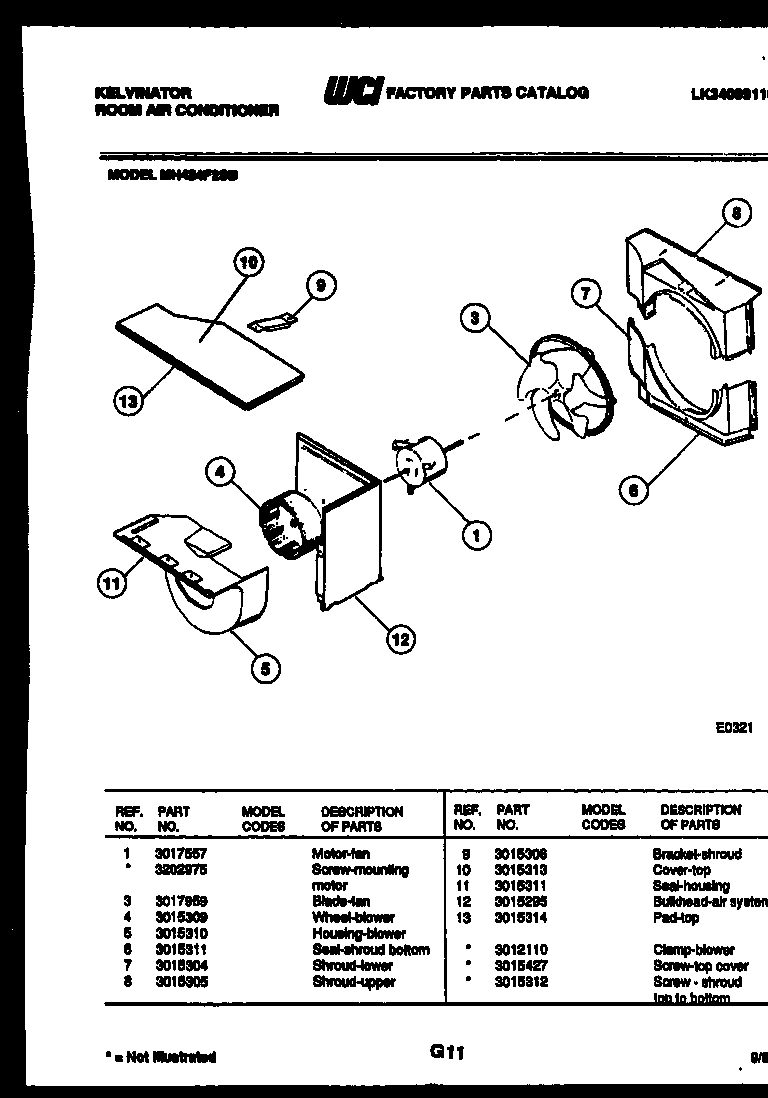

04 - AIR HANDLING PARTS

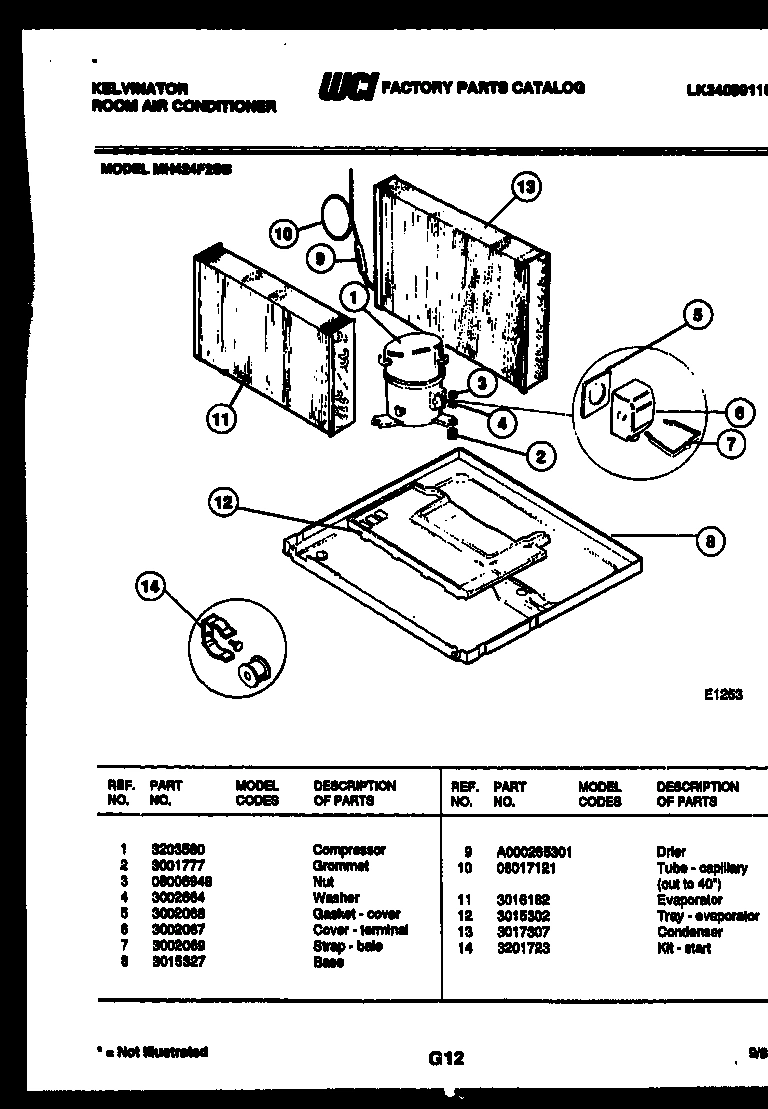

05 - SYSTEM PARTS

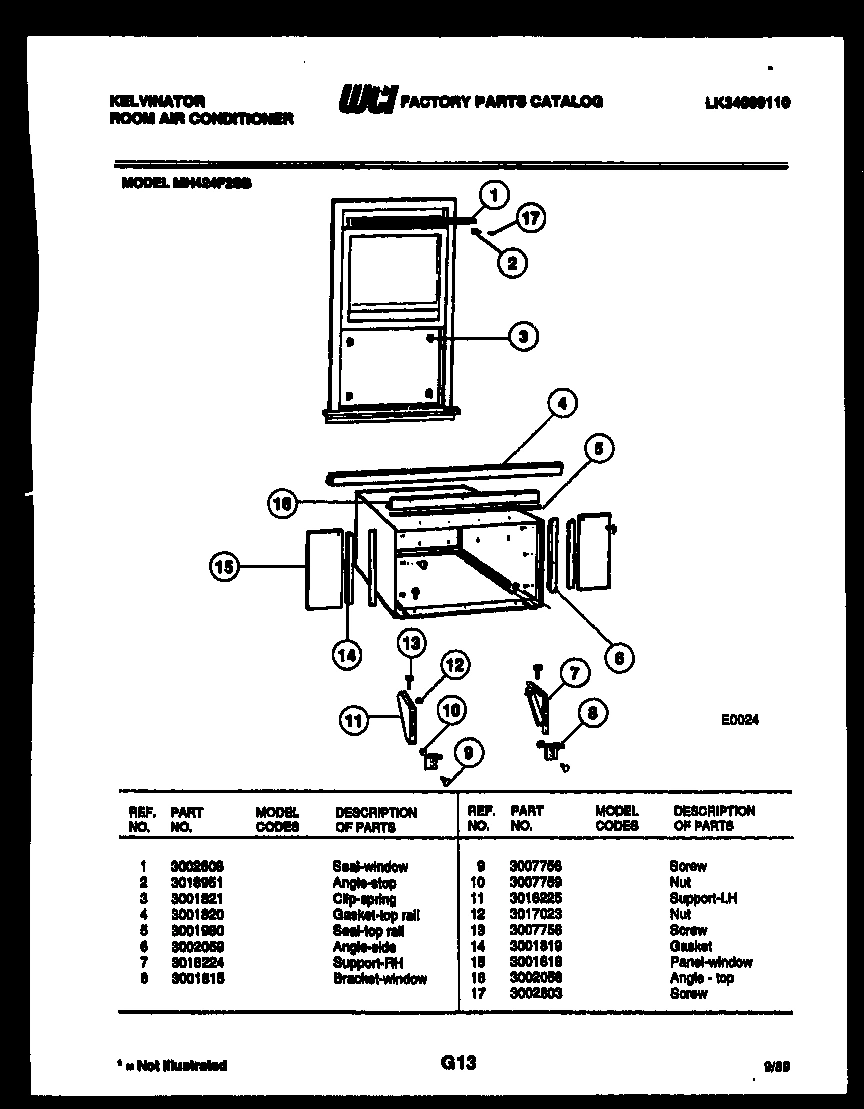

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux MH424F2SB ROOM AIR CONDITIONER
*12470
INSULATION-CONTROL PANEL WCI 3017022 Contact Us For Availability
*12472
CLAMP-BLOWER WCI 3012110 Contact Us For Availability
1
WCI 3015315 WCI 3015315 Contact Us For Availability
1
WCI 3015296 WCI 3015296 Contact Us For Availability
1
WCI 3017557 WCI 3017557 Contact Us For Availability
1
WCI 3203580 WCI 3203580 Contact Us For Availability
1
SEAL - WINDOW WCI 3002608 Contact Us For Availability
2
WCI 3016831 WCI 3016831 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
WCI 3001777 WCI 3001777 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
WCI 3002459 WCI 3002459 Contact Us For Availability
3
WCI 3015298 WCI 3015298 Contact Us For Availability
3
WCI 3017959 WCI 3017959 Contact Us For Availability
3
WCI 08006948 WCI 08006948 Contact Us For Availability
3
CLIP - SPRING WCI 3001821 Contact Us For Availability
4
LINK RH WCI 3002162 Contact Us For Availability
4
WCI 3202999 WCI 3202999 Contact Us For Availability
4
WCI 3015309 WCI 3015309 Contact Us For Availability
4
WCI 3002664 WCI 3002664 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
4A
ARM - ACTUATOR WCI 3015299 Contact Us For Availability
5
LINK LH WCI 3002163 Contact Us For Availability
5
HOUSING-BLOWER WCI 3015310 Contact Us For Availability
5
WCI 3002068 WCI 3002068 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
CLIP-DETENT WCI 3001844 Contact Us For Availability
6
WCI 3202549 WCI 3202549 Contact Us For Availability
6
WCI 3002067 WCI 3002067 Contact Us For Availability
6
WCI 3002059 WCI 3002059 Contact Us For Availability
7
WCI 3018772 WCI 3018772 Contact Us For Availability
7
WCI 3001870 WCI 3001870 Contact Us For Availability
7
SHROUD-LOWER WCI 3015304 Contact Us For Availability
7
WCI 3002069 WCI 3002069 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI 3001775 WCI 3001775 Contact Us For Availability
8
CONTROL WCI 3016764 Contact Us For Availability
8
SHROUD-UPPER WCI 3015305 Contact Us For Availability
8
WCI 3015327 WCI 3015327 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
9
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
9
BRACKET-SHROUD WCI 3015306 Contact Us For Availability
9A
INSULATION-VERTICAL DIVIDER (NON-ILLUSTRATED) WCI 3015425 Contact Us For Availability
10
WCI 3018278 WCI 3018278 Contact Us For Availability
10
WCI 3015313 WCI 3015313 Contact Us For Availability
10
WCI 08017121 WCI 08017121 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
WCI 3002189 WCI 3002189 Contact Us For Availability
11
WCI 3002362 WCI 3002362 Contact Us For Availability
11
SEAL-HOUSING WCI 3015311 Contact Us For Availability
11
WCI 3016182 WCI 3016182 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
WCI WA331902 WCI WA331902 Contact Us For Availability
12
WCI 3012039 WCI 3012039 Contact Us For Availability
12
WCI 3015295 WCI 3015295 Contact Us For Availability
12
WCI 3015302 WCI 3015302 Contact Us For Availability
13
FILTER-AIR WCI 3014139 Contact Us For Availability
13
PAD-TOP WCI 3015314 Contact Us For Availability
13
WCI 3017307 WCI 3017307 Contact Us For Availability
13
WCI 3007756 WCI 3007756 Contact Us For Availability
14
WCI 3018279 WCI 3018279 Contact Us For Availability
14
WCI 3015323 WCI 3015323 Contact Us For Availability
14
KIT-START WCI 3201723 Contact Us For Availability
14
WCI 3001819 WCI 3001819 Contact Us For Availability
15
CLIP-FILTER RETAINING WCI 3002170 Contact Us For Availability
15
SPACER - CONTROL BULB WCI 3017914 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
CLIP-FRONT TO BASE WCI 08010914 Contact Us For Availability
16
WIRE-HARNESS WCI 3015320 Contact Us For Availability
16
WCI 3002058 WCI 3002058 Contact Us For Availability
17
SCREW-MOUNTING FRONT WCI 3017304 Contact Us For Availability
17
SCREW WCI 3017342 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
18
SCREW-CONTROL MTG WCI 3007754 Contact Us For Availability
× ![]()
