Model Electrolux MH208F1QA ROOM AIR CONDITIONER – Common Parts & Diagrams

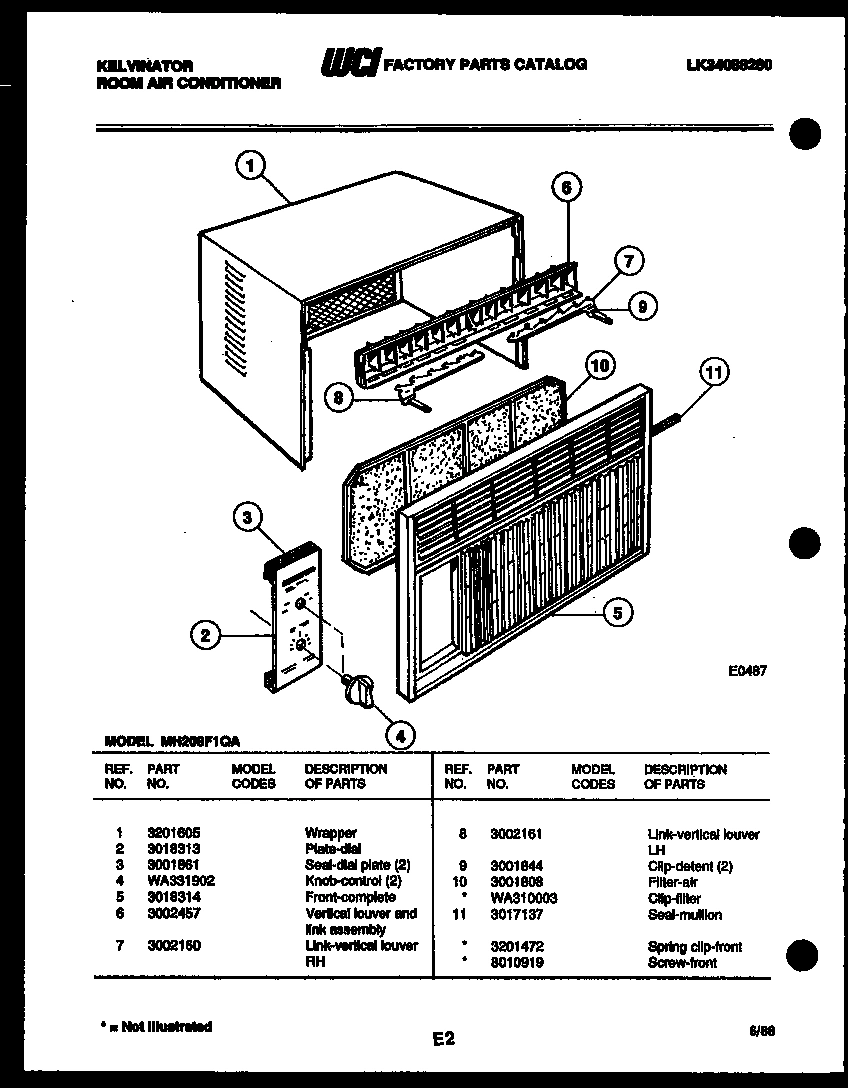

02 - CABINET PARTS

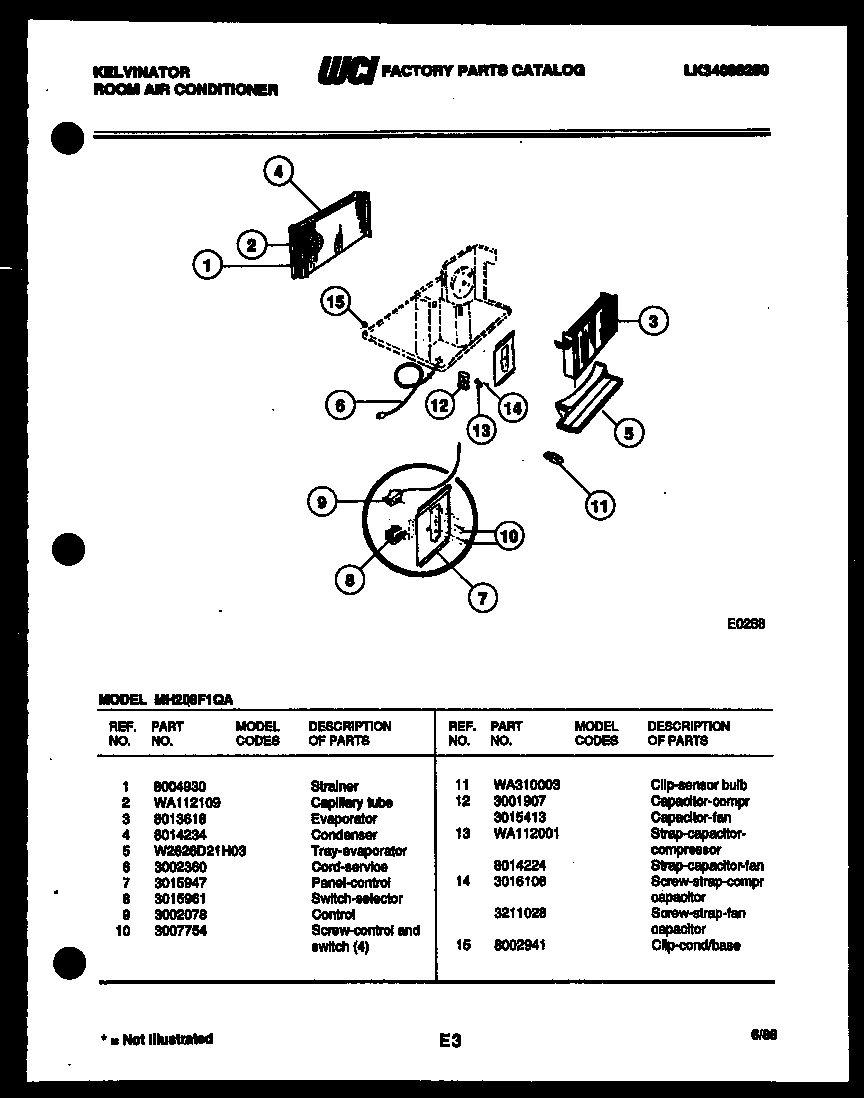

03 - ELECTRICAL PARTS

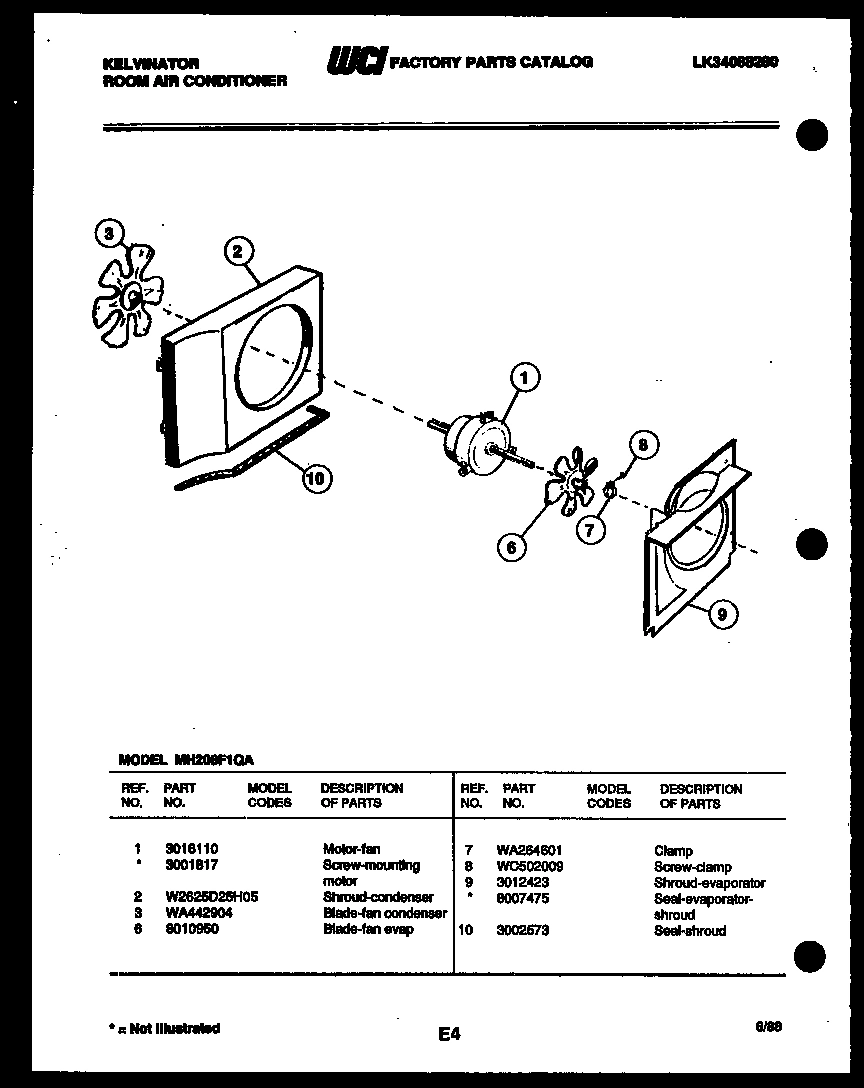

04 - AIR HANDLING PARTS

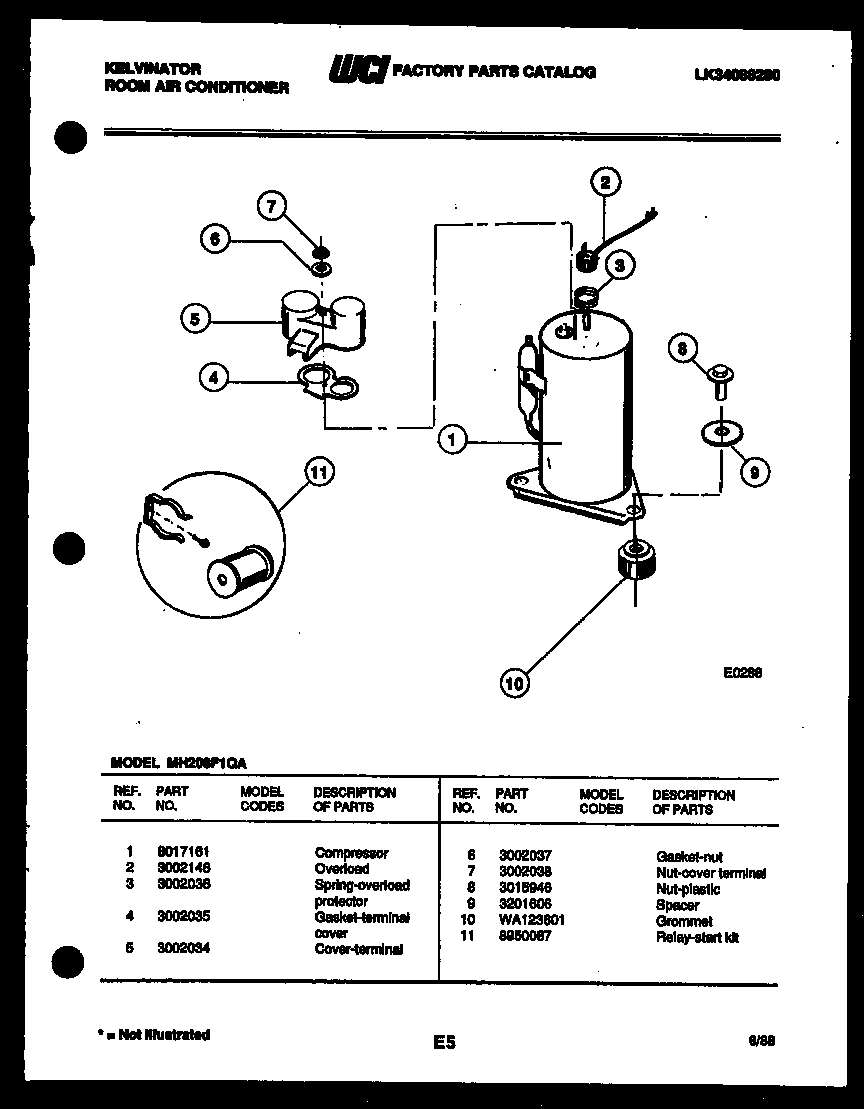

05 - COMPRESSOR

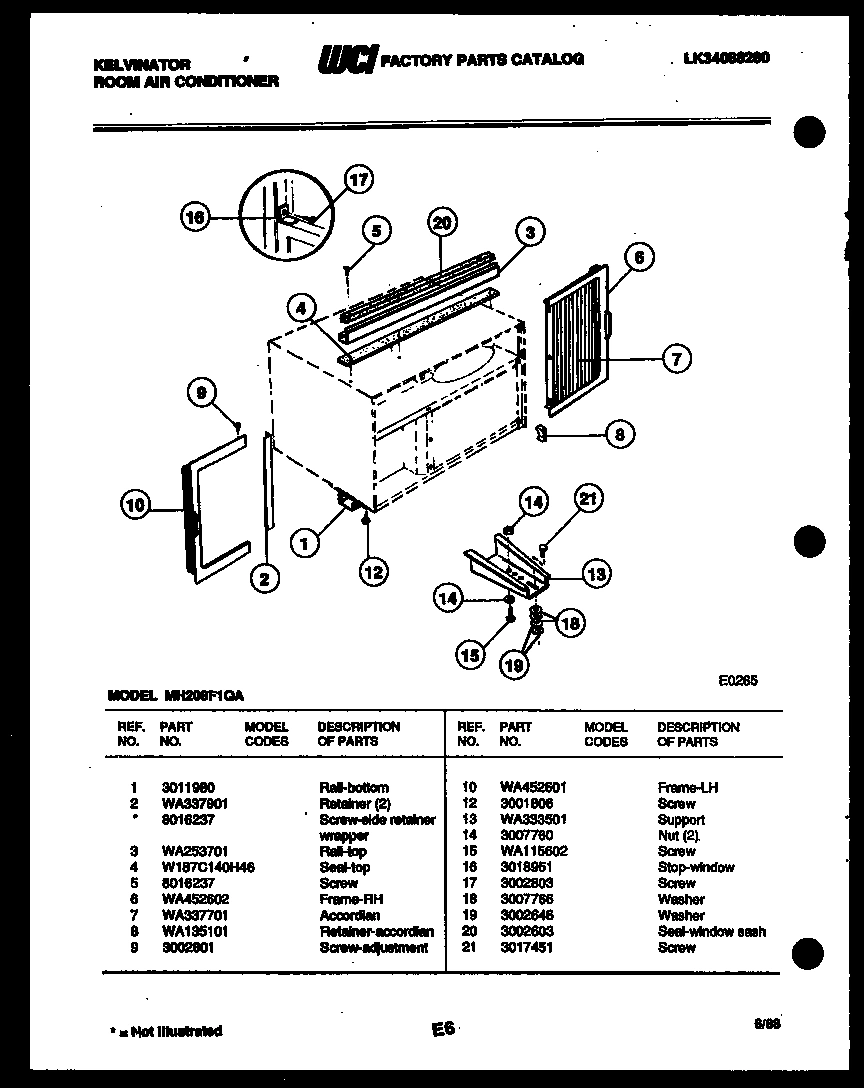

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux MH208F1QA ROOM AIR CONDITIONER
*78459
SPRING CLIP-FRONT WCI 3201472 Contact Us For Availability
*78461
SCREW-FRONT WCI 8010919 Contact Us For Availability
1
WCI 3201605 WCI 3201605 Contact Us For Availability
1
STRAINER WCI 8004930 Contact Us For Availability
1
WCI 3016110 WCI 3016110 Contact Us For Availability
1
WCI 8017161 WCI 8017161 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
1A
SCREW-MOUNTING MOTOR (NON-ILLUSTRATED) WCI 3001817 Contact Us For Availability
2
PLATE-DIAL WCI 3018313 Contact Us For Availability
2
CAPILLARY TUBE WCI WA112109 Contact Us For Availability
2
WCI W2625D25H05 WCI W2625D25H05 Contact Us For Availability
2
WCI 3002146 WCI 3002146 Contact Us For Availability
2
RETAINER (2) WCI WA337901 Contact Us For Availability
3
SEAL-DIAL PLATE (2) WCI 3001861 Contact Us For Availability
3
WCI 8013618 WCI 8013618 Contact Us For Availability
3
WCI WA442904 WCI WA442904 Contact Us For Availability
3
SPRING-OVERLOAD PROTECTOR WCI 3002036 Contact Us For Availability
3
WCI WA253701 WCI WA253701 Contact Us For Availability
4
KNOB-CONTROL (2) WCI WA331902 Contact Us For Availability
4
WCI 8014234 WCI 8014234 Contact Us For Availability
4
WCI 3002035 WCI 3002035 Contact Us For Availability
4
SEAL-TOP WCI W187C140H46 Contact Us For Availability
5
WCI 3018314 WCI 3018314 Contact Us For Availability
5
WCI W2626D21H03 WCI W2626D21H03 Contact Us For Availability
5
COVER-TERMINAL WCI 3002034 Contact Us For Availability
5
SCREW WCI 8016237 Contact Us For Availability
6
VERTICAL LOUVER AND LINK ASSEMBLY WCI 3002457 Contact Us For Availability
6
CORD-SERVICE WCI 3002360 Contact Us For Availability
6
BLADE FAN EVAP WCI 8010950 Contact Us For Availability
6
GASKET-NUT WCI 3002037 Contact Us For Availability
6
WCI WA452602 WCI WA452602 Contact Us For Availability
7
LINK-VERTICAL LOUVER RH WCI 3002160 Contact Us For Availability
7
WCI 3015947 WCI 3015947 Contact Us For Availability
7
WCI WA264601 WCI WA264601 Contact Us For Availability
7
NUT-COVER TERMINAL WCI 3002038 Contact Us For Availability
7
WCI WA337701 WCI WA337701 Contact Us For Availability
8
LINK-VERTICAL LOUVER LH WCI 3002161 Contact Us For Availability
8
WCI 3015961 WCI 3015961 Contact Us For Availability
8
NUT (PLASTIC) WCI 3015946 Contact Us For Availability
8
RETAINER-ACCORDIAN WCI WA135101 Contact Us For Availability
9
CLIP-DETENT (2) WCI 3001844 Contact Us For Availability
9
CONTROL WCI 3002078 Contact Us For Availability
9
WCI 3012423 WCI 3012423 Contact Us For Availability
9
WCI 3201606 WCI 3201606 Contact Us For Availability
9
SCREW - ADJUSTMENT WCI 3002801 Contact Us For Availability
9A
SEAL-EVAPORATOR-SHROUD (NON-ILLUSTRATED) WCI 8007475 Contact Us For Availability
10
WCI 3001808 WCI 3001808 Contact Us For Availability
10
SCREW-CONTROL AND SWITCH (4) WCI 3007754 Contact Us For Availability
10
WCI 3002573 WCI 3002573 Contact Us For Availability
10
WCI WA123601 WCI WA123601 Contact Us For Availability
10
WCI WA452601 WCI WA452601 Contact Us For Availability
11
CLIP-SENSOR BULB WCI WA310003 Contact Us For Availability
11
WCI 3017137 WCI 3017137 Contact Us For Availability
11
RELAY, START KIT WCI 8950087 Contact Us For Availability
12
CAPACITOR-COMPR WCI 3001907 Contact Us For Availability
12
SCREW WCI 3001806 Contact Us For Availability
12A
CAPACITOR-FAN WCI 3015413 Contact Us For Availability
13
STRAP-CAPACITOR-COMPRESSOR WCI WA112001 Contact Us For Availability
13
WCI WA333501 WCI WA333501 Contact Us For Availability
13A
STRAP-CAPACITOR FAN WCI 8014224 Contact Us For Availability
14
SCREW-STRAP-COMPR CAPACITOR WCI 3016106 Contact Us For Availability
14
NUT (2) WCI 3007760 Contact Us For Availability
14A
SCREW-STRAP-FAN CAPACITOR WCI 3211028 Contact Us For Availability
15
WCI 8002941 WCI 8002941 Contact Us For Availability
15
SCREW WCI WA115602 Contact Us For Availability
16
STOP - WINDOW WCI 3018951 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
19
WASHER WCI 3002646 Contact Us For Availability
21
WCI 3017451 WCI 3017451 Contact Us For Availability
× ![]()
