Model LG MH-667Y – Common Parts & Diagrams
Diagram 0

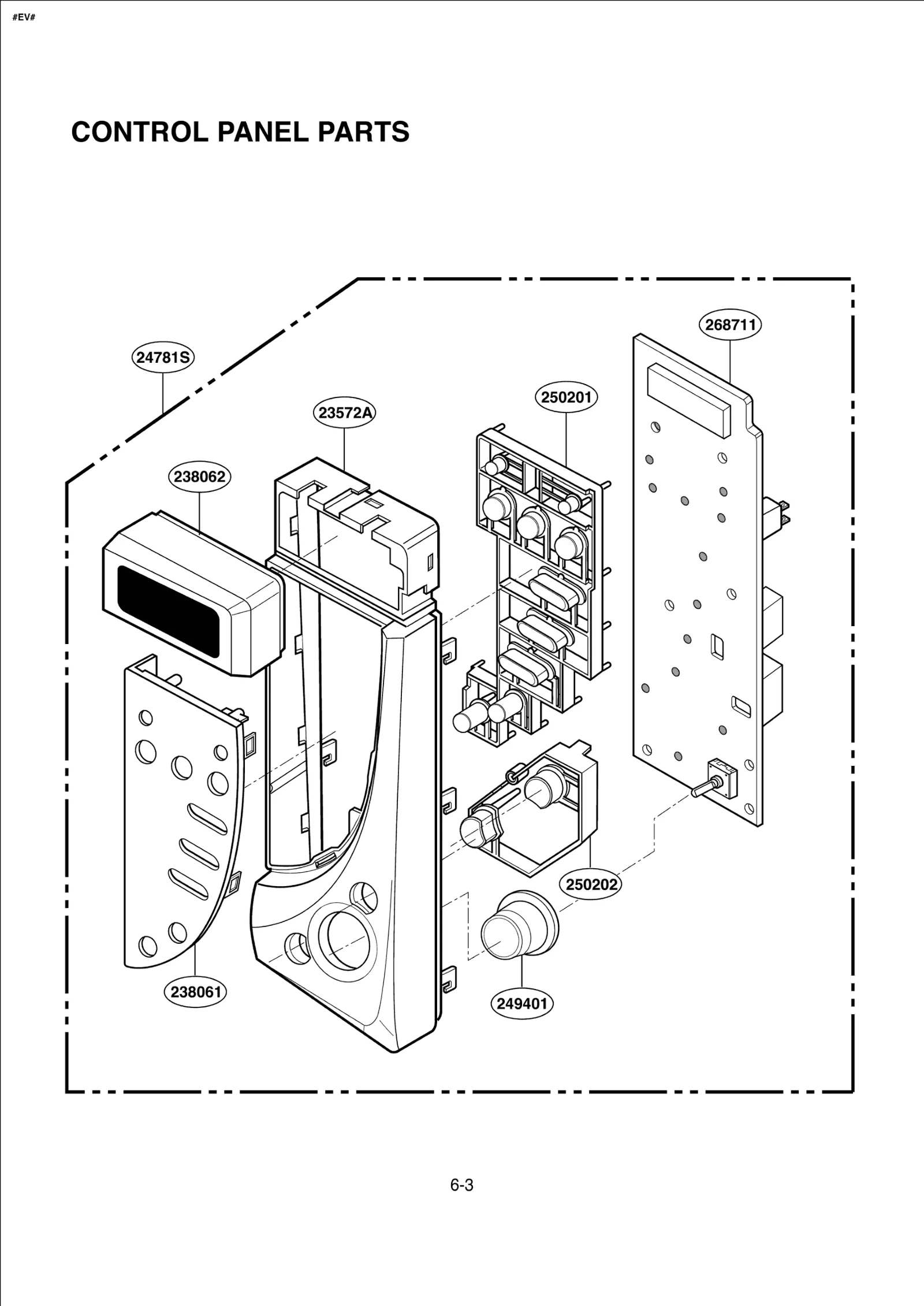

Diagram 1

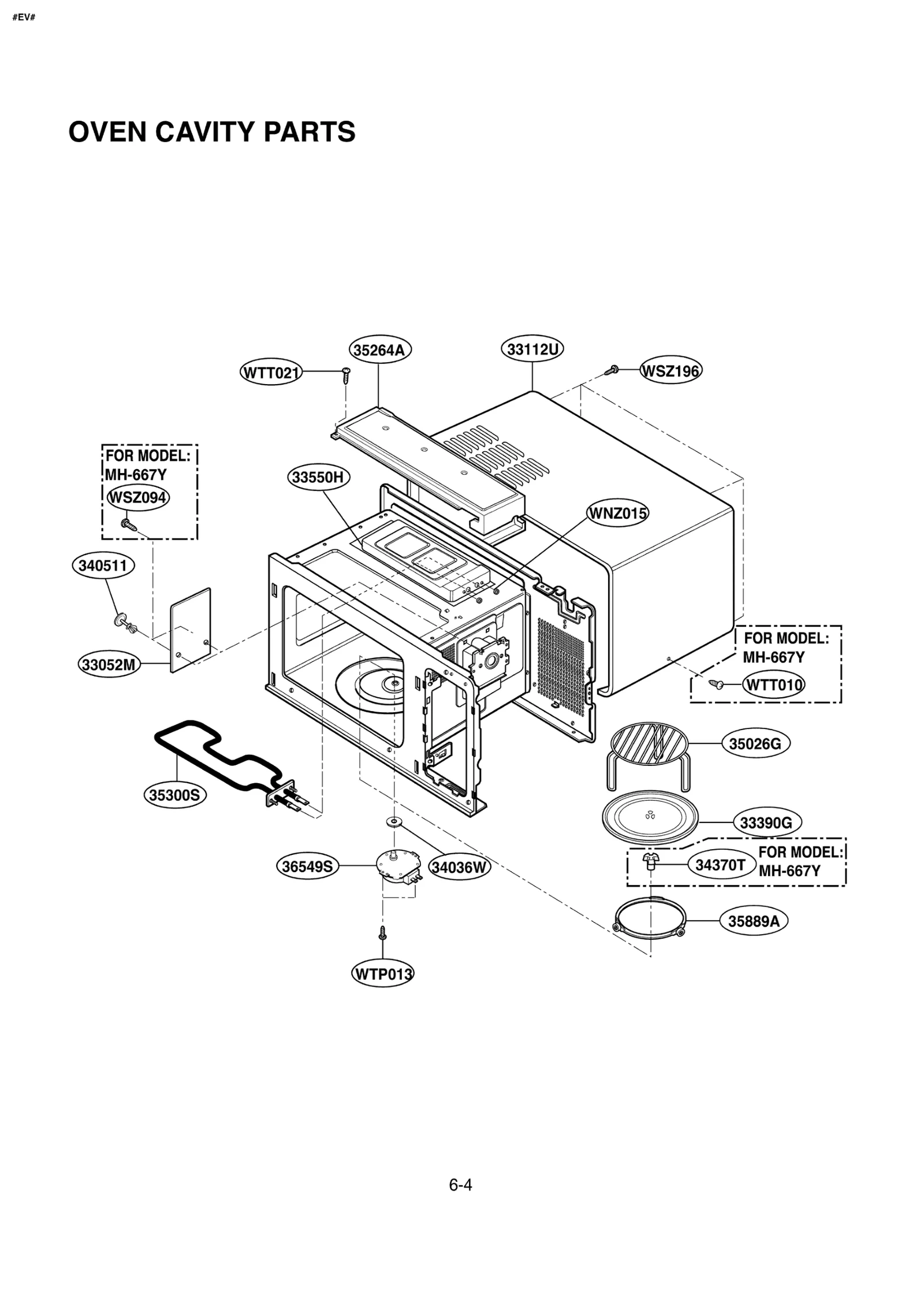

Diagram 2
Diagram 3

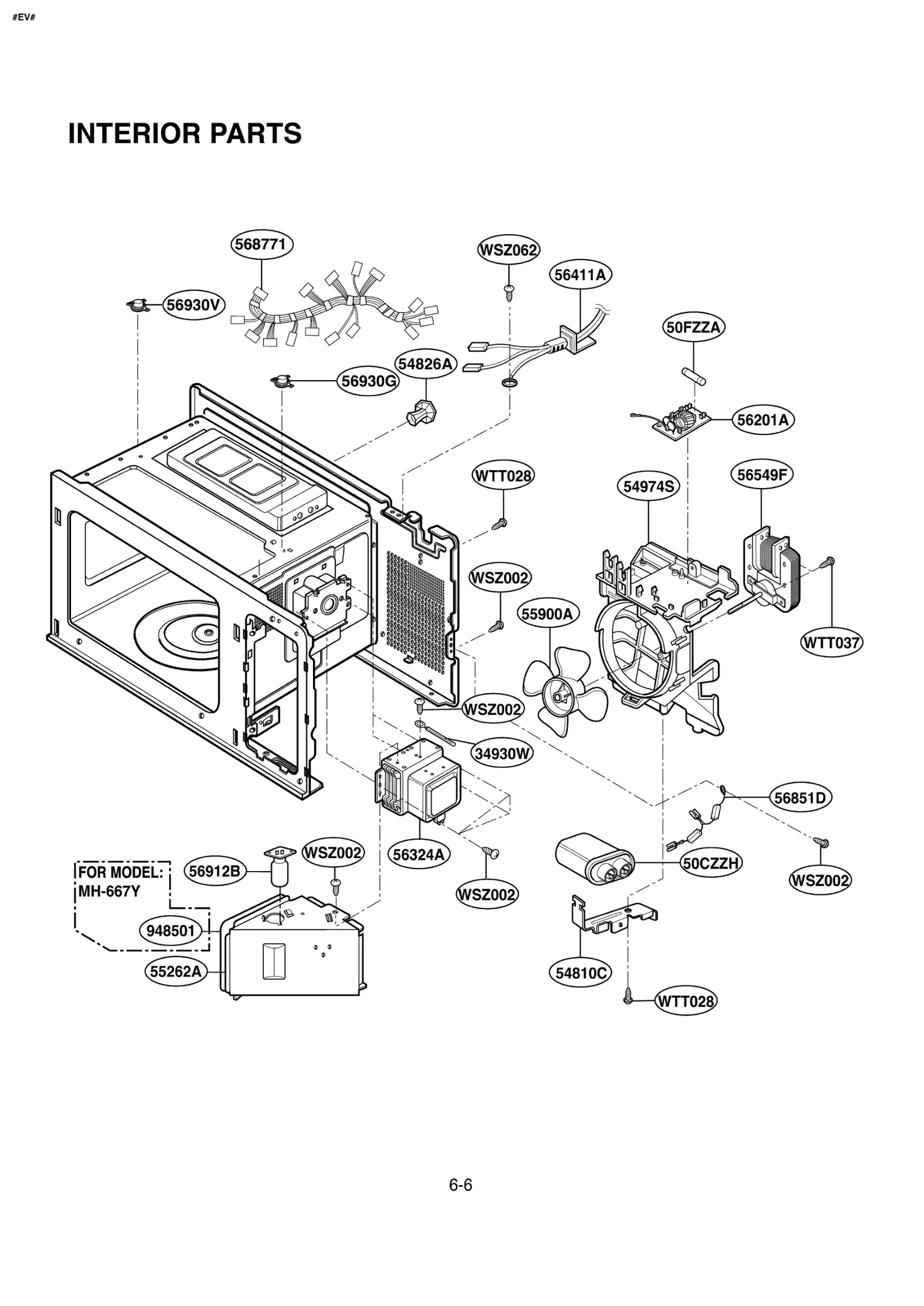

Diagram 4
Diagram 5
Diagram 6
Common parts from model LG MH-667Y
*01
LGE 3828W5A2165 LGE 3828W5A2165 Contact Us For Availability
*02
LGE 3828W5S2010 LGE 3828W5S2010 Contact Us For Availability
*03
LGE 3878W5A0072 LGE 3878W5A0072 Contact Us For Availability
*03
LGE 3878W5B0013 LGE 3878W5B0013 Contact Us For Availability
*10
LGE 3890W3W237A LGE 3890W3W237A Contact Us For Availability
50CZZH
CAPACITOR,[HIGH VOLTAGE] LGE 6120W3H003J Contact Us For Availability
50FZZA
FUSE,DRAWING LGE 3B70856T Contact Us For Availability
14270A
LGE 4970W1A005A LGE 4970W1A005A Contact Us For Availability
23572A
LGE 3572W0A243E LGE 3572W0A243E Contact Us For Availability
23572A
LGE 3572W0A243K LGE 3572W0A243K Contact Us For Availability
23790D
LGE 3790W1A003B LGE 3790W1A003B Contact Us For Availability
24781S
LGE 4781W1S093S LGE 4781W1S093S Contact Us For Availability
24781S
LGE 4781W1S093G LGE 4781W1S093G Contact Us For Availability
27204A
LGE 7204PS0171B LGE 7204PS0171B Contact Us For Availability
33052M
CANOPY,MICA LGE 3052W3M011C Contact Us For Availability
33112U
LGE 3112W2U006Q LGE 3112W2U006Q Contact Us For Availability
33390G
GLASS TRAY LGE 1B71018G Contact Us For Availability
33550H
COVER,[AIR DUCT COVER] LGE 3550W1A084B Contact Us For Availability
34370T
SHAFT,[TURN TABLE SHAFT] LGE 3B72373E Contact Us For Availability
35026G
LGE 3B71492Y LGE 3B71492Y Contact Us For Availability
35300S
LGE 5300W1S002A LGE 5300W1S002A Contact Us For Availability
43500A
LGE 3500W1A027A LGE 3500W1A027A Contact Us For Availability
43500A
LGE 3500W1A020A LGE 3500W1A020A Contact Us For Availability
43500L
LGE 3500W1A021A LGE 3500W1A021A Contact Us For Availability
43501A
LGE 3501W1A023A LGE 3501W1A023A Contact Us For Availability
43501A
LGE 3501W1A023C LGE 3501W1A023C Contact Us For Availability
43501L
LGE 3501W1A024C LGE 3501W1A024C Contact Us For Availability
44510A
LGE 4510W1A002A LGE 4510W1A002A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54826A
SPACER LGE 4B70774A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55262A
DUCT LGE 5262W2A037B Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
LGE 6170W1D029C LGE 6170W1D029C Contact Us For Availability
56201A
LGE 6201W2A021E LGE 6201W2A021E Contact Us For Availability
56324A
MAGNETRON LGE 2B71732B Contact Us For Availability
56411A
POWER CORD ASSEMBLY LGE 6411W2C002F Contact Us For Availability
56411A
Power Cord Assembly LGE 6411W2C002A Contact Us For Availability
56549F
LGE 6549W1F008A LGE 6549W1F008A Contact Us For Availability
56851C
CABLE ASSY,CIRCUIT PROTECTOR LGE 6851W1A001A Contact Us For Availability
56930M
THERMOSTAT 145/60 V LGE 6930WRT003B Contact Us For Availability
56930V
THERMOSTAT HORIZONTAL 90/75,PA LGE 6930WRT001C Contact Us For Availability
63302A
LGE 3302W1A026H LGE 3302W1A026H Contact Us For Availability
63303A
LGE 3303W1A013Q LGE 3303W1A013Q Contact Us For Availability
149703
LGE 4970W1A007A LGE 4970W1A007A Contact Us For Availability
149704
LGE 4970W1A006A LGE 4970W1A006A Contact Us For Availability
238061
LGE 3806W1A063A LGE 3806W1A063A Contact Us For Availability
238061
LGE 3806W1A023F LGE 3806W1A023F Contact Us For Availability
238062
LGE 3806W1A022E LGE 3806W1A022E Contact Us For Availability
238062
LGE 3806W1A022C LGE 3806W1A022C Contact Us For Availability
249401
LGE 4940W1A004C LGE 4940W1A004C Contact Us For Availability
249401
LGE 4940W1A004D LGE 4940W1A004D Contact Us For Availability
250201
LGE 5020W1A017C LGE 5020W1A017C Contact Us For Availability
250201
LGE 5020W1A097A LGE 5020W1A097A Contact Us For Availability
250202
LGE 5020W1A018D LGE 5020W1A018D Contact Us For Availability
250202
LGE 5020W1A018E LGE 5020W1A018E Contact Us For Availability
268711
LGE 6871W1S051B LGE 6871W1S051B Contact Us For Availability
347742
LGE 4774W1A001C LGE 4774W1A001C Contact Us For Availability
568771
LGE 6877W1A219E LGE 6877W1A219E Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
BZ1
BUZZER,PIEZO CERAMIC LGE 6908W3YA01B Contact Us For Availability
C02
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C06
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C08
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C25
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C82
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1020K518 Contact Us For Availability
CN01
CONNECTOR (CIRC),WAFER LGE 6630W5YA12D Contact Us For Availability
CU1
LGE 4850W4C001H LGE 4850W4C001H Contact Us For Availability
D08
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D32
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
DP1
LGE 0DLZW5A012A LGE 0DLZW5A012A Contact Us For Availability
EN1
ENCODER LGE 6024W5A0006 Contact Us For Availability
PT1
LGE 6170W1G004H LGE 6170W1G004H Contact Us For Availability
Q03
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q20
TRANSISTOR,BIPOLARS LGE 0TRFC90012A Contact Us For Availability
Q111
TRANSISTOR,BIPOLARS LGE 0TRFC80002A Contact Us For Availability
R03
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R05
LGE 0RD0332G608 LGE 0RD0332G608 Contact Us For Availability
R10
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R25
LGE 0RD3301G608 LGE 0RD3301G608 Contact Us For Availability
R26
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
R30
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R46
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R50
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R82
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R85
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R87
LGE 0RD1503G608 LGE 0RD1503G608 Contact Us For Availability
R112
Resistor,Carbon Film LGE 0RD0472F608 Contact Us For Availability
RY1
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
SW12
SWITCH,TACT LGE 6600RRT001B Contact Us For Availability
SW12
SWITCH,TACT LGE 6600R000019 Contact Us For Availability
U01
LGE 0IZZW5A146B LGE 0IZZW5A146B Contact Us For Availability
U02
LGE 0ISS240200A LGE 0ISS240200A Contact Us For Availability
WSZ112
LGE 4B71169A LGE 4B71169A Contact Us For Availability
WSZ184
SCREW,DRAWING LGE 1SZZW2Z001E Contact Us For Availability
ZD01
LGE 0DZ510009AA LGE 0DZ510009AA Contact Us For Availability
ZD02
DIODE,ZENERS LGE 0DZ560009AC Contact Us For Availability
× ![]()
