Model Maytag MGT8885XS02 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

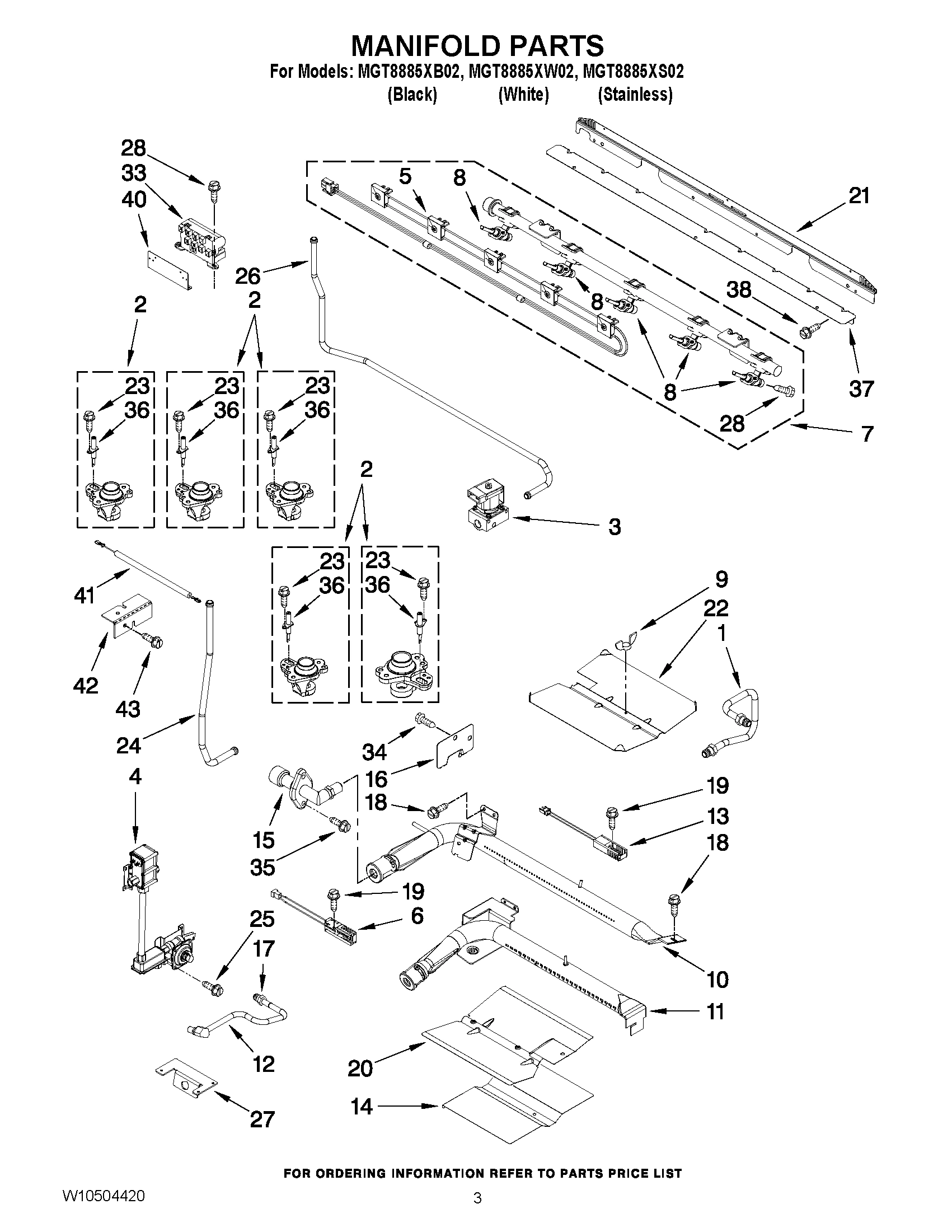

03 - MANIFOLD PARTS

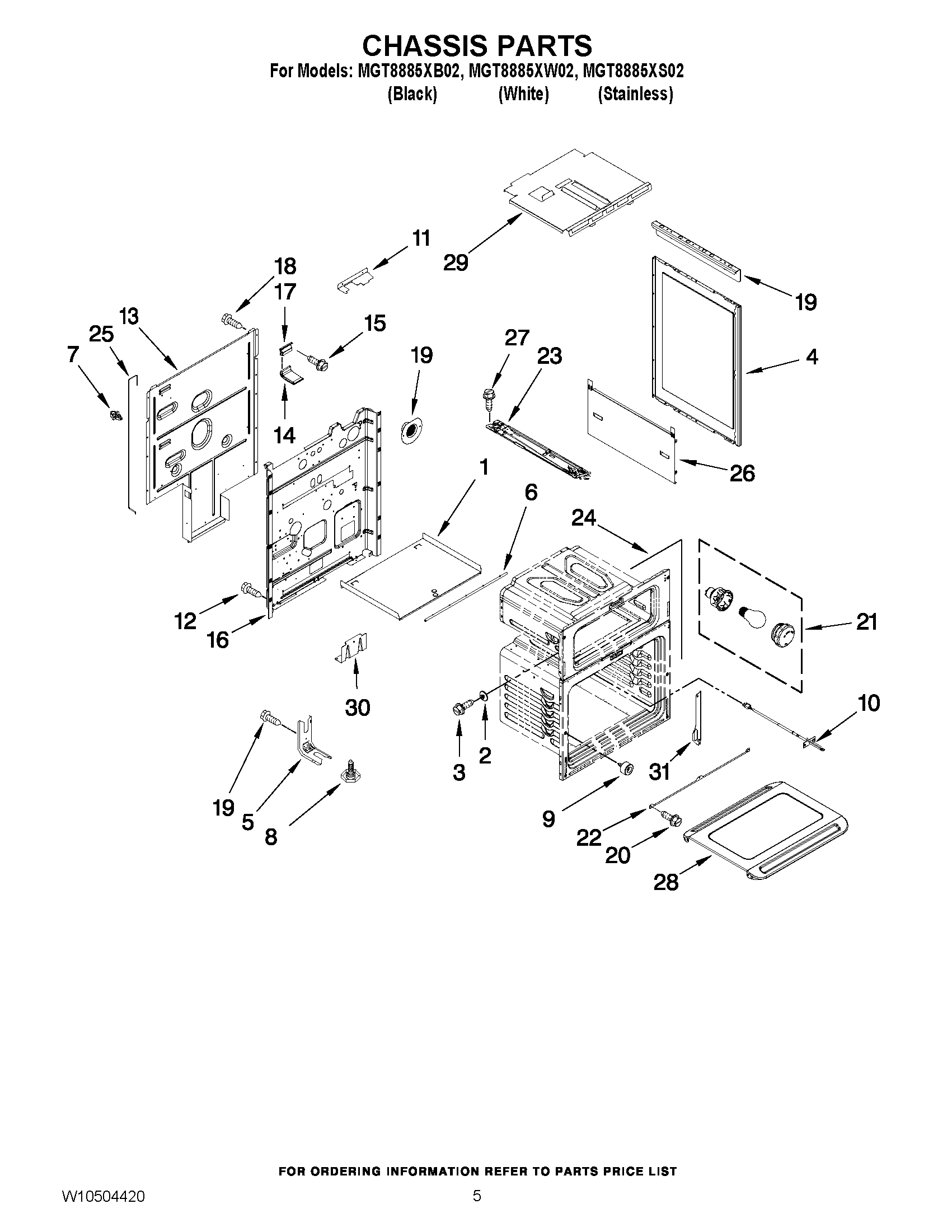

04 - CHASSIS PARTS

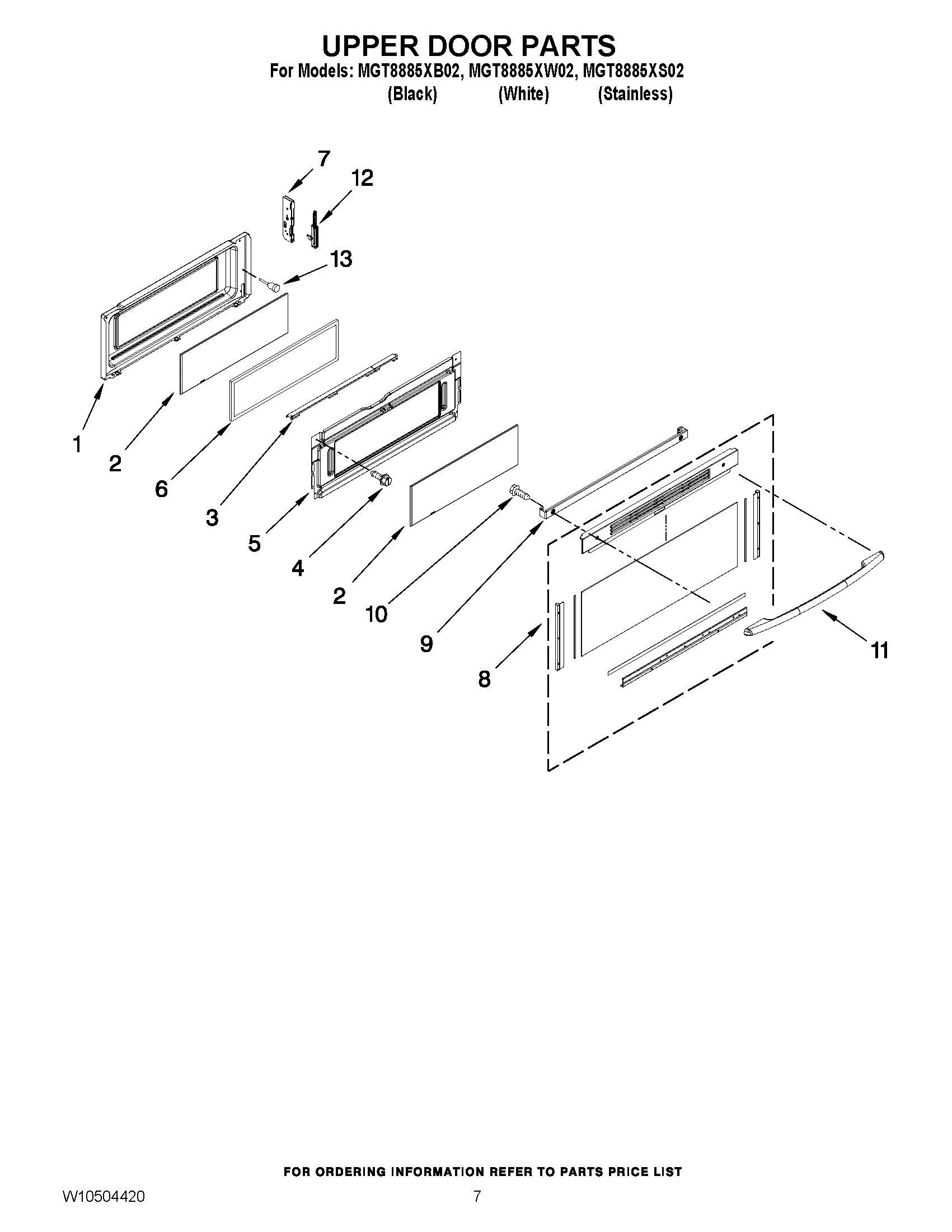

05 - UPPER DOOR PARTS

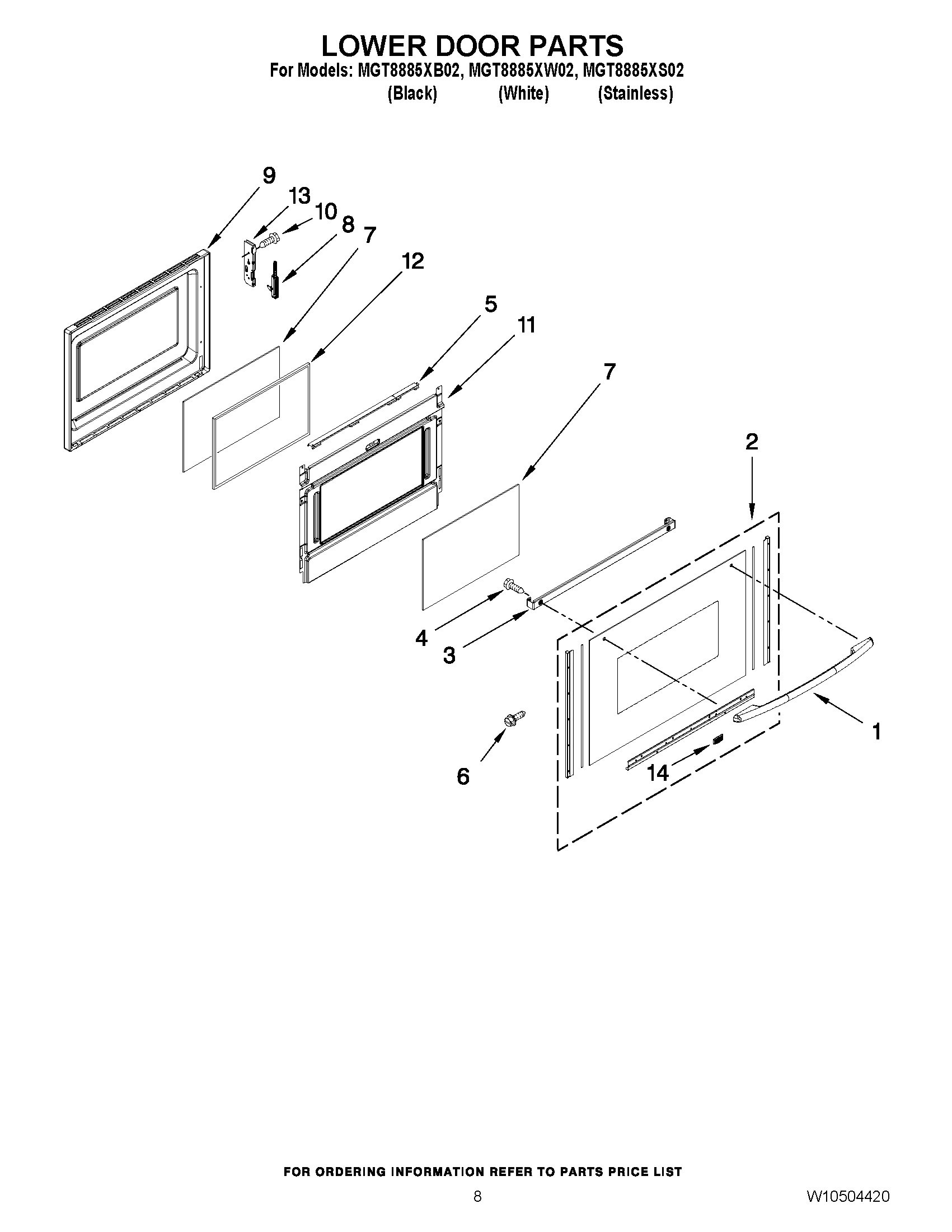

06 - LOWER DOOR PARTS

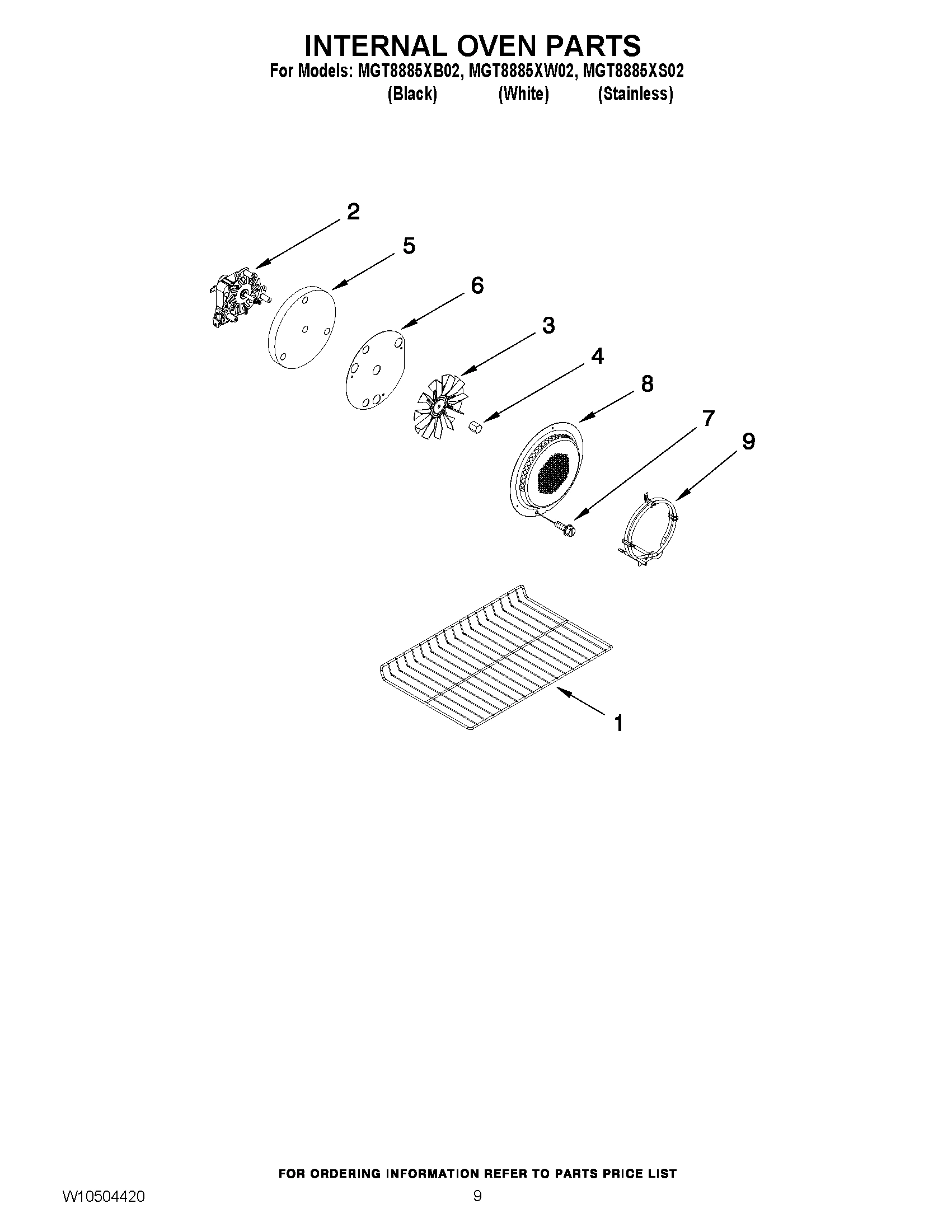

07 - INTERNAL OVEN PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGT8885XS02 ELECTRIC RANGE
1
TIPS, BROCHURE SAFE COOKING MAY 9762761 Contact Us For Availability
1
MAY W10311752 MAY W10311752 Contact Us For Availability
1
MAY W10430935 MAY W10430935 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10430959 Contact Us For Availability
1
MAY W10319109 MAY W10319109 Contact Us For Availability
1
MAY W10319110 MAY W10319110 Contact Us For Availability
1
MAY W10319111 MAY W10319111 Contact Us For Availability
1
MAY W10319112 MAY W10319112 Contact Us For Availability
1
MAY W10319002 MAY W10319002 Contact Us For Availability
1
MAY W10319038 MAY W10319038 Contact Us For Availability
1
MAY W10206315 MAY W10206315 Contact Us For Availability
1
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
1
MAY W10323581 MAY W10323581 Contact Us For Availability
1
MAY W10323584 MAY W10323584 Contact Us For Availability
1
MAY W10179152 MAY W10179152 Contact Us For Availability
2
MAY W10338216 MAY W10338216 Contact Us For Availability
2
MAY W10338217 MAY W10338217 Contact Us For Availability
2
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
2
MAY W10273133 MAY W10273133 Contact Us For Availability
2
HOLDER, ORIFICE (LR 5K) MAY W10273135 Contact Us For Availability
2
MAY W10273137 MAY W10273137 Contact Us For Availability
2
HOLDER, ORIFICE (RR 5K) MAY W10273139 Contact Us For Availability
2
MAY W10273141 MAY W10273141 Contact Us For Availability
2
MAY W10237689 MAY W10237689 Contact Us For Availability
2
MAY W10272707 MAY W10272707 Contact Us For Availability
2
MAY W10346116 MAY W10346116 Contact Us For Availability
2
MAY W10346119 MAY W10346119 Contact Us For Availability
2
MAY W10346126 MAY W10346126 Contact Us For Availability
2
MAY W10314406 MAY W10314406 Contact Us For Availability
3
MAY W10299233 MAY W10299233 Contact Us For Availability
3
MAY W10299239 MAY W10299239 Contact Us For Availability
3
CONSOLE (WHITE) MAY W10097270 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10097280 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10097310 Contact Us For Availability
3
MAY 9758382 MAY 9758382 Contact Us For Availability
3
MAY W10267456 MAY W10267456 Contact Us For Availability
3
MAY W10272708 MAY W10272708 Contact Us For Availability
3
BRACKET, HANDLE MAY W10294695 Contact Us For Availability
3
MAY W10116351 MAY W10116351 Contact Us For Availability
4
BURNERS (LEFT & RIGHT REAR) MAY 8286181 Contact Us For Availability
4
BURNERS (LEFT FRONT) MAY 8286183 Contact Us For Availability
4
BURNERS (CENTER) MAY W10336094 Contact Us For Availability
4
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
4
MAY W10293834 MAY W10293834 Contact Us For Availability
4
MAY W10330375 MAY W10330375 Contact Us For Availability
4
MAY W10330376 MAY W10330376 Contact Us For Availability
4
MAY W10317886 MAY W10317886 Contact Us For Availability
4
NUT, ACORN MAY W10116349 Contact Us For Availability
5
MAY W10260169 MAY W10260169 Contact Us For Availability
5
MAY W10260170 MAY W10260170 Contact Us For Availability
5
ELECTRIC, CONTROL MAY W10365413 Contact Us For Availability
5
MAY W10204718 MAY W10204718 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
RETAINER, INSUL. MAY W10340589 Contact Us For Availability
5
MAY W10272594 MAY W10272594 Contact Us For Availability
5
MAY W10274268 MAY W10274268 Contact Us For Availability
6
MAY W10281279 MAY W10281279 Contact Us For Availability
6
MAY W10294792 MAY W10294792 Contact Us For Availability
6
MAY W10296917 MAY W10296917 Contact Us For Availability
6
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
6
MAY W10324738 MAY W10324738 Contact Us For Availability
6
MAY W10319000 MAY W10319000 Contact Us For Availability
6
MAY W10321271 MAY W10321271 Contact Us For Availability
6
MAY W10339476 MAY W10339476 Contact Us For Availability
7
MAY W10219242 MAY W10219242 Contact Us For Availability
7
MAY W10219243 MAY W10219243 Contact Us For Availability
7
MAY W10219244 MAY W10219244 Contact Us For Availability
7
MAY W10297180 MAY W10297180 Contact Us For Availability
7
MAY W10297181 MAY W10297181 Contact Us For Availability
7
MAY W10321790 MAY W10321790 Contact Us For Availability
7
MAY W10204705 MAY W10204705 Contact Us For Availability
7
MAY W10284945 MAY W10284945 Contact Us For Availability
7
MAY W10277006 MAY W10277006 Contact Us For Availability
7
MAY 9757706 MAY 9757706 Contact Us For Availability
7
MAY 4449154 MAY 4449154 Contact Us For Availability
8
MAY W10278697 MAY W10278697 Contact Us For Availability
8
VALVES (LEFT & RIGHT REAR) MAY W10206287 Contact Us For Availability
8
VALVES (LEFT & RIGHT FRONT) MAY W10206288 Contact Us For Availability
8
VALVES (CENTER) MAY W10298678 Contact Us For Availability
8
MAY 7101P507-60 MAY 7101P507-60 Contact Us For Availability
8
MAY W10346058 MAY W10346058 Contact Us For Availability
8
MAY W10346060 MAY W10346060 Contact Us For Availability
8
MAY W10346061 MAY W10346061 Contact Us For Availability
8
HINGE, DOOR (RIGHT) MAY W10335433 Contact Us For Availability
8
HINGE, DOOR (LEFT) MAY W10335434 Contact Us For Availability
8
MAY 4448988 MAY 4448988 Contact Us For Availability
9
MAY W10339811 MAY W10339811 Contact Us For Availability
9
COVER, BACKGUARD COVER MAY W10296773 Contact Us For Availability
9
MAY 7103P030-60 MAY 7103P030-60 Contact Us For Availability
9
MAY W10272698 MAY W10272698 Contact Us For Availability
9
ELEMENT, CONVECT. (120 VAC) MAY W10249980 Contact Us For Availability
10
MAY W10297135 MAY W10297135 Contact Us For Availability
10
INSULATION, WIRE COVER MAY W10309232 Contact Us For Availability
10
MAY W10315768 MAY W10315768 Contact Us For Availability
10
PROBE, SENSOR MAY 7430P044-60 Contact Us For Availability
10
SCREW (RECEIVER) MAY W10292297 Contact Us For Availability
11
KIT, FISH BURNER (GRAY) MAY W10171137 Contact Us For Availability
11
KIT, FISH BURNER (BLACK) MAY W10171140 Contact Us For Availability
11
MAY W10272526 MAY W10272526 Contact Us For Availability
11
MAY W10268558 MAY W10268558 Contact Us For Availability
11
RETAINER, INSUL. MAY W10340464 Contact Us For Availability
12
BASE, BURNER CAP (FISH BURNER ONLY) MAY W10333445 Contact Us For Availability
12
MAY W10342661 MAY W10342661 Contact Us For Availability
12
MAY W10342662 MAY W10342662 Contact Us For Availability
12
MAY 7101P635-60 MAY 7101P635-60 Contact Us For Availability
12
MAY W10274501 MAY W10274501 Contact Us For Availability
12
MAY W10274503 MAY W10274503 Contact Us For Availability
12
MAY W10321285 MAY W10321285 Contact Us For Availability
13
MAY 7432P143-60 MAY 7432P143-60 Contact Us For Availability
13
MAY W10105790 MAY W10105790 Contact Us For Availability
13
MAY W10261387 MAY W10261387 Contact Us For Availability
13
RECEIVER (RIGHT) MAY W10272328 Contact Us For Availability
13
RECEIVER (LEFT) MAY W10272329 Contact Us For Availability
14
MAY W10298865 MAY W10298865 Contact Us For Availability
14
MAY W10272519 MAY W10272519 Contact Us For Availability
14
MAY W10311326 MAY W10311326 Contact Us For Availability
14
BADGE MAY W10288004 Contact Us For Availability
15
MAY W10292293 MAY W10292293 Contact Us For Availability
15
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
16
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
16
MAY W10260580 MAY W10260580 Contact Us For Availability
17
MAY 7103P195-60 MAY 7103P195-60 Contact Us For Availability
17
MAY W10321445 MAY W10321445 Contact Us For Availability
17
MAY W10321446 MAY W10321446 Contact Us For Availability
18
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
18
MAY 4449040 MAY 4449040 Contact Us For Availability
19
MAY W10319087 MAY W10319087 Contact Us For Availability
20
MAY W10272528 MAY W10272528 Contact Us For Availability
20
Screw MAY 7101P485-60 Contact Us For Availability
21
MAY W10343062 MAY W10343062 Contact Us For Availability
21
MAY W10323374 MAY W10323374 Contact Us For Availability
22
MAY 3601F358-45 MAY 3601F358-45 Contact Us For Availability
22
MAY W10299886 MAY W10299886 Contact Us For Availability
23
SCREW, IGNITER MAY 7101P282-60 Contact Us For Availability
23
MAY W10370650 MAY W10370650 Contact Us For Availability
24
MAY W10295050 MAY W10295050 Contact Us For Availability
24
MAY W10269069 MAY W10269069 Contact Us For Availability
24
MAY W10318928 MAY W10318928 Contact Us For Availability
25
MAY W10284949 MAY W10284949 Contact Us For Availability
26
MAY W10295055 MAY W10295055 Contact Us For Availability
26
MAY W10253471 MAY W10253471 Contact Us For Availability
27
MAY W10272520 MAY W10272520 Contact Us For Availability
27
SCREW (DOOR LOCK) MAY 7101P375-60 Contact Us For Availability
28
SCREW MAY 8286182 Contact Us For Availability
28
BOTTOM, OVEN MAY W10272546 Contact Us For Availability
29
SUPPORT, INSUL. MAY W10324643 Contact Us For Availability
30
SUPPORT, OVEN MAY W10260703 Contact Us For Availability
31
MAY W10410461 MAY W10410461 Contact Us For Availability
31
MAY W10410463 MAY W10410463 Contact Us For Availability
33
MAY 7431P053-60 MAY 7431P053-60 Contact Us For Availability
35
MAY 7101P502-60 MAY 7101P502-60 Contact Us For Availability
36
IGNITO (ALL (EXCEPT FISH)) MAY W10407676 Contact Us For Availability
36
IGNITOR (FISH ELECTRODE) MAY W10407677 Contact Us For Availability
37
MAY W10276466 MAY W10276466 Contact Us For Availability
38
MAY 7101P653-60 MAY 7101P653-60 Contact Us For Availability
40
BRACKET, SUPPORT (SPARK MODULE) MAY W10319059 Contact Us For Availability
41
MAY W10322044 MAY W10322044 Contact Us For Availability
42
MAY W10324366 MAY W10324366 Contact Us For Availability
43
SCREW (EXTENSION HOLDER) MAY W10217535 Contact Us For Availability
NI
MAY W10324646 MAY W10324646 Contact Us For Availability
NI
MAY W10328517 MAY W10328517 Contact Us For Availability
NI
MAY W10204081 MAY W10204081 Contact Us For Availability
NI
MAY W10318910 MAY W10318910 Contact Us For Availability
NI
MAY W10318911 MAY W10318911 Contact Us For Availability
NI
MAY W10318918 MAY W10318918 Contact Us For Availability
NI
MAY W10344586 MAY W10344586 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
CLEANER/POLISH (STAINLESS ONLY) MAY 31462 Contact Us For Availability
NI
CLEANER, ALL-PURPOSE MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAN - BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10223555 MAY W10223555 Contact Us For Availability
NI
MAY W10225701 MAY W10225701 Contact Us For Availability
NI
HARNESS, SPARK MAY W10408058 Contact Us For Availability
× ![]()
