Model Maytag MGT8720DH00 GAS RANGE – Common Parts & Diagrams

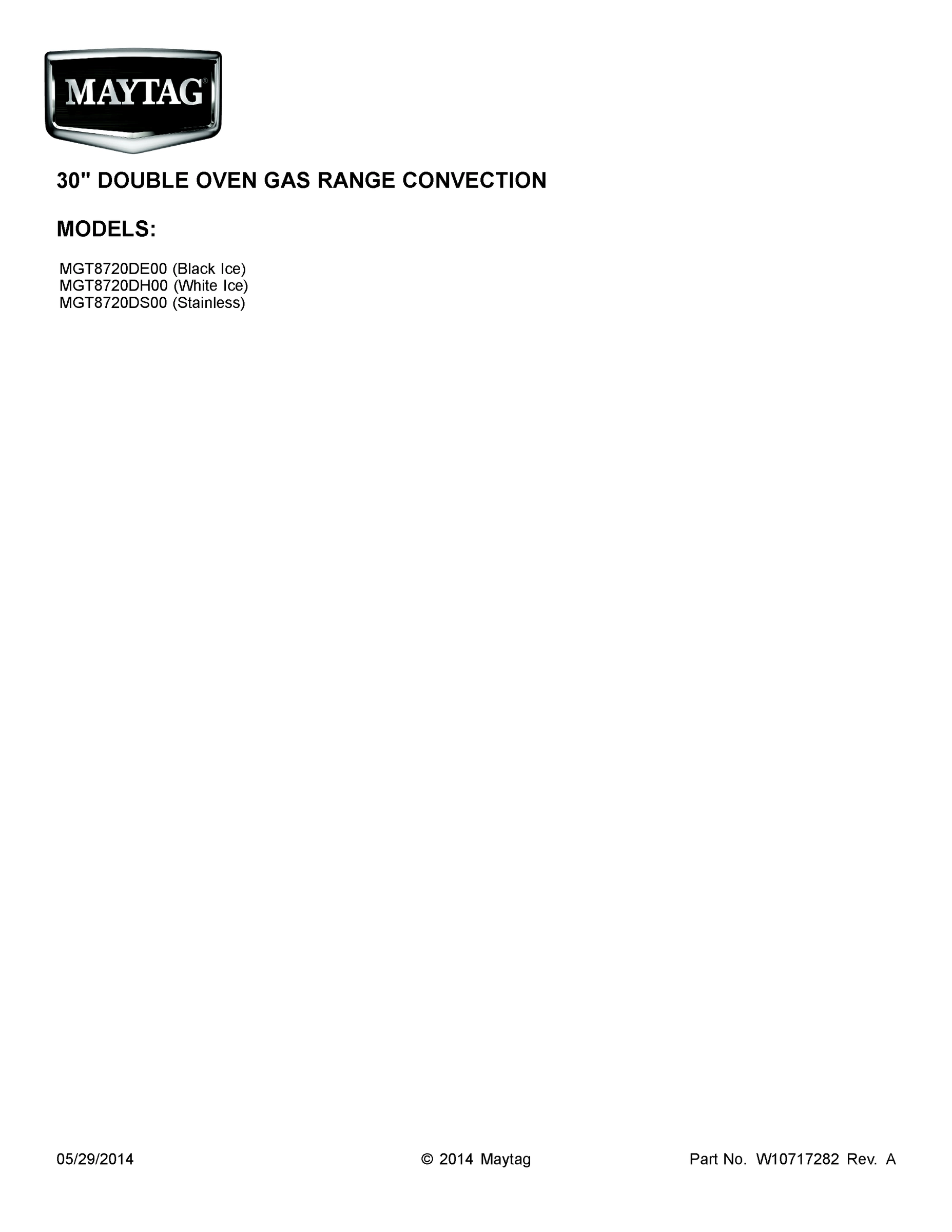

01 - COVER SHEET

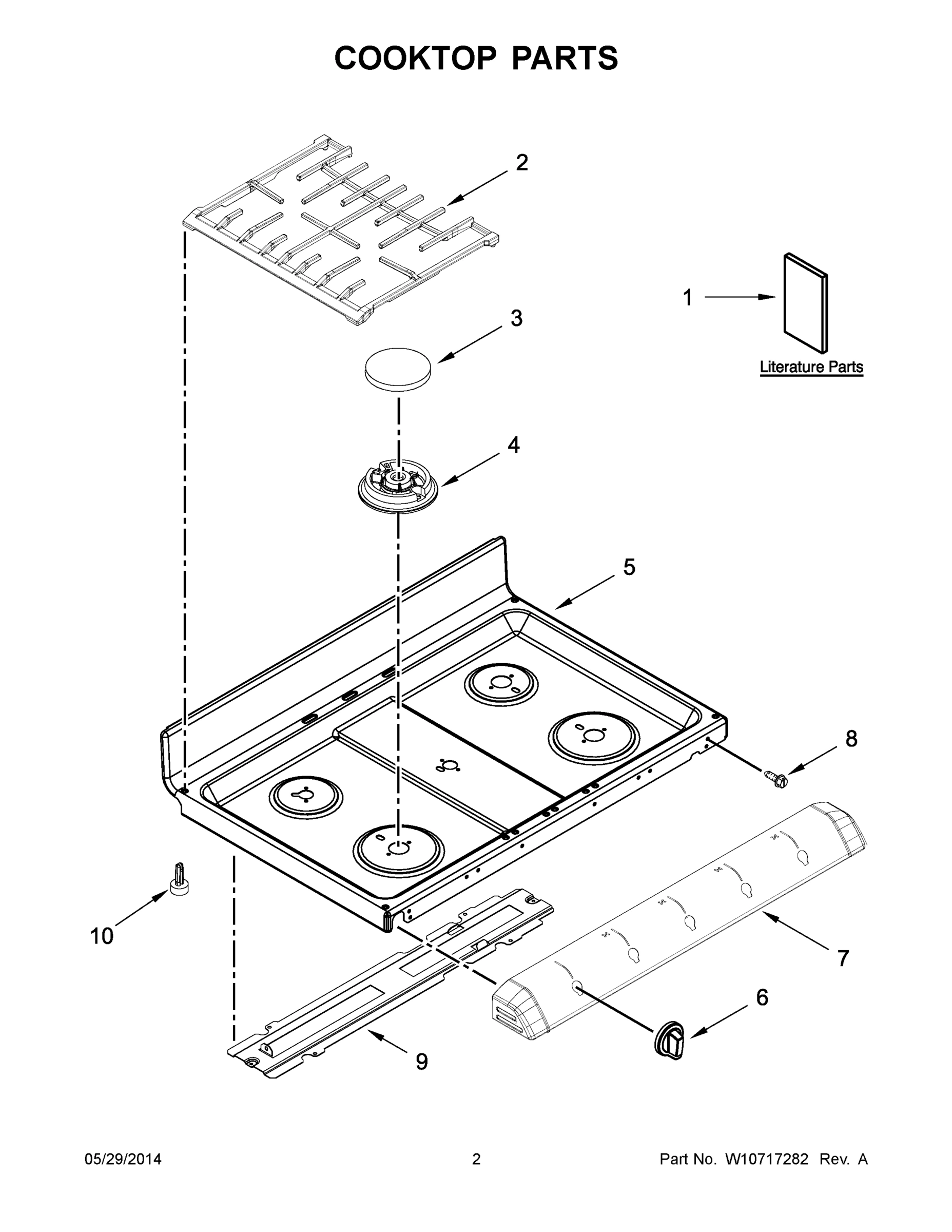

02 - COOKTOP PARTS

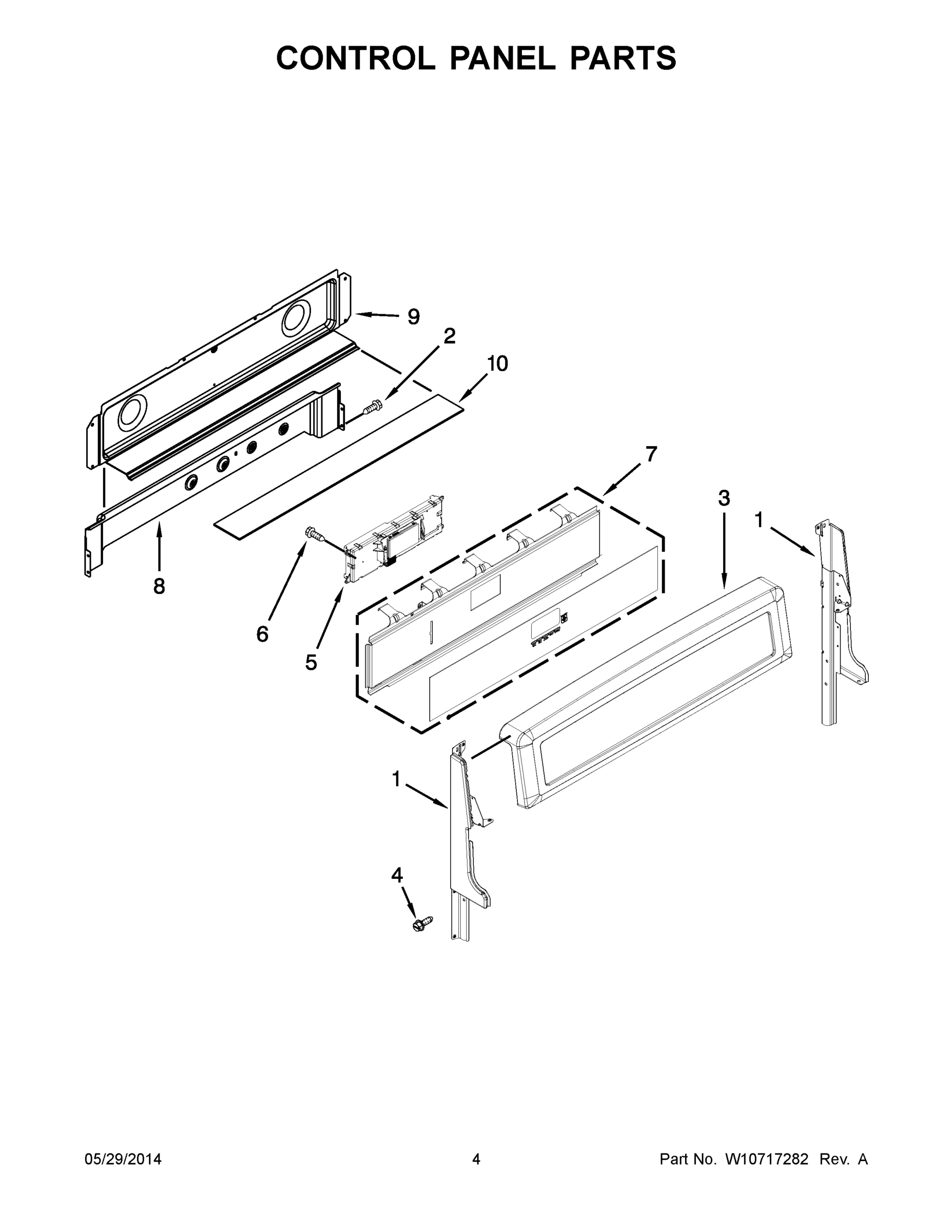

03 - CONTROL PANEL PARTS

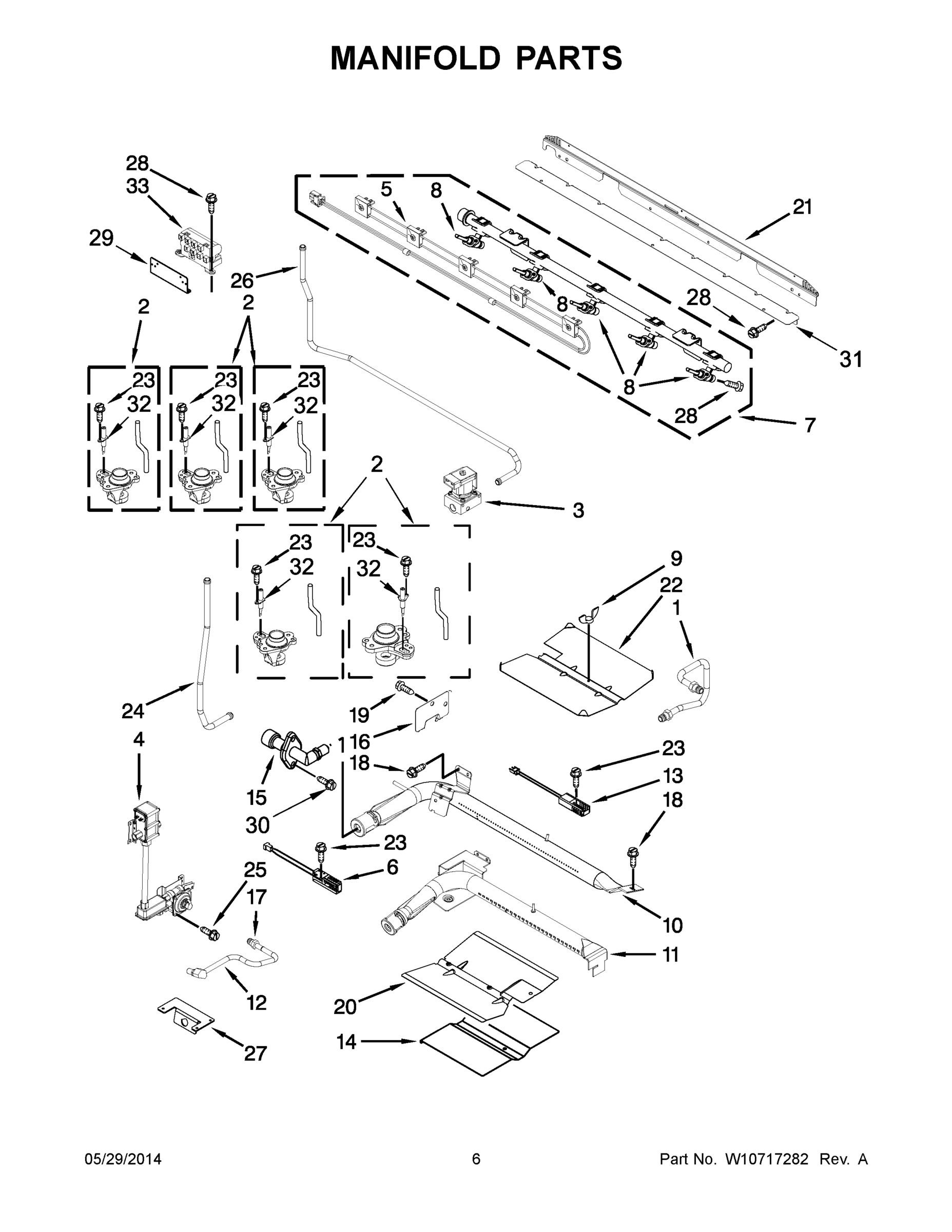

04 - MANIFOLD PARTS

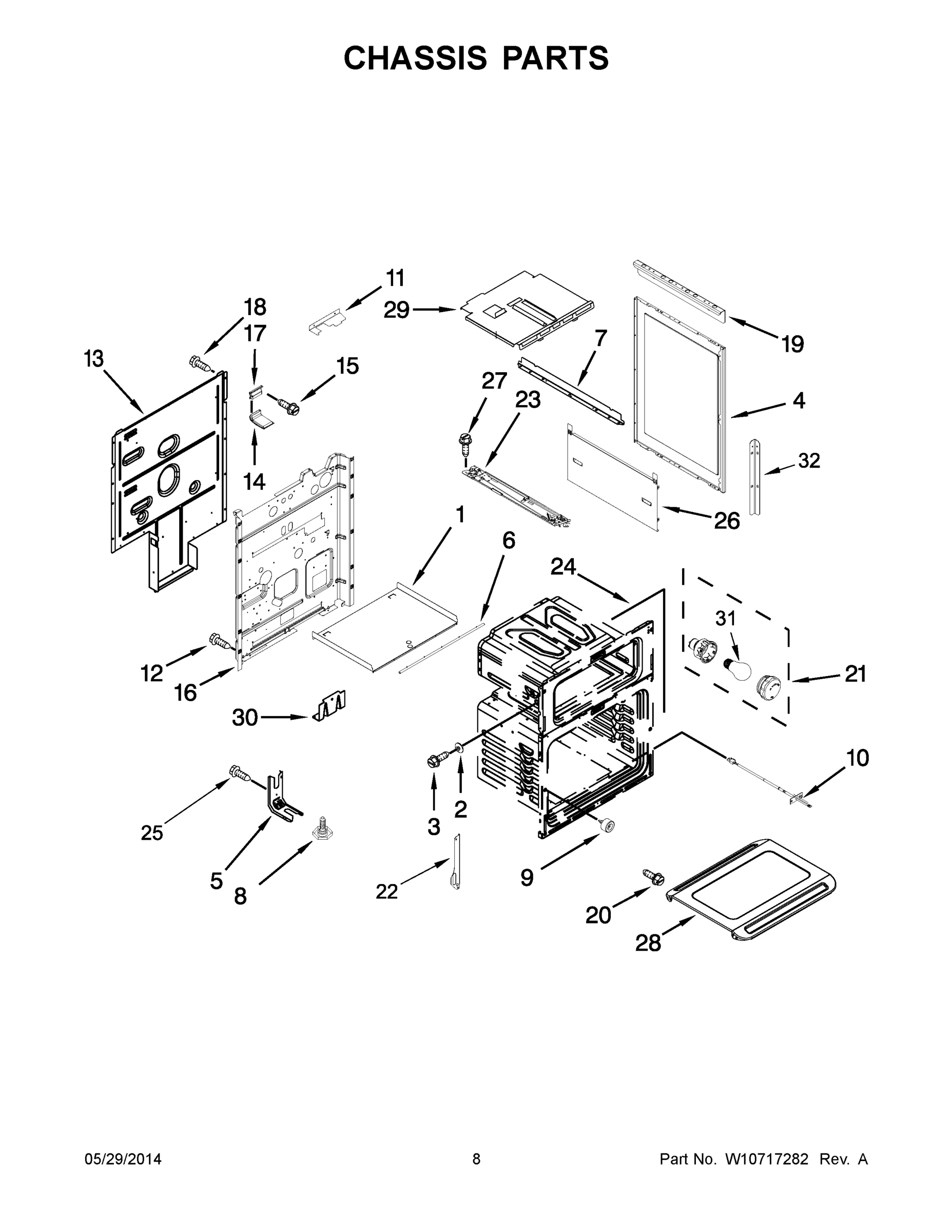

05 - CHASSIS PARTS

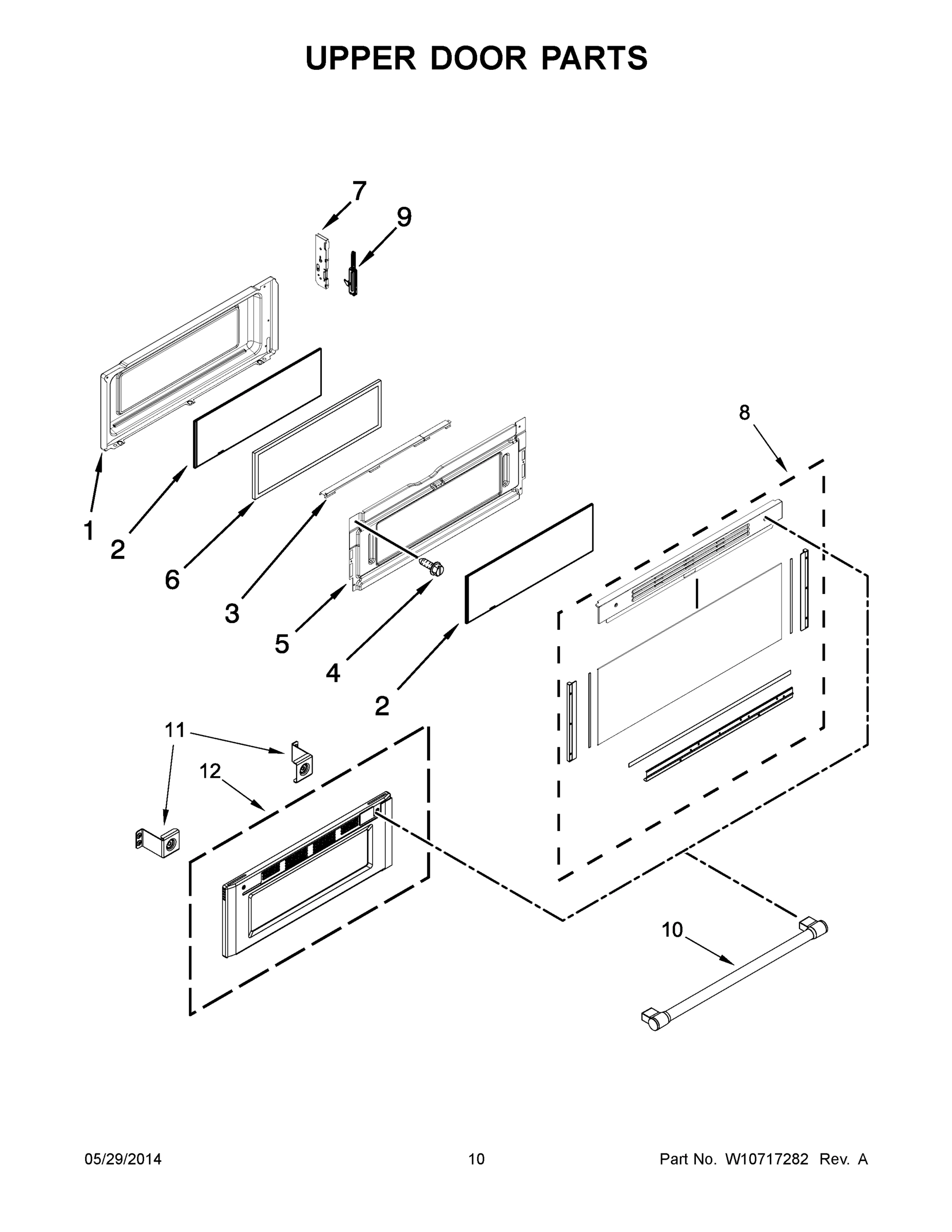

06 - UPPER DOOR PARTS

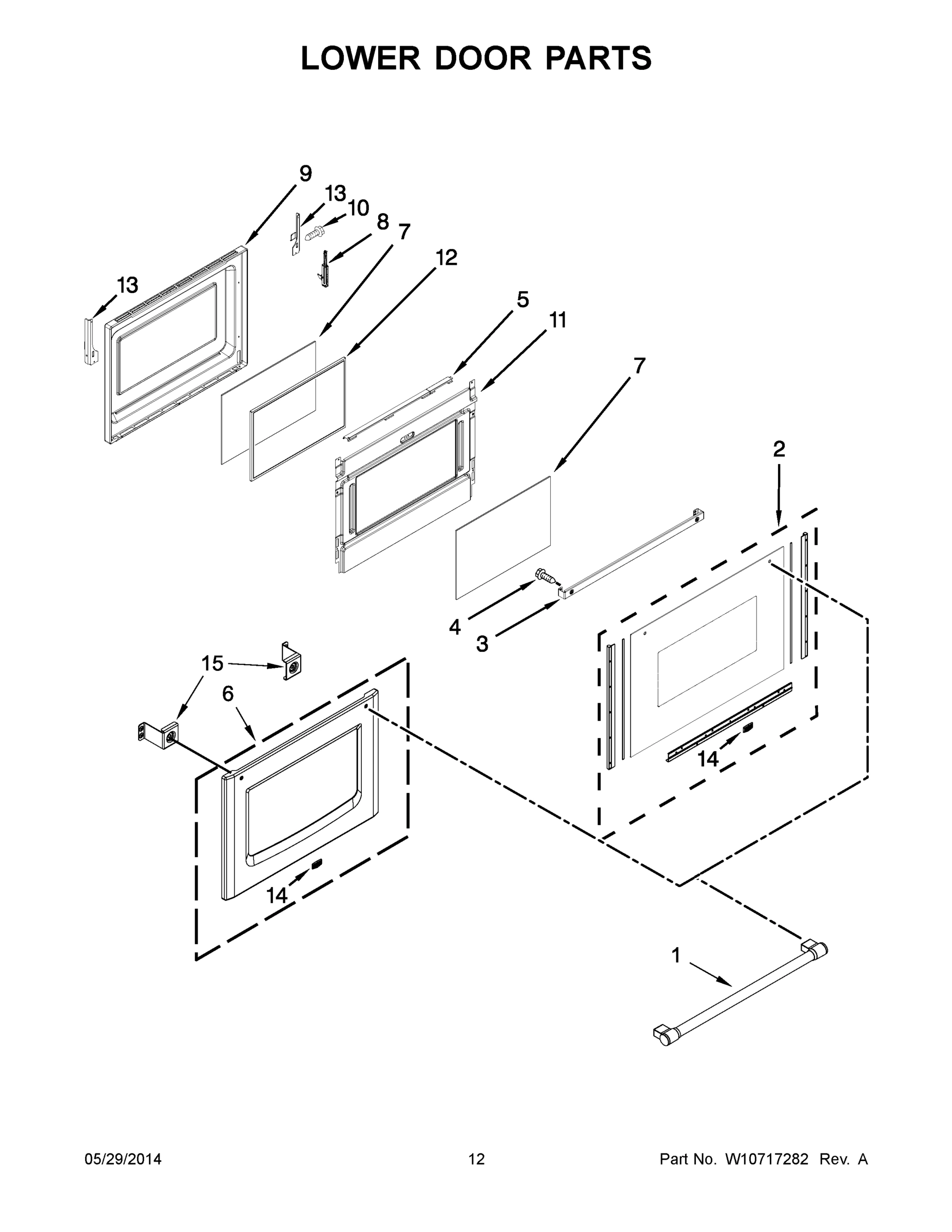

07 - LOWER DOOR PARTS

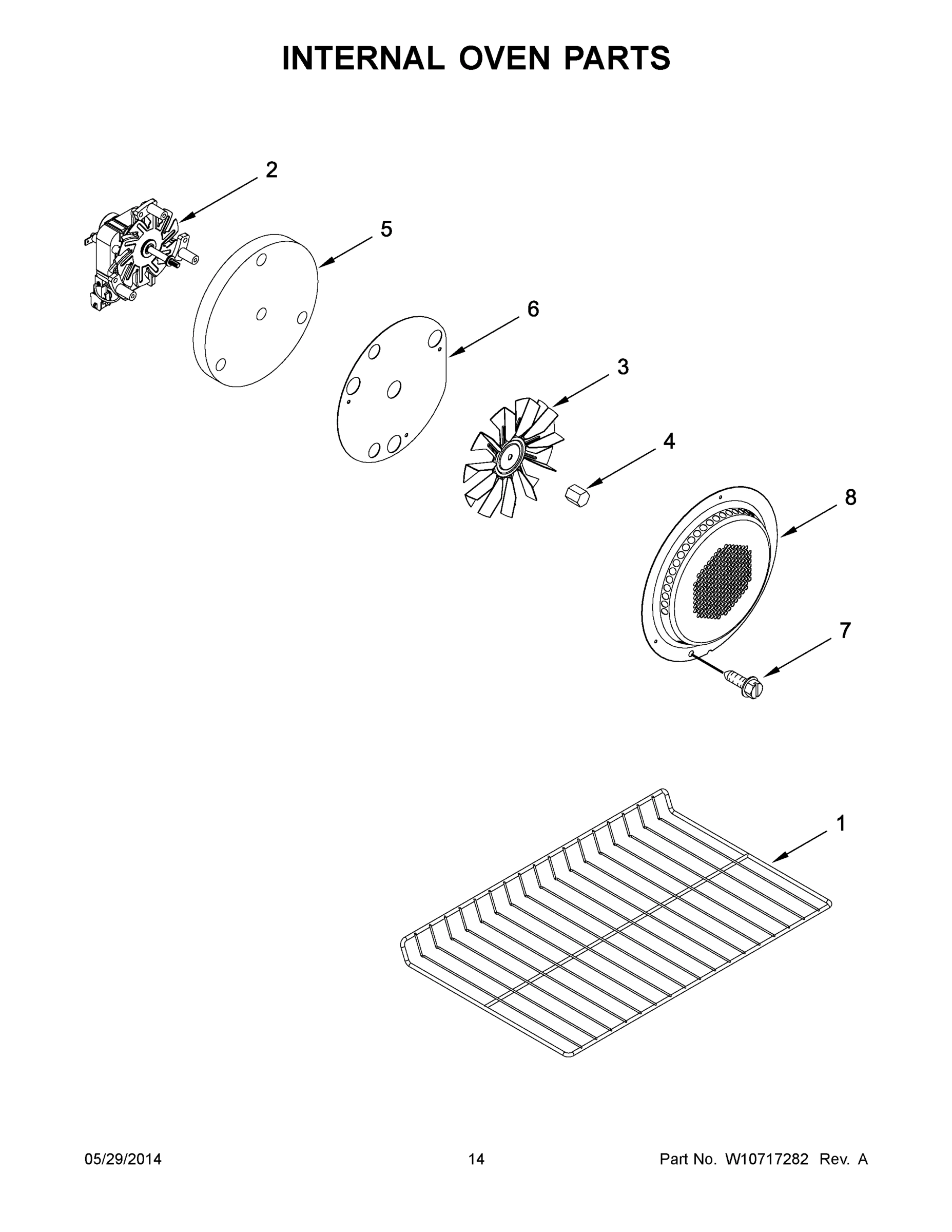

08 - INTERNAL OVEN PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGT8720DH00 GAS RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10311749 MAY W10311749 Contact Us For Availability
1
MAY W10526071 MAY W10526071 Contact Us For Availability
1
MAY W10669248 MAY W10669248 Contact Us For Availability
1
SUPPORT, BACKGUARD (BLACK (LEFT HAND)) MAY W10319109 Contact Us For Availability
1
SUPPORT, BACKGUARD (WHITE (LEFT HAND)) MAY W10319110 Contact Us For Availability
1
SUPPORT, BACKGUARD (BLACK (RIGHT HAND)) MAY W10319111 Contact Us For Availability
1
SUPPORT, BACKGUARD (WHITE (RIGHT HAND)) MAY W10319112 Contact Us For Availability
1
MAY W10319002 MAY W10319002 Contact Us For Availability
1
MAY W10319038 MAY W10319038 Contact Us For Availability
1
MAY W10485720 MAY W10485720 Contact Us For Availability
1
MAY W10653408 MAY W10653408 Contact Us For Availability
1
MAY W10665842 MAY W10665842 Contact Us For Availability
1
MAY W10665843 MAY W10665843 Contact Us For Availability
1
MAY W10179152 MAY W10179152 Contact Us For Availability
2
MAY W10655125 MAY W10655125 Contact Us For Availability
2
HOLDER, ORIFICE 16K (LEFT FRONT) MAY W10273133 Contact Us For Availability
2
HOLDER, ORIFICE 5K (LEFT REAR) MAY W10273135 Contact Us For Availability
2
MAY W10273138 MAY W10273138 Contact Us For Availability
2
MAY W10273140 MAY W10273140 Contact Us For Availability
2
MAY W10296790 MAY W10296790 Contact Us For Availability
2
MAY W10237689 MAY W10237689 Contact Us For Availability
2
GLASS, INNER MAY W10272707 Contact Us For Availability
2
MAY W10638792 MAY W10638792 Contact Us For Availability
2
MAY W10638793 MAY W10638793 Contact Us For Availability
2
MAY W10667765 MAY W10667765 Contact Us For Availability
3
MAY W10324251 MAY W10324251 Contact Us For Availability
3
CONSOLE (WHITE) MAY W10097270 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10097280 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10097310 Contact Us For Availability
3
MAY W10368614 MAY W10368614 Contact Us For Availability
3
MAY W10267456 MAY W10267456 Contact Us For Availability
3
MAY W10272708 MAY W10272708 Contact Us For Availability
3
BRACKET, HANDLE MAY W10294695 Contact Us For Availability
3
MAY W10116351 MAY W10116351 Contact Us For Availability
4
BURNER HEAD, AUXILIARY (6K) (LEFT REAR & CENT MAY W10406243 Contact Us For Availability
4
BURNER HEAD, RAPID (12K) (RIGHT FRONT & RIGHT MAY W10406797 Contact Us For Availability
4
MAY W10406878 MAY W10406878 Contact Us For Availability
4
MAY W10546238 MAY W10546238 Contact Us For Availability
4
MAY W10330375 MAY W10330375 Contact Us For Availability
4
MAY W10330376 MAY W10330376 Contact Us For Availability
4
MAY W10292297 MAY W10292297 Contact Us For Availability
4
SCREW MAY W10317886 Contact Us For Availability
4
NUT, ACORN MAY W10116349 Contact Us For Availability
5
MAY W10204721 MAY W10204721 Contact Us For Availability
5
MAY W10204722 MAY W10204722 Contact Us For Availability
5
MAY W10365421 MAY W10365421 Contact Us For Availability
5
MAY W10204718 MAY W10204718 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
MAY W10485723 MAY W10485723 Contact Us For Availability
5
FRAME, GLASS MAY W10272594 Contact Us For Availability
5
MAY W10274268 MAY W10274268 Contact Us For Availability
6
MAY W10650403 MAY W10650403 Contact Us For Availability
6
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
6
MAY W10324738 MAY W10324738 Contact Us For Availability
6
MAY W10319000 MAY W10319000 Contact Us For Availability
6
MAY W10321271 MAY W10321271 Contact Us For Availability
6
MAY W10638790 MAY W10638790 Contact Us For Availability
6
PLATE, INSULATION MAY W10339476 Contact Us For Availability
7
MAY W10664100 MAY W10664100 Contact Us For Availability
7
MAY W10664101 MAY W10664101 Contact Us For Availability
7
MAY W10664102 MAY W10664102 Contact Us For Availability
7
MAY W10664067 MAY W10664067 Contact Us For Availability
7
MAY W10664068 MAY W10664068 Contact Us For Availability
7
MAY W10664073 MAY W10664073 Contact Us For Availability
7
MAY W10204703 MAY W10204703 Contact Us For Availability
7
MAY W10357697 MAY W10357697 Contact Us For Availability
7
MAY W10289077 MAY W10289077 Contact Us For Availability
7
GLASS, INNER MAY 9757706 Contact Us For Availability
7
MAY 4449154 MAY 4449154 Contact Us For Availability
8
MAY W10278697 MAY W10278697 Contact Us For Availability
8
VALVE (5K) (LEFT REAR & CENTER) MAY W10206287 Contact Us For Availability
8
VALVE 16K (LEFT FRONT, RIGHT FRONT & RIGHT RE MAY W10206288 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
MAY W10707395 MAY W10707395 Contact Us For Availability
8
MAY W10707396 MAY W10707396 Contact Us For Availability
8
HINGE, DOOR (RIGHT) MAY W10335433 Contact Us For Availability
8
HINGE, DOOR (LEFT) MAY W10335434 Contact Us For Availability
8
MAY 4448988 MAY 4448988 Contact Us For Availability
9
MAY W10518258 MAY W10518258 Contact Us For Availability
9
COVER, BACKGUARD MAY W10296773 Contact Us For Availability
9
NUT, WING MAY 7103P030-60 Contact Us For Availability
9
BUMPER & SCREW MAY W10105790 Contact Us For Availability
9
MAY W10485730 MAY W10485730 Contact Us For Availability
9
MAY W10485731 MAY W10485731 Contact Us For Availability
9
MAY W10272698 MAY W10272698 Contact Us For Availability
10
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
10
INSULATION, WIRE COVER MAY W10309232 Contact Us For Availability
10
MAY W10315768 MAY W10315768 Contact Us For Availability
10
SENSOR, OVEN MAY 7430P044-60 Contact Us For Availability
10
MAY 4449040 MAY 4449040 Contact Us For Availability
11
MAY W10272526 MAY W10272526 Contact Us For Availability
11
MAY W10268558 MAY W10268558 Contact Us For Availability
11
MAY W10340464 MAY W10340464 Contact Us For Availability
12
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
12
MAY W10342661 MAY W10342661 Contact Us For Availability
12
MAY W10342662 MAY W10342662 Contact Us For Availability
12
MAY W10677255 MAY W10677255 Contact Us For Availability
12
MAY W10321285 MAY W10321285 Contact Us For Availability
13
MAY 7432P143-60 MAY 7432P143-60 Contact Us For Availability
13
MAY W10261387 MAY W10261387 Contact Us For Availability
13
RECEIVER (RIGHT) MAY W10272328 Contact Us For Availability
13
RECEIVER (LEFT) MAY W10272329 Contact Us For Availability
14
MAY W10298865 MAY W10298865 Contact Us For Availability
14
MAY W10272519 MAY W10272519 Contact Us For Availability
14
MAY W10311326 MAY W10311326 Contact Us For Availability
14
MAY W10612925 MAY W10612925 Contact Us For Availability
15
MAY W10292293 MAY W10292293 Contact Us For Availability
15
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
15
MAY W10296658 MAY W10296658 Contact Us For Availability
16
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
16
MAY W10668728 MAY W10668728 Contact Us For Availability
17
MAY 7103P195-60 MAY 7103P195-60 Contact Us For Availability
17
ASSEMBLY, OUTLET FLUE LOWER MAY W10321445 Contact Us For Availability
17
ASSEMBLY, OUTLET FLUE UPPER MAY W10321446 Contact Us For Availability
18
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
19
BRACKET, U CHANNEL MAY W10319087 Contact Us For Availability
20
Screw (Black) MAY 7101P633-60 Contact Us For Availability
20
MAY W10272528 MAY W10272528 Contact Us For Availability
21
BRACKET, MANIFOLD REAR COVER MAY W10343062 Contact Us For Availability
21
MAY W10565174 MAY W10565174 Contact Us For Availability
22
MAY 3601F358-45 MAY 3601F358-45 Contact Us For Availability
22
MAY W10410461 MAY W10410461 Contact Us For Availability
22
MAY W10410463 MAY W10410463 Contact Us For Availability
23
Screw MAY 7101P282-60 Contact Us For Availability
23
MAY W10471348 MAY W10471348 Contact Us For Availability
24
MAY W10524331 MAY W10524331 Contact Us For Availability
24
MAY W10269069 MAY W10269069 Contact Us For Availability
24
MAY W10318928 MAY W10318928 Contact Us For Availability
25
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
26
MAY W10295055 MAY W10295055 Contact Us For Availability
26
MAY W10538516 MAY W10538516 Contact Us For Availability
27
MAY W10272520 MAY W10272520 Contact Us For Availability
27
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
28
MAY 7101P653-60 MAY 7101P653-60 Contact Us For Availability
28
BOTTOM, OVEN MAY W10272546 Contact Us For Availability
29
BRACKET, SPARK MODULE MAY W10319059 Contact Us For Availability
29
MAY W10324643 MAY W10324643 Contact Us For Availability
30
SCREW MAY 7101P502-60 Contact Us For Availability
30
MAY W10260703 MAY W10260703 Contact Us For Availability
31
MAY W10276466 MAY W10276466 Contact Us For Availability
31
MAY 311255 MAY 311255 Contact Us For Availability
32
MAY W10407676 MAY W10407676 Contact Us For Availability
32
MAY W10651056 MAY W10651056 Contact Us For Availability
33
MAY 7431P053-60 MAY 7431P053-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE MAY 8019P026-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY W10225701 Contact Us For Availability
NI
MAY W10408059 MAY W10408059 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS MAIN MAY W10683007 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY W10324646 MAY W10324646 Contact Us For Availability
NI
MAY W10591270 MAY W10591270 Contact Us For Availability
NI
INSULATION, BACK LOWER MAY W10204081 Contact Us For Availability
NI
INSULATION, WRAPPER UPPER MAY W10318910 Contact Us For Availability
NI
INSULATION, WRAPPER LOWER MAY W10318911 Contact Us For Availability
NI
INSULATION, BACK UPPER MAY W10318918 Contact Us For Availability
NI
MAY W10344586 MAY W10344586 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN AND ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, KITCHEN AND APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
× ![]()
Login and Registration Form
