Model Maytag MGR8850DS0 GAS RANGE – Common Parts & Diagrams
01 - COVER SHEET

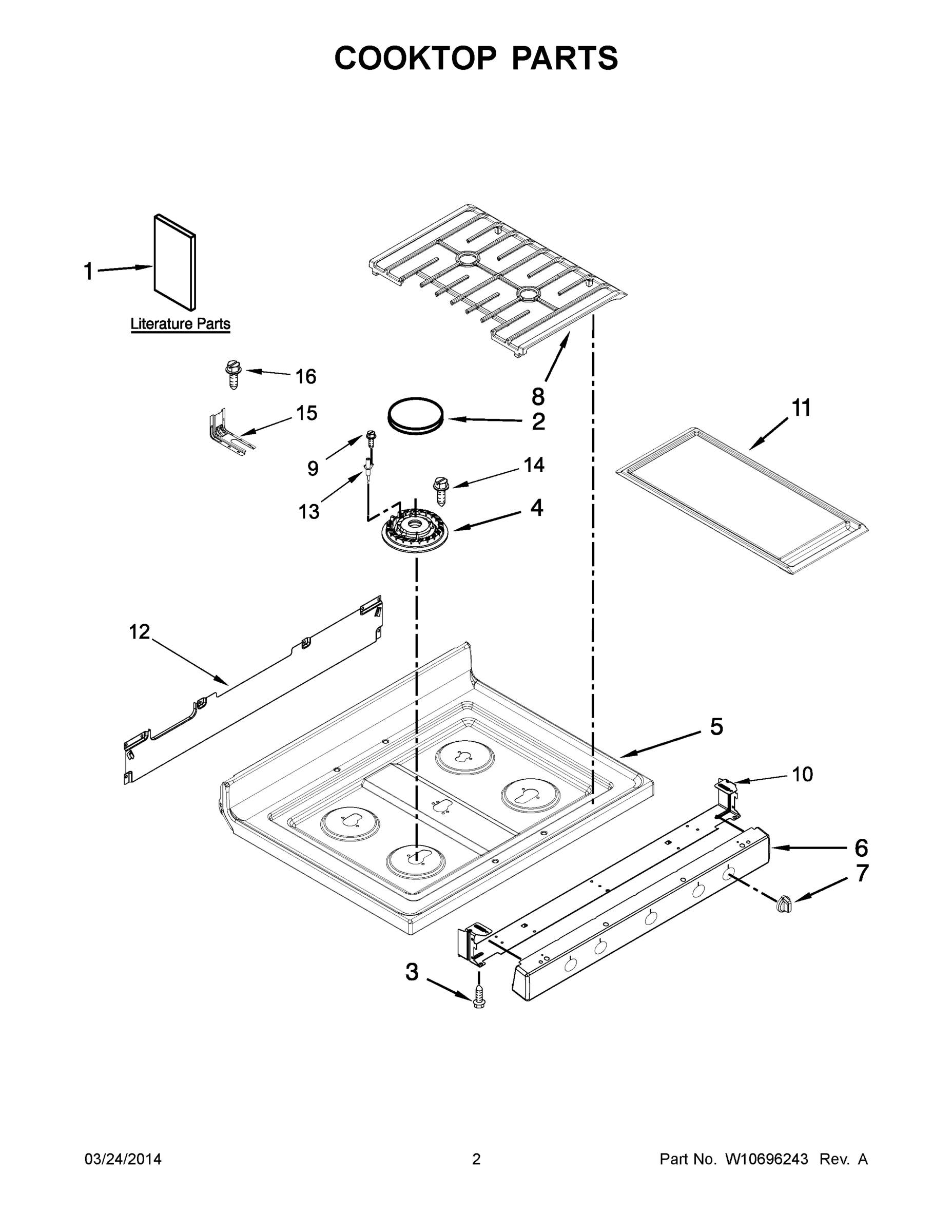

02 - COOKTOP PARTS

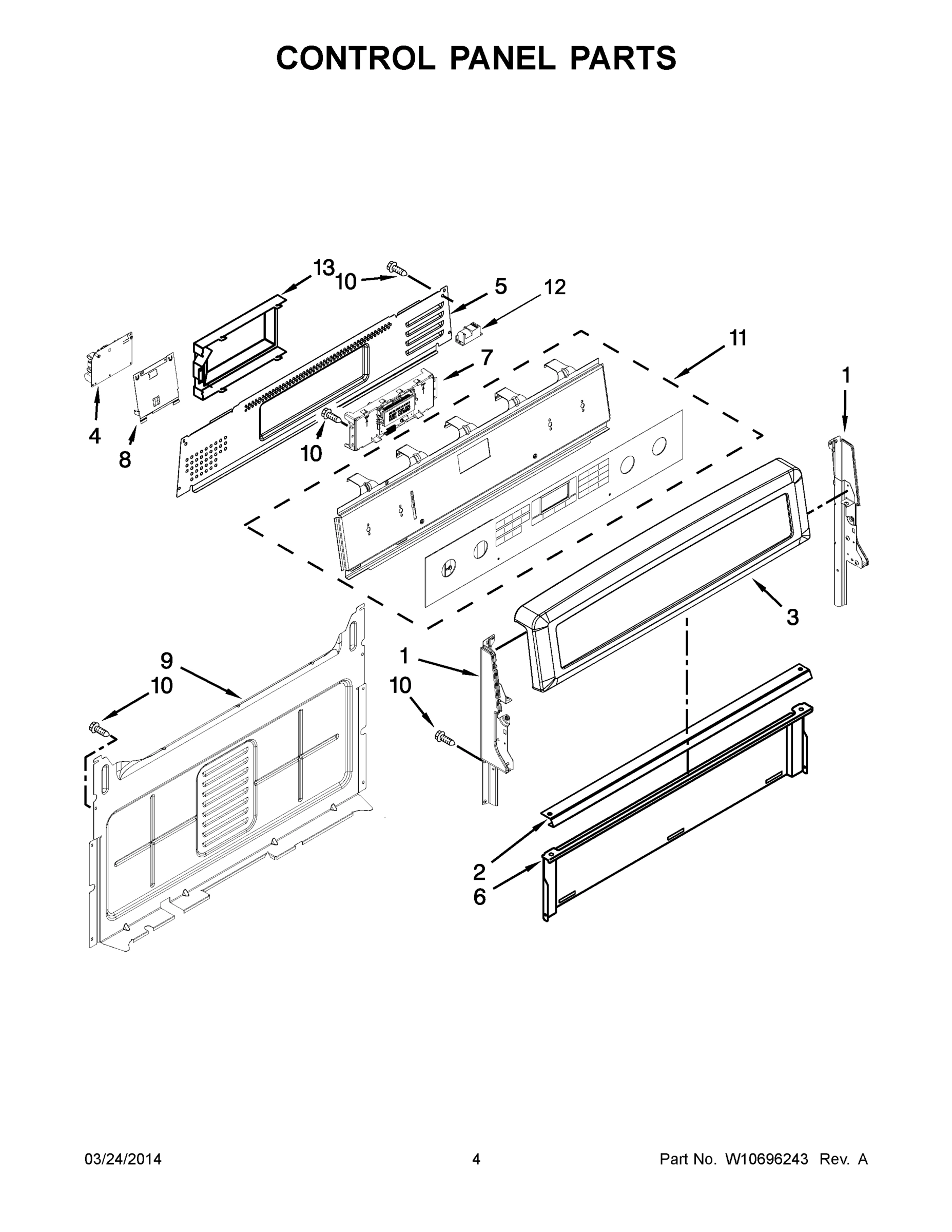

03 - CONTROL PANEL PARTS

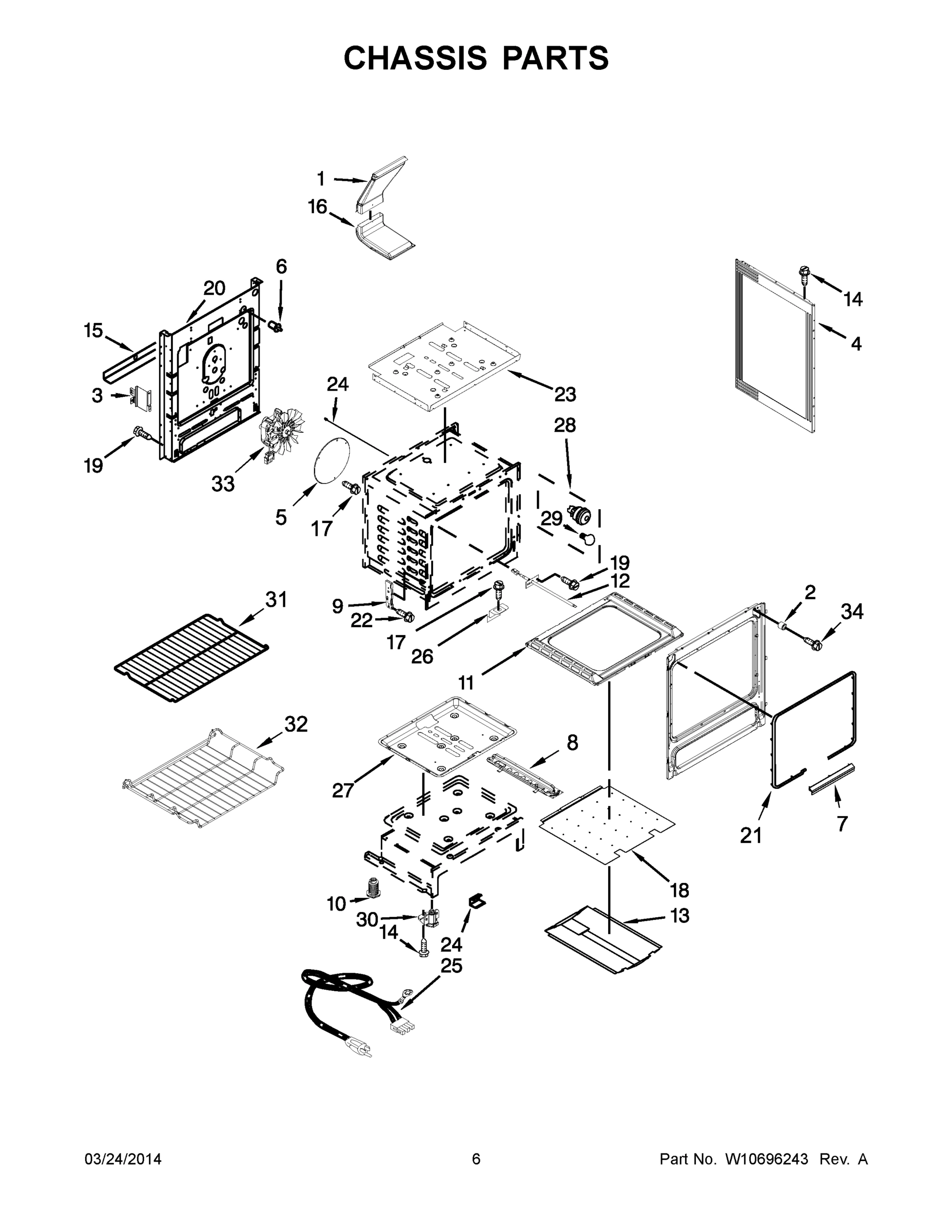

04 - CHASSIS PARTS

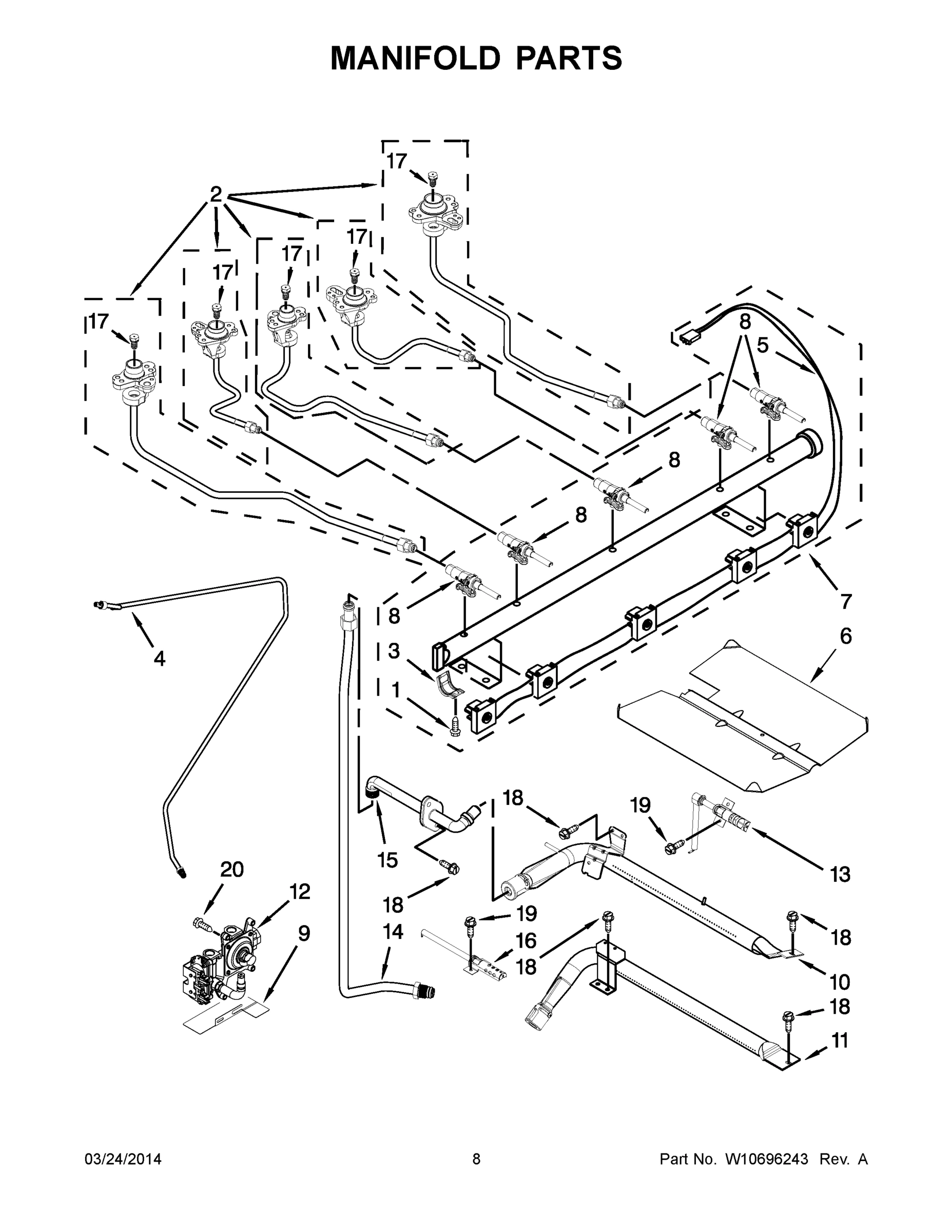

05 - MANIFOLD PARTS

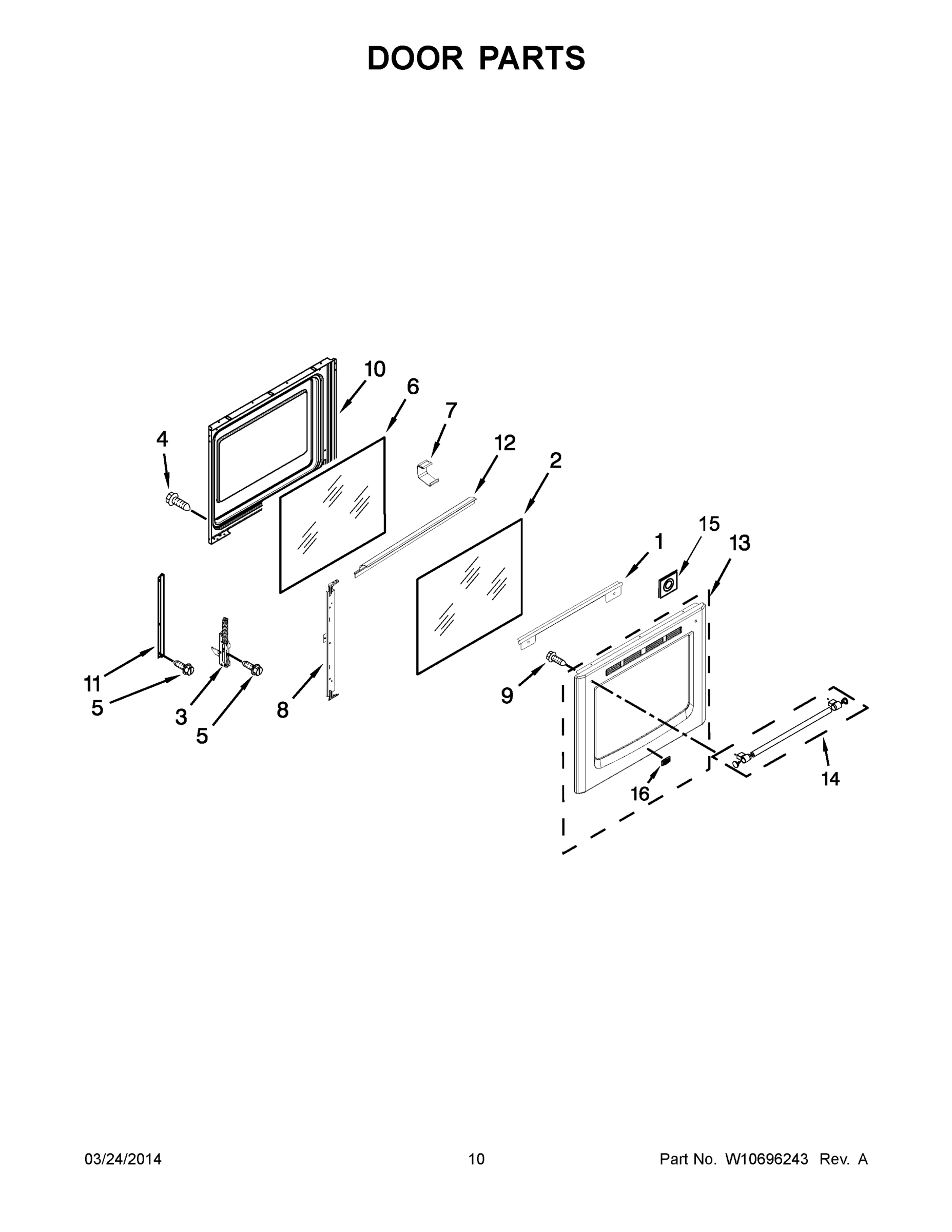

06 - DOOR PARTS

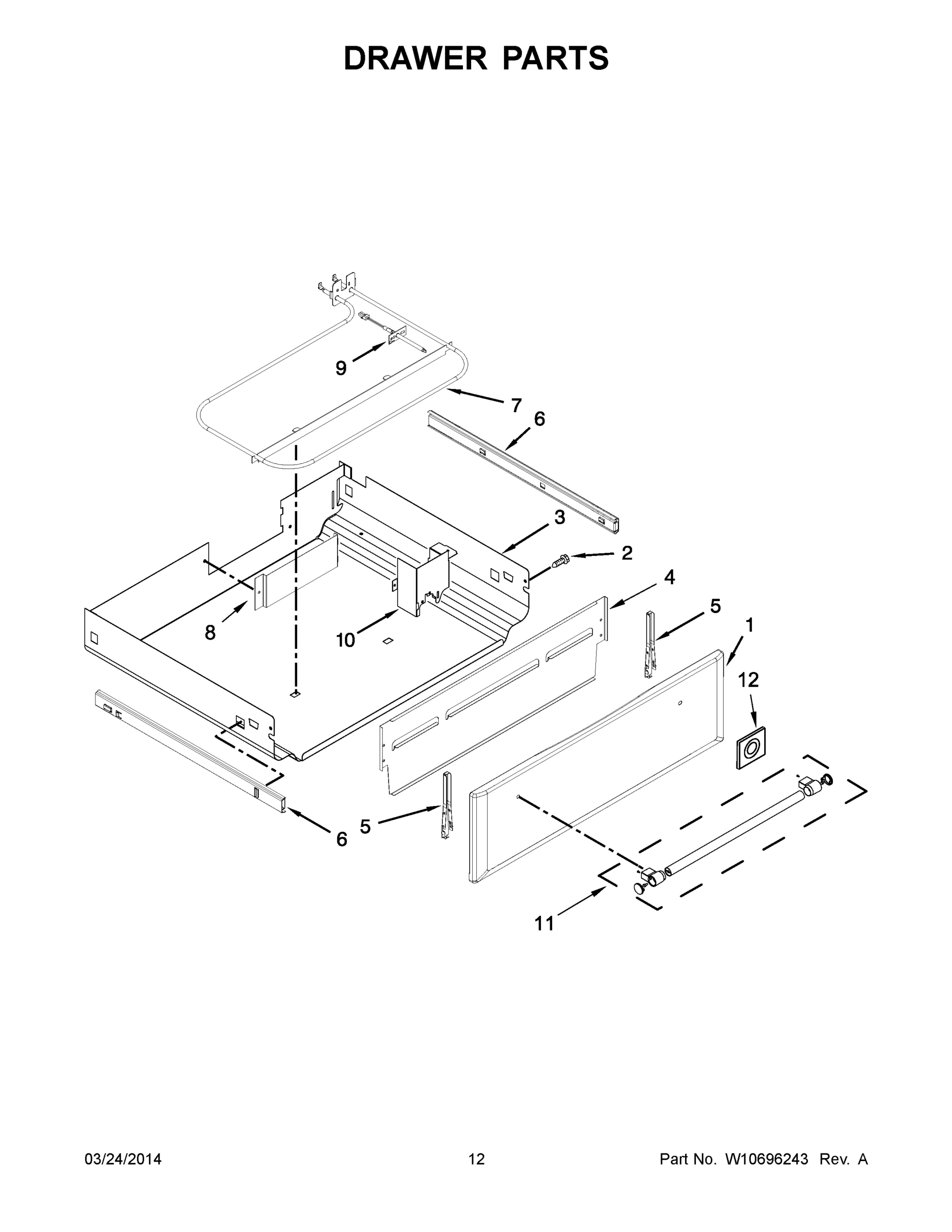

07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR8850DS0 GAS RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10400066 MAY W10400066 Contact Us For Availability
1
MAY W10400067 MAY W10400067 Contact Us For Availability
1
MAY W10538797 MAY W10538797 Contact Us For Availability
1
MAY W10538798 MAY W10538798 Contact Us For Availability
1
MAY W10553363 MAY W10553363 Contact Us For Availability
1
MAY W10667179 MAY W10667179 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
MAY W10314347 MAY W10314347 Contact Us For Availability
1
MAY W10295997 MAY W10295997 Contact Us For Availability
1
TRIM, VENT (BLACK) MAY W10339814 Contact Us For Availability
1
PANEL, DRAWER FRONT ( STAINLESS) MAY W10432481 Contact Us For Availability
2
BURNER CAP, SET (BLACK) MAY W10183374 Contact Us For Availability
2
MAY W10516123 MAY W10516123 Contact Us For Availability
2
Spacer, Door MAY 9758701 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT REAR (9.5K)) MAY W10473932 Contact Us For Availability
2
MAY W10474152 MAY W10474152 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT REAR (5K)) MAY W10474162 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT FRONT (15K)) MAY W10474166 Contact Us For Availability
2
HOLDER, ORIFICE (CENTER (8K)) MAY W10474170 Contact Us For Availability
2
MAY W10615599 MAY W10615599 Contact Us For Availability
2
MAY 3196165 MAY 3196165 Contact Us For Availability
3
MAY W10067840 MAY W10067840 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10097310 Contact Us For Availability
3
MAY W10273002 MAY W10273002 Contact Us For Availability
3
MAY W10295996 MAY W10295996 Contact Us For Availability
3
HINGE, DOOR (ACTIVE) MAY W10388635 Contact Us For Availability
3
MAY W10634260 MAY W10634260 Contact Us For Availability
4
BURNER HEAD, AUXI (5K) (RIGHT REAR) MAY W10515453 Contact Us For Availability
4
BURNER HEAD, SEMI (9.5 K) (LEFT REAR AND CENT MAY W10515454 Contact Us For Availability
4
MAY W10515455 MAY W10515455 Contact Us For Availability
4
MAY W10511278 MAY W10511278 Contact Us For Availability
4
MAY W10322770 MAY W10322770 Contact Us For Availability
4
MAY W10510125 MAY W10510125 Contact Us For Availability
4
MAY W10031790 MAY W10031790 Contact Us For Availability
4
MAY W10324877 MAY W10324877 Contact Us For Availability
5
MAY W10366730 MAY W10366730 Contact Us For Availability
5
MAY W10198745 MAY W10198745 Contact Us For Availability
5
MAY W10346154 MAY W10346154 Contact Us For Availability
5
MAY W10413869 MAY W10413869 Contact Us For Availability
5
MAY W10327235 MAY W10327235 Contact Us For Availability
5
MAY W10318026 MAY W10318026 Contact Us For Availability
6
MAY W10655891 MAY W10655891 Contact Us For Availability
6
MAY W10192841 MAY W10192841 Contact Us For Availability
6
MAY W10627802 MAY W10627802 Contact Us For Availability
6
MAY 3601P336-45 MAY 3601P336-45 Contact Us For Availability
6
GLASS, INNER MAY W10300487 Contact Us For Availability
6
SLIDE, DRAWER LEFT MAY W10441804 Contact Us For Availability
6
SLIDE, DRAWER RIGHT MAY W10441805 Contact Us For Availability
7
MAY W10650400 MAY W10650400 Contact Us For Availability
7
MAY W10340326 MAY W10340326 Contact Us For Availability
7
MAY W10501599 MAY W10501599 Contact Us For Availability
7
MAY W10442082 MAY W10442082 Contact Us For Availability
7
MAY W10137382 MAY W10137382 Contact Us For Availability
7
ELEMENT, WARM MAY W10323181 Contact Us For Availability
8
MAY W10655132 MAY W10655132 Contact Us For Availability
8
BRACKET, GAS MAY W10167573 Contact Us For Availability
8
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
8
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
8
VALVE, GAS (5K) (RIGHT REAR) MAY W10247744 Contact Us For Availability
8
VALVE, GAS (9.5K) (LEFT REAR AND CENTER) MAY W10279614 Contact Us For Availability
8
VALVE GAS (18K) (LEFT FRONT & RIGHT FRONT) MAY W10442080 Contact Us For Availability
8
MAY W10294851 MAY W10294851 Contact Us For Availability
8
MAY W10325438 MAY W10325438 Contact Us For Availability
9
MAY 3400701 MAY 3400701 Contact Us For Availability
9
Cover, Back MAY W10184251 Contact Us For Availability
9
MAY W10289077 MAY W10289077 Contact Us For Availability
9
BRACKET - AEGIS MAY W10224921 Contact Us For Availability
9
SCREW MAY W10317886 Contact Us For Availability
9
SENSOR, OVEN MAY W10131827 Contact Us For Availability
10
BRACKET, MANIFOLD MAY W10534174 Contact Us For Availability
10
MAY W10058460 MAY W10058460 Contact Us For Availability
10
MAY W10439242 MAY W10439242 Contact Us For Availability
10
MAY W10297318 MAY W10297318 Contact Us For Availability
10
MAY W10634259 MAY W10634259 Contact Us For Availability
11
MAY W10347385 MAY W10347385 Contact Us For Availability
11
MAY W10655876 MAY W10655876 Contact Us For Availability
11
MAY W10211368 MAY W10211368 Contact Us For Availability
11
MAY W10439243 MAY W10439243 Contact Us For Availability
11
MAY W10294852 MAY W10294852 Contact Us For Availability
11
HANDLE, ASSEMBLY (STAINLESS) MAY W10665831 Contact Us For Availability
12
MAY W10530070 MAY W10530070 Contact Us For Availability
12
MAY W10475149 MAY W10475149 Contact Us For Availability
12
MAY W10181986 MAY W10181986 Contact Us For Availability
12
MAY W10602004 MAY W10602004 Contact Us For Availability
12
MAY W10294853 MAY W10294853 Contact Us For Availability
12
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
13
MAY W10515459 MAY W10515459 Contact Us For Availability
13
MAY W10158780 MAY W10158780 Contact Us For Availability
13
MAY 3601P356-45 MAY 3601P356-45 Contact Us For Availability
13
MAY W10324262 MAY W10324262 Contact Us For Availability
13
MAY W10655838 MAY W10655838 Contact Us For Availability
14
MAY 8273062 MAY 8273062 Contact Us For Availability
14
MAY W10306050 MAY W10306050 Contact Us For Availability
15
MAY W10306542 MAY W10306542 Contact Us For Availability
15
MAY W10435470 MAY W10435470 Contact Us For Availability
15
MAY W10319134 MAY W10319134 Contact Us For Availability
16
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
16
MAY W10311326 MAY W10311326 Contact Us For Availability
16
MAY W10333842 MAY W10333842 Contact Us For Availability
16
MAY W10636267 MAY W10636267 Contact Us For Availability
17
MAY W10362924 MAY W10362924 Contact Us For Availability
17
ORIFICE (5K) (RIGHT REAR) MAY W10170506 Contact Us For Availability
17
ORIFICE (8K) (CENTER) MAY W10170507 Contact Us For Availability
17
ORIFICE (9.5K) (LEFT REAR) MAY W10170508 Contact Us For Availability
17
ORIFICE (17K) (LEFT FRONT) MAY W10170511 Contact Us For Availability
17
ORIFICE (15K) (RIGHT FRONT) MAY W10347414 Contact Us For Availability
18
MAY 3196178 MAY 3196178 Contact Us For Availability
18
MAY W10323077 MAY W10323077 Contact Us For Availability
19
MAY 3196385 MAY 3196385 Contact Us For Availability
20
MAY W10273005 MAY W10273005 Contact Us For Availability
20
MAY 3400016 MAY 3400016 Contact Us For Availability
21
MAY W10162385 MAY W10162385 Contact Us For Availability
22
MAY W10031780 MAY W10031780 Contact Us For Availability
23
MAY W10273195 MAY W10273195 Contact Us For Availability
24
MAY W10273192 MAY W10273192 Contact Us For Availability
25
Cord, Power MAY 9757891 Contact Us For Availability
26
MAY W10035900 MAY W10035900 Contact Us For Availability
27
MAY W10273204 MAY W10273204 Contact Us For Availability
28
MAY W10565174 MAY W10565174 Contact Us For Availability
29
MAY 311255 MAY 311255 Contact Us For Availability
30
MAY W10341186 MAY W10341186 Contact Us For Availability
31
MAY W10531060 MAY W10531060 Contact Us For Availability
32
RACK, OVEN (GULL WING) MAY W10289145 Contact Us For Availability
33
MOTOR, FAN (CONVECTION) MAY W10389553 Contact Us For Availability
34
MAY 3196560 MAY 3196560 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
INSULATION, WRAP GAS MAY W10526208 Contact Us For Availability
NI
MAY W10526209 MAY W10526209 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
LP CONVERSION KIT MAY W10170516 Contact Us For Availability
NI
MAY W10566534 MAY W10566534 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 31463A MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, COOKTOP CARE KIT MAY 31605 Contact Us For Availability
NI
MAY 31617A MAY 31617A Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
MAY 4396923 MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY W10123240 MAY W10123240 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, BAKE/BROIL MAY W10170250 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (INSERT) MAY W10186592 Contact Us For Availability
NI
ACCESSORY PARTS, SPLIT OVEN RACK MAY W10205524 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (PARTIAL) MAY W10205526 Contact Us For Availability
NI
ACCESSORY PARTS, GRANITE CLEANER MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, KITCHEN AND APPLIANCE CLEANE MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, SS CLEANER MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, SS CLEANING WIPES MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
MAY W10432019 MAY W10432019 Contact Us For Availability
NI
MAY W10519920 MAY W10519920 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COOKTOP MAY W10519932 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY W10519948 Contact Us For Availability
NI
MAY W10520313 MAY W10520313 Contact Us For Availability
NI
ACCESSORY PARTS, COOKTOP SCRAPER MAY WA906B Contact Us For Availability
× ![]()
