Model Maytag MGR8800HK0 RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams

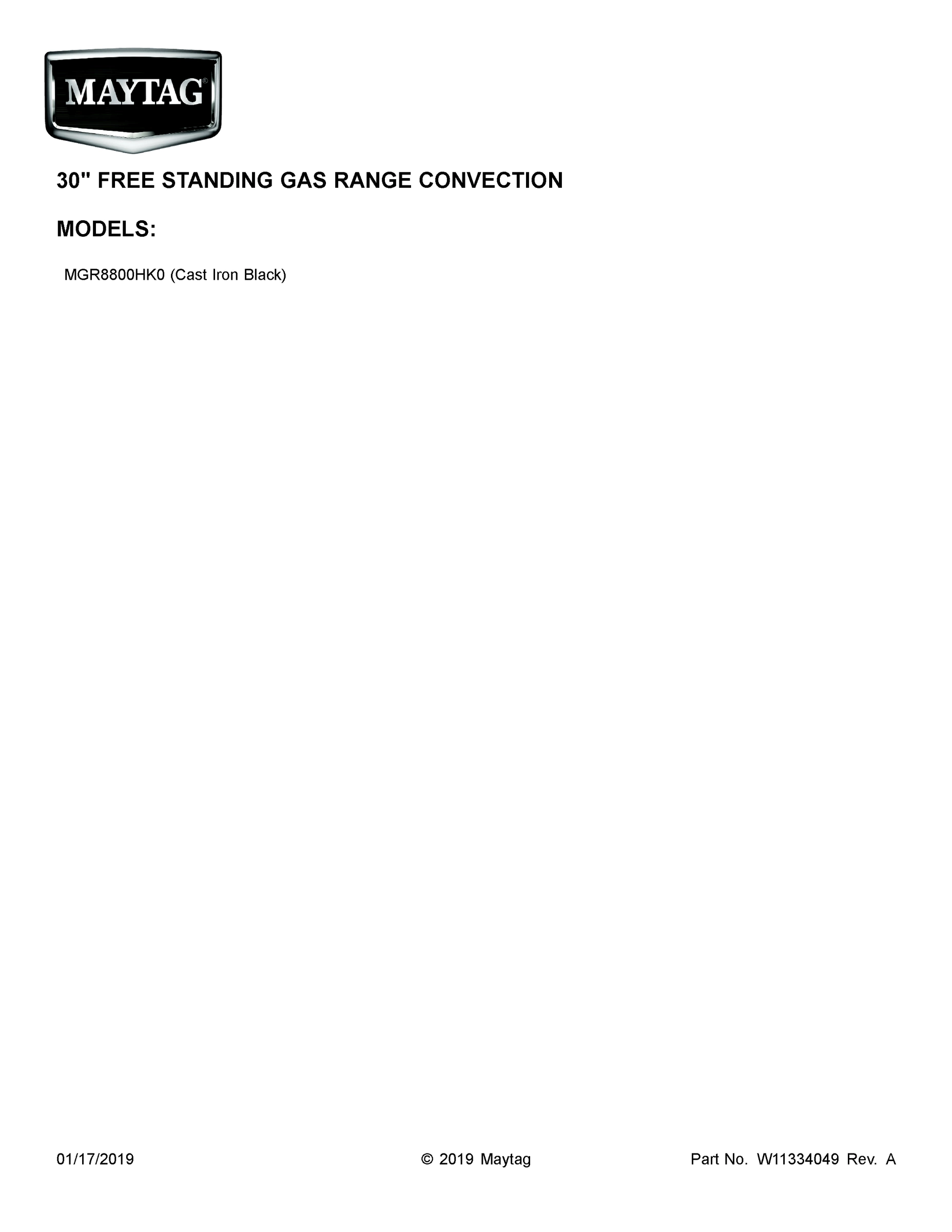

01 - COVER SHEET

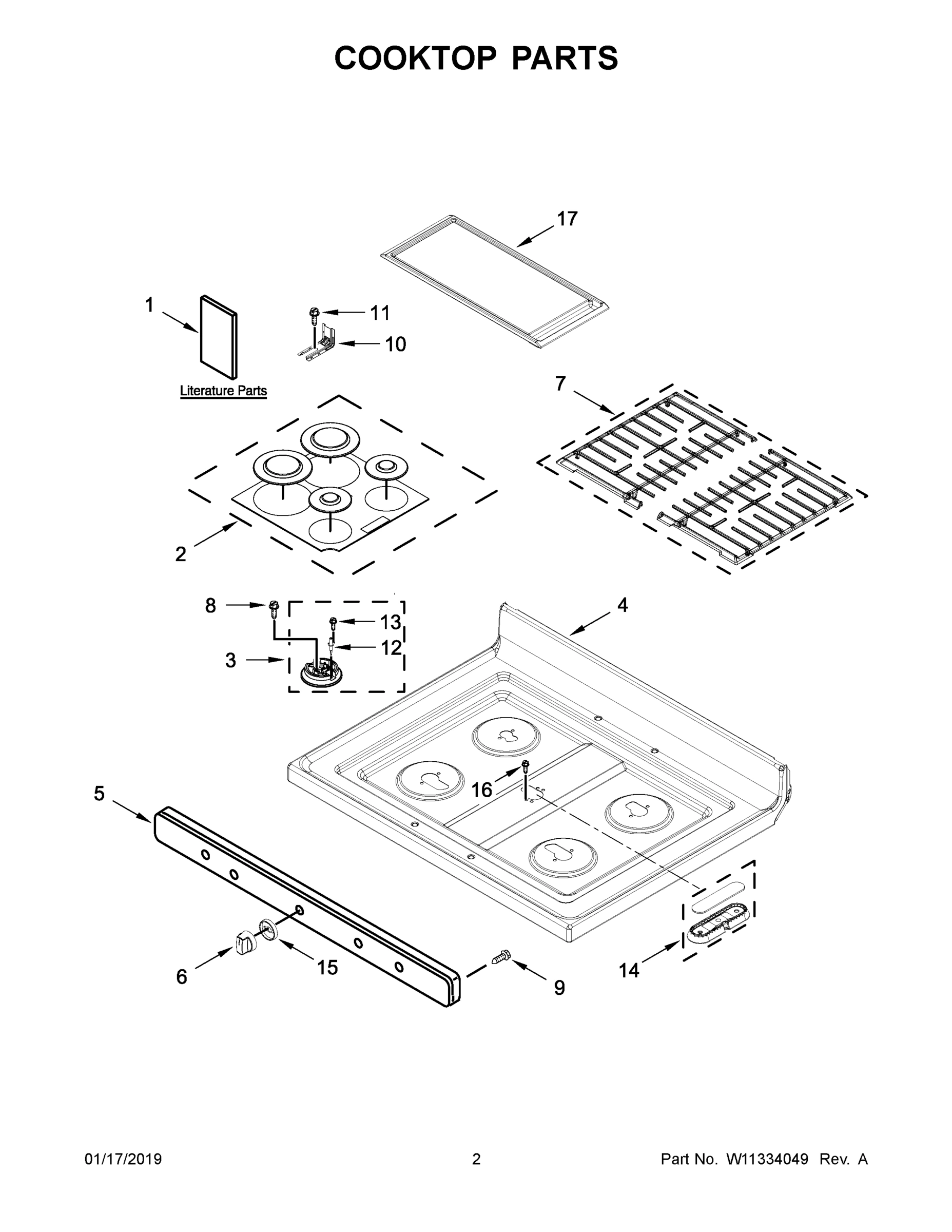

02 - COOKTOP PARTS

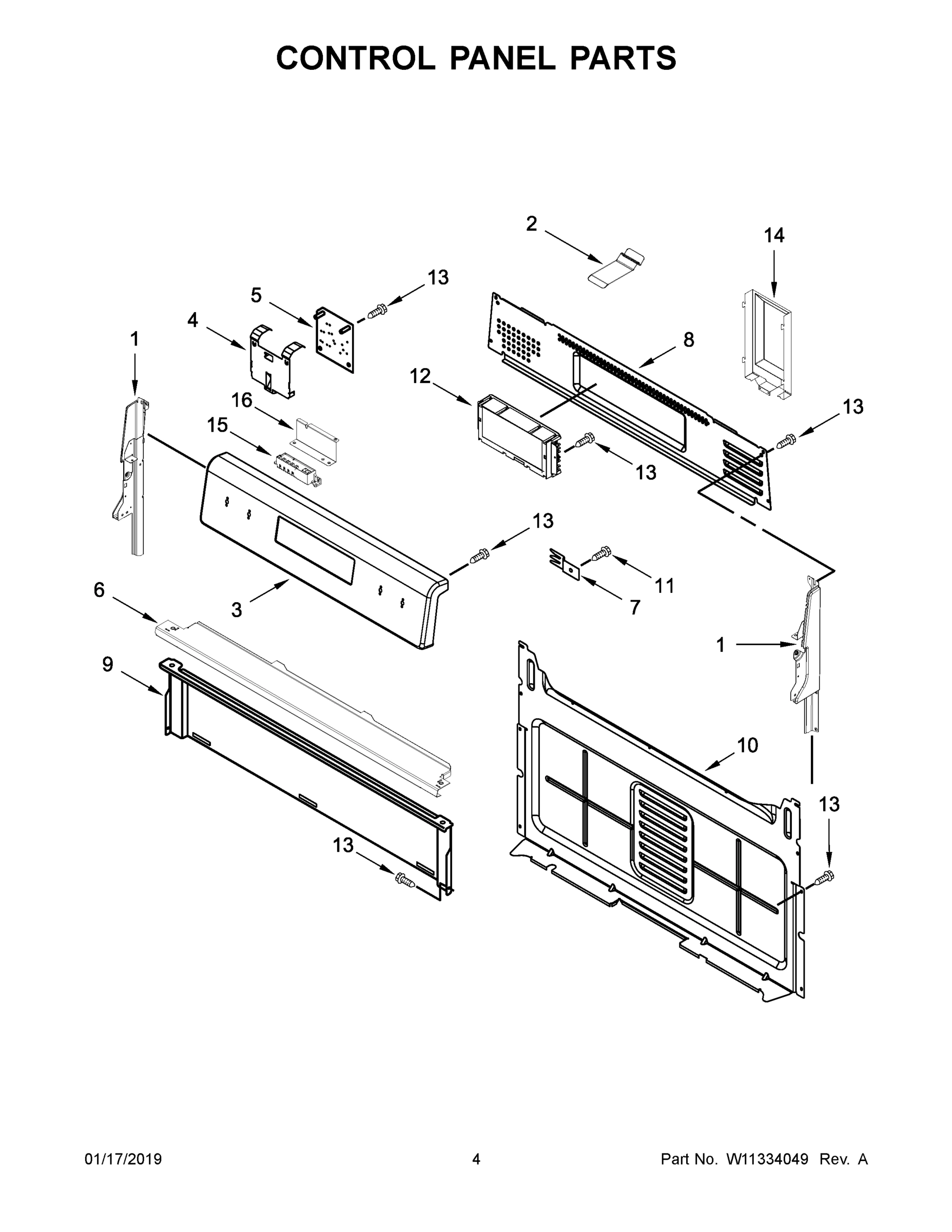

03 - CONTROL PANEL PARTS

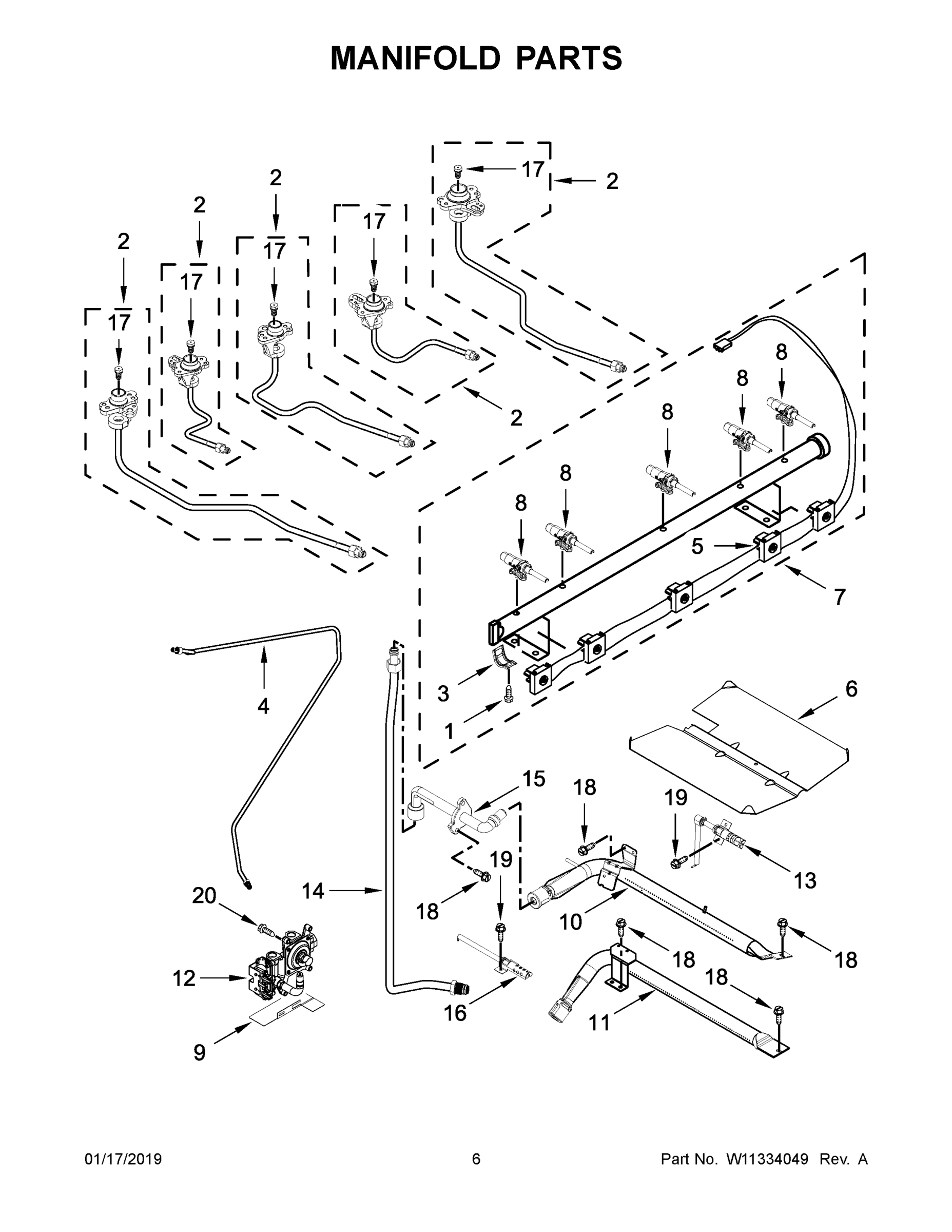

04 - MANIFOLD PARTS

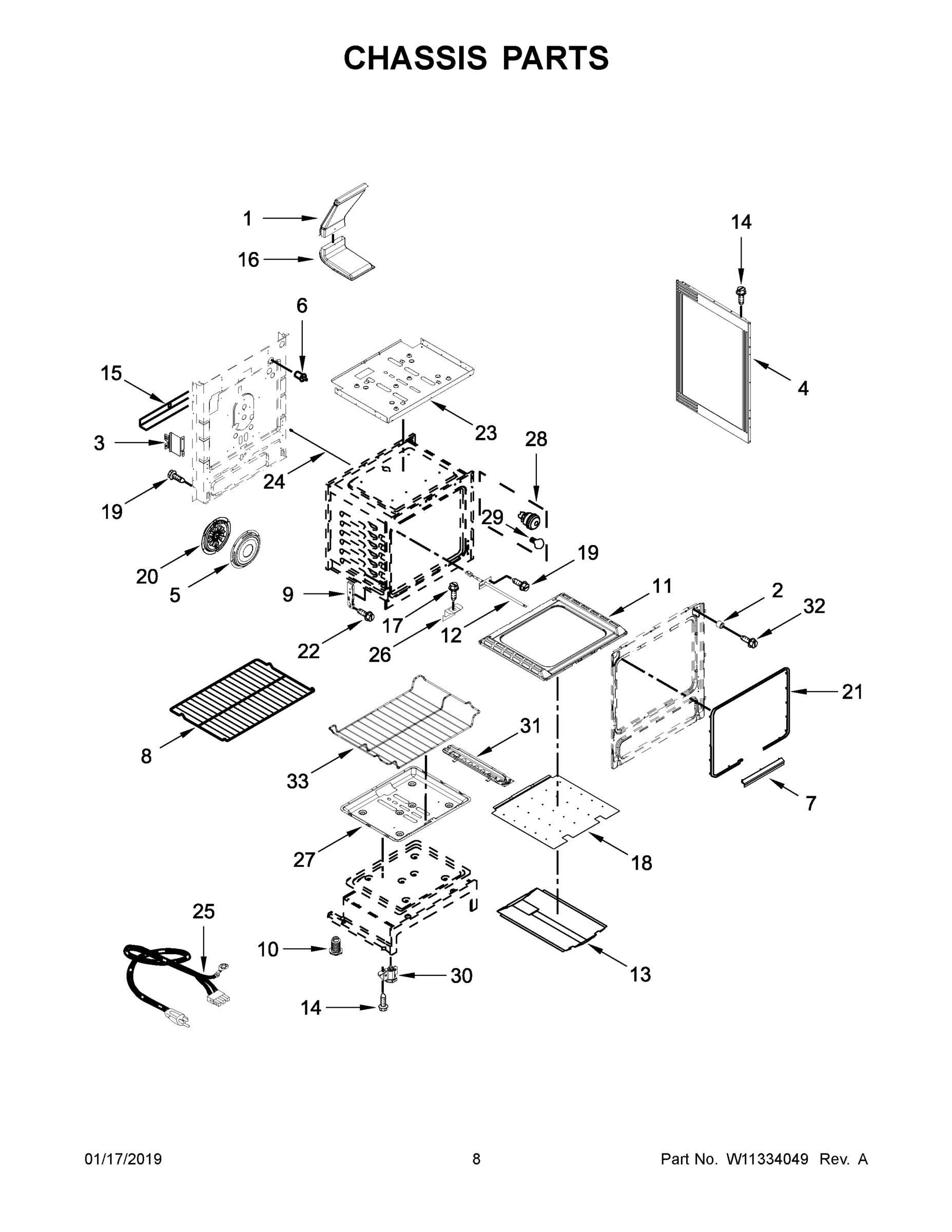

05 - CHASSIS PARTS

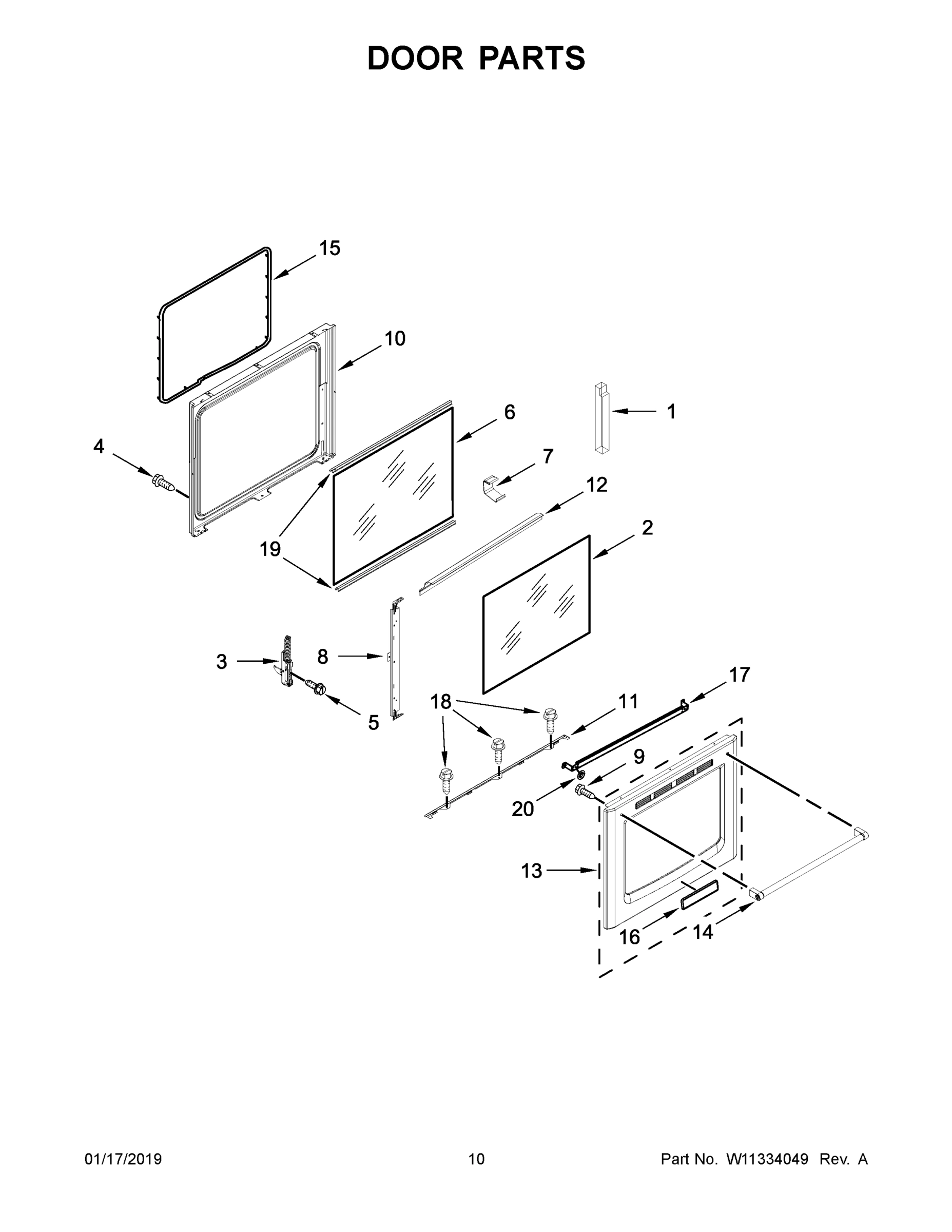

06 - DOOR PARTS

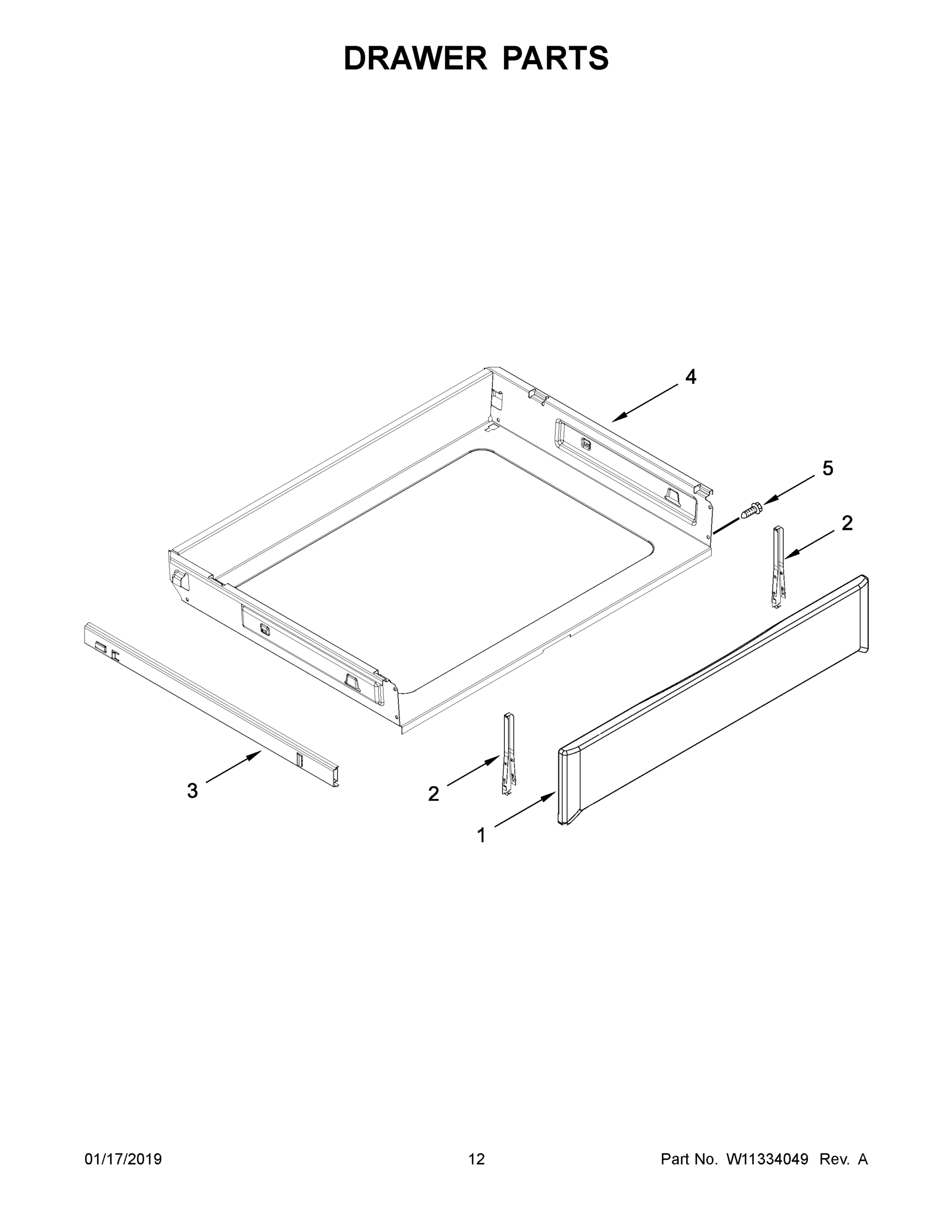

07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR8800HK0 RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
MAY W11122621 MAY W11122621 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W11130372 Contact Us For Availability
1
SCREW, VALVE MAY W10295997 Contact Us For Availability
1
ASSEMBLY, FLUE MAY W10314347 Contact Us For Availability
1
INSULATION, DOOR MAY W10766562 Contact Us For Availability
1
MAY W11205029 MAY W11205029 Contact Us For Availability
1A
MAY W11122603 MAY W11122603 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W11130379 Contact Us For Availability
1B
SHEET, TECH (ENGLISH) MAY W10538797 Contact Us For Availability
1C
GUIDE, QUICK START (ENGLISH) MAY W10400066 Contact Us For Availability
2
KIT, BURNER CAP (BLACK (SET OF 4)) MAY W10850506 Contact Us For Availability
2
SPREADER, CLIP-SPRING MAY W10551614 Contact Us For Availability
2
ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT) MAY W10473936 Contact Us For Availability
2
SPACER, DOOR MAY 9758701 Contact Us For Availability
2
GLASS, OUTER DOOR (STAINLESS) MAY W10693388 Contact Us For Availability
2
BRACKET, MOUNTING MAY W10318026 Contact Us For Availability
2A
ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR) MAY W10732140 Contact Us For Availability
2B
ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT) MAY W10732137 Contact Us For Availability
2C
ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR) MAY W10732139 Contact Us For Availability
2D
ASSEMBLY, ORIFICE HOLDER (8K) (CENTER) MAY W10836764 Contact Us For Availability
3
ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT MAY W10515455 Contact Us For Availability
3
PANEL, CONTROL (BLACK) MAY W11205020 Contact Us For Availability
3
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
3
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
3
HINGE, DOOR (ACTIVE) MAY W10885519 Contact Us For Availability
3
SLIDE, DRAWER (LEFT) MAY W10441804 Contact Us For Availability
3A
ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) MAY W10515454 Contact Us For Availability
3A
SLIDE, DRAWER (RIGHT) MAY W10441805 Contact Us For Availability
3B
ASSEMBLY, BURNER (6K) (RIGHT REAR) MAY W10515453 Contact Us For Availability
4
COOKTOP (BLACK) MAY W10884167 Contact Us For Availability
4
BRACKET, MOUNTING MAY W10762981 Contact Us For Availability
4
TUBING, MAIN SUPPLY MAY W10510125 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
4
SCREW MAY W10031790 Contact Us For Availability
4
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
5
PANEL, MANIFOLD (BLACK) MAY W10724449 Contact Us For Availability
5
HARNESS, IGNITER (INCLUDES SWITCHES) MAY W10811691 Contact Us For Availability
5
MODULE, SPARK DSI MAY W10920631 Contact Us For Availability
5
COVER, CONVECTION MAY W10346154 Contact Us For Availability
5
SCREW MAY W10362924 Contact Us For Availability
5
SCREW MAY 3196165 Contact Us For Availability
6
KNOB, CONTROL (STAINLESS) MAY W10858253 Contact Us For Availability
6
BRACKET, CONSOLE MOUNTING MAY W10516123 Contact Us For Availability
6
BAFFLE, BROIL BURNER MAY 3601P336-45 Contact Us For Availability
6
SWITCH, DOOR MAY W10627802 Contact Us For Availability
6
GLASS, INNER MAY W10813616 Contact Us For Availability
7
KIT, GRATE (BLACK) MAY W10655132 Contact Us For Availability
7
BRACKET, REAR GAS COOKTOP MAY W10530070 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10859728 Contact Us For Availability
7
CLIP, FRONT FRAME COVER MAY W10501599 Contact Us For Availability
7
CLIP, PANEL MAY W10137382 Contact Us For Availability
8
COVER, UPPER MAY W10198745 Contact Us For Availability
8
VALVE, GAS (RIGHT REAR) MAY W10247744 Contact Us For Availability
8
RACK, OVEN MAY W10531060 Contact Us For Availability
8
RAIL, VERTICAL SUPPORT MAY W10813139 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR) MAY W10279614 Contact Us For Availability
8B
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W10279615 Contact Us For Availability
8C
VALVE, GAS (CENTER) MAY W10850894 Contact Us For Availability
9
SCREW MAY 3196557 Contact Us For Availability
9
SHIELD, HEAT MAY W10192841 Contact Us For Availability
9
BRACKET, AEGIS MAY W10224921 Contact Us For Availability
9
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
9
SCREW MAY W10241367 Contact Us For Availability
10
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
10
COVER, BACK MAY W10184251 Contact Us For Availability
10
BURNER, BROILER MAY W10439242 Contact Us For Availability
10
FOOT, LEVELING MAY W10058460 Contact Us For Availability
10
LINER, DOOR MAY W10826568 Contact Us For Availability
11
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
11
SCREW MAY 3196169 Contact Us For Availability
11
BURNER, BAKE MAY W10680035 Contact Us For Availability
11
BOTTOM, OVEN MAY W10211368 Contact Us For Availability
11
RAIL, HORIZONTAL SUPPORT MAY W10813140 Contact Us For Availability
12
ELECTRODE (LEFT FRONT, LEFT REAR, RIGHT FRONT MAY W11194809 Contact Us For Availability
12
CONTROL, MRC MAY W10340325 Contact Us For Availability
12
VALVE, GAS MAY W10720102 Contact Us For Availability
12
SENSOR MAY W10586204 Contact Us For Availability
12
SCOOP, DOOR MAY W10675397 Contact Us For Availability
12A
ELECTRODE (RIGHT REAR) MAY W10515459 Contact Us For Availability
13
SCREW MAY 8273062 Contact Us For Availability
13
IGNITER, BAKE MAY W10324262 Contact Us For Availability
13
BAFFLE, BAKE BURNER MAY 3601P356-45 Contact Us For Availability
13
MAY W11205027 MAY W11205027 Contact Us For Availability
14
SPREADER, FLAME MAY W10298664 Contact Us For Availability
14
COVER, REAR FAN MAY W10158780 Contact Us For Availability
14
TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE) MAY W10306050 Contact Us For Availability
14
HANDLE, DOOR (STAINLESS) MAY W10834521 Contact Us For Availability
15
BEZEL (STAINLESS) MAY W10876919 Contact Us For Availability
15
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
15
FITTING, BROIL MAY W10776437 Contact Us For Availability
15
BRACE, MAIN BACK MAY W10435470 Contact Us For Availability
15
GASKET, DOOR MAY W10162385 Contact Us For Availability
16
SCREW MAY W10673618 Contact Us For Availability
16
BRACKET, IGNITOR MAY W10797001 Contact Us For Availability
16
ELECTRODE, BROIL MAY W10333842 Contact Us For Availability
16
ASSEMBLY, FLUE (UPPER) MAY W11040249 Contact Us For Availability
16
BADGE MAY W10612925 Contact Us For Availability
17
KIT, GRIDDLE MAY W10347385 Contact Us For Availability
17
ORIFICE (12K) (RIGHT FRONT) MAY W10178934 Contact Us For Availability
17
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
17A
ORIFICE (5K) (RIGHT REAR) MAY W10732136 Contact Us For Availability
17B
ORIFICE (8K) (LEFT REAR) MAY W10170507 Contact Us For Availability
17C
ORIFICE (15K) (LEFT FRONT) MAY W10347414 Contact Us For Availability
17D
ORIFICE (8K) (CENTER) MAY W10657947 Contact Us For Availability
18
DIFFUSER, FLAME MAY W10323077 Contact Us For Availability
18
SCREW MAY 9780274 Contact Us For Availability
19
SCREW MAY 3196178 Contact Us For Availability
19
SCREW MAY 3196385 Contact Us For Availability
19
SPACER, GLASS MAY W10813142 Contact Us For Availability
20
SCREW MAY 3400701 Contact Us For Availability
20
MOTOR, FAN (CONVECTION) MAY W10874067 Contact Us For Availability
20
WASHER, DOOR MAY W10319024 Contact Us For Availability
22
SCREW MAY W10031780 Contact Us For Availability
23
SHIELD, HEAT MAY W10273195 Contact Us For Availability
24
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
25
CORD, POWER MAY W10624590 Contact Us For Availability
26
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
27
PAN, BAKE MAY W10273204 Contact Us For Availability
28
ASSEMBLY, LIGHT MAY W11175594 Contact Us For Availability
29
BULB, HALOGEN 40 WATTS MAY W10571723 Contact Us For Availability
30
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
31
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
31A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
32
SCREW MAY 3196560 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
CLIP, WIRE MAY 3196896 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLIP, GAS WIRING MAY W10334923 Contact Us For Availability
NI
HARNESS, BAKE/BROIL MAY W10753750 Contact Us For Availability
NI
HARNESS, MAIN MAY W10797419 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10809927 Contact Us For Availability
NI
KIT, LP CONVERSION (BAKE/BROIL) MAY W10566535 Contact Us For Availability
NI
KIT, LP 5 ORIFICE CONVERSION MAY W11087531 Contact Us For Availability
NI
ACCESSORIES, RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
NI
INSULATION, WRAP MAY W10526208 Contact Us For Availability
NI
INSULATION, MAIN BACK MAY W10526209 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, SPLIT OVEN RACK MAY W10205524 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORIES, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
