Model Maytag MGR8800FZ0 RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams

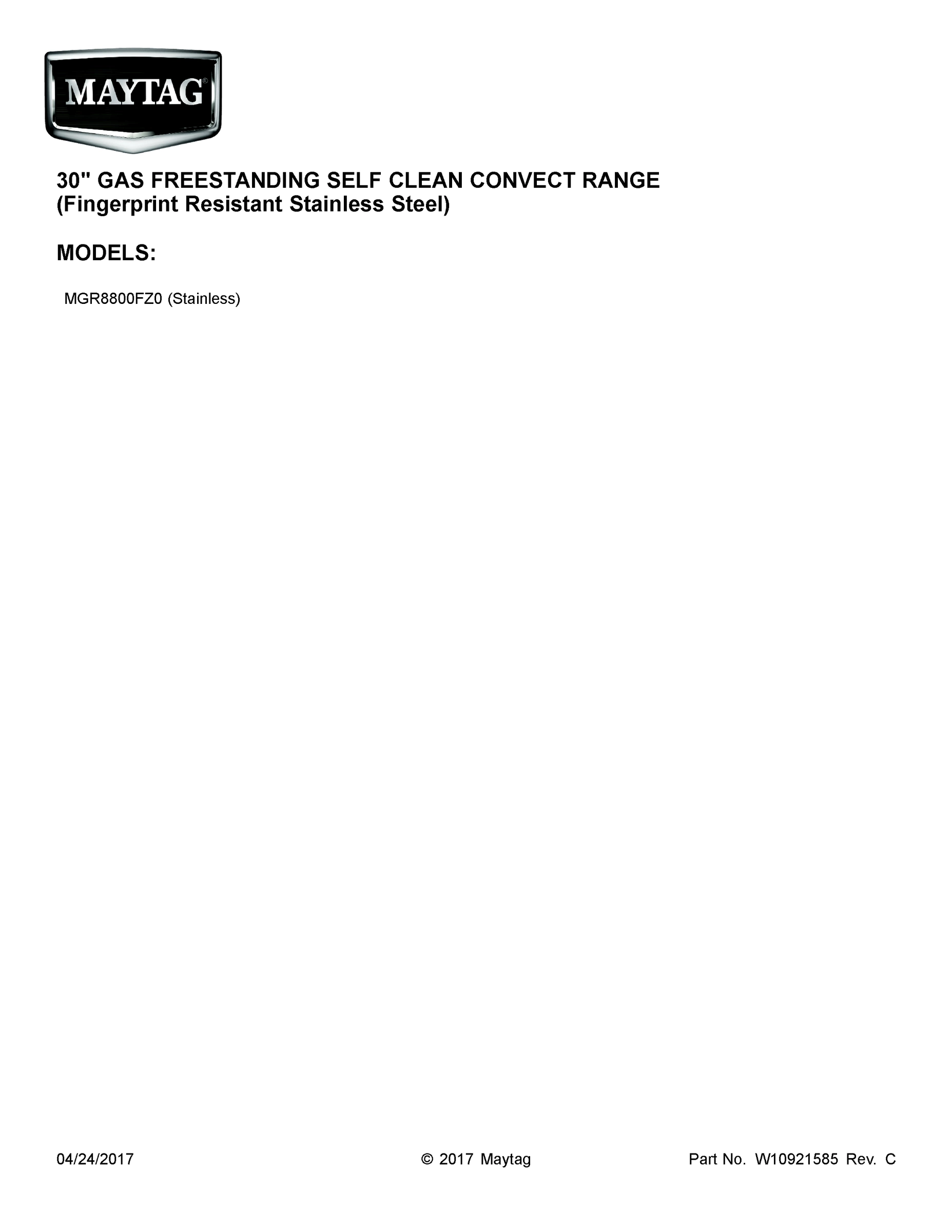

01 - COVER SHEET

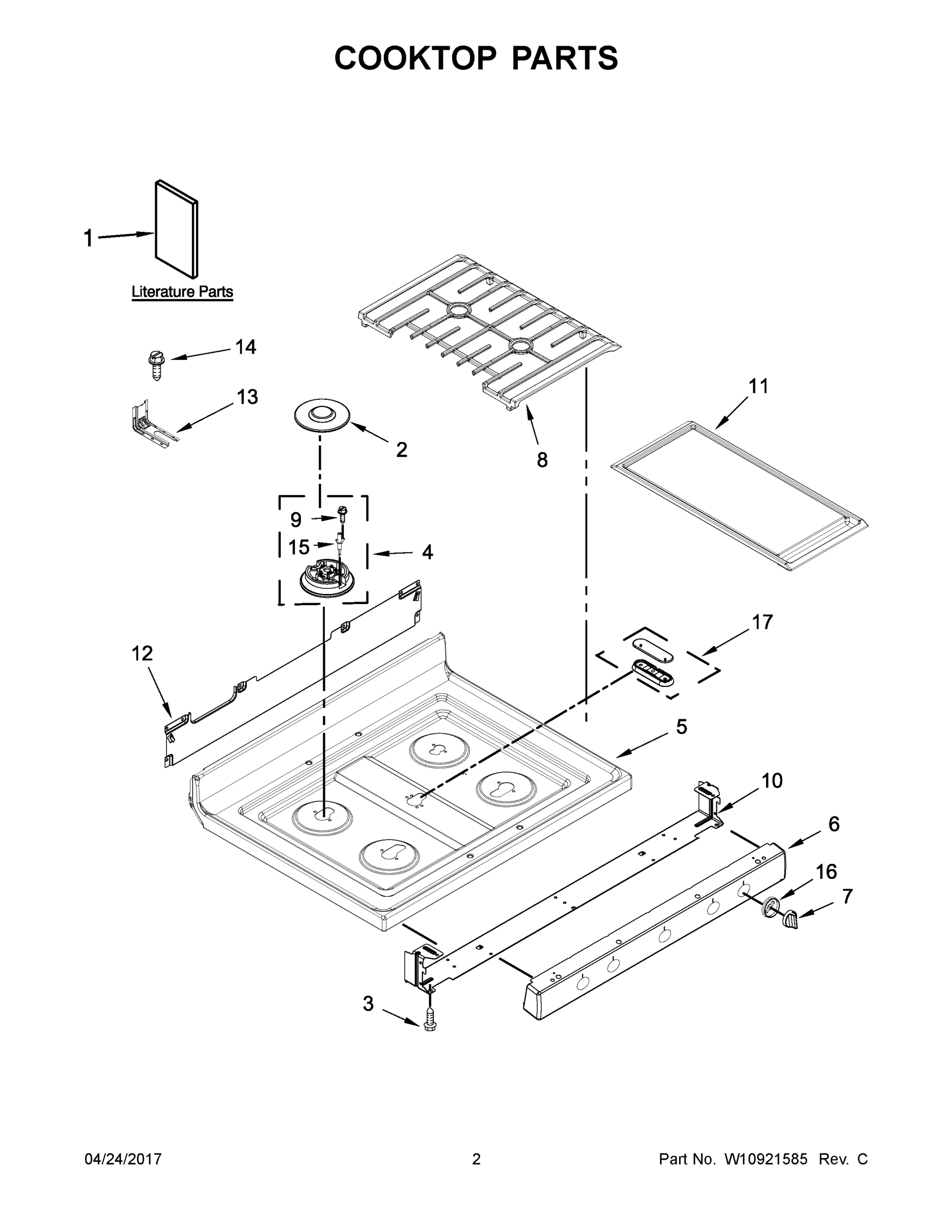

02 - COOKTOP PARTS

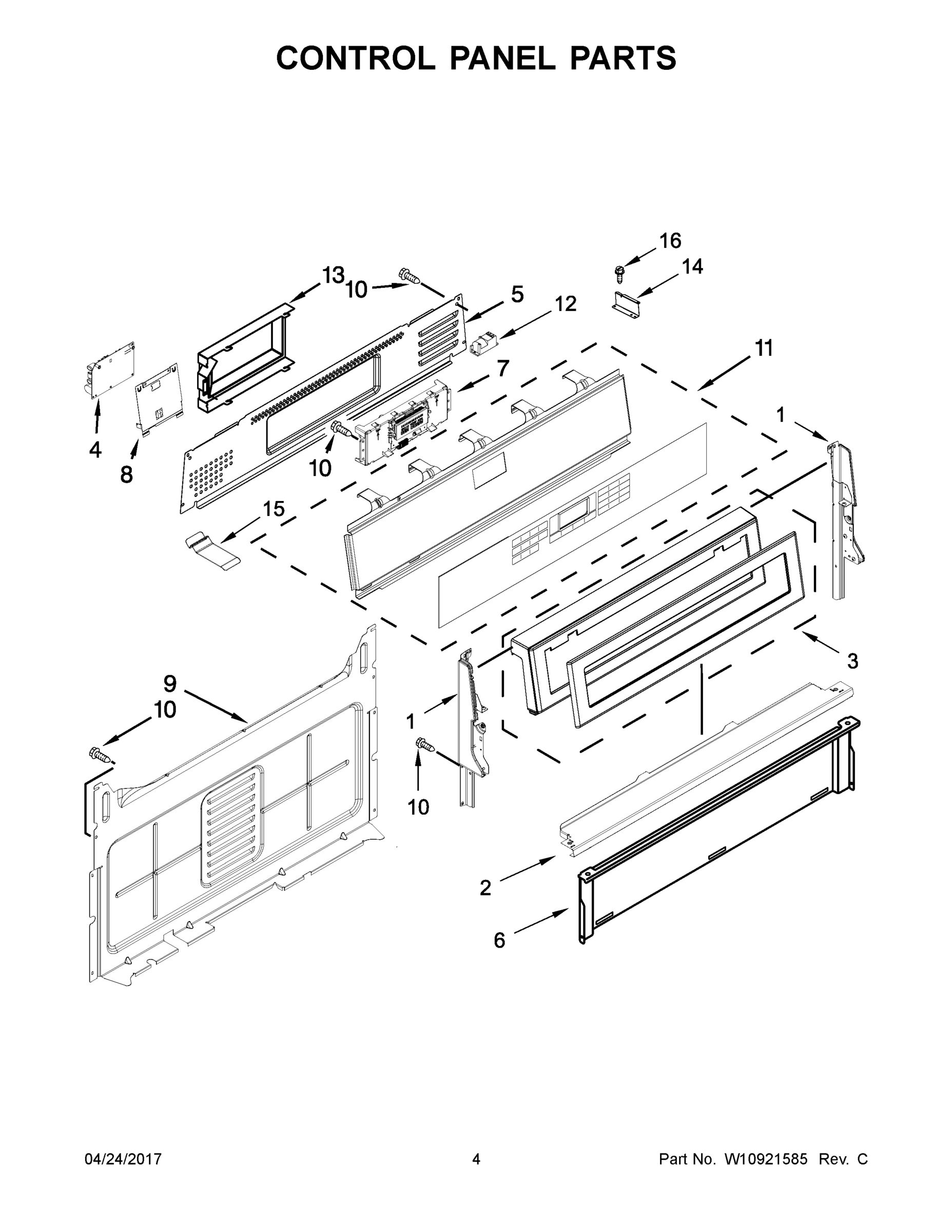

03 - CONTROL PANEL PARTS

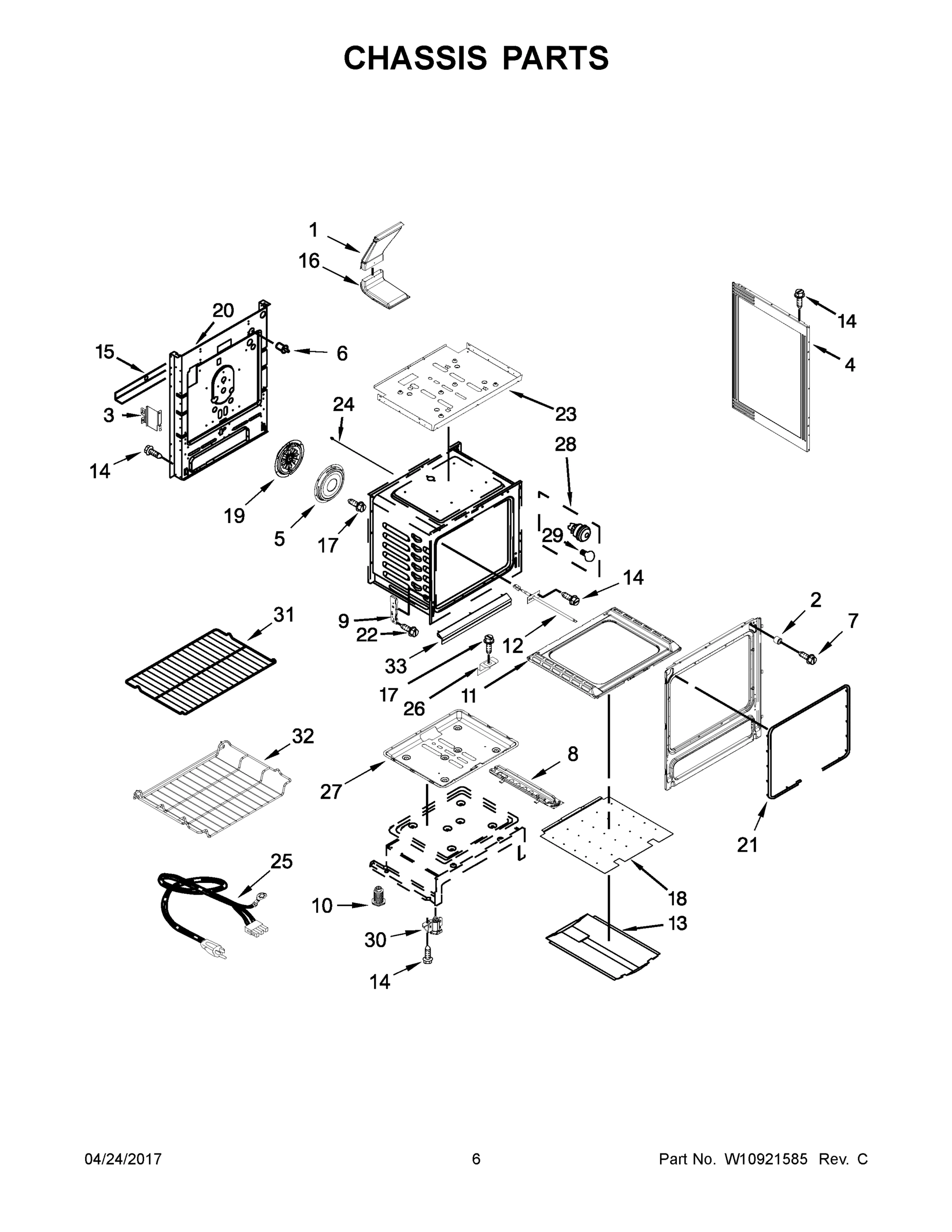

04 - CHASSIS PARTS

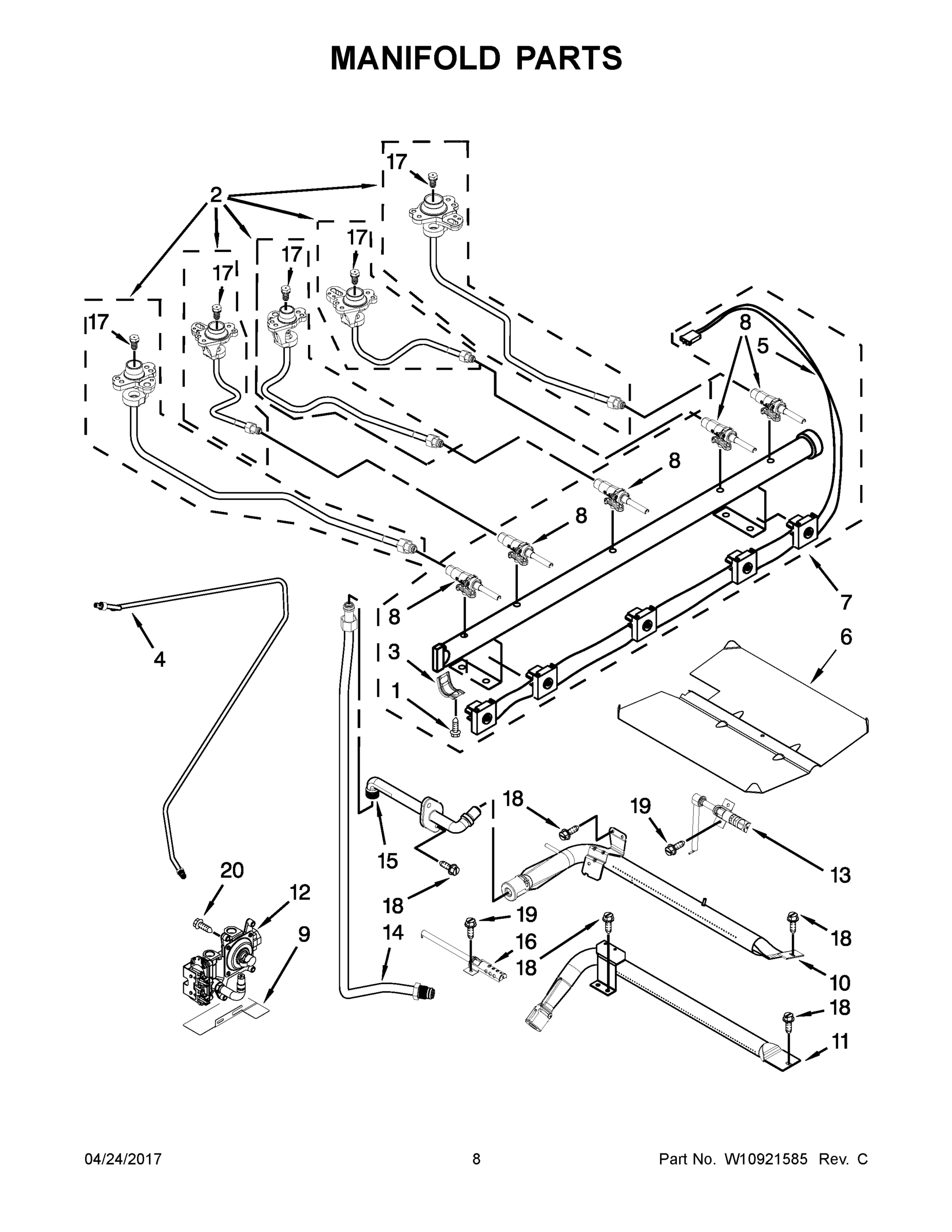

05 - MANIFOLD PARTS

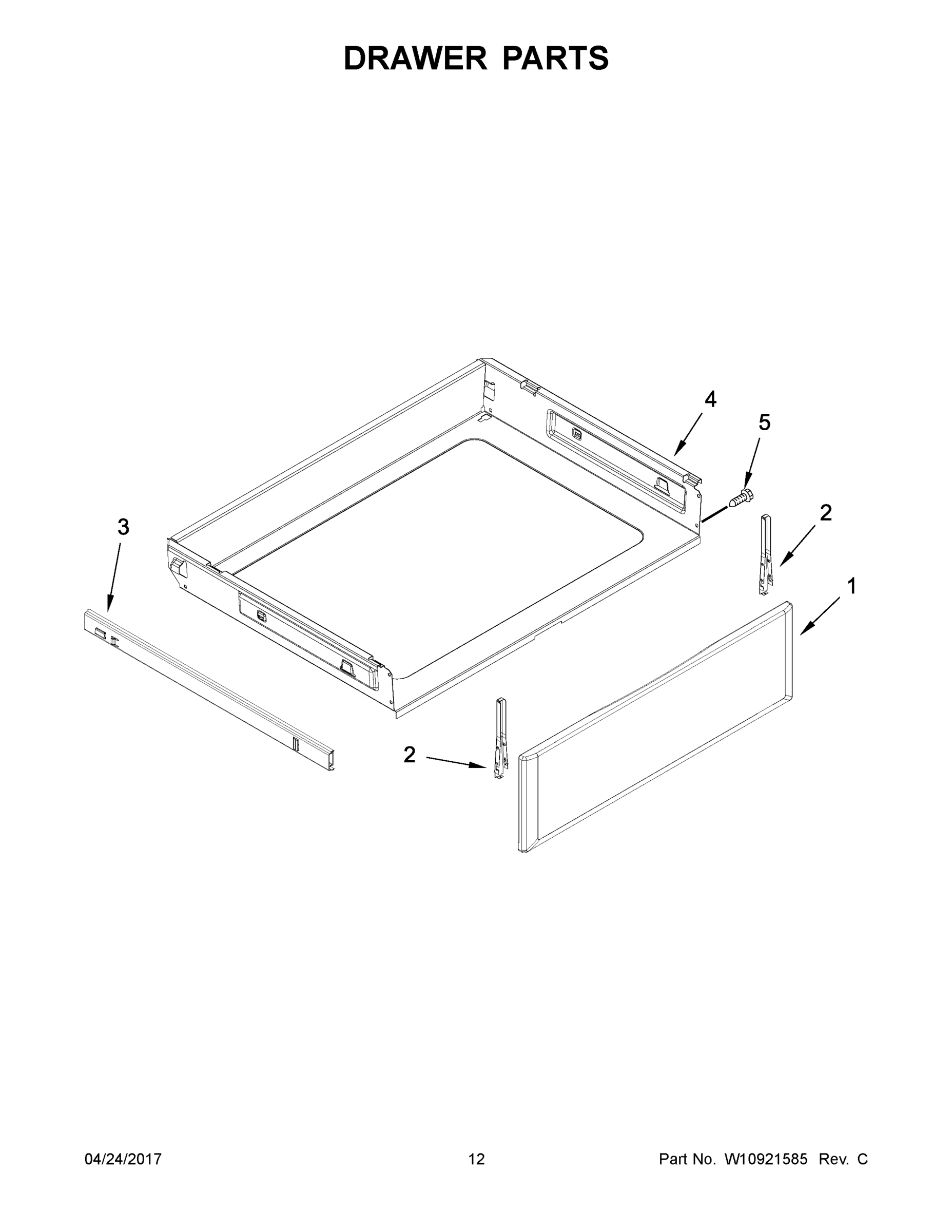

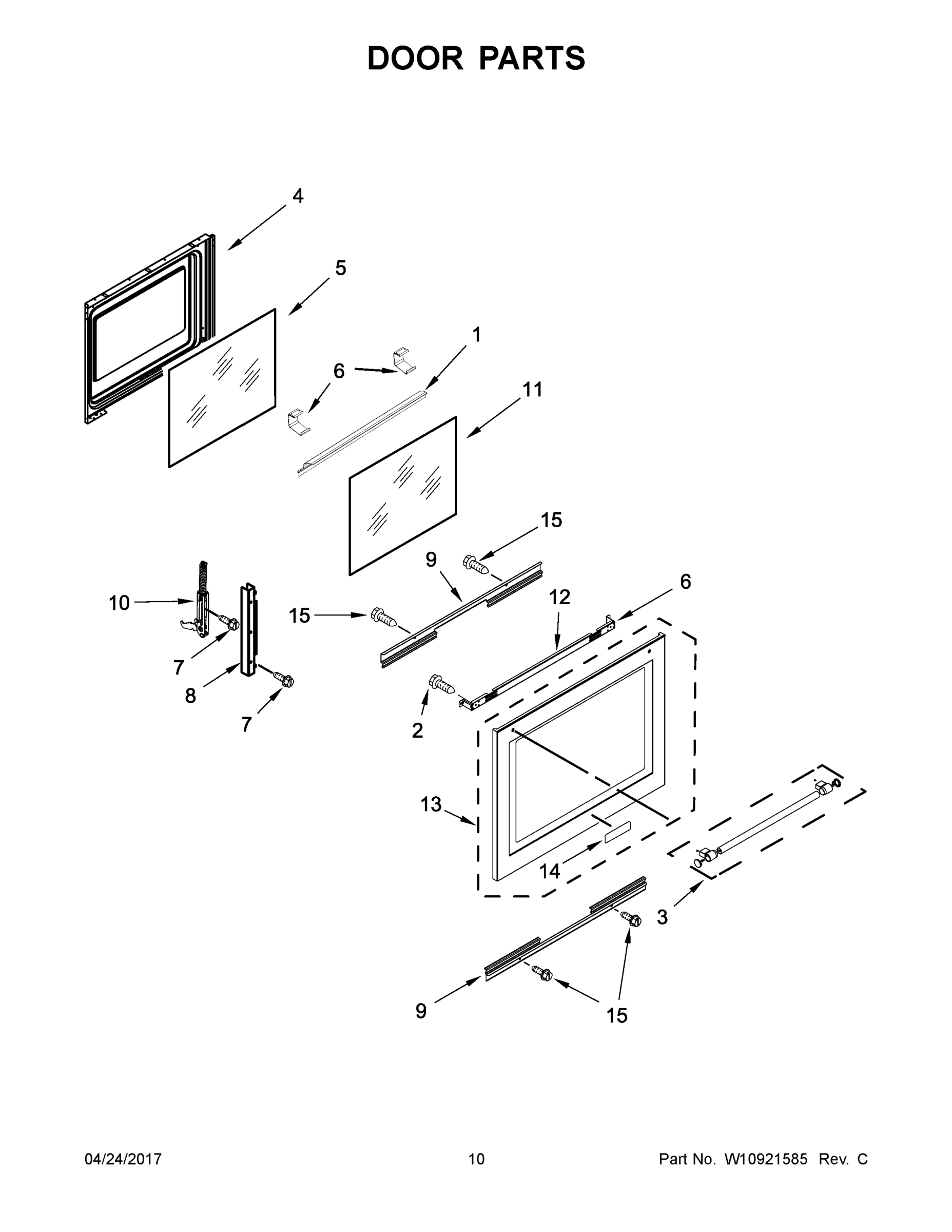

06 - DOOR PARTS
07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR8800FZ0 RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10694025 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W10184437 Contact Us For Availability
1
ASSEMBLY, FLUE MAY W10314347 Contact Us For Availability
1
SCREW, VALVE MAY W10295997 Contact Us For Availability
1
SCOOP, DOOR MAY W10675397 Contact Us For Availability
1
PANEL, DRAWER FRONT (STAINLESS) MAY W10861565 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W10667179 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W10184438 Contact Us For Availability
1B
SHEET, TECH (ENGLISH) MAY W10538797 Contact Us For Availability
1C
SHEET, TECH (FRENCH) MAY W10538798 Contact Us For Availability
1D
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1F
GUIDE, QUICK START (ENGLISH) MAY W10400066 Contact Us For Availability
2
SET, BURNER CAP (BLACK (SET OF 4)) MAY W10850506 Contact Us For Availability
2
BRACKET, CONSOLE MOUNTING MAY W10516123 Contact Us For Availability
2
SPACER, DOOR MAY 9758701 Contact Us For Availability
2
ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT) MAY W10473936 Contact Us For Availability
2
SCREW MAY W10031790 Contact Us For Availability
2
BRACKET, MOUNTING MAY W10318026 Contact Us For Availability
2A
ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR) MAY W10732140 Contact Us For Availability
2B
ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT) MAY W10732137 Contact Us For Availability
2C
ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR) MAY W10732139 Contact Us For Availability
2D
ASSEMBLY, ORIFICE HOLDER (8K) (CENTER) MAY W10836764 Contact Us For Availability
3
SCREW MAY W10067840 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10645848 Contact Us For Availability
3
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
3
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
3
ASSEMBLY, HANDLE (STAINLESS) MAY W10834521 Contact Us For Availability
3
SLIDE, DRAWER (LEFT) MAY W10441804 Contact Us For Availability
3A
SLIDE, DRAWER (RIGHT) MAY W10441805 Contact Us For Availability
4
ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT MAY W10515455 Contact Us For Availability
4
MODULE, SPARK DSI MAY W10511278 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
4
TUBING, MAIN SUPPLY MAY W10510125 Contact Us For Availability
4
LINER, DOOR MAY W10826568 Contact Us For Availability
4
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
4A
ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) MAY W10515454 Contact Us For Availability
4B
BURNER, AUXILIARY (6K) (RIGHT REAR) MAY W10515453 Contact Us For Availability
5
COOKTOP (BLACK) MAY W10884167 Contact Us For Availability
5
COVER, UPPER MAY W10198745 Contact Us For Availability
5
SCREW MAY 3196169 Contact Us For Availability
5
COVER, CONVECTION MAY W10346154 Contact Us For Availability
5
HARNESS, IGNITER (INCLUDES SWITCHES) MAY W10811691 Contact Us For Availability
5
GLASS, INNER MAY W10813616 Contact Us For Availability
6
PANEL, MANIFOLD (STAINLESS) MAY W10861559 Contact Us For Availability
6
SHIELD, HEAT MAY W10192841 Contact Us For Availability
6
SWITCH, DOOR MAY W10627802 Contact Us For Availability
6
BAFFLE, BROIL BURNER MAY 3601P336-45 Contact Us For Availability
6
CLIP, PANEL MAY W10137382 Contact Us For Availability
7
KNOB, CONTROL (STAINLESS) MAY W10858253 Contact Us For Availability
7
CONTROL, MRC MAY W10340325 Contact Us For Availability
7
SCREW MAY 3196560 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10859728 Contact Us For Availability
7
SCREW MAY 3196165 Contact Us For Availability
8
SET, GRATE (BLACK) MAY W10655132 Contact Us For Availability
8
BRACKET, MOUNTING MAY W10762981 Contact Us For Availability
8
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W10850894 Contact Us For Availability
8
RAIL, VERTICAL SUPPORT MAY W10813139 Contact Us For Availability
8A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR & CENTER) MAY W10279614 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR) MAY W10247744 Contact Us For Availability
9
SCREW MAY 3400701 Contact Us For Availability
9
COVER, BACK MAY W10184251 Contact Us For Availability
9
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
9
BRACKET, AEGIS MAY W10224921 Contact Us For Availability
9
RAIL, HORIZONTAL SUPPORT MAY W10813140 Contact Us For Availability
10
BRACKET, MANIFOLD PANEL MAY W10534174 Contact Us For Availability
10
FOOT, LEVELING MAY W10058460 Contact Us For Availability
10
BURNER, BROILER MAY W10439242 Contact Us For Availability
10
HINGE, DOOR (ACTIVE) MAY W10885519 Contact Us For Availability
11
KIT, GRIDDLE MAY W10347385 Contact Us For Availability
11
ASSEMBLY, ACTIVE OVERLAY (BLACK) MAY W10884364 Contact Us For Availability
11
BOTTOM, OVEN MAY W10211368 Contact Us For Availability
11
BURNER, BAKE MAY W10680035 Contact Us For Availability
11
STAINLESS MAY W10693388 Contact Us For Availability
12
BRACKET, REAR GAS COOKTOP MAY W10530070 Contact Us For Availability
12
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
12
SENSOR MAY W10586204 Contact Us For Availability
12
VALVE, GAS MAY W10720102 Contact Us For Availability
12
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
13
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
13
COVER, REAR FAN MAY W10158780 Contact Us For Availability
13
BAFFLE, BAKE BURNER MAY 3601P356-45 Contact Us For Availability
13
IGNITER, BAKE MAY W10324262 Contact Us For Availability
13
ASSEMBLY, DOOR SKIN (STAINLESS) MAY W10867480 Contact Us For Availability
14
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
14
BRACKET, IGNITOR MAY W10797001 Contact Us For Availability
14
TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE) MAY W10306050 Contact Us For Availability
14
BADGE MAY W10612925 Contact Us For Availability
15
ELECTRODE MAY W10515459 Contact Us For Availability
15
SPREADER, CLIP-SPRING MAY W10551614 Contact Us For Availability
15
BRACE, MAIN BACK MAY W10435470 Contact Us For Availability
15
FITTING, BROIL MAY W10776437 Contact Us For Availability
15
SCREW MAY W10327235 Contact Us For Availability
16
BEZEL (STAINLESS) MAY W10876919 Contact Us For Availability
16
ASSEMBLY, FLUE (UPPER) MAY W10311326 Contact Us For Availability
16
ELECTRODE, BROIL MAY W10333842 Contact Us For Availability
17
SPREADER, FLAME MAY W10298664 Contact Us For Availability
17
SCREW MAY W10362924 Contact Us For Availability
17
ORIFICE (15K) (LEFT FRONT) MAY W10347414 Contact Us For Availability
17A
ORIFICE (8K) (LEFT REAR) MAY W10170507 Contact Us For Availability
17B
ORIFICE (12K) (RIGHT FRONT) MAY W10178934 Contact Us For Availability
17C
ORIFICE (5K) (RIGHT REAR) MAY W10732136 Contact Us For Availability
17D
ORIFICE (8K) (CENTER) MAY W10657947 Contact Us For Availability
18
SCREW MAY 3196178 Contact Us For Availability
18
DIFFUSER, FLAME MAY W10323077 Contact Us For Availability
19
MOTOR, FAN (CONVECTION) MAY W10874067 Contact Us For Availability
19
SCREW MAY 3196385 Contact Us For Availability
20
BACK, MAIN MAY W10273005 Contact Us For Availability
20
SCREW MAY 3400016 Contact Us For Availability
21
GASKET, DOOR MAY W10162385 Contact Us For Availability
22
SCREW MAY W10031780 Contact Us For Availability
23
SHIELD, HEAT MAY W10273195 Contact Us For Availability
24
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
25
CORD, POWER MAY W10624590 Contact Us For Availability
26
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
27
PAN, BAKE MAY W10273204 Contact Us For Availability
28
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
29
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
30
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
31
RACK, OVEN MAY W10531060 Contact Us For Availability
32
RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
33
CLIP, FRONT FRAME COVER MAY W10501599 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, GAS WIRING MAY W10334923 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, DSI GROUND MAY W10519920 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, BAKE/BROIL MAY W10753750 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY W10797419 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COOKTOP MAY W10809927 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
INSULATION, WRAP MAY W10526208 Contact Us For Availability
NI
INSULATION, MAIN BACK MAY W10526209 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
KIT, LP 5 ORIFICE CONVERSION MAY W10170516 Contact Us For Availability
NI
KIT, LP CONVERSION (BAKE/BROIL) MAY W10566535 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. PRIMER (WHIT MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, PROTECTANT, COOKTOP MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
ACCESSORY PARTS, CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
ACCESSORY PARTS, CLIP, WIRE MAY 3196896 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (INSERT) MAY W10186592 Contact Us For Availability
NI
ACCESSORY PARTS, SPLIT OVEN RACK MAY W10205524 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (PARTIAL) MAY W10205526 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
ACC MAY WA906B Contact Us For Availability
× ![]()
Login and Registration Form
