Model Maytag MGR8800FW0 RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

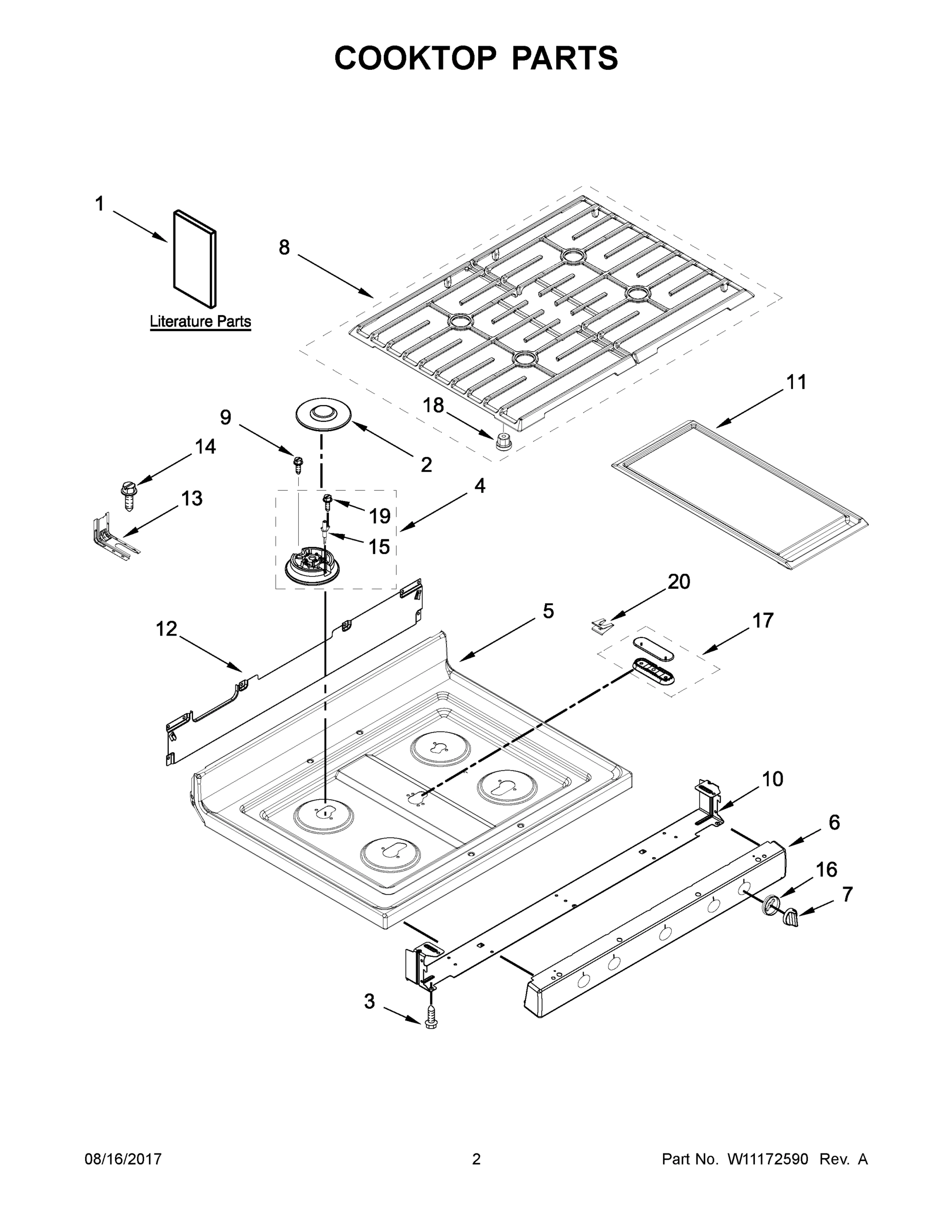

02 - COOKTOP PARTS

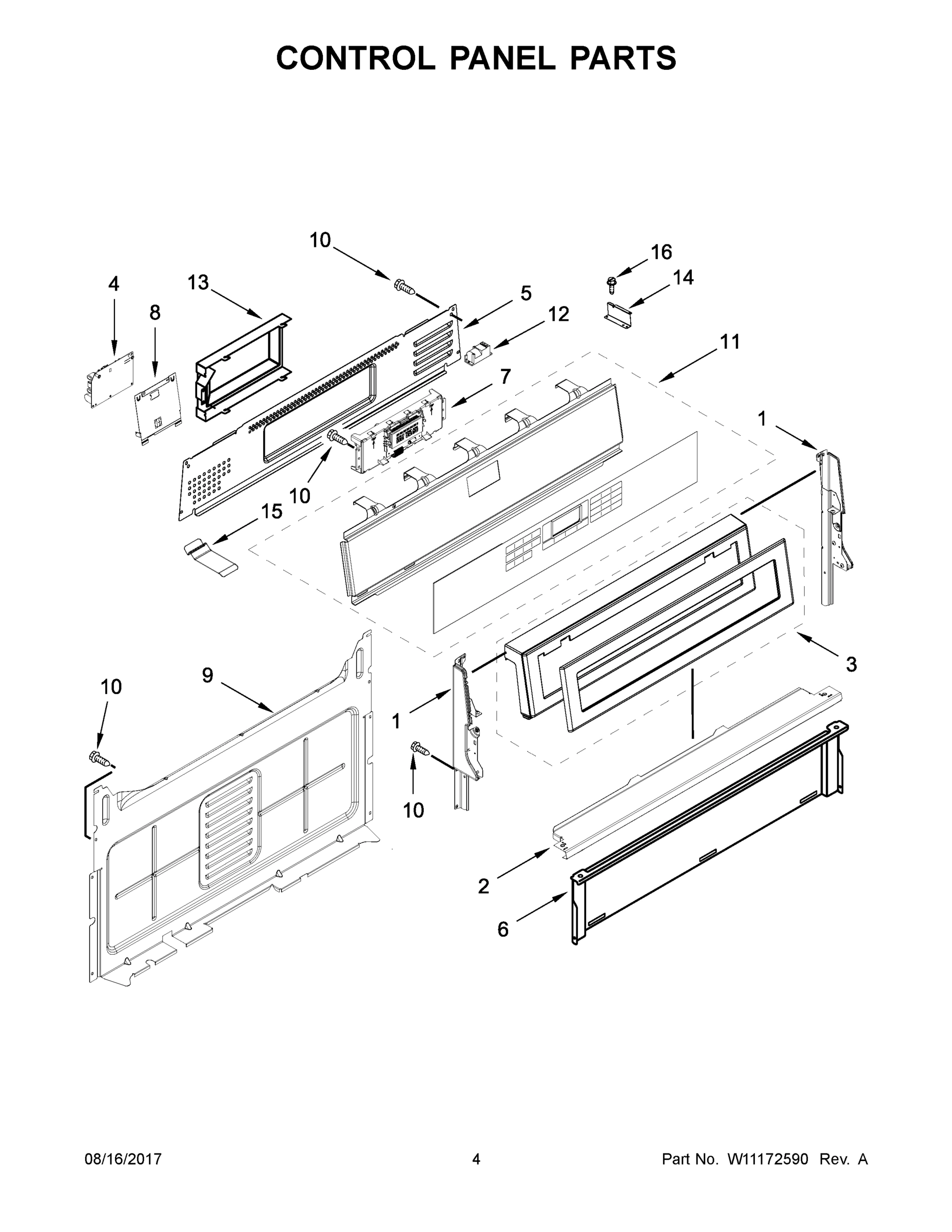

03 - CONTROL PANEL PARTS

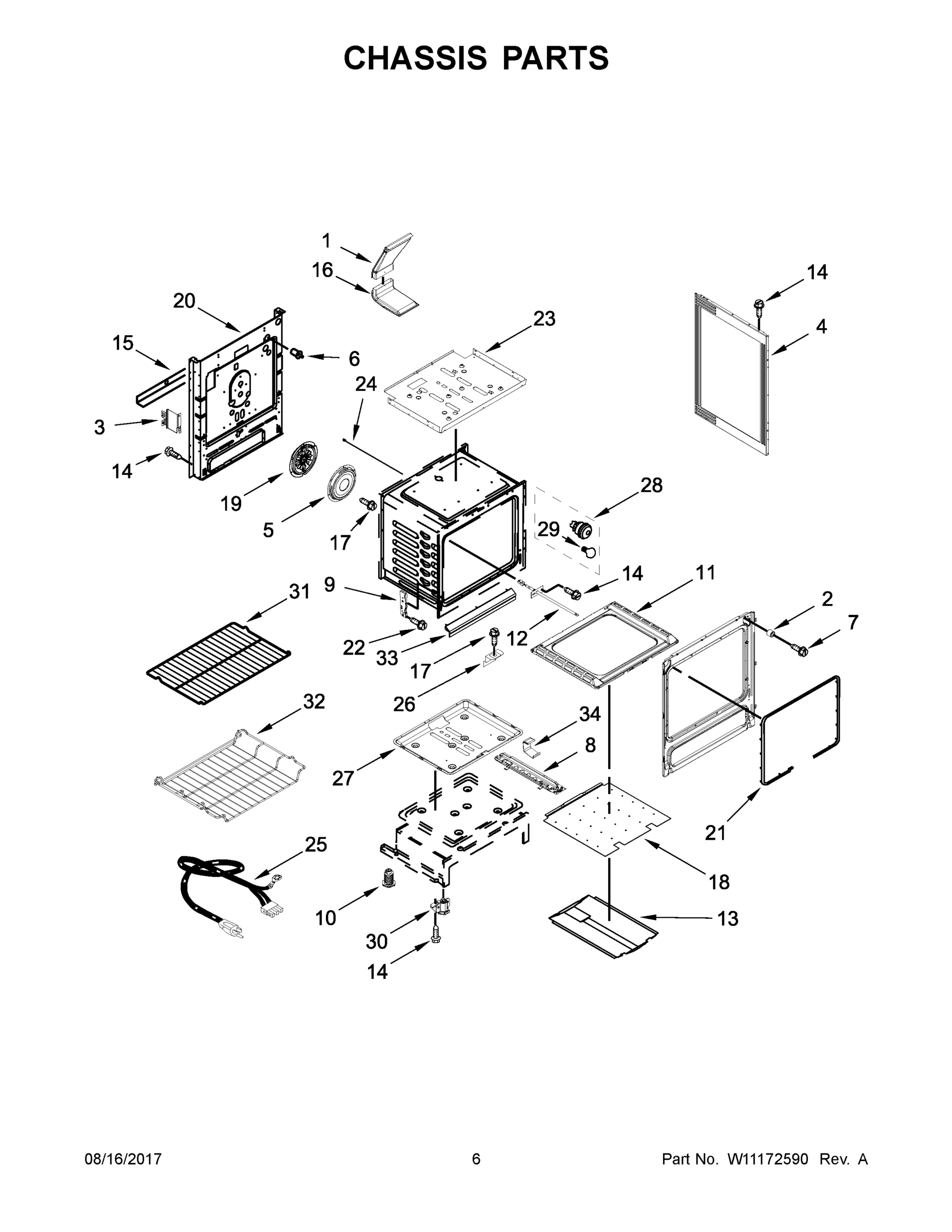

04 - CHASSIS PARTS

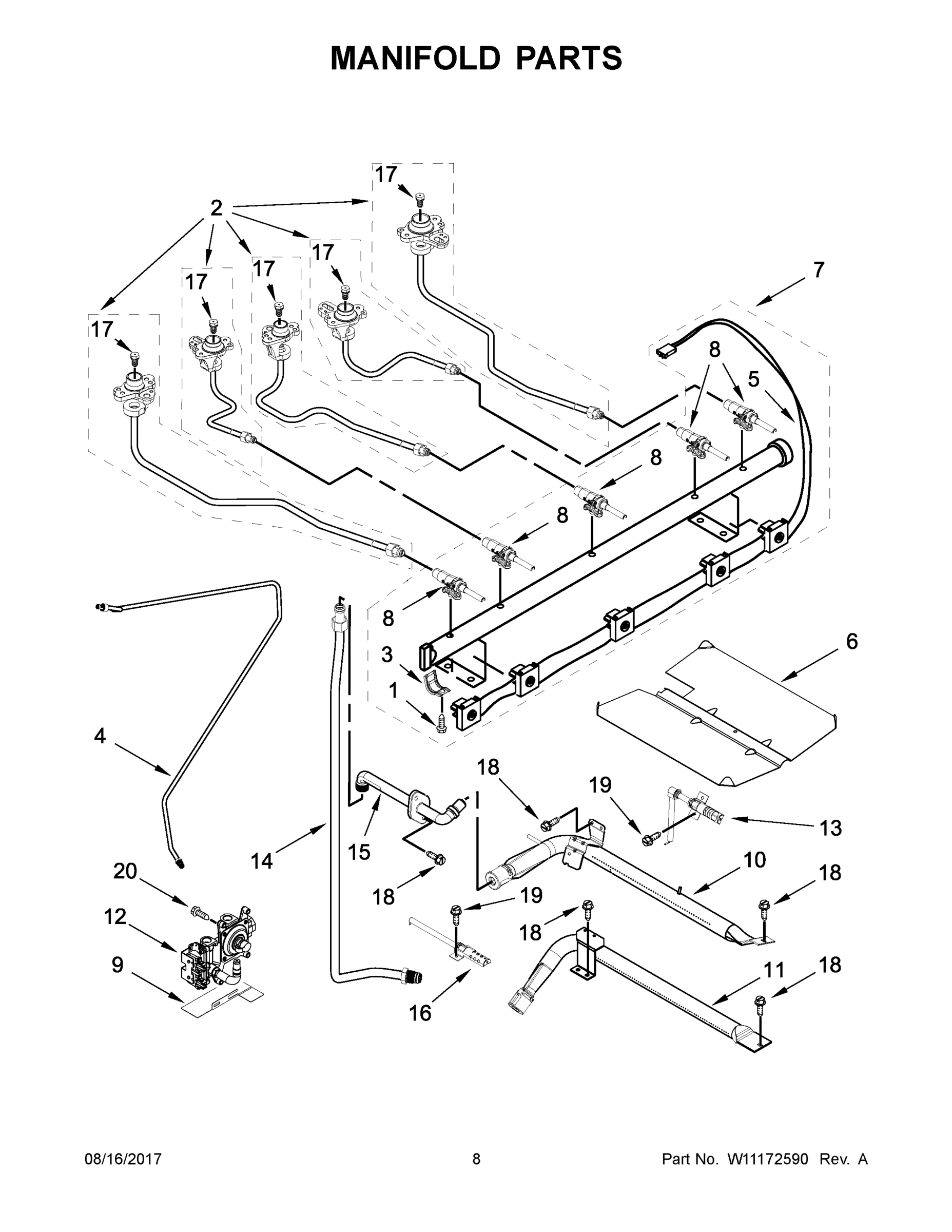

05 - MANIFOLD PARTS

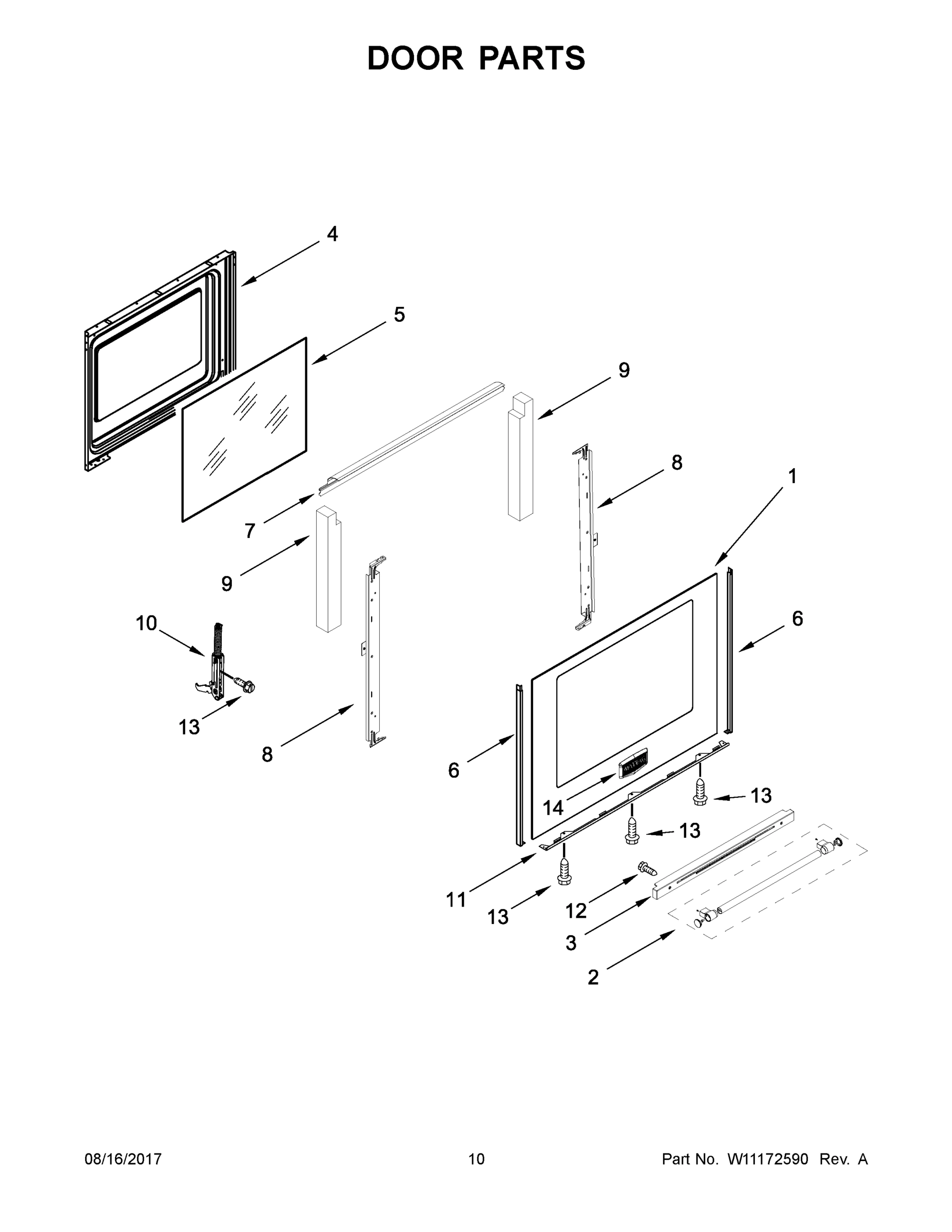

06 - DOOR PARTS

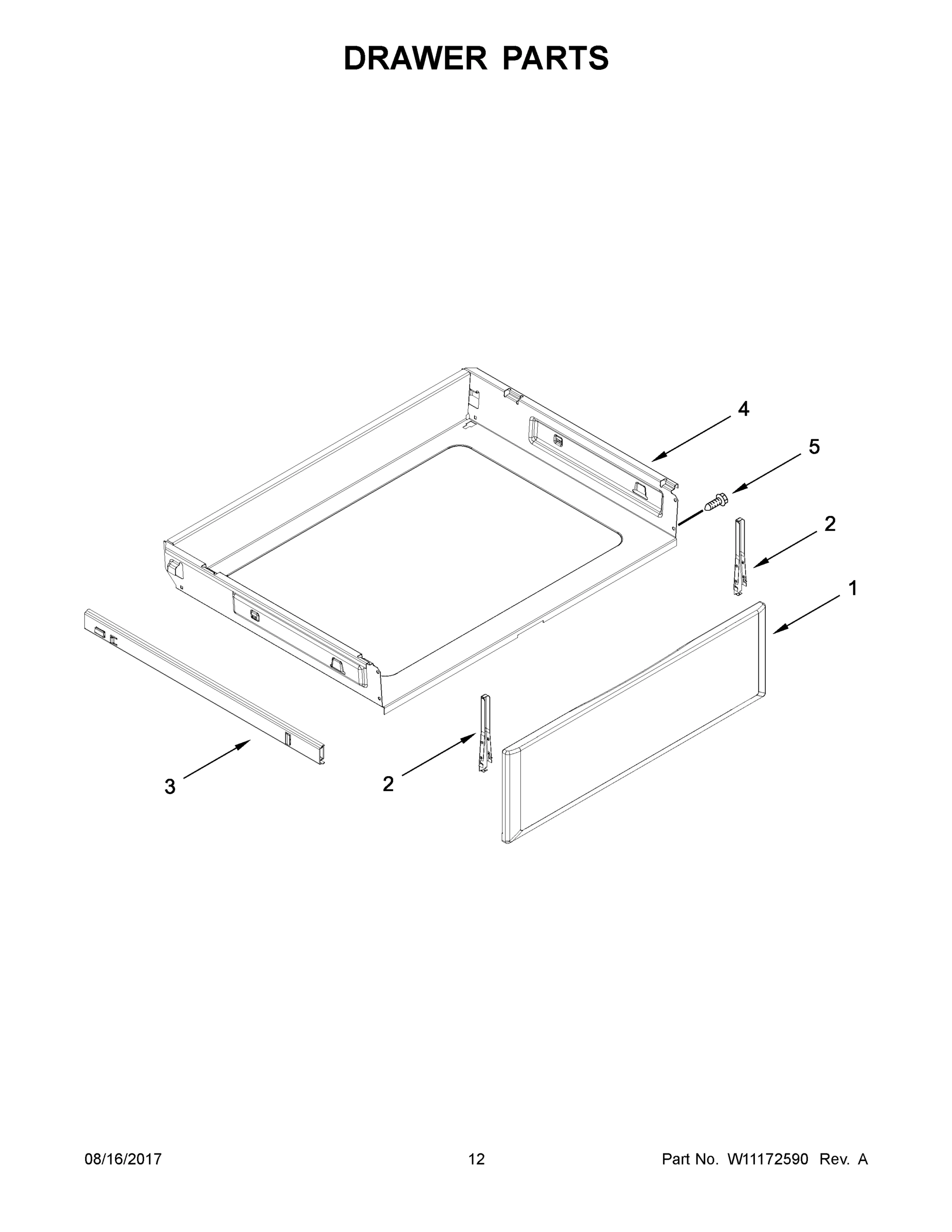

07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR8800FW0 RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10694025 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W10184437 Contact Us For Availability
1
ASSEMBLY, FLUE MAY W10314347 Contact Us For Availability
1
SCREW, VALVE MAY W10295997 Contact Us For Availability
1
GLASS, OUTER DOOR (BLACK) MAY W10665481 Contact Us For Availability
1
PANEL, DRAWER FRONT (BLACK) MAY W10330042 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W10667179 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W10184438 Contact Us For Availability
1A
GLASS, OUTER DOOR (WHITE) MAY W10495962 Contact Us For Availability
1A
PANEL, DRAWER FRONT (WHITE) MAY W10330041 Contact Us For Availability
1B
SHEET, TECH (ENGLISH) MAY W10538797 Contact Us For Availability
1B
ENDCAP (WHITE (LEFT)) MAY W10184433 Contact Us For Availability
1C
SHEET, TECH (FRENCH) MAY W10538798 Contact Us For Availability
1C
ENDCAP (WHITE (RIGHT)) MAY W10184434 Contact Us For Availability
1D
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1F
GUIDE, QUICK START (ENGLISH) MAY W10400066 Contact Us For Availability
2
SET, BURNER CAP (BLACK (SET OF 4)) MAY W10850506 Contact Us For Availability
2
BRACKET, CONSOLE MOUNTING MAY W10516123 Contact Us For Availability
2
SPACER, DOOR MAY 9758701 Contact Us For Availability
2
ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT) MAY W10473936 Contact Us For Availability
2
ASSEMBLY, HANDLE (BLACK) MAY W10889624 Contact Us For Availability
2
BRACKET, MOUNTING MAY W10318026 Contact Us For Availability
2A
ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR) MAY W10732140 Contact Us For Availability
2A
ASSEMBLY, HANDLE (WHITE) MAY W10889625 Contact Us For Availability
2B
ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT) MAY W10732137 Contact Us For Availability
2C
ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR) MAY W10732139 Contact Us For Availability
2D
ASSEMBLY, ORIFICE HOLDER (8K) (CENTER) MAY W10836764 Contact Us For Availability
3
SCREW MAY W10067840 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10645846 Contact Us For Availability
3
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
3
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
3
TRIM, VENT (BLACK) MAY W10294855 Contact Us For Availability
3
SLIDE, DRAWER (LEFT) MAY W10441804 Contact Us For Availability
3A
CONSOLE (WHITE) MAY W10645847 Contact Us For Availability
3A
TRIM, VENT (WHITE) MAY W10335331 Contact Us For Availability
3A
SLIDE, DRAWER (RIGHT) MAY W10441805 Contact Us For Availability
4
ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT MAY W10515455 Contact Us For Availability
4
MODULE, SPARK DSI MAY W10920631 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
4
TUBING, MAIN SUPPLY MAY W10510125 Contact Us For Availability
4
LINER, DOOR MAY W10297318 Contact Us For Availability
4
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
4A
ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) MAY W10515454 Contact Us For Availability
4A
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
4B
BURNER, AUXILIARY (6K) (RIGHT REAR) MAY W10515453 Contact Us For Availability
5
COOKTOP (BLACK) MAY W10884167 Contact Us For Availability
5
COVER, UPPER MAY W10198745 Contact Us For Availability
5
SCREW MAY 3196169 Contact Us For Availability
5
COVER, CONVECTION MAY W10346154 Contact Us For Availability
5
HARNESS, IGNITER (INCLUDES SWITCHES) MAY W10811691 Contact Us For Availability
5
GLASS, INNER MAY W10300487 Contact Us For Availability
5A
COOKTOP (WHITE) MAY W10888303 Contact Us For Availability
6
PANEL, MANIFOLD (BLACK) MAY W10724449 Contact Us For Availability
6
SHIELD, HEAT MAY W10192841 Contact Us For Availability
6
SWITCH, DOOR MAY W10627802 Contact Us For Availability
6
BAFFLE, BROIL BURNER MAY 3601P336-45 Contact Us For Availability
6
TRIM, SIDE (BLACK) MAY W10334004 Contact Us For Availability
6A
PANEL, MANIFOLD (WHITE) MAY W10724448 Contact Us For Availability
6A
TRIM, SIDE (WHITE) MAY W10334003 Contact Us For Availability
7
KNOB, CONTROL (BLACK) MAY W10892255 Contact Us For Availability
7
CONTROL, MRC MAY W10340325 Contact Us For Availability
7
SCREW MAY 3196560 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10859728 Contact Us For Availability
7
BRACKET, GLASS LINER MAY W10294853 Contact Us For Availability
7A
KNOB, CONTROL (WHITE) MAY W10892257 Contact Us For Availability
8
SET, GRATE (BLACK) MAY W10655132 Contact Us For Availability
8
BRACKET, MOUNTING MAY W10762981 Contact Us For Availability
8
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W10279615 Contact Us For Availability
8
RAIL, DOOR MAY W10294851 Contact Us For Availability
8A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR) MAY W10279614 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR) MAY W10247744 Contact Us For Availability
8C
VALVE, GAS (CENTER) MAY W10850894 Contact Us For Availability
9
SCREW MAY 3400701 Contact Us For Availability
9
COVER, BACK MAY W10184251 Contact Us For Availability
9
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
9
BRACKET, AEGIS MAY W10224921 Contact Us For Availability
9
INSULATION, DOOR MAY W10772958 Contact Us For Availability
10
BRACKET, MANIFOLD PANEL MAY W10534174 Contact Us For Availability
10
FOOT, LEVELING MAY W10058460 Contact Us For Availability
10
BURNER, BROILER MAY W10439242 Contact Us For Availability
10
HINGE, DOOR (ACTIVE) MAY W10440013 Contact Us For Availability
11
KIT, GRIDDLE MAY W10347385 Contact Us For Availability
11
ASSEMBLY, ACTIVE OVERLAY (BLACK) MAY W10884364 Contact Us For Availability
11
BOTTOM, OVEN MAY W10211368 Contact Us For Availability
11
BURNER, BAKE MAY W10680035 Contact Us For Availability
11
TRIM, BOTTOM (BLACK) MAY W10334031 Contact Us For Availability
11A
ASSEMBLY, ACTIVE OVERLAY (WHITE) MAY W10887358 Contact Us For Availability
11A
TRIM, BOTTOM (WHITE) MAY W10333990 Contact Us For Availability
12
BRACKET, REAR GAS COOKTOP MAY W10530070 Contact Us For Availability
12
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
12
SENSOR MAY W10586204 Contact Us For Availability
12
VALVE, GAS MAY W10720102 Contact Us For Availability
12
SCREW MAY W10480830 Contact Us For Availability
13
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
13
COVER, REAR FAN MAY W10158780 Contact Us For Availability
13
BAFFLE, BAKE BURNER MAY 3601P356-45 Contact Us For Availability
13
IGNITER, BAKE MAY W10324262 Contact Us For Availability
13
SCREW MAY W10327235 Contact Us For Availability
14
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
14
BRACKET, IGNITOR MAY W10797001 Contact Us For Availability
14
TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE) MAY W10306050 Contact Us For Availability
14
BADGE MAY W10612925 Contact Us For Availability
15
ELECTRODE (LEFT FRONT, LEFT REAR, RIGHT FRONT MAY W10515459 Contact Us For Availability
15
SPREADER, CLIP-SPRING MAY W10551614 Contact Us For Availability
15
BRACE, MAIN BACK MAY W10435470 Contact Us For Availability
15
FITTING, BROIL MAY W10776437 Contact Us For Availability
15A
ELECTRODE (CENTER) MAY W10496870 Contact Us For Availability
16
BEZEL (BLACK) MAY W10894849 Contact Us For Availability
16
ASSEMBLY, FLUE (UPPER) MAY W10311326 Contact Us For Availability
16
ELECTRODE, BROIL MAY W10333842 Contact Us For Availability
16A
BEZEL (WHITE) MAY W10894848 Contact Us For Availability
17
SPREADER, FLAME MAY W10298664 Contact Us For Availability
17
SCREW MAY W10362924 Contact Us For Availability
17
ORIFICE (15K) (LEFT FRONT) MAY W10347414 Contact Us For Availability
17A
ORIFICE (8K) (LEFT REAR) MAY W10170507 Contact Us For Availability
17B
ORIFICE (12K) (RIGHT FRONT) MAY W10178934 Contact Us For Availability
17C
ORIFICE (5K) (RIGHT REAR) MAY W10732136 Contact Us For Availability
17D
ORIFICE (8K) (CENTER) MAY W10657947 Contact Us For Availability
18
BUMPER, GRATE MAY 8003P033-60 Contact Us For Availability
18
SCREW MAY 3196178 Contact Us For Availability
18
DIFFUSER, FLAME MAY W10323077 Contact Us For Availability
19
SCREW MAY 8273062 Contact Us For Availability
19
MOTOR, FAN (CONVECTION) MAY W10874067 Contact Us For Availability
19
SCREW MAY 3196385 Contact Us For Availability
20
CLIP, SPRING (ELECTRODE) MAY W10575401 Contact Us For Availability
20
BACK, MAIN MAY W10273005 Contact Us For Availability
20
SCREW MAY 3400016 Contact Us For Availability
21
GASKET, DOOR MAY W10162385 Contact Us For Availability
22
SCREW MAY W10031780 Contact Us For Availability
23
SHIELD, HEAT MAY W10273195 Contact Us For Availability
24
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
25
CORD, POWER MAY W10624590 Contact Us For Availability
26
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
27
PAN, BAKE MAY W10273204 Contact Us For Availability
28
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
29
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
30
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
31
RACK, OVEN MAY W10531060 Contact Us For Availability
32
RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
33
CLIP, FRONT FRAME COVER MAY W10501599 Contact Us For Availability
34
CLIP, PANEL MAY W10137382 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLIP, GAS WIRING MAY W10334923 Contact Us For Availability
NI
HARNESS, BAKE/BROIL MAY W10753750 Contact Us For Availability
NI
HARNESS, MAIN MAY W10797419 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10809927 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
INSULATION, WRAP MAY W10526208 Contact Us For Availability
NI
INSULATION, MAIN BACK MAY W10526209 Contact Us For Availability
NI
KIT, LP 5 ORIFICE CONVERSION MAY W10170516 Contact Us For Availability
NI
KIT, LP CONVERSION (BAKE/BROIL) MAY W10566535 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. PRIMER (WHIT MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, PROTECTANT, COOKTOP MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
ACCESSORY PARTS, CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
ACCESSORY PARTS, CLIP, WIRE MAY 3196896 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (INSERT) MAY W10186592 Contact Us For Availability
NI
ACCESSORY PARTS, SPLIT OVEN RACK MAY W10205524 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (PARTIAL) MAY W10205526 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
ACC MAY WA906B Contact Us For Availability
× ![]()
Login and Registration Form
