Model Maytag MGR8700DS3 RANGE/OVEN, GAS, FREESTANDING – Common Parts & Diagrams

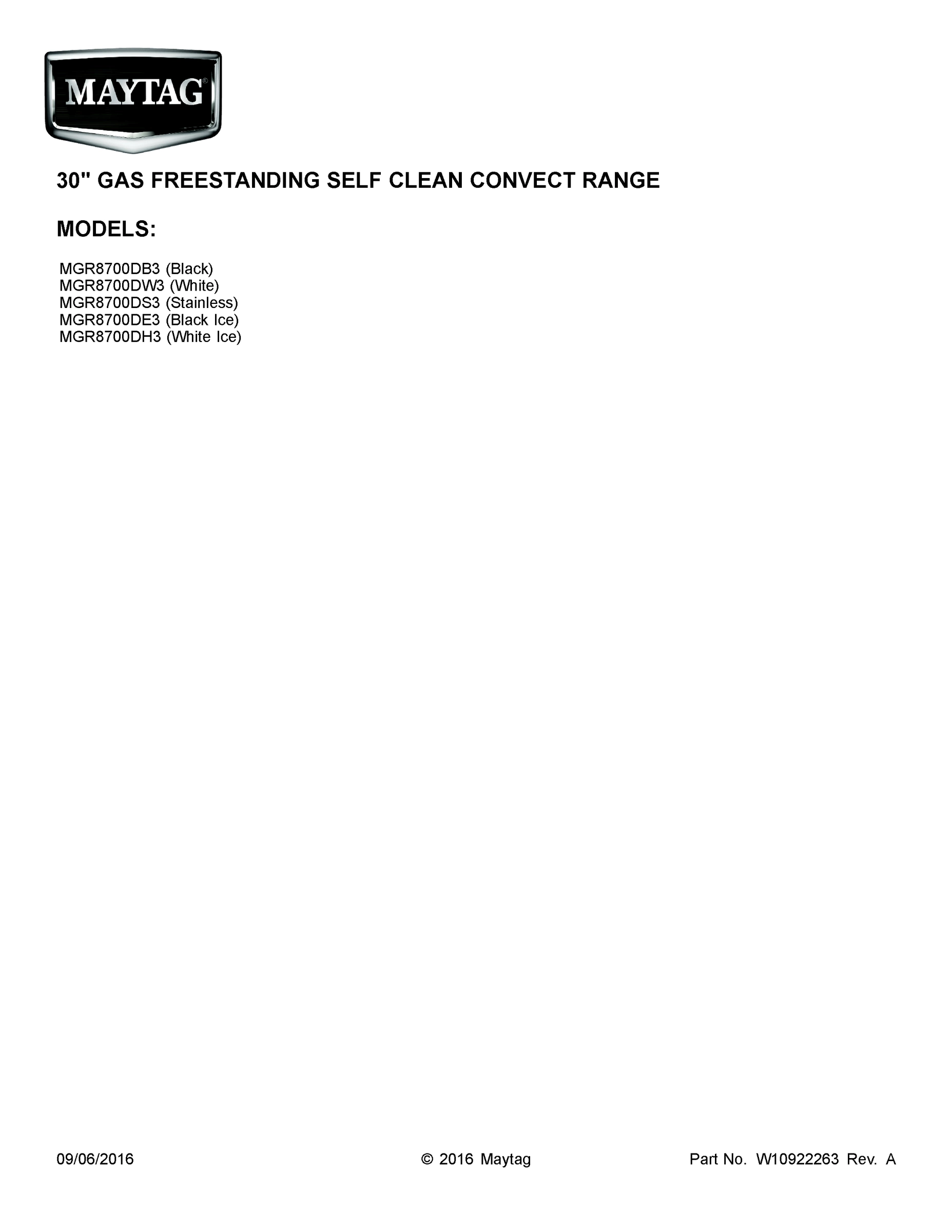

01 - COVER SHEET

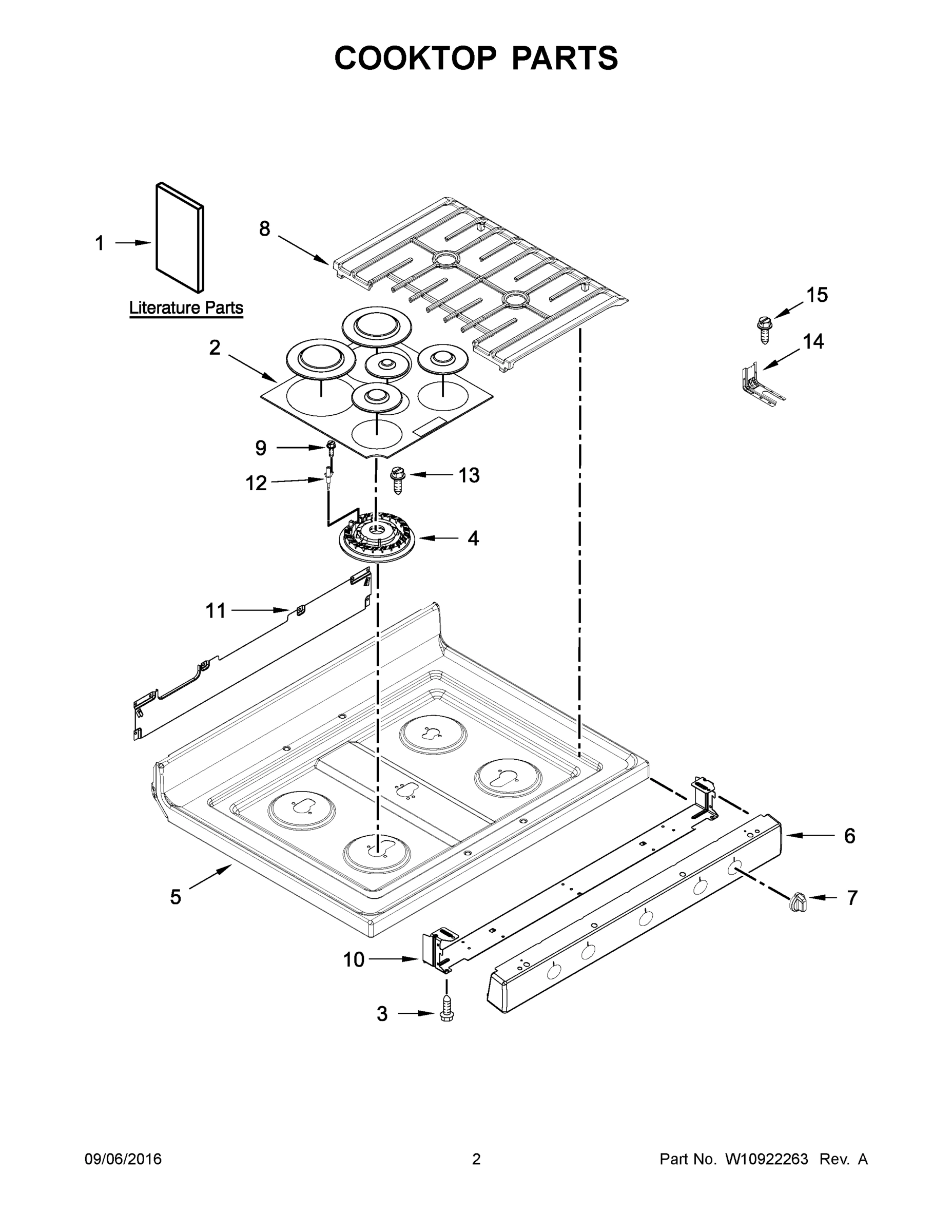

02 - COOKTOP PARTS

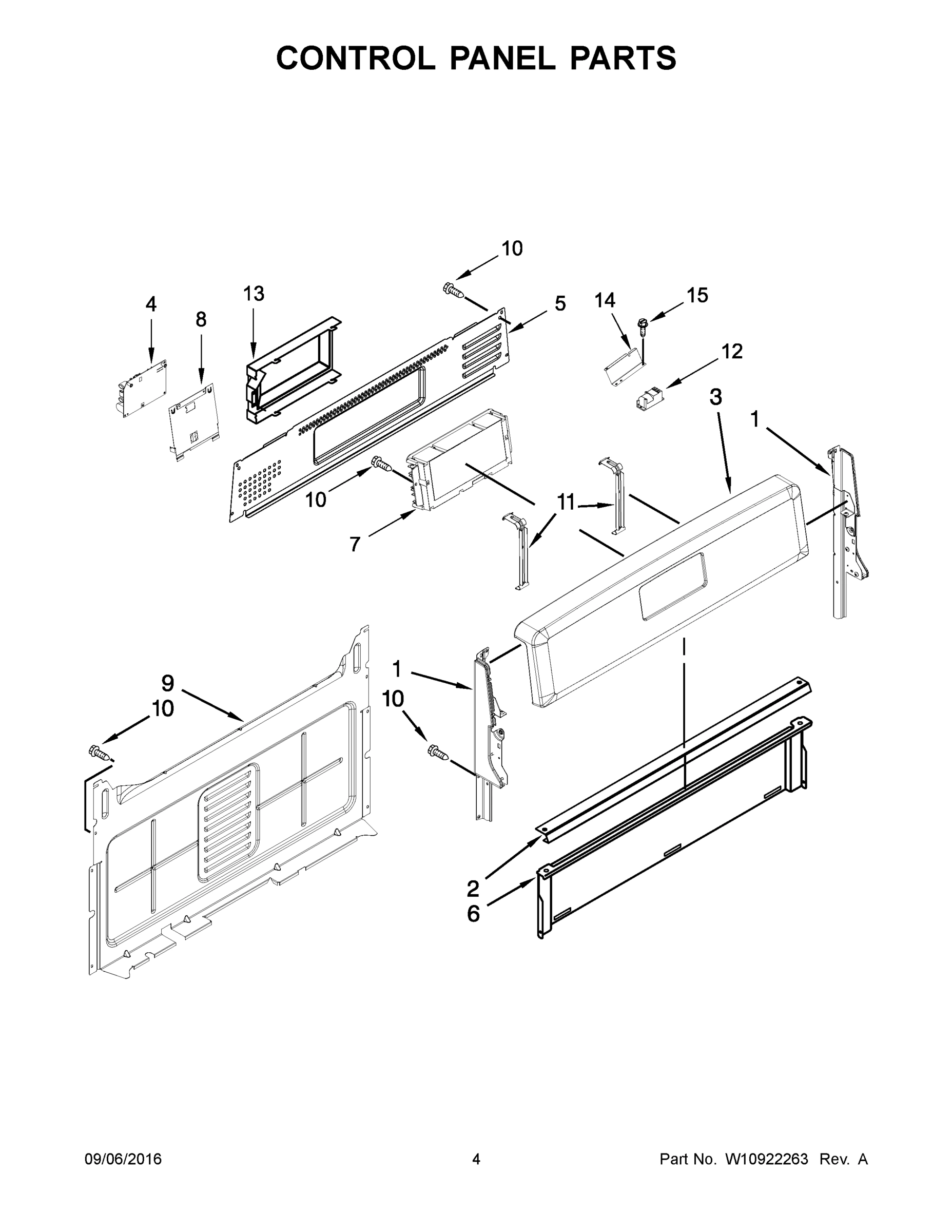

03 - CONTROL PANEL PARTS

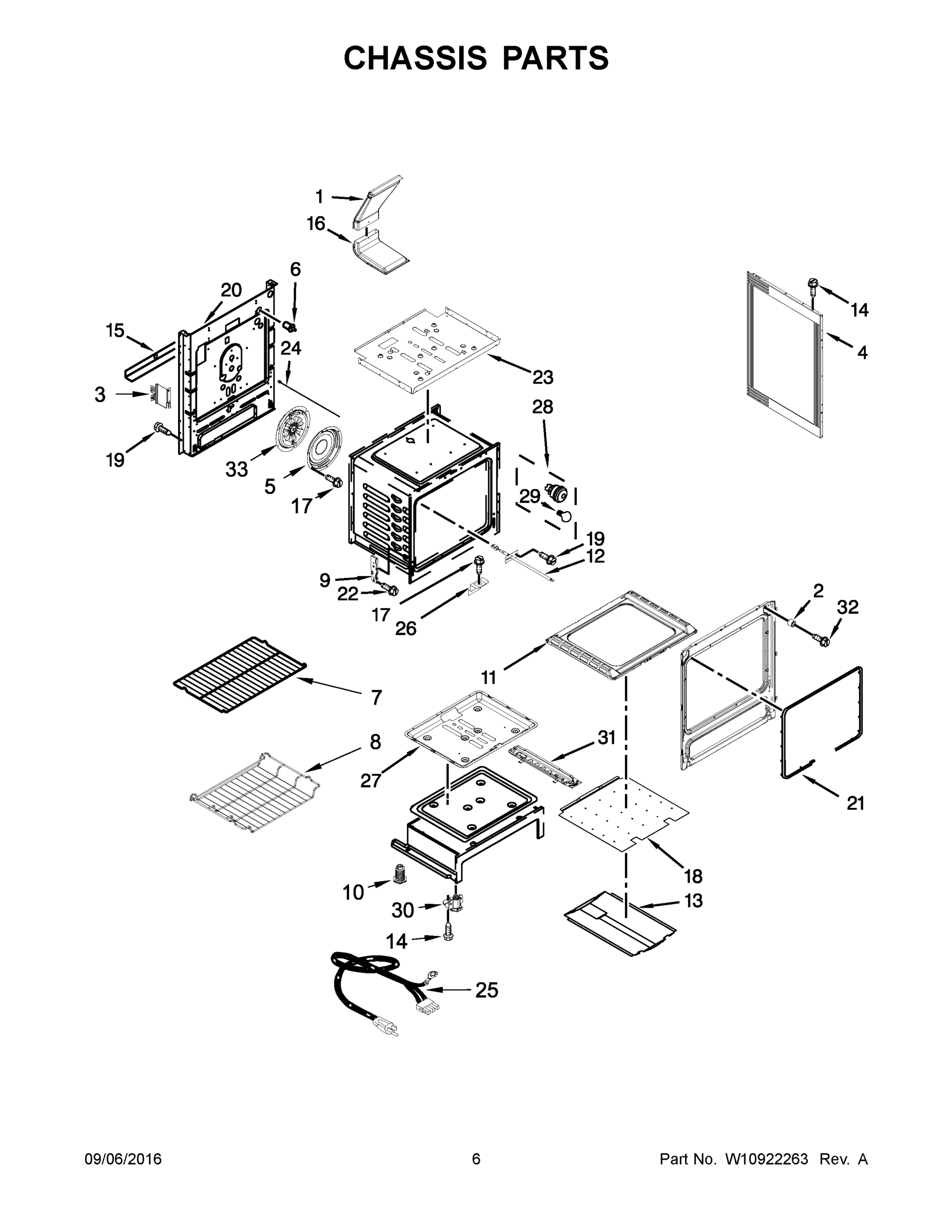

04 - CHASSIS PARTS

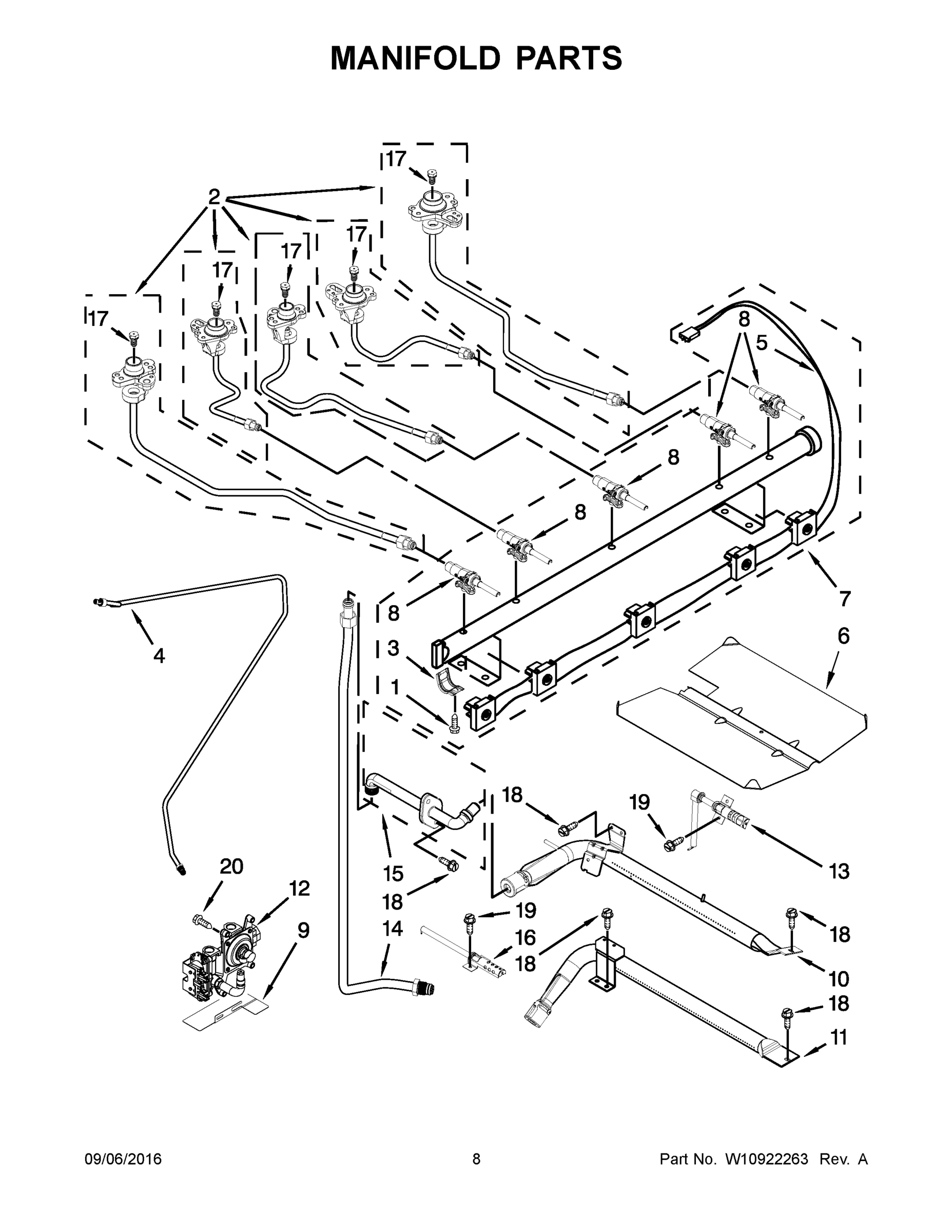

05 - MANIFOLD PARTS

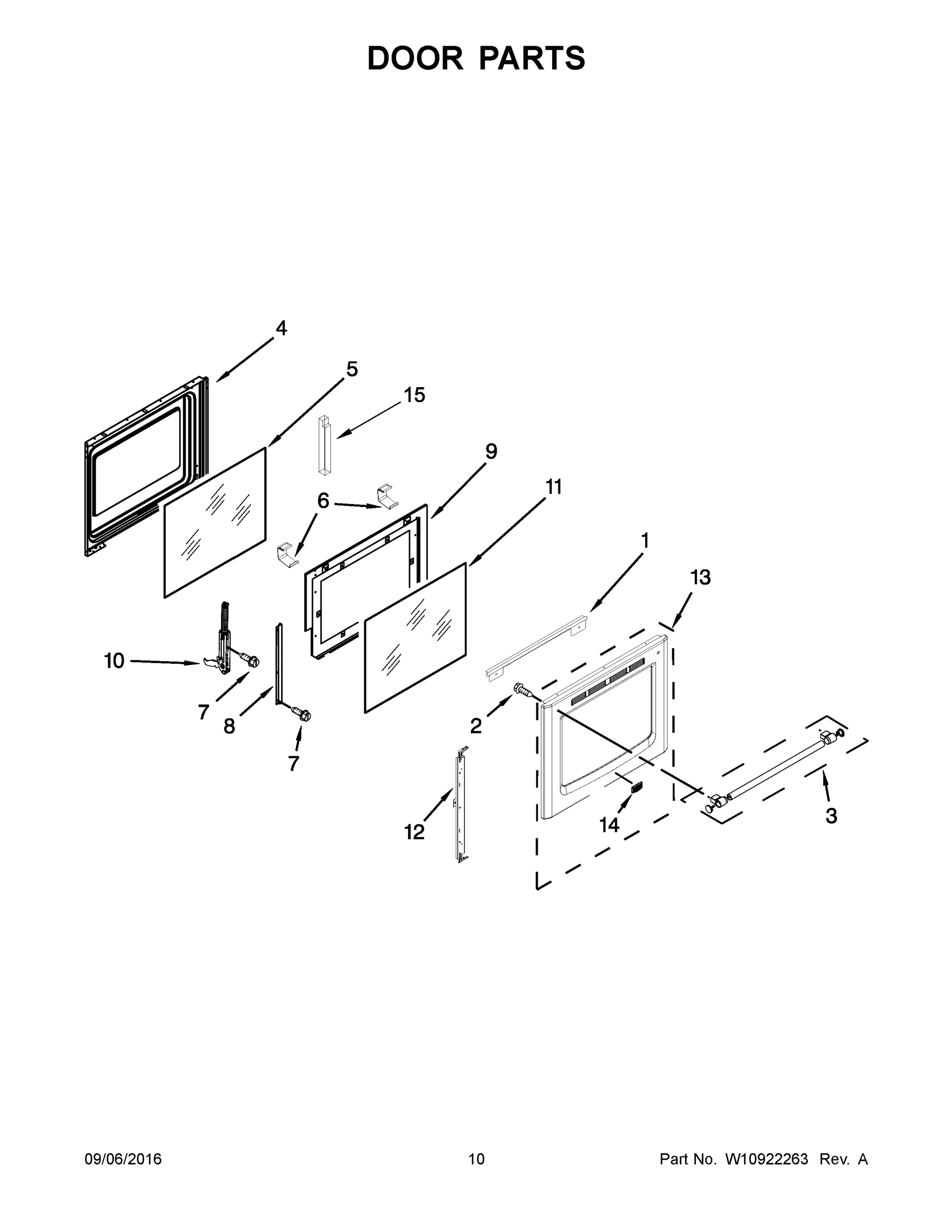

06 - DOOR PARTS

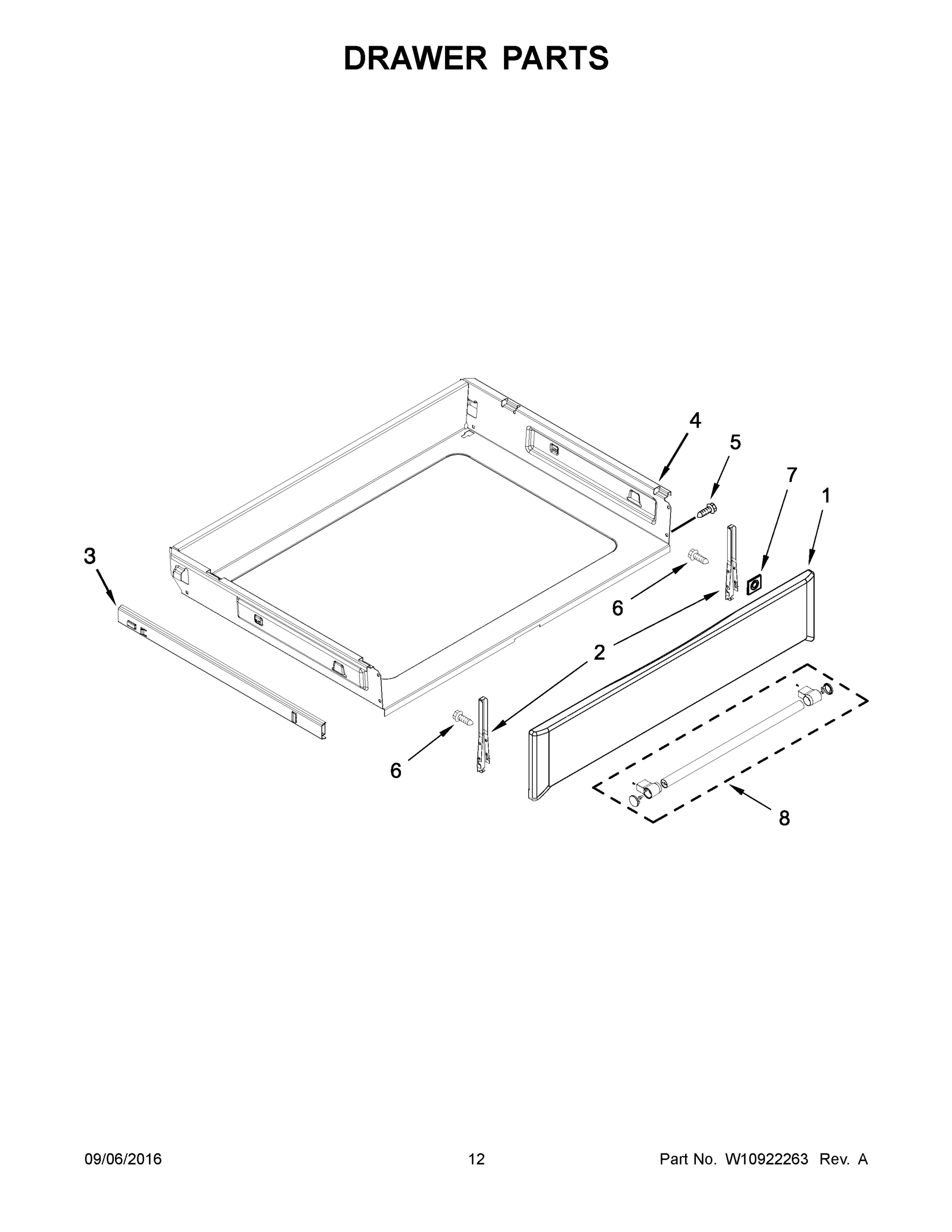

07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR8700DS3 RANGE/OVEN, GAS, FREESTANDING
1
MAY W10694025 MAY W10694025 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W10184437 Contact Us For Availability
1
MAY W10314347 MAY W10314347 Contact Us For Availability
1
MAY W10295997 MAY W10295997 Contact Us For Availability
1
TRIM, VENT (BLACK) MAY W10339814 Contact Us For Availability
1
MAY W10667937 MAY W10667937 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W10667178 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W10184438 Contact Us For Availability
1A
MAY W10330075 MAY W10330075 Contact Us For Availability
1A
MAY W10667936 MAY W10667936 Contact Us For Availability
1B
MAY W10400066 MAY W10400066 Contact Us For Availability
1B
ENDCAP (WHITE (LEFT)) MAY W10184433 Contact Us For Availability
1B
MAY W10432481 MAY W10432481 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1C
ENDCAP (WHITE (RIGHT)) MAY W10184434 Contact Us For Availability
1D
SHEET, TECH (ENGLISH) MAY W10538795 Contact Us For Availability
2
MAY W10183374 MAY W10183374 Contact Us For Availability
2
MAY W10516123 MAY W10516123 Contact Us For Availability
2
SPACER, DOOR MAY 9758701 Contact Us For Availability
2
MAY W10473936 MAY W10473936 Contact Us For Availability
2
SCREW MAY W10317886 Contact Us For Availability
2
MAY W10318026 MAY W10318026 Contact Us For Availability
2A
MAY W10732140 MAY W10732140 Contact Us For Availability
2B
MAY W10732137 MAY W10732137 Contact Us For Availability
2C
MAY W10732139 MAY W10732139 Contact Us For Availability
2D
MAY W10732141 MAY W10732141 Contact Us For Availability
3
MAY W10067840 MAY W10067840 Contact Us For Availability
3
MAY W10655861 MAY W10655861 Contact Us For Availability
3
MAY W10273002 MAY W10273002 Contact Us For Availability
3
MAY W10295996 MAY W10295996 Contact Us For Availability
3
MAY W10441804 MAY W10441804 Contact Us For Availability
3A
MAY W10655858 MAY W10655858 Contact Us For Availability
3A
MAY W10441805 MAY W10441805 Contact Us For Availability
3B
MAY W10655864 MAY W10655864 Contact Us For Availability
4
ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT MAY W10515455 Contact Us For Availability
4
MAY W10511278 MAY W10511278 Contact Us For Availability
4
MAY W10162245 MAY W10162245 Contact Us For Availability
4
MAY W10510125 MAY W10510125 Contact Us For Availability
4
MAY W10297318 MAY W10297318 Contact Us For Availability
4
MAY W10688022 MAY W10688022 Contact Us For Availability
4A
ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) MAY W10515454 Contact Us For Availability
4A
MAY W10575396 MAY W10575396 Contact Us For Availability
4B
MAY W10515453 MAY W10515453 Contact Us For Availability
5
MAY W10366730 MAY W10366730 Contact Us For Availability
5
MAY W10198745 MAY W10198745 Contact Us For Availability
5
MAY 3196169 MAY 3196169 Contact Us For Availability
5
MAY W10346154 MAY W10346154 Contact Us For Availability
5
SWITCH, 5 BURNER MANIFOLD HARNESS MAY W10783317 Contact Us For Availability
5
GLASS, INNER MAY W10300487 Contact Us For Availability
5A
MAY W10366729 MAY W10366729 Contact Us For Availability
6
MAY W10655890 MAY W10655890 Contact Us For Availability
6
MAY W10192841 MAY W10192841 Contact Us For Availability
6
MAY W10627802 MAY W10627802 Contact Us For Availability
6
MAY 3601P336-45 MAY 3601P336-45 Contact Us For Availability
6
MAY W10137382 MAY W10137382 Contact Us For Availability
6
MAY 8533988 MAY 8533988 Contact Us For Availability
6A
MAY W10655889 MAY W10655889 Contact Us For Availability
6B
MAY W10655891 MAY W10655891 Contact Us For Availability
7
MAY W10650400 MAY W10650400 Contact Us For Availability
7
MAY W10655868 MAY W10655868 Contact Us For Availability
7
MAY W10531060 MAY W10531060 Contact Us For Availability
7
MAY W10783318 MAY W10783318 Contact Us For Availability
7
MAY W10327235 MAY W10327235 Contact Us For Availability
7
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
7A
MAY W10655867 MAY W10655867 Contact Us For Availability
7B
MAY W10655869 MAY W10655869 Contact Us For Availability
8
KIT, GRATE (BLACK) MAY W10655132 Contact Us For Availability
8
MAY W10516463 MAY W10516463 Contact Us For Availability
8
MAY W10289145 MAY W10289145 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W10279615 Contact Us For Availability
8
HANDLE, DOOR (BLACK) MAY W10665829 Contact Us For Availability
8
MAY W10294852 MAY W10294852 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR & CENTER) MAY W10279614 Contact Us For Availability
8A
HANDLE, DOOR (WHITE) MAY W10665830 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR) MAY W10247744 Contact Us For Availability
8B
MAY W10665831 MAY W10665831 Contact Us For Availability
9
MAY 3400701 MAY 3400701 Contact Us For Availability
9
COVER, BACK MAY W10184251 Contact Us For Availability
9
MAY W10289077 MAY W10289077 Contact Us For Availability
9
MAY W10224921 MAY W10224921 Contact Us For Availability
9
MAY W10294853 MAY W10294853 Contact Us For Availability
10
MAY W10534174 MAY W10534174 Contact Us For Availability
10
MAY W10058460 MAY W10058460 Contact Us For Availability
10
MAY W10439242 MAY W10439242 Contact Us For Availability
10
HINGE, DOOR (ACTIVE) MAY W10388635 Contact Us For Availability
11
MAY W10530070 MAY W10530070 Contact Us For Availability
11
MAY W10695491 MAY W10695491 Contact Us For Availability
11
MAY W10211368 MAY W10211368 Contact Us For Availability
11
MAY W10680035 MAY W10680035 Contact Us For Availability
11
MAY W10615599 MAY W10615599 Contact Us For Availability
12
MAY W10515459 MAY W10515459 Contact Us For Availability
12
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
12
MAY W10586204 MAY W10586204 Contact Us For Availability
12
MAY W10720102 MAY W10720102 Contact Us For Availability
12
MAY W10294851 MAY W10294851 Contact Us For Availability
13
MAY 8273062 MAY 8273062 Contact Us For Availability
13
COVER, REAR FAN MAY W10158780 Contact Us For Availability
13
BAFFLE, BAKE BURNER MAY 3601P356-45 Contact Us For Availability
13
MAY W10324262 MAY W10324262 Contact Us For Availability
13
MAY W10655834 MAY W10655834 Contact Us For Availability
13A
MAY W10655831 MAY W10655831 Contact Us For Availability
13B
MAY W10655838 MAY W10655838 Contact Us For Availability
14
MAY W10306542 MAY W10306542 Contact Us For Availability
14
MAY W10797001 MAY W10797001 Contact Us For Availability
14
TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE) MAY W10306050 Contact Us For Availability
14
MAY W10636267 MAY W10636267 Contact Us For Availability
15
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
15
MAY W10435470 MAY W10435470 Contact Us For Availability
15
MAY W10776437 MAY W10776437 Contact Us For Availability
15
MAY W10772958 MAY W10772958 Contact Us For Availability
16
MAY W10311326 MAY W10311326 Contact Us For Availability
16
MAY W10333842 MAY W10333842 Contact Us For Availability
17
MAY W10362924 MAY W10362924 Contact Us For Availability
17
ORIFICE (15K) (LEFT FRONT) MAY W10347414 Contact Us For Availability
17A
ORIFICE (8K) (LEFT REAR) MAY W10170507 Contact Us For Availability
17B
ORIFICE (12K) (RIGHT FRONT) MAY W10178934 Contact Us For Availability
17C
MAY W10732136 MAY W10732136 Contact Us For Availability
17D
MAY W10251991 MAY W10251991 Contact Us For Availability
18
MAY 3196178 MAY 3196178 Contact Us For Availability
18
MAY W10323077 MAY W10323077 Contact Us For Availability
19
MAY 3196385 MAY 3196385 Contact Us For Availability
20
MAY W10273005 MAY W10273005 Contact Us For Availability
20
MAY 3400016 MAY 3400016 Contact Us For Availability
21
MAY W10162385 MAY W10162385 Contact Us For Availability
22
MAY W10031780 MAY W10031780 Contact Us For Availability
23
MAY W10273195 MAY W10273195 Contact Us For Availability
24
MAY W10273192 MAY W10273192 Contact Us For Availability
25
MAY W10624590 MAY W10624590 Contact Us For Availability
26
MAY W10035900 MAY W10035900 Contact Us For Availability
27
MAY W10273204 MAY W10273204 Contact Us For Availability
28
MAY W10454648 MAY W10454648 Contact Us For Availability
29
MAY 311255 MAY 311255 Contact Us For Availability
30
MAY W10341186 MAY W10341186 Contact Us For Availability
31
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
31A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
32
MAY 3196560 MAY 3196560 Contact Us For Availability
33
MAY W10389555 MAY W10389555 Contact Us For Availability
NI
CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
MAY 3196896 MAY 3196896 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLIP, GAS WIRING MAY W10334923 Contact Us For Availability
NI
HARNESS, DSI GROUND MAY W10519920 Contact Us For Availability
NI
HARNESS, BAKE/BROIL MAY W10753750 Contact Us For Availability
NI
MAY W10797420 MAY W10797420 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10809928 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY W10526208 MAY W10526208 Contact Us For Availability
NI
MAY W10526209 MAY W10526209 Contact Us For Availability
NI
KIT, LP 5 ORIFICE CONVERSION MAY W10170516 Contact Us For Availability
NI
MAY W10566535 MAY W10566535 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. PRIMER (WHIT MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY W10432019 MAY W10432019 Contact Us For Availability
× ![]()
