Model Maytag MGR7685AS0 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS

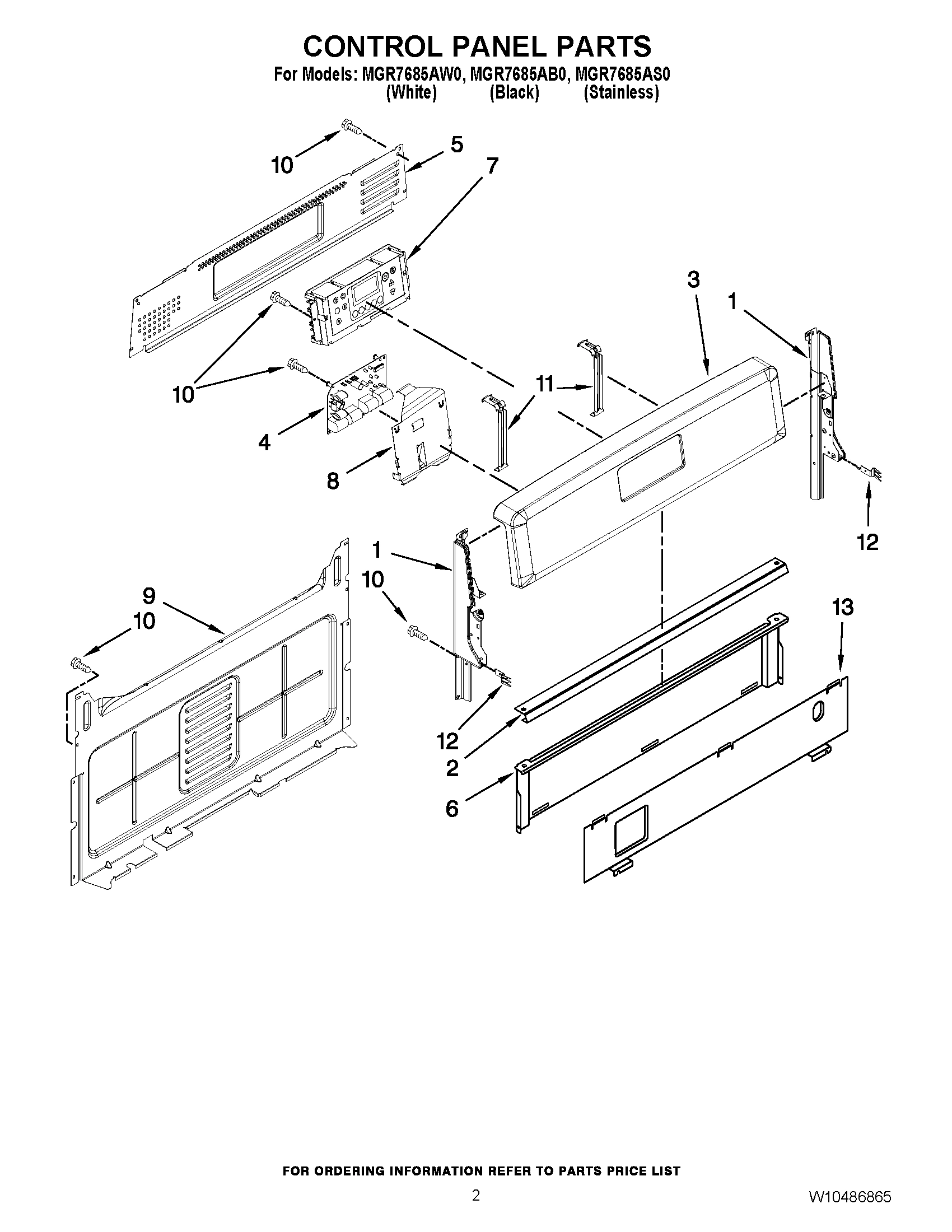

02 - CONTROL PANEL PARTS

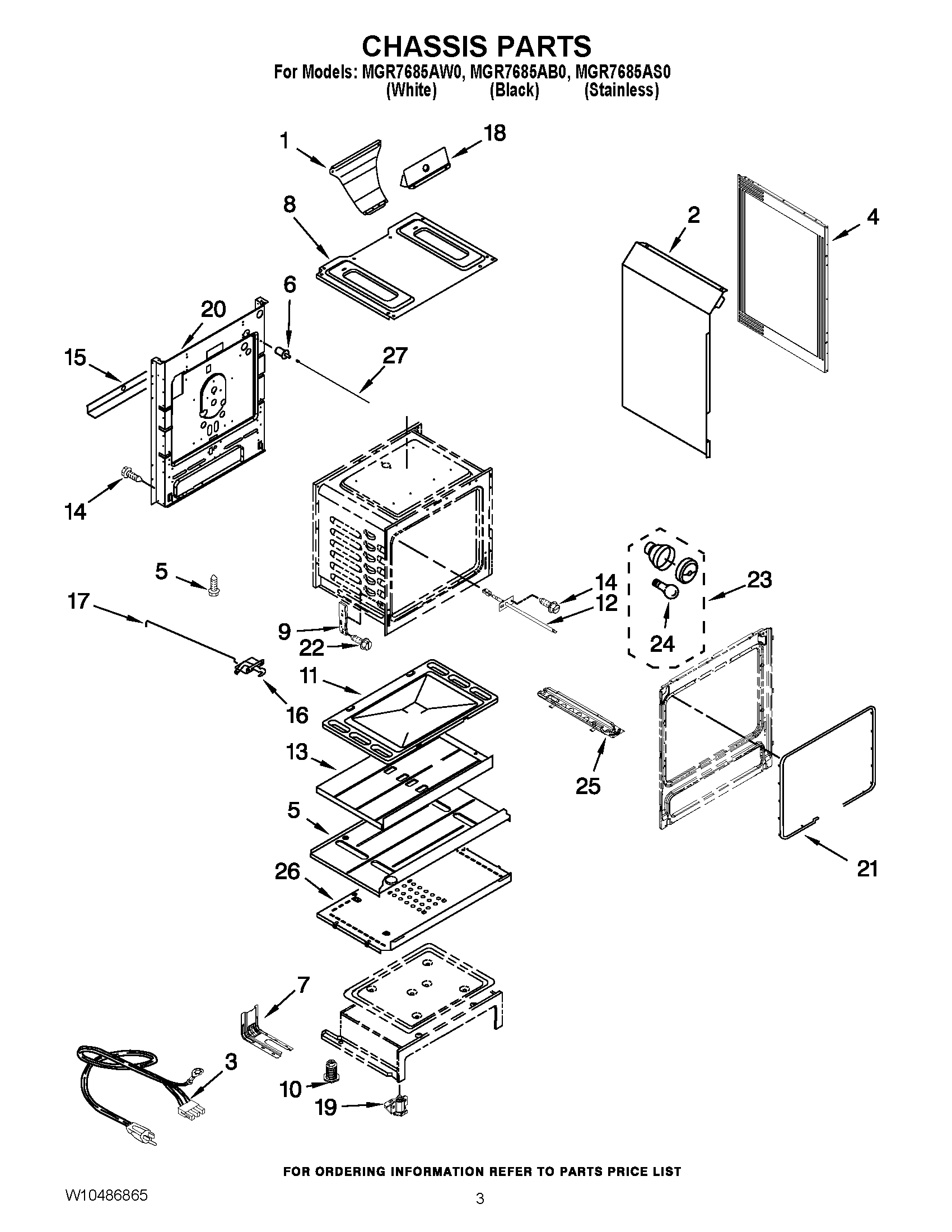

03 - CHASSIS PARTS

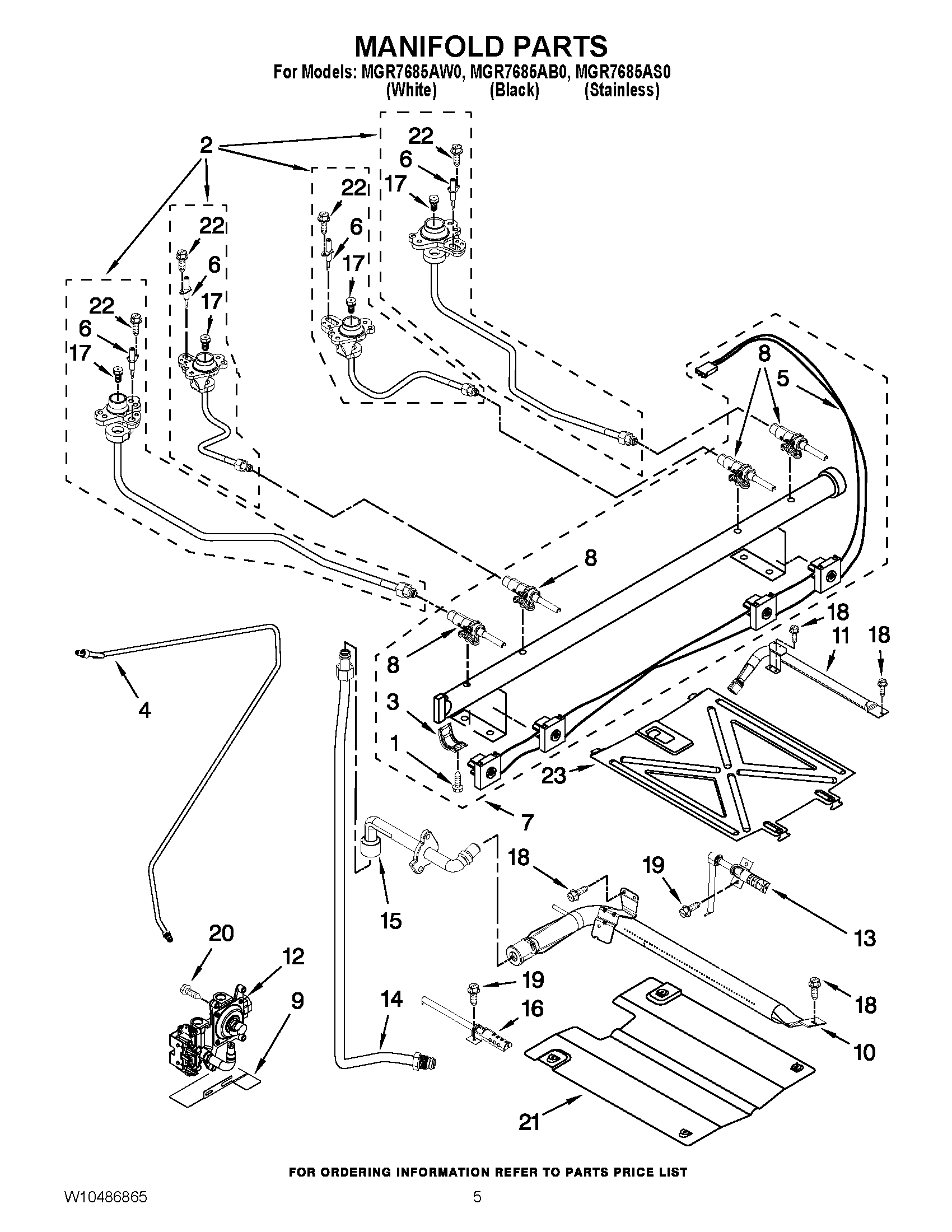

04 - MANIFOLD PARTS

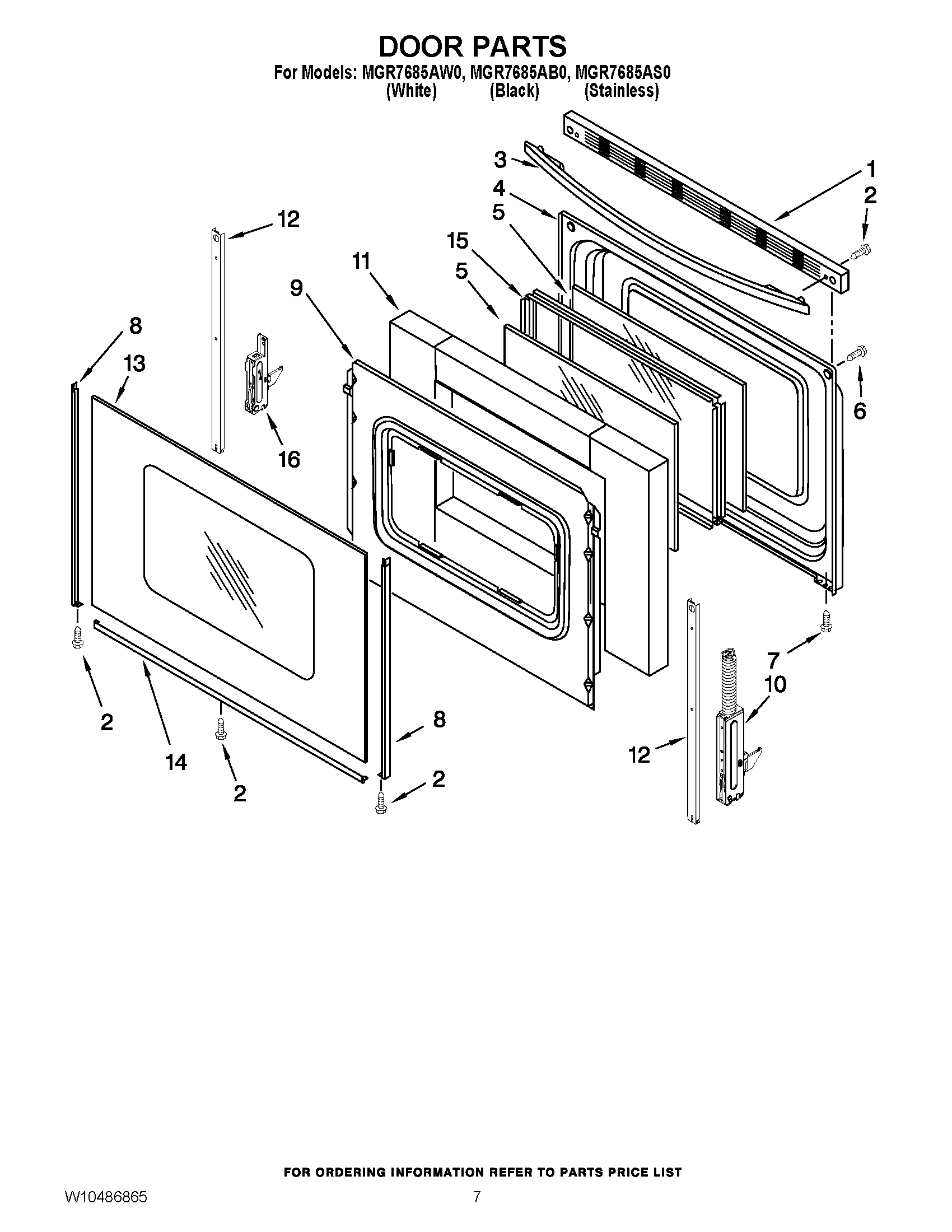

05 - DOOR PARTS

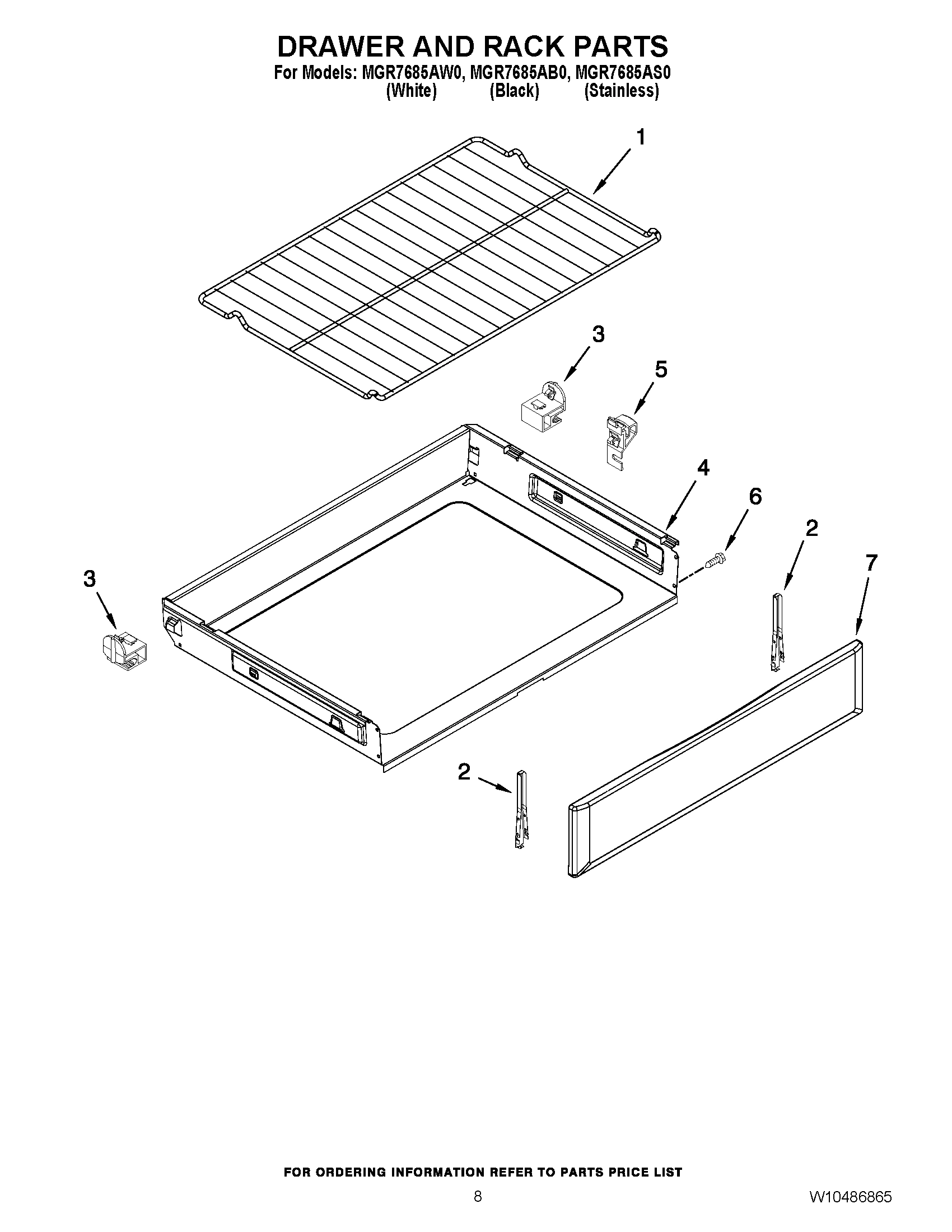

06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR7685AS0 GAS RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) MAY W10357517 Contact Us For Availability
1
MAY W10403809 MAY W10403809 Contact Us For Availability
1
OWNERS MANUAL GUIDE, QUICK START MAY W10456419 Contact Us For Availability
1
Endcap, Left Hand (White) MAY W10184433 Contact Us For Availability
1
Endcap, Right Hand (White) MAY W10184434 Contact Us For Availability
1
Endcap, Left Hand (Black) MAY W10184437 Contact Us For Availability
1
Endcap, Right Hand (Black) MAY W10184438 Contact Us For Availability
1
ASSEMBLY, FLUE MAY W10153186 Contact Us For Availability
1
MAY W10295997 MAY W10295997 Contact Us For Availability
1
TRIM, VENT (WHITE) MAY W10310920 Contact Us For Availability
1
TRIM, VENT (BLACK) MAY W10310922 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
2
CAP, BURNER (SET) MAY W10183375 Contact Us For Availability
2
MAY W10211996 MAY W10211996 Contact Us For Availability
2
RETAINER, INSUL. (RH) MAY 9761448 Contact Us For Availability
2
RETAINER, INSUL. (LH) MAY 9761449 Contact Us For Availability
2
HOLDER, ORIFICE ((RR) 5K) MAY W10157415 Contact Us For Availability
2
HOLDER, ORIFICE ((LR) 9.5K) MAY W10157418 Contact Us For Availability
2
MAY W10347410 MAY W10347410 Contact Us For Availability
2
HOLDER, ORIFICE ((LF) 15K) MAY W10347411 Contact Us For Availability
2
MAY 3196160 MAY 3196160 Contact Us For Availability
2
BRACKET, MOUNTING (STAINLESS ONLY) MAY W10462909 Contact Us For Availability
2
BRACKET, MOUNTING (WHITE/BLACK) MAY W10462911 Contact Us For Availability
3
MAY W10031790 MAY W10031790 Contact Us For Availability
3
MAY W10333931 MAY W10333931 Contact Us For Availability
3
MAY W10333932 MAY W10333932 Contact Us For Availability
3
MAY W10333933 MAY W10333933 Contact Us For Availability
3
Cord, Power MAY 9757891 Contact Us For Availability
3
BRACKET, SADDLE MAY W10295996 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
MAY W10323584 MAY W10323584 Contact Us For Availability
3
GLIDE, REAR DRAWER MAY W10317899 Contact Us For Availability
4
BURNER (RR) MAY W10406243 Contact Us For Availability
4
BURNER (LR) MAY W10406283 Contact Us For Availability
4
BURNER (RF & LF) MAY W10406878 Contact Us For Availability
4
MAY W10331686 MAY W10331686 Contact Us For Availability
4
MAY W10322769 MAY W10322769 Contact Us For Availability
4
MAY W10322770 MAY W10322770 Contact Us For Availability
4
TUBING, MAIN SUPPLY MAY W10215439 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
4
DRAWER MAY W10300032 Contact Us For Availability
5
MAY W10366731 MAY W10366731 Contact Us For Availability
5
MAY W10366732 MAY W10366732 Contact Us For Availability
5
MAY W10198745 MAY W10198745 Contact Us For Availability
5
MAY 8053969 MAY 8053969 Contact Us For Availability
5
HARNESS, IGNITER INCLUDES SWITCHES MAY W10295998 Contact Us For Availability
5
MAY 9758162 MAY 9758162 Contact Us For Availability
5
GLIDE, FRONT DRAWER MAY W10317898 Contact Us For Availability
6
MAY 8523854 MAY 8523854 Contact Us For Availability
6
MAY 8523855 MAY 8523855 Contact Us For Availability
6
MAY W10192841 MAY W10192841 Contact Us For Availability
6
MAY 9757262 MAY 9757262 Contact Us For Availability
6
MAY W10031780 MAY W10031780 Contact Us For Availability
6
IGNITOR, TOP BURNER MAY W10216419 Contact Us For Availability
6
MAY 3196165 MAY 3196165 Contact Us For Availability
7
KNOB, CONTROL (WHITE) MAY W10200192 Contact Us For Availability
7
MAY W10200193 MAY W10200193 Contact Us For Availability
7
CONTROL, LCC195 (WHITE) MAY W10271768 Contact Us For Availability
7
CONTROL, LCC195 (BLACK) MAY W10271769 Contact Us For Availability
7
MAY W10306542 MAY W10306542 Contact Us For Availability
7
MAY W10314241 MAY W10314241 Contact Us For Availability
7
MAY 8053336 MAY 8053336 Contact Us For Availability
7
MAY 8053338 MAY 8053338 Contact Us For Availability
7
PANEL, DRAWER FRNT (STAINLESS) MAY W10330069 Contact Us For Availability
8
MAY W10451803 MAY W10451803 Contact Us For Availability
8
MAY W10137524 MAY W10137524 Contact Us For Availability
8
MAY 8273036 MAY 8273036 Contact Us For Availability
8
VALVE (RR) MAY W10247744 Contact Us For Availability
8
VALVE (LR) MAY W10279614 Contact Us For Availability
8
MAY W10279615 MAY W10279615 Contact Us For Availability
8
TRIM, DOOR SIDE (RH BLACK) MAY 8523165 Contact Us For Availability
8
TRIM, DOOR SIDE (RH WHITE) MAY 8523166 Contact Us For Availability
8
TRIM, DOOR SIDE (LH BLACK) MAY 8523171 Contact Us For Availability
8
TRIM, DOOR SIDE (LH WHITE) MAY 8523172 Contact Us For Availability
9
MAY 3400701 MAY 3400701 Contact Us For Availability
9
COVER, MAIN WIRE MAY W10184370 Contact Us For Availability
9
HINGE, RECEIVER MAY W10289077 Contact Us For Availability
9
BRACKET, REGULATOR MAY W10224921 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
10
MAY 8523249 MAY 8523249 Contact Us For Availability
10
FOOT, LEVELER MAY W10058460 Contact Us For Availability
10
MAY 8054078 MAY 8054078 Contact Us For Availability
10
HINGE, ACTIVE MAY W10299224 Contact Us For Availability
11
MAY W10324410 MAY W10324410 Contact Us For Availability
11
MAY 3195097 MAY 3195097 Contact Us For Availability
11
MAY 9758078 MAY 9758078 Contact Us For Availability
11
INSULATION, DOOR MAY W10278991 Contact Us For Availability
12
BRACKET, REAR MAY 8523412 Contact Us For Availability
12
SENSOR, RTD MAY W10181986 Contact Us For Availability
12
MAY W10224914 MAY W10224914 Contact Us For Availability
12
STRAP, DOOR MAY W10113759 Contact Us For Availability
13
Shield, Lower MAY 8053505 Contact Us For Availability
13
Baffle, Burner MAY 8053967 Contact Us For Availability
13
ELECTRODE, BAKE MAY 9758079 Contact Us For Availability
13
SKIN, DOOR (WHITE) MAY W10106404 Contact Us For Availability
13
SKIN, DOOR (BLACK) MAY W10106405 Contact Us For Availability
13
SKIN, DOOR (STAINLESS) MAY W10181749 Contact Us For Availability
14
MAY 3196169 MAY 3196169 Contact Us For Availability
14
TUBING (BROILER FITTING TO VALVE) MAY W10420040 Contact Us For Availability
14
TRIM, LOWER DOOR (WHITE) MAY 8523175 Contact Us For Availability
14
TRIM, LOWER DOOR (BLACK) MAY 8523177 Contact Us For Availability
15
MAY W10435470 MAY W10435470 Contact Us For Availability
15
MAY W10340259 MAY W10340259 Contact Us For Availability
15
MAY W10316950 MAY W10316950 Contact Us For Availability
16
Latch, Door MAY 9761013 Contact Us For Availability
16
ELECTRODE, BROIL MAY 8054129 Contact Us For Availability
16
HINGE, PASSIVE MAY W10299227 Contact Us For Availability
17
MAY 9757239 MAY 9757239 Contact Us For Availability
17
ORIFICE, BURNER (LEFT REAR) MAY W10170506 Contact Us For Availability
17
ORIFICE, BURNER (RIGHT REAR) MAY W10170508 Contact Us For Availability
17
ORIFICE, BURNER (LF/RF) MAY W10347414 Contact Us For Availability
18
MAY 3196178 MAY 3196178 Contact Us For Availability
18
SHIELD, FLUE BOX MAY 8272747 Contact Us For Availability
19
ASSEMBLY, FOOT MAY W10341186 Contact Us For Availability
19
MAY 3196385 MAY 3196385 Contact Us For Availability
20
MAY W10224919 MAY W10224919 Contact Us For Availability
20
MAY 3400016 MAY 3400016 Contact Us For Availability
21
Seal, Oven MAY 8522416 Contact Us For Availability
21
BAFFLE, BROIL BURNER MAY W10137062 Contact Us For Availability
22
MAY 8273062 MAY 8273062 Contact Us For Availability
23
LIGHT ASSEMBLY MAY 3196701 Contact Us For Availability
23
SPREADER, FLAME MAY W10184491 Contact Us For Availability
24
MAY 311255 MAY 311255 Contact Us For Availability
25
RAIL, BASE (LEFT HAND) MAY W10390007 Contact Us For Availability
25
RAIL, BASE (RIGHT HAND) MAY W10390008 Contact Us For Availability
26
MAY 8053968 MAY 8053968 Contact Us For Availability
27
Rod, Latch MAY W10078370 Contact Us For Availability
NI
MAY 8524099 MAY 8524099 Contact Us For Availability
NI
MAY W10180437 MAY W10180437 Contact Us For Availability
NI
LP KIT, SURFACE BURNERS MAY W10170534 Contact Us For Availability
NI
MAY W10400495 MAY W10400495 Contact Us For Availability
NI
MAY W10400498 MAY W10400498 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
COOKTOP PROTECTANT MAY 31463A Contact Us For Availability
NI
COOKTOP CARE KIT MAY 31605 Contact Us For Availability
NI
CLEANER, MISCELANEOUS HEADERS GRATE, & DRIP P MAY 31617A Contact Us For Availability
NI
SCREW, GROUND MAY 3196173 Contact Us For Availability
NI
CLIP, DSI MAY 3196696 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
GOURMET GRIDDLE MAY 4396096RB Contact Us For Availability
NI
BROIL PAN & GRID, PORCELAIN MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Clip, Wire MAY 8019P013-60 Contact Us For Availability
NI
DSI GROUND MAY W10045060 Contact Us For Availability
NI
BROILER PAN KIT (PREMIUM) MAY W10123240 Contact Us For Availability
NI
HARNESS, DSI MAY W10174458 Contact Us For Availability
NI
SPLIT OVEN RACK MAY W10205524 Contact Us For Availability
NI
MAY W10275756 MAY W10275756 Contact Us For Availability
NI
RECESSED OVEN RACK MAY W10289145 Contact Us For Availability
NI
HARNESS BAKE/BROIL MAY W10322359 Contact Us For Availability
NI
HARNESS, MAIN MAY W10349636 Contact Us For Availability
NI
APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
SS CLEANER MAY W10355016 Contact Us For Availability
NI
SS CLEANING WIPES MAY W10355049 Contact Us For Availability
NI
COOKTOP CLEANER MAY W10355051 Contact Us For Availability
NI
OVEN CLEANER (AQUALIFT TECH) MAY W10423113RP Contact Us For Availability
NI
ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
COOKTOP SCRAPER MAY WA906B Contact Us For Availability
× ![]()
