Model Maytag MGR7685AB2 GAS RANGE – Common Parts & Diagrams
01 - COVER SHEET

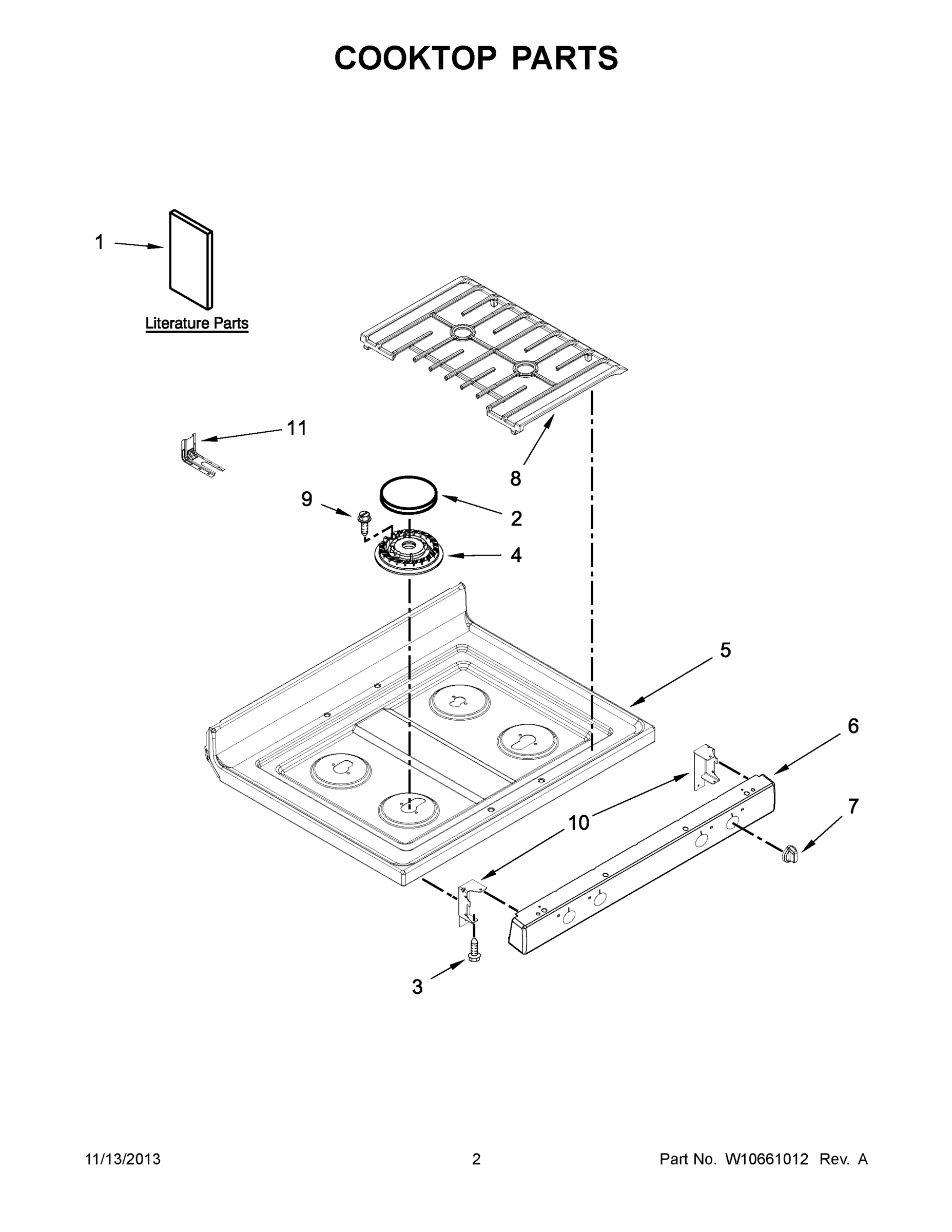

02 - COOKTOP PARTS

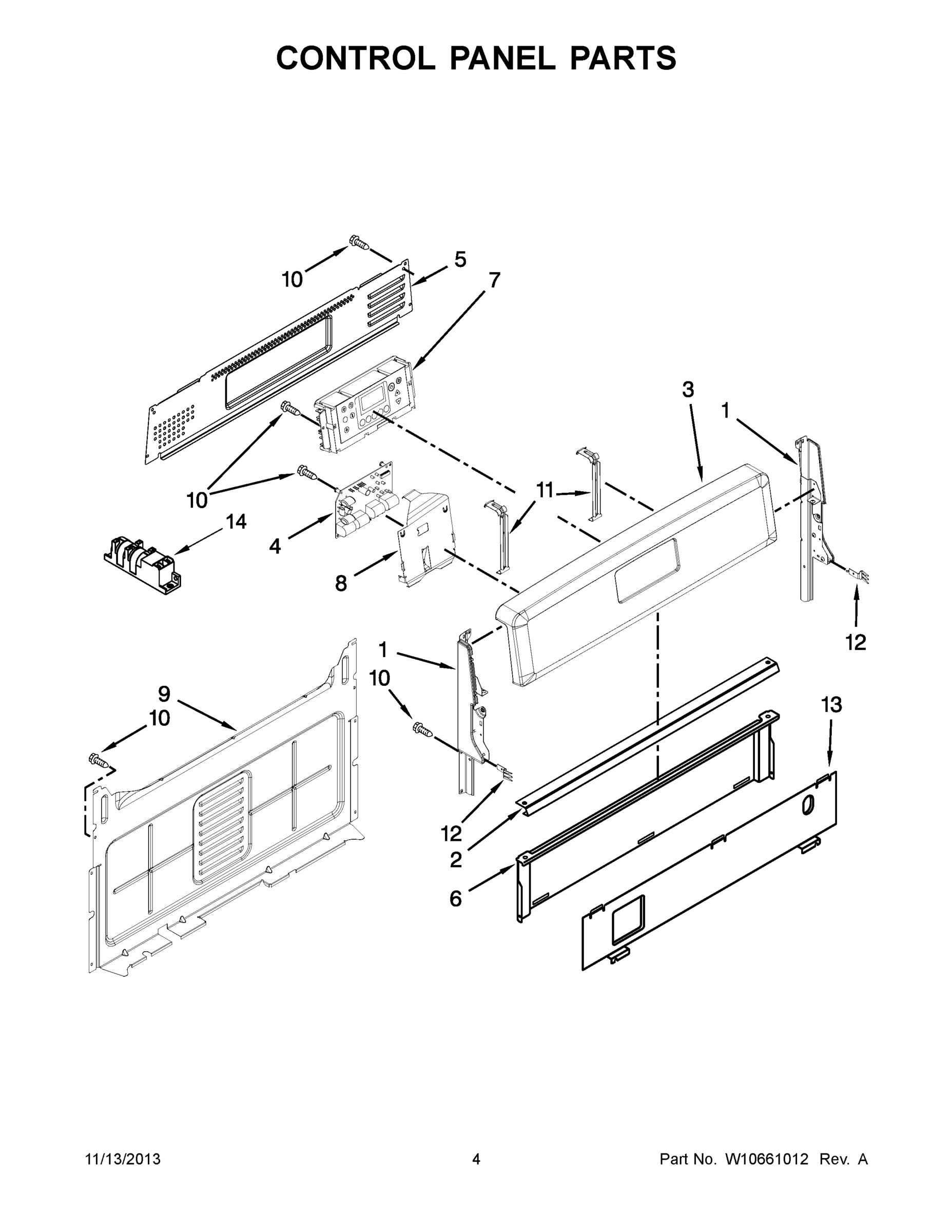

03 - CONTROL PANEL PARTS

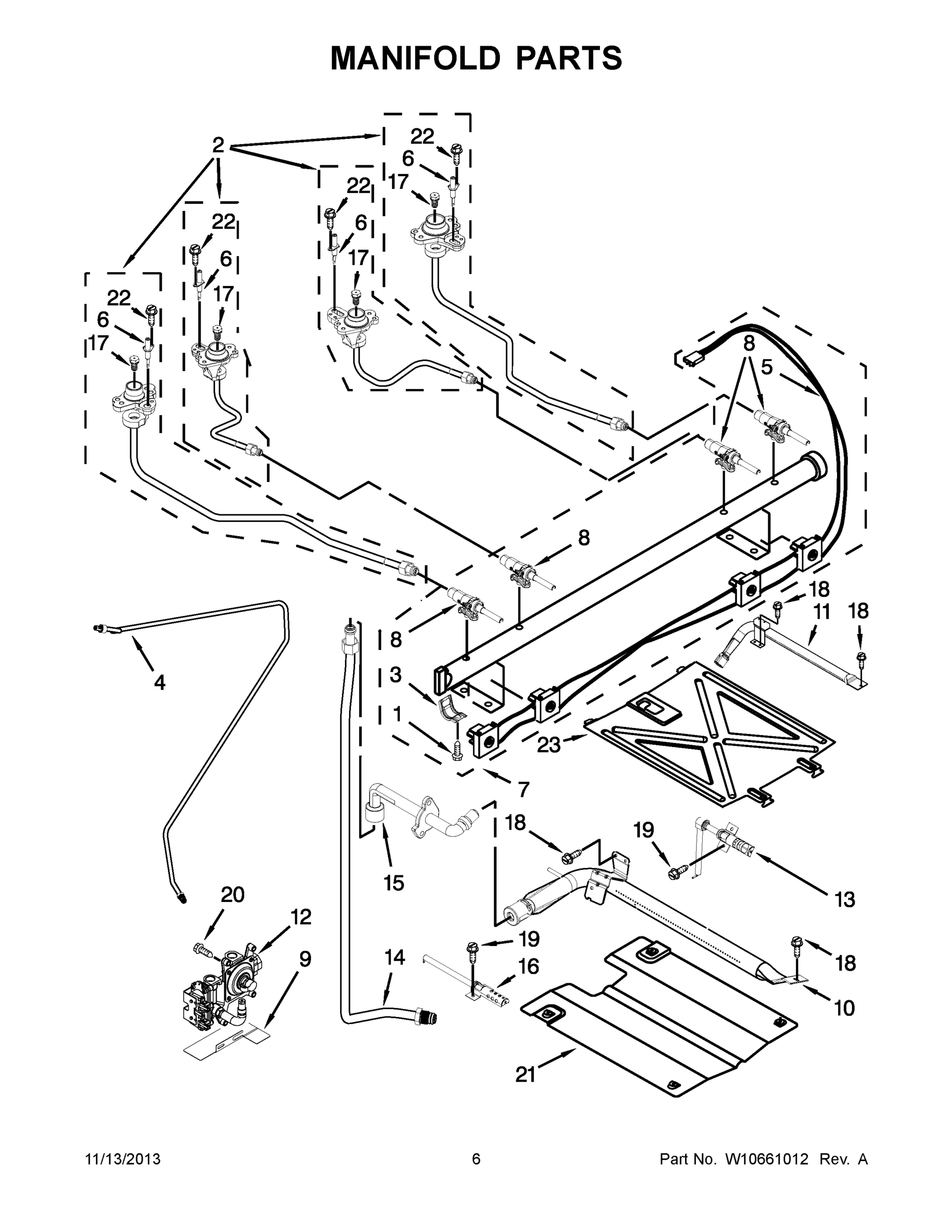

04 - MANIFOLD PARTS

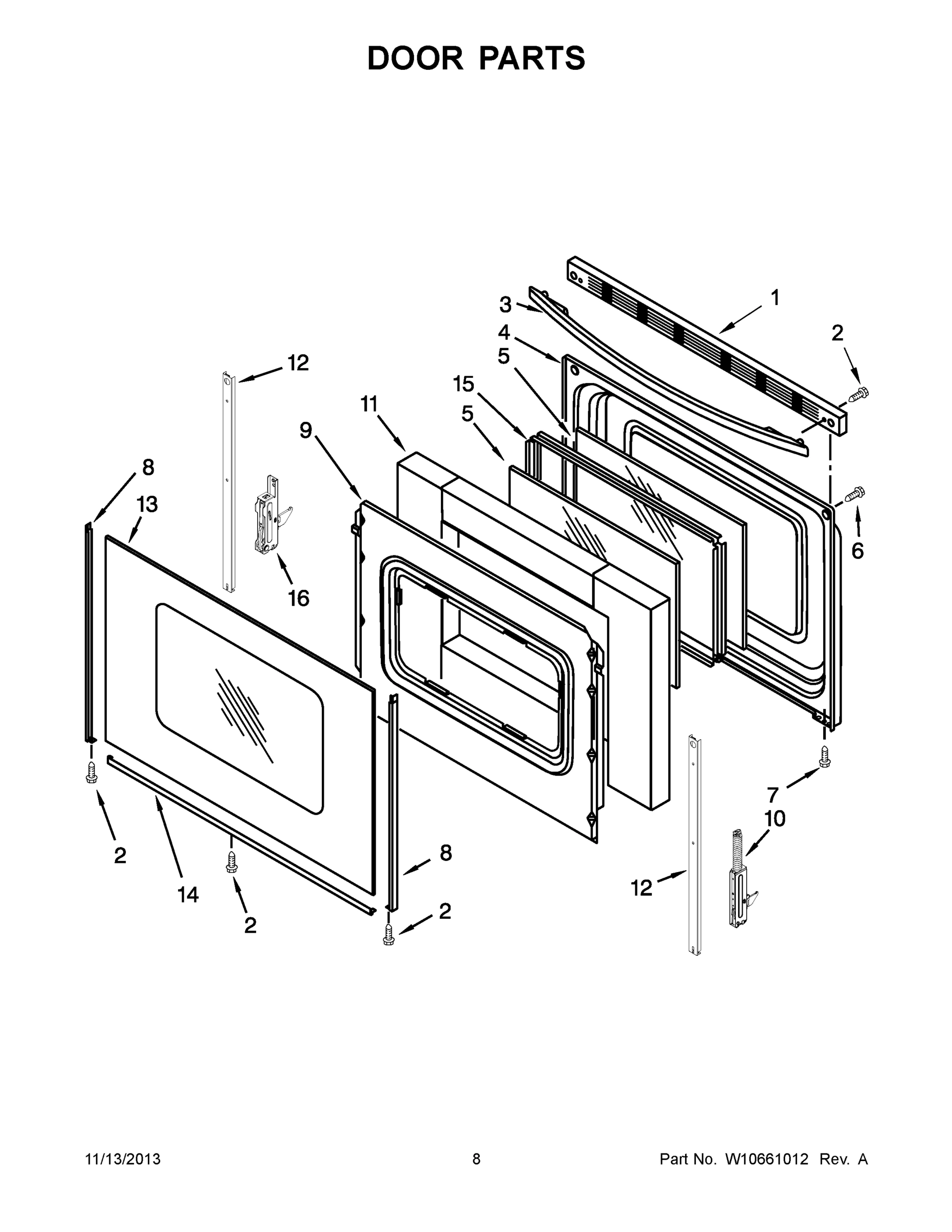

05 - DOOR PARTS

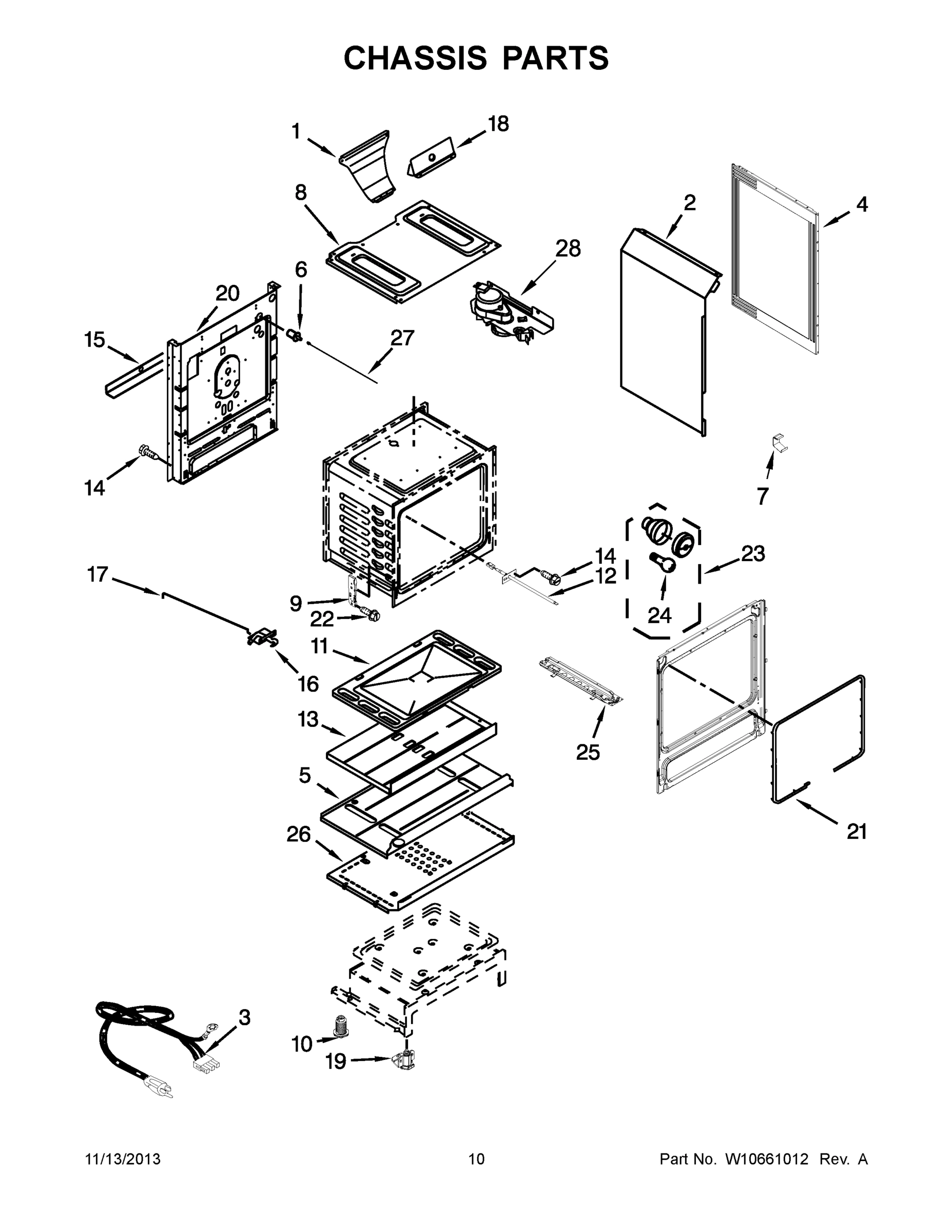

06 - CHASSIS PARTS

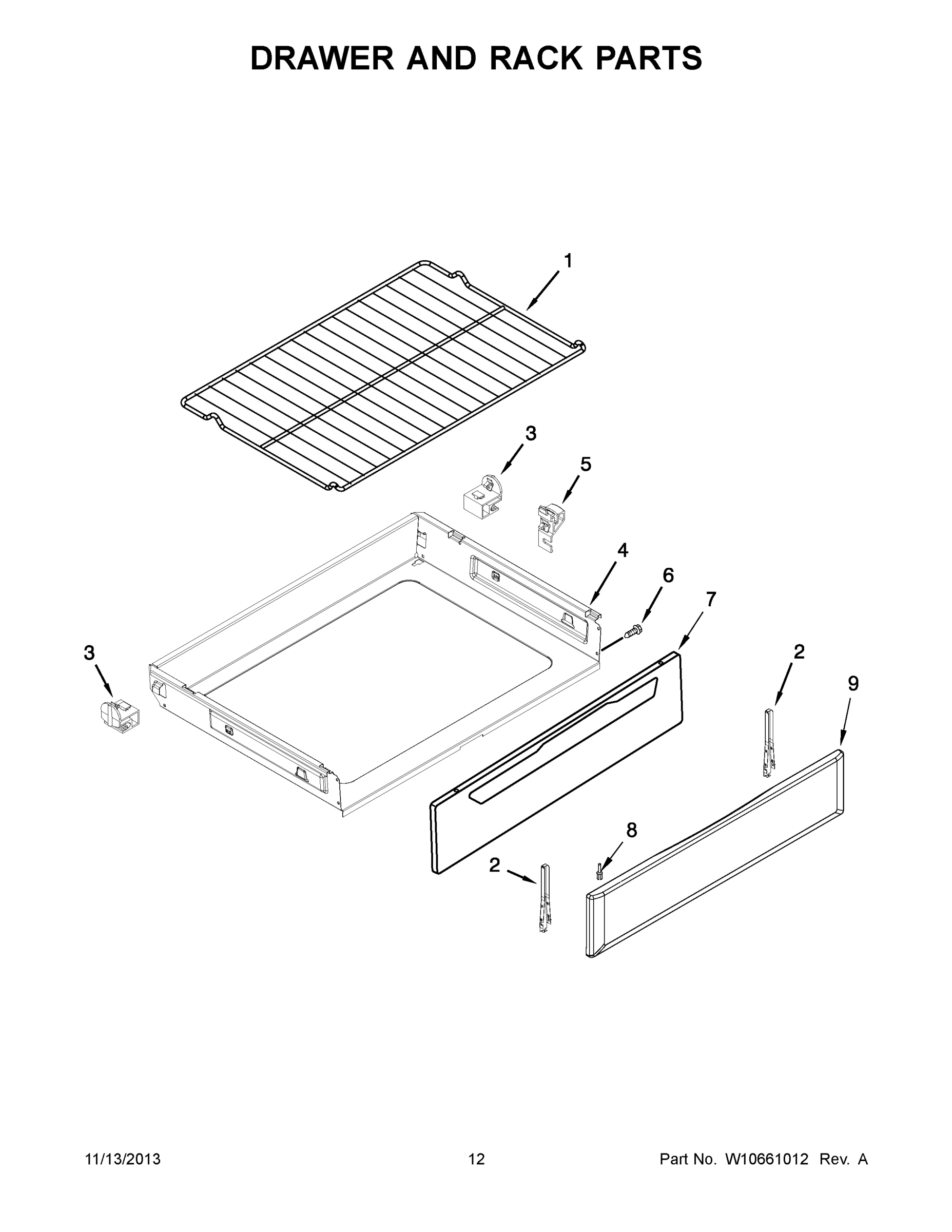

07 - DRAWER AND RACK PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR7685AB2 GAS RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
MAY W10456419 MAY W10456419 Contact Us For Availability
1
MAY W10526974 MAY W10526974 Contact Us For Availability
1
TECH SHEET (ENGLISH) MAY W10538793 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
MAY W10295997 MAY W10295997 Contact Us For Availability
1
TRIM, VENT (WHITE) MAY W10310920 Contact Us For Availability
1
TRIM, VENT (BLACK) MAY W10310922 Contact Us For Availability
1
MAY W10153186 MAY W10153186 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
2
MAY W10183375 MAY W10183375 Contact Us For Availability
2
MAY W10516123 MAY W10516123 Contact Us For Availability
2
MAY W10473932 MAY W10473932 Contact Us For Availability
2
MAY W10473936 MAY W10473936 Contact Us For Availability
2
MAY W10474162 MAY W10474162 Contact Us For Availability
2
MAY W10474166 MAY W10474166 Contact Us For Availability
2
MAY W10327235 MAY W10327235 Contact Us For Availability
2
RETAINER, INSULATION RIGHT MAY 9761448 Contact Us For Availability
2
RETAINER, INSULATION LEFT MAY 9761449 Contact Us For Availability
2
BRACKET, MOUNTING (FOR STAINLESS MODELS) MAY W10462909 Contact Us For Availability
2
BRACKET, MOUNTING (FOR BLACK & WHITE MODELS) MAY W10462911 Contact Us For Availability
3
MAY W10031790 MAY W10031790 Contact Us For Availability
3
MAY W10333931 MAY W10333931 Contact Us For Availability
3
MAY W10333932 MAY W10333932 Contact Us For Availability
3
MAY W10333933 MAY W10333933 Contact Us For Availability
3
MAY W10295996 MAY W10295996 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
MAY W10323584 MAY W10323584 Contact Us For Availability
3
Cord, Power MAY 9757891 Contact Us For Availability
3
GLIDE, DRAWER (REAR) MAY W10317899 Contact Us For Availability
4
BURNER HEAD, AUXI (5K) (RIGHT REAR) MAY W10515453 Contact Us For Availability
4
BURNER HEAD, SEMI (9.5K) (LEFT REAR) MAY W10515454 Contact Us For Availability
4
MAY W10515455 MAY W10515455 Contact Us For Availability
4
MAY W10511278 MAY W10511278 Contact Us For Availability
4
MAY W10215439 MAY W10215439 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
4
MAY W10322769 MAY W10322769 Contact Us For Availability
4
MAY W10322770 MAY W10322770 Contact Us For Availability
4
MAY W10300032 MAY W10300032 Contact Us For Availability
5
MAY W10366731 MAY W10366731 Contact Us For Availability
5
MAY W10366732 MAY W10366732 Contact Us For Availability
5
MAY W10198745 MAY W10198745 Contact Us For Availability
5
MAY W10295998 MAY W10295998 Contact Us For Availability
5
MAY 9758162 MAY 9758162 Contact Us For Availability
5
MAY 8053969 MAY 8053969 Contact Us For Availability
5
GLIDE, DRAWER (FRONT) MAY W10317898 Contact Us For Availability
6
MAY 8523854 MAY 8523854 Contact Us For Availability
6
MAY 8523855 MAY 8523855 Contact Us For Availability
6
MAY W10192841 MAY W10192841 Contact Us For Availability
6
MAY W10216419 MAY W10216419 Contact Us For Availability
6
MAY 3196165 MAY 3196165 Contact Us For Availability
6
MAY W10627802 MAY W10627802 Contact Us For Availability
7
KNOB, CONTROL (WHITE) MAY W10200192 Contact Us For Availability
7
MAY W10200193 MAY W10200193 Contact Us For Availability
7
CONTROL, LCC190 (WHITE) MAY W10271768 Contact Us For Availability
7
CONTROL, LCC190 (BLACK) MAY W10271769 Contact Us For Availability
7
MAY W10314241 MAY W10314241 Contact Us For Availability
7
MAY W10137382 MAY W10137382 Contact Us For Availability
7
PANEL, DRAWER FRONT (WHITE) MAY 8053336 Contact Us For Availability
7
PANEL, DRAWER FRONT (BLACK) MAY 8053338 Contact Us For Availability
8
SET, GRATE (BLACK) MAY W10451803 Contact Us For Availability
8
MAY W10516463 MAY W10516463 Contact Us For Availability
8
VALVE, GAS (5K) (RIGHT REAR) MAY W10247744 Contact Us For Availability
8
VALVE, GAS (9.5K) (LEFT REAR) MAY W10279614 Contact Us For Availability
8
VALVE, GAS (15K) (LEFT FRONT & RIGHT FRONT) MAY W10279615 Contact Us For Availability
8
TRIM, DOOR SIDE (BLACK (RIGHT)) MAY 8523165 Contact Us For Availability
8
MAY 8523166 MAY 8523166 Contact Us For Availability
8
TRIM, DOOR SIDE (BLACK (LEFT)) MAY 8523171 Contact Us For Availability
8
MAY 8523172 MAY 8523172 Contact Us For Availability
8
MAY 8273036 MAY 8273036 Contact Us For Availability
8
MAY 3196813 MAY 3196813 Contact Us For Availability
8
MAY 3196814 MAY 3196814 Contact Us For Availability
9
MAY 3400701 MAY 3400701 Contact Us For Availability
9
MAY W10184370 MAY W10184370 Contact Us For Availability
9
BRACKET - AEGIS MAY W10224921 Contact Us For Availability
9
MAY 9761357 MAY 9761357 Contact Us For Availability
9
MAY W10289077 MAY W10289077 Contact Us For Availability
9
PANEL, DRAWER FRONT (STAINLESS) MAY W10330069 Contact Us For Availability
10
MAY 8523249 MAY 8523249 Contact Us For Availability
10
MAY 8054078 MAY 8054078 Contact Us For Availability
10
MAY W10299224 MAY W10299224 Contact Us For Availability
10
MAY W10058460 MAY W10058460 Contact Us For Availability
11
MAY W10306542 MAY W10306542 Contact Us For Availability
11
MAY W10324410 MAY W10324410 Contact Us For Availability
11
MAY 9758078 MAY 9758078 Contact Us For Availability
11
MAY W10278991 MAY W10278991 Contact Us For Availability
11
MAY 3195097 MAY 3195097 Contact Us For Availability
12
MAY 8523412 MAY 8523412 Contact Us For Availability
12
MAY W10602001 MAY W10602001 Contact Us For Availability
12
MAY W10544179 MAY W10544179 Contact Us For Availability
12
MAY W10181986 MAY W10181986 Contact Us For Availability
13
MAY 8053505 MAY 8053505 Contact Us For Availability
13
ELECTRODE, BAKE MAY 9758079 Contact Us For Availability
13
GLASS, DOOR (WHITE) MAY W10106404 Contact Us For Availability
13
GLASS, DOOR (BLACK) MAY W10106405 Contact Us For Availability
13
GLASS, DOOR (STAINLESS (STAINLESS INCLUDES DO MAY W10181749 Contact Us For Availability
13
MAY 8053967 MAY 8053967 Contact Us For Availability
14
MAY W10110488 MAY W10110488 Contact Us For Availability
14
MAY W10420040 MAY W10420040 Contact Us For Availability
14
TRIM, LOWER DOOR (WHITE) MAY 8523175 Contact Us For Availability
14
TRIM, LOWER DOOR (BLACK) MAY 8523177 Contact Us For Availability
14
MAY 3196169 MAY 3196169 Contact Us For Availability
15
MAY W10340259 MAY W10340259 Contact Us For Availability
15
MAY W10316950 MAY W10316950 Contact Us For Availability
15
MAY W10435470 MAY W10435470 Contact Us For Availability
16
ELECTRODE, BROIL MAY 8054129 Contact Us For Availability
16
MAY W10299227 MAY W10299227 Contact Us For Availability
16
MAY 9761013 MAY 9761013 Contact Us For Availability
17
ORIFICE (5K) (RIGHT REAR) MAY W10170506 Contact Us For Availability
17
ORIFICE (9.5K) (LEFT REAR) MAY W10170508 Contact Us For Availability
17
MAY W10347414 MAY W10347414 Contact Us For Availability
17
MAY 9757239 MAY 9757239 Contact Us For Availability
18
MAY 3196178 MAY 3196178 Contact Us For Availability
18
MAY 8272747 MAY 8272747 Contact Us For Availability
19
MAY 3196385 MAY 3196385 Contact Us For Availability
19
MAY W10341186 MAY W10341186 Contact Us For Availability
20
MAY 3400016 MAY 3400016 Contact Us For Availability
20
MAY W10416100 MAY W10416100 Contact Us For Availability
21
MAY W10137062 MAY W10137062 Contact Us For Availability
21
MAY 8522416 MAY 8522416 Contact Us For Availability
22
MAY 8273062 MAY 8273062 Contact Us For Availability
22
MAY W10031780 MAY W10031780 Contact Us For Availability
23
MAY W10184491 MAY W10184491 Contact Us For Availability
23
MAY W10454648 MAY W10454648 Contact Us For Availability
24
MAY 311255 MAY 311255 Contact Us For Availability
25
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
25
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
26
MAY 8053968 MAY 8053968 Contact Us For Availability
27
MAY W10078370 MAY W10078370 Contact Us For Availability
28
MAY W10107820 MAY W10107820 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY W10170534 MAY W10170534 Contact Us For Availability
NI
MAY W10400495 MAY W10400495 Contact Us For Availability
NI
MAY W10400498 MAY W10400498 Contact Us For Availability
NI
MAY 8524099 MAY 8524099 Contact Us For Availability
NI
MAY W10180437 MAY W10180437 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE AND DRIP PAN MAY 31617A Contact Us For Availability
NI
MAY 3196173 MAY 3196173 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN AND ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, GRANITE CLEANER MAY W10275756 Contact Us For Availability
NI
MAY W10322359 MAY W10322359 Contact Us For Availability
NI
ACCESSORIES, KITCHEN AND APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, SS CLEANING WIPES MAY W10355049 Contact Us For Availability
NI
MAY W10519920 MAY W10519920 Contact Us For Availability
NI
MAY W10625534 MAY W10625534 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COOKTOP MAY W10625552 Contact Us For Availability
× ![]()
