Model Maytag MGR7662WW3 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS

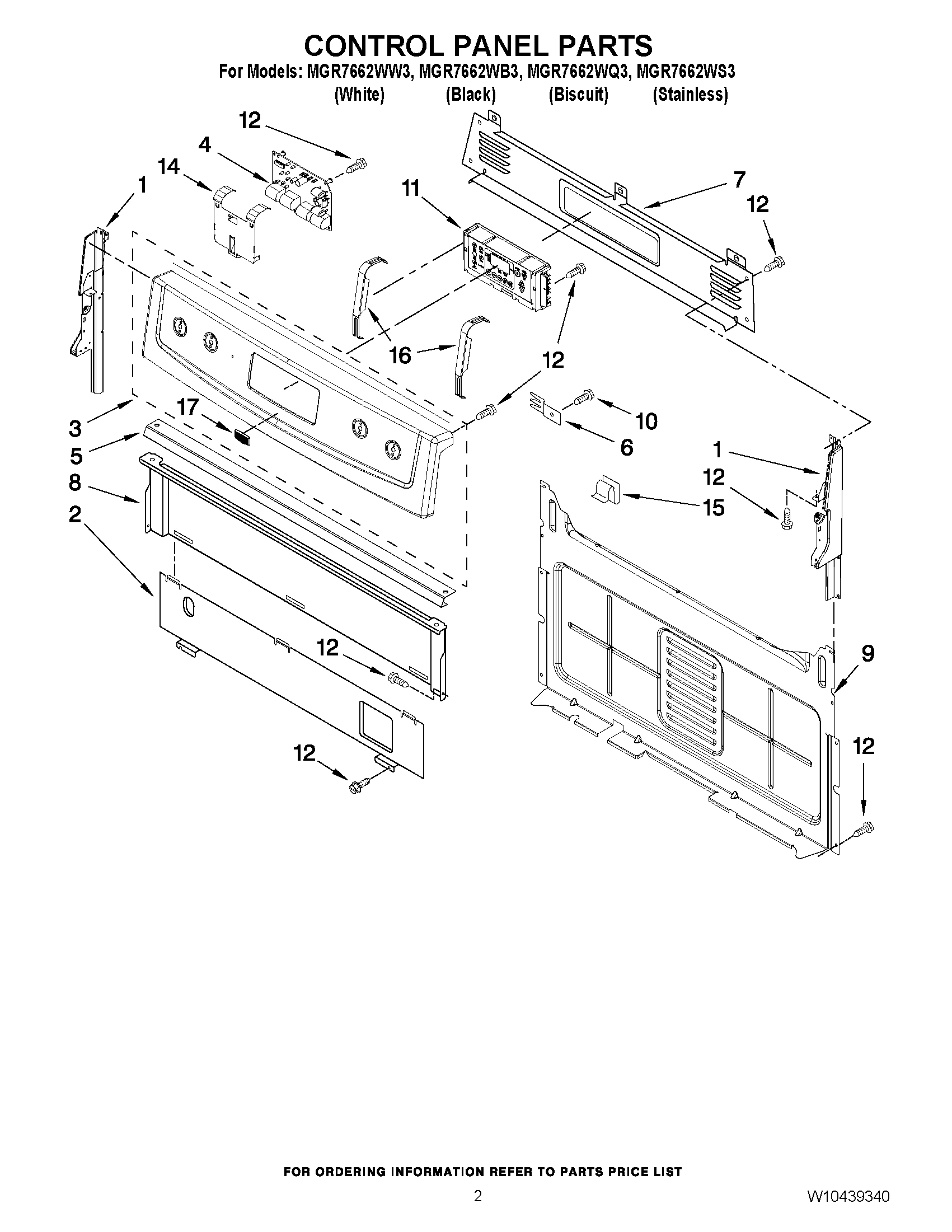

02 - CONTROL PANEL PARTS

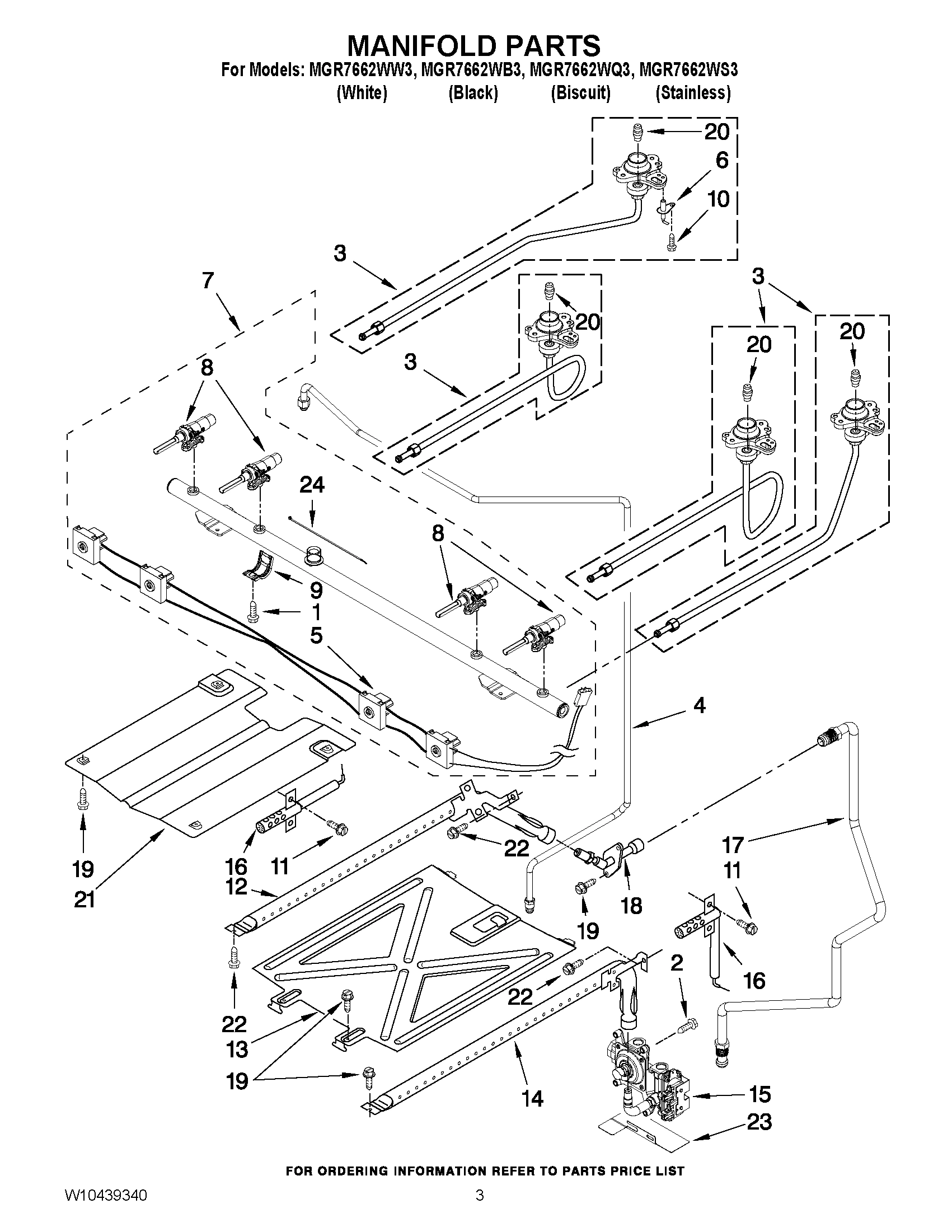

03 - MANIFOLD PARTS

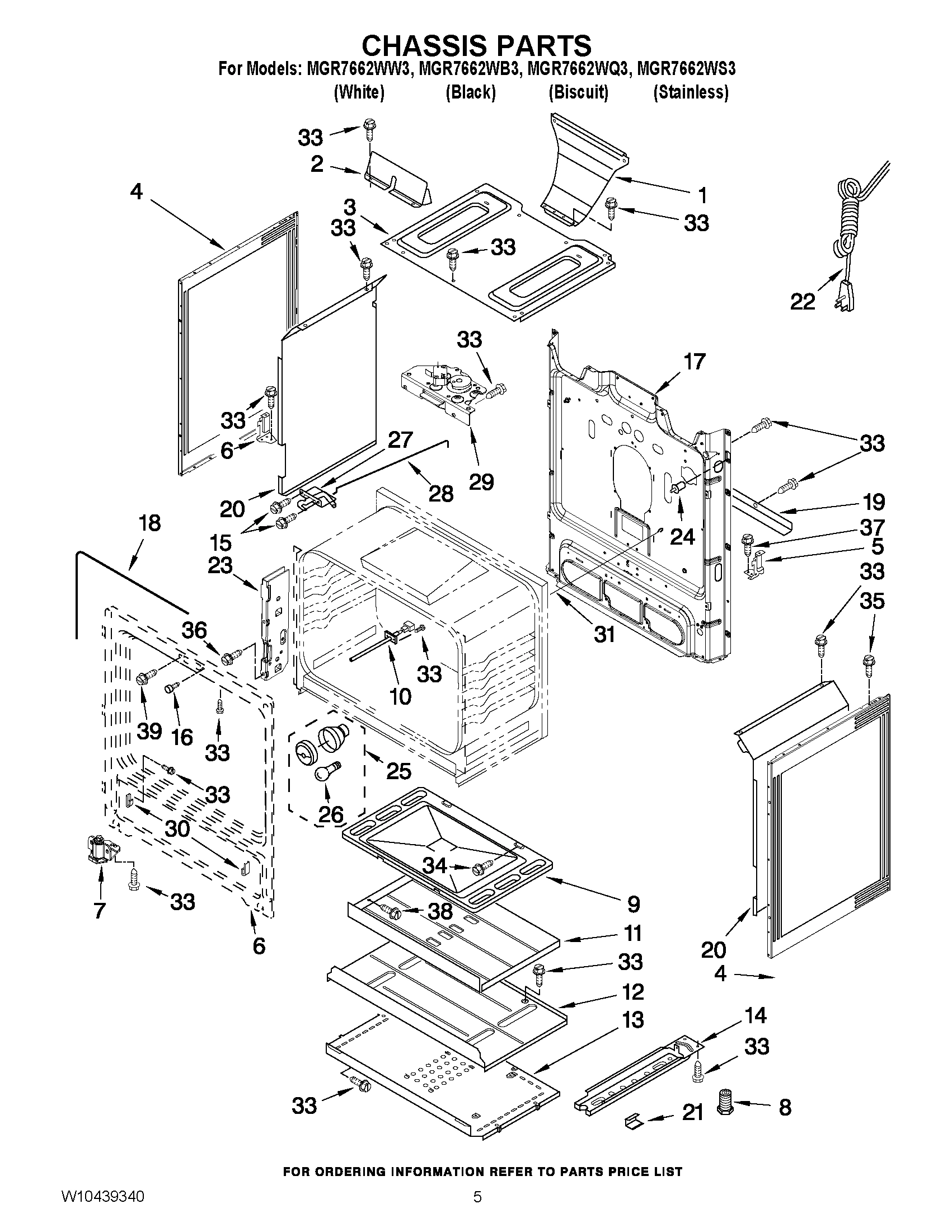

04 - CHASSIS PARTS

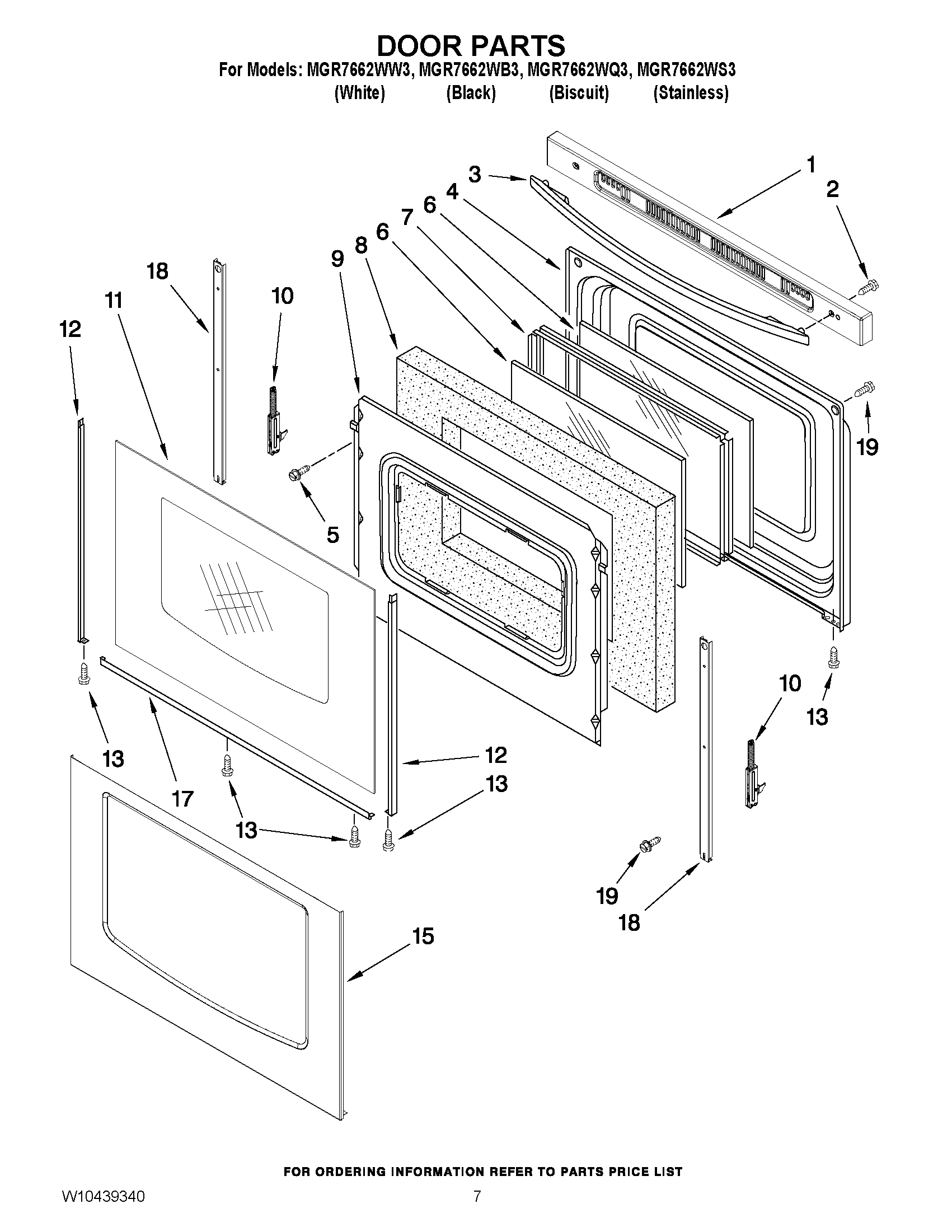

05 - DOOR PARTS

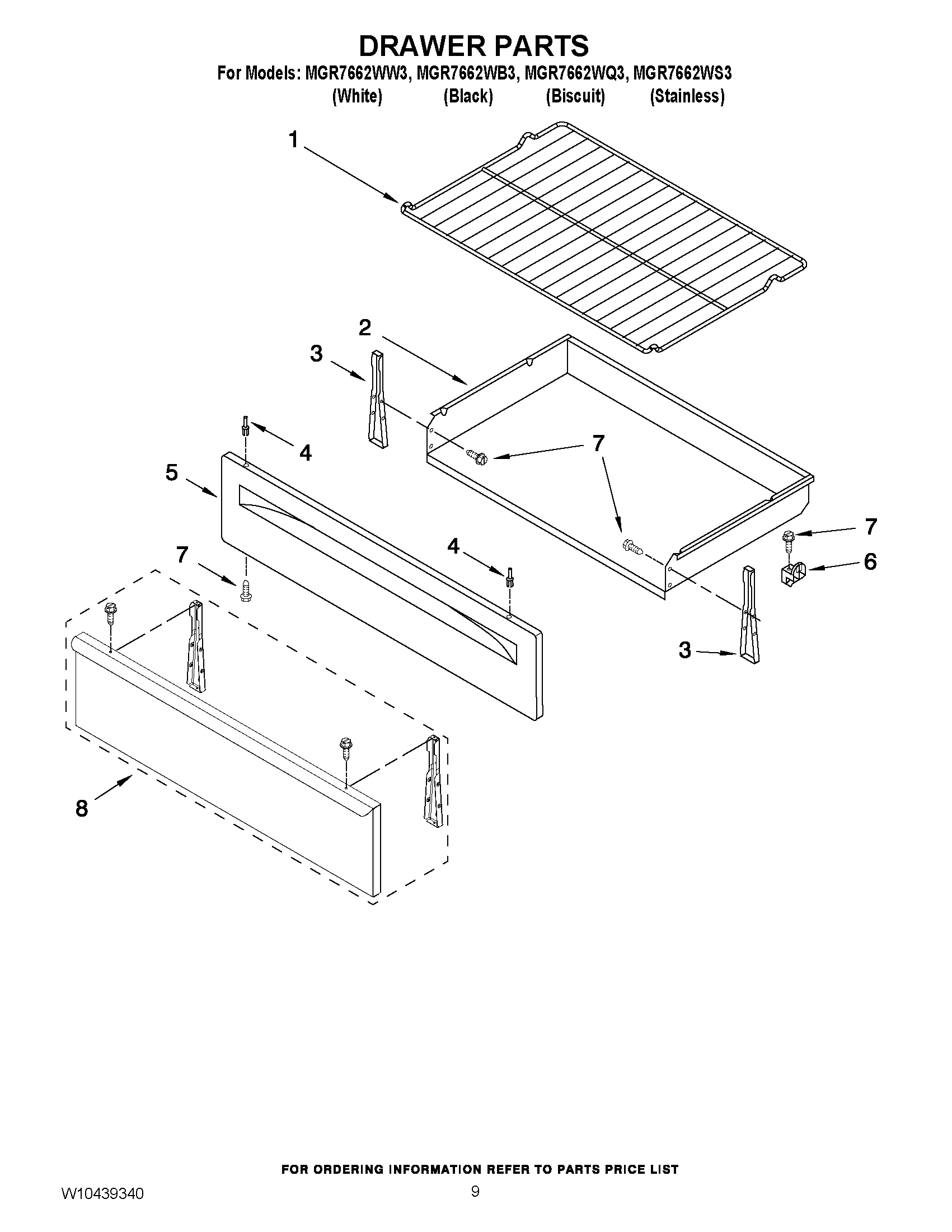

06 - DRAWER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag MGR7662WW3 GAS RANGE
1
Anti-Tip Template (English/Spanish) MAY 9757142 Contact Us For Availability
1
Anti-Tip Template (English/French) MAY 9757143 Contact Us For Availability
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
MAY W10234649 MAY W10234649 Contact Us For Availability
1
MAY W10357517 MAY W10357517 Contact Us For Availability
1
MAY W10357518 MAY W10357518 Contact Us For Availability
1
MAY W10413013 MAY W10413013 Contact Us For Availability
1
Endcap, Left Hand (White) MAY W10184433 Contact Us For Availability
1
Endcap, Right Hand (White) MAY W10184434 Contact Us For Availability
1
ENDCAP, LEFT HAND (BISCUIT) MAY W10184435 Contact Us For Availability
1
ENDCAP, RIGHT HAND (BISCUIT) MAY W10184436 Contact Us For Availability
1
Endcap, Left Hand (Black) MAY W10184437 Contact Us For Availability
1
Endcap, Right Hand (Black) MAY W10184438 Contact Us For Availability
1
MAY W10295997 MAY W10295997 Contact Us For Availability
1
Flue Box MAY W10153186 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
1
MAY W10310923 MAY W10310923 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
2
CAP, BURNER (GREY) MAY W10165810 Contact Us For Availability
2
CAP, BURNER (BLACK) MAY W10170555 Contact Us For Availability
2
Shield-Heat, Lwr MAY 8053505 Contact Us For Availability
2
MAY 3400016 MAY 3400016 Contact Us For Availability
2
MAY 8272747 MAY 8272747 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
3
BURNER (RR, AUX - 6K) MAY 8286181 Contact Us For Availability
3
BURNER (RF & LF - 12K) MAY 8286182 Contact Us For Availability
3
BURNER (LR - SEMI) MAY W10194076 Contact Us For Availability
3
MAY W10292029 MAY W10292029 Contact Us For Availability
3
MAY W10292030 MAY W10292030 Contact Us For Availability
3
PANEL, CONSOLE (STAINLESS) MAY W10292031 Contact Us For Availability
3
MAY W10292032 MAY W10292032 Contact Us For Availability
3
TUBING, BURNER (W/ORIFICE (RIGHT REAR)) MAY W10175217 Contact Us For Availability
3
MAY W10175218 MAY W10175218 Contact Us For Availability
3
TUBING, BURNER (W/ORIFICE (LEFT REAR)) MAY W10175220 Contact Us For Availability
3
TUBING, BURNER (W/ORIFICE (LEFT FRONT)) MAY W10201349 Contact Us For Availability
3
BURNER, BOX MAY 8273036 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
MAY W10323584 MAY W10323584 Contact Us For Availability
3
MAY W10323586 MAY W10323586 Contact Us For Availability
3
BRACKET, DRAWER (STAINLESS ONLY) MAY 3196817 Contact Us For Availability
3
BRACKET, DRAWER (ALL EXCEPT STAINLESS MODELS) MAY W10174397 Contact Us For Availability
4
MAY 8272251 MAY 8272251 Contact Us For Availability
4
MAY 8272253 MAY 8272253 Contact Us For Availability
4
MAY 8272743 MAY 8272743 Contact Us For Availability
4
MAY W10331686 MAY W10331686 Contact Us For Availability
4
GAS TUBING (COOKTOP SUPPLY) MAY W10215439 Contact Us For Availability
4
MAY W10295597 MAY W10295597 Contact Us For Availability
4
MAY W10322769 MAY W10322769 Contact Us For Availability
4
MAY W10388548 MAY W10388548 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
5
MAY 8523854 MAY 8523854 Contact Us For Availability
5
MAY 8523855 MAY 8523855 Contact Us For Availability
5
MAY 8523856 MAY 8523856 Contact Us For Availability
5
BRKT-MNTG,CONSOLE MAY W10211996 Contact Us For Availability
5
HARNESS, IGNITOR (W/SWITCHES) MAY W10295998 Contact Us For Availability
5
Brkt, Manifold Mtg MAY 8523249 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
5
MAY W10022090 MAY W10022090 Contact Us For Availability
5
MAY W10022100 MAY W10022100 Contact Us For Availability
5
MAY W10022110 MAY W10022110 Contact Us For Availability
6
KNOB, CONTROL (WHITE) MAY W10200192 Contact Us For Availability
6
MAY W10200193 MAY W10200193 Contact Us For Availability
6
KNOB, CONTROL (BISCUIT) MAY W10200194 Contact Us For Availability
6
Bracket, Support MAY 8523412 Contact Us For Availability
6
MAY W10216419 MAY W10216419 Contact Us For Availability
6
FRAME, FRONT (NOT SERVICED) MAY N/P Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
6
Spacer, Glide MAY 8053334 Contact Us For Availability
7
MAY 8522854 MAY 8522854 Contact Us For Availability
7
GRATE, CENTER (GREY) MAY W10165812 Contact Us For Availability
7
MAY W10198745 MAY W10198745 Contact Us For Availability
7
MAY W10314242 MAY W10314242 Contact Us For Availability
7
FOOT, FRONT MAY W10341186 Contact Us For Availability
7
MAY 3196165 MAY 3196165 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
GRATE, BURNER (BLACK) MAY 8522858 Contact Us For Availability
8
GRATE, BURNER (GREY) MAY W10166295 Contact Us For Availability
8
MAY W10192841 MAY W10192841 Contact Us For Availability
8
VALVE (RIGHT REAR) MAY W10247744 Contact Us For Availability
8
VALVE (LF - RF - LR) MAY W10279614 Contact Us For Availability
8
FOOT, REAR MAY W10058460 Contact Us For Availability
8
INSULATION, DOOR MAY W10278991 Contact Us For Availability
8
PANEL, FRONT SS MODEL (ASSEMBLY) MAY W10244872 Contact Us For Availability
9
MAY 3400701 MAY 3400701 Contact Us For Availability
9
COVER, LOWER MAY W10184370 Contact Us For Availability
9
BRACKET, VALVE MAY W10295996 Contact Us For Availability
9
MAY 3195097 MAY 3195097 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
10
MAY 3196557 MAY 3196557 Contact Us For Availability
10
MAY 8273062 MAY 8273062 Contact Us For Availability
10
MAY W10181986 MAY W10181986 Contact Us For Availability
10
HINGE, DOOR ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
11
CONTROL, RANGE (WHITE) MAY W10271768 Contact Us For Availability
11
CONTROL, RANGE (BLACK) MAY W10271769 Contact Us For Availability
11
MAY W10271770 MAY W10271770 Contact Us For Availability
11
MAY 3196385 MAY 3196385 Contact Us For Availability
11
Baffle, Burner MAY 8053967 Contact Us For Availability
11
GLASS, OUTER DOOR (STAINLESS) MAY W10106403 Contact Us For Availability
11
GLASS, OUTER DOOR (WHITE) MAY W10106404 Contact Us For Availability
11
GLASS, OUTER DOOR (BLACK) MAY W10106405 Contact Us For Availability
11
GLASS, OUTER DOOR (BISCUIT) MAY W10106406 Contact Us For Availability
12
MAY 8054078 MAY 8054078 Contact Us For Availability
12
MAY 8053969 MAY 8053969 Contact Us For Availability
12
Trim, Door Side Right Hand (Black) MAY 8523165 Contact Us For Availability
12
Trim, Door Side Right Hand (White) MAY 8523166 Contact Us For Availability
12
TRIM, DOOR SIDE RIGHT HAND (BISCUIT) MAY 8523167 Contact Us For Availability
12
TRIM, DOOR SIDE (LEFT HAND (BLACK)) MAY 8523171 Contact Us For Availability
12
Trim, Door Side Left Hand (White) MAY 8523172 Contact Us For Availability
12
TRIM, DOOR SIDE LEFT HAND (BISCUIT) MAY 8523173 Contact Us For Availability
13
MAY W10184491 MAY W10184491 Contact Us For Availability
13
MAY 8053968 MAY 8053968 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
Brkt-Mntg, DSI MAY W10137524 Contact Us For Availability
14
MAY 9758078 MAY 9758078 Contact Us For Availability
14
RAIL, BASE MAY 9760314 Contact Us For Availability
15
Clip MAY 8273564 Contact Us For Availability
15
MAY W10224914 MAY W10224914 Contact Us For Availability
15
MAY 3196560 MAY 3196560 Contact Us For Availability
15
PANEL, OUTER SS MODEL MAY W10181749 Contact Us For Availability
16
Bracket, EOC Mount MAY W10138683 Contact Us For Availability
16
Igniter (Broil) MAY 8054129 Contact Us For Availability
16
Igniter (Bake) MAY 9758079 Contact Us For Availability
16
Spacer, Door MAY 9758701 Contact Us For Availability
17
MAY W10199708 MAY W10199708 Contact Us For Availability
17
GAS TUBING (BROILER SUPPLY) MAY W10420040 Contact Us For Availability
17
MAY W10224919 MAY W10224919 Contact Us For Availability
17
MAY 8523175 MAY 8523175 Contact Us For Availability
17
MAY 8523177 MAY 8523177 Contact Us For Availability
17
TRIM, BOTTOM (BISCUIT) MAY 8523178 Contact Us For Availability
18
MAY W10340259 MAY W10340259 Contact Us For Availability
18
Seal, Oven MAY 8522416 Contact Us For Availability
18
STRAP, DOOR MAY W10113759 Contact Us For Availability
19
MAY W10387695 MAY W10387695 Contact Us For Availability
19
MAY W10031780 MAY W10031780 Contact Us For Availability
20
ORIFICE, BURNER (RR - 5K) MAY W10170506 Contact Us For Availability
20
ORIFICE, BURNER (LR - 9.5K) MAY W10170508 Contact Us For Availability
20
ORIFICE, BURNER (RF - 12K) MAY W10178934 Contact Us For Availability
20
ORIFICE, BURNER (LF - 13.5K) MAY W10185023 Contact Us For Availability
20
RETAINER, INSUL.(RIGHT HAND) MAY 9761448 Contact Us For Availability
20
RETAINER, INSUL.(LEFT HAND) MAY 9761449 Contact Us For Availability
21
MAY W10137062 MAY W10137062 Contact Us For Availability
21
MAY W10137382 MAY W10137382 Contact Us For Availability
22
MAY 3196265 MAY 3196265 Contact Us For Availability
22
Cord, Power MAY 9757891 Contact Us For Availability
23
BRACKET - AEGIS MAY W10224921 Contact Us For Availability
23
BRKT - HINGE MAY W10289077 Contact Us For Availability
24
CABLE TIE MAY W10182767 Contact Us For Availability
24
MAY 9757262 MAY 9757262 Contact Us For Availability
25
MAY 3196701 MAY 3196701 Contact Us For Availability
26
MAY 311255 MAY 311255 Contact Us For Availability
27
Latch, Door MAY 9761013 Contact Us For Availability
28
Rod, Latch MAY W10078370 Contact Us For Availability
29
Latch-Mtr MAY W10107820 Contact Us For Availability
30
Glide, Drawer MAY W10114344 Contact Us For Availability
31
Rod, Door Switch Rear Mount MAY 9757239 Contact Us For Availability
33
MAY 3196178 MAY 3196178 Contact Us For Availability
34
MAY W10379120 MAY W10379120 Contact Us For Availability
35
Screw (Black) MAY 3196168 Contact Us For Availability
37
MAY 3196169 MAY 3196169 Contact Us For Availability
38
Screw MAY 3196176 Contact Us For Availability
NI
MAY W10170532 MAY W10170532 Contact Us For Availability
NI
MAY 8524099 MAY 8524099 Contact Us For Availability
NI
MAY W10180437 MAY W10180437 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
STAINLESS STEEL CLEANER & POLISH MAY 31462 Contact Us For Availability
NI
GAS GRATE & DRIP PAN CLEANER MAY 31617 Contact Us For Availability
NI
ALL PURPOSE APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
Screw-Grnd Harns MAY 3196174 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
Clip, Harness MAY 3196696 Contact Us For Availability
NI
MAY 3196896 MAY 3196896 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAN - BROILER MAY 4396923 Contact Us For Availability
NI
SPLIT-RACK WITH REMOVABLE INSERT MAY 4396927 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire (Ground) MAY W10045060 Contact Us For Availability
NI
HARNESS, WIRE (BAKE/BROIL) MAY W10322359 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP SPARK) MAY W10322362 Contact Us For Availability
NI
HARNESS, MAIN (EOC PYRO) MAY W10349636 Contact Us For Availability
× ![]()
Login and Registration Form
