Model Maytag MGR6600FZ1 RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams

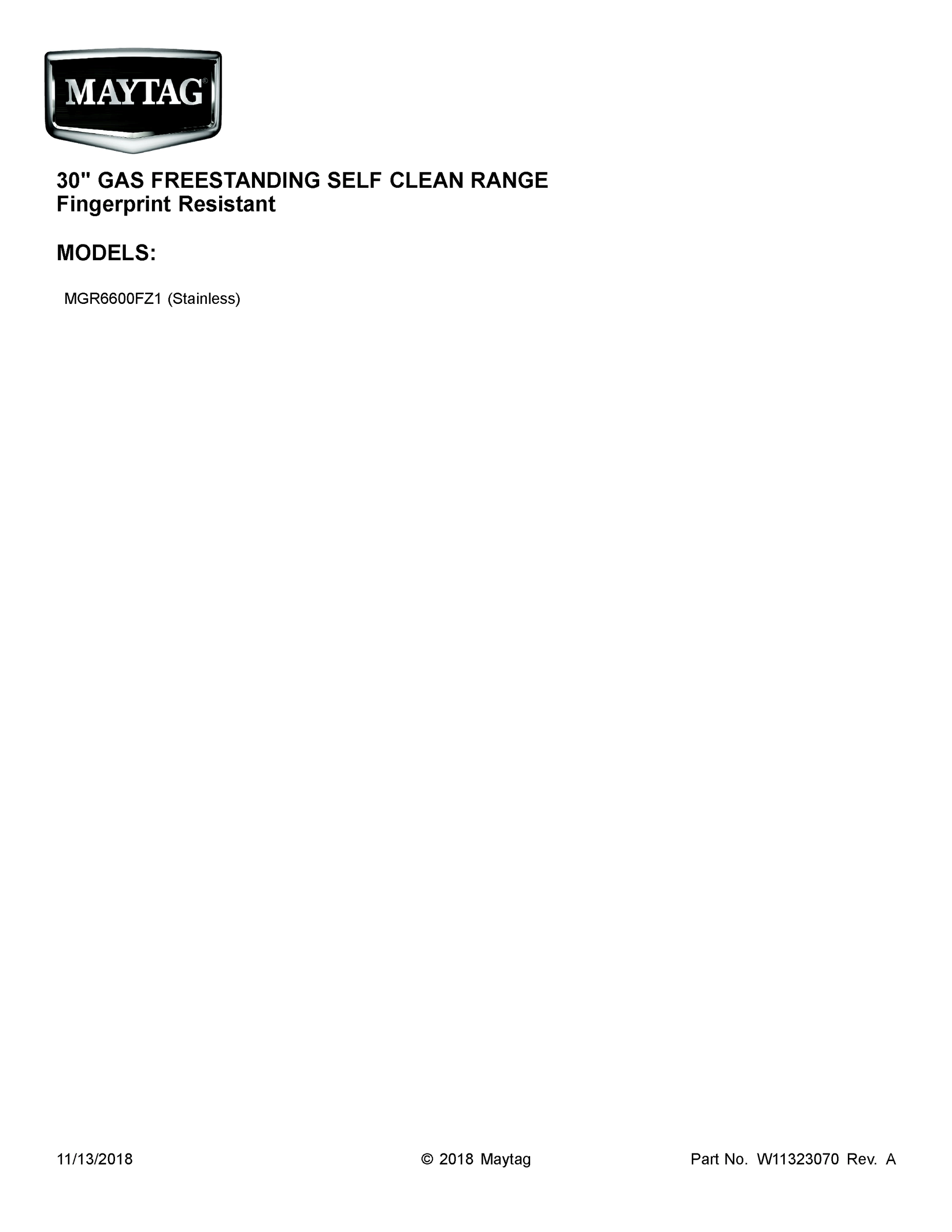

01 - COVER SHEET
02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS
04 - MANIFOLD PARTS
05 - CHASSIS PARTS
06 - DOOR PARTS
07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR6600FZ1 RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W11122558 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W11130372 Contact Us For Availability
1
SCREW, VALVE MAY W10295997 Contact Us For Availability
1
BOX, FLUE MAY W10153186 Contact Us For Availability
1
SCREW MAY W10031780 Contact Us For Availability
1
PANEL, DRAWER (STAINLESS) MAY W11190210 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W11122568 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W11130379 Contact Us For Availability
1B
SHEET, TECH MAY W10842032 Contact Us For Availability
1C
DIAGRAM, WIRING MAY W11032799 Contact Us For Availability
2
KIT, BURNER CAP (BLACK (SET OF 4)) MAY W10850506 Contact Us For Availability
2
SHIELD, HEAT MAY 8053505 Contact Us For Availability
2
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
2
SHIELD, FLUE MAY 8272747 Contact Us For Availability
2
LINER, DOOR MAY 9761344 Contact Us For Availability
2
SCREW MAY 3196165 Contact Us For Availability
3
ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT MAY W10515455 Contact Us For Availability
3
PANEL, CONTROL (STAINLESS) MAY W10835288 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT) MAY W10473936 Contact Us For Availability
3
BOX-BURNER, GAS SEALED MAY 8273036 Contact Us For Availability
3
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
3
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3A
ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) MAY W10515454 Contact Us For Availability
3A
ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR) MAY W10473932 Contact Us For Availability
3B
ASSEMBLY, BURNER (6K) (RIGHT REAR) MAY W10515453 Contact Us For Availability
3B
ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT) MAY W10474166 Contact Us For Availability
3C
ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR) MAY W10474162 Contact Us For Availability
3D
ASSEMBLY, ORIFICE HOLDER (8K) (CENTER) MAY W10836764 Contact Us For Availability
4
COOKTOP (BLACK) MAY W10884167 Contact Us For Availability
4
BRACKET, MOUNTING MAY W10762981 Contact Us For Availability
4
TUBING (MANIFOLD TO REGULATOR) MAY W10215439 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
4
SCREW MAY W10200660 Contact Us For Availability
4
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
5
PANEL, MANIFOLD (STAINLESS) MAY W10861559 Contact Us For Availability
5
HARNESS, IGNITER (INCLUDES SWITCHES) MAY W10811691 Contact Us For Availability
5
MODULE, SPARK DSI MAY W10920631 Contact Us For Availability
5
CLIP, PANEL MAY W10137382 Contact Us For Availability
5
HINGE, ACTIVE (WITH SPRING) MAY W10299224 Contact Us For Availability
5
BRACKET, MOUNTING MAY W10462909 Contact Us For Availability
6
KNOB, CONTROL (STAINLESS) MAY W10858251 Contact Us For Availability
6
BRACKET, CONSOLE MOUNTING MAY W10516123 Contact Us For Availability
6
ELECTRODE, BAKE MAY 9758079 Contact Us For Availability
6
BRACKET, MANIFOLD MAY 8523249 Contact Us For Availability
6
BADGE MAY W10612925 Contact Us For Availability
7
KIT, GRATE (BLACK) MAY W10911970 Contact Us For Availability
7
BRACKET, REAR COOKTOP MAY 8523412 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10859728 Contact Us For Availability
7
SCREW MAY W10362924 Contact Us For Availability
7
TRIM, OVEN DOOR VENT (STAINLESS) MAY W11047800 Contact Us For Availability
8
SCREW MAY 3400701 Contact Us For Availability
8
COVER, UPPER MAY W10198745 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W10279615 Contact Us For Availability
8
GLASS, INNER MAY W11044424 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR) MAY W10279614 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR) MAY W10247744 Contact Us For Availability
8C
VALVE, GAS (CENTER) MAY W10850894 Contact Us For Availability
9
SCREW MAY 3196557 Contact Us For Availability
9
SHIELD, HEAT MAY W10192841 Contact Us For Availability
9
BRACKET, AEGIS MAY W10224921 Contact Us For Availability
9
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
9
HANDLE, OVEN DOOR (STAINLESS) MAY W10834521 Contact Us For Availability
10
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
10
COVER, BACK MAY W10184370 Contact Us For Availability
10
SCREW MAY 3196385 Contact Us For Availability
10
FOOT, LEVELING MAY W10058460 Contact Us For Availability
10
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
11
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
11
SCREW MAY 3196169 Contact Us For Availability
11
SCREW MAY 3400016 Contact Us For Availability
11
BOTTOM, OVEN MAY 3195097 Contact Us For Availability
11
SCREW MAY W10480830 Contact Us For Availability
12
ELECTRODE (LEFT FRONT, LEFT REAR, RIGHT FRONT MAY W11194809 Contact Us For Availability
12
CONTROL, ELECTRONIC (LCX) (BLACK) MAY W11204512 Contact Us For Availability
12
BURNER, BROILER MAY 8054078 Contact Us For Availability
12
SENSOR MAY W10586204 Contact Us For Availability
12
GLASS ASSEMBLY, OUTER DOOR (STAINLESS) MAY W11167878 Contact Us For Availability
12A
ELECTRODE (RIGHT REAR) MAY W10515459 Contact Us For Availability
13
SCREW MAY 8273062 Contact Us For Availability
13
SPREADER, FLAME (OVEN) MAY W10184491 Contact Us For Availability
13
BAFFLE, BURNER OVEN MAY 8053967 Contact Us For Availability
13
SCREW MAY W10031790 Contact Us For Availability
14
SPREADER, FLAME MAY W10298664 Contact Us For Availability
14
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
14
BURNER, BAKE MAY 9758078 Contact Us For Availability
14
SHIELD, HEAT MAY 8053969 Contact Us For Availability
14
STRAP, DOOR MAY W10544179 Contact Us For Availability
15
BEZEL (STAINLESS) MAY W11042485 Contact Us For Availability
15
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
15
REGULATOR MAY W10602001 Contact Us For Availability
15
SHIELD, LOWER MAY 8053968 Contact Us For Availability
15
TRIM, DOOR (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
16
SCREW MAY W10673618 Contact Us For Availability
16
BRACKET, IGNITOR MAY W10797001 Contact Us For Availability
16
ELECTRODE, BROIL MAY W10333842 Contact Us For Availability
16
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
16
FRAME, GLASS MAY W10316950 Contact Us For Availability
16A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
17
TUBE, BROILER SUPPLY MAY W10420040 Contact Us For Availability
17
ROD, DOOR SWITCH MAY 9757239 Contact Us For Availability
18
FITTING, BROILER MAY W10592836 Contact Us For Availability
18
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
19
ORIFICE (15K) (LEFT FRONT & RIGHT FRONT) MAY W10347414 Contact Us For Availability
19
SCREW MAY W10379120 Contact Us For Availability
19
TRIM, DOOR (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
19A
ORIFICE, NATURAL (9.5K) (LEFT REAR) MAY W10170508 Contact Us For Availability
19B
ORIFICE, NATURAL (5K) (RIGHT REAR) MAY W10170506 Contact Us For Availability
19C
ORIFICE (8K) (CENTER) MAY W10657947 Contact Us For Availability
20
SPREADER, FLAME (BROILER) MAY W10137062 Contact Us For Availability
20
SCREW MAY 3400080 Contact Us For Availability
21
SCREW MAY 3196265 Contact Us For Availability
21
SEAL, DOOR MAY W10658354 Contact Us For Availability
22
BRACE, MAIN BACK MAY W10435470 Contact Us For Availability
23
RETAINER, INSULATION (LEFT) MAY 9761449 Contact Us For Availability
23A
RETAINER, INSULATION (RIGHT) MAY 9761448 Contact Us For Availability
24
SCREW MAY 3196560 Contact Us For Availability
25
CORD, POWER MAY W10624590 Contact Us For Availability
26
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
27
SWITCH, DOOR MAY W10627802 Contact Us For Availability
28
ASSEMBLY, LIGHT MAY W11175594 Contact Us For Availability
29
BULB, HALOGEN 40 WATTS MAY W10571723 Contact Us For Availability
30
ASSEMBLY, DOOR LATCH (FRONT) MAY 9761013 Contact Us For Availability
31
ROD, PUSH LATCH MAY W10078370 Contact Us For Availability
32
ASSEMBLY, DOOR LATCH (REAR) MAY W10107820 Contact Us For Availability
33
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
34
SCREW MAY 3196178 Contact Us For Availability
35
RACK, OVEN MAY W10268578 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
CLIP, WIRE MAY 3196896 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLIP, GAS WIRING MAY W10334923 Contact Us For Availability
NI
HARNESS, BAKE/BROIL MAY W10753750 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10809927 Contact Us For Availability
NI
HARNESS, MAIN MAY W10842520 Contact Us For Availability
NI
ORIFICE, LP BAKE MAY W10400495 Contact Us For Availability
NI
KIT, LP BAKE AND BROIL MAY W10566537 Contact Us For Availability
NI
KIT, LP 5 ORIFICE CONVERSION MAY W11087531 Contact Us For Availability
NI
INSULATION, WRAP MAY 8524099 Contact Us For Availability
NI
INSULATION, BACK MAY W10180437 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
ACCESSORY PARTS, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (SPLIT) MAY 4396927 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
× ![]()
