Model Electrolux MGF326WGSB RANGE – Common Parts & Diagrams

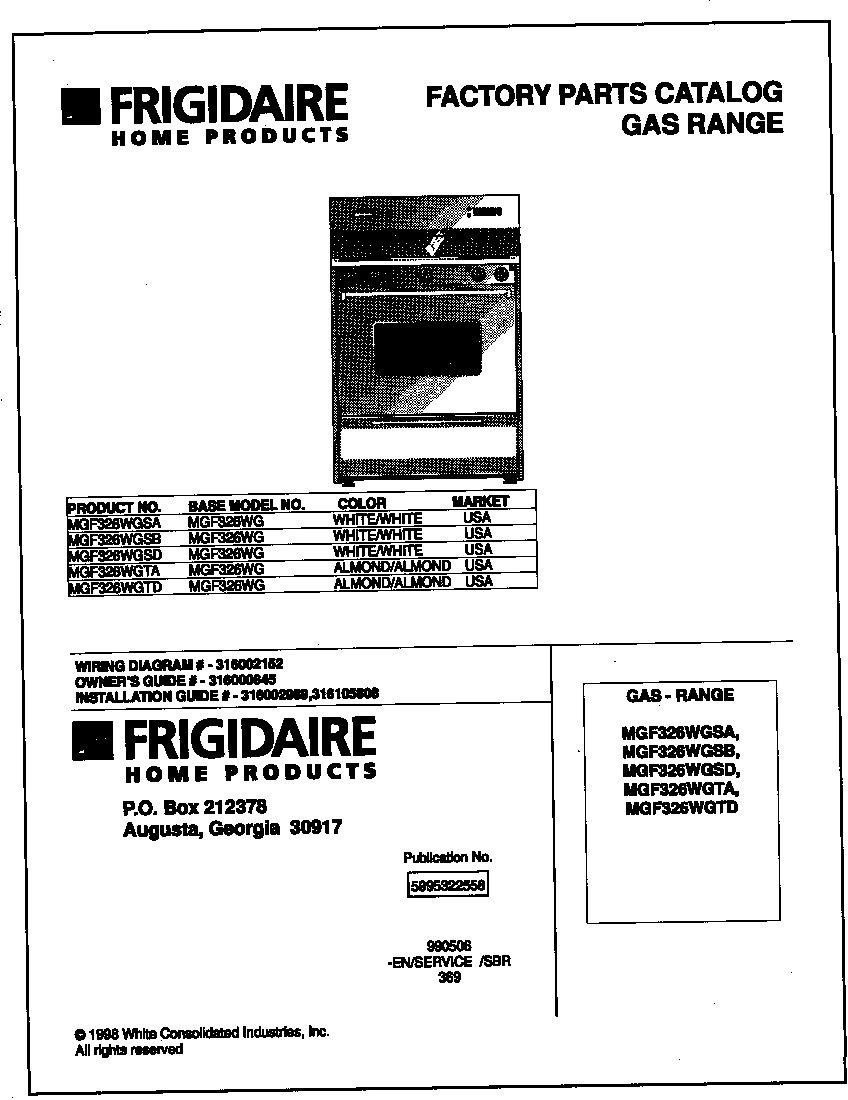

01 - COVER
02 - BACKGUARD

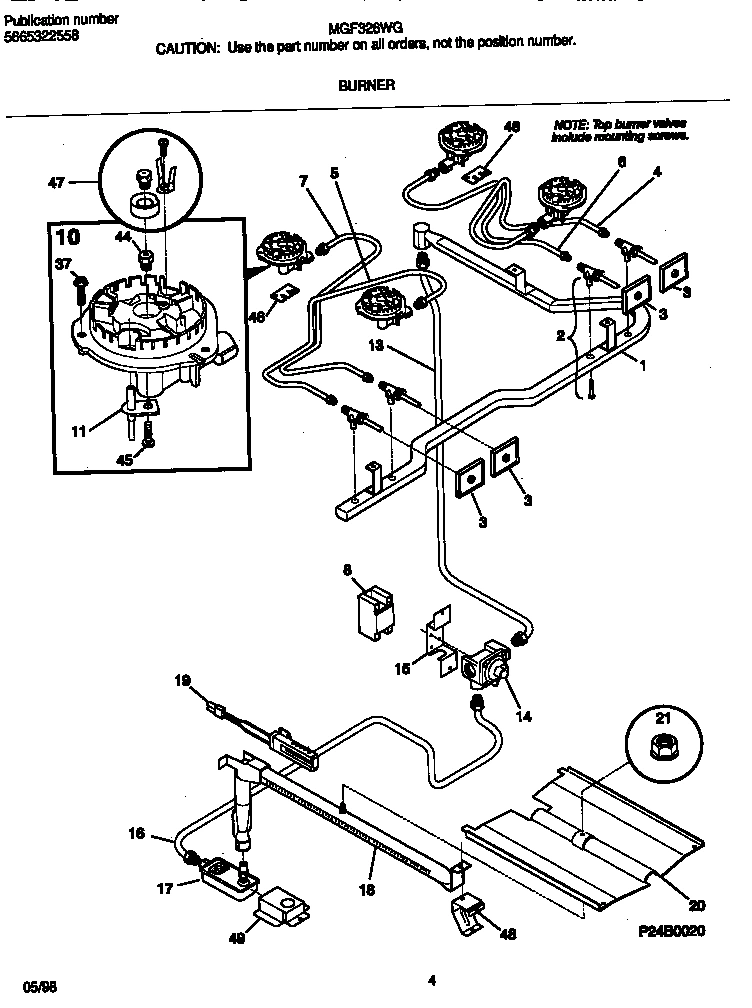

03 - BURNER

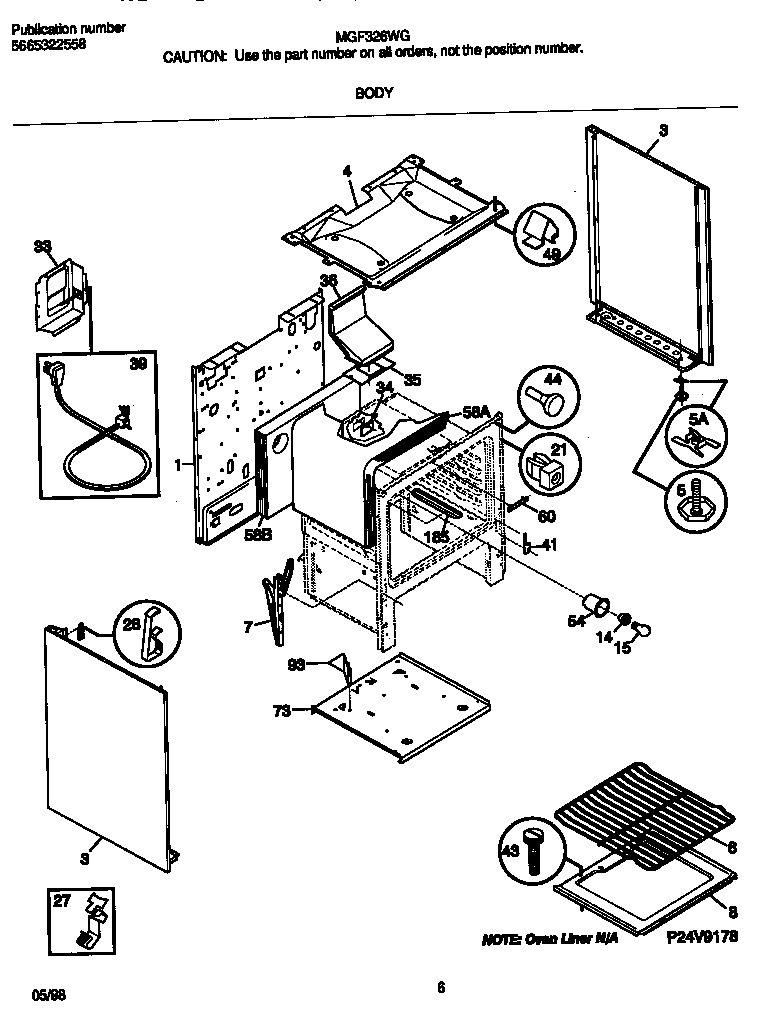

04 - BODY

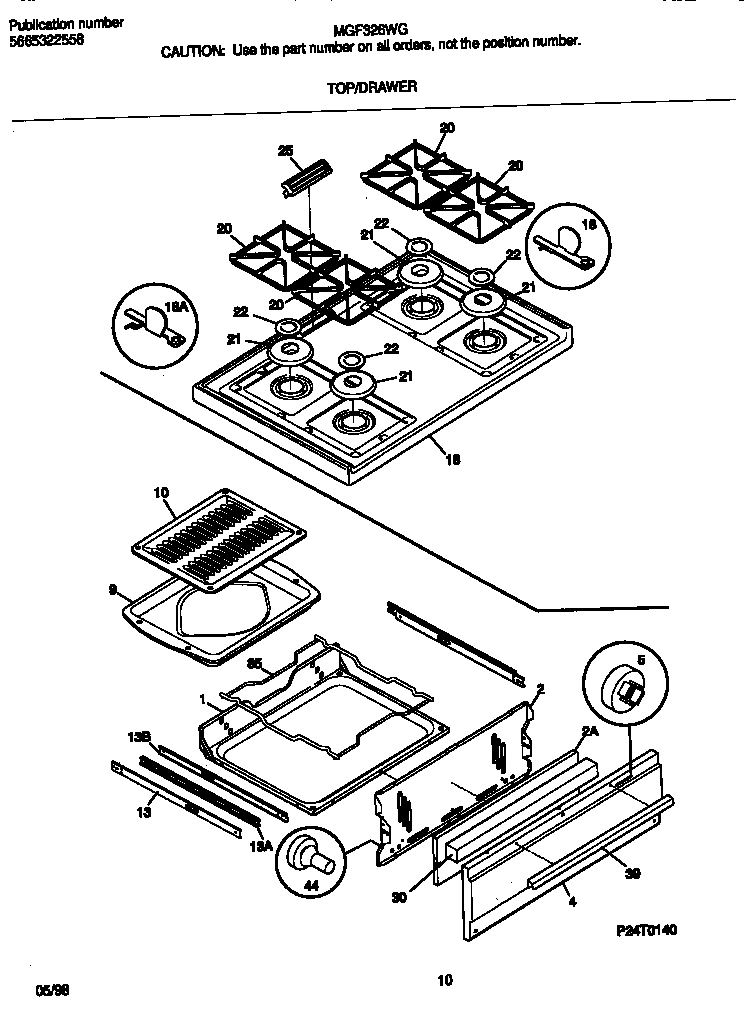

06 - TOP/DRAWER

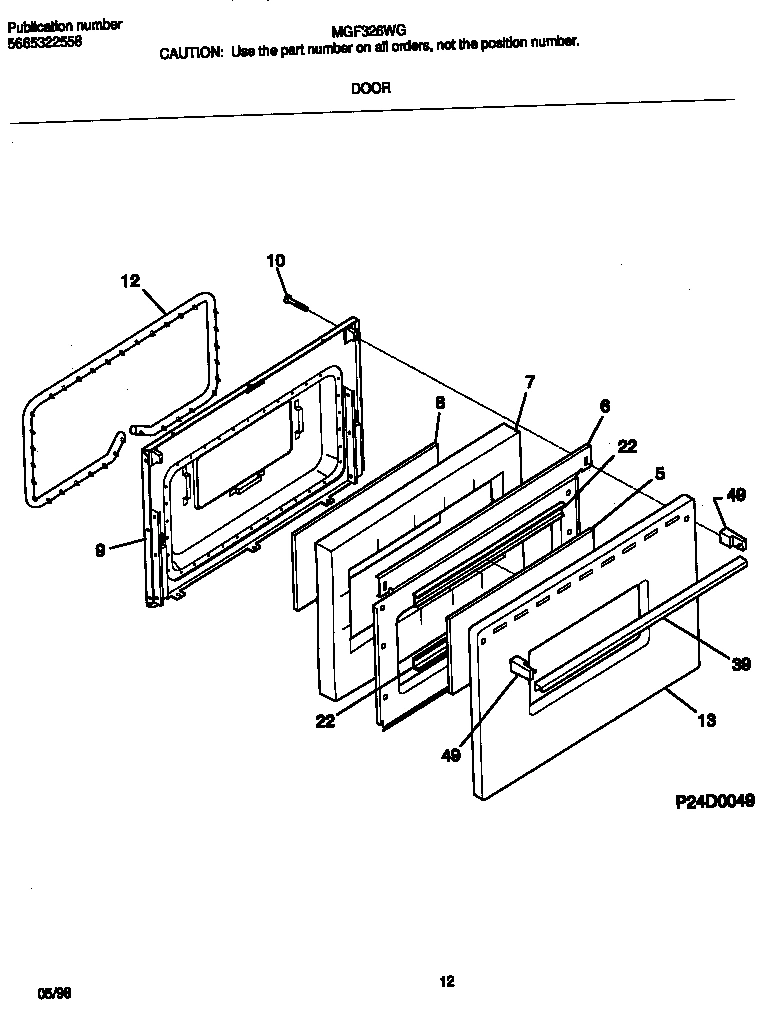

07 - DOOR

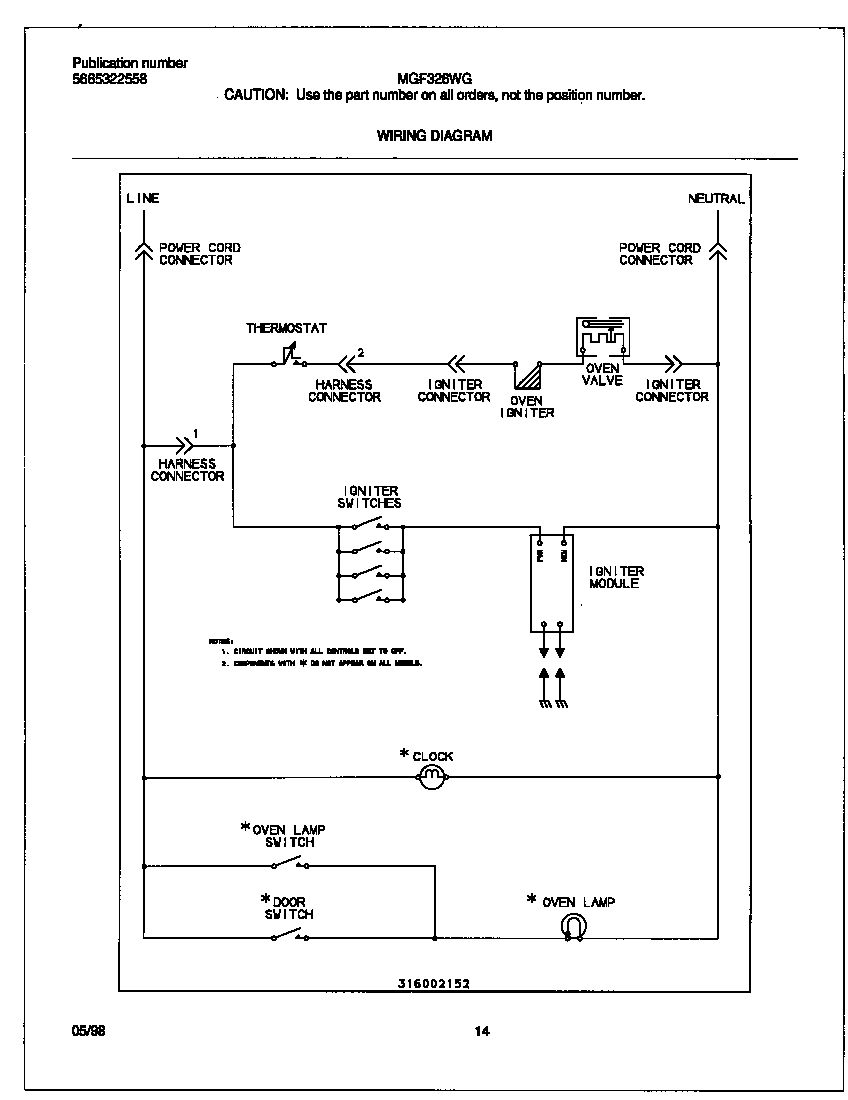

08 - WIRING DIAGRAM
Common parts from model Electrolux MGF326WGSB RANGE
*25368
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*25371
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
*25390
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
CARRIAGE, BROILER WCI 316110201 Contact Us For Availability
2
WCI 5303935130 No Longer Available
4
WCI 316059612 WCI 316059612 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
Glass,oven door ,white ,outer WCI 316050300 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
13
WCI 316111501 WCI 316111501 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
GLIDE-DRAWER,OUTER WCI 316111500 Contact Us For Availability
13
GLIDE-DRAWER,INNER WCI 316111600 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3017081 Contact Us For Availability
16
WCI 316104409 WCI 316104409 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
20
WCI 316088900 WCI 316088900 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
22
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
25
COVER-VENT,METAL ,CHROME WCI 316104500 Contact Us For Availability
28
BUTTON-CLOCK,WHITE , CLOCK SET WCI 316017303 Contact Us For Availability
29
WCI 316028402 WCI 316028402 Contact Us For Availability
30
WCI 316111400 WCI 316111400 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
39
WCI 316019505 WCI 316019505 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 No Longer Available
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
49
END CAP-HANDLE, WHITE , (2) WCI 316020101 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
85
RACK,LOW BROIL WCI 316110500 Contact Us For Availability
× ![]()
