Model Electrolux MGF324BEDC RANGE – Common Parts & Diagrams

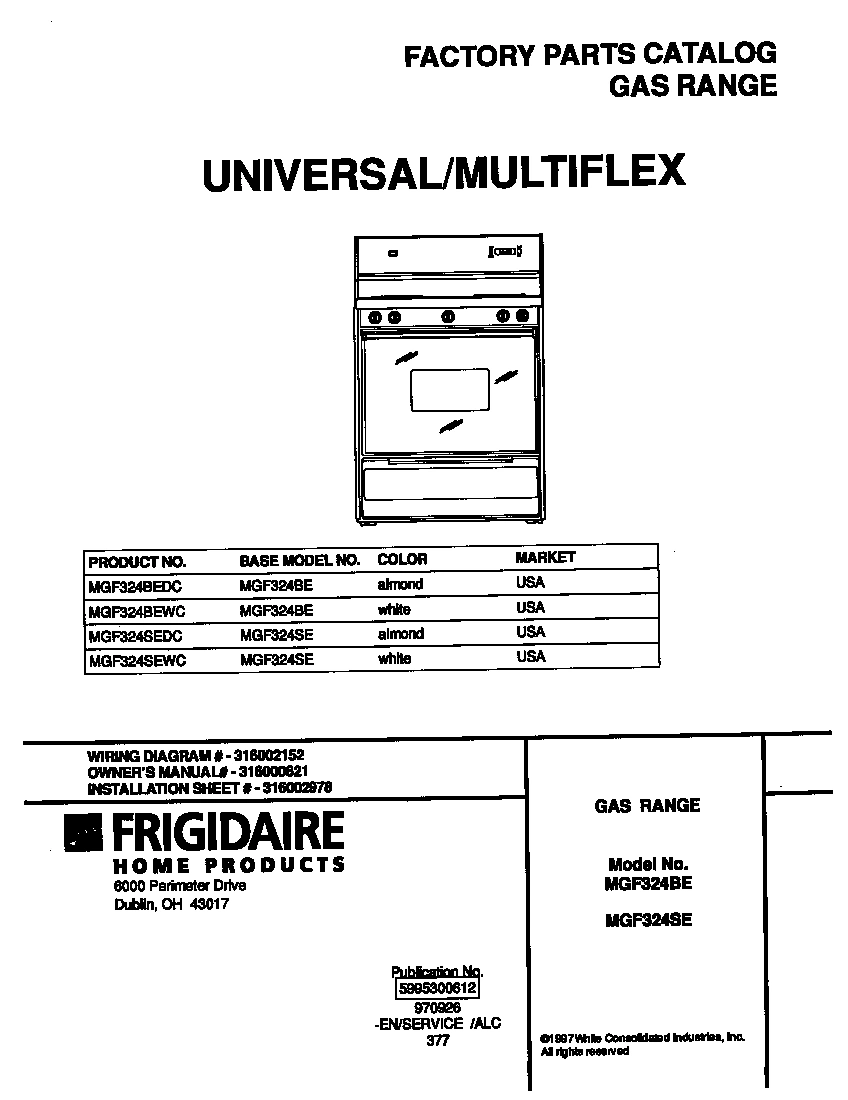

01 - COVER

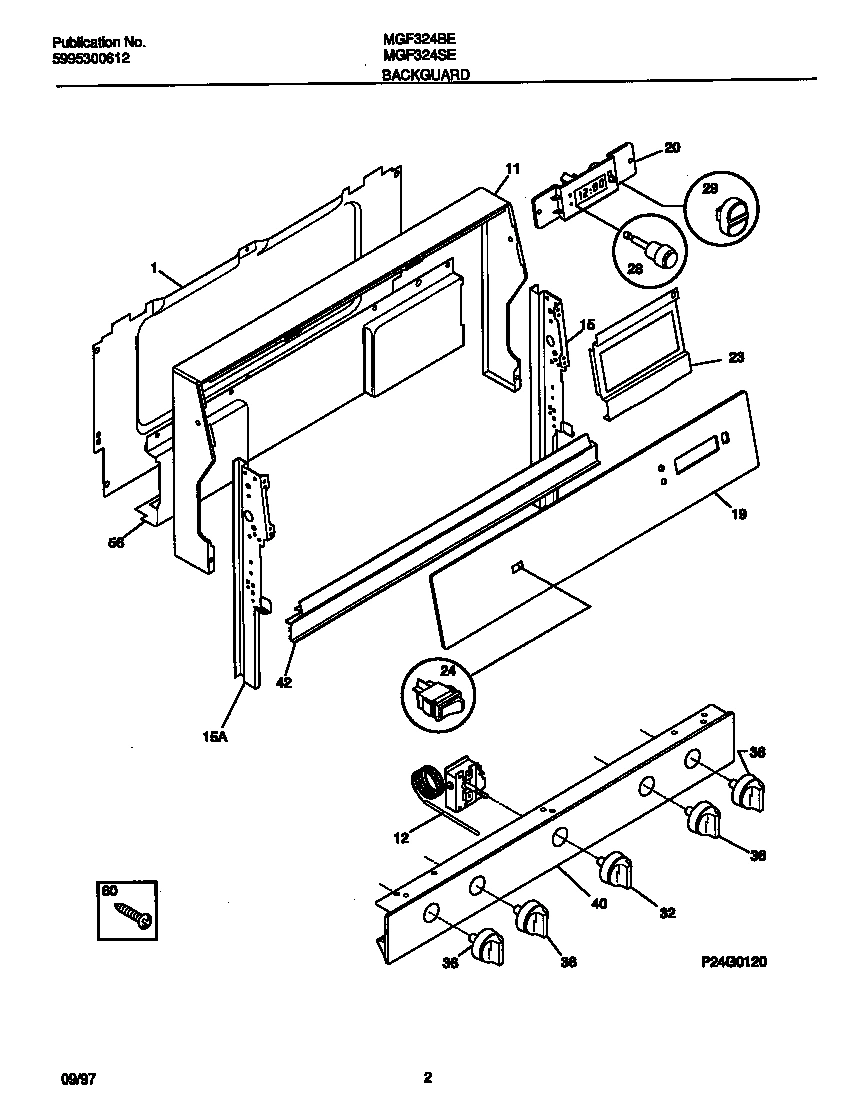

02 - BACKGUARD

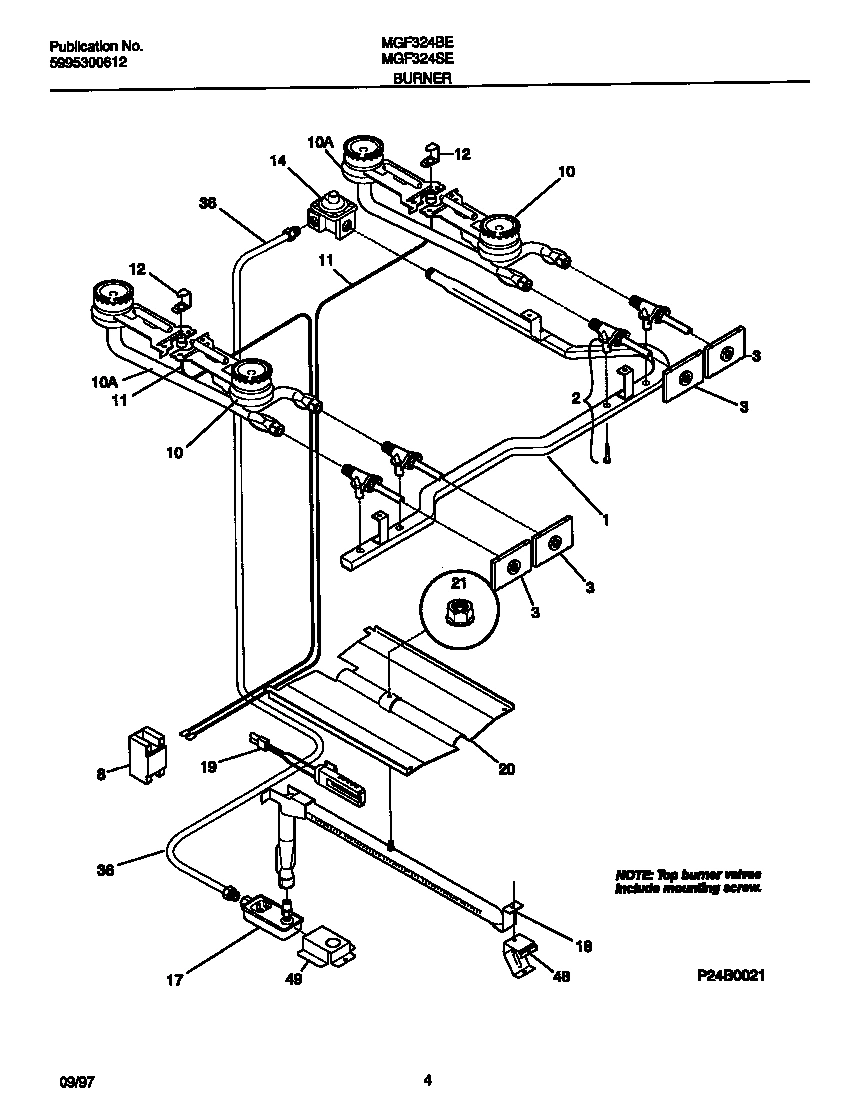

03 - BURNER

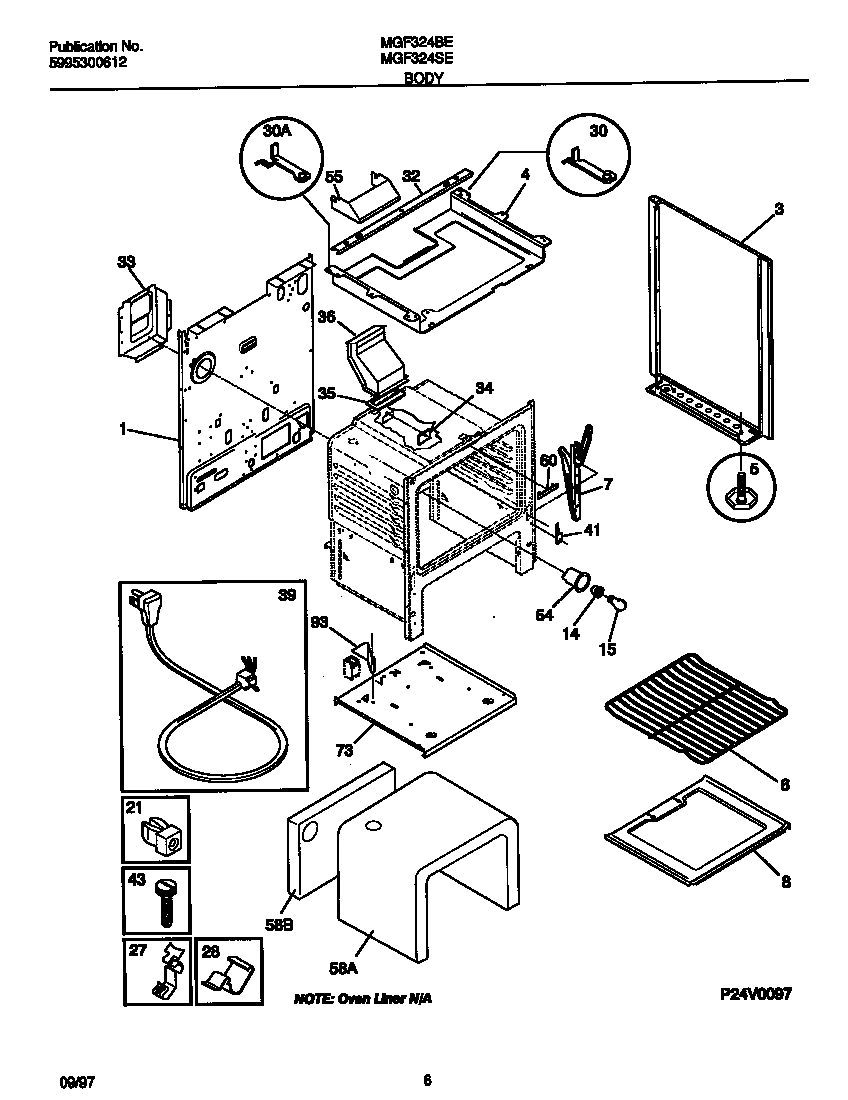

04 - BODY

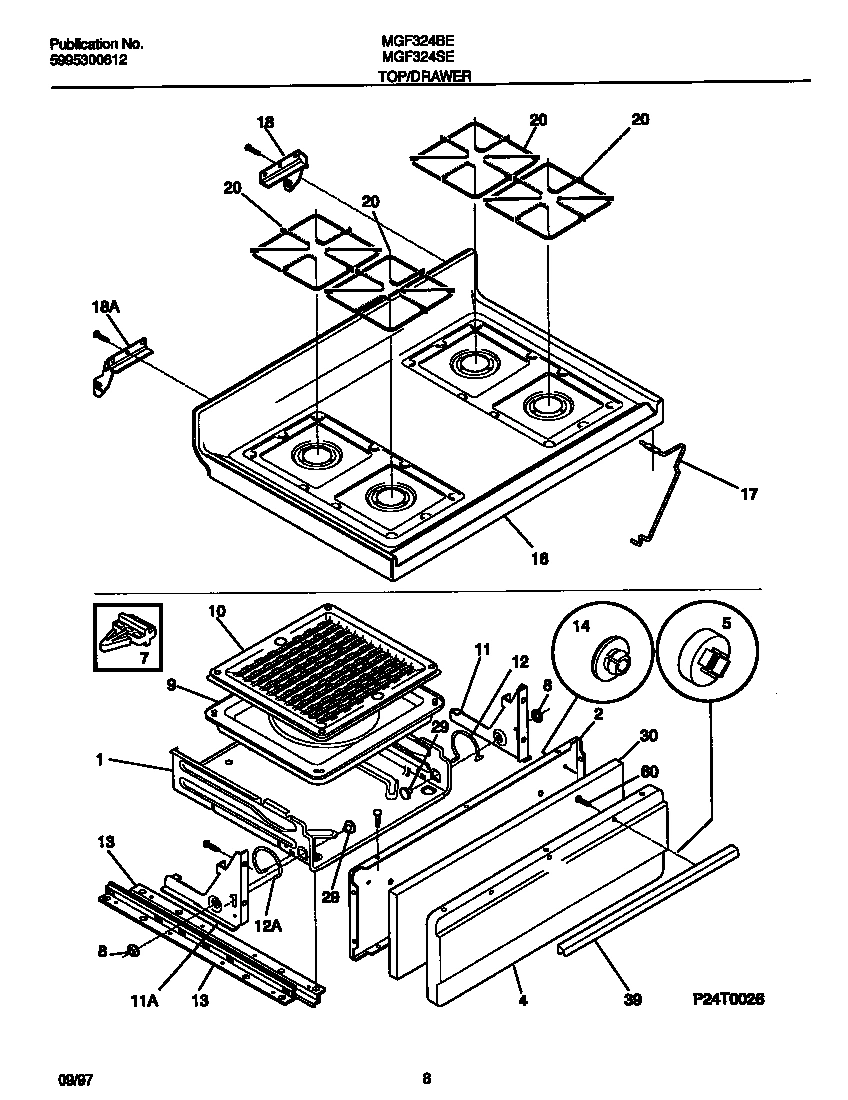

05 - TOP/DRAWER

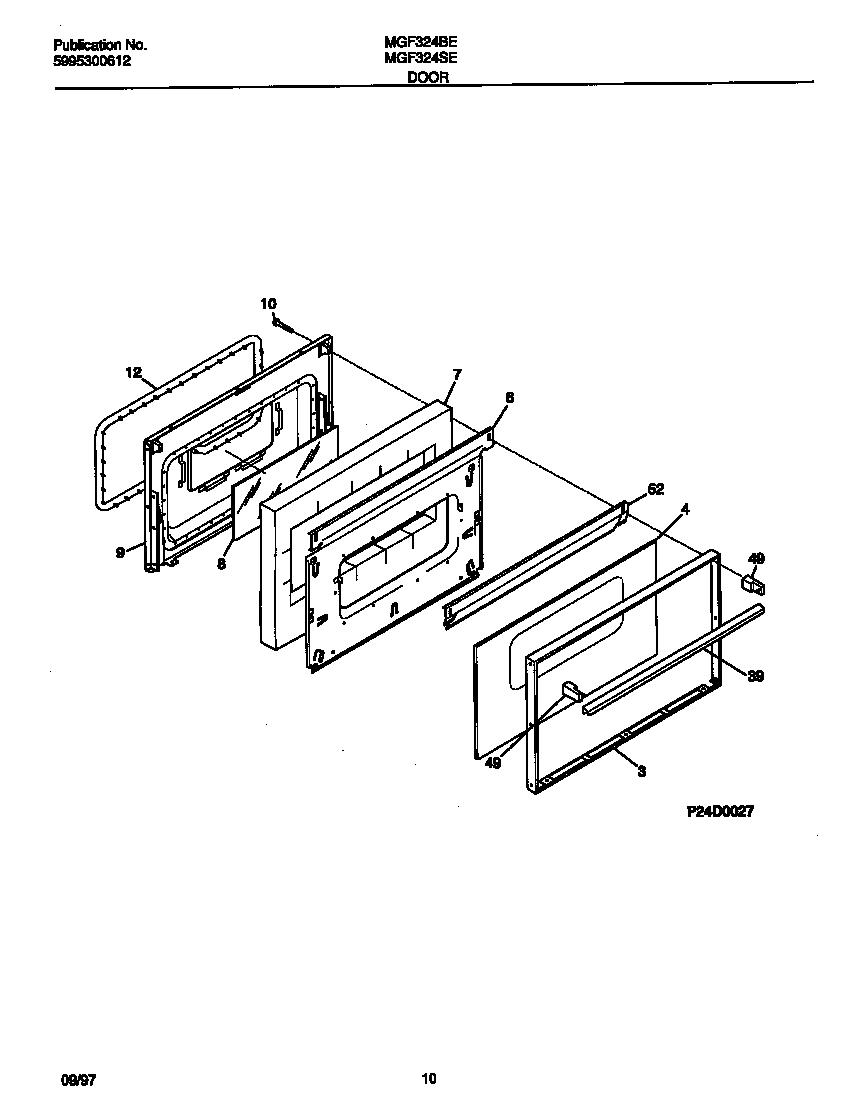

06 - DOOR

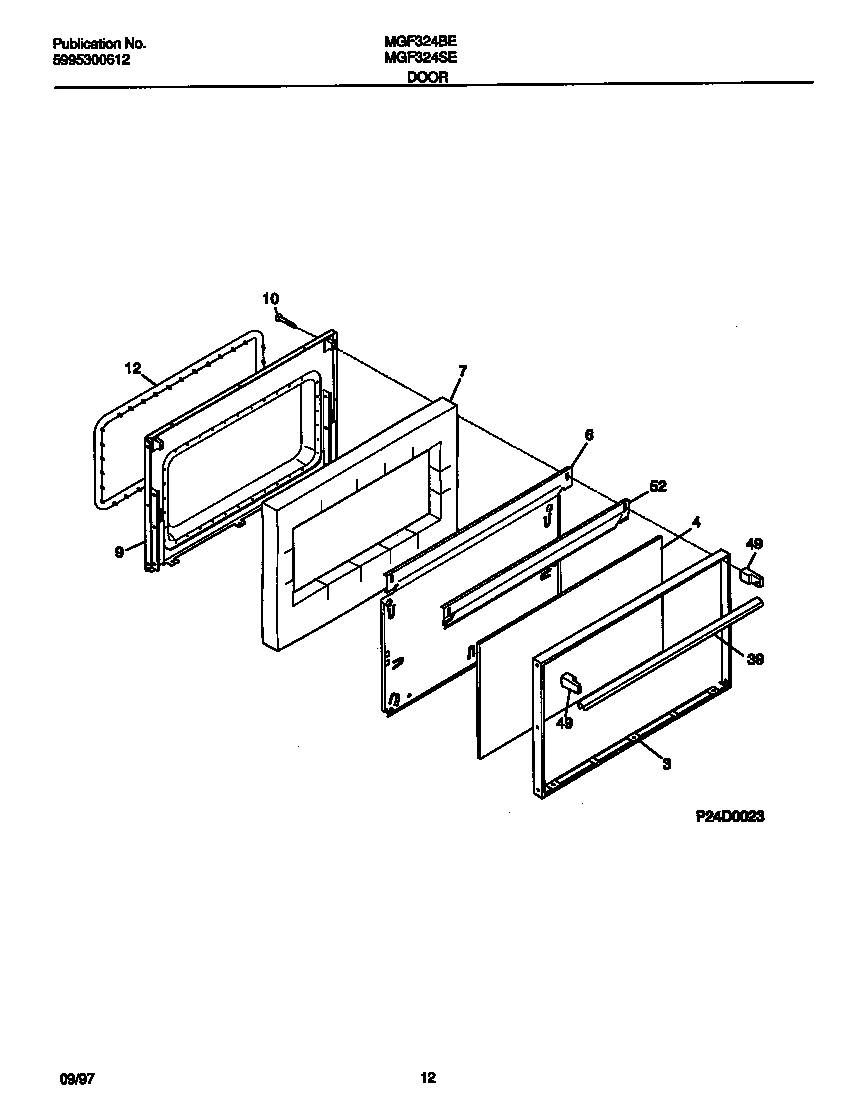

07 - DOOR

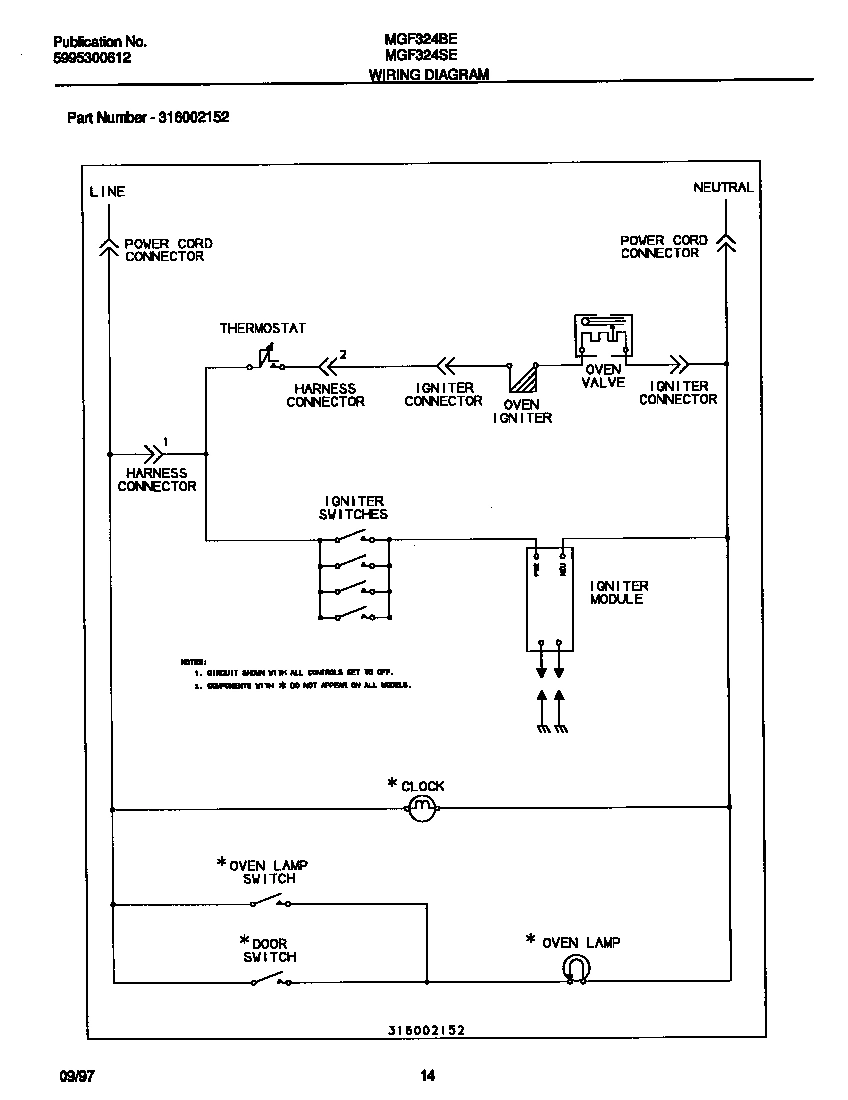

08 - WIRING DIAGRAM
Common parts from model Electrolux MGF324BEDC RANGE
*41845
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
*41846
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*41853
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4
WCI 316089000 WCI 316089000 Contact Us For Availability
4
WCI 316089001 WCI 316089001 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
6
WCI 316091402 WCI 316091402 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 No Longer Available
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
GLASS-OVEN DOOR, AIRWASH WCI 316088600 Contact Us For Availability
8
WCI 5303912606 WCI 5303912606 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
9
WCI 316066611 WCI 316066611 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
BRACKET-HINGE, BROILER LH WCI 316066300 Contact Us For Availability
11
WCI 316066301 WCI 316066301 Contact Us For Availability
11B
WCI 316081701 WCI 316081701 Contact Us For Availability
12
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14A
WCI 316082900 WCI 316082900 Contact Us For Availability
16
WCI 5303285572 WCI 5303285572 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
20
WCI 316088900 WCI 316088900 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
29
BUTTON-SELECTOR, CLOCK/TIMER, BLACK WCI 5303272305 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
KNOB-TOP VALVE, (4) WCI 316009008 No Longer Available
36
WCI 316083000 WCI 316083000 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39A
WCI 316020204 WCI 316020204 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
× ![]()
