Model Electrolux MGF312SBWA RANGE – Common Parts & Diagrams
02 - BACKGUARD

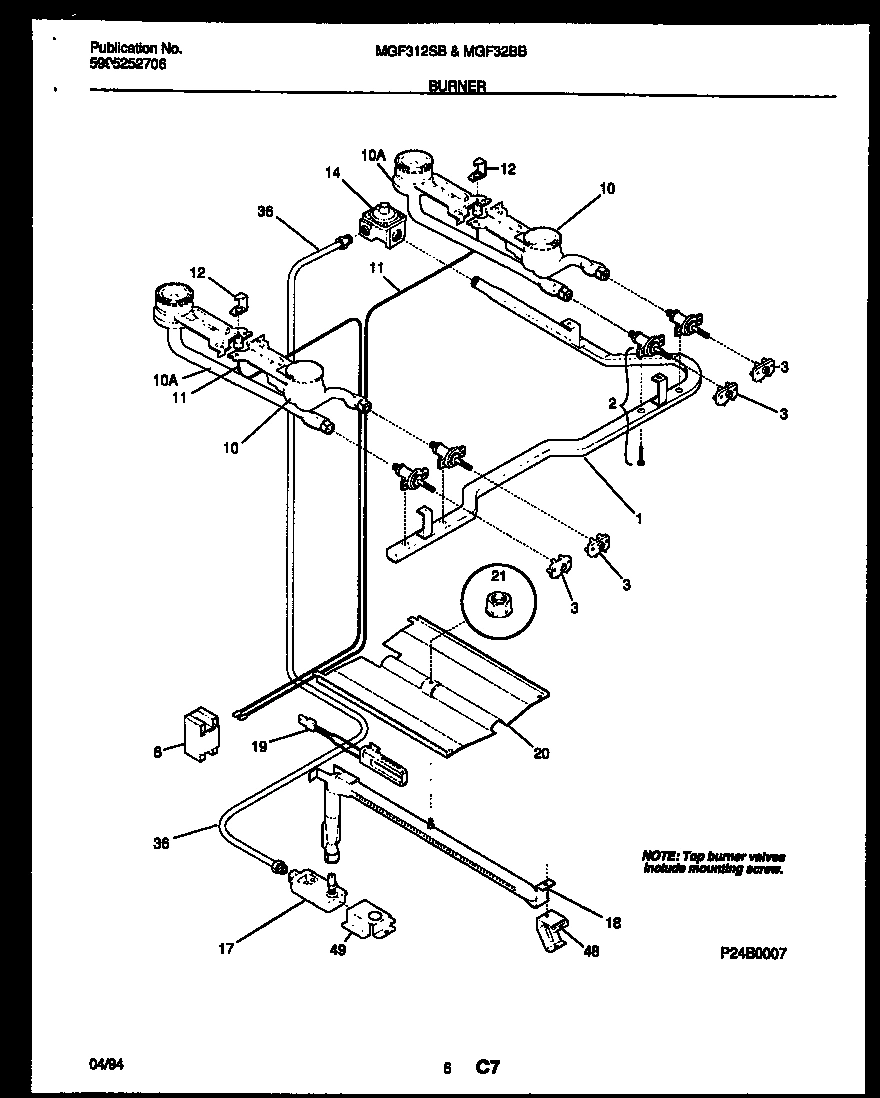

04 - BURNER, MANIFOLD AND GAS CONTROL

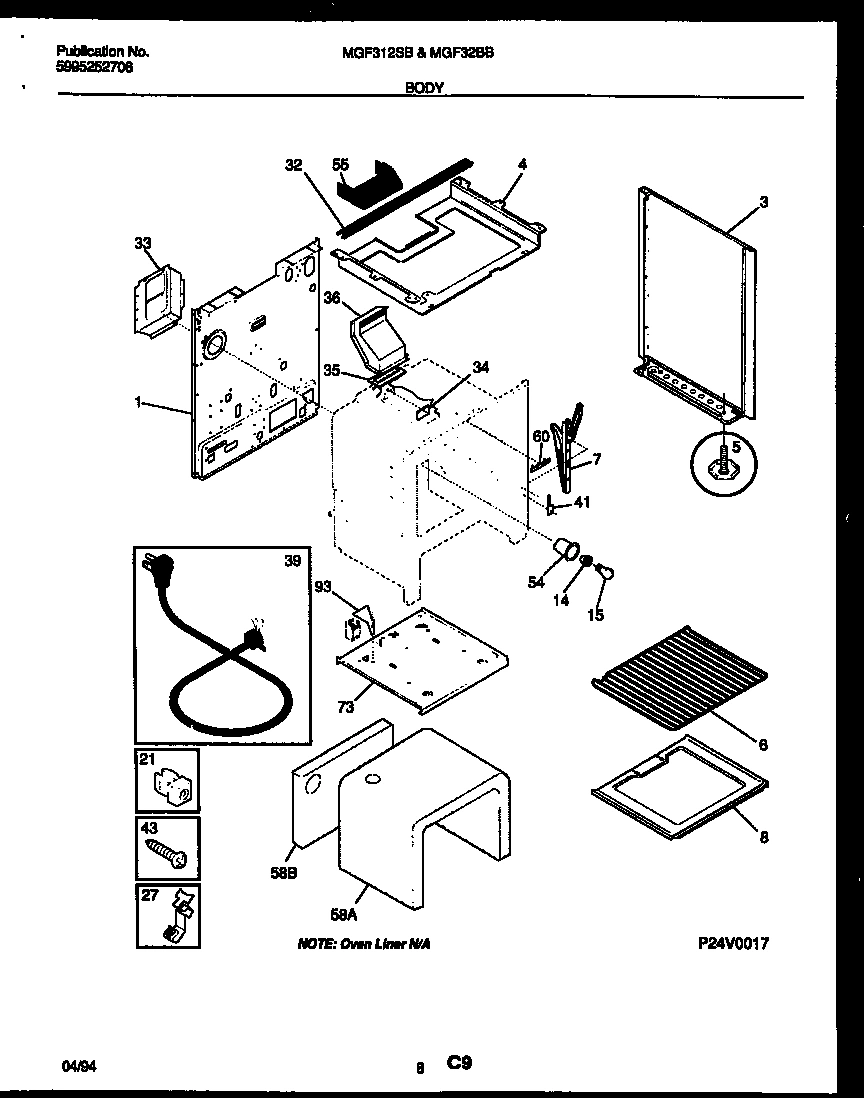

05 - BODY PARTS

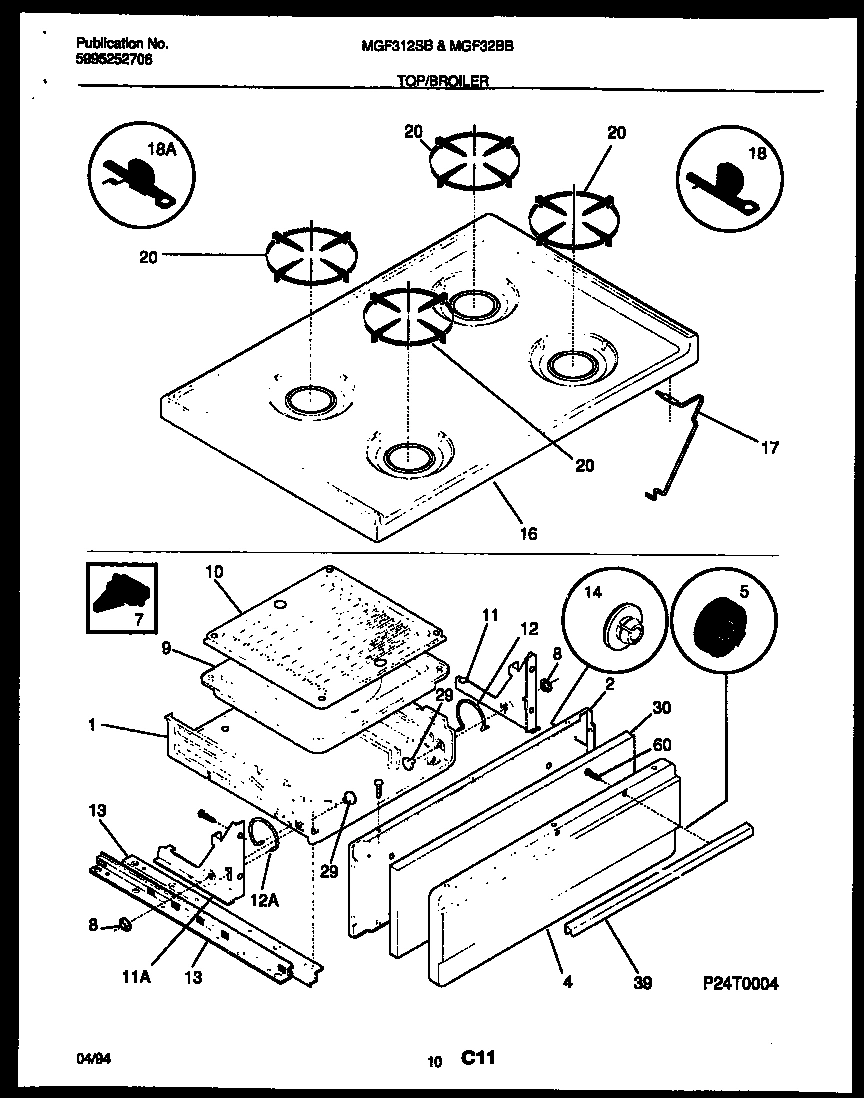

06 - COOKTOP AND BROILER DRAWER PARTS

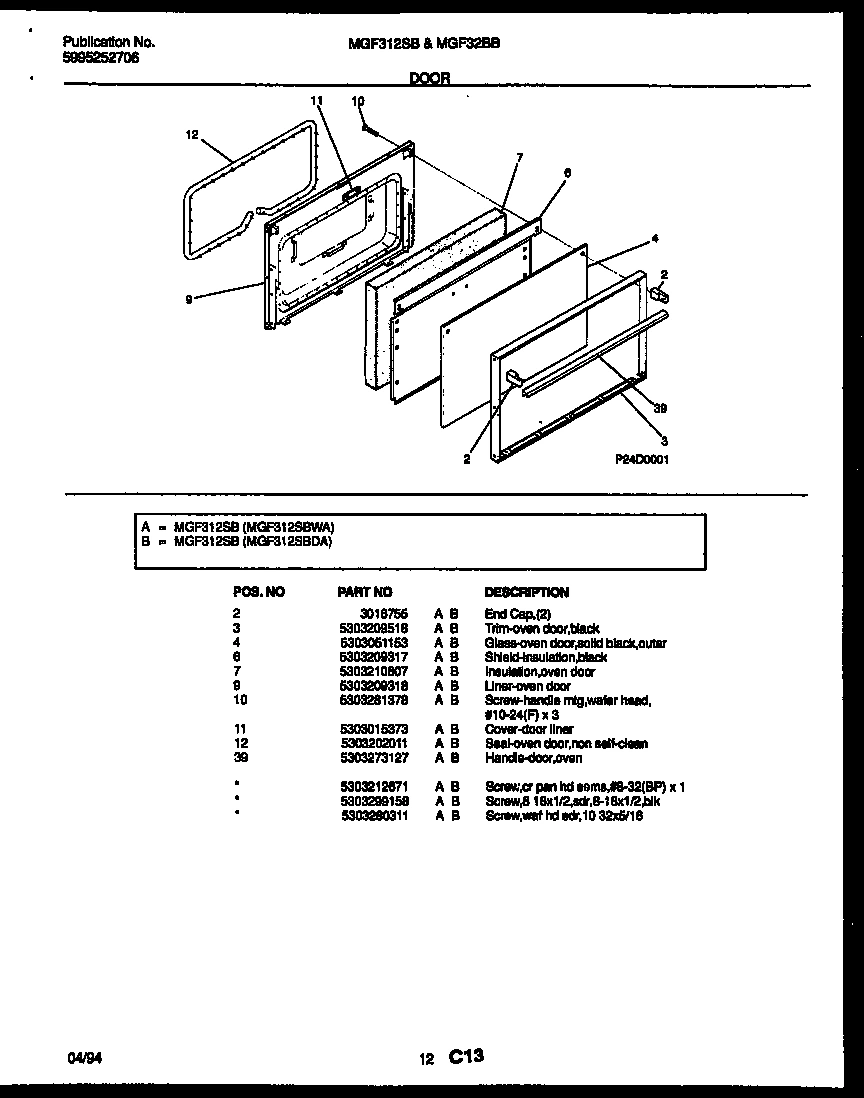

07 - DOOR PARTS
Common parts from model Electrolux MGF312SBWA RANGE
*97179
WCI 3051218 WCI 3051218 Contact Us For Availability
*97179
SHIELD - FLUE PROFILE WCI 5303280614 Contact Us For Availability
*97182
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*97182
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*97182
WCI 5303299158 WCI 5303299158 Contact Us For Availability
*97183
WCI 5303280311 WCI 5303280311 Contact Us For Availability
1
WCI 3203082 WCI 3203082 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
VALVE-TOP BURNER, 2 POSITION, (4), W/SCREWS WCI 316031700 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
3
WCI 316032001 WCI 316032001 Contact Us For Availability
3
WCI 5303269543 WCI 5303269543 Contact Us For Availability
3
TRIM-OVEN DOOR (BLACK) WCI 5303209518 Contact Us For Availability
3A
SWITCH HARNESS TERMINAL KIT (NON-ILLUSTRATED) WCI 5303935040 Contact Us For Availability
3A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
4
WCI 3204962 WCI 3204962 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4
GLASS-OVEN DOOR, SOLID BLACK, OUTER WCI 5303051153 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
WCI 3931015 WCI 3931015 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 No Longer Available
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
IGNITER-TOP BURNER, BASE, (2) WCI 3200276 Contact Us For Availability
11
WCI 316066301 WCI 316066301 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11A
WCI 316066300 WCI 316066300 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
12A
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
WCI 316054800 WCI 316054800 Contact Us For Availability
16
WCI 5303200658 WCI 5303200658 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
20
WCI 3203265 WCI 3203265 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
32
WCI 5303288194 WCI 5303288194 Contact Us For Availability
32
WCI 3203441 WCI 3203441 Contact Us For Availability
33
WCI 316055601 WCI 316055601 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 316065004 WCI 316065004 Contact Us For Availability
36
WCI 3131904 WCI 3131904 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303273127 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
48
Bracket,support ,oven burner WCI 3018603 Contact Us For Availability
49
BRACKET, SAFETY VALVE WCI 3131438 Contact Us For Availability
55
SHIELD, FLUE COVER WCI 3203455 Contact Us For Availability
55A
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
93
WCI 316055501 WCI 316055501 Contact Us For Availability
× ![]()
