Model Maytag MGDX6STBW0 LAUNDRY, RESIDENTIAL, GAS DRYER, 29 INCH – Common Parts & Diagrams
01 - COVER SHEET

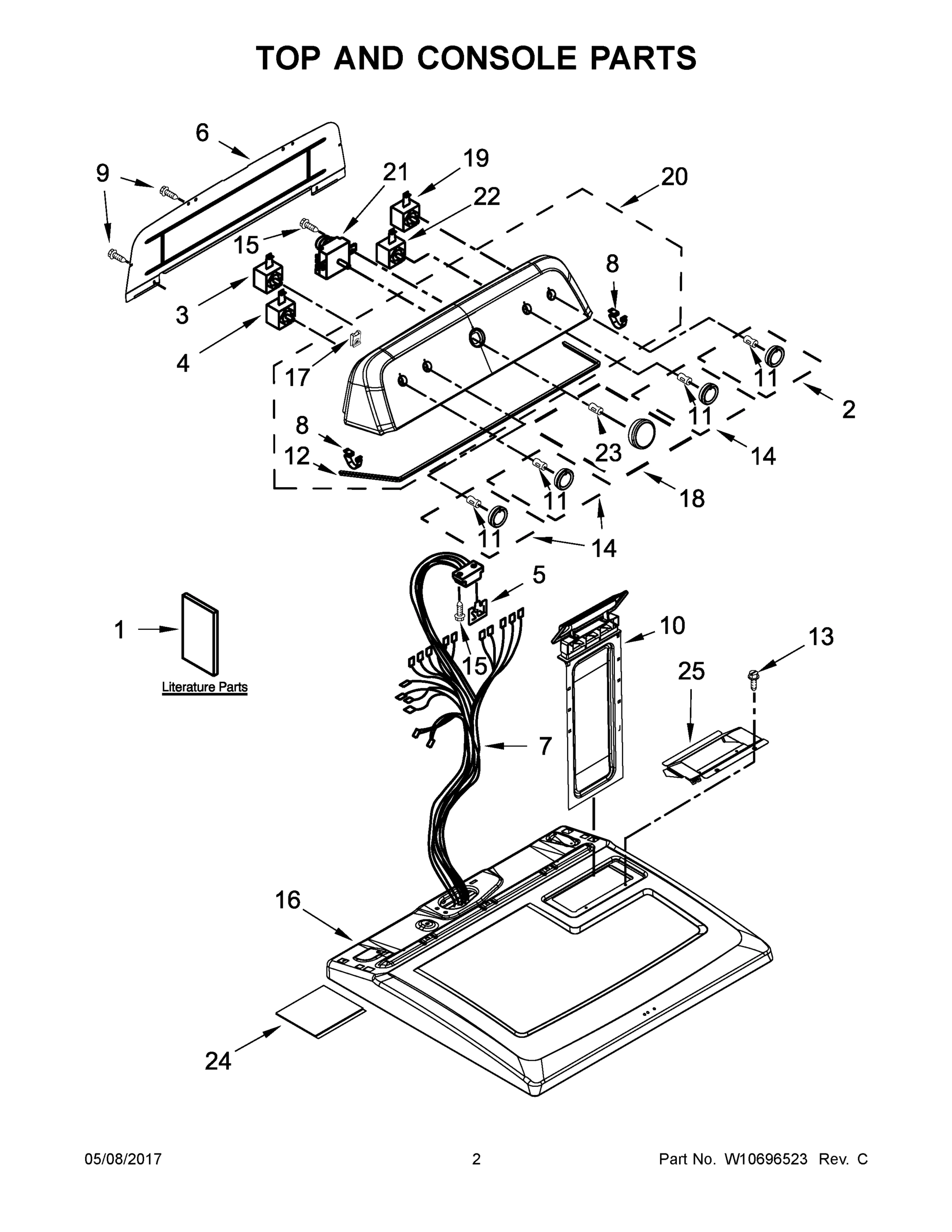

02 - TOP AND CONSOLE PARTS

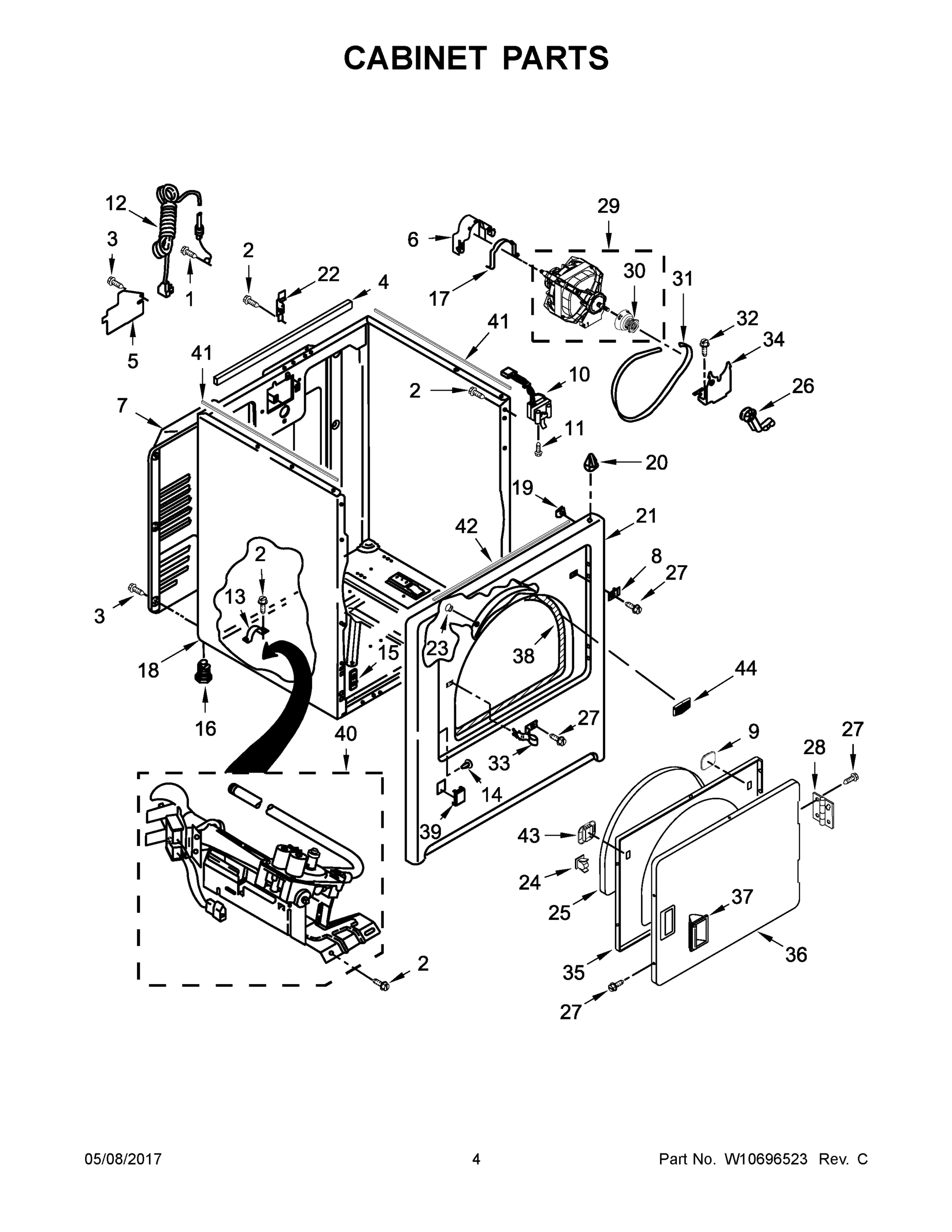

03 - CABINET PARTS

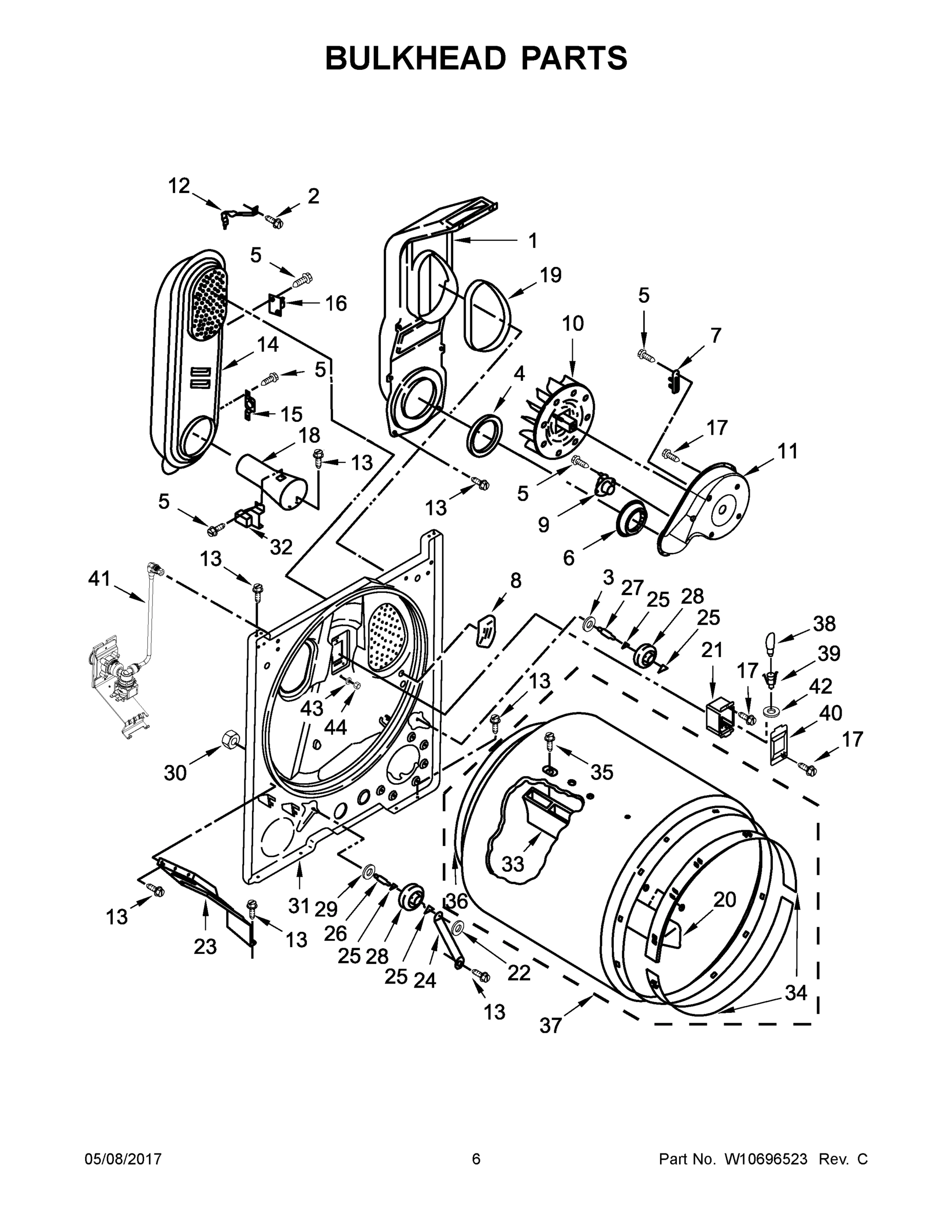

04 - BULKHEAD PARTS

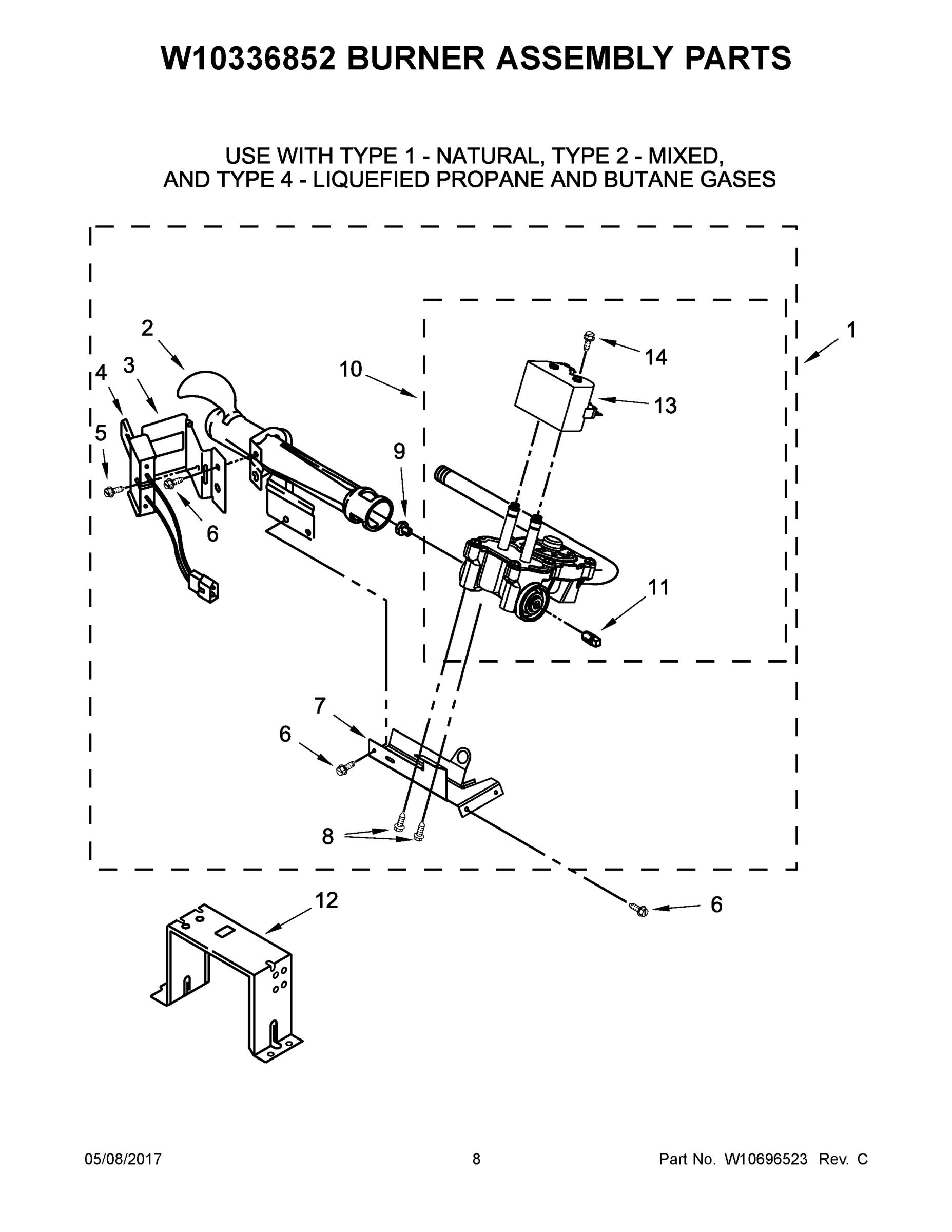

05 - W10336852 BURNER ASSEMBLY PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDX6STBW0 LAUNDRY, RESIDENTIAL, GAS DRYER, 29 INCH
1
USE AND CARE GUIDE MAY W10653997 Contact Us For Availability
1
SCREW MAY 3390631 Contact Us For Availability
1
BURNER ASSEMBLY (60 HZ) (TYPE 1 AND 2) MAY W10336852 Contact Us For Availability
1
ASSEMBLY, LINT CHUTE MAY 348368 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS MAY W10646607 Contact Us For Availability
1B
DIAGRAM, WIRING MAY W10634800 Contact Us For Availability
2
ASSEMBLY, PUSH TO START KNOB (GREY) MAY W10565871 Contact Us For Availability
2
SCREW MAY 489463 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
3
SWITCH, ROTARY (SIGNAL) MAY W10627711 Contact Us For Availability
3
SCREW MAY 693995 Contact Us For Availability
3
WASHER MAY 3388703 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
4
SWITCH, ROTARY (TEMPERATURE) MAY W10648614 Contact Us For Availability
4
SEAL, REAR PANEL MAY W10685675 Contact Us For Availability
4
SEAL, LINT CHUTE MAY 347139 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W10476828 Contact Us For Availability
5
COVER, TERMINAL BLOCK MAY W10686798 Contact Us For Availability
5
SCREW MAY 90767 Contact Us For Availability
5
SCREW MAY W10366705 Contact Us For Availability
6
PANEL, REAR CONSOLE MAY W10416486 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
6
SHIELD, EXHAUST MAY W10389567 Contact Us For Availability
7
HARNESS, MAIN MAY W10646807 Contact Us For Availability
7
PANEL, REAR MAY W10634729 Contact Us For Availability
7
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
7
BASE, BURNER MAY 693986 Contact Us For Availability
8
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
8
PLUG, STRIKE MAY W10567345 Contact Us For Availability
8
PAD, SENSOR MAY 3976479 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
COVER, DOOR CATCH MAY W10529198 Contact Us For Availability
9
THERMOSTAT MAY 8318268 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 234826 Contact Us For Availability
10
LINT SCREEN (WHITE) MAY W10508973 Contact Us For Availability
10
SWITCH, DOOR MAY W10569603 Contact Us For Availability
10
WHEEL, BLOWER MAY 694089 Contact Us For Availability
10
VALVE, GAS MAY W10622159 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
HOUSING, BLOWER MAY 8577230 Contact Us For Availability
11
PIPE PLUG MAY W10295523 Contact Us For Availability
12
SEAL, CONSOLE MAY W10588162 Contact Us For Availability
12
CORD, POWER MAY 344020 Contact Us For Availability
12
CLIP, HEATER BOX MAY 3398161 Contact Us For Availability
12
COIL (60 HZ) MAY W10328463 Contact Us For Availability
13
SCREW MAY 688983 Contact Us For Availability
13
CLAMP, PIPE MAY 341029 Contact Us For Availability
13
SCREW MAY 326049536 Contact Us For Availability
14
ASSEMBLY, CONTROL KNO (GREY) MAY W10562155 Contact Us For Availability
14
PLUG, HOLE (WHITE) MAY 3404413 Contact Us For Availability
14
BOX, HEATER (96C) MAY 8530285 Contact Us For Availability
15
SCREW MAY 3348629 Contact Us For Availability
15
CLIP, FRONT PANEL MAY W10775448 Contact Us For Availability
15
THERMOSTAT, HIGH LIMIT SPST (180F) MAY W10423382 Contact Us For Availability
16
TOP (WHITE) MAY W10695517 Contact Us For Availability
16
FOOT, DRYER MAY W10561321 Contact Us For Availability
16
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY W10480709 Contact Us For Availability
17
NUT, "U" MAY W10298336 Contact Us For Availability
17
CLAMP, MOTOR (WITH SHIELD) MAY 3404162 Contact Us For Availability
17
SCREW MAY 3390647 Contact Us For Availability
18
ASSEMBLY, TIMER KNOB (GREY) MAY W10558463 Contact Us For Availability
18
CABINET (WHITE) MAY 8530603 Contact Us For Availability
18
FUNNEL, BURNER LIGHT MAY 8066049 Contact Us For Availability
19
SWITCH, ROTARY (PUSH TO START) MAY W10563095 Contact Us For Availability
19
CLIP, GROUND MAY 98234 Contact Us For Availability
19
SEAL MAY 339956 Contact Us For Availability
20
ASSEMBLY, CONSOLE (WHITE) MAY W10647140 Contact Us For Availability
20
LOCK, FRONT TOP MAY 8066092 Contact Us For Availability
20
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
21
ASSEMBLY, TIMER MAY W10648592 Contact Us For Availability
21
PANEL, FRONT (WHITE) MAY W10664698 Contact Us For Availability
21
BRACKET, DRUM LIGHT MAY 3977373 Contact Us For Availability
22
SWITCH, ROTARY (WRINKLE CONTROL) MAY W10648593 Contact Us For Availability
22
HINGE, TOP MAY 8066217 Contact Us For Availability
22
NUT, PUSH ON MAY 90296 Contact Us For Availability
23
CLIP, SPRING MAY 688805 Contact Us For Availability
23
CLIP, FELT PAD MAY 685203 Contact Us For Availability
23
BRACKET, BULKHEAD CHUTE MAY 3406022 Contact Us For Availability
24
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
24
ASSEMBLY, DOOR CATCH MAY W10610880 Contact Us For Availability
24
BRACKET, SUPPORT MAY 3976434 Contact Us For Availability
25
COLLAR, LINT CHUTE MAY W10662472 Contact Us For Availability
25
SEAL, DOOR MAY W10730752 Contact Us For Availability
25
WASHER, TRI RING MAY W10512946 Contact Us For Availability
26
IDLER ASSEMBLY MAY 691366 Contact Us For Availability
26
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359270 Contact Us For Availability
27
SCREW MAY 342055 Contact Us For Availability
27
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359269 Contact Us For Availability
28
ASSEMBLY, HINGE AND PIN MAY W10362431 Contact Us For Availability
28
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
29
ASSEMBLY, MOTOR MAY W10396032 Contact Us For Availability
29
WASHER MAY 348197 Contact Us For Availability
30
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
30
NUT, HEX MAY W10298789 Contact Us For Availability
31
BELT, DRIVE MAY W10198086 Contact Us For Availability
31
BULKHEAD MAY W10714471 Contact Us For Availability
32
BOLT MAY 3400500 Contact Us For Availability
32
SENSOR, RADIANT MAY 338906 Contact Us For Availability
33
STRIKE, DOOR MAY 3403431 Contact Us For Availability
33
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
34
BASE, MOTOR MAY 348780 Contact Us For Availability
34
BEARING, RING MAY 692526 Contact Us For Availability
35
DOOR, INNER MAY W10463967 Contact Us For Availability
35
SCREW MAY W10219342 Contact Us For Availability
36
DOOR, OUTER (WHITE) MAY 3402335 Contact Us For Availability
36
SEAL, REAR DRUM MAY W10663495 Contact Us For Availability
37
HANDLE, DOOR (WHITE) MAY W10549553 Contact Us For Availability
37
ASSEMBLY, DRUM (COMPLETE) MAY W10389436 Contact Us For Availability
38
ASSEMBLY, SEAL AND BEARING MAY W10663510 Contact Us For Availability
38
BULB, LIGHT MAY 3406124 Contact Us For Availability
39
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
39
SOCKET, LIGHT MAY W10214261 Contact Us For Availability
40
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
41
SEAL, FOAM MAY W10316529 Contact Us For Availability
41
VALVE AND HOSE ASSEMBLY MAY W10562804 Contact Us For Availability
42
SEAL, SPILL GUARD MAY W10316619 Contact Us For Availability
42
SEAL, DRUM LIGHT MAY W10709380 Contact Us For Availability
43
BEZEL, DOOR CATCH MAY W10529197 Contact Us For Availability
43
WASHER, NOZZLE MAY W10044579 Contact Us For Availability
44
BADGE MAY W10612925 Contact Us For Availability
44
NUT, BRASS MAY W10044628 Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P MAY 49572A Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY 3406839 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, CONNECTOR, HOSE -"Y" MAY W10336486 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE, INLET (2') MAY W10439655 Contact Us For Availability
× ![]()
