Model Maytag MGDP576KW0 LAUNDRY, RESIDENTIAL, GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

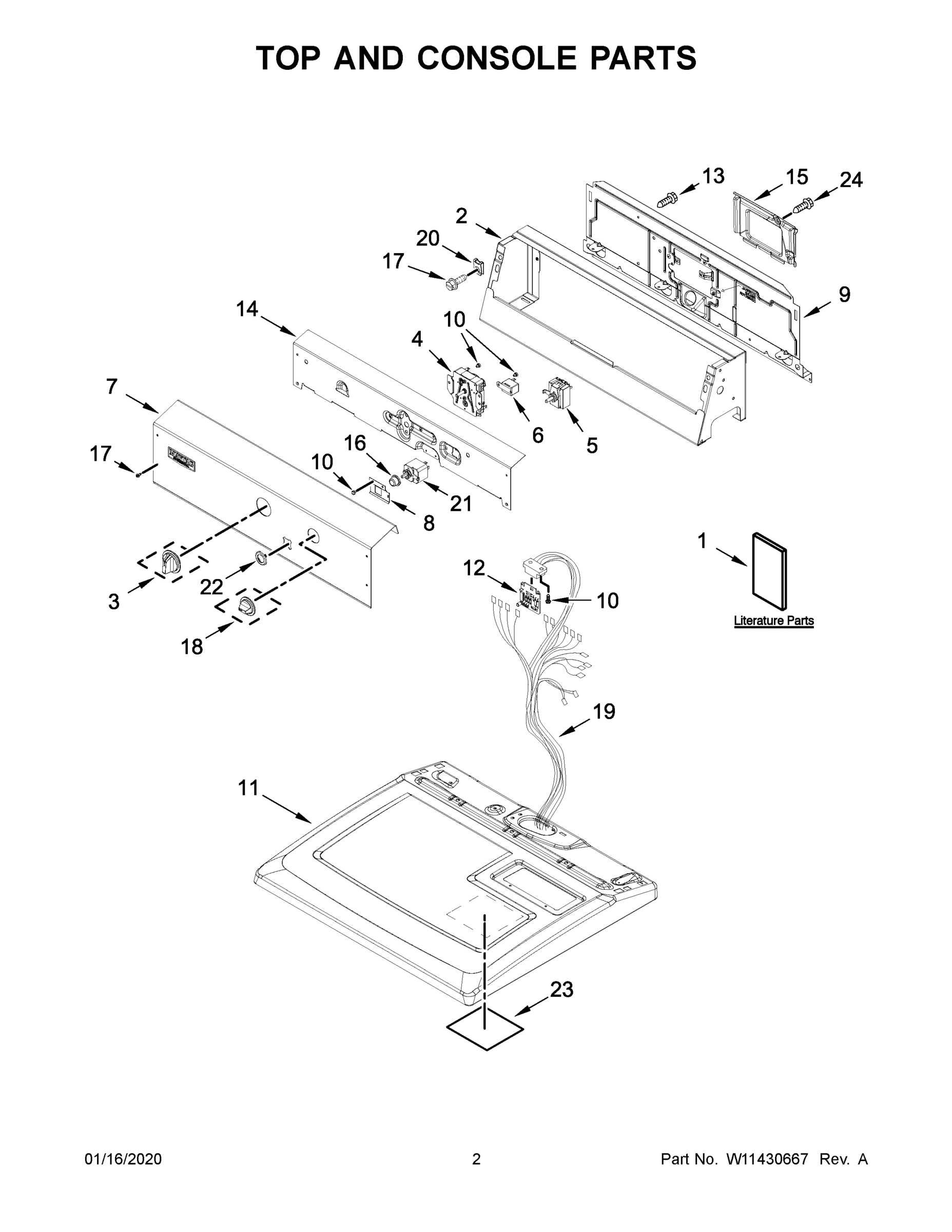

02 - TOP AND CONSOLE PARTS

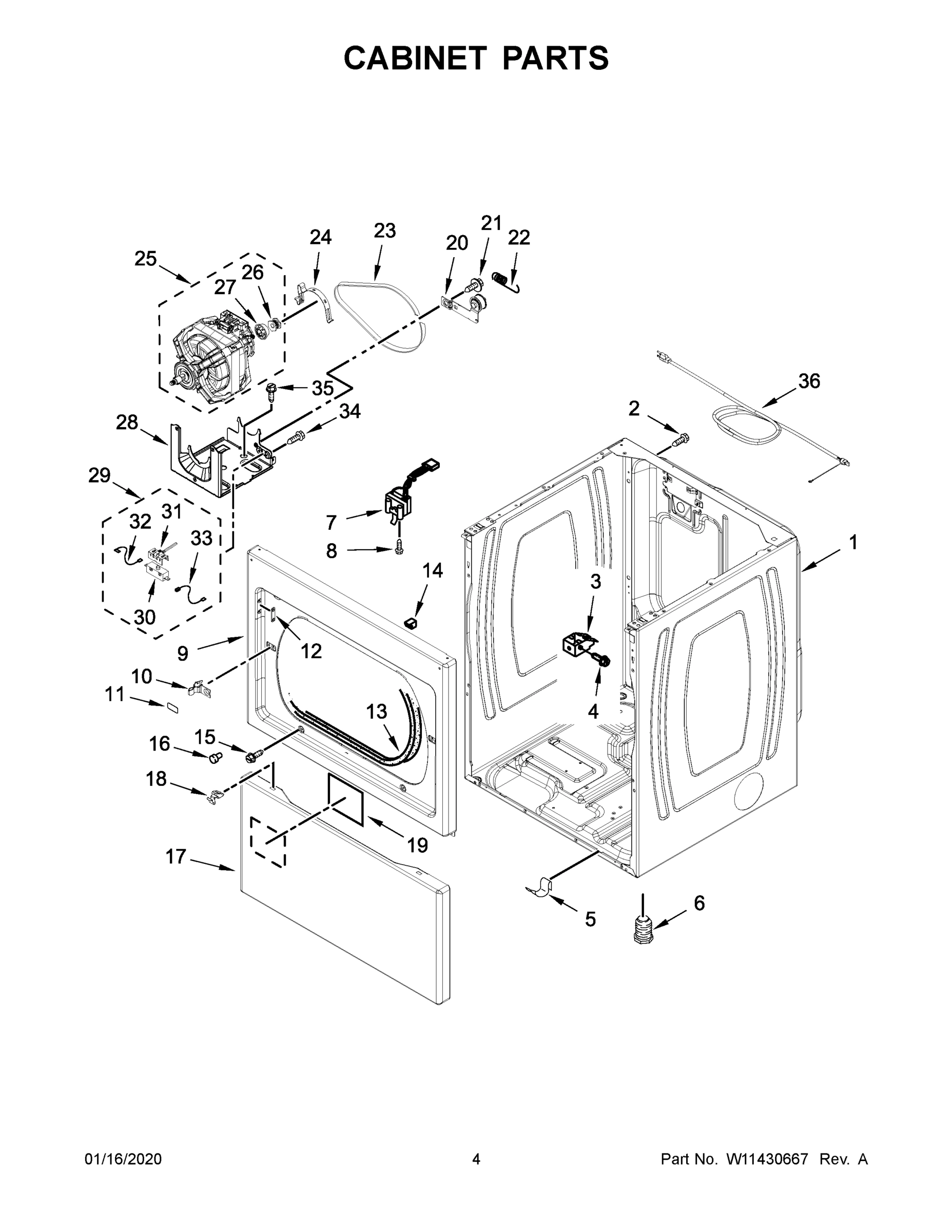

03 - CABINET PARTS

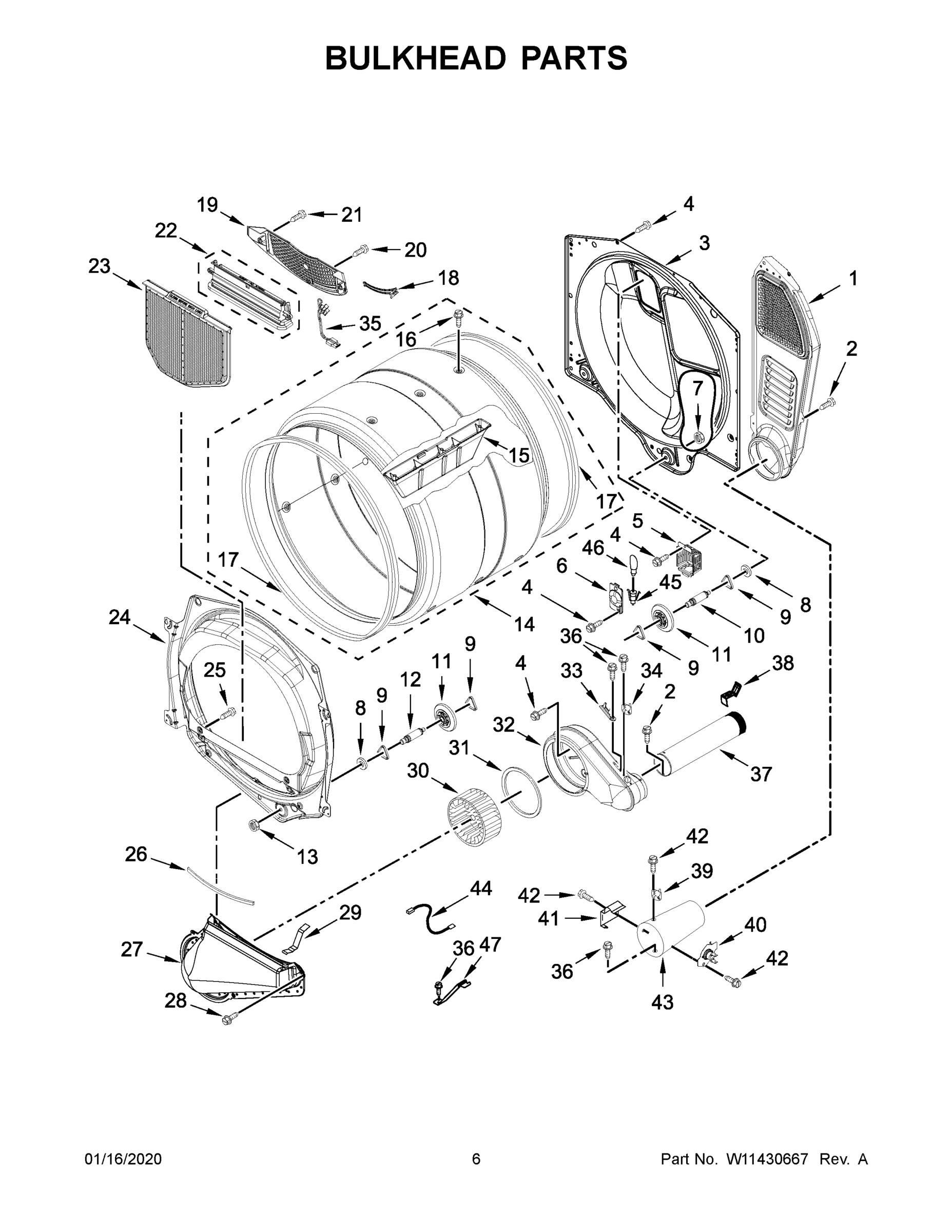

04 - BULKHEAD PARTS

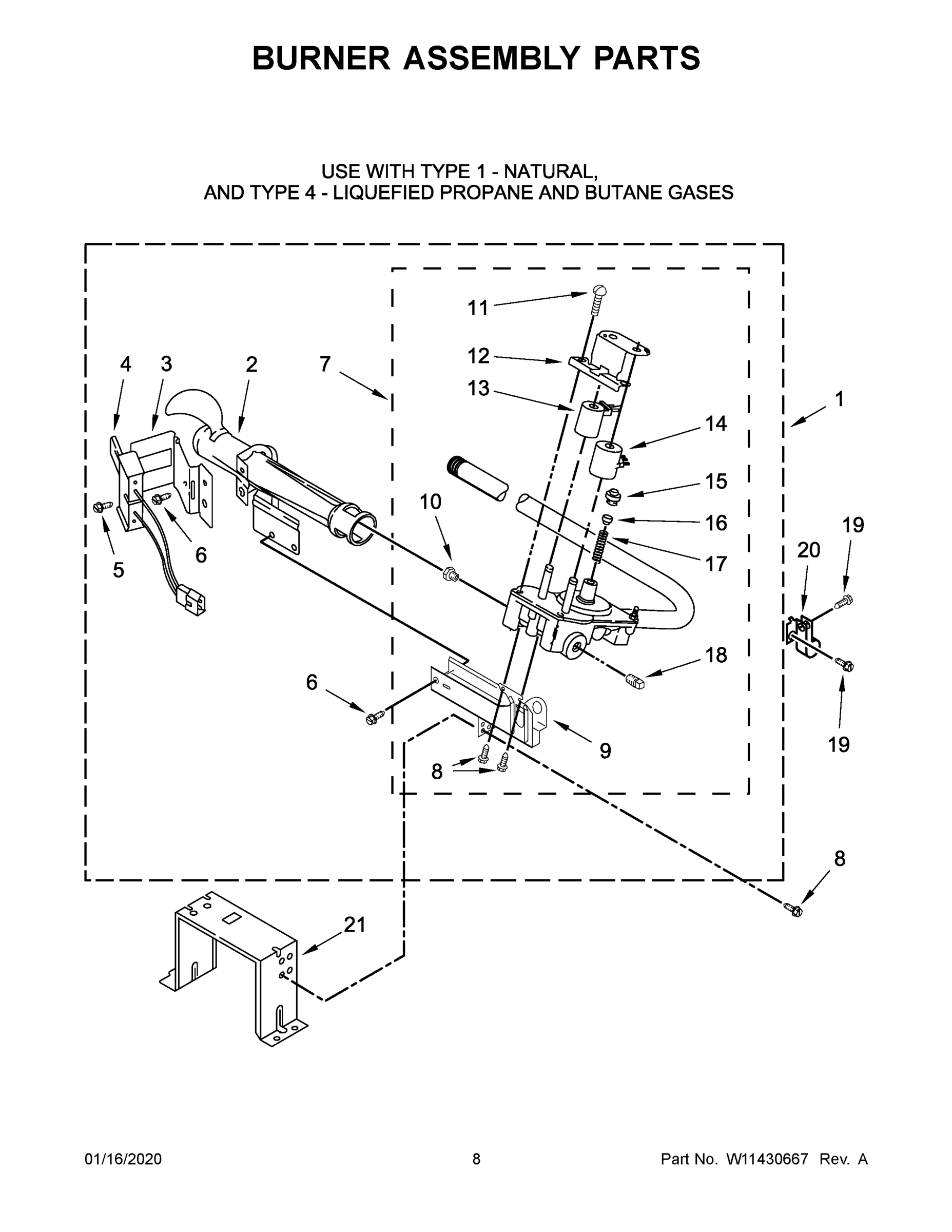

05 - BURNER ASSEMBLY PARTS

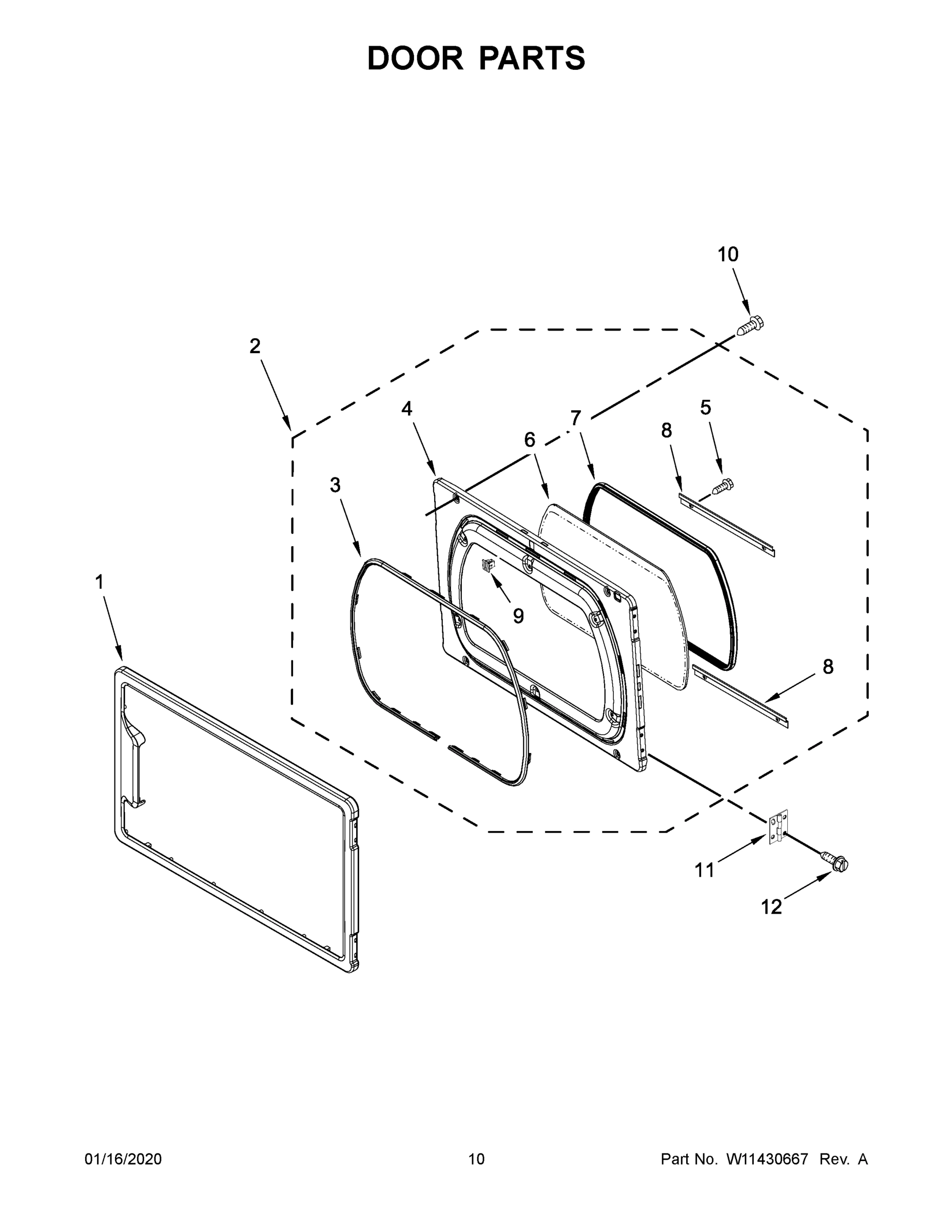

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDP576KW0 LAUNDRY, RESIDENTIAL, GAS DRYER
1
USE AND CARE GUIDE MAY W11045671 Contact Us For Availability
1
MAY W11161907 MAY W11161907 Contact Us For Availability
1
ASSEMBLY, AIR DUCT MAY W10293765 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1) (WHITE RODGER MAY 8576353 Contact Us For Availability
1
ASSEMBLY, OUTER DOOR (WHITE) MAY W10284127 Contact Us For Availability
1A
QUICK START GUIDE MAY W11045673 Contact Us For Availability
2
MAY W11124005 MAY W11124005 Contact Us For Availability
2
SCREW MAY 8533971 Contact Us For Availability
2
SCREW MAY W10773242 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
2
ASSEMBLY, INNER DOOR (WHITE) MAY W10513690 Contact Us For Availability
3
MAY W11103227 MAY W11103227 Contact Us For Availability
3
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
3
MAY W11162455 MAY W11162455 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
3
SEAL, DOOR MAY W10354795 Contact Us For Availability
4
TIMER ASSEMBLY (60 HZ.) MAY W10185992 Contact Us For Availability
4
SCREW MAY W10879744 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
4
DOOR, INNER (WHITE) MAY W10470571 Contact Us For Availability
5
SWITCH, TEMPERATURE MAY 3405155 Contact Us For Availability
5
CLIP MAY W10291934 Contact Us For Availability
5
BRACKET, DRUM LIGHT MAY 8578825 Contact Us For Availability
5
SCREW MAY W10366705 Contact Us For Availability
5
SCREW MAY 3393258 Contact Us For Availability
6
BUZZER, MINI MAY 694419 Contact Us For Availability
6
FOOT, DRYER MAY W10561321 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
6
GLASS, DOOR MAY W10284121 Contact Us For Availability
7
FASCIA MAY W10918902 Contact Us For Availability
7
SWITCH, DOOR MAY 3406107 Contact Us For Availability
7
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
7
VALVE, GAS 60 HZ. (COMPLETE) MAY W10118312 Contact Us For Availability
7
SEAL, WINDOW MAY W10284122 Contact Us For Availability
8
BRACKET, PUSH TO START MAY W10831297 Contact Us For Availability
8
SCREW MAY 697773 Contact Us For Availability
8
WASHER MAY 3387459 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
9
PANEL, REAR (CONSOLE) MAY W10863352 Contact Us For Availability
9
PANEL, FRONT MAY W10694688 Contact Us For Availability
9
WASHER, TRI RING MAY W10512946 Contact Us For Availability
9
BASE, BURNER MAY 3389871 Contact Us For Availability
9
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
10
STRIKE, DOOR MAY 3403431 Contact Us For Availability
10
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
10
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
10
SCREW MAY W10192860 Contact Us For Availability
10A
ORIFICE, BURNER (TYPE 4 (BUTANE)) MAY 15422 Contact Us For Availability
10B
ORIFICE, BURNER (TYPE 4 (PROPANE)) MAY 234867 Contact Us For Availability
11
TOP (WHITE) MAY W10772880 Contact Us For Availability
11
COVER, STRIKE (WHITE) MAY W10521429 Contact Us For Availability
11
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
11
HINGE & PIN ASSEMBLY (SILVER) MAY W10279703 Contact Us For Availability
12
CONTROL, ELECTRONIC MAY W10476828 Contact Us For Availability
12
PLUG, HINGE (WHITE) MAY W10191265 Contact Us For Availability
12
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
12
BRACKET, COIL MAY 694538 Contact Us For Availability
12
SCREW MAY 342055 Contact Us For Availability
13
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
13
NUT, HEX MAY 3934666 Contact Us For Availability
13
COIL, 60 HZ. (2 TERMINAL) (MAIN) MAY 694540 Contact Us For Availability
14
BRACKET, BACK MAY W10738304 Contact Us For Availability
14
LOCK TOP MAY 345670 Contact Us For Availability
14
ASSEMBLY, DRUM MAY W10545923 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3 TERMINAL) (PILOT POSIT MAY 694539 Contact Us For Availability
15
COVER, TERMINAL BLOCK MAY 8317339 Contact Us For Availability
15
BAFFLE, DRUM MAY 697693 Contact Us For Availability
15
LEAK, LIMITER MAY 694424 Contact Us For Availability
16
BUTTON, PUSH TO START MAY W11112209 Contact Us For Availability
16
BUMPER MAY 693152 Contact Us For Availability
16
SCREW MAY W10219342 Contact Us For Availability
16
SCREW, REGULATOR ADJUSTMENT MAY 694423 Contact Us For Availability
17
SCREW MAY W10386302 Contact Us For Availability
17
PANEL, TOE (WHITE) MAY 697215 Contact Us For Availability
17
SEAL, DRUM MAY W10521118 Contact Us For Availability
17
SPRING, REGULATOR MAY 694422 Contact Us For Availability
18
MAY W11103226 MAY W11103226 Contact Us For Availability
18
RETAINER MAY 3388229 Contact Us For Availability
18
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
18
PLUG, PIPE MAY 239822 Contact Us For Availability
19
SCREW MAY 3390647 Contact Us For Availability
19
HARNESS, MAIN MAY W10767816 Contact Us For Availability
19
PANEL, DAMPENING MAY W10836097 Contact Us For Availability
19
GRILL, OUTLET MAY W10692558 Contact Us For Availability
20
NUT, "U" MAY W10131123 Contact Us For Availability
20
PULLEY-IDLER ASSEMBLY MAY W10344193 Contact Us For Availability
20
SCREW MAY 3387230 Contact Us For Availability
20
CLAMP, PIPE MAY 3387561 Contact Us For Availability
21
SWITCH, PUSH-TO-START MAY 3398094 Contact Us For Availability
21
SCREW MAY 3389420 Contact Us For Availability
21
SCREW MAY 695240 Contact Us For Availability
21
BRACKET, SUPPORT MAY 3389889 Contact Us For Availability
22
BEZEL - PTS MAY W10510149 Contact Us For Availability
22
SPRING, IDLER MAY W10446781 Contact Us For Availability
22
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
23
BELT, DRIVE MAY W10131172 Contact Us For Availability
23
SCREEN, LINT MAY W10049370 Contact Us For Availability
24
SCREW MAY 3390631 Contact Us For Availability
24
CLAMP, MOTOR MAY 660658 Contact Us For Availability
24
BULKHEAD, FRONT MAY 697557 Contact Us For Availability
25
SCREW MAY 3357011 Contact Us For Availability
25
MOTOR MAY W10396031 Contact Us For Availability
26
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
26
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
27
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
27
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
28
BRACKET, MOTOR MAY 3387118 Contact Us For Availability
28
SCREW MAY 489463 Contact Us For Availability
29
SWITCH ASSEMBLY MAY 8066134 Contact Us For Availability
29
CLIP, SPRING MAY W10345456 Contact Us For Availability
30
SWITCH, BELT MAY 3394881 Contact Us For Availability
30
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
31
LEVER, BELT SWITCH MAY 8066120 Contact Us For Availability
31
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
32
WIRE, JUMPER (BROKEN BELT SWITCH) MAY 3398948 Contact Us For Availability
32
HOUSING, BLOWER MAY 8544362 Contact Us For Availability
33
WIRE, BELT SWITCH MAY W10167612 Contact Us For Availability
33
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
34
SCREW MAY 98129 Contact Us For Availability
34
THERMOSTAT MAY 8318268 Contact Us For Availability
35
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
36
CORD, POWER MAY W10869141 Contact Us For Availability
36
SCREW MAY 693995 Contact Us For Availability
37
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
38
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
39
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
40
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
41
SENSOR, RADIANT MAY 338906 Contact Us For Availability
42
SCREW MAY 90767 Contact Us For Availability
43
FUNNEL, BURNER MAY 8573824 Contact Us For Availability
44
JUMPER, WIRE MAY 3401707 Contact Us For Availability
45
SOCKET, LIGHT MAY W10214261 Contact Us For Availability
46
BULB, LIGHT MAY 3406124 Contact Us For Availability
47
BRACKET, BURNER MAY 8529757 Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 TO TYPE 4 LPG) MAY 8576846 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
× ![]()
