Model Maytag MGDP475EW0 LAUNDRY, RESIDENTIAL, GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

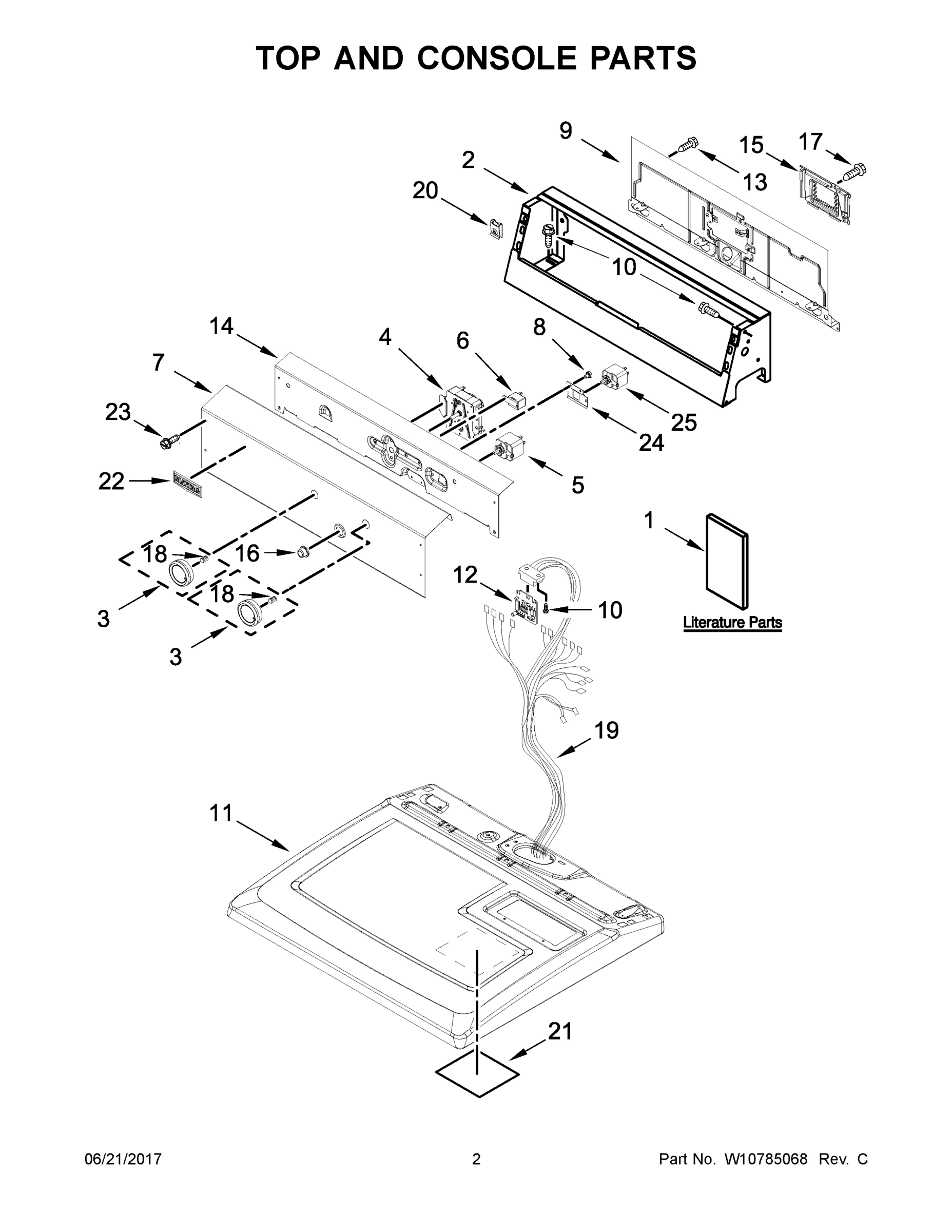

02 - TOP AND CONSOLE PARTS

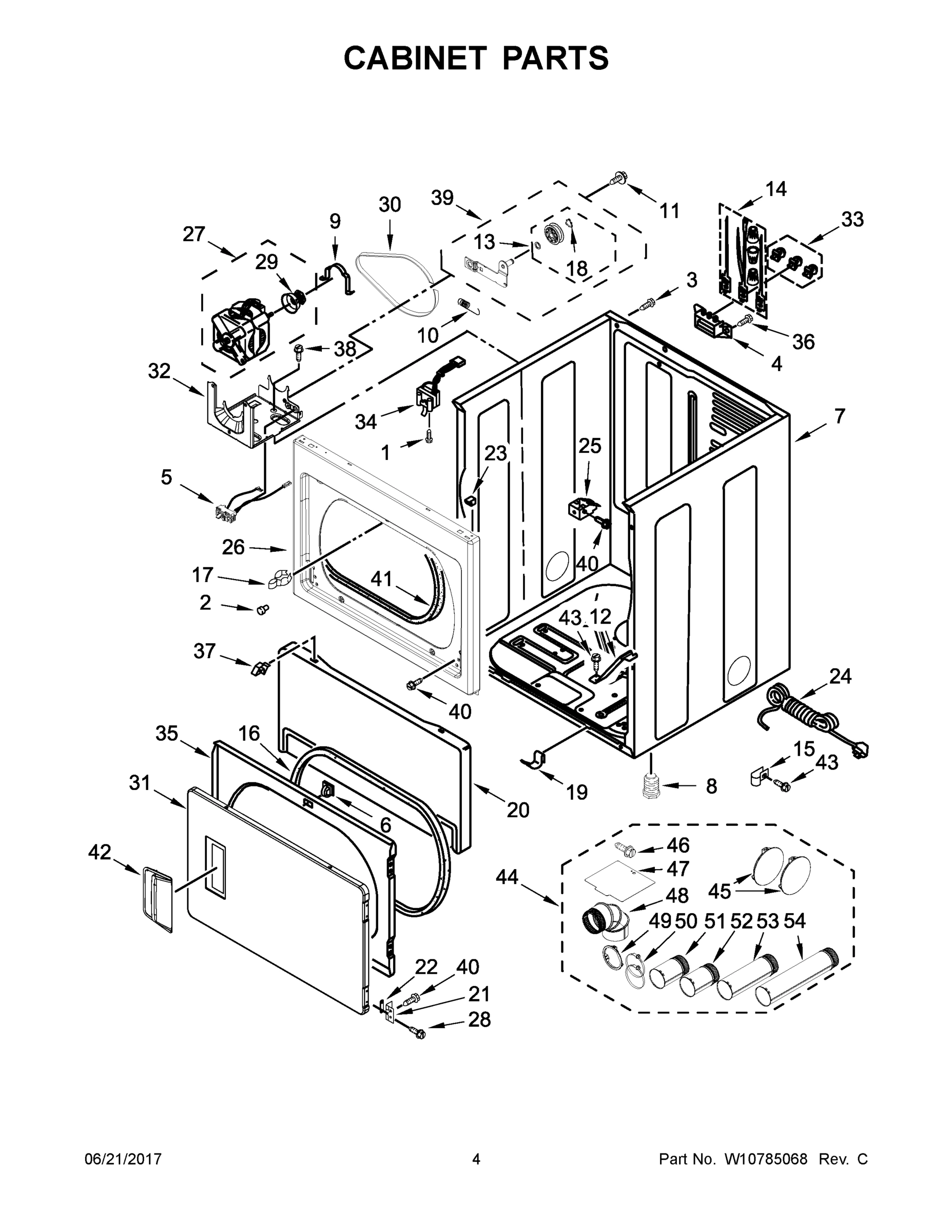

03 - CABINET PARTS

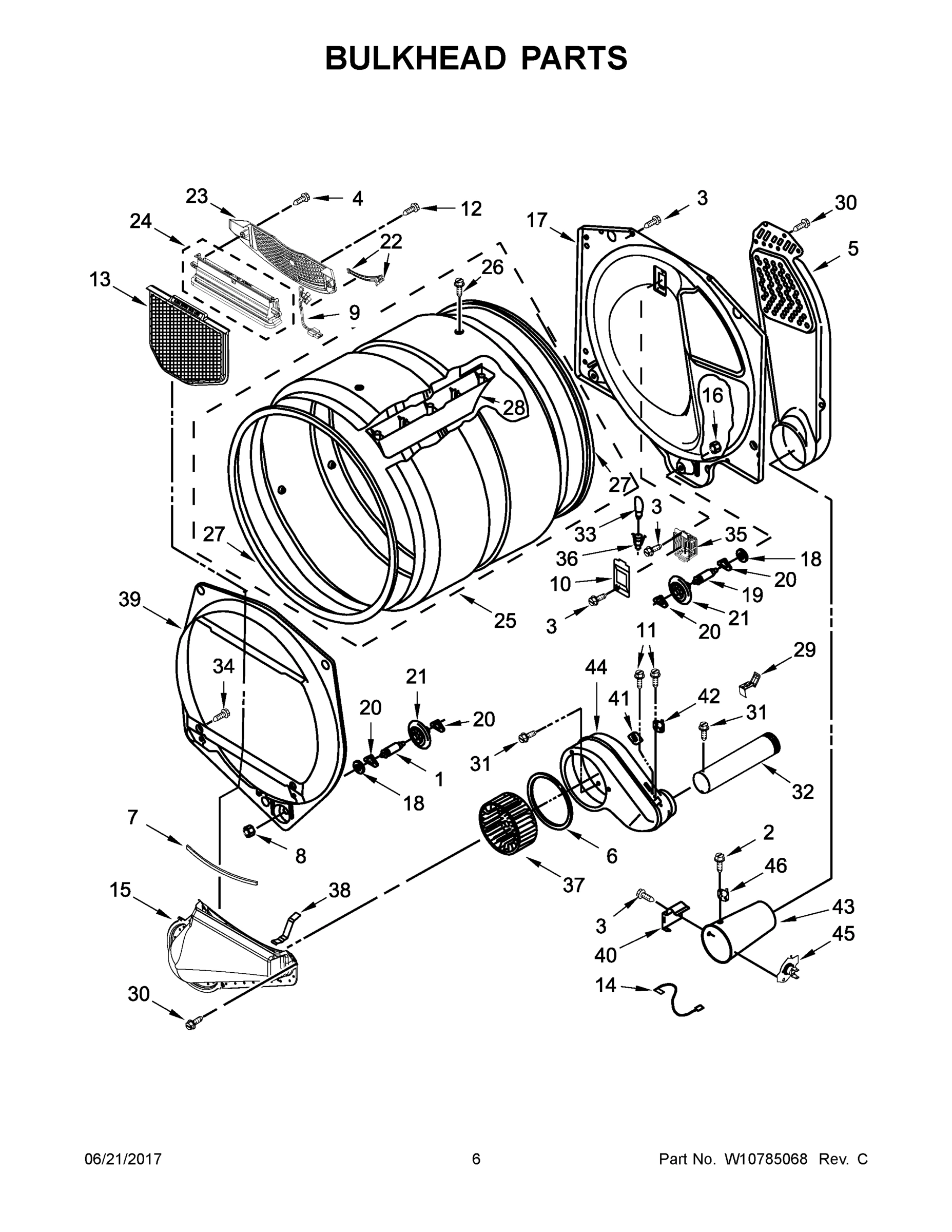

04 - BULKHEAD PARTS

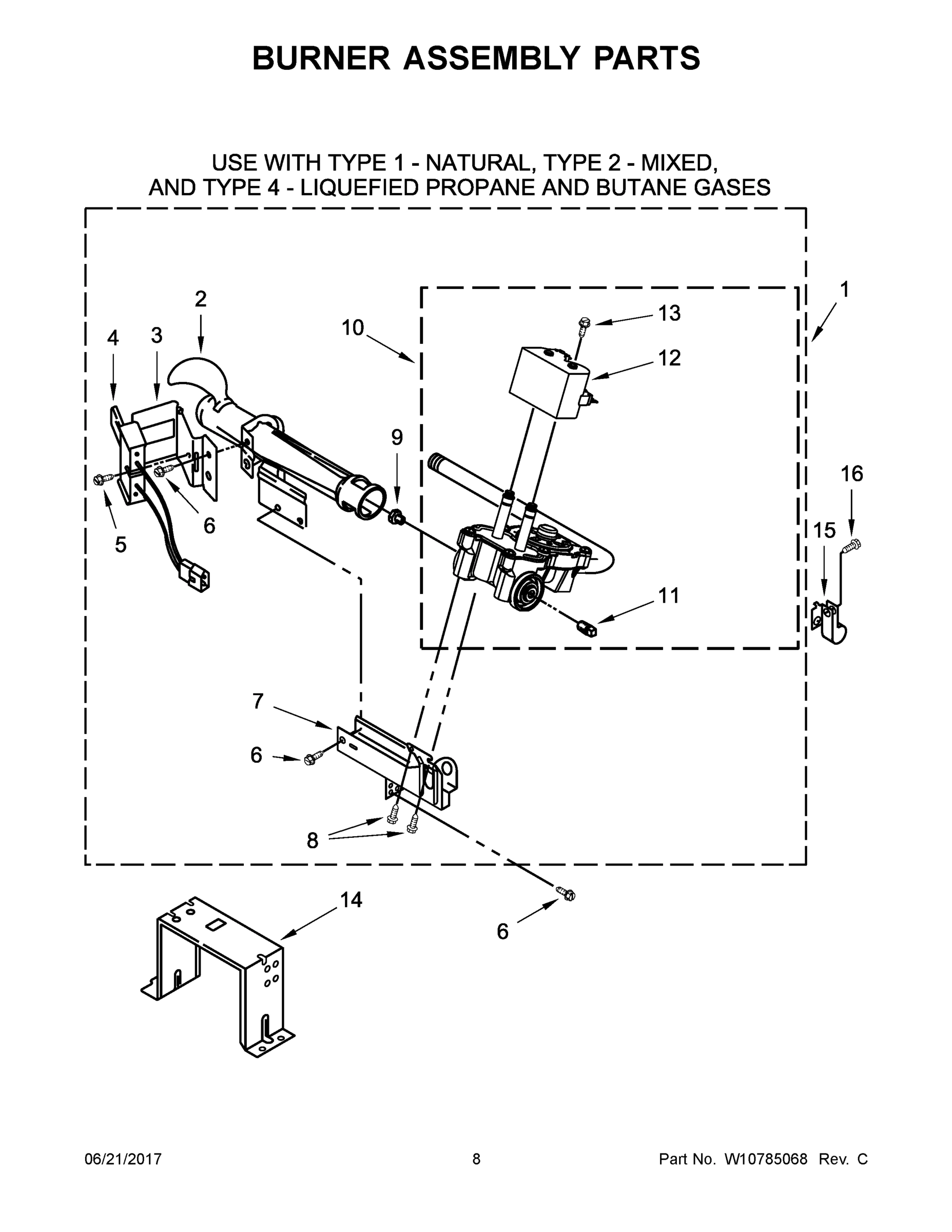

05 - BURNER ASSEMBLY PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDP475EW0 LAUNDRY, RESIDENTIAL, GAS DRYER
1
INSTALLATION INSTRUCTIONS MAY W10755022 Contact Us For Availability
1
SCREW MAY 697773 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
BURNER ASSEMBLY MAY W10307147 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W10755024 Contact Us For Availability
1B
WIRING DIAGRAM MAY W10768746 Contact Us For Availability
1C
QUICK START GUIDE MAY W10771926 Contact Us For Availability
2
CONSOLE MAY W10461095 Contact Us For Availability
2
BUMPER MAY 693152 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
3
ASSEMBLY, CONTROL KNOB (GREY) MAY W10771940 Contact Us For Availability
3
SCREW MAY W10773242 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
4
TIMER ASSEMBLY (60 HZ.) MAY W10185992 Contact Us For Availability
4
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
4
SCREW MAY 3357011 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
5
SWITCH, TEMPERATURE MAY 3405155 Contact Us For Availability
5
SWITCH, BROKEN BELT MAY W10724631 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY W10293765 Contact Us For Availability
5
SCREW MAY W10366705 Contact Us For Availability
6
BUZZER, MINI MAY 694419 Contact Us For Availability
6
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
7
FASCIA MAY W10763072 Contact Us For Availability
7
CABINET (WHITE) MAY W10547697 Contact Us For Availability
7
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
7
BASE, BURNER MAY 3389871 Contact Us For Availability
8
FOOT, DRYER MAY W10561321 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
PANEL, REAR CONSOLE MAY 8317305 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
10
VALVE, GAS 60 HZ. (COMPLETE) MAY W10622154 Contact Us For Availability
11
TOP (WHITE) MAY W10772880 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
11
PIPE PLUG MAY W10295523 Contact Us For Availability
12
CONTROL, ELECTRONIC MAY W10476828 Contact Us For Availability
12
BRACKET, BURNER MAY 8529757 Contact Us For Availability
12
SCREW MAY 3387230 Contact Us For Availability
12
COIL (60 HZ) MAY W10328463 Contact Us For Availability
13
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
13
SCREEN, LINT (WHITE) MAY W10596627 Contact Us For Availability
13
SCREW MAY 326049536 Contact Us For Availability
14
BRACKET, BACK MAY W10738304 Contact Us For Availability
14
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
14
JUMPER, WIRE MAY 3401707 Contact Us For Availability
14
BRACKET, SUPPORT MAY 3389889 Contact Us For Availability
15
COVER, TERMINAL BLOCK MAY 8317339 Contact Us For Availability
15
CLAMP, PIPE MAY 3387561 Contact Us For Availability
15
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
15
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
16
SCREW MAY 3390647 Contact Us For Availability
16
MAY W10817851 MAY W10817851 Contact Us For Availability
16
SEAL, DOOR MAY 3390735 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
SCREW MAY 3390814 Contact Us For Availability
17
STRIKE, DOOR MAY 696144 Contact Us For Availability
17
BULKHEAD, REAR MAY 8520836 Contact Us For Availability
18
CLIP, SPRING MAY 8536939 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
HARNESS, MAIN MAY W10767816 Contact Us For Availability
19
CLIP MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
NUT, "U" MAY W10131123 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
20
PANEL, TOE (WHITE) MAY 697215 Contact Us For Availability
21
PANEL, DAMPENING MAY W10836097 Contact Us For Availability
21
HINGE, SPRING ASSEMBLY (SILVER) MAY W10279703 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
22
BADGE (CHROME) MAY W10612926 Contact Us For Availability
22
PLUG, HINGE HOLE (WHITE) MAY W10191265 Contact Us For Availability
22
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
23
SCREW MAY W10386302 Contact Us For Availability
23
LOCK TOP MAY 345670 Contact Us For Availability
23
GRILL, OUTLET MAY W10692558 Contact Us For Availability
24
MAY W10831297 MAY W10831297 Contact Us For Availability
24
CORD, POWER MAY W10869141 Contact Us For Availability
24
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
25
SWITCH, PUSH-TO-START MAY 3398094 Contact Us For Availability
25
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10545923 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
26
PANEL, FRONT (WHITE) MAY W10192882 Contact Us For Availability
27
ASSEMBLY, MOTOR MAY W10396038 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
28
SCREW MAY 342055 Contact Us For Availability
28
BAFFLE, DRUM MAY 697693 Contact Us For Availability
29
PULLEY, MOTOR MAY W10460106 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
SCREW MAY 8533971 Contact Us For Availability
30
BELT, DRIVE MAY W10131172 Contact Us For Availability
31
DOOR, FRONT MAY W10322546 Contact Us For Availability
31
SCREW MAY 489463 Contact Us For Availability
32
BRACKET, MOTOR MOUNTING MAY W10242878 Contact Us For Availability
32
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
33
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
BULB, LIGHT MAY 3406124 Contact Us For Availability
34
SWITCH, DOOR MAY 3406107 Contact Us For Availability
34
SCREW MAY 695240 Contact Us For Availability
35
DOOR, REAR MAY W10323061 Contact Us For Availability
35
BRACKET, DRUM LIGHT MAY 8578825 Contact Us For Availability
36
SCREW MAY 3400077 Contact Us For Availability
36
SOCKET, LIGHT MAY W10214261 Contact Us For Availability
37
RETAINER MAY 3388229 Contact Us For Availability
37
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
38
CLIP, SPRING MAY W10345456 Contact Us For Availability
39
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
39
BULKHEAD, FRONT MAY 697557 Contact Us For Availability
40
SENSOR, RADIANT MAY 338906 Contact Us For Availability
41
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
41
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
42
HANDLE, DOOR MAY W10116360 Contact Us For Availability
42
THERMOSTAT MAY 8318268 Contact Us For Availability
43
FUNNEL, BURNER MAY 8573824 Contact Us For Availability
44
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY W10470674 Contact Us For Availability
44
HOUSING, BLOWER MAY 8544362 Contact Us For Availability
45
PLUG, MULTIVENT (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
45
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
46
SCREW MAY 488729 Contact Us For Availability
46
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
47
PLATE, COVER MAY W10354249 Contact Us For Availability
48
ELBOW MAY W10416072 Contact Us For Availability
49
COLLAR, DUCT MAY W10344699 Contact Us For Availability
50
HOSE CLAMP MAY 696392 Contact Us For Availability
51
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
52
PIPE, EXHAUST MAY 8563748 Contact Us For Availability
53
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
54
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 TO TYPE 4 LPG) MAY W10606694 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
× ![]()
