Model Maytag MGDB955FC0 LAUNDRY, GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

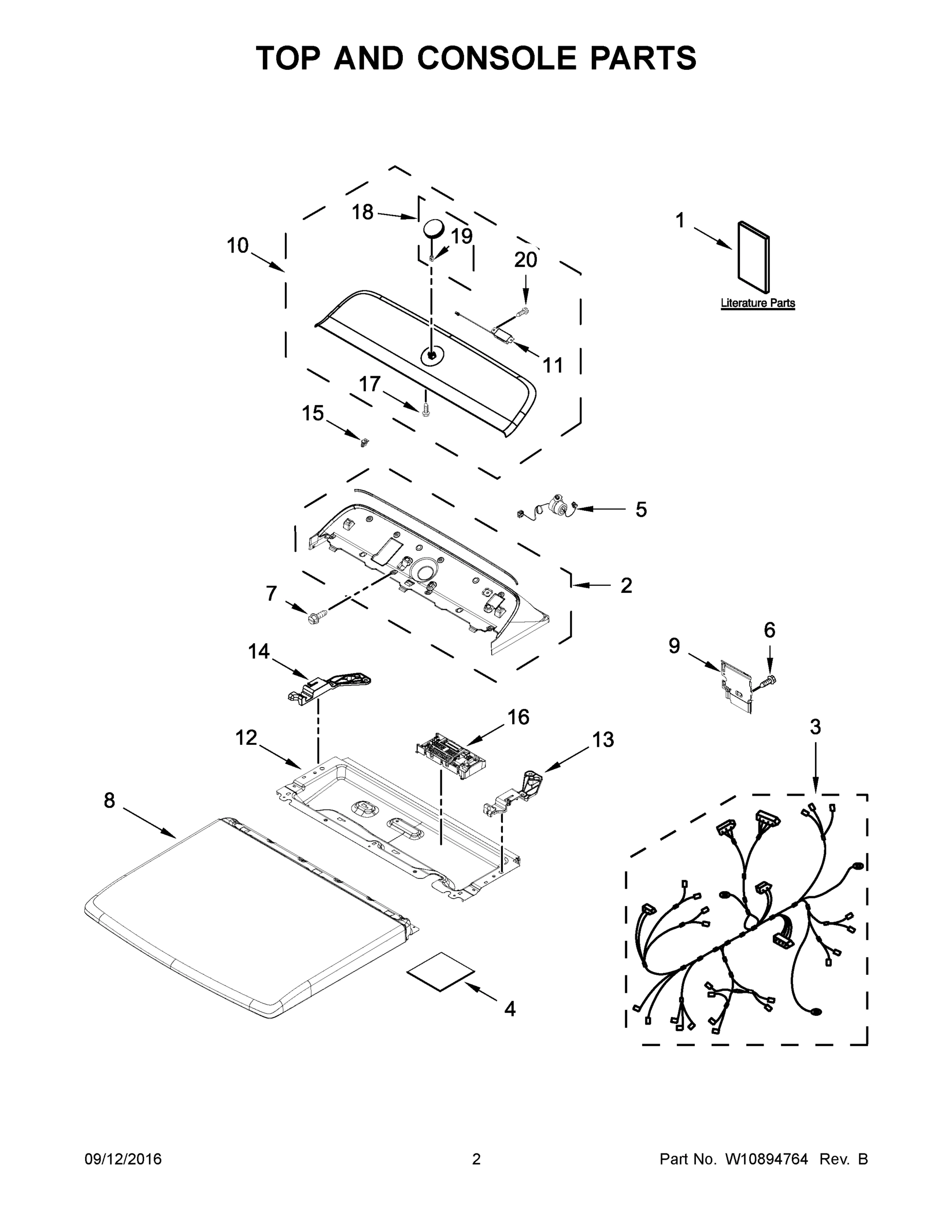

02 - TOP AND CONSOLE PARTS

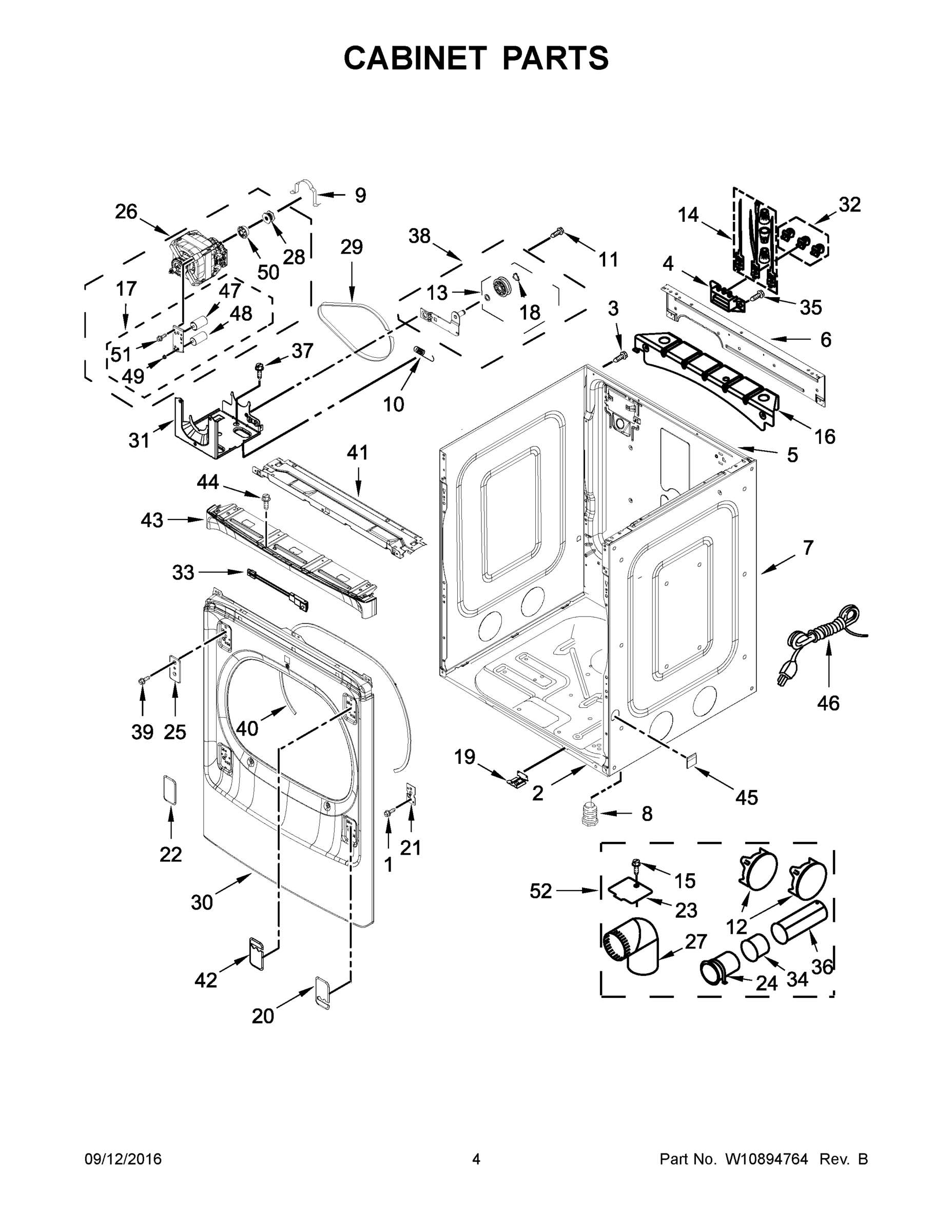

03 - CABINET PARTS

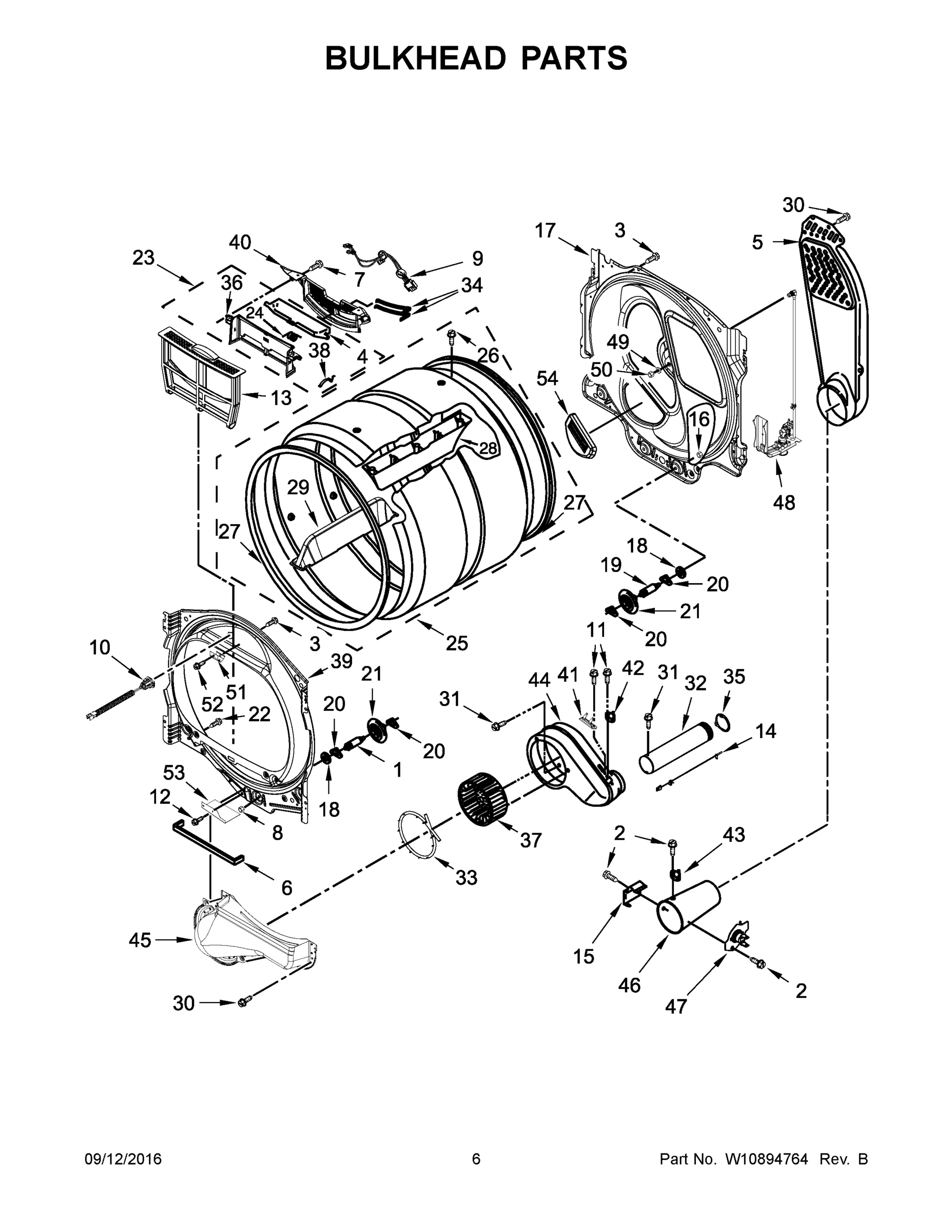

04 - BULKHEAD PARTS

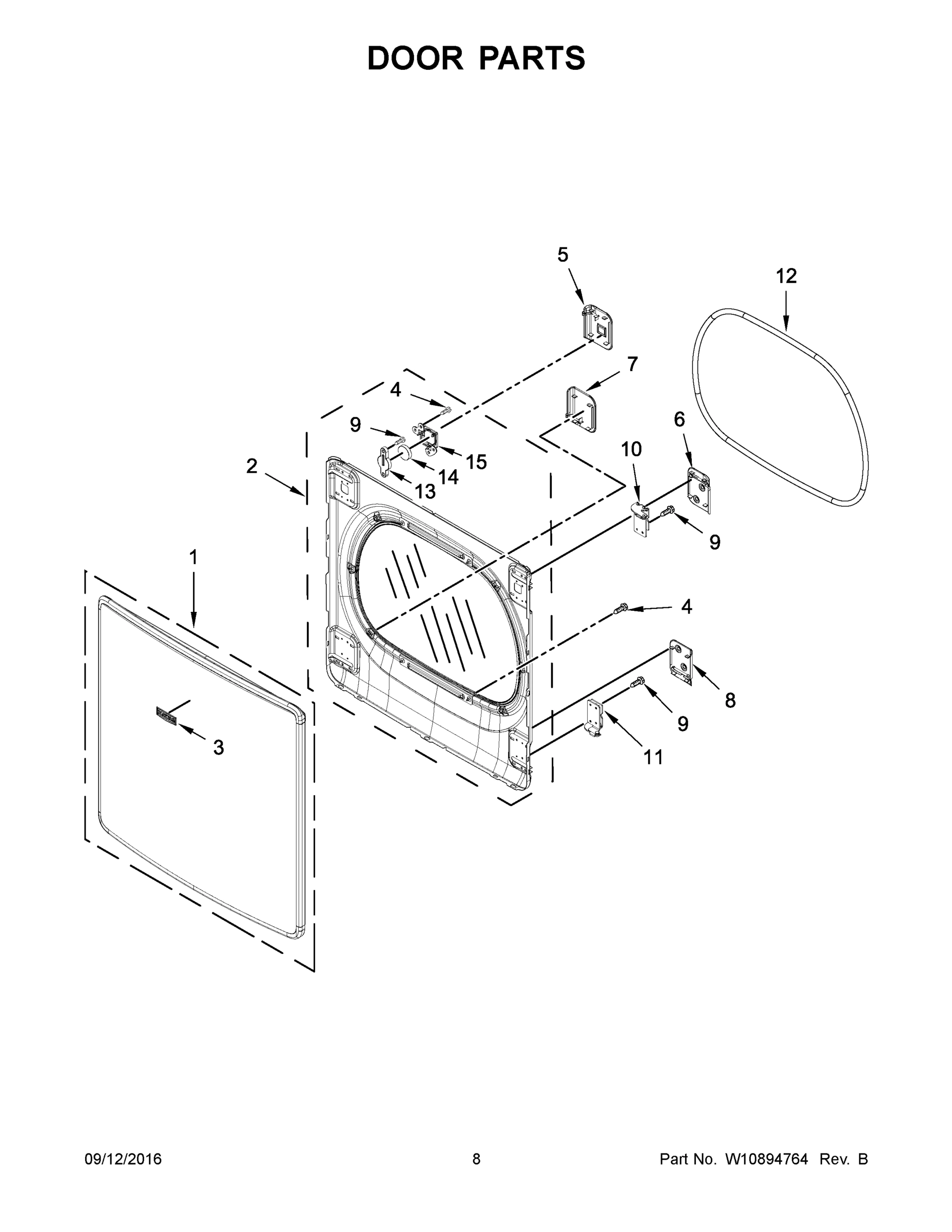

05 - DOOR PARTS

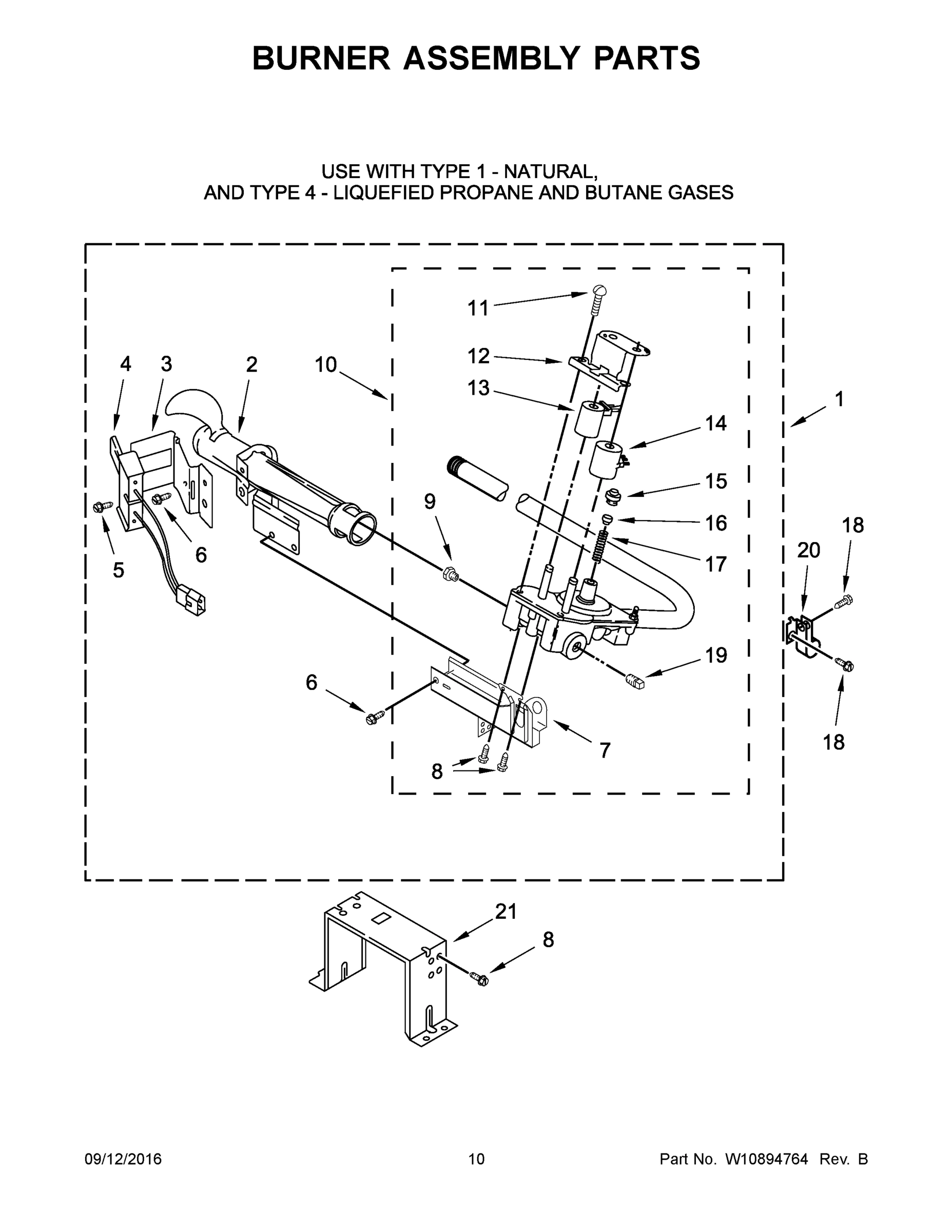

06 - BURNER ASSEMBLY PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDB955FC0 LAUNDRY, GAS DRYER
1
MAY W10884084 MAY W10884084 Contact Us For Availability
1
MAY 6-920119 MAY 6-920119 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10652657 MAY W10652657 Contact Us For Availability
1
MAY W10608838 MAY W10608838 Contact Us For Availability
1A
MAY W10885280 MAY W10885280 Contact Us For Availability
1B
MAY W10846781 MAY W10846781 Contact Us For Availability
1C
MAY W10769192 MAY W10769192 Contact Us For Availability
2
MAY W10795731 MAY W10795731 Contact Us For Availability
2
MAY W10613683 MAY W10613683 Contact Us For Availability
2
SCREW MAY 489463 Contact Us For Availability
2
MAY W10870126 MAY W10870126 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2A
MAY W10795788 MAY W10795788 Contact Us For Availability
2A
MAY W10870127 MAY W10870127 Contact Us For Availability
3
MAY W10834389 MAY W10834389 Contact Us For Availability
3
MAY W10612926 MAY W10612926 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY W10836097 MAY W10836097 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10608808 MAY W10608808 Contact Us For Availability
4
SCREW MAY 9742177 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
MAY W10822560 MAY W10822560 Contact Us For Availability
5
MAY W10824896 MAY W10824896 Contact Us For Availability
5
MAY W10834203 MAY W10834203 Contact Us For Availability
5
MAY W10366705 MAY W10366705 Contact Us For Availability
5
MAY W10857615 MAY W10857615 Contact Us For Availability
5A
MAY W10857616 MAY W10857616 Contact Us For Availability
6
MAY W10460893 MAY W10460893 Contact Us For Availability
6
MAY W10622396 MAY W10622396 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY W10701355 MAY W10701355 Contact Us For Availability
6
MAY W10635117 MAY W10635117 Contact Us For Availability
6A
MAY W10661174 MAY W10661174 Contact Us For Availability
7
SCREW MAY 9740848 Contact Us For Availability
7
PANEL, SIDE (WITHOUT SIGHT HOLE) (WHITE) MAY W10663407 Contact Us For Availability
7
SCREW MAY 3387230 Contact Us For Availability
7
MAY W10635118 MAY W10635118 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7A
PANEL, SIDE (WITHOUT SIGHT HOLE) (CHROME SHAD MAY W10681832 Contact Us For Availability
7A
MAY W10661175 MAY W10661175 Contact Us For Availability
7B
PANEL, SIDE (WITH SIGHT HOLE) (WHITE) MAY W10663408 Contact Us For Availability
7C
PANEL, SIDE (WITH SIGHT HOLE) (CHROME SHADOW) MAY W10681833 Contact Us For Availability
8
MAY W10748430 MAY W10748430 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10635119 MAY W10635119 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8A
MAY W10748431 MAY W10748431 Contact Us For Availability
8A
MAY W10661176 MAY W10661176 Contact Us For Availability
9
MAY 8317339 MAY 8317339 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
MAY W10657328 MAY W10657328 Contact Us For Availability
9
MAY 342055 MAY 342055 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
10
MAY W10830754 MAY W10830754 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY W10761356 MAY W10761356 Contact Us For Availability
10
MAY W10635131 MAY W10635131 Contact Us For Availability
10
VALVE, GAS 60 HZ. (COMPLETE) MAY W10118312 Contact Us For Availability
11
MAY W10568405 MAY W10568405 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10635137 MAY W10635137 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
MAY W10686684 MAY W10686684 Contact Us For Availability
12
PLUG, MULTIVENT (WHITE) MAY 49252 Contact Us For Availability
12
SCREW MAY 3357011 Contact Us For Availability
12
MAY W10763835 MAY W10763835 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
12A
MAY W10151499 MAY W10151499 Contact Us For Availability
13
MAY W10746238 MAY W10746238 Contact Us For Availability
13
MAY W10468057 MAY W10468057 Contact Us For Availability
13
MAY W10608811 MAY W10608811 Contact Us For Availability
13
MAY W10850388 MAY W10850388 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
MAY W10746239 MAY W10746239 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
MAY W10651569 MAY W10651569 Contact Us For Availability
14
MAY W10850386 MAY W10850386 Contact Us For Availability
14
MAY 694539 MAY 694539 Contact Us For Availability
15
MAY W10711050 MAY W10711050 Contact Us For Availability
15
MAY W10567155 MAY W10567155 Contact Us For Availability
15
MAY 338906 MAY 338906 Contact Us For Availability
15
MAY W10857617 MAY W10857617 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
15A
MAY W10857618 MAY W10857618 Contact Us For Availability
16
MAY W10889255 MAY W10889255 Contact Us For Availability
16
MAY W10632348 MAY W10632348 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
MAY 489470 MAY 489470 Contact Us For Availability
17
MAY W10565150 MAY W10565150 Contact Us For Availability
17
MAY W10712886 MAY W10712886 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
MAY W10830755 MAY W10830755 Contact Us For Availability
18
SCREW MAY 3390647 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
CLIP, SPRING MAY 8536939 Contact Us For Availability
19
MAY W10632347 MAY W10632347 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY 239822 MAY 239822 Contact Us For Availability
20
SCREW MAY 9740849 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY W10627438 MAY W10627438 Contact Us For Availability
20
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
20A
MAY W10627439 MAY W10627439 Contact Us For Availability
21
MAY W10596959 MAY W10596959 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY 3389889 MAY 3389889 Contact Us For Availability
22
MAY W10627437 MAY W10627437 Contact Us For Availability
22A
MAY W10627445 MAY W10627445 Contact Us For Availability
23
MAY 3394331 MAY 3394331 Contact Us For Availability
23
MAY W10608812 MAY W10608812 Contact Us For Availability
24
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
24
MAY W10219015 MAY W10219015 Contact Us For Availability
25
COVER, STRIKE (WHITE) MAY W10857673 Contact Us For Availability
25
MAY W10626235 MAY W10626235 Contact Us For Availability
25A
COVER, STRIKE (GREY) MAY W10857675 Contact Us For Availability
26
MAY W10824899 MAY W10824899 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
ELBOW MAY 49026 Contact Us For Availability
27
MAY W10664120 MAY W10664120 Contact Us For Availability
28
MAY W10786088 MAY W10786088 Contact Us For Availability
28
MAY W10726737 MAY W10726737 Contact Us For Availability
29
MAY W10597350 MAY W10597350 Contact Us For Availability
29
MAY W10726735 MAY W10726735 Contact Us For Availability
30
MAY W10627425 MAY W10627425 Contact Us For Availability
30
SCREW MAY 693995 Contact Us For Availability
30A
MAY W10627426 MAY W10627426 Contact Us For Availability
31
MAY W10578053 MAY W10578053 Contact Us For Availability
31
SCREW MAY 90767 Contact Us For Availability
32
MAY 279393 MAY 279393 Contact Us For Availability
32
MAY W10608817 MAY W10608817 Contact Us For Availability
33
MAY W10761357 MAY W10761357 Contact Us For Availability
33
MAY W10868675 MAY W10868675 Contact Us For Availability
34
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
34
MAY W10608814 MAY W10608814 Contact Us For Availability
35
MAY 3393008 MAY 3393008 Contact Us For Availability
35
MAY W10344699 MAY W10344699 Contact Us For Availability
36
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
36
MAY W10608806 MAY W10608806 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
38
MAY W10608815 MAY W10608815 Contact Us For Availability
39
MAY W10704731 MAY W10704731 Contact Us For Availability
39
MAY W10861007 MAY W10861007 Contact Us For Availability
40
MAY 3387242 MAY 3387242 Contact Us For Availability
40
MAY W10608813 MAY W10608813 Contact Us For Availability
41
MAY W10627432 MAY W10627432 Contact Us For Availability
41
MAY W10693363 MAY W10693363 Contact Us For Availability
42
MAY W10627436 MAY W10627436 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
42A
MAY W10627444 MAY W10627444 Contact Us For Availability
43
MAY W10756879 MAY W10756879 Contact Us For Availability
43
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
43A
MAY W10756880 MAY W10756880 Contact Us For Availability
44
MAY 8534022 MAY 8534022 Contact Us For Availability
44
MAY W10667717 MAY W10667717 Contact Us For Availability
45
PLUG, SIGHT HOLE (WHITE) MAY 8564457 Contact Us For Availability
45
MAY W10868982 MAY W10868982 Contact Us For Availability
45A
PLUG, SIGHT HOLE (CHROME SHADOW) MAY W10391496 Contact Us For Availability
46
MAY W10706056 MAY W10706056 Contact Us For Availability
46
MAY 8573824 MAY 8573824 Contact Us For Availability
47
MAY W10442539 MAY W10442539 Contact Us For Availability
47
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
48
MAY W10701357 MAY W10701357 Contact Us For Availability
48
MAY W10638150 MAY W10638150 Contact Us For Availability
49
NUT MAY W10604214 Contact Us For Availability
49
MAY W10044579 MAY W10044579 Contact Us For Availability
50
MAY 3393657 MAY 3393657 Contact Us For Availability
50
NUT, BRASS MAY W10044628 Contact Us For Availability
51
SCREW MAY 3390663 Contact Us For Availability
51
MAY W10627446 MAY W10627446 Contact Us For Availability
52
MAY W10858320 MAY W10858320 Contact Us For Availability
52
MAY W10718190 MAY W10718190 Contact Us For Availability
53
SHIELD, BLOWER HOUSING MAY W10836483 Contact Us For Availability
54
MAY W10677270 MAY W10677270 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10858808 MAY W10858808 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT WASHER, IN MAY 3976300 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT KIT DRYER MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
MAY PT220L MAY PT220L Contact Us For Availability
NI
MAY PT400L MAY PT400L Contact Us For Availability
NI
MAY PT600L MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT WASHER, HO MAY W10242307 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT CONNECTOR, MAY W10336486 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT HOSE, INLE MAY W10439655 Contact Us For Availability
NI
MAY W10446202 MAY W10446202 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT DRY RACK MAY W10693998 Contact Us For Availability
NI
MAY W10895133 MAY W10895133 Contact Us For Availability
NI
MAY W10895250 MAY W10895250 Contact Us For Availability
× ![]()
Login and Registration Form
