Model Maytag MGDB765FC0 LAUNDRY, RESIDENTIAL, GAS DRYER – Common Parts & Diagrams

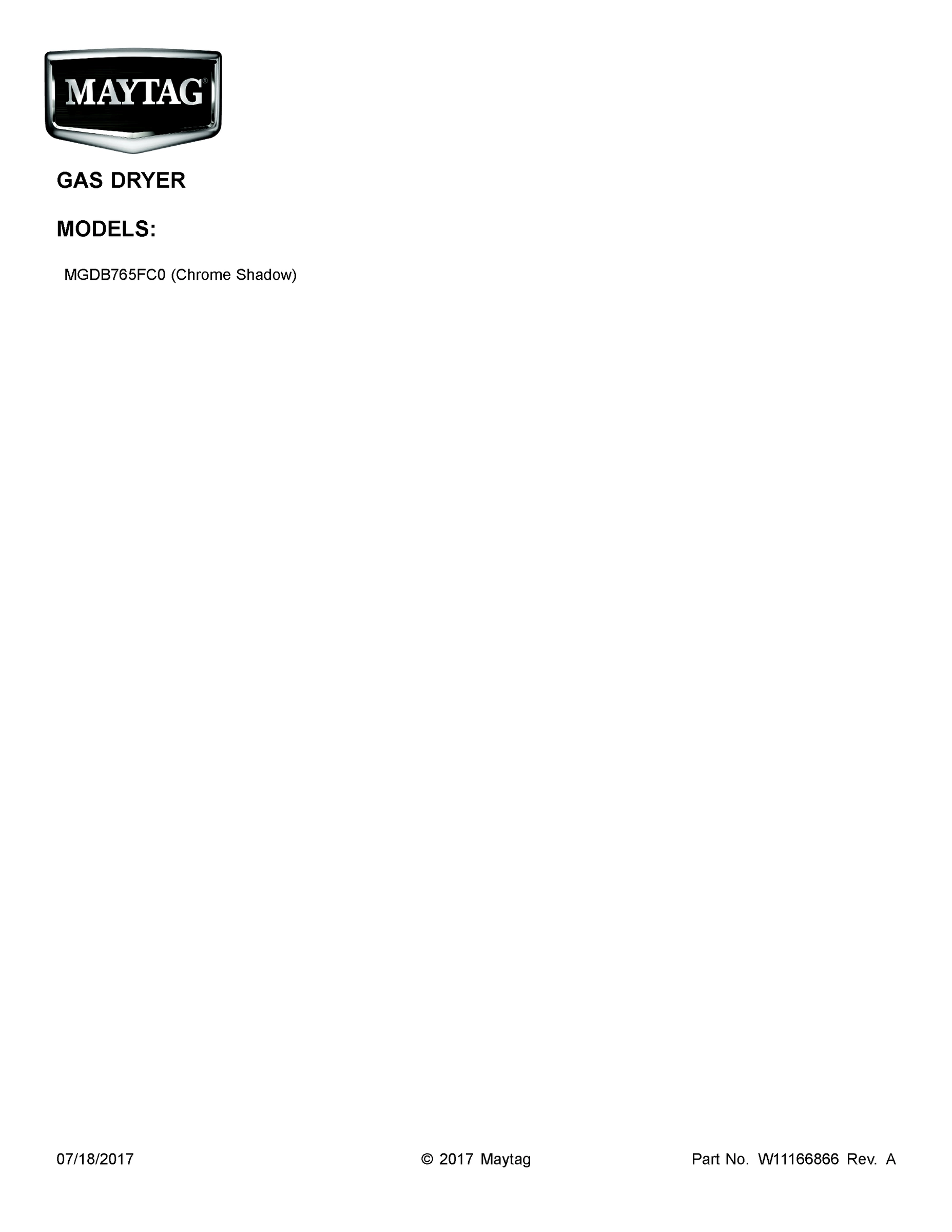

01 - COVER SHEET

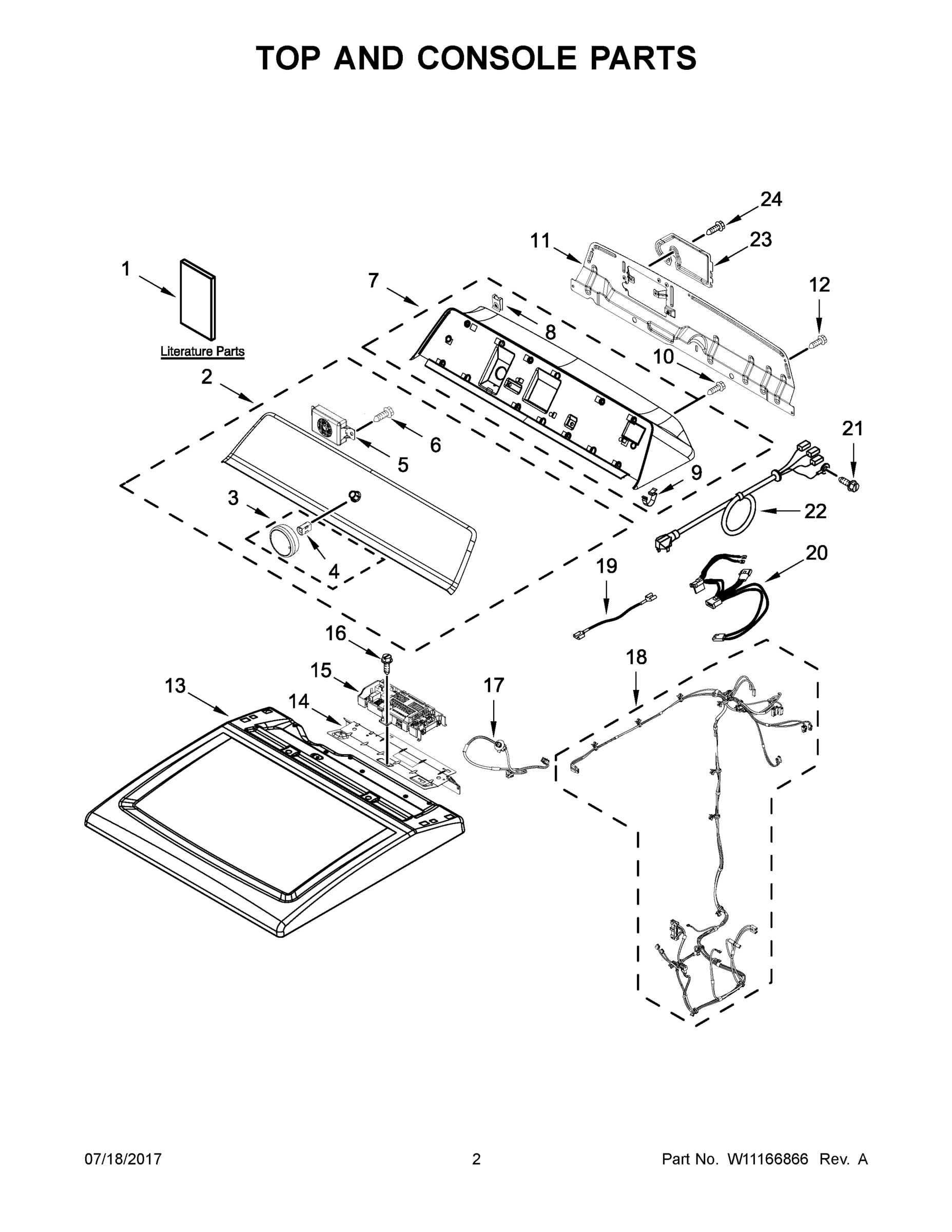

02 - TOP AND CONSOLE PARTS

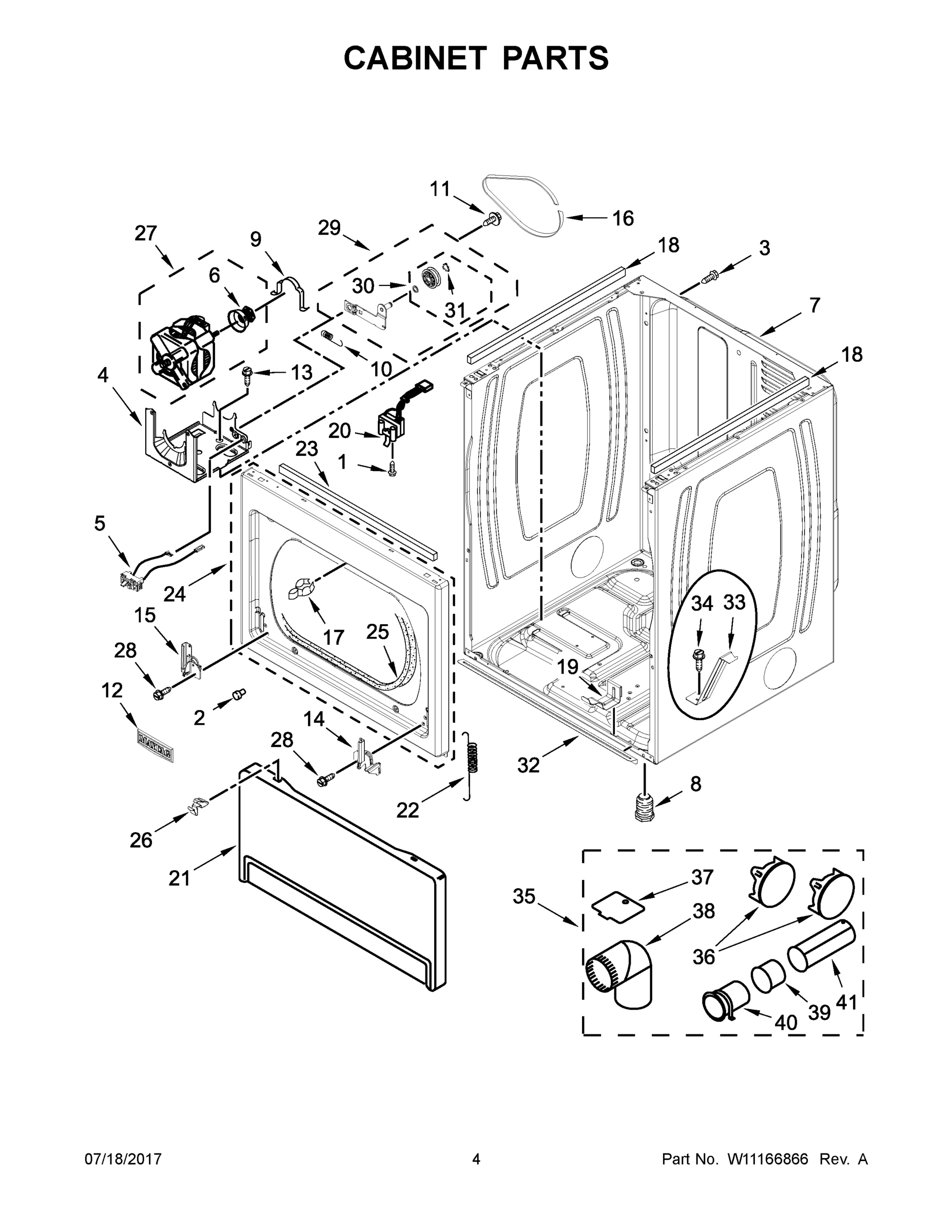

03 - CABINET PARTS

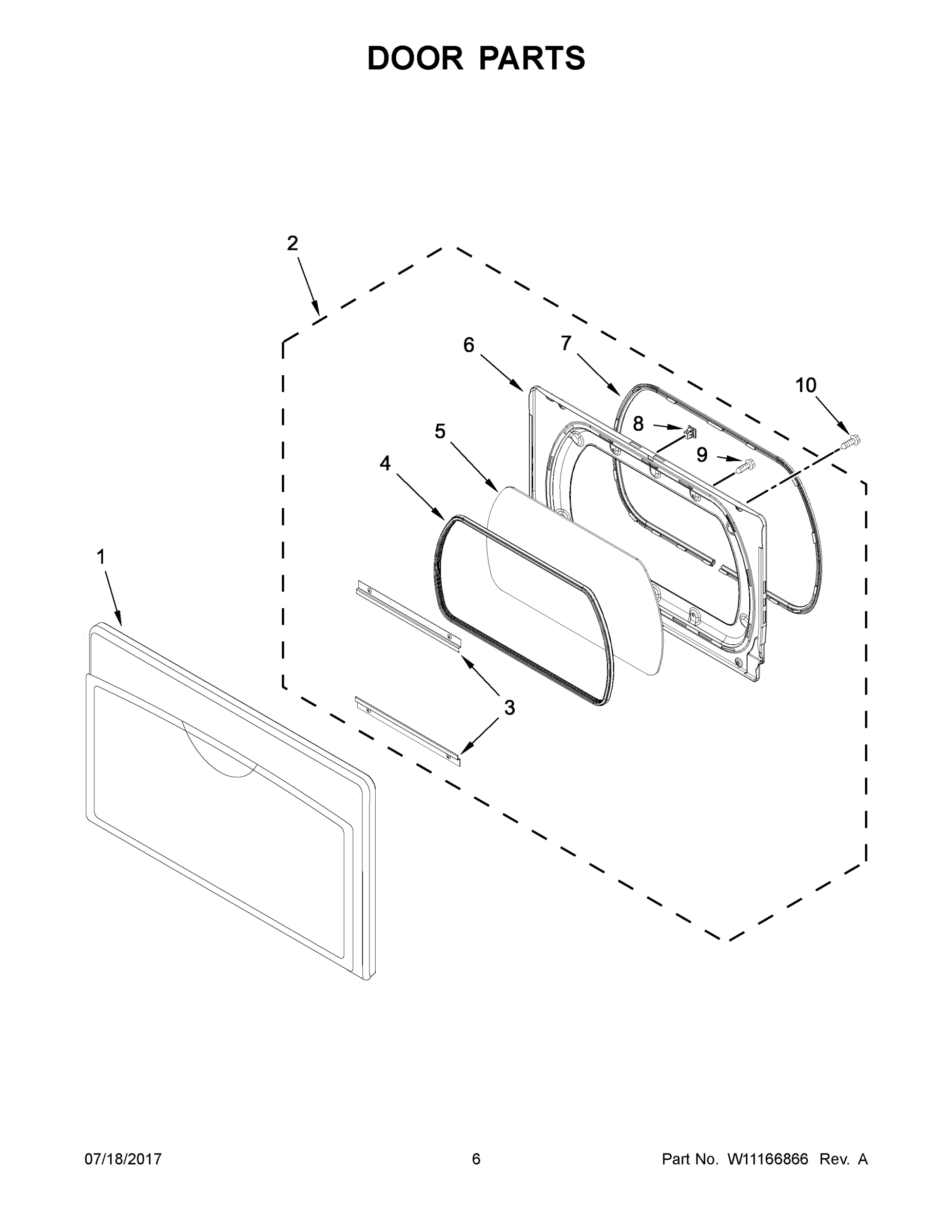

04 - DOOR PARTS

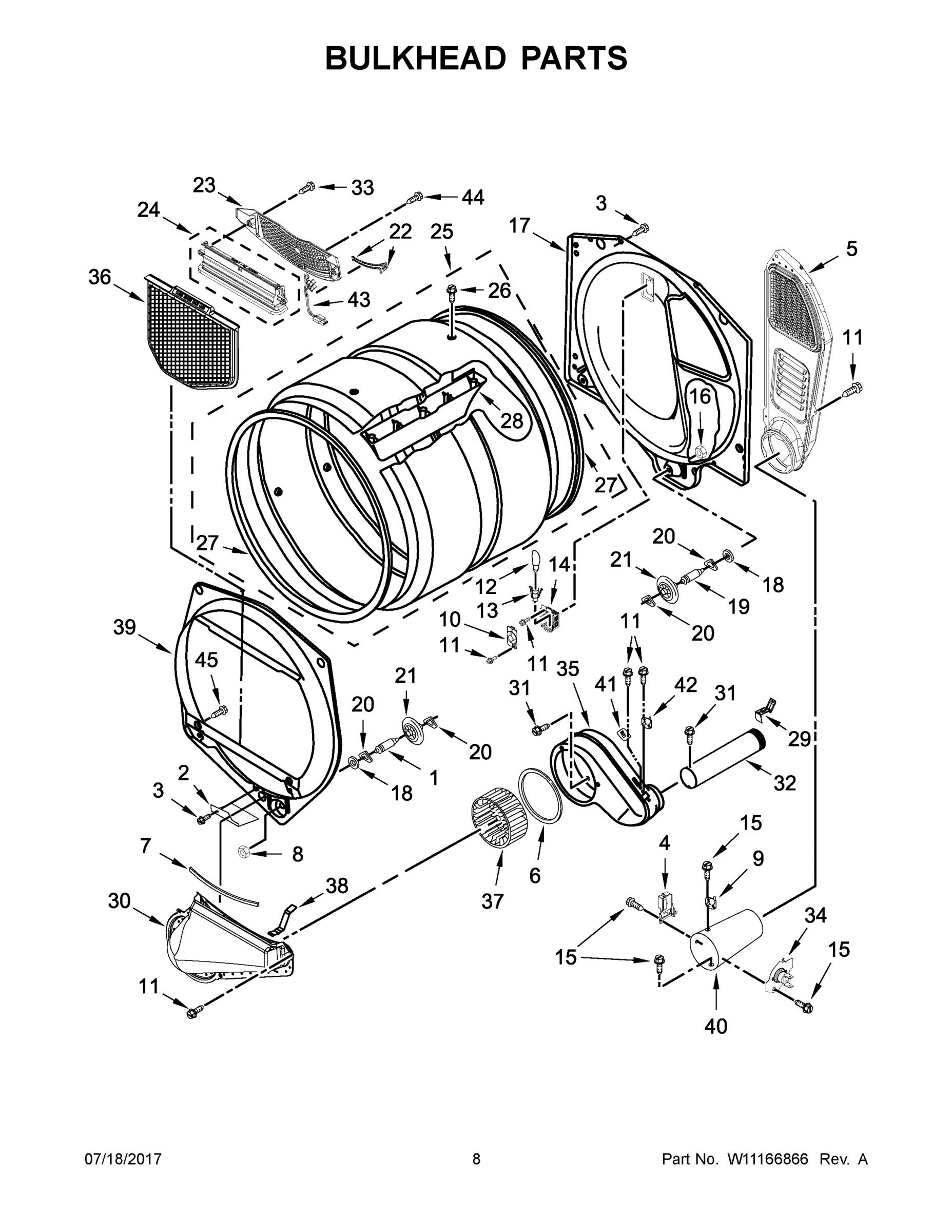

05 - BULKHEAD PARTS

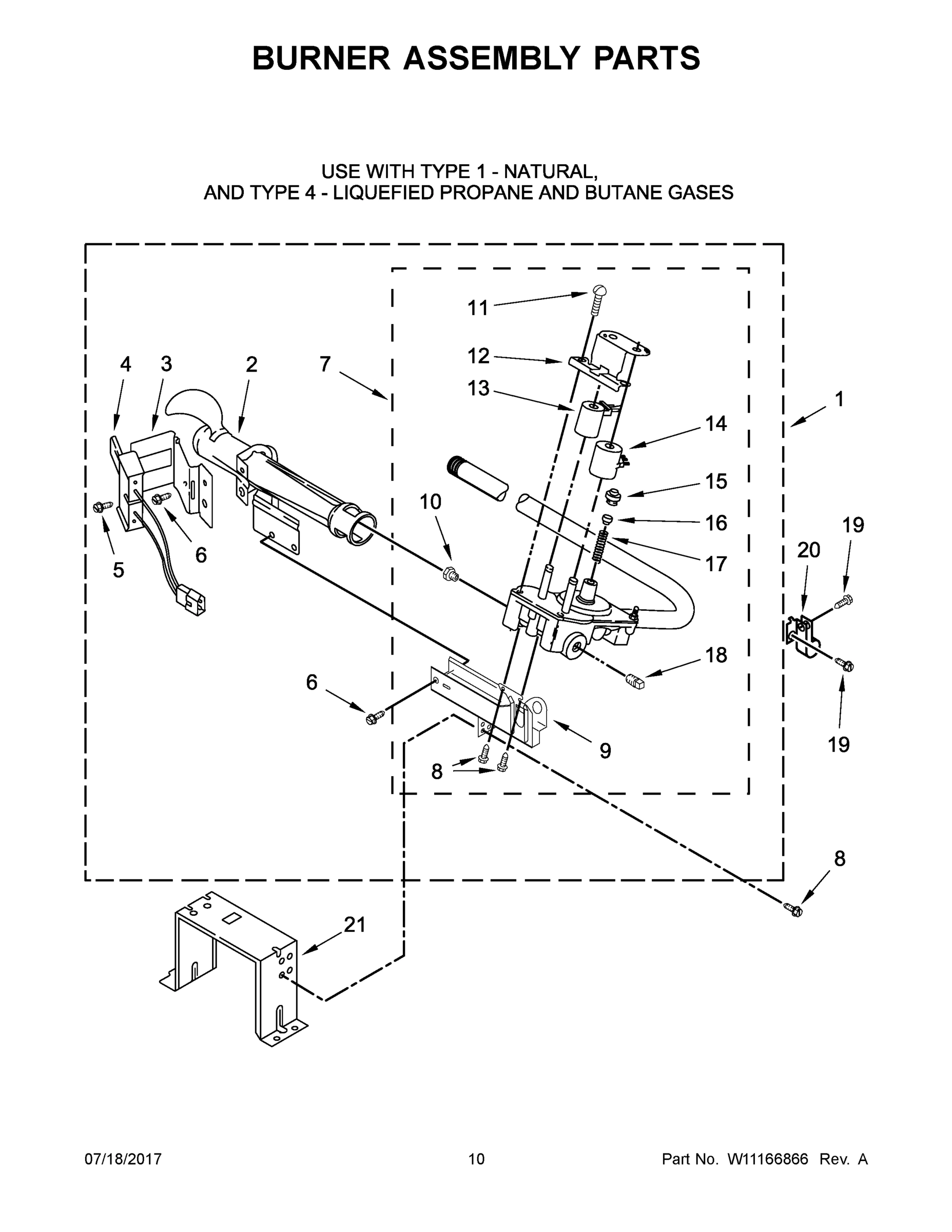

06 - BURNER ASSEMBLY PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDB765FC0 LAUNDRY, RESIDENTIAL, GAS DRYER
1
INSTALLATION INSTRUCTIONS MAY W10904260 Contact Us For Availability
1
SCREW MAY 697773 Contact Us For Availability
1
ASSEMBLY, OUTER DOOR (CHROME SHADOW) MAY W11039169 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1)(WHITE RODGERS MAY 8576353 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W10904263 Contact Us For Availability
1B
TECH SHEET MAY W10913969 Contact Us For Availability
1C
QUICK START GUIDE MAY W10904265 Contact Us For Availability
2
FASCIA ASSEMBLY MAY W10913337 Contact Us For Availability
2
BUMPER MAY 693152 Contact Us For Availability
2
ASSEMBLY, INNER DOOR (CHROME SHADOW) MAY W11087235 Contact Us For Availability
2
SHIELD, BLOWER MAY W10128629 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
3
ASSEMBLY, CONTROL KNOB (CHROME) MAY W10727011 Contact Us For Availability
3
SCREW MAY 8533971 Contact Us For Availability
3
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
4
CLIP, SPRING MAY 8536939 Contact Us For Availability
4
BRACKET, MOTOR MOUNTING MAY W10242878 Contact Us For Availability
4
SEAL, WINDOW MAY W10284122 Contact Us For Availability
4
SENSOR, RADIANT MAY 338906 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
5
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
5
SWITCH, BROKEN BELT MAY W10724631 Contact Us For Availability
5
GLASS, DOOR MAY W10284121 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY W10293765 Contact Us For Availability
5
SCREW MAY W10366705 Contact Us For Availability
6
SCREW MAY 489470 Contact Us For Availability
6
PULLEY, MOTOR MAY W10460106 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
DOOR, INNER (CHROME SHADOW) MAY W11087233 Contact Us For Availability
6
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
7
MAY W11110022 MAY W11110022 Contact Us For Availability
7
CABINET (CHROME SHADOW) MAY W10547699 Contact Us For Availability
7
SEAL, DOOR MAY W10284123 Contact Us For Availability
7
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
7
VALVE, GAS 60 HZ. (COMPLETE) MAY W10118312 Contact Us For Availability
8
NUT, "U" MAY W10298336 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
ASSEMBLY, DOOR CATCH MAY 3389441 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
SCREW MAY 3393258 Contact Us For Availability
9
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
9
BASE, BURNER MAY 3389871 Contact Us For Availability
10
SCREW MAY 9740848 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
SCREW MAY 8534022 Contact Us For Availability
10
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
10
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
10A
ORIFICE, BURNER (TYPE 4 (BUTANE)) MAY 15422 Contact Us For Availability
10B
ORIFICE, BURNER (TYPE 4 (PROPANE)) MAY 234867 Contact Us For Availability
11
PANEL, REAR CONSOLE MAY W10896065 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
BADGE MAY W10612925 Contact Us For Availability
12
BULB, LIGHT MAY 3406124 Contact Us For Availability
12
BRACKET, COIL MAY 694538 Contact Us For Availability
13
TOP (CHROME SHADOW) MAY W10458665 Contact Us For Availability
13
SOCKET, LIGHT MAY W10214261 Contact Us For Availability
13
COIL, 60 HZ. (2 TERMINAL) (MAIN) MAY 694540 Contact Us For Availability
14
BRACKET, ELECTRONIC CONTROL MAY W10896068 Contact Us For Availability
14
ASSEMBLY, HINGE (RIGHT) MAY W10284141 Contact Us For Availability
14
BRACKET, DRUM LIGHT MAY 8578825 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3 TERMINAL) (PILOT POSIT MAY 694539 Contact Us For Availability
15
CONTROL, ELECTRONIC MAY W10914394 Contact Us For Availability
15
ASSEMBLY, HINGE (LEFT) MAY W10284140 Contact Us For Availability
15
SCREW MAY 90767 Contact Us For Availability
15
LEAK, LIMITER MAY 694424 Contact Us For Availability
16
BELT, DRIVE MAY W10131172 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
SCREW, REGULATOR ADJUSTMENT MAY 694423 Contact Us For Availability
17
CABLE, USER INTERFACE MAY W10906300 Contact Us For Availability
17
STRIKE, DOOR MAY W10675495 Contact Us For Availability
17
BULKHEAD, REAR MAY 8520836 Contact Us For Availability
17
SPRING, REGULATOR MAY 694422 Contact Us For Availability
18
WIRING HARNESS MAY W10907916 Contact Us For Availability
18
SEAL, FOAM MAY W10336128 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
PLUG, PIPE MAY 239822 Contact Us For Availability
19
SCREW MAY 3390647 Contact Us For Availability
19
JUMPER, TCO HIGH LIMIT MAY W10525140 Contact Us For Availability
19
CLIP MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
HARNESS, GAS MAY W10305870 Contact Us For Availability
20
SWITCH, DOOR MAY 3406107 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
20
CLAMP, PIPE MAY 3387561 Contact Us For Availability
21
SCREW MAY W10773242 Contact Us For Availability
21
TOE PANEL (CHROME SHADOW) MAY W10459664 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
21
BRACKET, SUPPORT MAY 3389889 Contact Us For Availability
22
CORD, POWER MAY W10869141 Contact Us For Availability
22
SPRING, DOOR MAY 3387565 Contact Us For Availability
22
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
23
COVER, POWER CORD MAY W10896066 Contact Us For Availability
23
SEAL, SPILL GUARD MAY W10312811 Contact Us For Availability
23
GRILL, OUTLET MAY W10692558 Contact Us For Availability
24
SCREW MAY 3390631 Contact Us For Availability
24
UPPER FRONT PANEL (CHROME SHADOW) MAY W10459661 Contact Us For Availability
24
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
25
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10545923 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
26
RETAINER MAY 3388229 Contact Us For Availability
27
ASSEMBLY, MOTOR MAY W10396038 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
28
BAFFLE, DRUM MAY 697693 Contact Us For Availability
29
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
30
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
31
SCREW MAY 489463 Contact Us For Availability
32
BRACKET, CABINET MAY W10236068 Contact Us For Availability
32
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
33
SCREW MAY 3357011 Contact Us For Availability
33
BRACKET, BURNER MAY 8529757 Contact Us For Availability
34
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
35
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY W10323246 Contact Us For Availability
35
HOUSING, BLOWER MAY 8544362 Contact Us For Availability
36
MULTIVENT PLUG (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
36
LINT SCREEN (WHITE) MAY W10596627 Contact Us For Availability
37
PLATE, COVER MAY W10354249 Contact Us For Availability
37
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
38
ELBOW MAY W10416072 Contact Us For Availability
38
CLIP, SPRING MAY W10345456 Contact Us For Availability
39
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
39
BULKHEAD, FRONT MAY 697557 Contact Us For Availability
40
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
40
FUNNEL, BURNER MAY 8573824 Contact Us For Availability
41
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
41
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
44
SCREW MAY 3387230 Contact Us For Availability
45
SCREW MAY 695240 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 TO TYPE 4 LPG) MAY 8576846 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, DRYER RACK MAY 8212450A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
× ![]()
