Model Maytag MGD7230HC0 LAUNDRY, RESIDENTIAL, GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

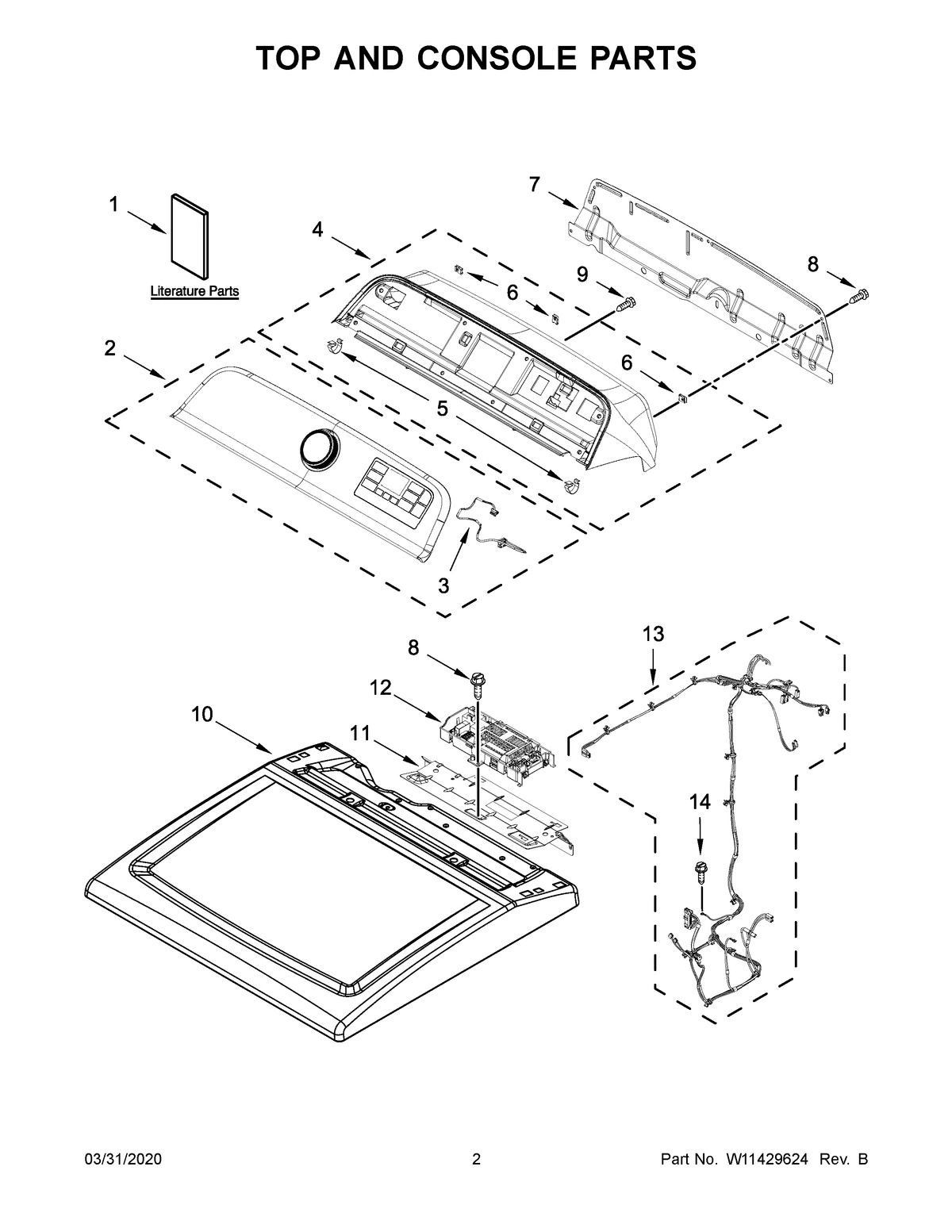

02 - TOP AND CONSOLE PARTS

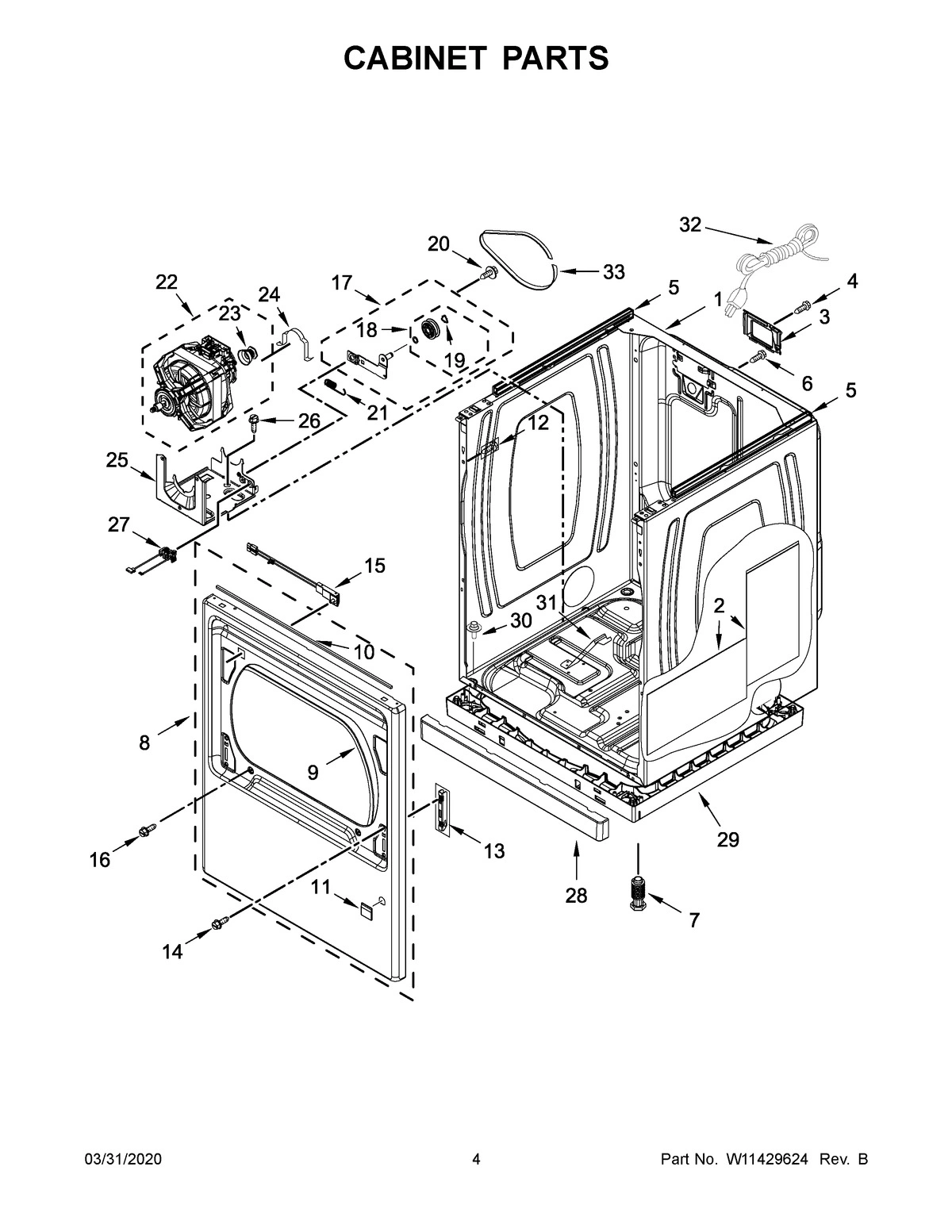

03 - CABINET PARTS

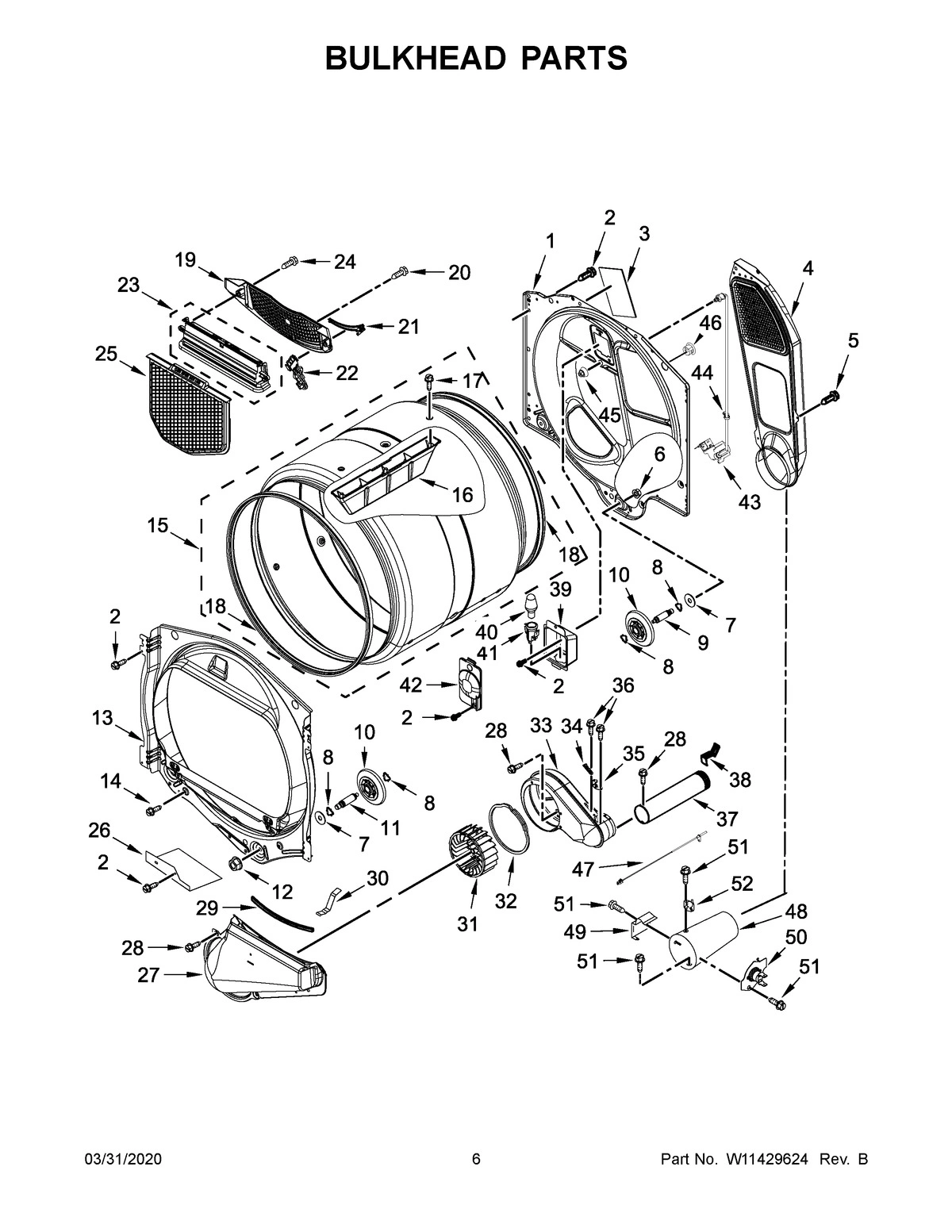

04 - BULKHEAD PARTS

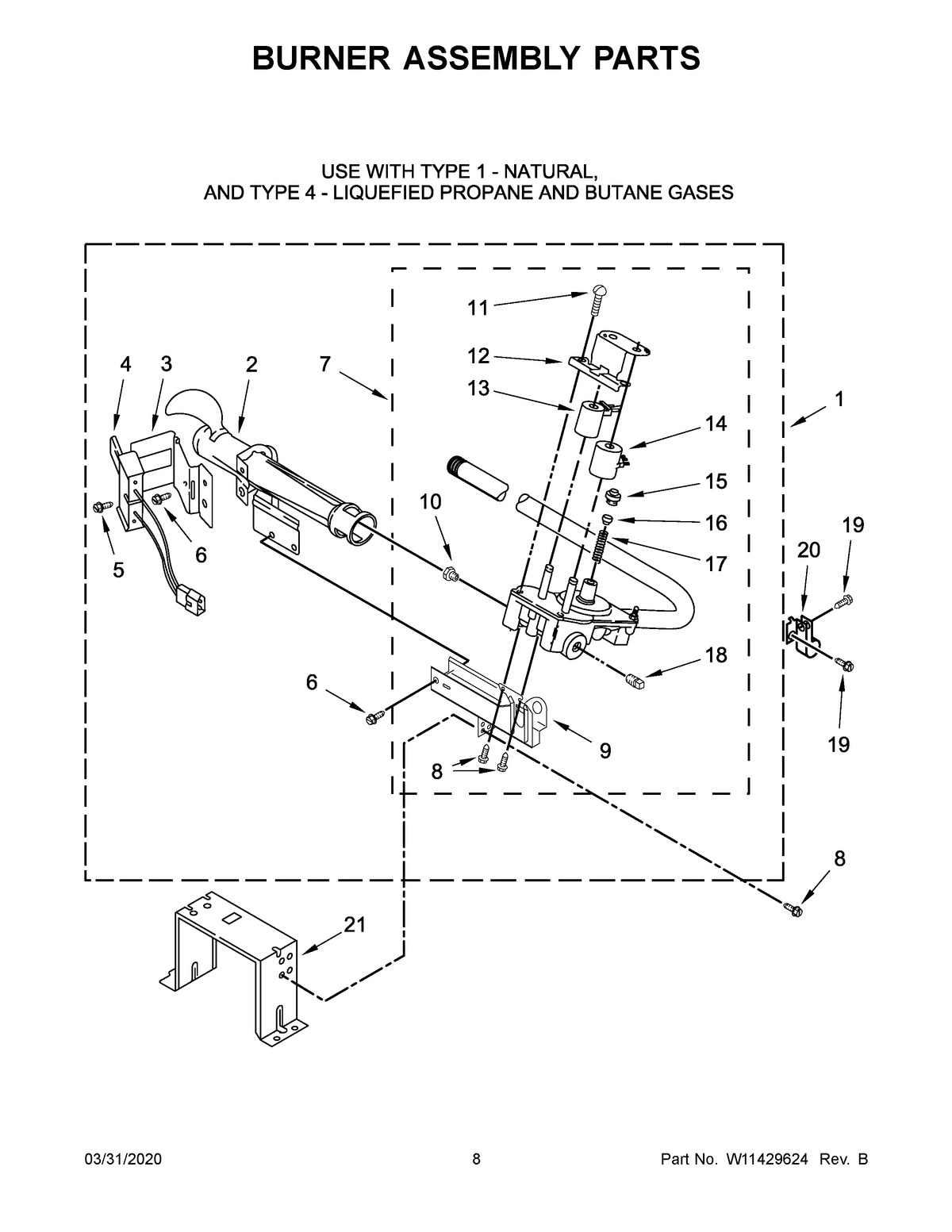

05 - BURNER ASSEMBLY PARTS

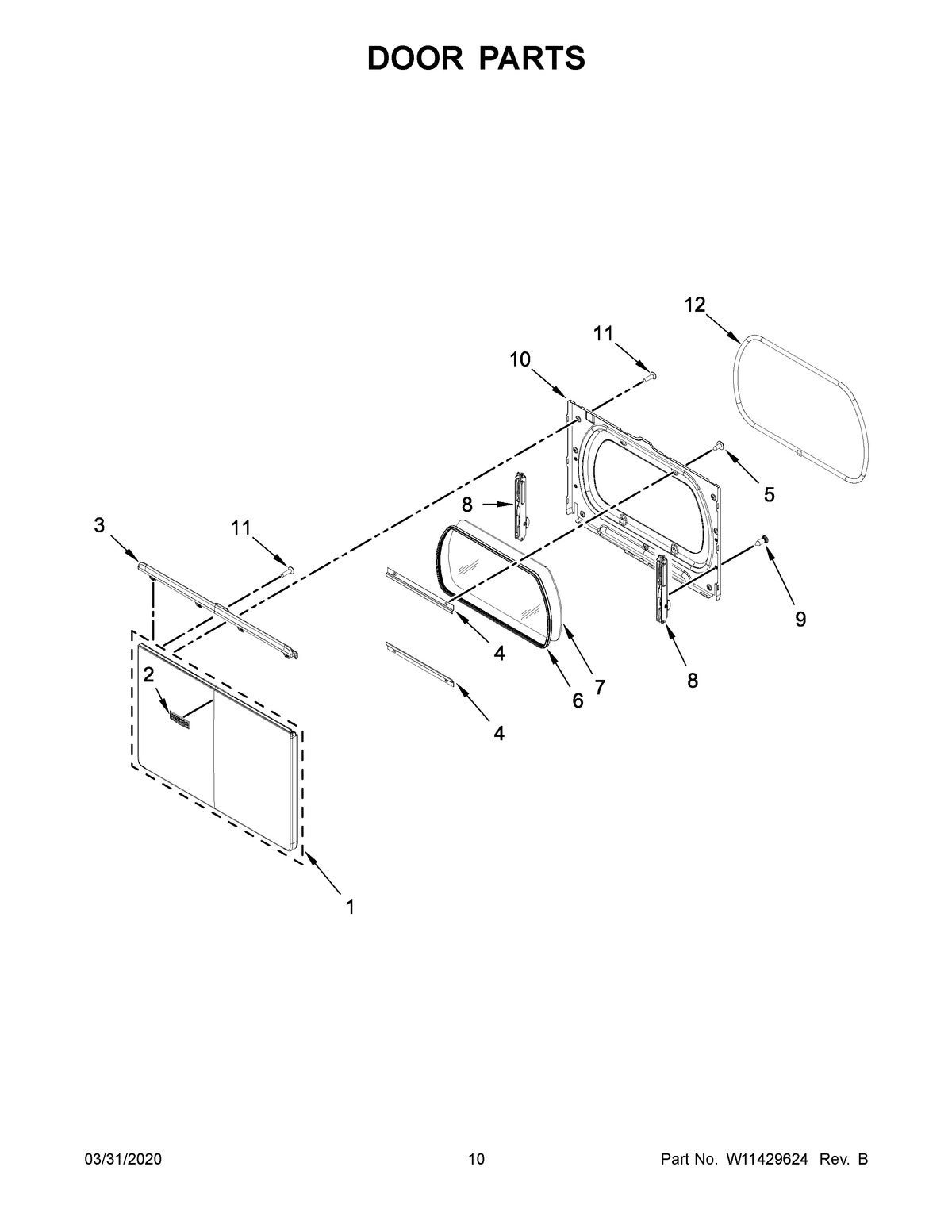

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGD7230HC0 LAUNDRY, RESIDENTIAL, GAS DRYER
1
INSTALLATION INSTRUCTIONS MAY W11268643 Contact Us For Availability
1
CABINET (WHITE) MAY W11161907 Contact Us For Availability
1
BULKHEAD, REAR MAY W11162465 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1) (WHITE RODGER MAY 8576353 Contact Us For Availability
1
ASSEMBLY, OUTER DOOR (MAYTAG) MAY W11166841 Contact Us For Availability
1A
MAY W11175222 MAY W11175222 Contact Us For Availability
1A
CABINET (CHROME SHADOW) MAY W11174572 Contact Us For Availability
1B
QUICK START GUIDE MAY W11175228 Contact Us For Availability
2
ASSEMBLY, CONSOLE FASCIA (COMPLETE) MAY W11164011 Contact Us For Availability
2
PANEL, DAMPENING MAY W11313127 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
2
BADGE MAY W10612925 Contact Us For Availability
3
HARNESS, USER INTERFACE (HMI) MAY W11164276 Contact Us For Availability
3
COVER, TERMINAL BLOCK MAY 8317339 Contact Us For Availability
3
PAD, FOAM MAY W10504381 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
3
HANDLE, DOOR MAY W11186769 Contact Us For Availability
4
CONSOLE (WHITE) MAY W11127506 Contact Us For Availability
4
SCREW MAY 3390631 Contact Us For Availability
4
ASSEMBLY, AIR DUCT MAY W10293765 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
4
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
4A
CONSOLE (CHROME SHADOW) MAY W11128046 Contact Us For Availability
5
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
5
SEAL, FOAM MAY W11241070 Contact Us For Availability
5
SCREW MAY 8533971 Contact Us For Availability
5
SCREW MAY W10366705 Contact Us For Availability
5
SCREW MAY 3393258 Contact Us For Availability
6
NUT, "U" MAY W10298336 Contact Us For Availability
6
SCREW MAY W10773242 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
6
SEAL, WINDOW MAY W10284122 Contact Us For Availability
7
PANEL, REAR CONSOLE MAY W11259799 Contact Us For Availability
7
FOOT, DRYER MAY W11323320 Contact Us For Availability
7
WASHER MAY 3387459 Contact Us For Availability
7
VALVE, GAS 60 HZ. (COMPLETE) MAY W10118312 Contact Us For Availability
7
GLASS, DOOR MAY W11244983 Contact Us For Availability
8
PANEL, FRONT (WHITE) MAY W11122123 Contact Us For Availability
8
WASHER, TRI RING MAY W10512946 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
ASSEMBLY, DOOR HINGE MAY W11116025 Contact Us For Availability
8A
PANEL, FRONT (CHROME SHADOW) MAY W11176922 Contact Us For Availability
9
SCREW MAY 9740848 Contact Us For Availability
9
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
9
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
9
BASE, BURNER MAY 3389871 Contact Us For Availability
9
SCREW MAY 342055 Contact Us For Availability
10
TOP (WHITE) MAY W10260246 Contact Us For Availability
10
SEAL, FOAM MAY W11261179 Contact Us For Availability
10
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
10
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
10
ASSEMBLY, INNER DOOR (WHITE) MAY W11122062 Contact Us For Availability
10A
TOP (CHROME SHADOW) MAY W10458665 Contact Us For Availability
10A
ORIFICE, BURNER (TYPE 4 (PROPANE)) MAY 15422 Contact Us For Availability
10A
ASSEMBLY, INNER DOOR (CHROME SHADOW) MAY W11176947 Contact Us For Availability
10B
ORIFICE, BURNER (TYPE 4 (PROPANE)) MAY 234867 Contact Us For Availability
11
BRACKET, ELECTRONIC CONTROL MAY W10896068 Contact Us For Availability
11
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
11
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
11
SCREW MAY 9742177 Contact Us For Availability
11A
PLUG, FRONT PANEL (CHROME SHADOW) MAY W11305280 Contact Us For Availability
12
APPLIANCE CONTROL UNIT (ACU) MAY W11426580 Contact Us For Availability
12
SCREW MAY 8281212 Contact Us For Availability
12
NUT, HEX MAY 3934666 Contact Us For Availability
12
BRACKET, COIL MAY 694538 Contact Us For Availability
12
SEAL, DOOR MAY W11243078 Contact Us For Availability
13
APPLIANCE CONTROL UNIT MAY W11164043 Contact Us For Availability
13
HINGE, INNER DOOR (RECEPTACLE) MAY W11116026 Contact Us For Availability
13
BULKHEAD, FRONT MAY W11162467 Contact Us For Availability
13
COIL, 60 HZ. (2 TERMINAL) (MAIN) MAY 694540 Contact Us For Availability
14
(ACU) MAY 359625 Contact Us For Availability
14
SCREW MAY W10704731 Contact Us For Availability
14
SCREW MAY 3357011 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3 TERMINAL) (PILOT POSIT MAY 694539 Contact Us For Availability
15
ASSEMBLY, DOOR SWITCH MAY W11307535 Contact Us For Availability
15
ASSEMBLY, DRUM MAY W10545923 Contact Us For Availability
15
LEAK, LIMITER MAY 694424 Contact Us For Availability
16
BAFFLE, DRUM MAY 697693 Contact Us For Availability
16
SCREW, REGULATOR ADJUSTMENT MAY 694423 Contact Us For Availability
17
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
17
SCREW MAY W10219342 Contact Us For Availability
17
SPRING, REGULATOR MAY 694422 Contact Us For Availability
18
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
18
SEAL, DRUM MAY W10521118 Contact Us For Availability
18
PLUG, PIPE MAY 239822 Contact Us For Availability
19
SCREW MAY 3390647 Contact Us For Availability
19
GRILL, OUTLET MAY W10692558 Contact Us For Availability
20
SCREW MAY 3389420 Contact Us For Availability
20
SCREW MAY 695240 Contact Us For Availability
20
CLAMP, PIPE MAY 3387561 Contact Us For Availability
21
SPRING, IDLER MAY W10446781 Contact Us For Availability
21
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
21
BRACKET, SUPPORT MAY 3389889 Contact Us For Availability
22
ASSEMBLY, MOTOR MAY W10396028 Contact Us For Availability
22
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
23
PULLEY, MOTOR MAY W10460106 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
24
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
24
SCREW MAY 3387230 Contact Us For Availability
25
BRACKET, MOTOR MOUNTING MAY W10242878 Contact Us For Availability
25
LINT SCREEN (WHITE) MAY W10596627 Contact Us For Availability
26
SHIELD, BLOWER MAY W11257251 Contact Us For Availability
27
SWITCH, BROKEN BELT MAY W10724631 Contact Us For Availability
27
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
28
RISER, SKIRT (WHITE) MAY W11186879 Contact Us For Availability
28
SCREW MAY 489463 Contact Us For Availability
28A
RISER, SKIRT (CHROME SHADOW) MAY W11227434 Contact Us For Availability
29
RISER, WASHER (CHROME SHADOW) MAY W11165114 Contact Us For Availability
29
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
30
SCREW W/WASHER MAY W11182898 Contact Us For Availability
30
CLIP, SPRING MAY W10345456 Contact Us For Availability
31
BRACKET, BURNER MAY 8529757 Contact Us For Availability
31
WHEEL, BLOWER MAY 697772 Contact Us For Availability
32
CORD, POWER MAY W10869141 Contact Us For Availability
32
SEAL, SPILL GUARD MAY W10841728 Contact Us For Availability
33
BELT, DRIVE MAY 3387610 Contact Us For Availability
33
HOUSING, BLOWER MAY 8544362 Contact Us For Availability
34
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
35
THERMISTOR MAY 8577274 Contact Us For Availability
36
SCREW MAY 693995 Contact Us For Availability
37
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
38
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
39
BRACKET, DRUM LIGHT MAY 3977373 Contact Us For Availability
40
BULB, LIGHT MAY 3406124 Contact Us For Availability
41
SOCKET, LIGHT MAY W10214261 Contact Us For Availability
42
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
43
VALVE HOSE ASSY. MAY W11213863 Contact Us For Availability
44
TIE, CABLE MAY 3391018 Contact Us For Availability
45
NOZZLE, CAP MAY W11100488 Contact Us For Availability
46
PLUG, REAR BULKHEAD MAY 8529007 Contact Us For Availability
47
THERMISTOR, GAS INLET MAY W10623852 Contact Us For Availability
48
FUNNEL, BURNER MAY 8573824 Contact Us For Availability
49
SENSOR, RADIANT MAY 338906 Contact Us For Availability
50
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
51
SCREW MAY 90767 Contact Us For Availability
52
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER - STEAM HOSE (INC MAY W10044609A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER - STEAM HOSE (INC MAY W10443301A Contact Us For Availability
NI
A MAY W10623830 Contact Us For Availability
NI
MAY W10782875 MAY W10782875 Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 TO TYPE 4 LPG) MAY 8576846 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
ACCESSORY PARTS, HOSE, DRYER - GAS SYSTEM (1/ MAY 20-3132-48A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER - GAS SYSTEM HOOK MAY 20-48KITRC Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, MAINTENANCE BRUSH FOR DRYERS MAY 4210463RW Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR (INCLUDES MAY 4392067RC Contact Us For Availability
NI
ACCESSORY PARTS, DRYER VENT PERISCOPE SYSTEMS MAY 4392892 Contact Us For Availability
NI
ACCESSORY PARTS, DRYER VENT - HARDWARE & MISC MAY 4396004 Contact Us For Availability
NI
ACCESSORY PARTS, DRYER VENT - HARDWARE & MISC MAY 4396005 Contact Us For Availability
NI
ACCESSORY PARTS, DRYER VENT - HARDWARE & MISC MAY 4396006RW Contact Us For Availability
NI
ACCESSORY PARTS, DRYER VENT - HARDWARE & MISC MAY 4396007RW Contact Us For Availability
NI
ACCESSORY PARTS, DRYER MAY 4396008RP Contact Us For Availability
NI
MAY 4396009RP MAY 4396009RP Contact Us For Availability
NI
MAY 4396010RP MAY 4396010RP Contact Us For Availability
NI
MAY 4396011RP MAY 4396011RP Contact Us For Availability
NI
MAY 4396013RB MAY 4396013RB Contact Us For Availability
NI
MAY 4396014 MAY 4396014 Contact Us For Availability
NI
MAY 4396028 MAY 4396028 Contact Us For Availability
NI
MAY 4396033RP MAY 4396033RP Contact Us For Availability
NI
MAY 4396037RP MAY 4396037RP Contact Us For Availability
NI
MAY 4396652RB MAY 4396652RB Contact Us For Availability
NI
MAY 4396727RP MAY 4396727RP Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 799344 MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8171587RP MAY 8171587RP Contact Us For Availability
NI
MAY 8212662 MAY 8212662 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY W10214580RP MAY W10214580RP Contact Us For Availability
NI
MAY W10446202 MAY W10446202 Contact Us For Availability
NI
MAY W10470674 MAY W10470674 Contact Us For Availability
NI
MAY W10606694A MAY W10606694A Contact Us For Availability
NI
MAY W10864105 MAY W10864105 Contact Us For Availability
NI
MAY W10921681 MAY W10921681 Contact Us For Availability
NI
MAY W11224254 MAY W11224254 Contact Us For Availability
NI
MAY XHS1000XX MAY XHS1000XX Contact Us For Availability
× ![]()
Login and Registration Form
