Model Maytag MGC9536DS00 GAS COOKTOP – Common Parts & Diagrams
01 - COVER SHEET

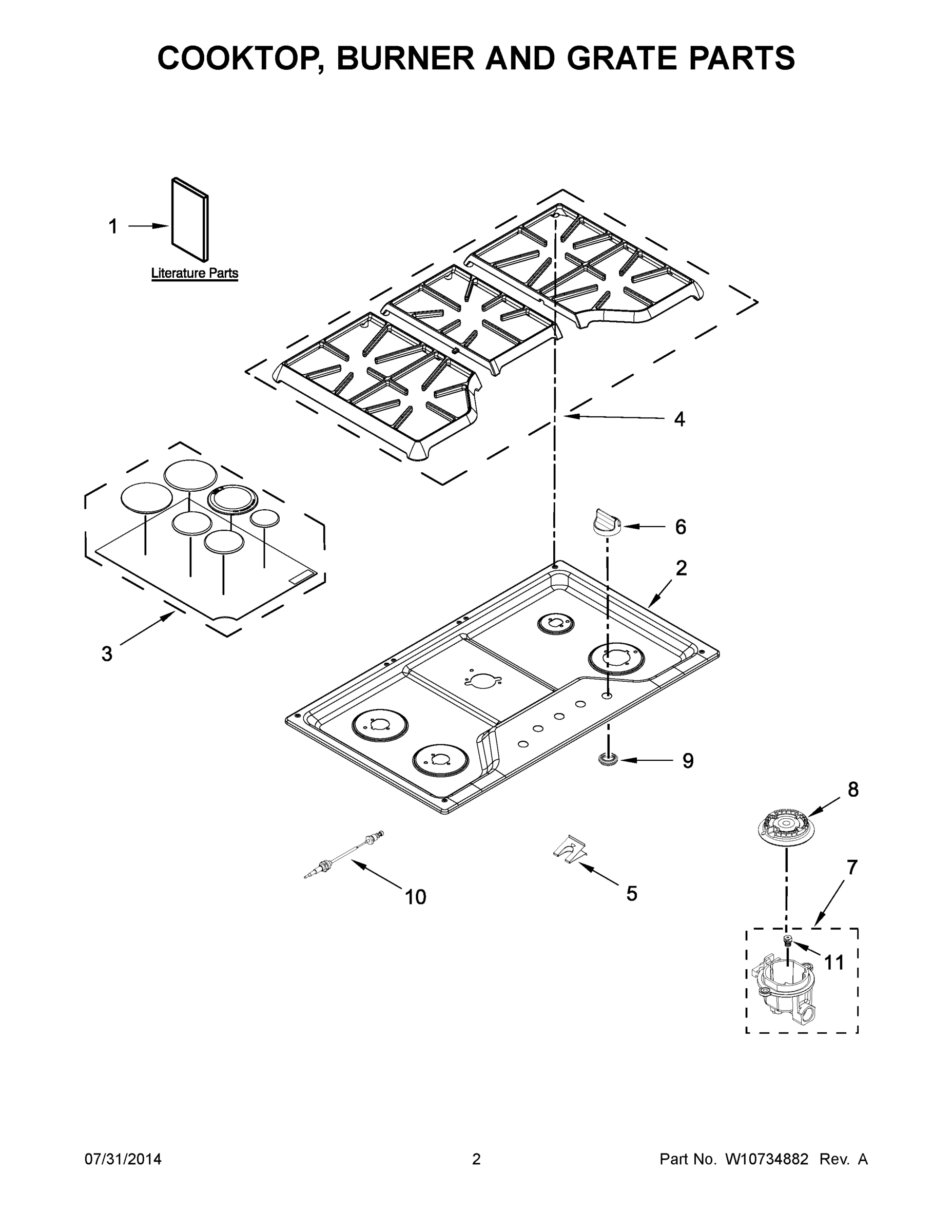

02 - COOKTOP, BURNER AND GRATE PARTS

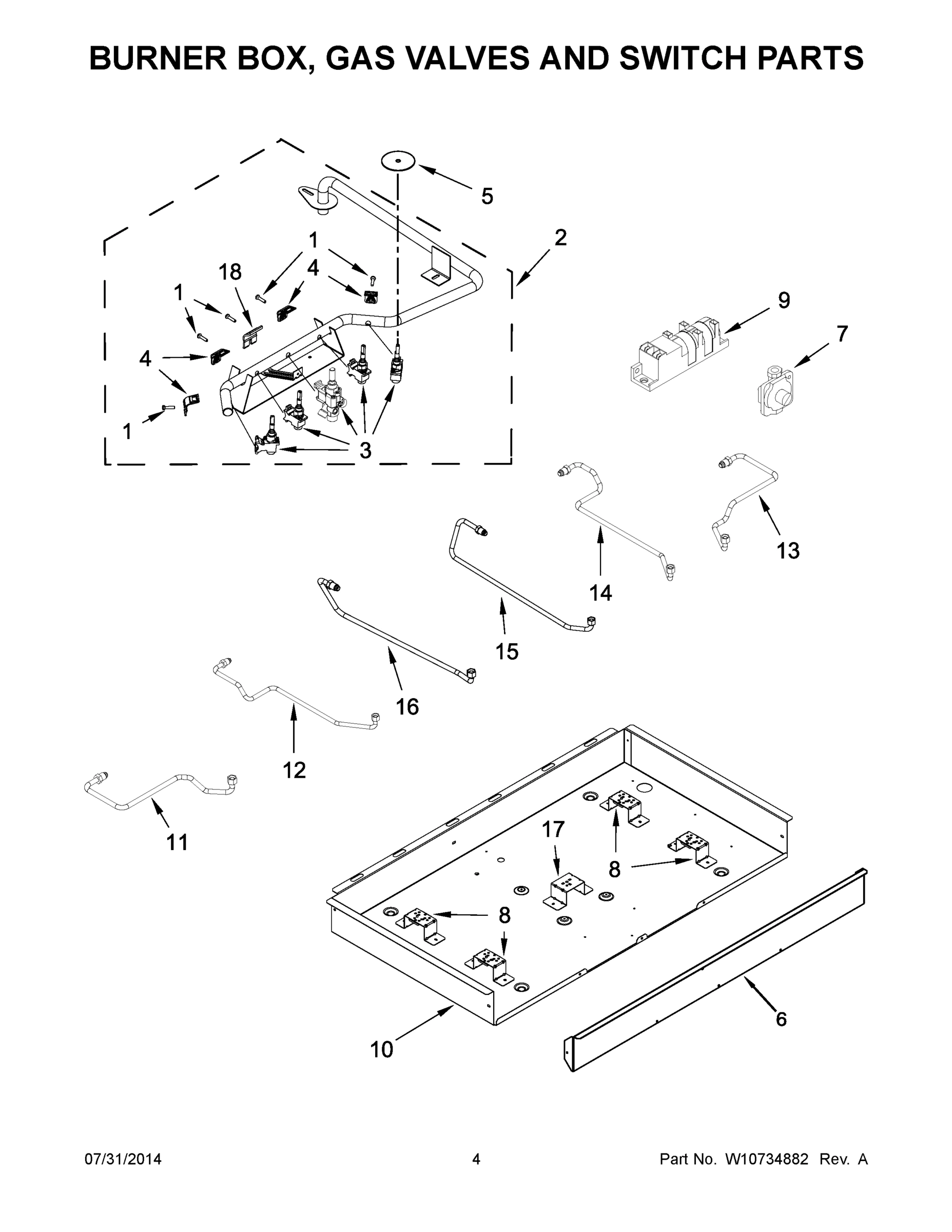

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
Common parts from model Maytag MGC9536DS00 GAS COOKTOP
1
MAY W10597144 MAY W10597144 Contact Us For Availability
1
MAY 8287057 MAY 8287057 Contact Us For Availability
1A
MAY W10672375 MAY W10672375 Contact Us For Availability
1B
MAY W10648065 MAY W10648065 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
MAY W10597074 MAY W10597074 Contact Us For Availability
2
MAY W10594397 MAY W10594397 Contact Us For Availability
3
MAY W10597132 MAY W10597132 Contact Us For Availability
3
MAY W10594392 MAY W10594392 Contact Us For Availability
3A
VALVE, SINGLE (LEFT REAR) MAY W10594391 Contact Us For Availability
3B
VALVE, SINGLE, (RIGHT FRONT) MAY W10594393 Contact Us For Availability
3C
MAY W10597156 MAY W10597156 Contact Us For Availability
3D
MAY W10594389 MAY W10594389 Contact Us For Availability
4
MAY W10594447 MAY W10594447 Contact Us For Availability
4
MAY 8287055 MAY 8287055 Contact Us For Availability
5
MAY 8286863 MAY 8286863 Contact Us For Availability
5
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
6
MAY W10643321 MAY W10643321 Contact Us For Availability
6
MAY W10614951 MAY W10614951 Contact Us For Availability
7
HOLDER, ORIFICE (5K) (RIGHT REAR) MAY W10594399 Contact Us For Availability
7
MAY W10132345 MAY W10132345 Contact Us For Availability
7A
MAY W10597166 MAY W10597166 Contact Us For Availability
7B
MAY W10594405 MAY W10594405 Contact Us For Availability
7C
MAY W10611435 MAY W10611435 Contact Us For Availability
8
HEAD, BURNER (RIGHT REAR) MAY 8286813 Contact Us For Availability
8
MAY W10594429 MAY W10594429 Contact Us For Availability
8A
HEAD, BURNER (RIGHT FRONT) MAY 8286815 Contact Us For Availability
8B
HEAD, BURNER (LEFT FRONT & LEFT REAR) MAY 8286814 Contact Us For Availability
8C
HEAD, BURNER (CENTER) MAY W10611434 Contact Us For Availability
9
MAY W10625915 MAY W10625915 Contact Us For Availability
9
MAY W10475149 MAY W10475149 Contact Us For Availability
10
MAY W10541842 MAY W10541842 Contact Us For Availability
10
MAY W10728414 MAY W10728414 Contact Us For Availability
10A
MAY W10541843 MAY W10541843 Contact Us For Availability
10B
MAY W10611438 MAY W10611438 Contact Us For Availability
11
ORIFICE (LEFT FRONT & LEFT REAR) MAY W10652710 Contact Us For Availability
11
MAY W10566305 MAY W10566305 Contact Us For Availability
11A
MAY W10652706 MAY W10652706 Contact Us For Availability
11B
MAY W10594427 MAY W10594427 Contact Us For Availability
11C
ORIFICE (RIGHT FRONT) MAY W10409144 Contact Us For Availability
11D
ORIFICE (RIGHT REAR) MAY W10652711 Contact Us For Availability
12
MAY W10566306 MAY W10566306 Contact Us For Availability
13
MAY W10566308 MAY W10566308 Contact Us For Availability
14
MAY W10566307 MAY W10566307 Contact Us For Availability
15
TUBING, GAS BURNER (CENTER) MAY W10566296 Contact Us For Availability
16
TUBING, GAS BURNER (CENTER) MAY W10566297 Contact Us For Availability
17
MAY W10594430 MAY W10594430 Contact Us For Availability
18
MAY 8287056 MAY 8287056 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
RELIEF, STRAIN MAY W10132200 Contact Us For Availability
NI
MAY W10392003 MAY W10392003 Contact Us For Availability
NI
MAY W10539913 MAY W10539913 Contact Us For Availability
NI
MAY W10676661 MAY W10676661 Contact Us For Availability
× ![]()
