Model Maytag MGC7536DB00 COOKTOP, GAS, 36 INCH – Common Parts & Diagrams

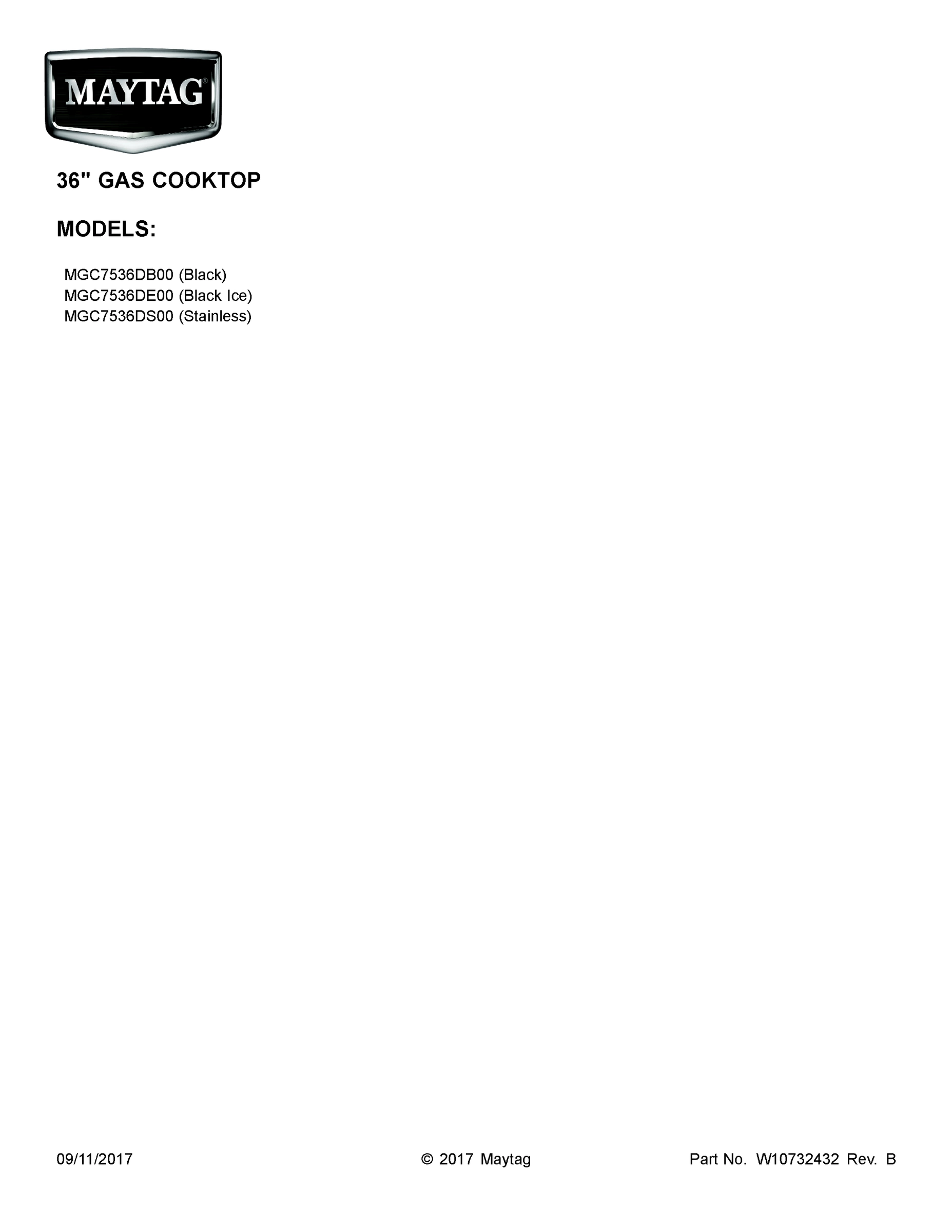

01 - COVER SHEET

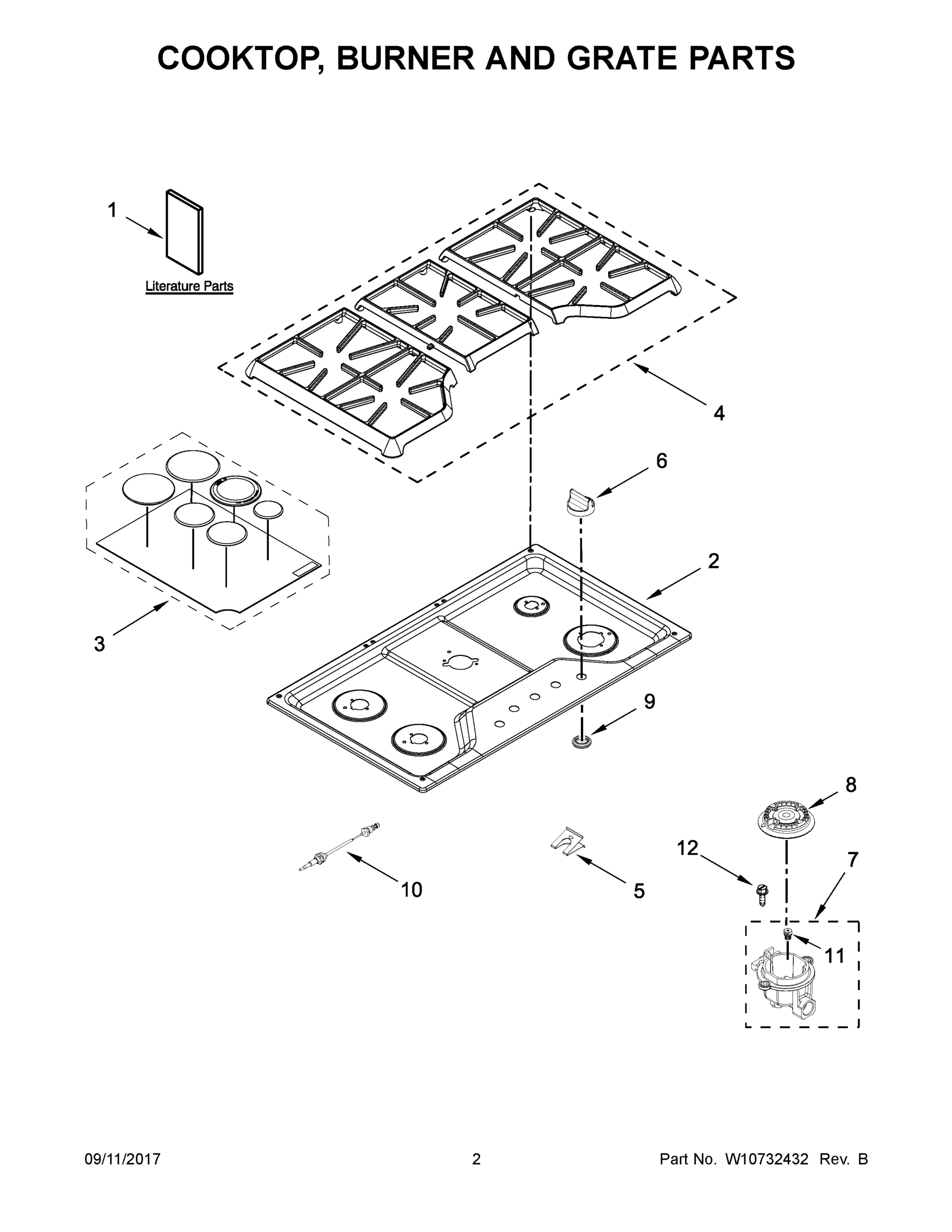

02 - COOKTOP, BURNER AND GRATE PARTS

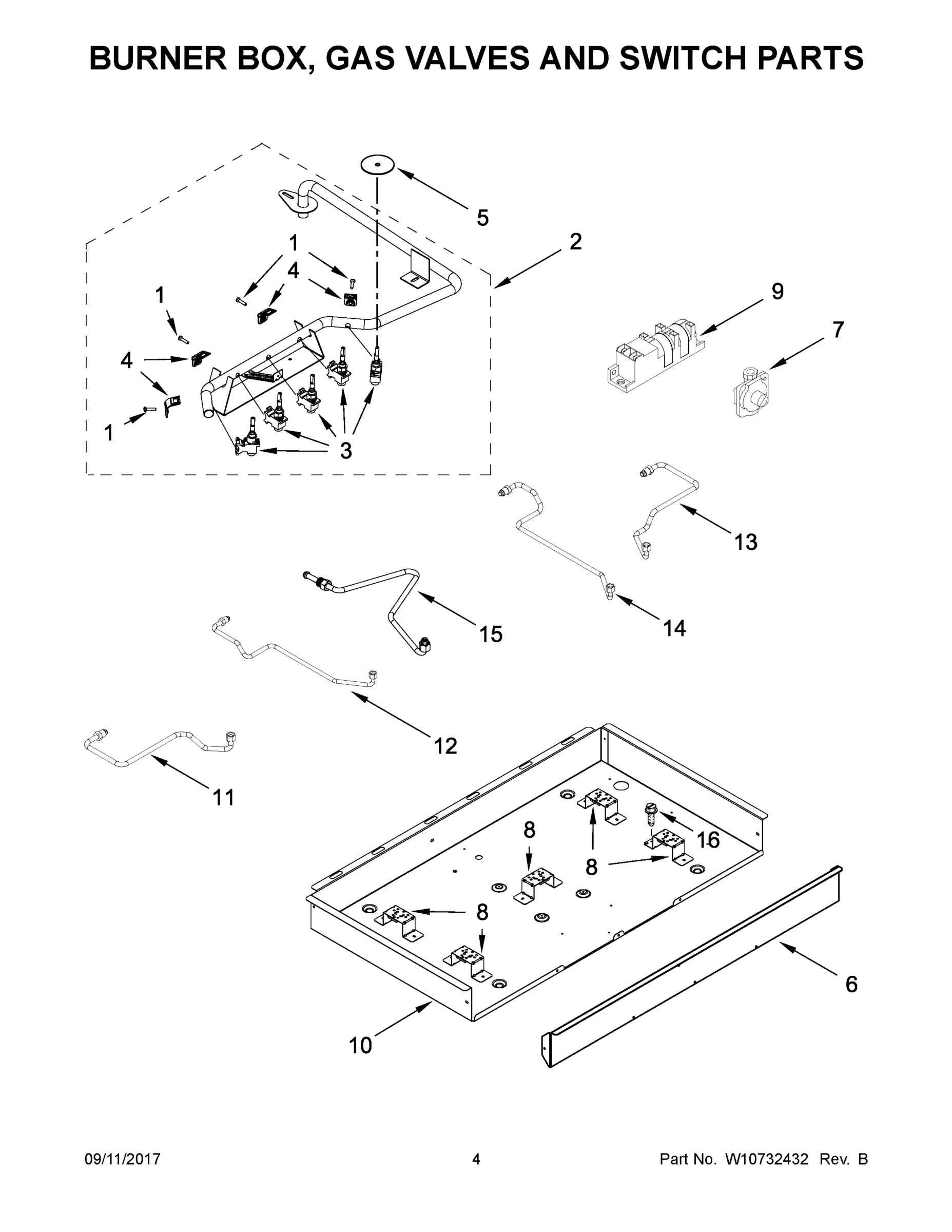

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
Common parts from model Maytag MGC7536DB00 COOKTOP, GAS, 36 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10597144 Contact Us For Availability
1
SCREW, VALVE BRACKET MAY 8287057 Contact Us For Availability
1A
INSTRUCTIONS, UNDERCOUNTER INSTALL MAY W10672375 Contact Us For Availability
1B
GUIDE, USE & CARE MAY W10648065 Contact Us For Availability
1C
INSTRUCTIONS, LP CONVERSION MAY W10733303 Contact Us For Availability
2
COOKTOP (BLACK) MAY W10597075 Contact Us For Availability
2
ASSEMBLY, MANIFOLD MAY W10594396 Contact Us For Availability
2A
COOKTOP (STAINLESS) MAY W10597077 Contact Us For Availability
3
KIT, BURNER CAP (BLACK) MAY W10597133 Contact Us For Availability
3
VALVE, SINGLE (LEFT FRONT) MAY W10594392 Contact Us For Availability
3A
VALVE, SINGLE (LEFT REAR & CENTER) MAY W10594391 Contact Us For Availability
3B
VALVE, SINGLE (RIGHT FRONT) MAY W10594393 Contact Us For Availability
3C
VALVE, SINGLE (RIGHT REAR) MAY W10597156 Contact Us For Availability
4
KIT, GRATE (BLACK) MAY W10594447 Contact Us For Availability
4
BRACKET, SINGLE VALVE MAY 8287055 Contact Us For Availability
5
SPRING, ELECTRODE MAY 8286863 Contact Us For Availability
5
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
6
KNOBS, COOKTOP (BLACK) MAY W10895114 Contact Us For Availability
6
PANEL, FRONT MAY W10614951 Contact Us For Availability
6A
MAY W10853672 MAY W10853672 Contact Us For Availability
7
HOLDER,ORIFICE (9.1K) (LEFT FRONT & LEFT REAR MAY W10594402 Contact Us For Availability
7
REGULATOR, PRESSURE MAY W10449143 Contact Us For Availability
7A
HOLDER, ORIFICE (15K) (CENTER) MAY W10609591 Contact Us For Availability
7B
HOLDER, ORIFICE (12K) (RIGHT FRONT) MAY W10597159 Contact Us For Availability
7C
HOLDER, ORIFICE (5K) (RIGHT REAR) MAY W10594399 Contact Us For Availability
8
HEAD, BURNER (RIGHT REAR) MAY 8286813 Contact Us For Availability
8
BRACKET, ORIFICE HOLDER MAY W10594429 Contact Us For Availability
8A
HEAD, BURNER (RIGHT FRONT & CENTER) MAY 8286815 Contact Us For Availability
8B
HEAD, BURNER (LEFT FRONT & LEFT REAR) MAY 8286814 Contact Us For Availability
9
GROMMET (BLACK) MAY W10625915 Contact Us For Availability
9
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
10
WIRING, ELECTRODE (LEFT FRONT, RIGHT FRONT & MAY W10541842 Contact Us For Availability
10
BOX, BURNER (NOT SERVICED) MAY N/P Contact Us For Availability
10A
WIRING, ELECTRODE (LEFT REAR & RIGHT REAR) MAY W10541843 Contact Us For Availability
11
ORIFICE (LEFT FRONT & LEFT REAR) MAY W10652710 Contact Us For Availability
11
TUBING, GAS BURNER (LEFT FRONT) MAY W10566305 Contact Us For Availability
11A
ORIFICE (CENTER) MAY W10609592 Contact Us For Availability
11B
ORIFICE (RIGHT FRONT) MAY W10409144 Contact Us For Availability
11C
ORIFICE (RIGHT REAR) MAY W10652711 Contact Us For Availability
12
MAY W10758282 MAY W10758282 Contact Us For Availability
12
TUBING, GAS BURNER (LEFT REAR) MAY W10566306 Contact Us For Availability
13
TUBING, GAS BURNER (RIGHT FRONT) MAY W10566308 Contact Us For Availability
14
TUBING, GAS BURNER (RIGHT REAR) MAY W10566307 Contact Us For Availability
15
TUBING, GAS BURNER (CENTER) MAY W10566302 Contact Us For Availability
16
SCREW MAY W10443110 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
BRACKET, TIE DOWN MAY 3801F935-51 Contact Us For Availability
NI
SCREW (USED FOR TIE DOWN BRACKET) MAY 7101P062-60 Contact Us For Availability
NI
RELIEF, STRAIN MAY W10132200 Contact Us For Availability
NI
CORD, POWER MAY W10392003 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10676661 Contact Us For Availability
NI
MAY W10868535 MAY W10868535 Contact Us For Availability
× ![]()
