Model Maytag MGC7430DB00 COOKTOP, GAS, COUNTER UNIT, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

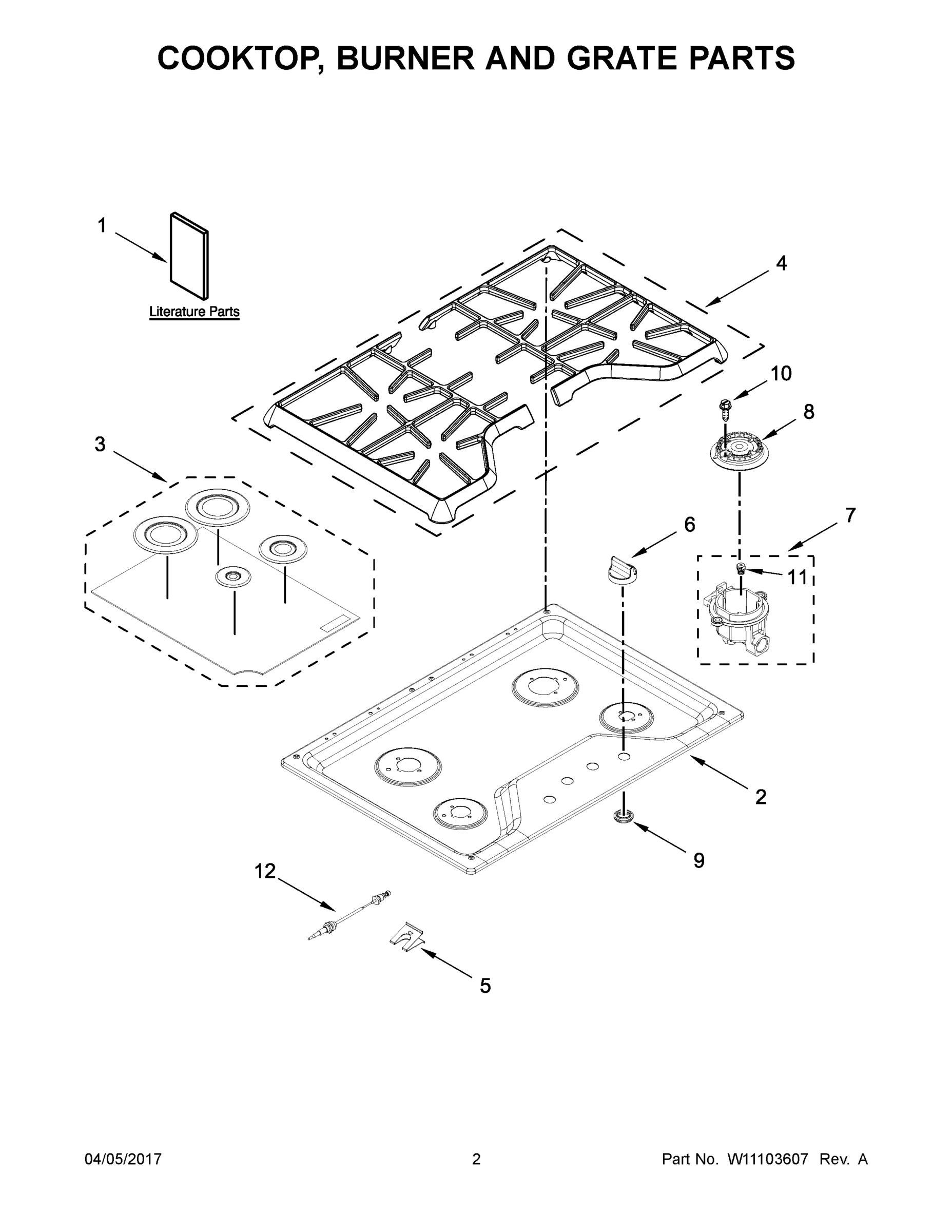

02 - COOKTOP, BURNER AND GRATE PARTS

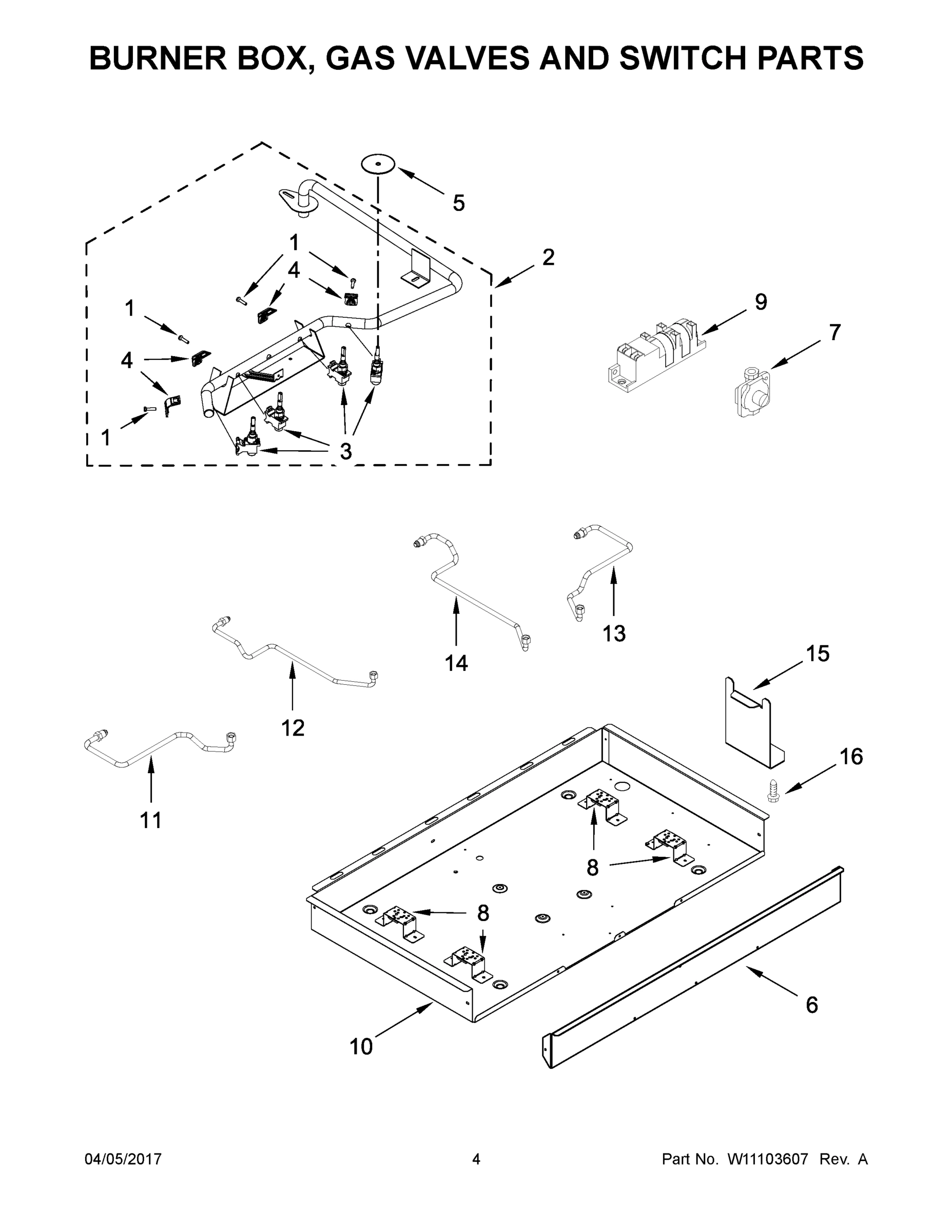

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGC7430DB00 COOKTOP, GAS, COUNTER UNIT, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10597144 Contact Us For Availability
1
SCREW, VALVE BRACKET MAY 8287057 Contact Us For Availability
1A
INSTRUCTIONS, UNDERCOUNTER INSTALL MAY W10672375 Contact Us For Availability
1B
GUIDE, USE & CARE MAY W10648065 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
INSTRUCTIONS, CONVERSION MAY W10733303 Contact Us For Availability
2
COOKTOP (BLACK) MAY W10597071 Contact Us For Availability
2
ASSEMBLY,MANIFOLD MAY W10594394 Contact Us For Availability
3
KIT, BURNER CAP (BLACK) MAY W10597129 Contact Us For Availability
3
VALVE, SINGLE (LEFT FRONT) MAY W10597157 Contact Us For Availability
3A
VALVE, SINGLE (LEFT REAR & RIGHT REAR) MAY W10594391 Contact Us For Availability
3B
VALVE, SINGLE (RIGHT FRONT) MAY W10594393 Contact Us For Availability
4
KIT, GRATE (BLACK) MAY W10594445 Contact Us For Availability
4
BRACKET, SINGLE VALVE MAY 8287055 Contact Us For Availability
5
SPRING, ELECTRODE MAY 8286863 Contact Us For Availability
5
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
6
MAY W10895114 MAY W10895114 Contact Us For Availability
6
PANEL, FRONT MAY W10614950 Contact Us For Availability
7
HOLDER, ORIFICE (5K) (LEFT FRONT) MAY W10594399 Contact Us For Availability
7
REGULATOR, PRESSURE MAY W10449143 Contact Us For Availability
7A
HOLDER, ORIFICE (15K) (LEFT REAR) MAY W10609591 Contact Us For Availability
7B
HOLDER, ORIFICE (12K) (RIGHT FRONT) MAY W10597159 Contact Us For Availability
7C
HOLDER,ORIFICE (9.1K) (RIGHT REAR) MAY W10594402 Contact Us For Availability
8
HEAD, BURNER (LEFT FRONT) MAY 8286813 Contact Us For Availability
8
BRACKET, ORIFICE HOLDER MAY W10594429 Contact Us For Availability
8A
HEAD, BURNER (LEFT FRONT & RIGHT FRONT) MAY 8286815 Contact Us For Availability
8B
HEAD, BURNER (RIGHT REAR) MAY 8286814 Contact Us For Availability
9
GROMMET (BLACK) MAY W10625915 Contact Us For Availability
9
MODULE, SPARK MAY W10475148 Contact Us For Availability
10
SCREW, BURNER RAIL (M4) MAY 8286921 Contact Us For Availability
10
BOX, BURNER (NOT SERVICED) MAY N/P Contact Us For Availability
11
ORIFICE (LEFT FRONT) MAY W10652711 Contact Us For Availability
11
TUBING, GAS BURNER (LEFT FRONT) MAY W10566287 Contact Us For Availability
11A
ORIFICE (LEFT REAR) MAY W10609592 Contact Us For Availability
11B
ORIFICE (RIGHT FRONT) MAY W10409144 Contact Us For Availability
11C
ORIFICE (RIGHT REAR) MAY W10652710 Contact Us For Availability
12
WIRING, ELECTRODE (LEFT FRONT & RIGHT FRONT) MAY W10541842 Contact Us For Availability
12
TUBING, GAS BURNER (LEFT REAR) MAY W10566288 Contact Us For Availability
12A
WIRING, ELECTRODE (LEFT REAR & RIGHT REAR) MAY W10541843 Contact Us For Availability
13
TUBING, GAS BURNER (RIGHT FRONT) MAY W10566290 Contact Us For Availability
14
TUBING, GAS BURNER (RIGHT REAR) MAY W10566289 Contact Us For Availability
15
BRACKET, TIE DOWN MAY 3801F935-51 Contact Us For Availability
16
SCREW MAY 7101P062-60 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
RELIEF, STRAIN MAY W10132200 Contact Us For Availability
NI
CORD, POWER MAY W10392003 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10676661 Contact Us For Availability
NI
HARNESS (SWITCH), MAIN MAY W10868534 Contact Us For Availability
NI
CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
× ![]()
