Model Whirlpool MG8120XDB0 – Common Parts & Diagrams

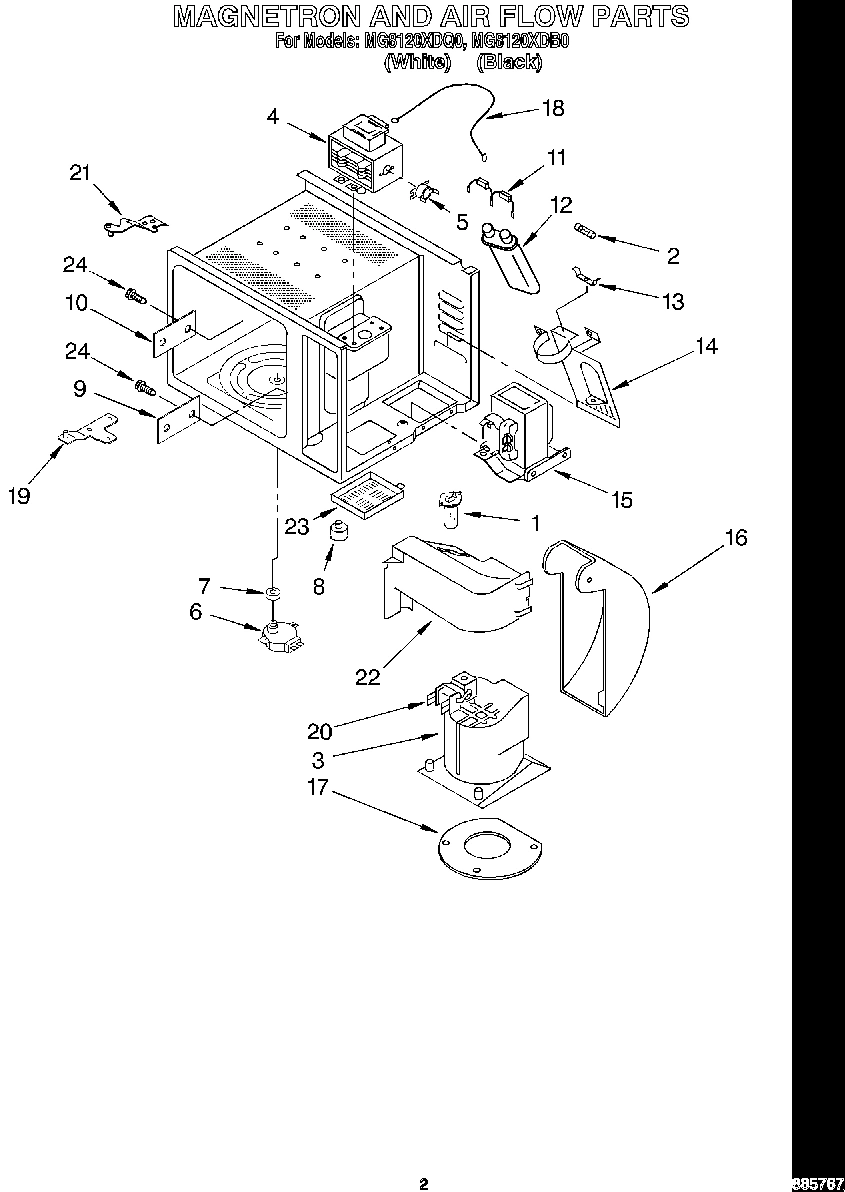

02 - MAGNETRON AND AIR FLOW, LITERATURE

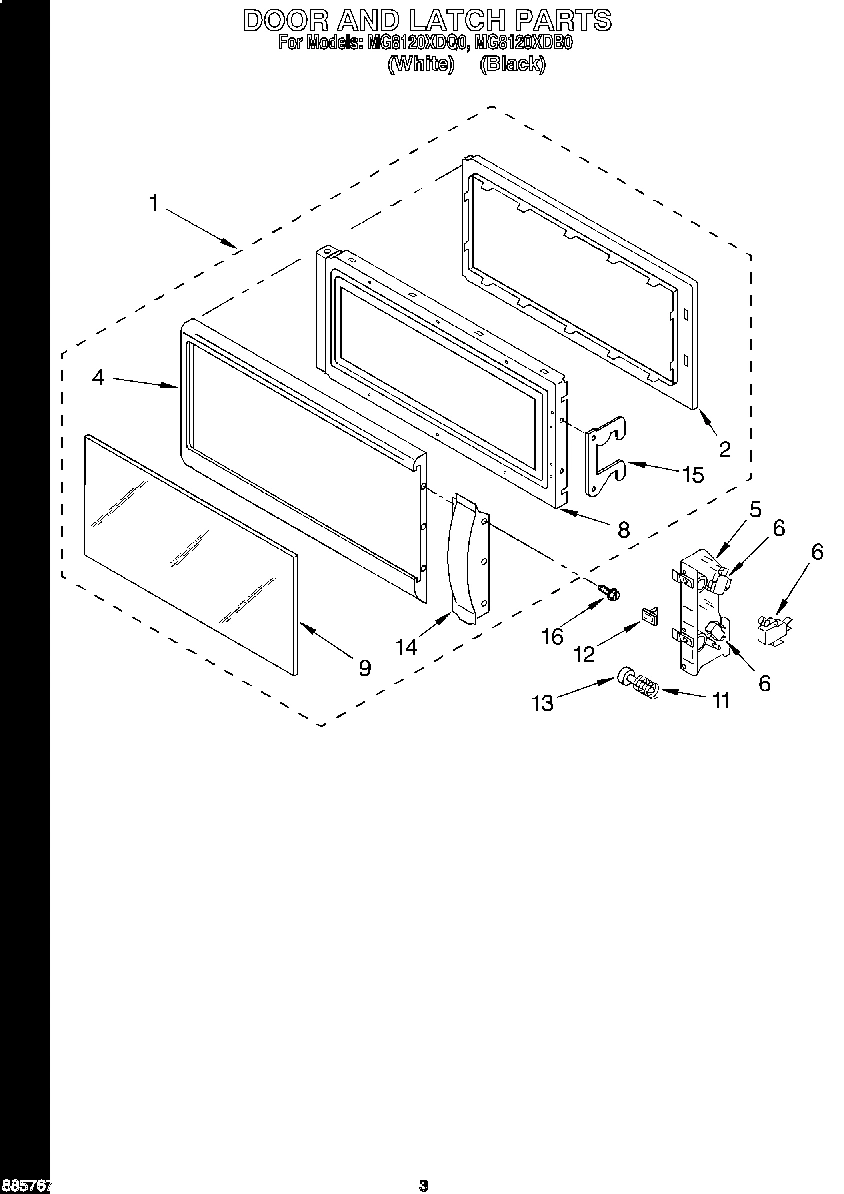

03 - DOOR AND LATCH

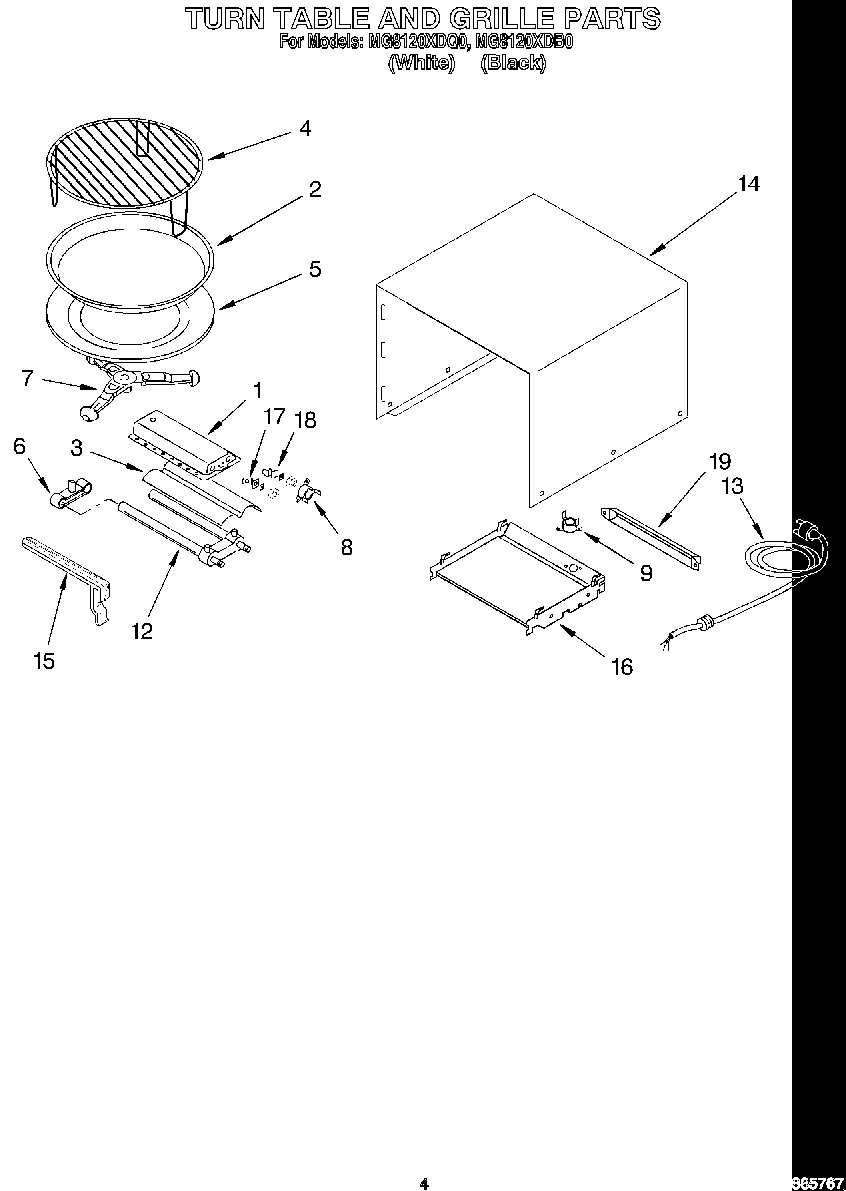

04 - TURN TABLE AND GRILLE

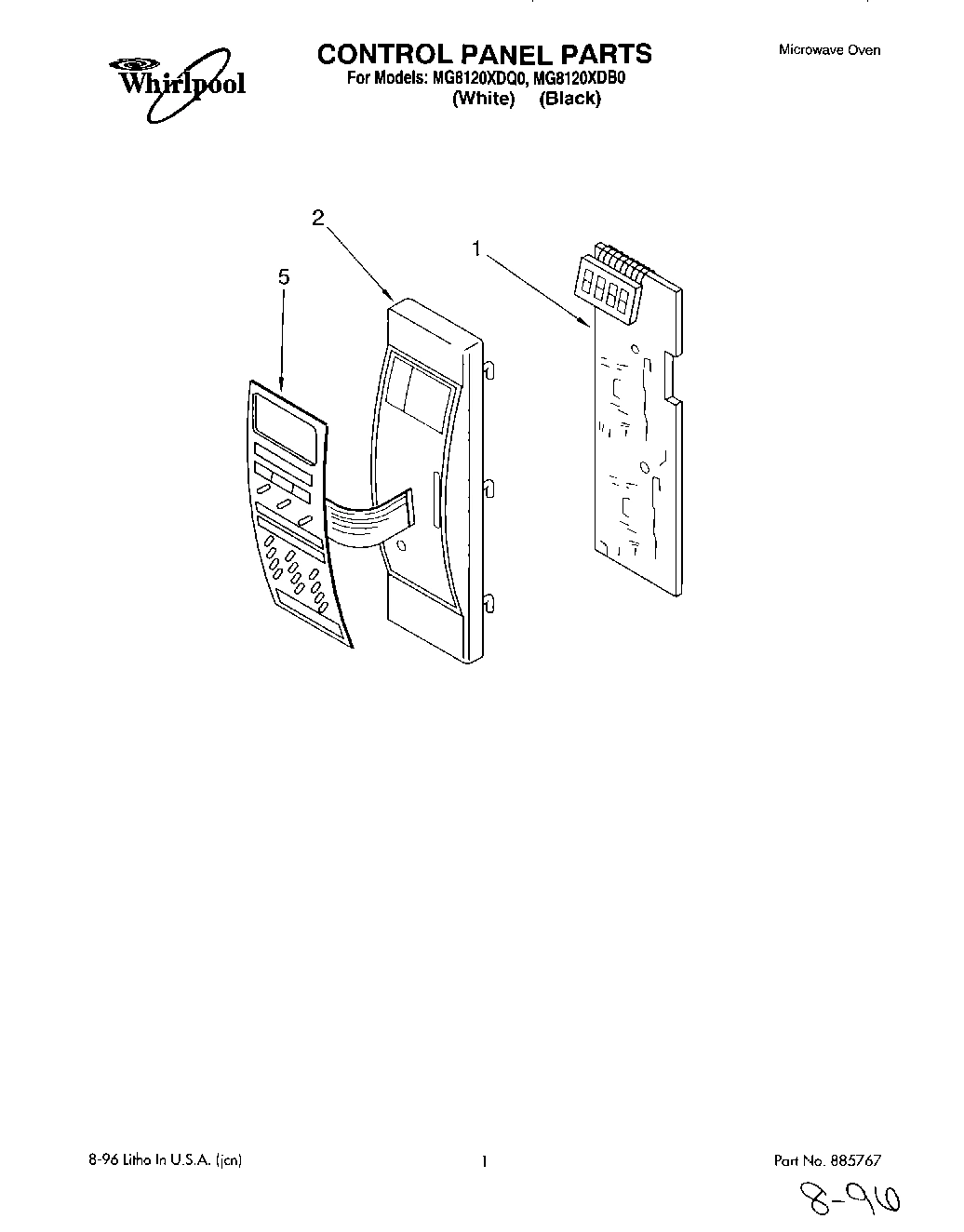

01 - CONTROL PANEL
Common parts from model Whirlpool MG8120XDB0
1
Door, Complete (Black Model) WPL 4375267 Contact Us For Availability
1
Door, Complete (White Model) WPL 4375294 Contact Us For Availability
1
Reflector WPL 4375257 Contact Us For Availability
1
Microcomputer WPL 4375277 Contact Us For Availability
2
Choke Cover WPL 4375269 Contact Us For Availability
2
Control Panel (Black Model) WPL 4375265 Contact Us For Availability
2
Control Panel (White Model) WPL 4375292 Contact Us For Availability
3
Reflector WPL 4375256 Contact Us For Availability
4
Outer Frame (Black Model) WPL 4375271 Contact Us For Availability
4
Outer Frame (White Model) WPL 4375296 Contact Us For Availability
4
Grille, Metal WPL 4375276 Contact Us For Availability
5
Latch Board WPL 4375263 Contact Us For Availability
5
Touch Pad (Black Model) WPL 4375266 Contact Us For Availability
5
Touch Pad (White Model) WPL 4375293 Contact Us For Availability
6
Micro Switch WPL 4375139 Contact Us For Availability
6
Support, Grille WPL 4375253 Contact Us For Availability
7
Ring, Rubber WPL 4375252 Contact Us For Availability
7
Support, Turntable WPL 4375275 Contact Us For Availability
8
Thermostat, Grille WPL 4375281 Contact Us For Availability
8
Inner Frame WPL 4375268 Contact Us For Availability
9
Thermostat, Oven WPL 4375279 Contact Us For Availability
9
Outer Glass (Black Model) WPL 4375270 Contact Us For Availability
9
Outer Glass (White Model) WPL 4375295 Contact Us For Availability
10
Plate, Upper WPL 4375248 Contact Us For Availability
11
Diode WPL 4375288 Contact Us For Availability
11
Spring WPL 4375219 Contact Us For Availability
12
Slide, Block WPL 4375264 Contact Us For Availability
12
Grille, Element WPL 4375282 Contact Us For Availability
13
Cylinder WPL 4375218 Contact Us For Availability
13
Power Cord WPL 4375224 Contact Us For Availability
14
Holder, Cap WPL 4375299 Contact Us For Availability
14
Handle, Door (Black Model) WPL 4375272 Contact Us For Availability
14
Handle, Door (White Model) WPL 4375297 Contact Us For Availability
14
Cabinet, Outer (Black Model) WPL 4375273 Contact Us For Availability
14
Cabinet, Outer (White Model) WPL 4375298 Contact Us For Availability
15
Hook, Lock WPL 4375300 Contact Us For Availability
16
Air Duct WPL 4375260 Contact Us For Availability
16
Screw (Black Model) WPL 4375203 Contact Us For Availability
16
Plate, Insulation WPL 4375304 Contact Us For Availability
17
Cap, Bottom WPL 4375262 Contact Us For Availability
17
Washer WPL 4375254 Contact Us For Availability
18
Wire Harness WPL 4375290 Contact Us For Availability
18
Washer WPL 4375255 Contact Us For Availability
19
Hinge, Lower WPL 4375250 Contact Us For Availability
19
Grill WPL 4375305 Contact Us For Availability
21
Hinge, Upper WPL 4375301 Contact Us For Availability
22
Duct, Air WPL 4375302 Contact Us For Availability
23
Cover, Inlet WPL 4375303 Contact Us For Availability
24
Screw WPL 4375201 Contact Us For Availability
× ![]()
