Model Maytag MFW2055YEW01 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams
01 - COVER SHEET

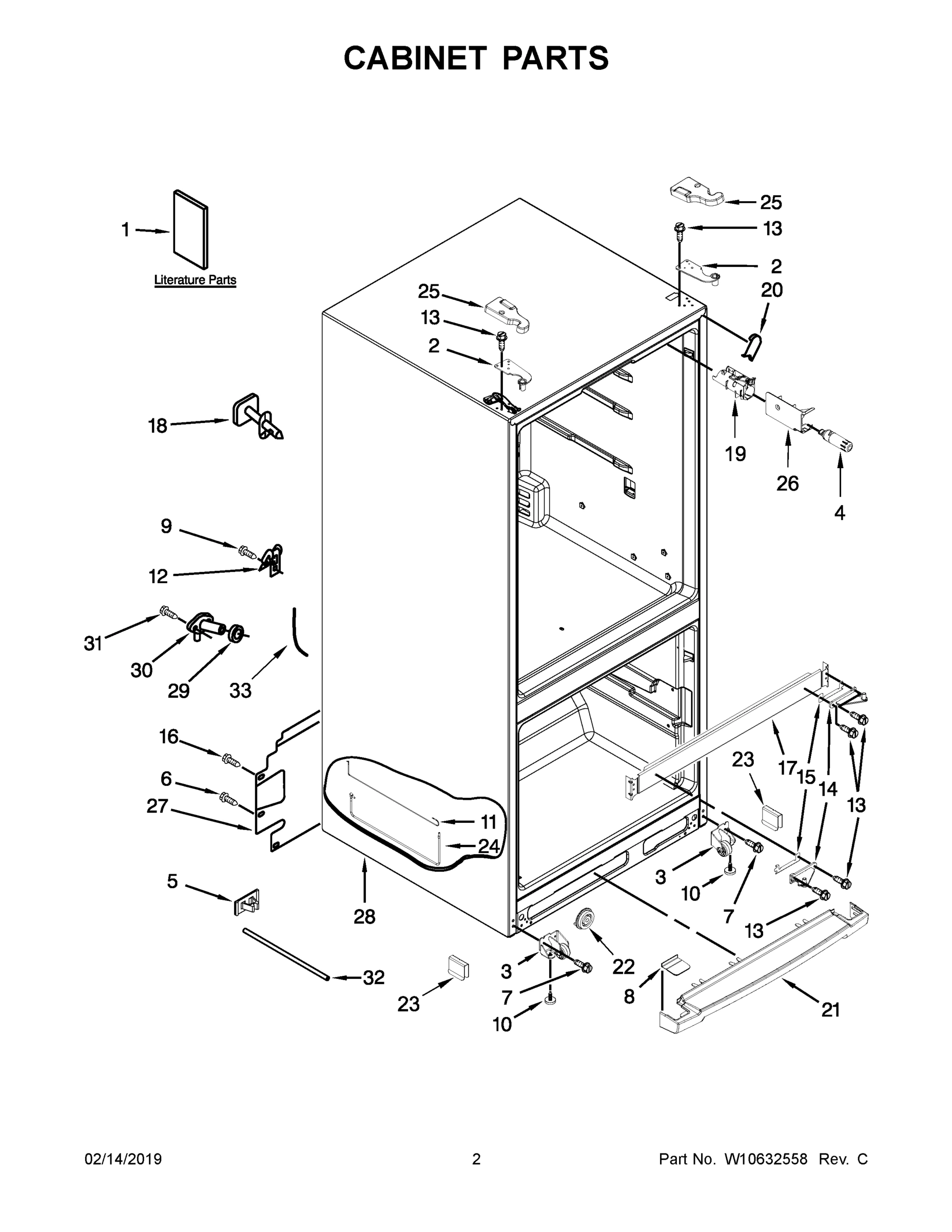

02 - CABINET PARTS

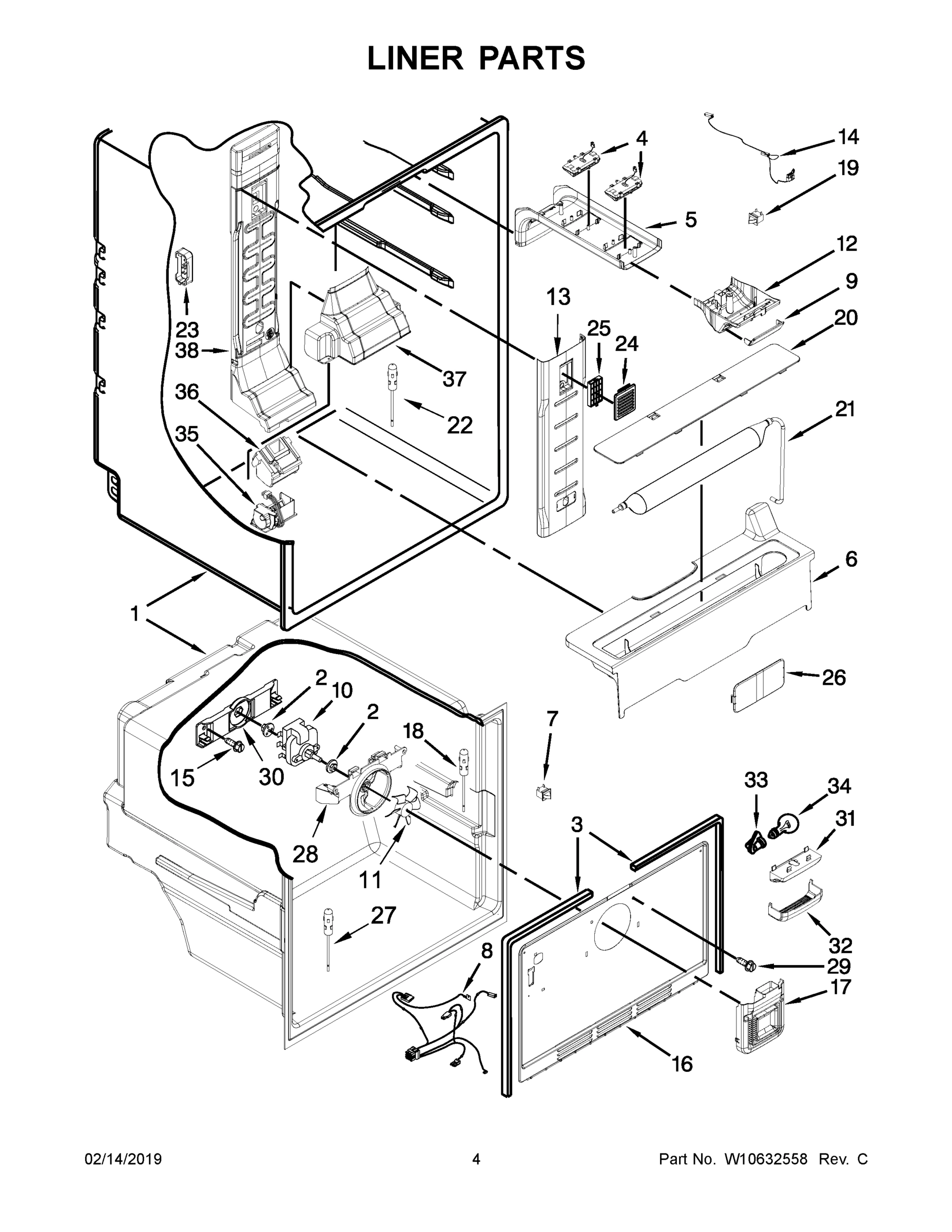

03 - LINER PARTS

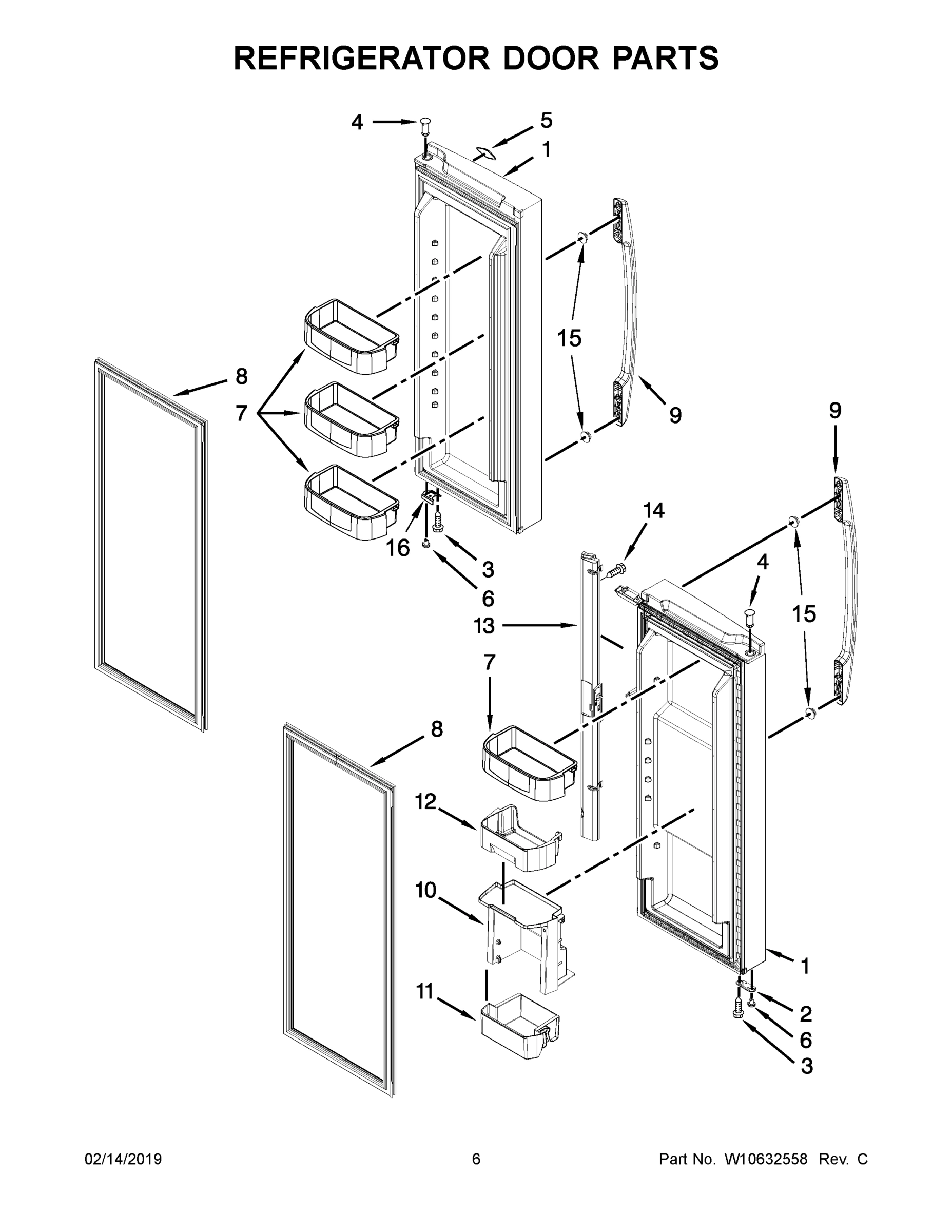

04 - REFRIGERATOR DOOR PARTS

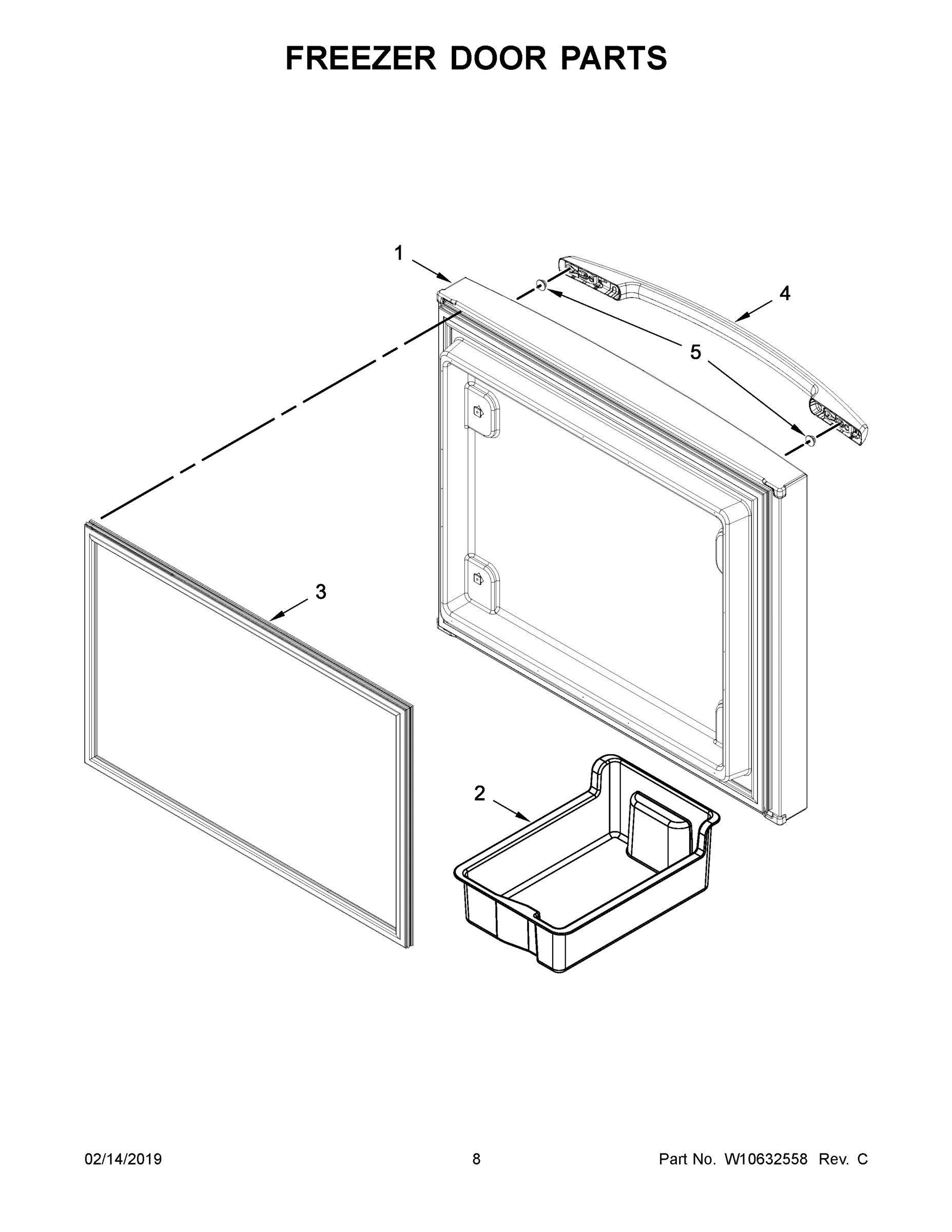

05 - FREEZER DOOR PARTS

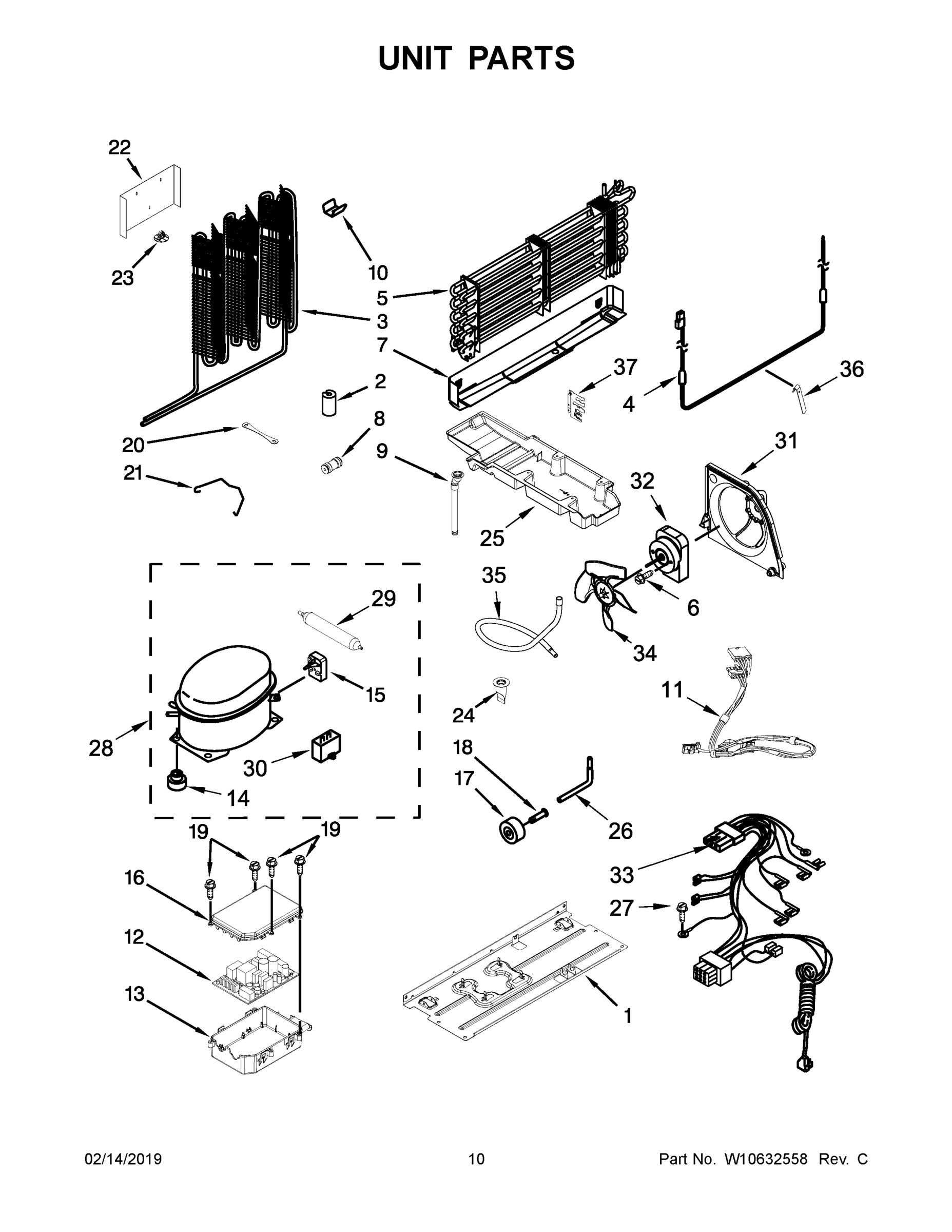

06 - UNIT PARTS

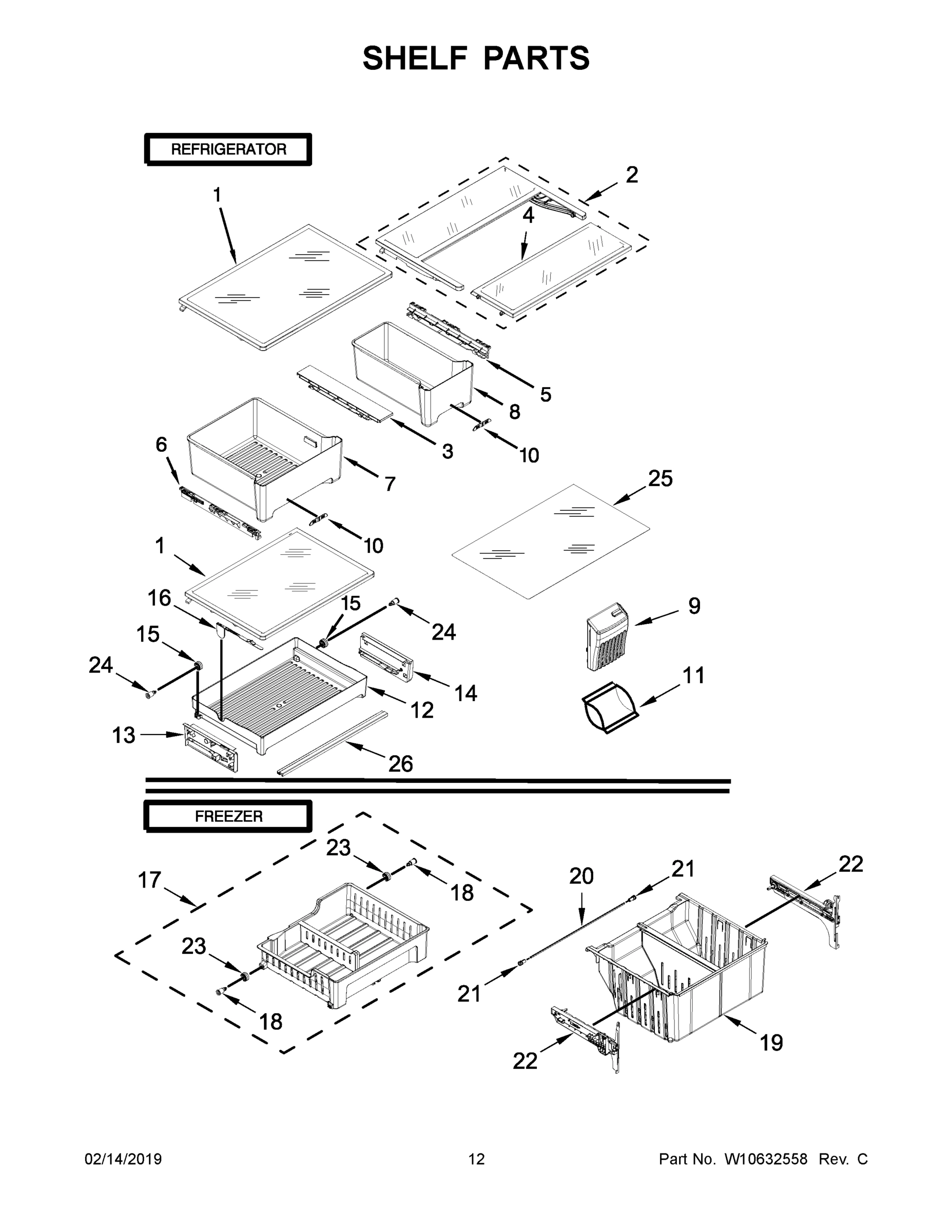

07 - SHELF PARTS

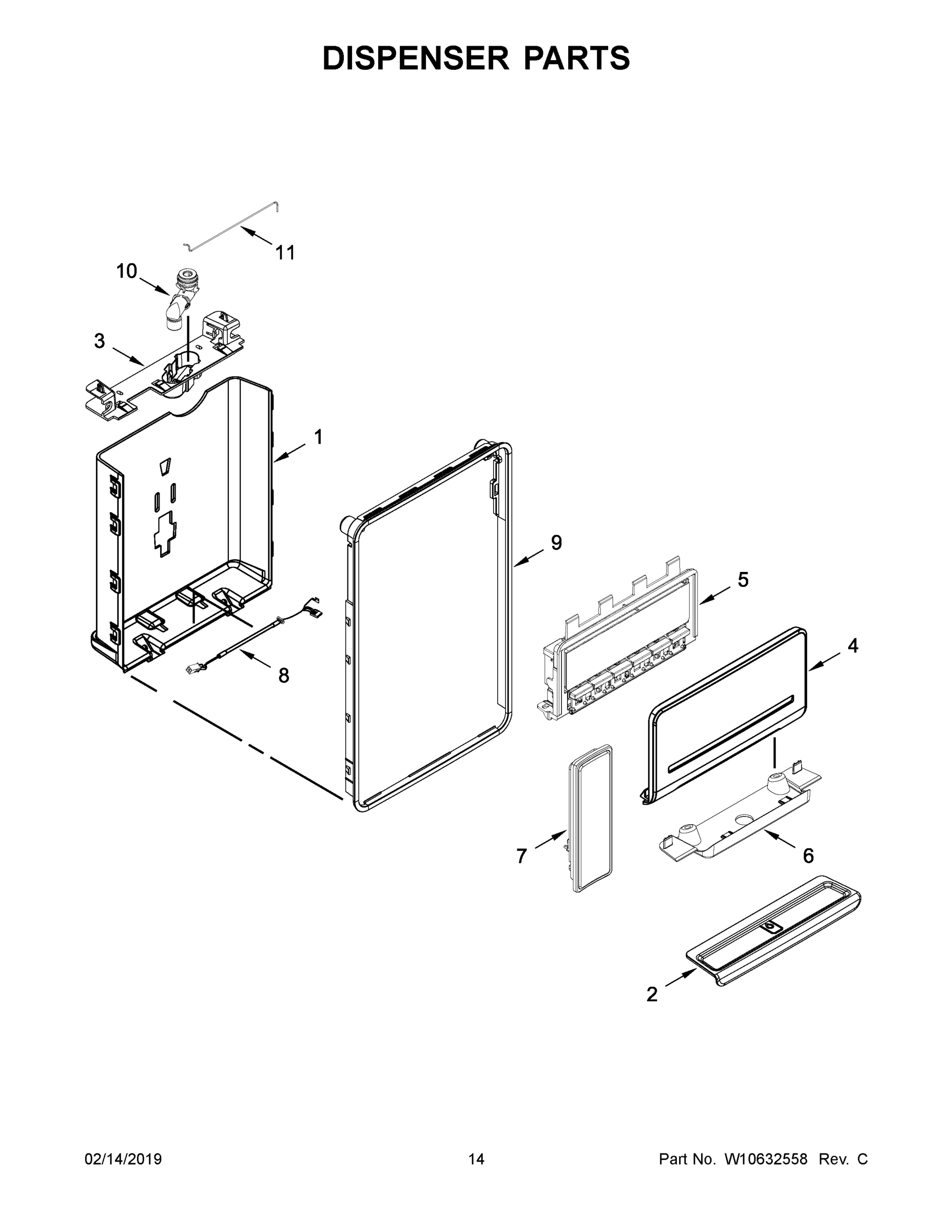

08 - DISPENSER PARTS

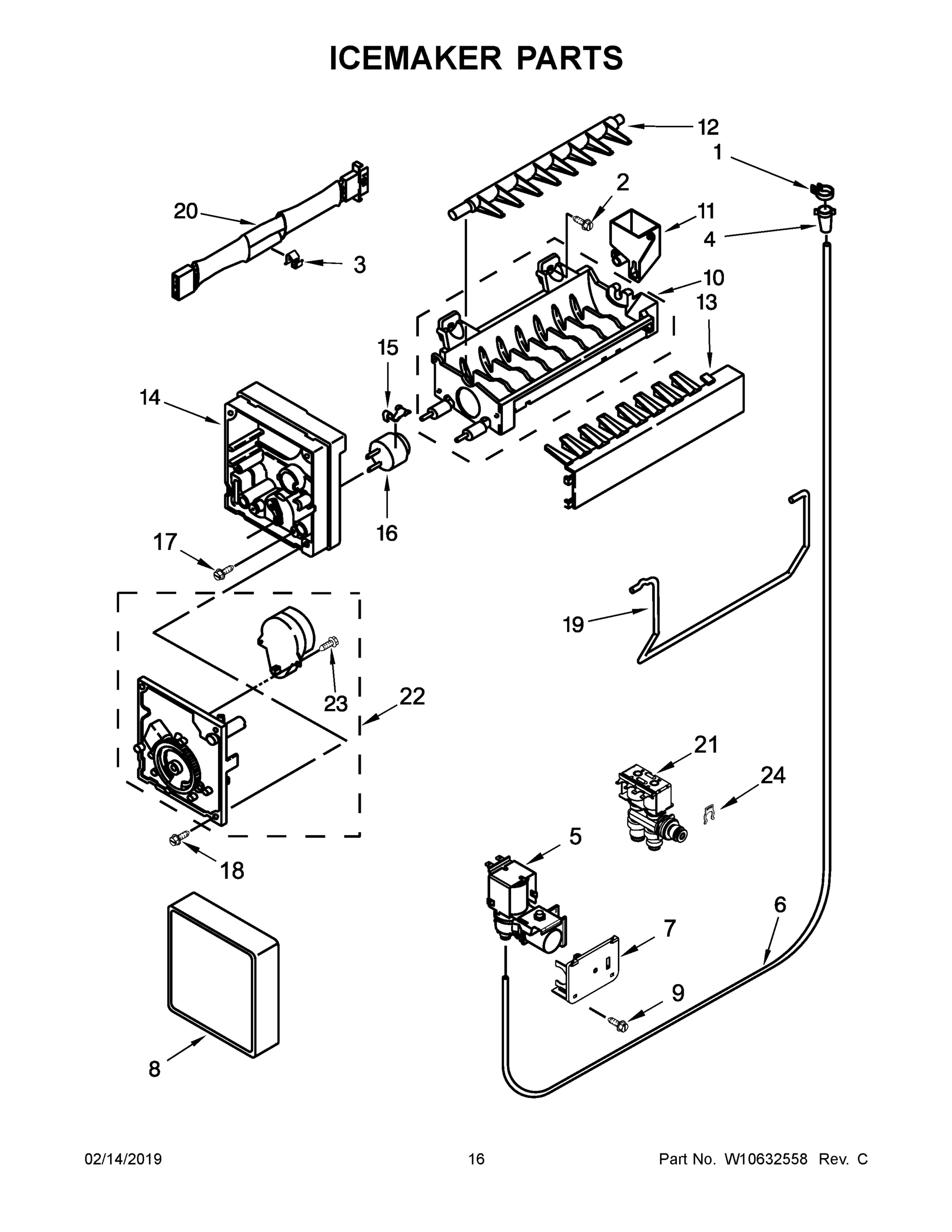

09 - ICEMAKER PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag MFW2055YEW01 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT
1
TECH SHEET MAY W10536933 Contact Us For Availability
1
HOUSING, DISPENSER (NOT SERVICED) MAY N/P Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) MAY W10557498 Contact Us For Availability
1
DOOR, FREEZER (INCLUDES ILLUSTRATION 3) (WHIT MAY W10353182 Contact Us For Availability
1
BASEPLATE MAY W10300116 Contact Us For Availability
1
ASSEMBLY, FULL SHELF (30") MAY W10486290 Contact Us For Availability
1
CLAMP, TUBE MAY W10329003 Contact Us For Availability
1A
ENERGY GUIDE MAY W10458271 Contact Us For Availability
1A
DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) MAY W10557499 Contact Us For Availability
1A
DOOR, FREEZER (INCLUDES ILLUSTRATION 3) (BLAC MAY W10413530 Contact Us For Availability
1B
USE AND CARE GUIDE MAY W10405120 Contact Us For Availability
1B
DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) MAY W10557500 Contact Us For Availability
1B
DOOR, FREEZER (INCLUDES ILLUSTRATION 3) (STAI MAY W10413531 Contact Us For Availability
1C
ICEMAKER SERVICE SHEET MAY 2225623 Contact Us For Availability
1C
DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) MAY W10353181 Contact Us For Availability
1D
DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) MAY W10413518 Contact Us For Availability
1E
DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) MAY W10413519 Contact Us For Availability
2
HINGE, TOP (LEFT HAND) MAY W10546298 Contact Us For Availability
2
SCREW MAY 488208 Contact Us For Availability
2
GROMMET MAY 2197380 Contact Us For Availability
2
BRACKET, DOOR STOP MAY 2189202 Contact Us For Availability
2
PAN, ICE MAY W10378263 Contact Us For Availability
2
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
2
FLIP DOWN SHELF ASSEMBLY MAY W10476425 Contact Us For Availability
2
TRAY, DRIP (WHITE) MAY W10300448 Contact Us For Availability
2A
HINGE, TOP (RIGHT HAND) MAY W10546299 Contact Us For Availability
2A
TRAY, DRIP (BLACK) MAY W10356018 Contact Us For Availability
2B
TRAY, DRIP (GREY) MAY W10356019 Contact Us For Availability
3
ROLLER, FRONT (LEFT HAND) MAY W10359256 Contact Us For Availability
3
GASKET, EVAPORATOR COVER MAY W10468762 Contact Us For Availability
3
GASKET, DOOR (BEIGE) MAY W10465758 Contact Us For Availability
3
CONDENSER MAY W10342567 Contact Us For Availability
3
RAIL, TRACK (CENTER) MAY W10468557 Contact Us For Availability
3
SEPARATOR MAY W10300437 Contact Us For Availability
3
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
3A
ROLLER, FRONT (RIGHT HAND) MAY W10359255 Contact Us For Availability
3A
GASKET, DOOR (BLACK) MAY W10465761 Contact Us For Availability
3B
GASKET, DOOR (GREY) MAY W10465762 Contact Us For Availability
4
FILTER, WATER MAY W10735398 Contact Us For Availability
4
ASSEMBLY, LED LIGHT MAY W10360497 Contact Us For Availability
4
THIMBLE (WHITE) MAY W10366270 Contact Us For Availability
4
ASSEMBLY, HANDLE (WHITE) MAY W10360538 Contact Us For Availability
4
HEATER, DEFROST MAY W10436849 Contact Us For Availability
4
SHELF, FLIP DOWN MAY W10305243 Contact Us For Availability
4
FASCIA (SILVER MIRROR) MAY W10424427 Contact Us For Availability
4
INSERT, TUBE MAY 2181939 Contact Us For Availability
4A
THIMBLE (BLACK) MAY W10334042 Contact Us For Availability
4A
ASSEMBLY, HANDLE (BLACK) MAY W10409179 Contact Us For Availability
4A
FASCIA (BLACK) MAY W10424428 Contact Us For Availability
4B
ASSEMBLY, HANDLE (STAINLESS) MAY W10409180 Contact Us For Availability
5
CLIP, TUBE MAY W10352217 Contact Us For Availability
5
HOUSING, LIGHT MAY W10469878 Contact Us For Availability
5
BADGE MAY W10170766 Contact Us For Availability
5
SCREW MAY W10129563 Contact Us For Availability
5
ASSEMBLY, EVAPORATOR MAY W10321158 Contact Us For Availability
5
RAIL, TRACK (RIGHT HAND) MAY W10468556 Contact Us For Availability
5
ASSEMBLY, USER INTERFACE MAY W11027239 Contact Us For Availability
5
VALVE, INLET MAY W10238100 Contact Us For Availability
6
SCREW MAY 2262176 Contact Us For Availability
6
CONTAINER, WATER RESERVOIR MAY W10798439 Contact Us For Availability
6
CLOSURE, DOOR MAY W10470155 Contact Us For Availability
6
SCREW MAY 8533961 Contact Us For Availability
6
RAIL, TRACK (LEFT HAND) MAY W10468555 Contact Us For Availability
6
COVER, SEPARATOR (CHROMIUM FROST) MAY W10356029 Contact Us For Availability
6
TUBE, WATER MAY W10837812 Contact Us For Availability
7
SWITCH, LIGHT MAY 12466105 Contact Us For Availability
7
BIN, MEDIUM MAY W10308869 Contact Us For Availability
7
SHIELD, HEAT MAY W10314195 Contact Us For Availability
7
PAN, CRISPER (16") MAY W10370327 Contact Us For Availability
7
ASSEMBLY, PAD (WHITE) MAY W10433547 Contact Us For Availability
7
BRACKET, WATER VALVE MAY W10237915 Contact Us For Availability
7A
ASSEMBLY, PAD (BLACK) MAY W10433546 Contact Us For Availability
7B
ASSEMBLY, PAD (GREY) MAY W10433548 Contact Us For Availability
8
COVER, TOE GRILLE (WHITE) MAY W10339257 Contact Us For Availability
8
ASSEMBLY, FREEZER WIRE MAY W10487766 Contact Us For Availability
8
GASKET, DOOR (BEIGE) MAY W10353189 Contact Us For Availability
8
CONNECTOR, UNION MAY W10271541 Contact Us For Availability
8
PAN, CRISPER (8") MAY W10317184 Contact Us For Availability
8
ASSEMBLY, DISPENSER WIRE MAY W10735841 Contact Us For Availability
8
COVER, ICEMAKER MAY W10289690 Contact Us For Availability
8A
COVER, TOE GRILLE (BLACK) MAY W10353930 Contact Us For Availability
8A
GASKET, DOOR (BLACK) MAY W10413465 Contact Us For Availability
8B
COVER, TOE GRILLE (GREY) MAY W10353932 Contact Us For Availability
8B
GASKET, DOOR (GREY) MAY W10413468 Contact Us For Availability
9
SCREW MAY 489442 Contact Us For Availability
9
COVER, CONTROL HOUSING MAY W10459384 Contact Us For Availability
9
ASSEMBLY, HANDLE (WHITE) MAY W10252284 Contact Us For Availability
9
TUBE, DRAIN MAY W11115756 Contact Us For Availability
9
HOLDER, PRODUCE FILTER MAY W10408748 Contact Us For Availability
9
RING, TRIM MAY W10356017 Contact Us For Availability
9A
ASSEMBLY, HANDLE (BLACK) MAY W10252285 Contact Us For Availability
9B
ASSEMBLY, HANDLE (STAINLESS) MAY W10252288 Contact Us For Availability
10
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
10
MOTOR, FAN MAY W10464673 Contact Us For Availability
10
COMPARTMENT, UTILITY MAY W10317224 Contact Us For Availability
10
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
10
CONTROL, HUMIDITY MAY W10356844 Contact Us For Availability
10
ASSEMBLY, SPIGOT MAY 2305235 Contact Us For Availability
10
ASSEMBLY, MOLD AND HEATER MAY W10122527 Contact Us For Availability
11
TUBE, FILTER INLET MAY W10740689 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
BIN, LOW PROFILE MAY W10462298 Contact Us For Availability
11
ASSEMBLY, LOW VOLTAGE WIRE MAY W10424230 Contact Us For Availability
11
FILTER, PRODUCE PRESERVER MAY W10346771 Contact Us For Availability
11
TUBE, WATER DISPENSER MAY W10445080 Contact Us For Availability
11
CUP, WATER FILL MAY W10435665 Contact Us For Availability
12
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
12
HOUSING, CONTROL MAY W10453580 Contact Us For Availability
12
BIN, SHALLOW MAY W10326335 Contact Us For Availability
12
CONTROL, ELECTRONIC MAY W10892333 Contact Us For Availability
12
ASSEMBLY, PANTRY DELI PAN MAY W10397907 Contact Us For Availability
12
EJECTOR MAY 627843 Contact Us For Availability
13
SCREW MAY 489497 Contact Us For Availability
13
TOWER, MULTIFLOW AIR MAY W10356895 Contact Us For Availability
13
ASSEMBLY, MULLION (WHITE) MAY W10624451 Contact Us For Availability
13
BOX, CONTROL MAY 2323186 Contact Us For Availability
13
RAIL, PANTRY (LEFT HAND) MAY W10397908 Contact Us For Availability
13
STRIPPER, ICE MAY W10122563 Contact Us For Availability
13A
ASSEMBLY, MULLION (BLACK) MAY W10624448 Contact Us For Availability
13B
ASSEMBLY, MULLION (GREY) MAY W10624450 Contact Us For Availability
14
HINGE, CENTER (LEFT HAND) MAY W10770878 Contact Us For Availability
14
ASSEMBLY, REFRIGERATOR LIGHTING WIRE MAY W10421353 Contact Us For Availability
14
SCREW MAY 12990302 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
14
RAIL, PANTRY (RIGHT HAND) MAY W10414530 Contact Us For Availability
14
SUPPORT, HOUSING MAY 2194712 Contact Us For Availability
14A
HINGE, CENTER (RIGHT HAND) MAY W10770877 Contact Us For Availability
15
SHIM, CENTER HINGE MAY W10450363 Contact Us For Availability
15
DEVICE, COMBINATION START (START RELAY AND OV MAY W10194431 Contact Us For Availability
15
ROLLER MAY W10278139 Contact Us For Availability
15
RETAINER, THERMOSTAT MAY 2315522 Contact Us For Availability
16
COVER, EVAPORATOR MAY W10300900 Contact Us For Availability
16
BRACKET, DOOR STOP MAY W10397055 Contact Us For Availability
16
COVER, ELECTRONIC CONTROL MAY W10313215 Contact Us For Availability
16
CONTROL, TEMPERATURE MAY W10411411 Contact Us For Availability
16
THERMOSTAT (ALSO ORDER 542369 CEMENT ALUMILAS MAY 628397 Contact Us For Availability
17
TOWER, FREEZER MAY W10317182 Contact Us For Availability
17
ROLLER MAY W10475495 Contact Us For Availability
17
BIN, UPPER FREEZER MAY W10555437 Contact Us For Availability
17
SCREW MAY W10001280 Contact Us For Availability
18
THERMISTOR, EVAPORATOR MAY W10383615 Contact Us For Availability
18
SCREW MAY 489276 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
18
AXLE, ROLLER MAY W10628712 Contact Us For Availability
19
HOUSING, WATER FILTER MAY W10817430 Contact Us For Availability
19
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
19
SCREW MAY 8533859 Contact Us For Availability
19
BASKET, LOWER FREEZER MAY W10317289 Contact Us For Availability
19
ARM, SHUT OFF MAY W10474785 Contact Us For Availability
20
FILLER, CORNER (WHITE) MAY W11189128 Contact Us For Availability
20
COVER, WATER RESERVOIR MAY W10413160 Contact Us For Availability
20
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
20
SHAFT, RACK MAY W10802342 Contact Us For Availability
20
ASSEMBLY, ICE MAKER WIRE MAY W10309400 Contact Us For Availability
20A
FILLER, CORNER (BLACK) MAY W11189127 Contact Us For Availability
20B
FILLER, CORNER (GREY) MAY W11189126 Contact Us For Availability
21
GRILLE (WHITE) MAY W10300127 Contact Us For Availability
21
RESERVOIR, WATER MAY W10568672 Contact Us For Availability
21
STRAP, BALE MAY W10204187 Contact Us For Availability
21
COLLAR, GEAR MAY W10277361 Contact Us For Availability
21
VALVE, INLET MAY W10498992 Contact Us For Availability
21A
GRILLE (BLACK) MAY W10353933 Contact Us For Availability
21B
GRILLE (GREY) MAY W10353935 Contact Us For Availability
22
DRUM, TOE GRILLE MAY W10331226 Contact Us For Availability
22
THERMISTOR MAY W10384183 Contact Us For Availability
22
COVER, CONDENSER BOTTOM MAY W10349514 Contact Us For Availability
22
ADAPTOR, FREEZER (LEFT HAND) MAY W10397636 Contact Us For Availability
22
ASSEMBLY, MODULE AND MOTOR MAY W10223929 Contact Us For Availability
22A
ADAPTOR, FREEZER (RIGHT HAND) MAY W10397635 Contact Us For Availability
23
CLIP, ROLLER MAY 2174706 Contact Us For Availability
23
COVER, THERMISTOR MAY W10425252 Contact Us For Availability
23
CLIP, BOTTOM COVER MAY W10815861 Contact Us For Availability
23
ROLLER, PAN MAY W10628713 Contact Us For Availability
23
SCREW MAY 489136 Contact Us For Availability
24
TUBE, FILTER OUTLET MAY W10667756 Contact Us For Availability
24
GRILLE, AIR FILTER BOTTOM MAY W10330850 Contact Us For Availability
24
VALVE, DRAIN MAY W10519112 Contact Us For Availability
24
AXLE, ROLLER MAY W10257246 Contact Us For Availability
24
LOCKING RING (5/16) MAY W11175631 Contact Us For Availability
25
COVER, HINGE (LEFT HAND (WHITE)) MAY W10465765 Contact Us For Availability
25
FILTER, AIR MAY W10315189 Contact Us For Availability
25
TRAY, DRAIN MAY W10802027 Contact Us For Availability
25
GLASS, PANTRY COVER MAY W10513681 Contact Us For Availability
25A
COVER, HINGE (RIGHT HAND (WHITE)) MAY W10465764 Contact Us For Availability
25B
COVER, HINGE (LEFT HAND (BLACK)) MAY W10465771 Contact Us For Availability
25C
COVER, HINGE (RIGHT HAND (BLACK)) MAY W10465770 Contact Us For Availability
25D
COVER, HINGE (LEFT HAND (GREY)) MAY W10465768 Contact Us For Availability
25E
COVER, HINGE (RIGHT HAND (GREY)) MAY W10465767 Contact Us For Availability
26
COVER, WATER FILTER MAY W10306392 Contact Us For Availability
26
CUP, SCREW MAY W10336009 Contact Us For Availability
26
TUBE, PROCESS MAY VS20001 Contact Us For Availability
26
ASSEMBLY, PANTRY COVER SUPPORT MAY W10507470 Contact Us For Availability
27
COVER, UNIT MAY W10636716 Contact Us For Availability
27
THERMISTOR MAY W10438761 Contact Us For Availability
27
SCREW MAY 488500 Contact Us For Availability
28
BRACKET, FAN MOTOR MAY W10321162 Contact Us For Availability
28
COMPRESSOR (ALSO ORDER 876765 TUBE KIT) MAY W10391109 Contact Us For Availability
29
GASKET, SEAL MAY 1106508 Contact Us For Availability
29
SCREW MAY 489478 Contact Us For Availability
29
DRIER MAY W10669573 Contact Us For Availability
30
FITTING, WATER TUBE MAY W10601149 Contact Us For Availability
30
BRACKET, EVAPORATOR FAN REAR MAY 2254454 Contact Us For Availability
30
CAPACITOR MAY W10590088 Contact Us For Availability
31
HOUSING, FREEZER LIGHTING MAY W10313917 Contact Us For Availability
31
BRACKET, CONDENSER FAN MAY 2315541 Contact Us For Availability
32
TUBE, CABINET WATER MAY W10463317 Contact Us For Availability
32
LENS, LIGHT MAY W10313918 Contact Us For Availability
32
MOTOR, CONDENSER MAY W10530280 Contact Us For Availability
33
TUBE, WATER MAY W10496649 Contact Us For Availability
33
SOCKET, LIGHT MAY W10440814 Contact Us For Availability
33
ASSEMBLY, UNIT WIRE MAY W10633276 Contact Us For Availability
34
BULB, LIGHT MAY W10809513 Contact Us For Availability
34
BLADE, FAN MAY W10817071 Contact Us For Availability
35
DAMPER, ELECTRONIC CONTROL MAY W10745484 Contact Us For Availability
35
TUBE, SUCTION MAY W10466682 Contact Us For Availability
36
COVER, DAMPER HOUSING MAY W10474774 Contact Us For Availability
36
HEAT PROBE MAY 2258429 Contact Us For Availability
37
HOUSING, DAMPER MAY W10314204 Contact Us For Availability
37
BRACKET, EVAPORATOR MAY W10314197 Contact Us For Availability
38
ASSEMBLY, MULTIFLOW MAY W10448448 Contact Us For Availability
100
ASSEMBLY, ICEMAKER MAY W10632400 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
CEMENT, ALUMILASTIC (1 1/4 OZ.) MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3" X 24" X 48") MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") MAY 876370 Contact Us For Availability
NI
INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X 2 MAY 978941 Contact Us For Availability
NI
FILTER, WATER (1/4 TURN) MAY W10413645A Contact Us For Availability
× ![]()
Login and Registration Form
