Model Maytag MFS35PNDVS WASHER – Common Parts & Diagrams

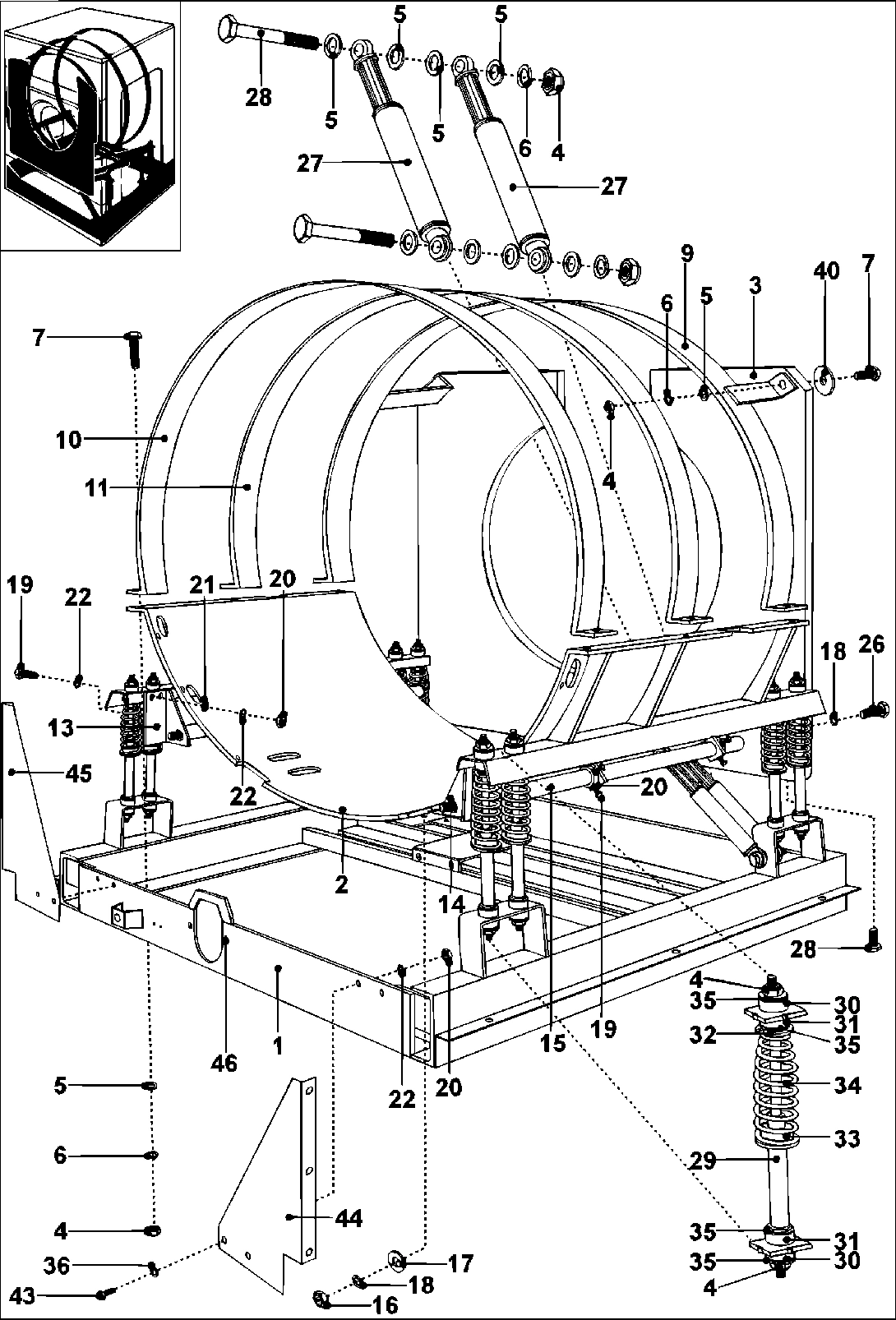

01 - FRAME

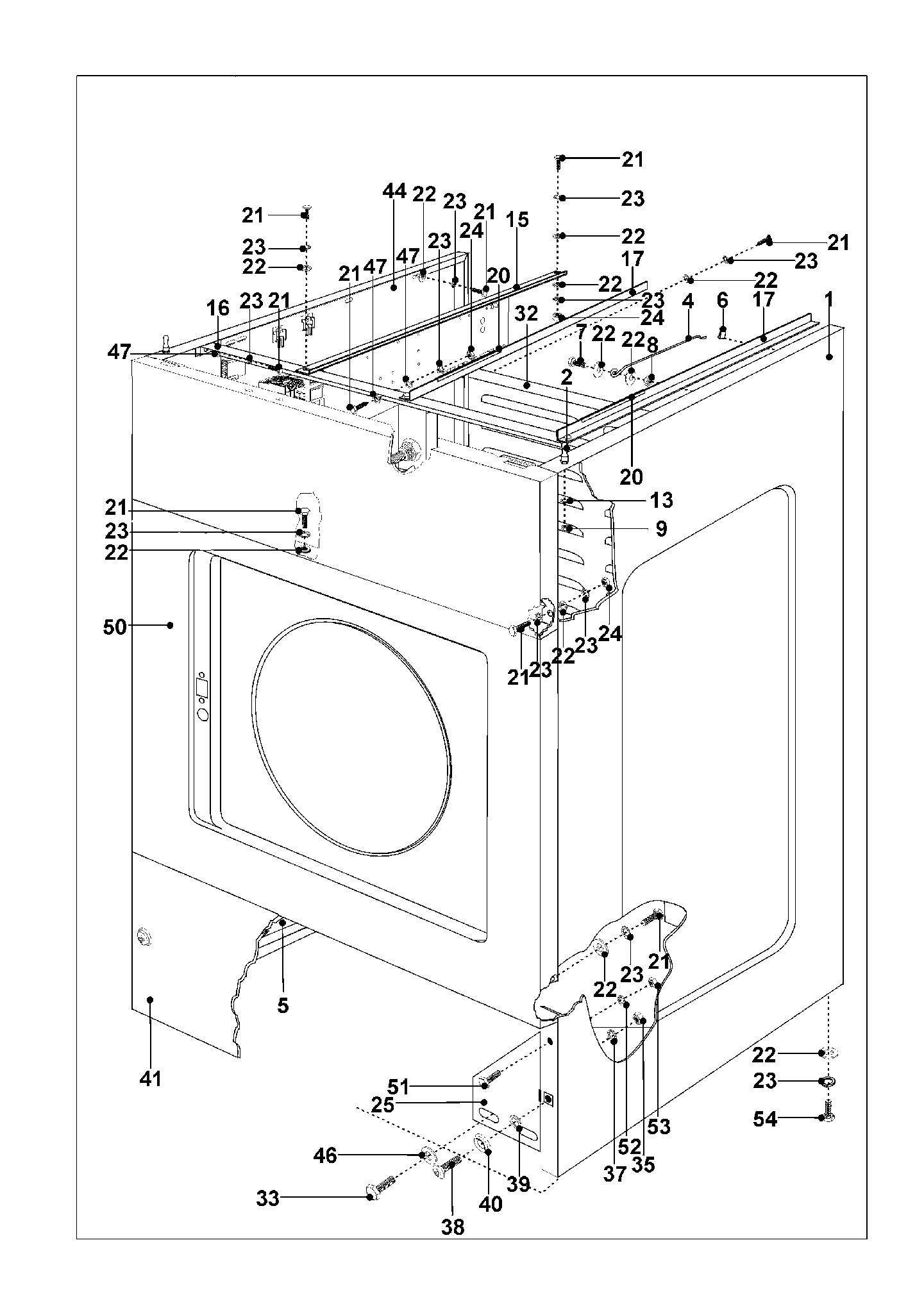

02 - CABINET

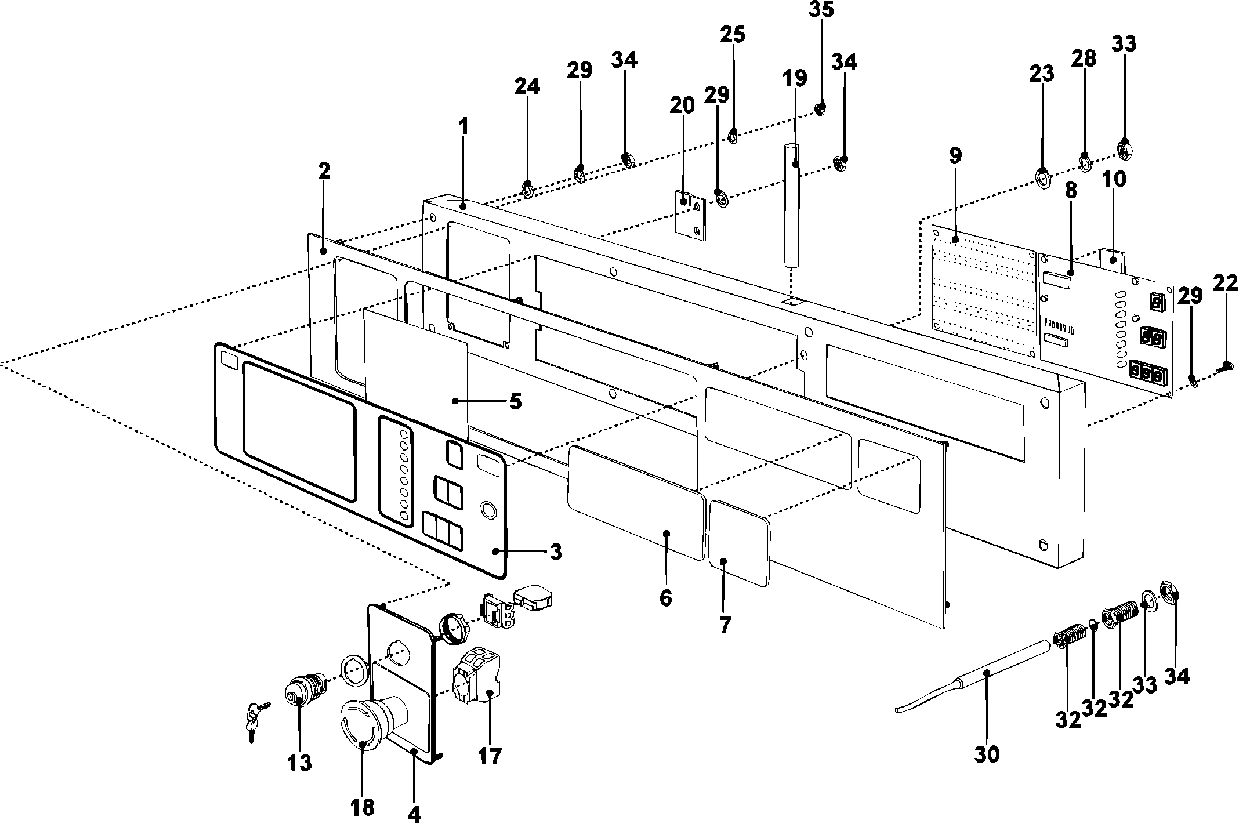

03 - CONTROL PANEL

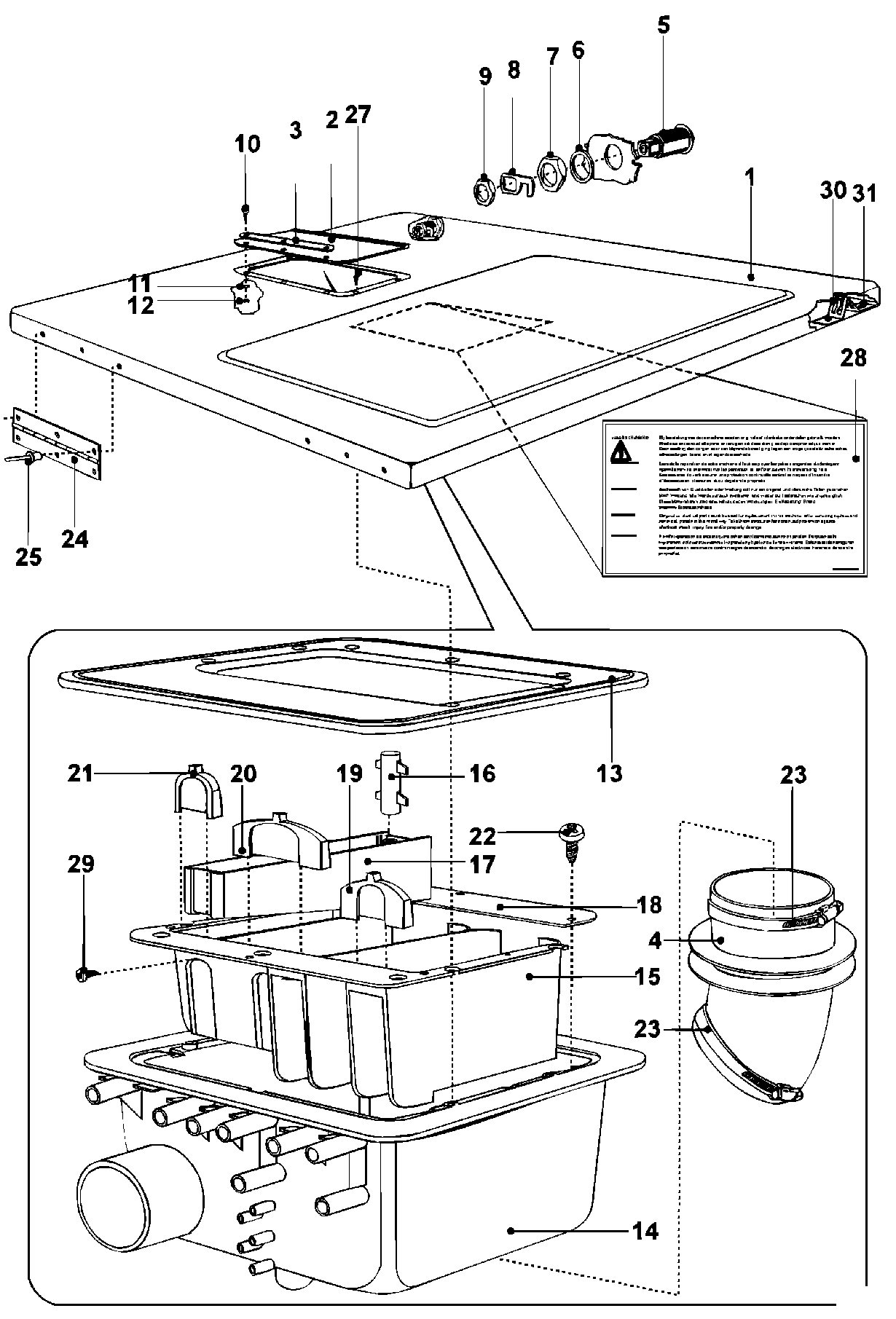

04 - TOP COVER/SOAP HOPPER

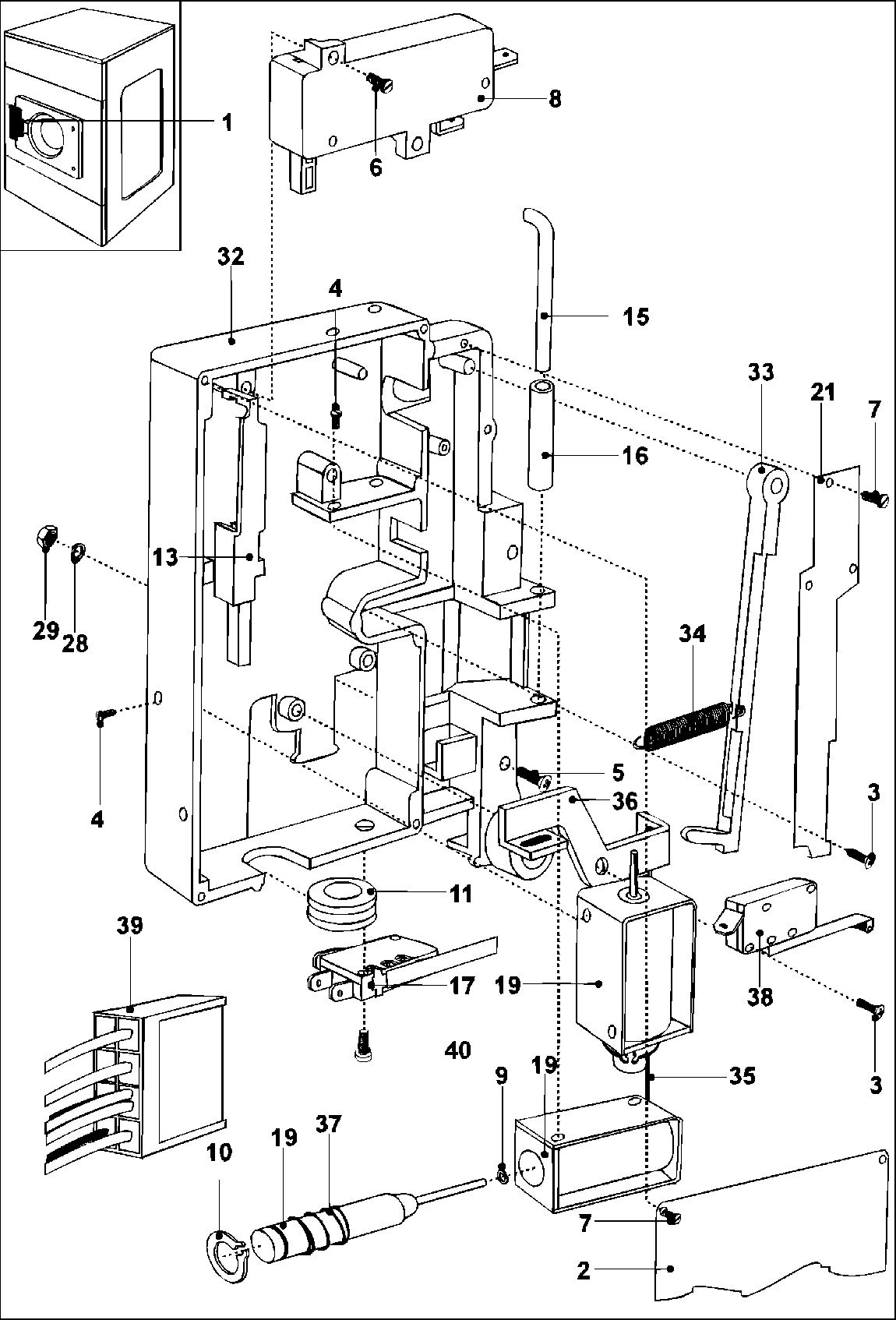

05 - DOOR LOCK

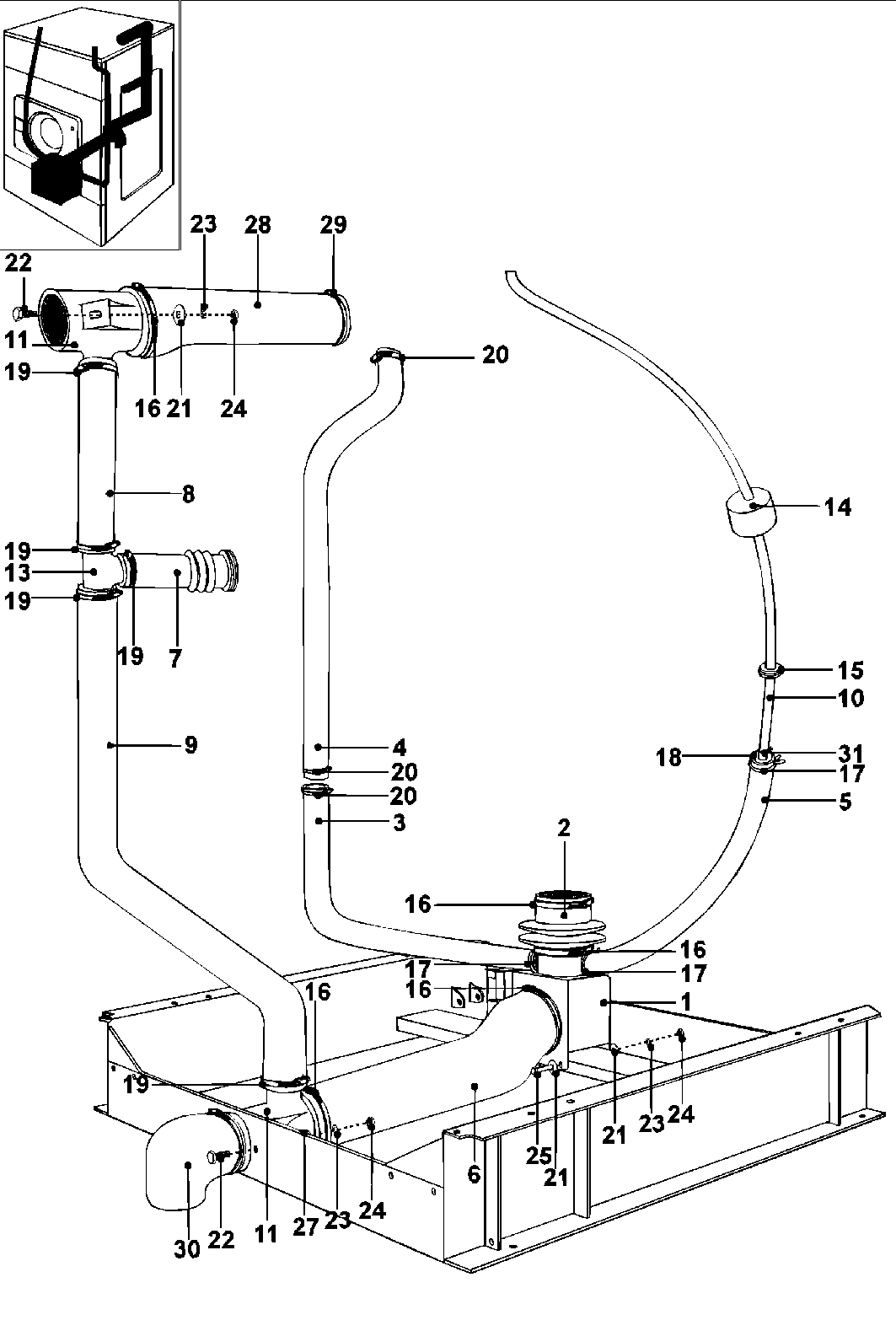

06 - WATER SYSTEM

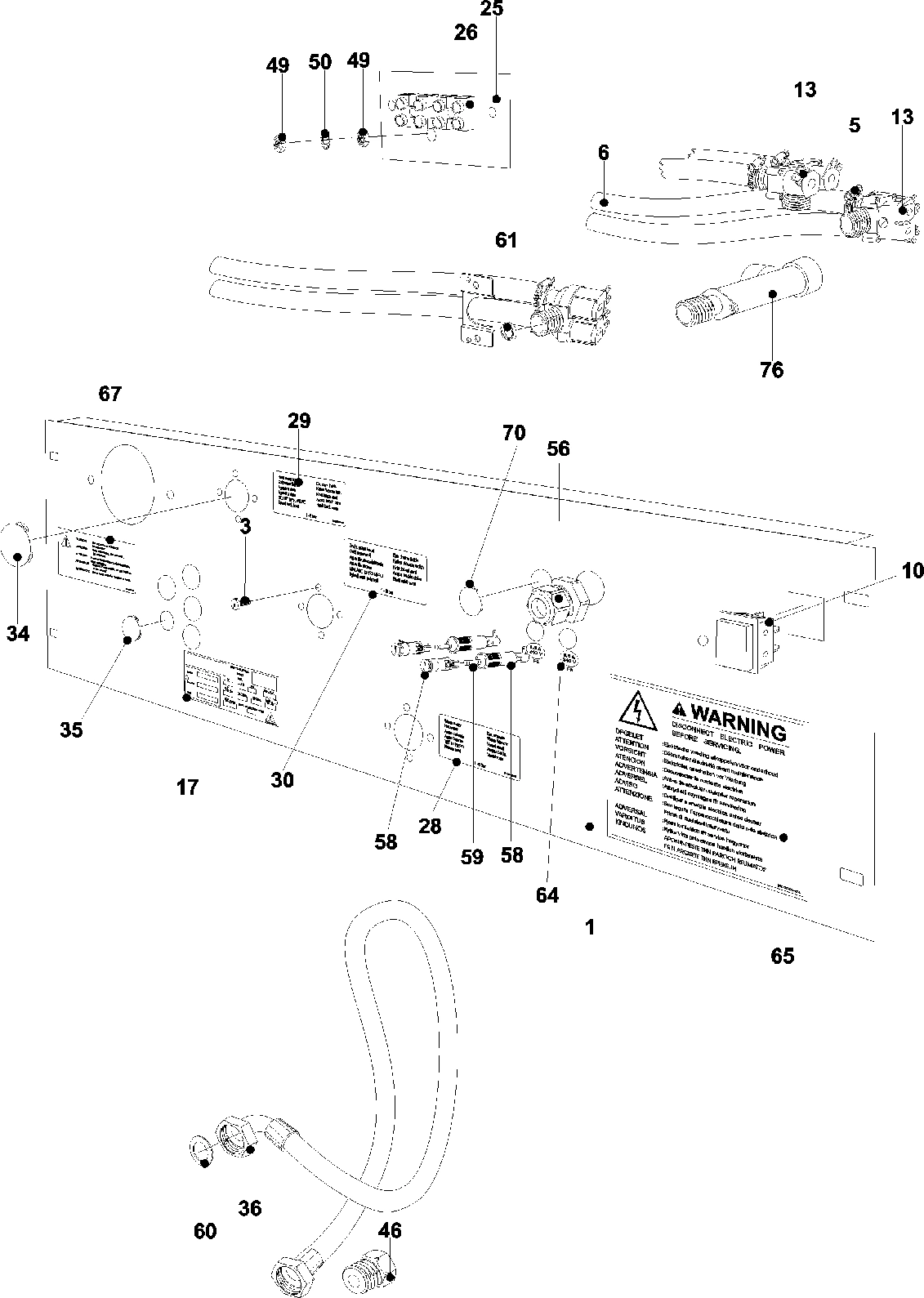

07 - REAR PANEL

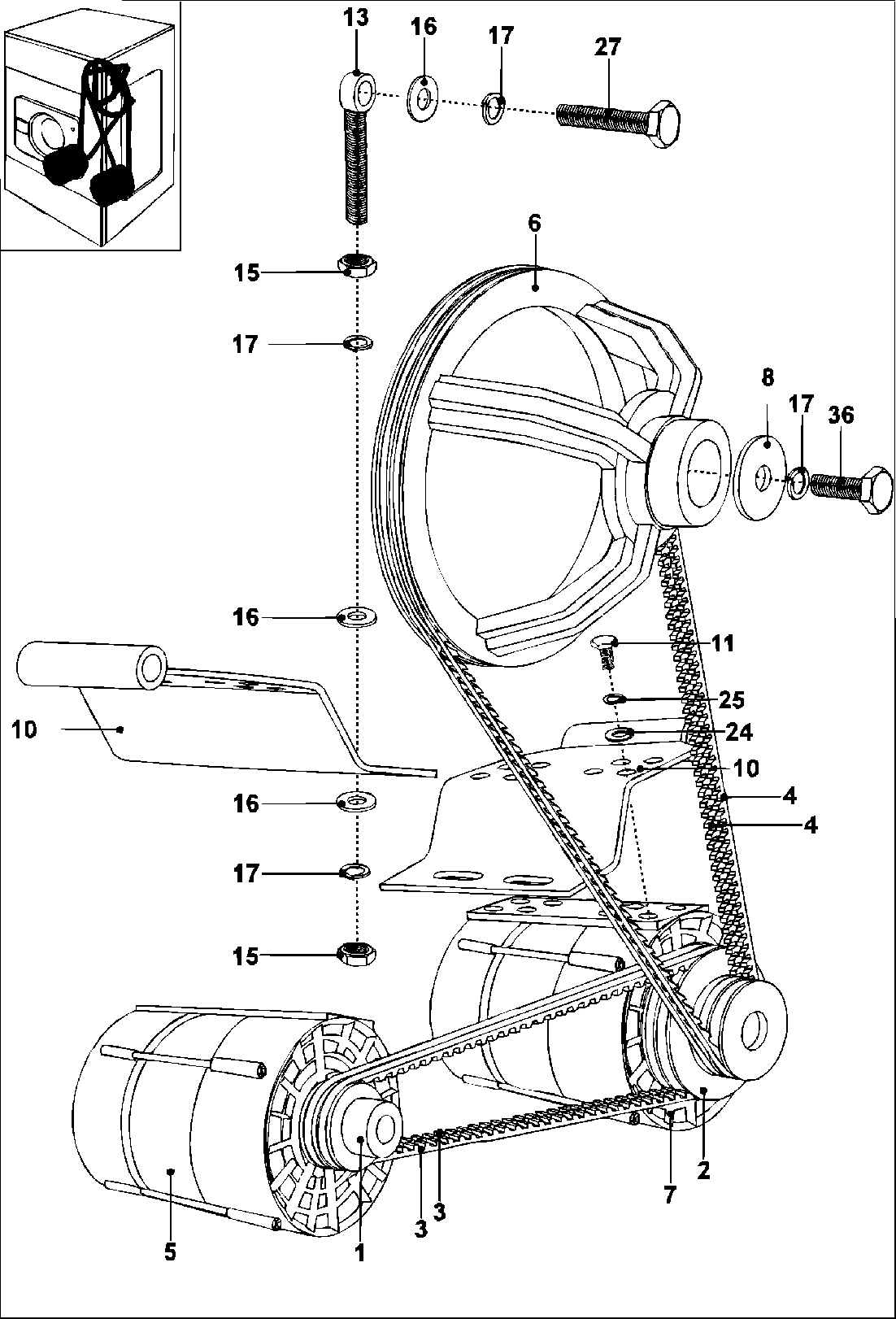

08 - TWO MOTOR DRIVE

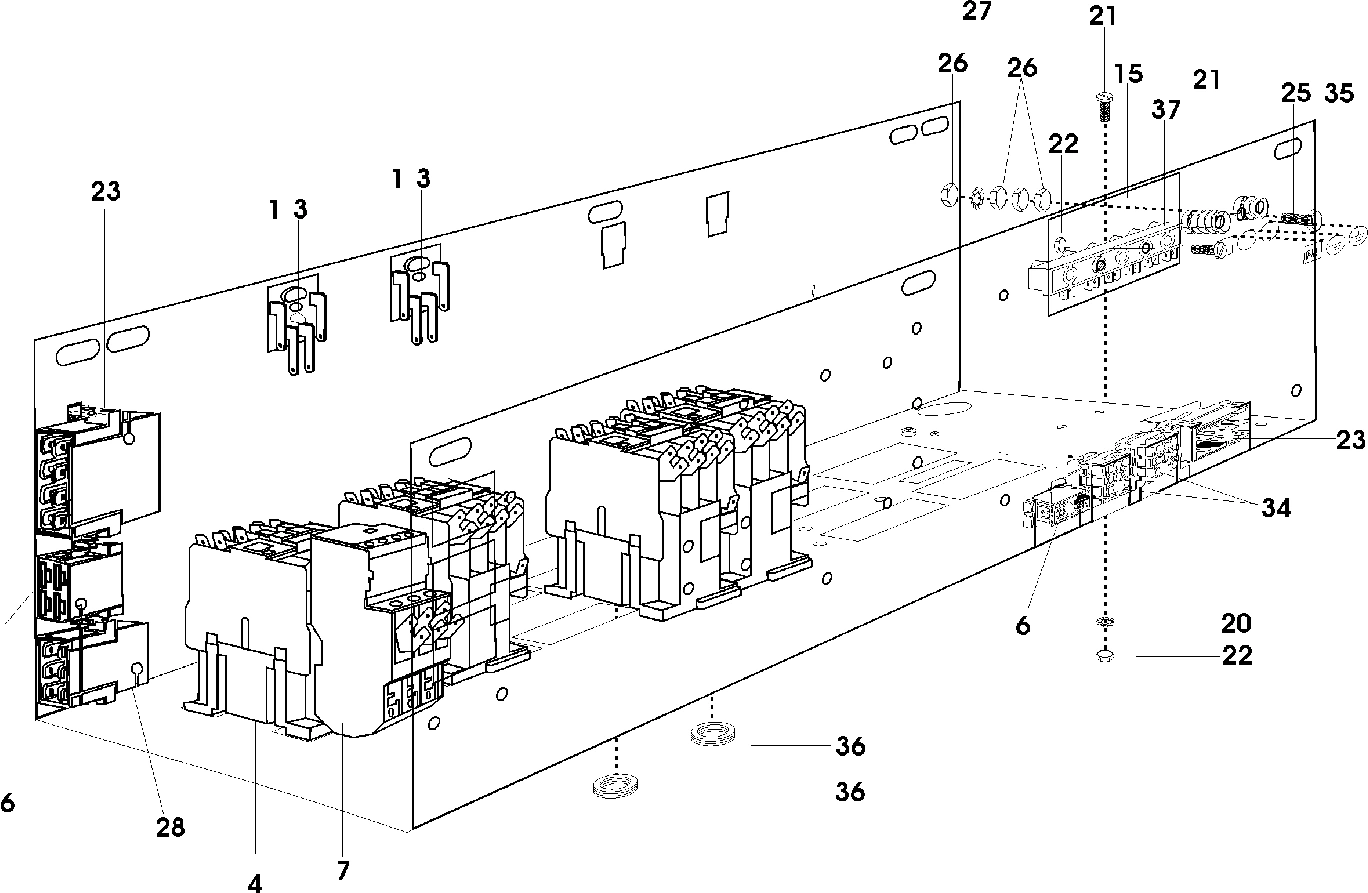

09 - INTERNAL CONTROLS

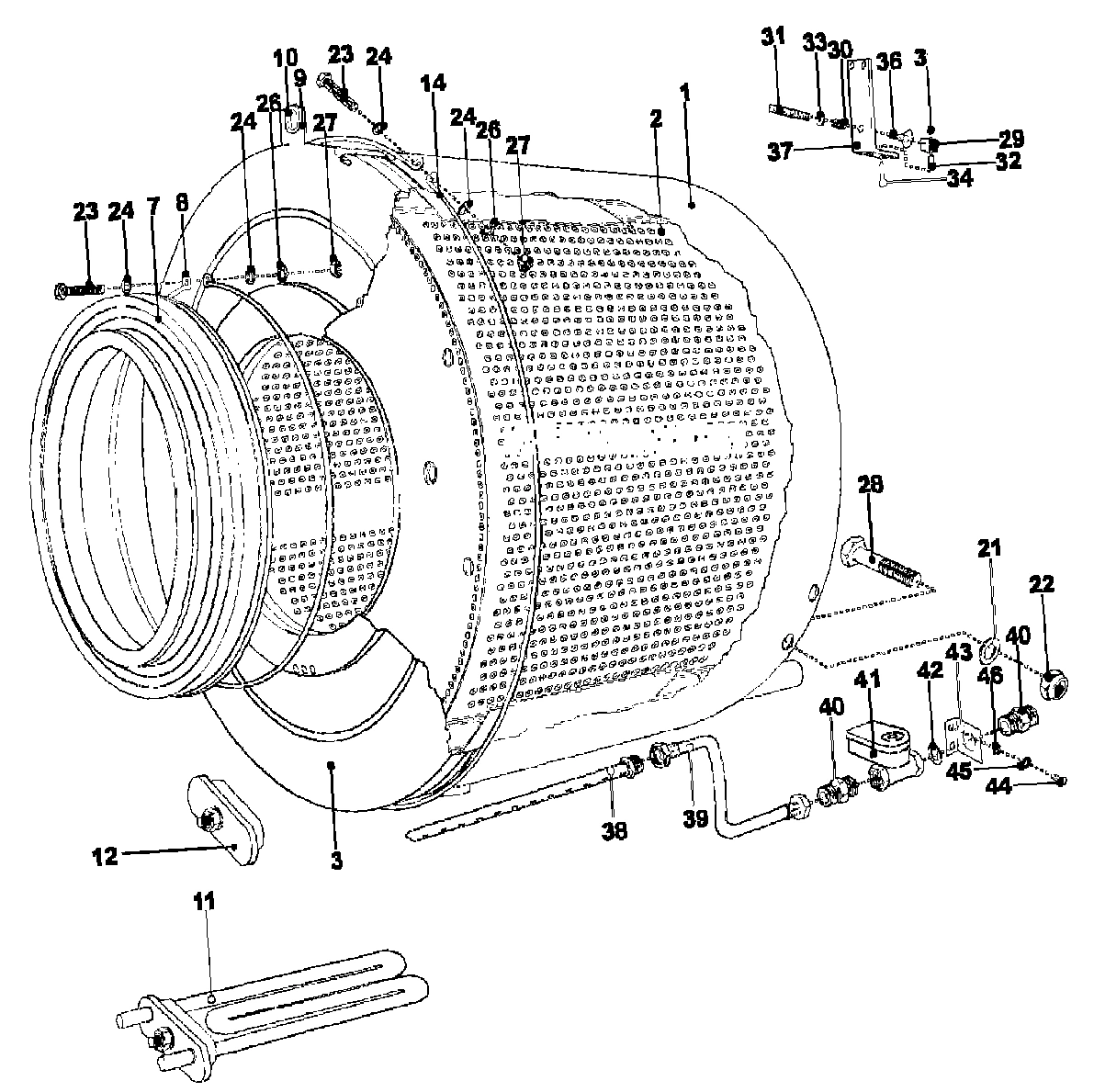

10 - WASH DRUM AND TUB

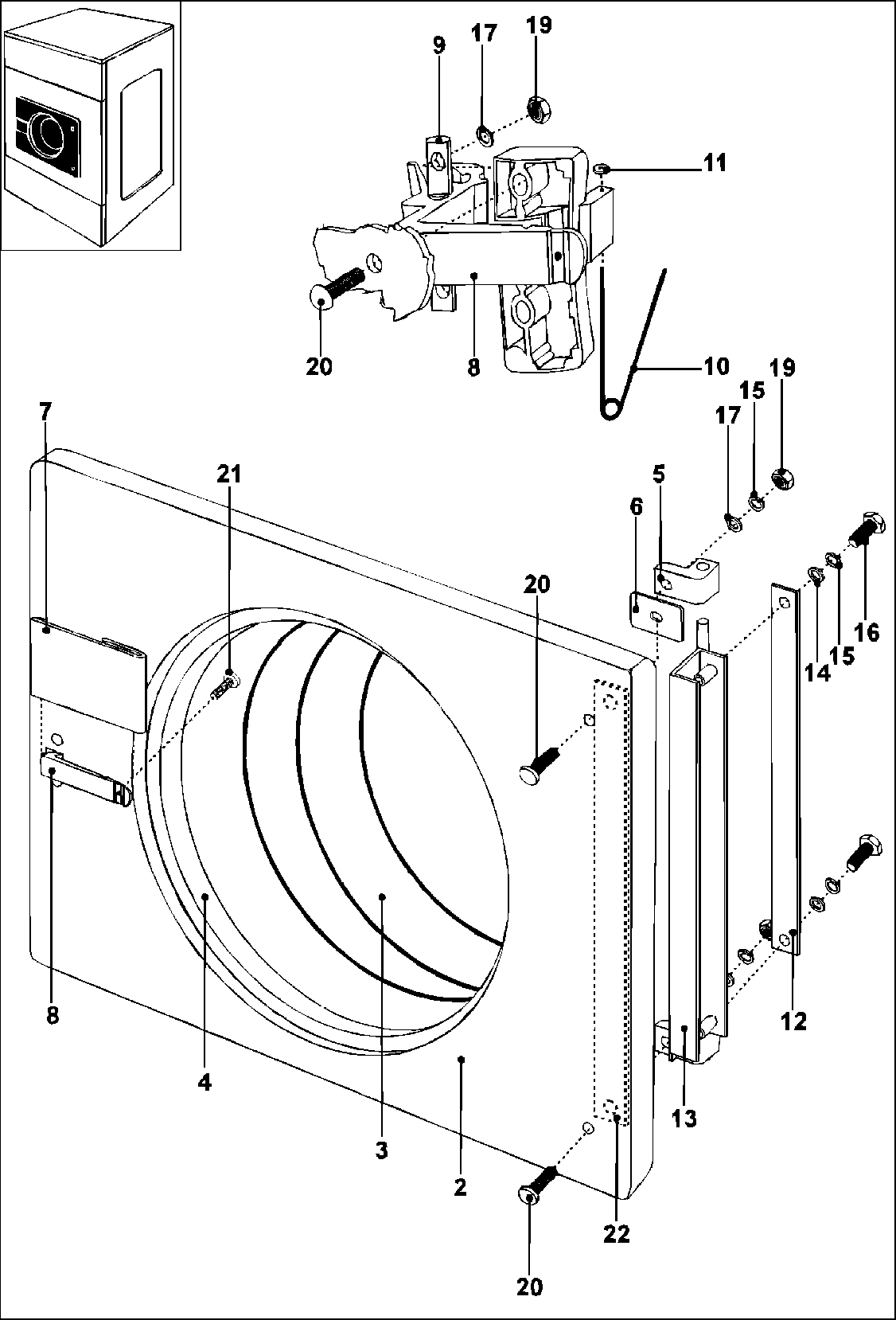

11 - DOOR

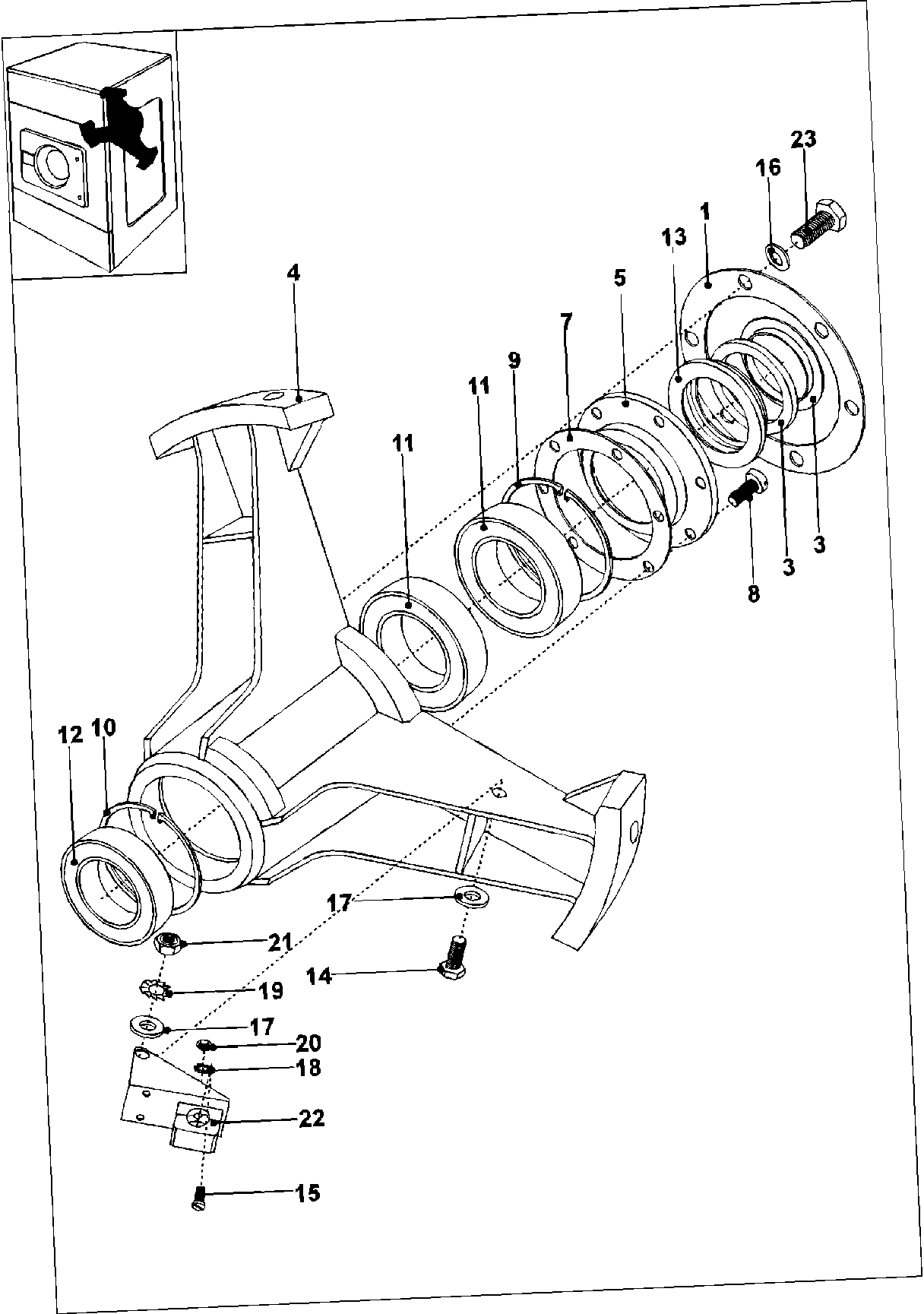

12 - TRUNNION
Common parts from model Maytag MFS35PNDVS WASHER
001
MAY 23001244 MAY 23001244 Contact Us For Availability
001
MAY 23003574 MAY 23003574 Contact Us For Availability
001
MAY 23003575 MAY 23003575 Contact Us For Availability
001
MAY 23003889 MAY 23003889 Contact Us For Availability
001
MAY 23003623 MAY 23003623 Contact Us For Availability
001
MAY Y23002897 MAY Y23002897 Contact Us For Availability
001
MAY 23003625 MAY 23003625 Contact Us For Availability
001
MAY 23003583 MAY 23003583 Contact Us For Availability
001
MAY 23001094 MAY 23001094 Contact Us For Availability
001
MAY 23003599 MAY 23003599 Contact Us For Availability
001
MAY 23003897 MAY 23003897 Contact Us For Availability
001
MAY 23003607 MAY 23003607 Contact Us For Availability
002
MAY 23003562 MAY 23003562 Contact Us For Availability
002
MAY 23001332 MAY 23001332 Contact Us For Availability
002
MAY 23003910 MAY 23003910 Contact Us For Availability
002
MAY 23001003 MAY 23001003 Contact Us For Availability
002
MAY 23001130 MAY 23001130 Contact Us For Availability
002
MAY 23001245 MAY 23001245 Contact Us For Availability
002
MAY 23003584 MAY 23003584 Contact Us For Availability
002
MAY 23003585 MAY 23003585 Contact Us For Availability
002
MAY 23003600 MAY 23003600 Contact Us For Availability
002
MAY 23003543 MAY 23003543 Contact Us For Availability
003
MAY 23003877 MAY 23003877 Contact Us For Availability
003
MAY 23003890 MAY 23003890 Contact Us For Availability
003
MAY 23001004 MAY 23001004 Contact Us For Availability
003
MAY 23001633 MAY 23001633 Contact Us For Availability
003
MAY 23003586 MAY 23003586 Contact Us For Availability
003
PC BOARD SOCKET MAY 23001099 Contact Us For Availability
003
MAY 23003898 MAY 23003898 Contact Us For Availability
003
GLASS, DOOR MAY 23003544 Contact Us For Availability
003
MAY 23003608 MAY 23003608 Contact Us For Availability
004
MAY 23001241 MAY 23001241 Contact Us For Availability
004
MAY 23001330 MAY 23001330 Contact Us For Availability
004
MAY 23003482 MAY 23003482 Contact Us For Availability
004
MAY 23001132 MAY 23001132 Contact Us For Availability
004
HOSE, OUTLET (SOAPHOPPER) LU MAY 23001549 Contact Us For Availability
004
V-BELT II (SPZ 1562 LW) MAY 23003587 Contact Us For Availability
004
MAY 23001100 MAY 23001100 Contact Us For Availability
004
MAY 23001365 MAY 23001365 Contact Us For Availability
004
MAY 23003609 MAY 23003609 Contact Us For Availability
005
MAY 23001567 MAY 23001567 Contact Us For Availability
005
MAY 23001006 MAY 23001006 Contact Us For Availability
005
SCREW (M5 X 25 STAINLESS STEEL MAY 23001133 Contact Us For Availability
005
MAY 23002018 MAY 23002018 Contact Us For Availability
005
MAY 23001506 MAY 23001506 Contact Us For Availability
005
MAY 23003545 MAY 23003545 Contact Us For Availability
005
MAY 23003610 MAY 23003610 Contact Us For Availability
006
MAY 23001400 MAY 23001400 Contact Us For Availability
006
HOOK MAY 23002454 Contact Us For Availability
006
MAY 23001007 MAY 23001007 Contact Us For Availability
006
MAY 23001070 MAY 23001070 Contact Us For Availability
006
MAY 23001248 MAY 23001248 Contact Us For Availability
006
MAY 23001507 MAY 23001507 Contact Us For Availability
006
MAY 23003590 MAY 23003590 Contact Us For Availability
006
CONNECTOR HOUSING (4 POLE) MAY 23001116 Contact Us For Availability
007
MAY 23001425 MAY 23001425 Contact Us For Availability
007
LOCK NUT (LARGE) MAY 23001008 Contact Us For Availability
007
MAY 23001134 MAY 23001134 Contact Us For Availability
007
MAY 23001250 MAY 23001250 Contact Us For Availability
007
MAY 23003589 MAY 23003589 Contact Us For Availability
007
RELAY, THERMAL OVERLOAD(12-18A MAY 23001107 Contact Us For Availability
007
HOUSING, TUB MAY 23003536 Contact Us For Availability
007
HANDLE, DOOR (BACK) MAY 23003632 Contact Us For Availability
007
MAY 23003860 MAY 23003860 Contact Us For Availability
007
MAY 23003611 MAY 23003611 Contact Us For Availability
008
MAY 23001310 MAY 23001310 Contact Us For Availability
008
MAY 23003820 MAY 23003820 Contact Us For Availability
008
LOCK HOOK (SHORT) MAY 23001009 Contact Us For Availability
008
MAY 23001135 MAY 23001135 Contact Us For Availability
008
MAY 23003591 MAY 23003591 Contact Us For Availability
008
RING, FIXATION MAY 23003537 Contact Us For Availability
008
MAY 23003634 MAY 23003634 Contact Us For Availability
008
SCREW (M5X12 STAINLESS STEEL) MAY 23001184 Contact Us For Availability
009
MAY 23003564 MAY 23003564 Contact Us For Availability
009
MAY 23003819 MAY 23003819 Contact Us For Availability
009
MAY 23001011 MAY 23001011 Contact Us For Availability
009
MAY 23001136 MAY 23001136 Contact Us For Availability
009
MAY 23001251 MAY 23001251 Contact Us For Availability
009
PLATE, DETECTION TILTSWITCH MAY 23003911 Contact Us For Availability
009
SHAFT, LEVER MAY 23001168 Contact Us For Availability
009
MAY 23003612 MAY 23003612 Contact Us For Availability
010
MAY 23003565 MAY 23003565 Contact Us For Availability
010
MAY W10387071 MAY W10387071 Contact Us For Availability
010
MAY 23001012 MAY 23001012 Contact Us For Availability
010
MAY 23001137 MAY 23001137 Contact Us For Availability
010
MAY 23001252 MAY 23001252 Contact Us For Availability
010
MAY 23001452 MAY 23001452 Contact Us For Availability
010
MAY 23003896 MAY 23003896 Contact Us For Availability
010
PASSAGE, CABLE MAY 23003539 Contact Us For Availability
010
MAY 23001169 MAY 23001169 Contact Us For Availability
010
MAY 23003613 MAY 23003613 Contact Us For Availability
011
MAY 23003878 MAY 23003878 Contact Us For Availability
011
MAY 23003593 MAY 23003593 Contact Us For Availability
011
WASHER MAY 23001636 Contact Us For Availability
011
DRAIN TEE MAY 23001253 Contact Us For Availability
011
MAY 23002191 MAY 23002191 Contact Us For Availability
011
MAY 23002499 MAY 23002499 Contact Us For Availability
011
MAY 23003614 MAY 23003614 Contact Us For Availability
012
MAY 23001014 MAY 23001014 Contact Us For Availability
012
MAY 23001594 MAY 23001594 Contact Us For Availability
012
MAY 23003615 MAY 23003615 Contact Us For Availability
013
MAY 23003879 MAY 23003879 Contact Us For Availability
013
MAY 23001082 MAY 23001082 Contact Us For Availability
013
MAY 23001015 MAY 23001015 Contact Us For Availability
013
MAY 23001140 MAY 23001140 Contact Us For Availability
013
MAY 23001255 MAY 23001255 Contact Us For Availability
013
MAY 23001455 MAY 23001455 Contact Us For Availability
013
MAY 23003909 MAY 23003909 Contact Us For Availability
013
MAY 23003616 MAY 23003616 Contact Us For Availability
014
MAY 23003880 MAY 23003880 Contact Us For Availability
014
MAY 23001444 MAY 23001444 Contact Us For Availability
014
SOAP BOX HOUSING MAY 23001016 Contact Us For Availability
014
MAY 23003486 MAY 23003486 Contact Us For Availability
014
MAY 23003603 MAY 23003603 Contact Us For Availability
015
MAY 23003883 MAY 23003883 Contact Us For Availability
015
SOAP BOX INSERT MAY 23001017 Contact Us For Availability
015
MAY 23001142 MAY 23001142 Contact Us For Availability
015
MAY 23003487 MAY 23003487 Contact Us For Availability
015
INSULATION PAPER MAY 23001115 Contact Us For Availability
015
WASHER M6 MAY 23001158 Contact Us For Availability
015
MAY 23001361 MAY 23001361 Contact Us For Availability
016
MAY 23003884 MAY 23003884 Contact Us For Availability
016
MAY 23001018 MAY 23001018 Contact Us For Availability
016
MAY 23001143 MAY 23001143 Contact Us For Availability
016
MAY 23003594 MAY 23003594 Contact Us For Availability
016
MAY 23001371 MAY 23001371 Contact Us For Availability
016
MAY 23001201 MAY 23001201 Contact Us For Availability
017
MAY 23001912 MAY 23001912 Contact Us For Availability
017
MAY 23001757 MAY 23001757 Contact Us For Availability
017
MAY 23003885 MAY 23003885 Contact Us For Availability
017
MAY 23001159 MAY 23001159 Contact Us For Availability
017
MAY 23002331 MAY 23002331 Contact Us For Availability
017
MAY 23001019 MAY 23001019 Contact Us For Availability
017
MAY 23001259 MAY 23001259 Contact Us For Availability
017
MAY 23003494 MAY 23003494 Contact Us For Availability
017
MAY 23001309 MAY 23001309 Contact Us For Availability
018
MAY 23002332 MAY 23002332 Contact Us For Availability
018
LOCK WASHER EXTERNAL TEETH M4 MAY 23001013 Contact Us For Availability
018
MAY 23001020 MAY 23001020 Contact Us For Availability
018
MAY 23001257 MAY 23001257 Contact Us For Availability
019
MAY 23001264 MAY 23001264 Contact Us For Availability
019
MAY 23003895 MAY 23003895 Contact Us For Availability
019
LOCK WASHER EXTERNAL TEETHM6LU MAY 23001028 Contact Us For Availability
019
MAY 23001021 MAY 23001021 Contact Us For Availability
019
MAY 23001146 MAY 23001146 Contact Us For Availability
019
MAY 23001750 MAY 23001750 Contact Us For Availability
019
NUT (M6 STAINLESS STEEL) MAY 23001176 Contact Us For Availability
020
MAY 23002473 MAY 23002473 Contact Us For Availability
020
MAY 23003871 MAY 23003871 Contact Us For Availability
020
MAY 23001022 MAY 23001022 Contact Us For Availability
020
MAY 23001262 MAY 23001262 Contact Us For Availability
020
MAY 23001055 MAY 23001055 Contact Us For Availability
020
MAY 23002937 MAY 23002937 Contact Us For Availability
021
MAY 23001263 MAY 23001263 Contact Us For Availability
021
MAY 23001034 MAY 23001034 Contact Us For Availability
021
MAY 23001023 MAY 23001023 Contact Us For Availability
021
MAY 23001149 MAY 23001149 Contact Us For Availability
021
MAY 23001089 MAY 23001089 Contact Us For Availability
022
REINFORCEMENT MAY NLA Contact Us For Availability
022
MAY 23001131 MAY 23001131 Contact Us For Availability
022
SCREW MAY 23001024 Contact Us For Availability
022
MAY 23003556 MAY 23003556 Contact Us For Availability
023
MAY 23003580 MAY 23003580 Contact Us For Availability
023
MAY 23001708 MAY 23001708 Contact Us For Availability
023
MAY 23001025 MAY 23001025 Contact Us For Availability
023
CONNECTOR HOUSING (8 POLE) MAY 23001109 Contact Us For Availability
023
MAY 23003541 MAY 23003541 Contact Us For Availability
023
MAY 23001389 MAY 23001389 Contact Us For Availability
024
MAY 23001266 MAY 23001266 Contact Us For Availability
024
MAY 23003491 MAY 23003491 Contact Us For Availability
024
MAY 23001056 MAY 23001056 Contact Us For Availability
024
MAY 23003624 MAY 23003624 Contact Us For Availability
025
MAY 23001265 MAY 23001265 Contact Us For Availability
025
MAY 23003886 MAY 23003886 Contact Us For Availability
025
MAY 23001461 MAY 23001461 Contact Us For Availability
025
MAY 23001267 MAY 23001267 Contact Us For Availability
025
MAY 23001311 MAY 23001311 Contact Us For Availability
026
MAY 23001260 MAY 23001260 Contact Us For Availability
026
MAY 23002923 MAY 23002923 Contact Us For Availability
026
MAY 23001312 MAY 23001312 Contact Us For Availability
027
DAMPER (RD 12-2) MAY 23002983 Contact Us For Availability
027
MAY 23003484 MAY 23003484 Contact Us For Availability
027
NUT (M6) MAY 23003606 Contact Us For Availability
028
MAY 23003570 MAY 23003570 Contact Us For Availability
028
MAY 23001333 MAY 23001333 Contact Us For Availability
028
MAY 23001550 MAY 23001550 Contact Us For Availability
028
MAY 23001254 MAY 23001254 Contact Us For Availability
028
MAY 23001469 MAY 23001469 Contact Us For Availability
028
MAY 23003595 MAY 23003595 Contact Us For Availability
028
CONNECTOR HOUSING (6 POLE) MAY 23001112 Contact Us For Availability
029
LEG, SPRING MAY 23003451 Contact Us For Availability
029
MAY 23001334 MAY 23001334 Contact Us For Availability
029
MAY 23002318 MAY 23002318 Contact Us For Availability
029
MAY 23001258 MAY 23001258 Contact Us For Availability
029
MAY 23001471 MAY 23001471 Contact Us For Availability
029
MICRO SWITCH MAY 23003899 Contact Us For Availability
030
RUBBER (BLK-LWR) LU MAY 23003459 Contact Us For Availability
030
MAY 23003831 MAY 23003831 Contact Us For Availability
030
MAY 23001032 MAY 23001032 Contact Us For Availability
030
MAY 23001268 MAY 23001268 Contact Us For Availability
030
SPRING MAY 23003900 Contact Us For Availability
031
RUBBER (BLK-UPR) MAY 23003456 Contact Us For Availability
031
MAY 23001033 MAY 23001033 Contact Us For Availability
031
SPRING MAY 23003901 Contact Us For Availability
032
HOLDER, SPRING (UPR) LU MAY 23003454 Contact Us For Availability
032
MAY 23003582 MAY 23003582 Contact Us For Availability
032
MAY 23003807 MAY 23003807 Contact Us For Availability
032
MAY Y23002898 MAY Y23002898 Contact Us For Availability
032
SPACER MAY 23003902 Contact Us For Availability
033
HOLDER, SPRING (LWR) MAY 23003465 Contact Us For Availability
033
MAY 23002179 MAY 23002179 Contact Us For Availability
033
MAY 23002899 MAY 23002899 Contact Us For Availability
033
MAY 23002951 MAY 23002951 Contact Us For Availability
034
SPRING (RED) MAY 23003457 Contact Us For Availability
034
MAY 23002936 MAY 23002936 Contact Us For Availability
034
MAY 23002900 MAY 23002900 Contact Us For Availability
034
MAY 23003533 MAY 23003533 Contact Us For Availability
034
SCREW M3X25 MAY 23003903 Contact Us For Availability
035
WASHER MAY 23003455 Contact Us For Availability
035
MAY 23001053 MAY 23001053 Contact Us For Availability
035
MAY 23002901 MAY 23002901 Contact Us For Availability
035
MAY 23002505 MAY 23002505 Contact Us For Availability
036
MAY 23001138 MAY 23001138 Contact Us For Availability
036
MAY 23001153 MAY 23001153 Contact Us For Availability
036
MAY 23001486 MAY 23001486 Contact Us For Availability
036
MAY 23003596 MAY 23003596 Contact Us For Availability
036
SPRING HOLDER TILTSWITCH MAY 23003904 Contact Us For Availability
037
MAY 23002154 MAY 23002154 Contact Us For Availability
037
MAY 23003905 MAY 23003905 Contact Us For Availability
038
MAY 23001336 MAY 23001336 Contact Us For Availability
038
MAY 23002337 MAY 23002337 Contact Us For Availability
039
MAY 23001338 MAY 23001338 Contact Us For Availability
039
MAY 23002905 MAY 23002905 Contact Us For Availability
039
MAY 23003906 MAY 23003906 Contact Us For Availability
040
MAY 23001282 MAY 23001282 Contact Us For Availability
040
MAY 23001337 MAY 23001337 Contact Us For Availability
040
MAY 23002906 MAY 23002906 Contact Us For Availability
040
DOUBLE NIPPLE STEAM MAY 23003907 Contact Us For Availability
041
MAY 23003619 MAY 23003619 Contact Us For Availability
042
MAY 23003908 MAY 23003908 Contact Us For Availability
043
MAY 23001388 MAY 23001388 Contact Us For Availability
043
MAY 23003912 MAY 23003912 Contact Us For Availability
044
MAY 23003881 MAY 23003881 Contact Us For Availability
044
MAY 23001026 MAY 23001026 Contact Us For Availability
044
MAY 23003887 MAY 23003887 Contact Us For Availability
045
MAY 23003882 MAY 23003882 Contact Us For Availability
046
MAY 23001477 MAY 23001477 Contact Us For Availability
050
MAY 23003888 MAY 23003888 Contact Us For Availability
050
MAY 23001313 MAY 23001313 Contact Us For Availability
056
MAY 23002211 MAY 23002211 Contact Us For Availability
058
MAY 23001462 MAY 23001462 Contact Us For Availability
059
MAY 23002919 MAY 23002919 Contact Us For Availability
060
MAY 23002921 MAY 23002921 Contact Us For Availability
061
MAY 23003498 MAY 23003498 Contact Us For Availability
065
MAY 23001465 MAY 23001465 Contact Us For Availability
067
MAY 23002053 MAY 23002053 Contact Us For Availability
070
MAY 23001476 MAY 23001476 Contact Us For Availability
076
MAY 23002924 MAY 23002924 Contact Us For Availability
× ![]()
Login and Registration Form
