Model Maytag MFS25PNAVS WASHER – Common Parts & Diagrams
01 - FRAME
02 - CABINET

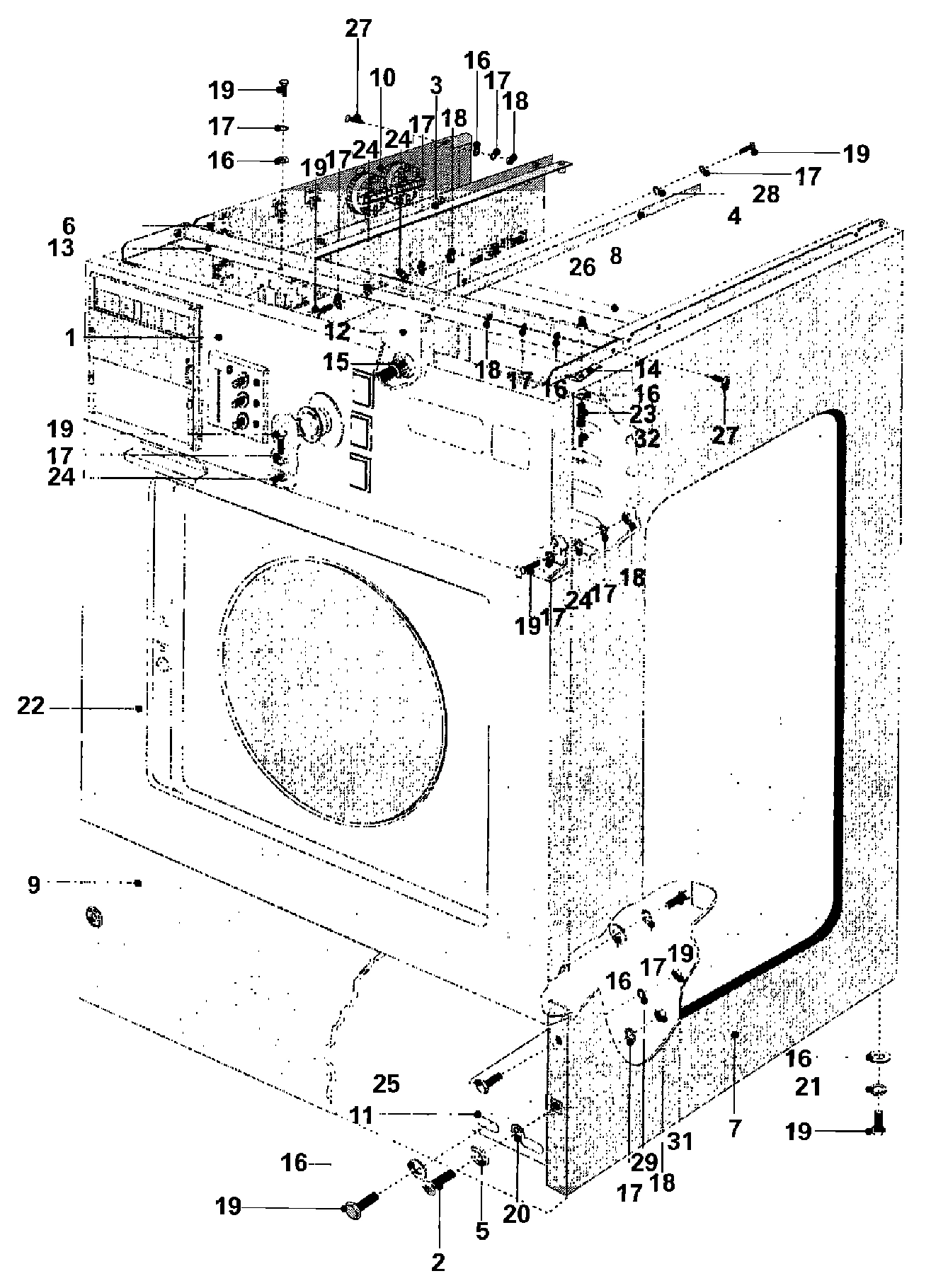

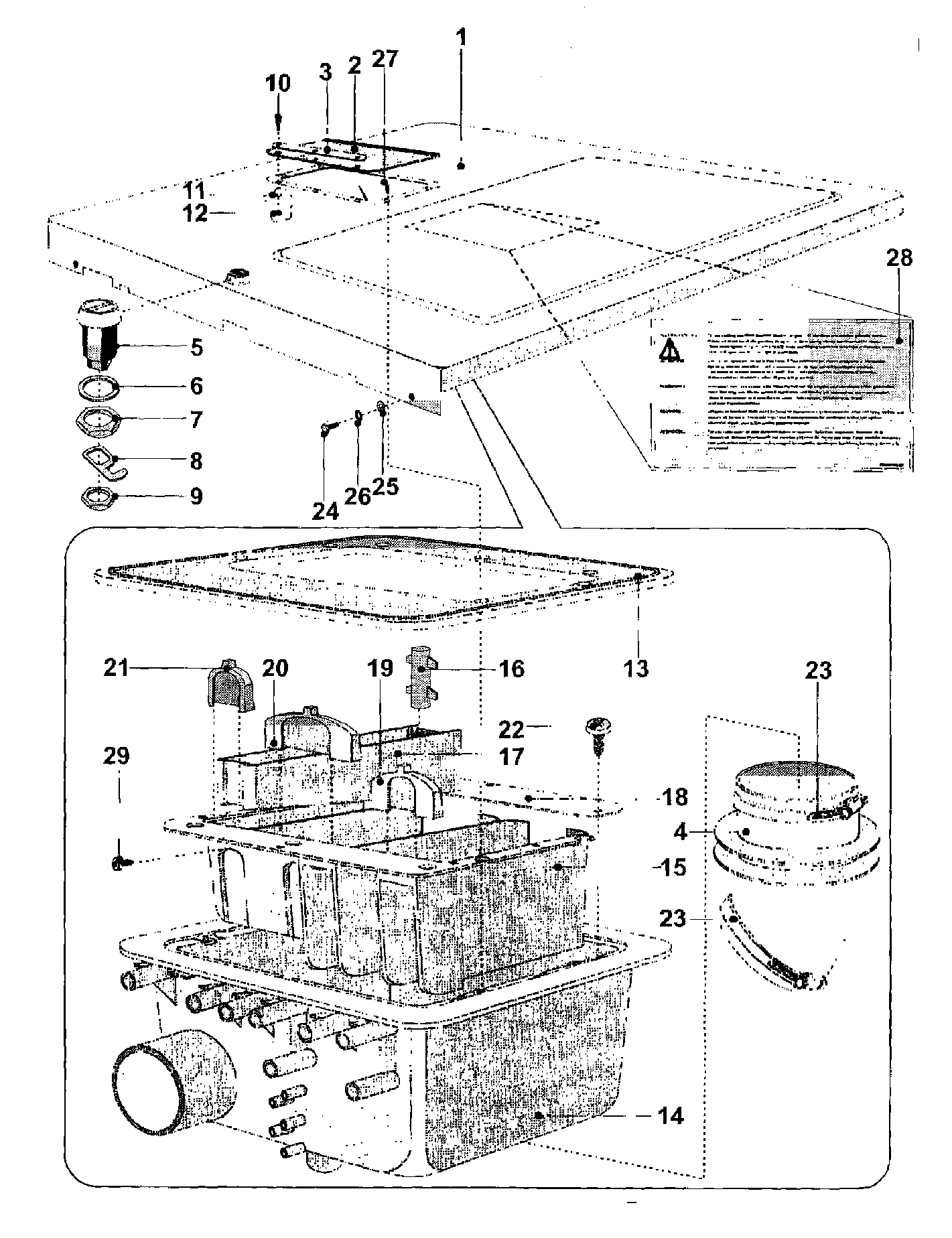

03 - TOP COVER/SOAP HOPPER
04 - WATER SYSTEM

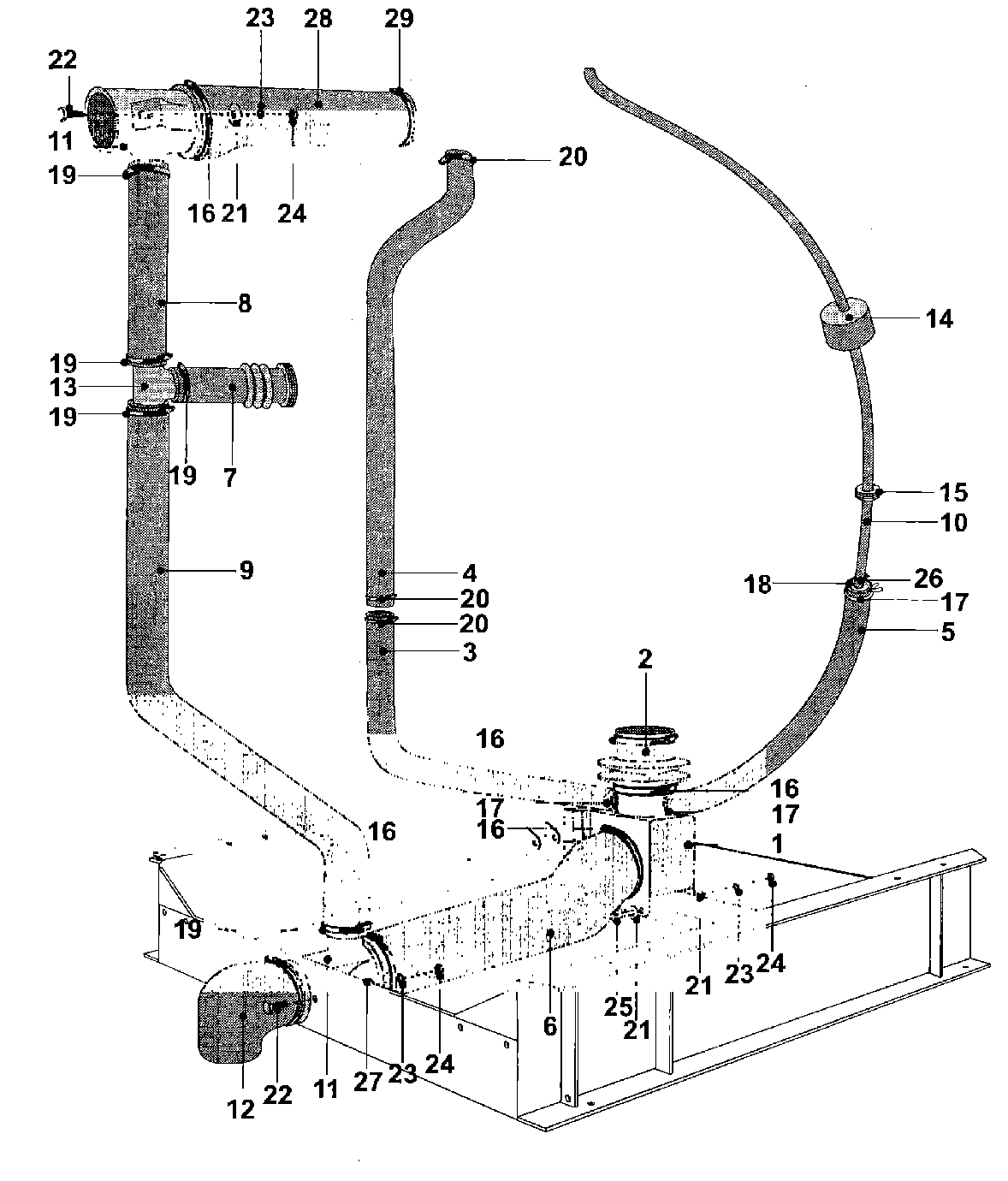

05 - TWO MOTOR DRIVE

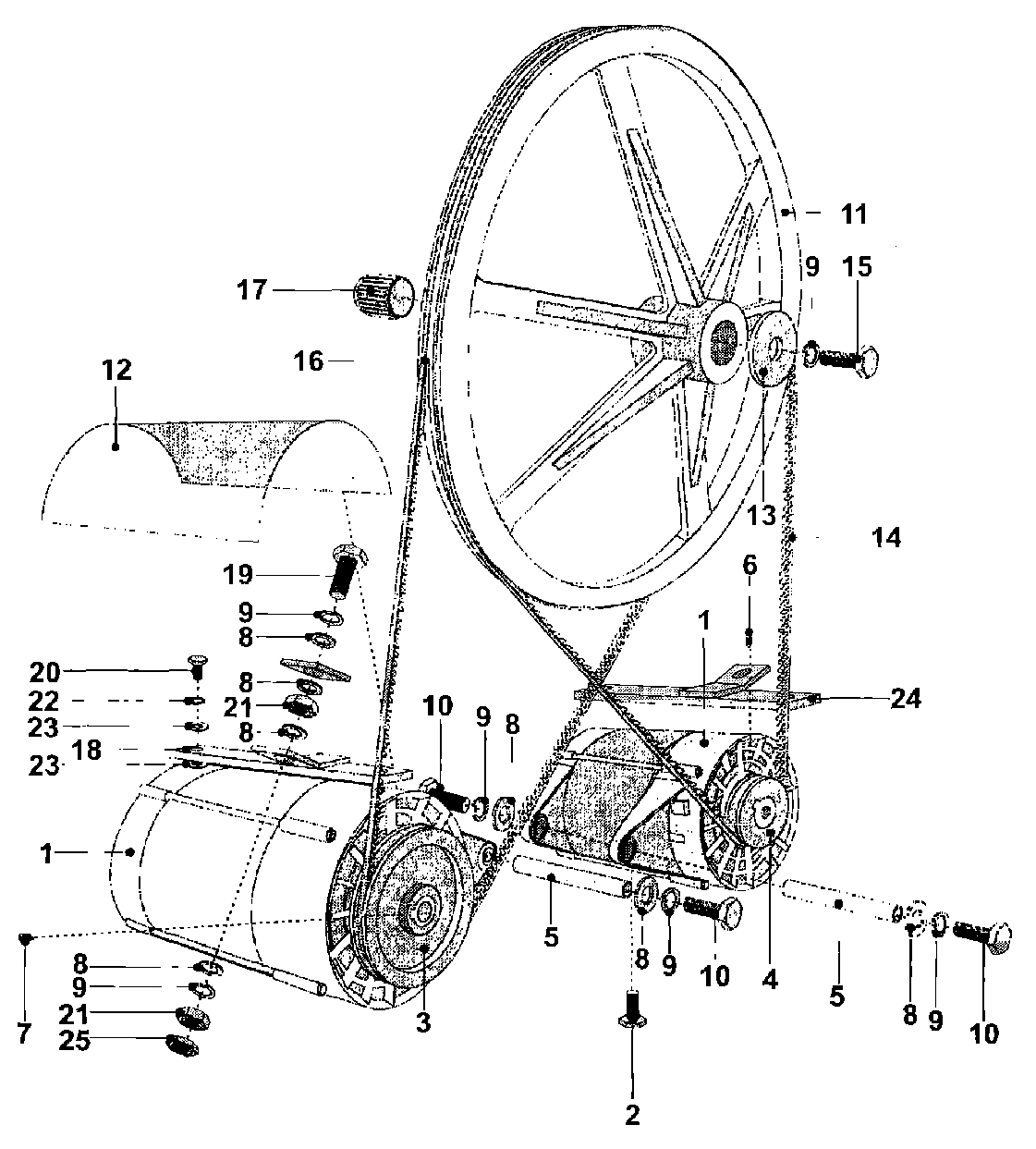

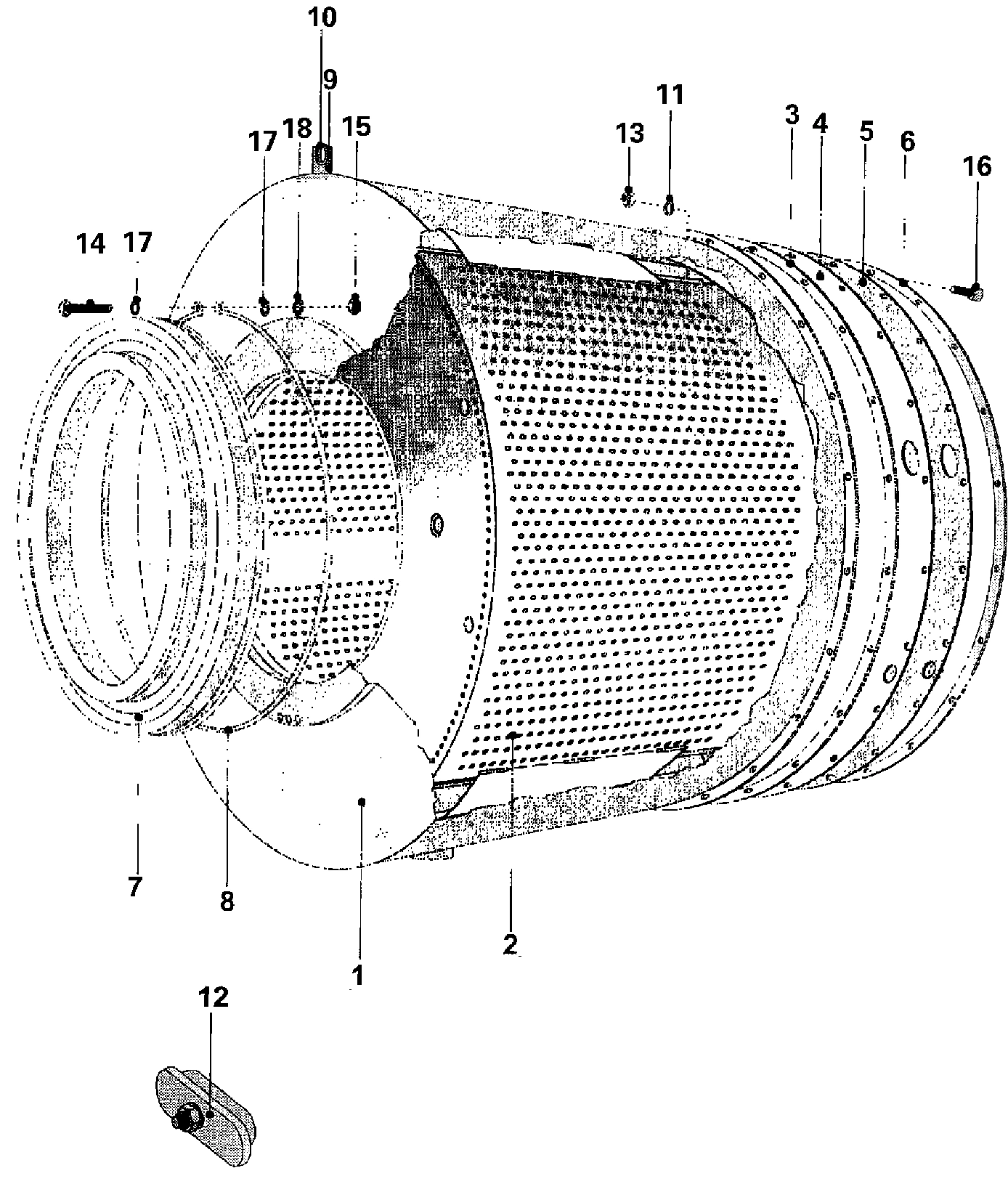

06 - WASH DRUM AND TUB

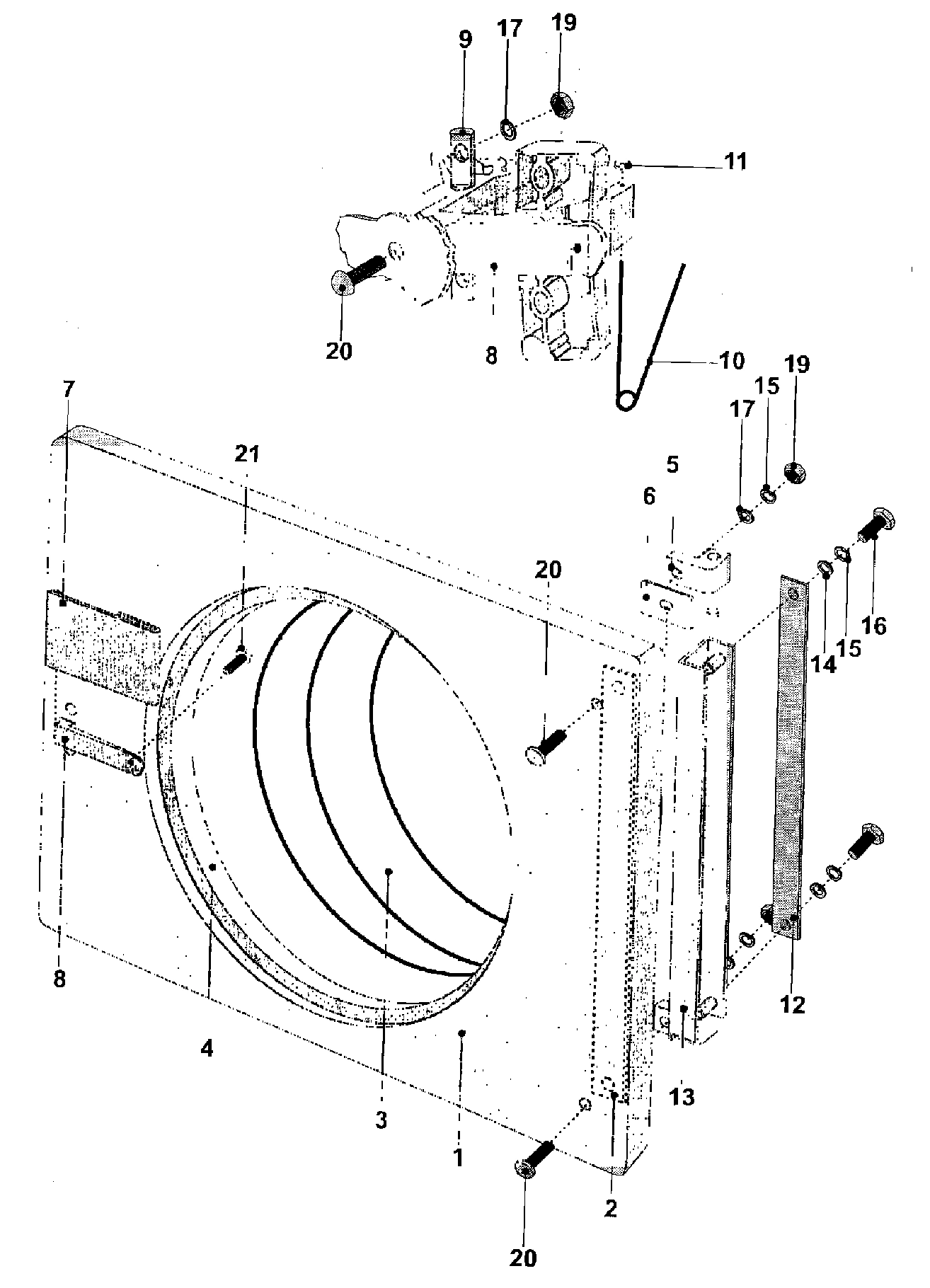

07 - DOOR

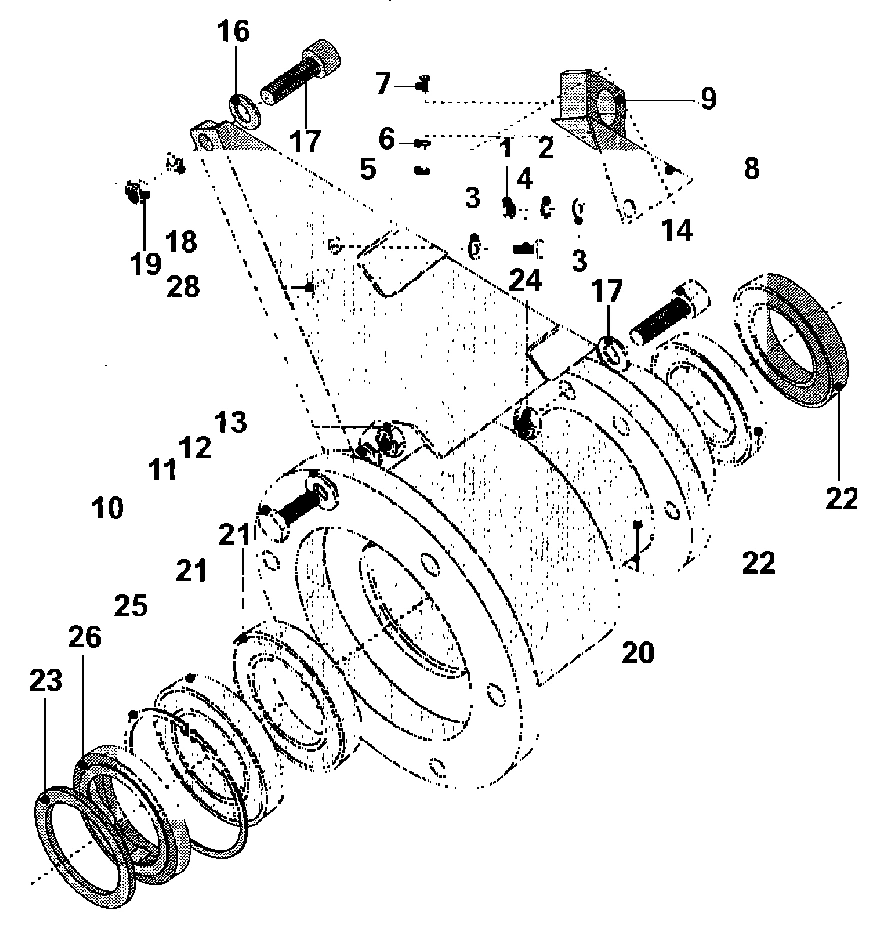

08 - TRUNNION
09 - REAR PANEL

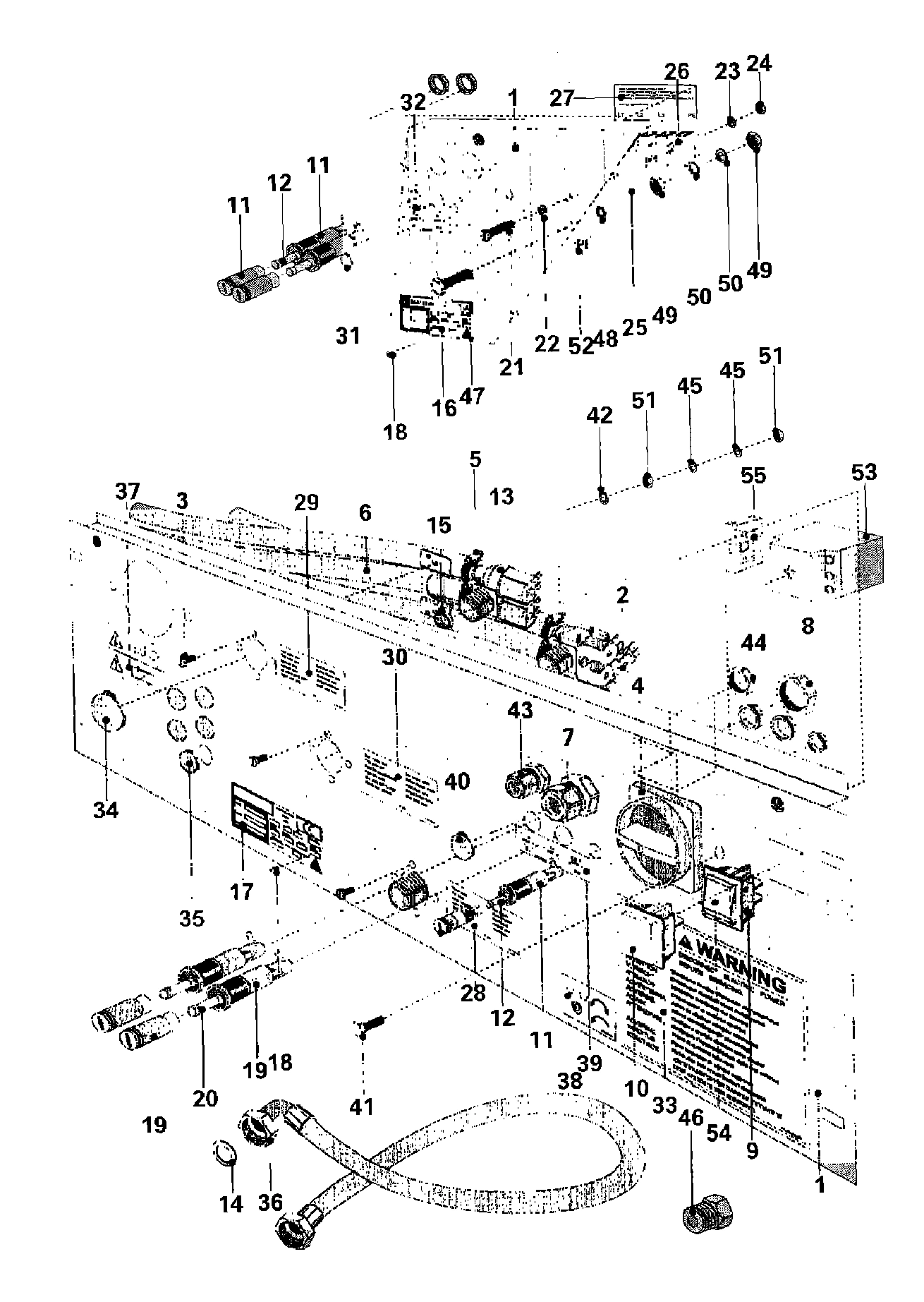

10 - DOOR LOCK

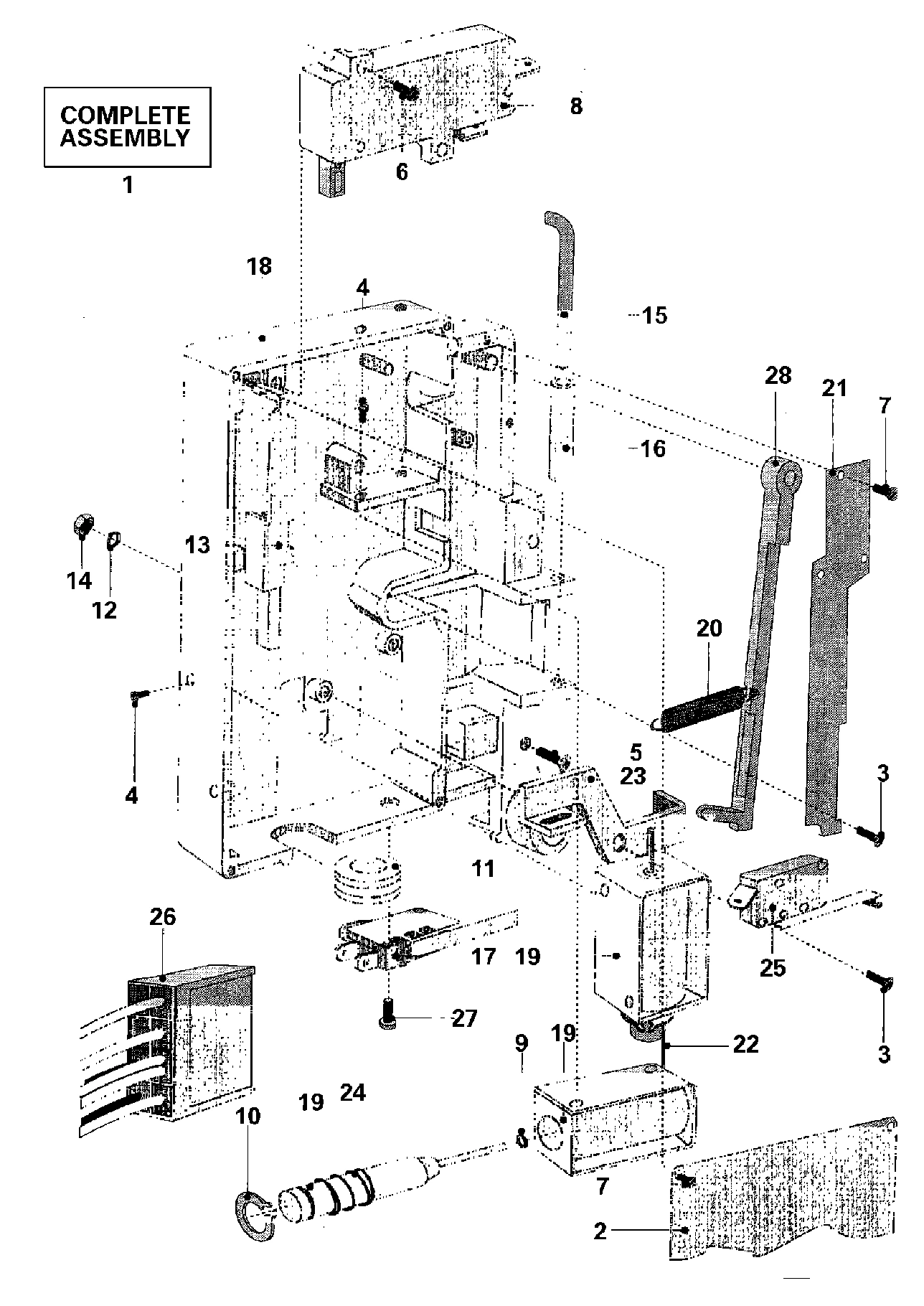

11 - INTERNAL CONTROLS

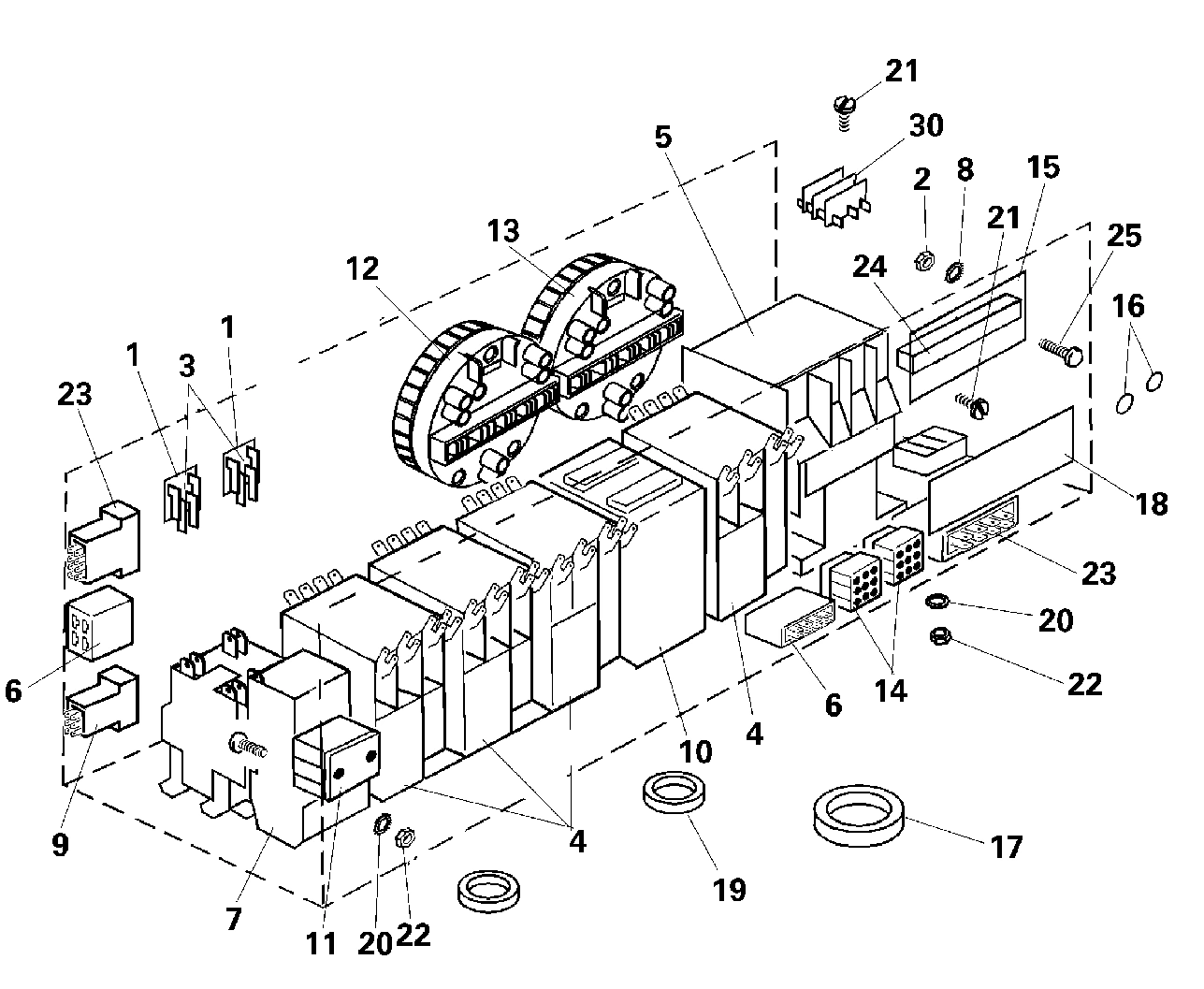

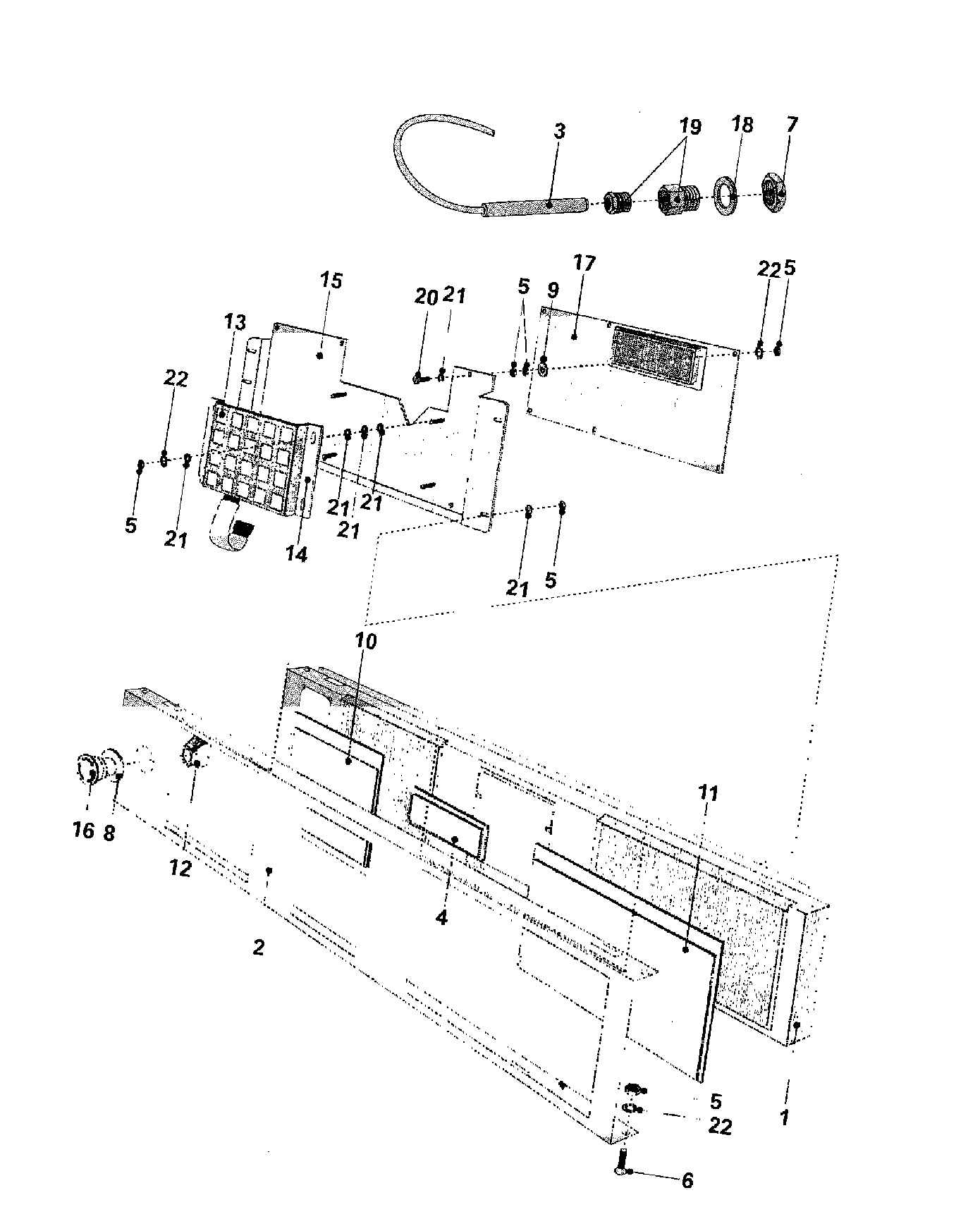

12 - CONTROL PANEL
Common parts from model Maytag MFS25PNAVS WASHER
001
MAY 23001244 MAY 23001244 Contact Us For Availability
001
MAY 23003558 MAY 23003558 Contact Us For Availability
001
MAY 23003481 MAY 23003481 Contact Us For Availability
001
MAY 23003518 MAY 23003518 Contact Us For Availability
001
MAY 23003519 MAY 23003519 Contact Us For Availability
001
MAY 23003534 MAY 23003534 Contact Us For Availability
001
MAY 23003543 MAY 23003543 Contact Us For Availability
001
MAY 23001575 MAY 23001575 Contact Us For Availability
001
MAY 23003629 MAY 23003629 Contact Us For Availability
001
MAY Y23002897 MAY Y23002897 Contact Us For Availability
001
MAY 23001094 MAY 23001094 Contact Us For Availability
002
MAY 23003559 MAY 23003559 Contact Us For Availability
002
SCREW (M6X50) MAY 23003478 Contact Us For Availability
002
MAY 23001003 MAY 23001003 Contact Us For Availability
002
MAY 23001245 MAY 23001245 Contact Us For Availability
002
BOLT (M6 X 12 STAINLESS STEEL) MAY 23001157 Contact Us For Availability
002
MAY 23003535 MAY 23003535 Contact Us For Availability
002
MAY 23001533 MAY 23001533 Contact Us For Availability
002
MAY 23001312 MAY 23001312 Contact Us For Availability
002
MAY 23001130 MAY 23001130 Contact Us For Availability
003
MAY 23003463 MAY 23003463 Contact Us For Availability
003
MAY 23003467 MAY 23003467 Contact Us For Availability
003
MAY 23001004 MAY 23001004 Contact Us For Availability
003
MAY 23001309 MAY 23001309 Contact Us For Availability
003
MAY 23003520 MAY 23003520 Contact Us For Availability
003
MAY 23001386 MAY 23001386 Contact Us For Availability
003
GLASS, DOOR MAY 23003544 Contact Us For Availability
003
MAY 23001131 MAY 23001131 Contact Us For Availability
003
PC BOARD SOCKET MAY 23001099 Contact Us For Availability
003
MAY 23001073 MAY 23001073 Contact Us For Availability
004
MAY 23003448 MAY 23003448 Contact Us For Availability
004
MAY 23001026 MAY 23001026 Contact Us For Availability
004
MAY 23003468 MAY 23003468 Contact Us For Availability
004
MAY 23003482 MAY 23003482 Contact Us For Availability
004
HOSE, OUTLET (SOAPHOPPER) LU MAY 23001549 Contact Us For Availability
004
MAY 23003521 MAY 23003521 Contact Us For Availability
004
MAY 23001365 MAY 23001365 Contact Us For Availability
004
KNOB MAY 23003497 Contact Us For Availability
004
MAY 23001132 MAY 23001132 Contact Us For Availability
004
MAY 23001100 MAY 23001100 Contact Us For Availability
004
MECHANICAL INTERLOCK, CONTACTO MAY 23001119 Contact Us For Availability
004
MAY 23003762 MAY 23003762 Contact Us For Availability
004
MAY 23003560 MAY 23003560 Contact Us For Availability
005
MAY 23003449 MAY 23003449 Contact Us For Availability
005
MAY 23001337 MAY 23001337 Contact Us For Availability
005
MAY 23001006 MAY 23001006 Contact Us For Availability
005
MAY 23001247 MAY 23001247 Contact Us For Availability
005
MAY 23003522 MAY 23003522 Contact Us For Availability
005
MAY 23001383 MAY 23001383 Contact Us For Availability
005
MAY 23003545 MAY 23003545 Contact Us For Availability
005
MAY 23001055 MAY 23001055 Contact Us For Availability
005
MAY 23001506 MAY 23001506 Contact Us For Availability
005
SCREW (M5 X 25 STAINLESS STEEL MAY 23001133 Contact Us For Availability
005
MAY 23001101 MAY 23001101 Contact Us For Availability
005
MAY 23001102 MAY 23001102 Contact Us For Availability
005
MAY 23001103 MAY 23001103 Contact Us For Availability
006
MAY 23003450 MAY 23003450 Contact Us For Availability
006
MAY 23003464 MAY 23003464 Contact Us For Availability
006
MAY 23003469 MAY 23003469 Contact Us For Availability
006
MAY 23001007 MAY 23001007 Contact Us For Availability
006
MAY 23001289 MAY 23001289 Contact Us For Availability
006
MAY 23001670 MAY 23001670 Contact Us For Availability
006
MAY 23001507 MAY 23001507 Contact Us For Availability
006
MAY 23001070 MAY 23001070 Contact Us For Availability
006
CONNECTOR HOUSING (4 POLE) MAY 23001116 Contact Us For Availability
006
SCREW MAY 23001461 Contact Us For Availability
007
MAY 23003470 MAY 23003470 Contact Us For Availability
007
LOCK NUT (LARGE) MAY 23001008 Contact Us For Availability
007
MAY 23001254 MAY 23001254 Contact Us For Availability
007
HOUSING, TUB MAY 23003536 Contact Us For Availability
007
MAY 23001614 MAY 23001614 Contact Us For Availability
007
HANDLE, DOOR (FRONT) MAY 23003631 Contact Us For Availability
007
HANDLE, DOOR (BACK) MAY 23003632 Contact Us For Availability
007
MAY 23002211 MAY 23002211 Contact Us For Availability
007
MAY 23003485 MAY 23003485 Contact Us For Availability
007
RELAY, THERMAL OVERLOAD (4-6A) MAY 23001106 Contact Us For Availability
007
RELAY, THERMAL OVERLOAD(12-18A MAY 23001107 Contact Us For Availability
007
RELAY, THERMAL OVERLOAD (7-10A MAY 23001108 Contact Us For Availability
007
RELAY, THERMAL OVERLOAD(2.5-4A MAY 23001359 Contact Us For Availability
007
RELAY, OVERLOAD (LR2-D1312) MAY 23002101 Contact Us For Availability
007
MAY 23002936 MAY 23002936 Contact Us For Availability
008
LOCK WASHER EXTERNAL TEETHM6LU MAY 23001028 Contact Us For Availability
008
MAY 23001292 MAY 23001292 Contact Us For Availability
008
MAY 23003471 MAY 23003471 Contact Us For Availability
008
MAY 23003483 MAY 23003483 Contact Us For Availability
008
RING, FIXATION MAY 23003537 Contact Us For Availability
008
MAY 23001167 MAY 23001167 Contact Us For Availability
008
MAY 23003633 MAY 23003633 Contact Us For Availability
008
MAY 23003555 MAY 23003555 Contact Us For Availability
008
MAY 23003138 MAY 23003138 Contact Us For Availability
008
MAY 23001135 MAY 23001135 Contact Us For Availability
008
MAY 23002330 MAY 23002330 Contact Us For Availability
009
DAMPER (RD 12-2) MAY 23002983 Contact Us For Availability
009
WASHER (12) MAY 23001419 Contact Us For Availability
009
MAY 23003472 MAY 23003472 Contact Us For Availability
009
MAY 23001011 MAY 23001011 Contact Us For Availability
009
MAY 23001251 MAY 23001251 Contact Us For Availability
009
MAY 23003538 MAY 23003538 Contact Us For Availability
009
SHAFT, LEVER MAY 23001168 Contact Us For Availability
009
MAY 23001529 MAY 23001529 Contact Us For Availability
009
MAY 23001136 MAY 23001136 Contact Us For Availability
009
CONNECTOR HOUSING (6 POLE) MAY 23001112 Contact Us For Availability
009
MAY 23002951 MAY 23002951 Contact Us For Availability
010
LEG, SPRING MAY 23003451 Contact Us For Availability
010
MAY 23003473 MAY 23003473 Contact Us For Availability
010
MAY 23001012 MAY 23001012 Contact Us For Availability
010
MAY 23001252 MAY 23001252 Contact Us For Availability
010
PASSAGE, CABLE MAY 23003539 Contact Us For Availability
010
MAY 23001148 MAY 23001148 Contact Us For Availability
010
MAY 23001169 MAY 23001169 Contact Us For Availability
010
MAY 23001452 MAY 23001452 Contact Us For Availability
010
MAY 23001137 MAY 23001137 Contact Us For Availability
010
MAY 23002348 MAY 23002348 Contact Us For Availability
011
MAY 23003452 MAY 23003452 Contact Us For Availability
011
SPRING (YELLOW) MAY 23003453 Contact Us For Availability
011
SPRING (RED) MAY 23003457 Contact Us For Availability
011
PLEXI, INSERT CARD PROGRAM MAY NLA Contact Us For Availability
011
MAY 23003474 MAY 23003474 Contact Us For Availability
011
WASHER MAY 23001636 Contact Us For Availability
011
MAY 23001415 MAY 23001415 Contact Us For Availability
011
MAY 23001057 MAY 23001057 Contact Us For Availability
011
MAY 23001201 MAY 23001201 Contact Us For Availability
011
MAY 23001462 MAY 23001462 Contact Us For Availability
011
MAY 23002959 MAY 23002959 Contact Us For Availability
012
HOLDER, SPRING (UPR) LU MAY 23003454 Contact Us For Availability
012
MAY 23001400 MAY 23001400 Contact Us For Availability
012
MAY 23003475 MAY 23003475 Contact Us For Availability
012
MAY 23001333 MAY 23001333 Contact Us For Availability
012
MAY 23001014 MAY 23001014 Contact Us For Availability
012
MAY 23001268 MAY 23001268 Contact Us For Availability
012
MAY 23001594 MAY 23001594 Contact Us For Availability
012
MAY 23002919 MAY 23002919 Contact Us For Availability
012
MAY 23003531 MAY 23003531 Contact Us For Availability
012
MAY 23002331 MAY 23002331 Contact Us For Availability
013
WASHER MAY 23003455 Contact Us For Availability
013
MAY 23001240 MAY 23001240 Contact Us For Availability
013
MAY 23001511 MAY 23001511 Contact Us For Availability
013
MAY 23001015 MAY 23001015 Contact Us For Availability
013
MAY 23001255 MAY 23001255 Contact Us For Availability
013
MAY 23003548 MAY 23003548 Contact Us For Availability
013
MAY 23001455 MAY 23001455 Contact Us For Availability
013
MAY 23001140 MAY 23001140 Contact Us For Availability
013
MAY 23003532 MAY 23003532 Contact Us For Availability
013
MAY 23001692 MAY 23001692 Contact Us For Availability
014
RUBBER (BLK-UPR) MAY 23003456 Contact Us For Availability
014
MAY 23001442 MAY 23001442 Contact Us For Availability
014
MAY 23001334 MAY 23001334 Contact Us For Availability
014
SOAP BOX HOUSING MAY 23001016 Contact Us For Availability
014
MAY 23003486 MAY 23003486 Contact Us For Availability
014
MAY 23003525 MAY 23003525 Contact Us For Availability
014
MAY 23003541 MAY 23003541 Contact Us For Availability
014
MAY 23002921 MAY 23002921 Contact Us For Availability
014
MAY 23003533 MAY 23003533 Contact Us For Availability
014
MAY 23001083 MAY 23001083 Contact Us For Availability
015
MAY 23001034 MAY 23001034 Contact Us For Availability
015
LEG MAY 23003458 Contact Us For Availability
015
MAY 23001203 MAY 23001203 Contact Us For Availability
015
MAY 23002775 MAY 23002775 Contact Us For Availability
015
WASHER M6 MAY 23001158 Contact Us For Availability
015
SOAP BOX INSERT MAY 23001017 Contact Us For Availability
015
MAY 23003487 MAY 23003487 Contact Us For Availability
015
MAY 23001418 MAY 23001418 Contact Us For Availability
015
MAY 23003553 MAY 23003553 Contact Us For Availability
015
MAY 23003498 MAY 23003498 Contact Us For Availability
015
INSULATION PAPER MAY 23001115 Contact Us For Availability
015
MAY 23001142 MAY 23001142 Contact Us For Availability
015
MAY 23001084 MAY 23001084 Contact Us For Availability
016
RUBBER (BLK-LWR) LU MAY 23003459 Contact Us For Availability
016
MAY 23001018 MAY 23001018 Contact Us For Availability
016
MAY 23003526 MAY 23003526 Contact Us For Availability
016
MAY 23003542 MAY 23003542 Contact Us For Availability
016
MAY 23001371 MAY 23001371 Contact Us For Availability
016
MAY 23001263 MAY 23001263 Contact Us For Availability
016
MAY 23003494 MAY 23003494 Contact Us For Availability
016
MAY 23001143 MAY 23001143 Contact Us For Availability
016
MAY 23002332 MAY 23002332 Contact Us For Availability
017
MAY 23001159 MAY 23001159 Contact Us For Availability
017
MAY 23001019 MAY 23001019 Contact Us For Availability
017
MAY 23001259 MAY 23001259 Contact Us For Availability
017
MAY 23001410 MAY 23001410 Contact Us For Availability
017
MAY 23003387 MAY 23003387 Contact Us For Availability
017
MAY 23001117 MAY 23001117 Contact Us For Availability
017
MAY 23002949 MAY 23002949 Contact Us For Availability
017
MAY 23003742 MAY 23003742 Contact Us For Availability
017
MAY 23003743 MAY 23003743 Contact Us For Availability
018
MAY 23001425 MAY 23001425 Contact Us For Availability
018
MAY 23001265 MAY 23001265 Contact Us For Availability
018
MAY 23001020 MAY 23001020 Contact Us For Availability
018
MAY 23001260 MAY 23001260 Contact Us For Availability
018
MAY 23003527 MAY 23003527 Contact Us For Availability
018
MAY 23001033 MAY 23001033 Contact Us For Availability
018
MAY Y23002898 MAY Y23002898 Contact Us For Availability
018
MAY 23001118 MAY 23001118 Contact Us For Availability
018
MAY 23002179 MAY 23002179 Contact Us For Availability
019
MAY 23001282 MAY 23001282 Contact Us For Availability
019
MAY 23001021 MAY 23001021 Contact Us For Availability
019
MAY 23001261 MAY 23001261 Contact Us For Availability
019
NUT (M6 STAINLESS STEEL) MAY 23001176 Contact Us For Availability
019
MAY 23001306 MAY 23001306 Contact Us For Availability
019
MAY 23002210 MAY 23002210 Contact Us For Availability
019
MAY 23001138 MAY 23001138 Contact Us For Availability
019
MAY 23001146 MAY 23001146 Contact Us For Availability
019
MAY 23001592 MAY 23001592 Contact Us For Availability
020
MAY 23001338 MAY 23001338 Contact Us For Availability
020
MAY 23001022 MAY 23001022 Contact Us For Availability
020
MAY 23001262 MAY 23001262 Contact Us For Availability
020
MAY 23001305 MAY 23001305 Contact Us For Availability
020
MAY 23002937 MAY 23002937 Contact Us For Availability
020
MAY 23001089 MAY 23001089 Contact Us For Availability
020
MAY 23003552 MAY 23003552 Contact Us For Availability
020
MAY 23003495 MAY 23003495 Contact Us For Availability
020
MAY 23002900 MAY 23002900 Contact Us For Availability
021
MAY 23001303 MAY 23001303 Contact Us For Availability
021
MAY 23001023 MAY 23001023 Contact Us For Availability
021
MAY 23003488 MAY 23003488 Contact Us For Availability
021
MAY 23001177 MAY 23001177 Contact Us For Availability
021
MAY 23001231 MAY 23001231 Contact Us For Availability
021
MAY 23001149 MAY 23001149 Contact Us For Availability
021
MAY 23001056 MAY 23001056 Contact Us For Availability
022
MAY 23003477 MAY 23003477 Contact Us For Availability
022
SCREW MAY 23001024 Contact Us For Availability
022
MAY 23003489 MAY 23003489 Contact Us For Availability
022
MAY 23001232 MAY 23001232 Contact Us For Availability
022
LOCK WASHER EXTERNAL TEETH M4 MAY 23001013 Contact Us For Availability
022
MAY 23002901 MAY 23002901 Contact Us For Availability
023
MAY 23001444 MAY 23001444 Contact Us For Availability
023
MAY 23001025 MAY 23001025 Contact Us For Availability
023
DRAIN TEE MAY 23001253 Contact Us For Availability
023
MAY 23003490 MAY 23003490 Contact Us For Availability
023
MAY 23001233 MAY 23001233 Contact Us For Availability
023
MAY 23001153 MAY 23001153 Contact Us For Availability
023
CONNECTOR HOUSING (8 POLE) MAY 23001109 Contact Us For Availability
024
MAY 23001266 MAY 23001266 Contact Us For Availability
024
MAY 23003529 MAY 23003529 Contact Us For Availability
024
MAY 23003556 MAY 23003556 Contact Us For Availability
024
MAY 23002903 MAY 23002903 Contact Us For Availability
024
MAY 23002154 MAY 23002154 Contact Us For Availability
025
MAY 23003480 MAY 23003480 Contact Us For Availability
025
MAY 23001267 MAY 23001267 Contact Us For Availability
025
MAY 23001235 MAY 23001235 Contact Us For Availability
025
MAY 23001311 MAY 23001311 Contact Us For Availability
025
MAY 23002337 MAY 23002337 Contact Us For Availability
026
MAY 23001234 MAY 23001234 Contact Us For Availability
026
MAY 23001310 MAY 23001310 Contact Us For Availability
026
MAY 23002923 MAY 23002923 Contact Us For Availability
026
MAY 23002905 MAY 23002905 Contact Us For Availability
027
MAY 23003460 MAY 23003460 Contact Us For Availability
027
MAY 23003476 MAY 23003476 Contact Us For Availability
027
MAY 23003484 MAY 23003484 Contact Us For Availability
027
MAY 23003491 MAY 23003491 Contact Us For Availability
027
MAY 23002906 MAY 23002906 Contact Us For Availability
028
MAY 23001027 MAY 23001027 Contact Us For Availability
028
MAY 23001550 MAY 23001550 Contact Us For Availability
028
MAY 23001248 MAY 23001248 Contact Us For Availability
028
MAY 23001469 MAY 23001469 Contact Us For Availability
028
MAY 23002899 MAY 23002899 Contact Us For Availability
029
MAY 23002318 MAY 23002318 Contact Us For Availability
029
MAY 23001258 MAY 23001258 Contact Us For Availability
029
MAY 23001471 MAY 23001471 Contact Us For Availability
030
HOLDER, SPRING (LWR) MAY 23003465 Contact Us For Availability
030
MAY 23001445 MAY 23001445 Contact Us For Availability
031
MAY 23003466 MAY 23003466 Contact Us For Availability
033
MAY 23001241 MAY 23001241 Contact Us For Availability
033
MAY 23001465 MAY 23001465 Contact Us For Availability
034
MAY 23003461 MAY 23003461 Contact Us For Availability
036
MAY 23003462 MAY 23003462 Contact Us For Availability
036
HOSE, INLET MAY 23003496 Contact Us For Availability
037
MAY 23002053 MAY 23002053 Contact Us For Availability
038
MAY 23001468 MAY 23001468 Contact Us For Availability
039
MAY 23003328 MAY 23003328 Contact Us For Availability
040
MAY 23001476 MAY 23001476 Contact Us For Availability
043
MAY 23002196 MAY 23002196 Contact Us For Availability
044
MAY 23002197 MAY 23002197 Contact Us For Availability
046
MAY 23001477 MAY 23001477 Contact Us For Availability
050
MAY 23001313 MAY 23001313 Contact Us For Availability
052
MAY 23003499 MAY 23003499 Contact Us For Availability
053
SWITCH, MAIN (25A) MAY 23003500 Contact Us For Availability
053
MAY 23003501 MAY 23003501 Contact Us For Availability
053
SWITCH, MAIN (63A) MAY 23003502 Contact Us For Availability
053
SWITCH, MAIN (80A) MAY 23003503 Contact Us For Availability
054
MAY 23001532 MAY 23001532 Contact Us For Availability
055
POLE, NUETRAL (25/32A) MAY 23003504 Contact Us For Availability
055
POLE, NUETRAL (63A) MAY 23003505 Contact Us For Availability
055
MAY 23003506 MAY 23003506 Contact Us For Availability
× ![]()
Login and Registration Form
