Model Maytag MFI2269VEM9 REFRIGERATOR – Common Parts & Diagrams

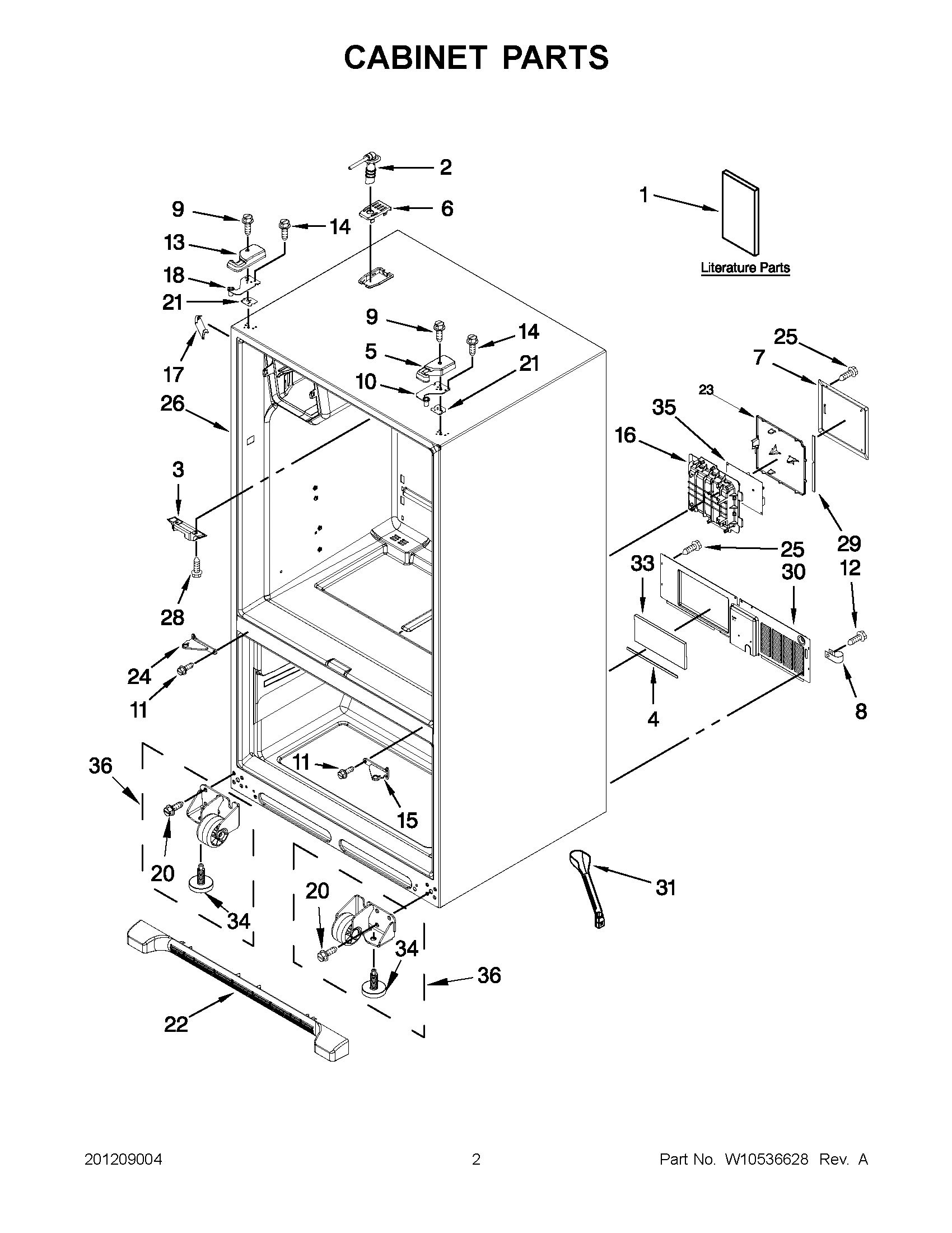

01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

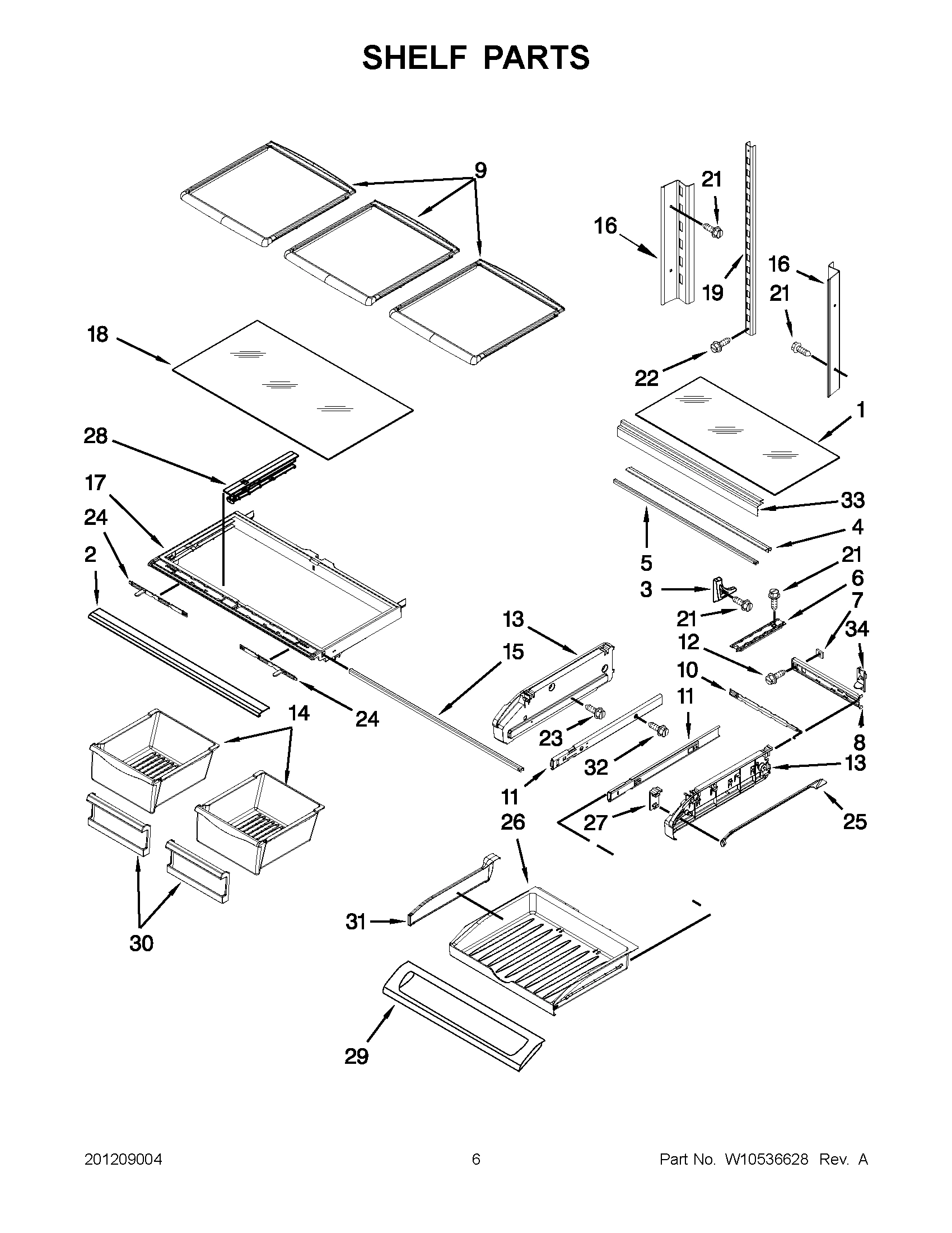

03 - SHELF PARTS

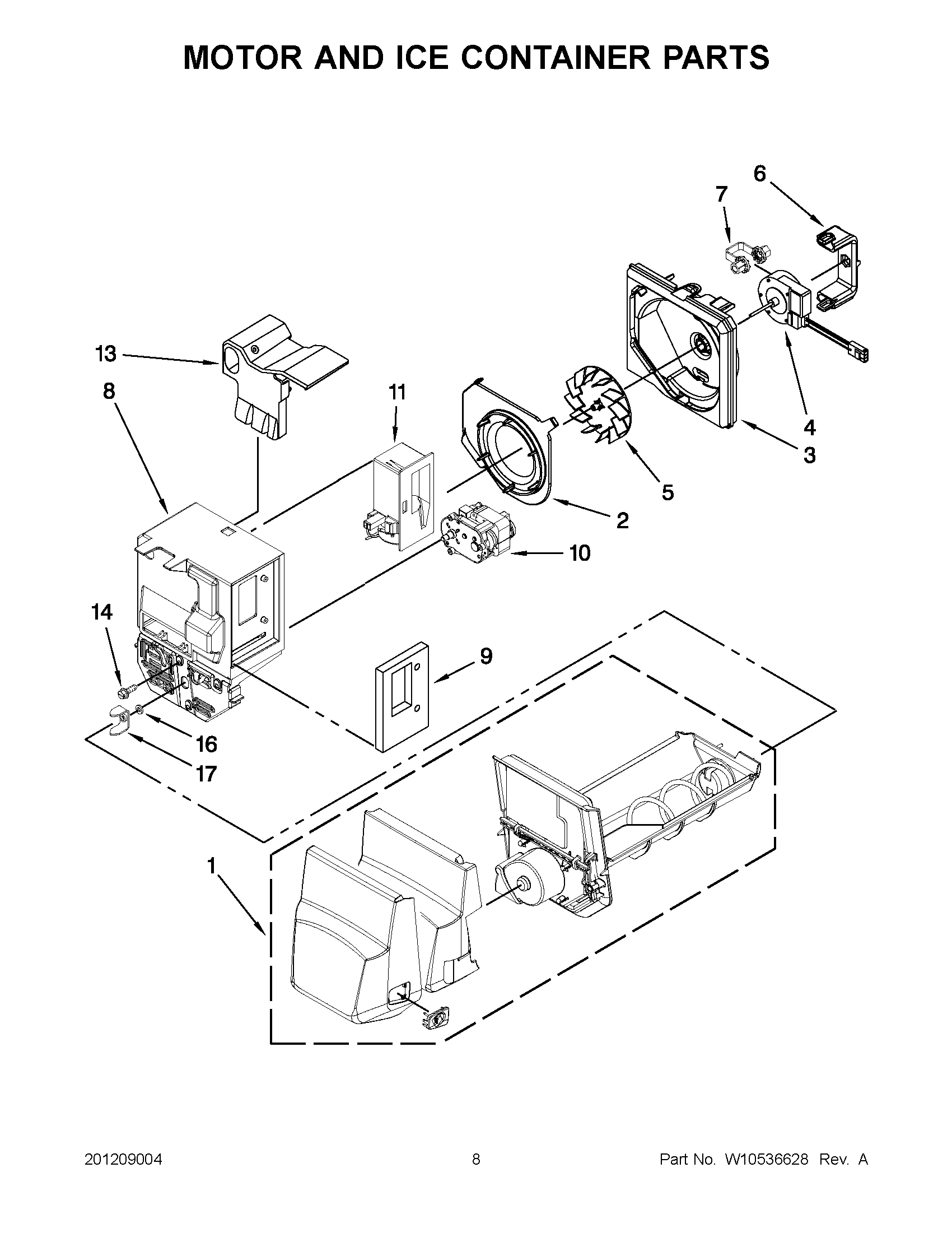

04 - MOTOR AND ICE CONTAINER PARTS

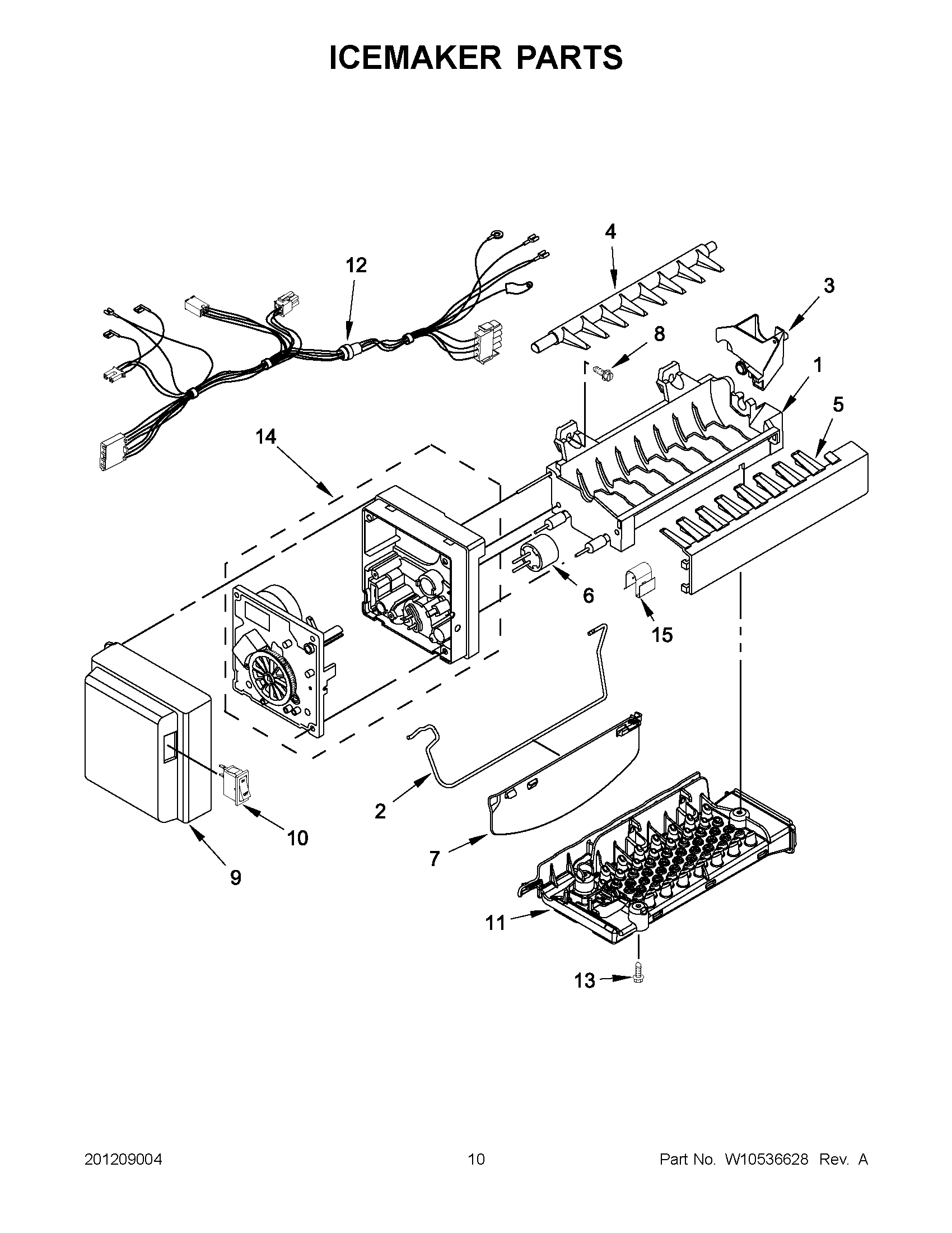

05 - ICEMAKER PARTS

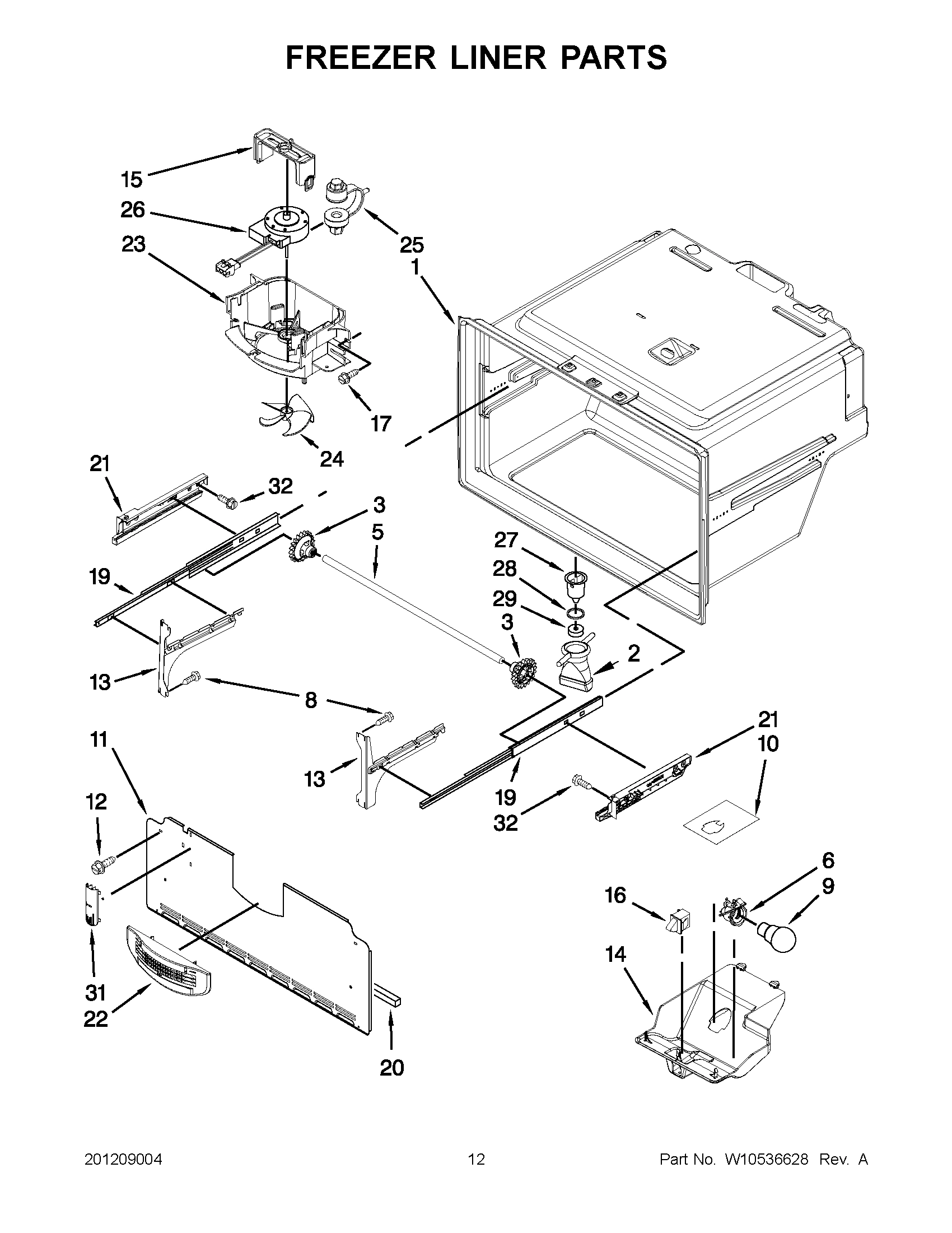

06 - FREEZER LINER PARTS

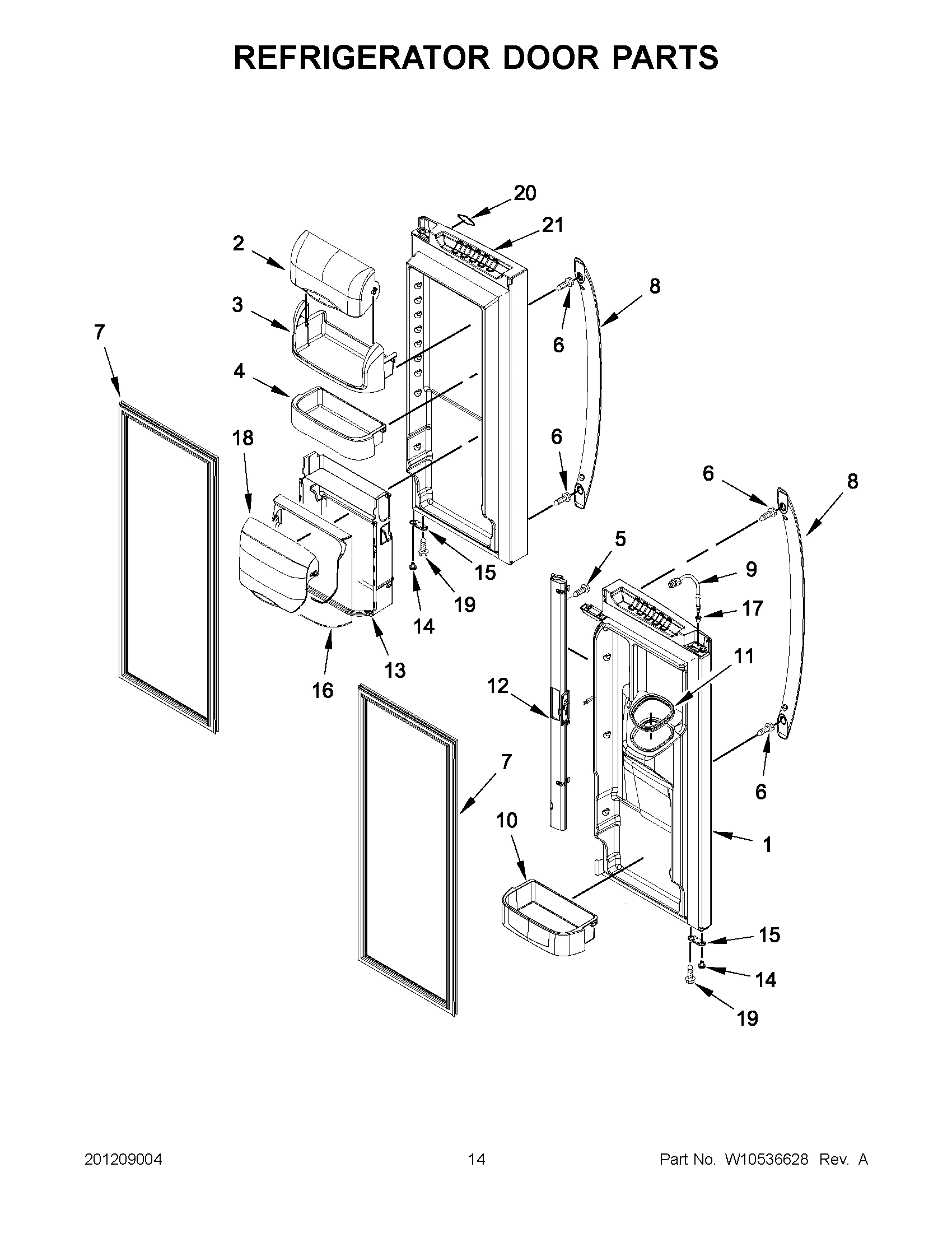

07 - REFRIGERATOR DOOR PARTS
08 - FREEZER DOOR PARTS

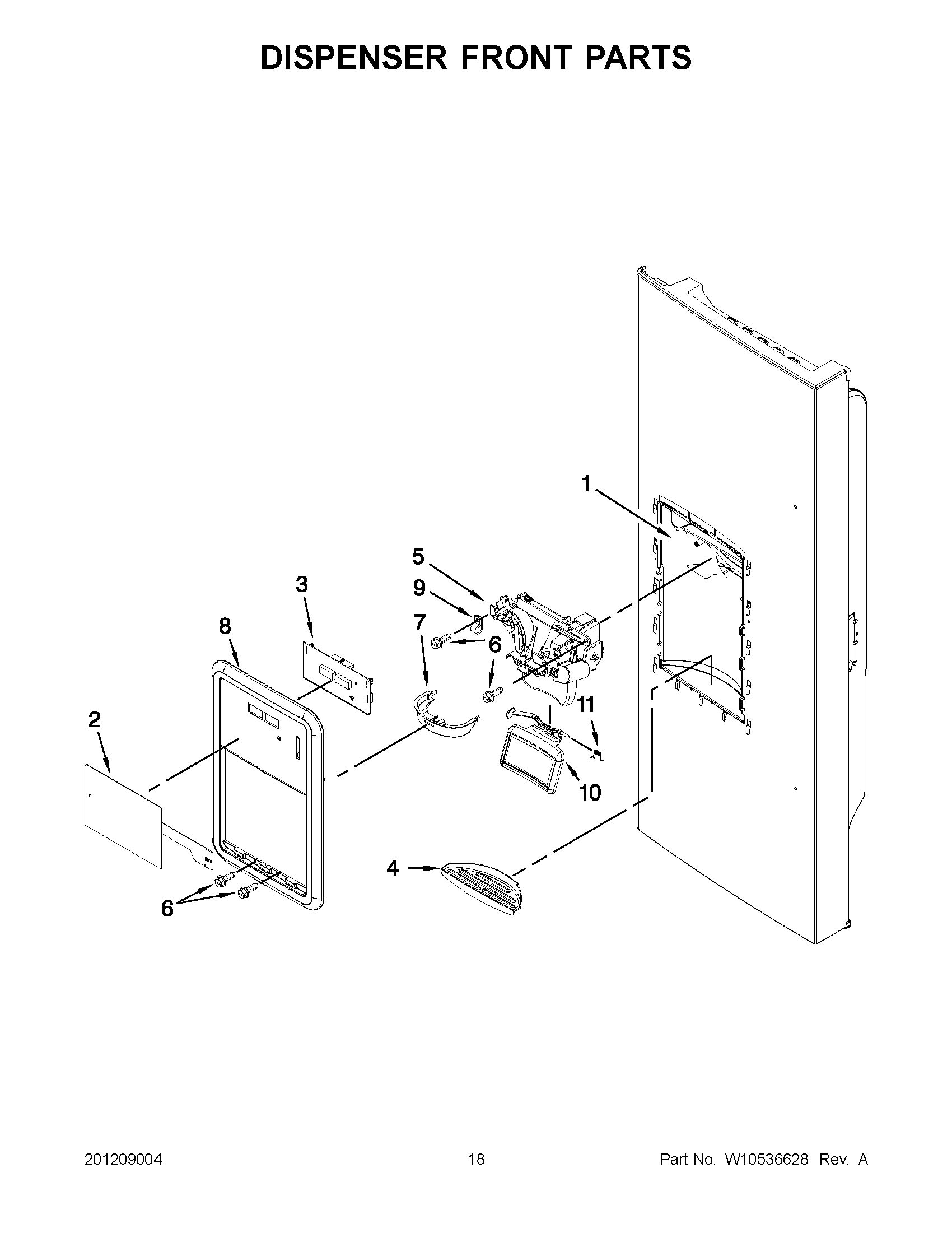

09 - DISPENSER FRONT PARTS

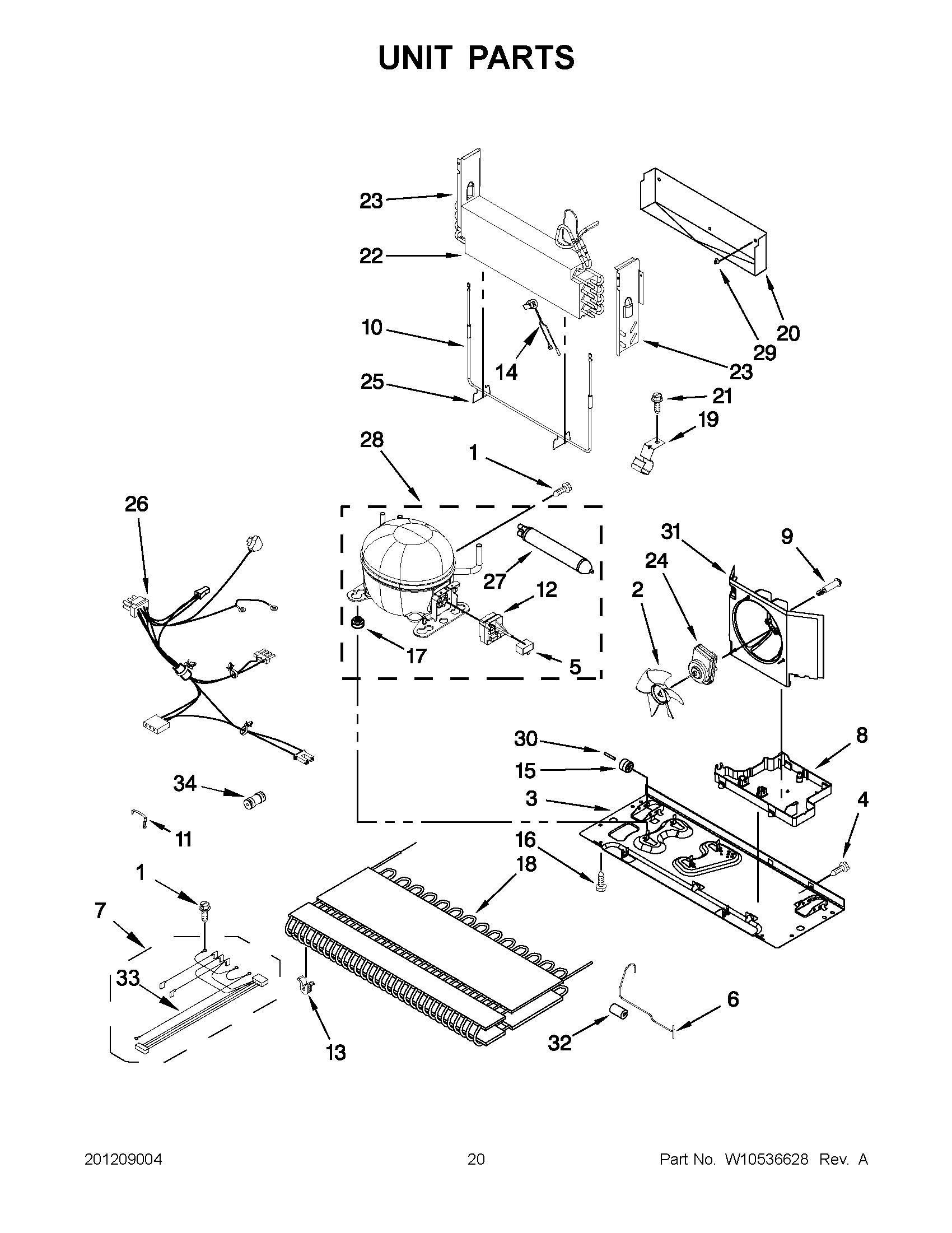

10 - UNIT PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFI2269VEM9 REFRIGERATOR
1
MAY 12204820 MAY 12204820 Contact Us For Availability
1
MAY W10324089 MAY W10324089 Contact Us For Availability
1
ASSEMBLY, MOLD & HEATER MAY W10300025 Contact Us For Availability
1
MAY 13107882S MAY 13107882S Contact Us For Availability
1
MAY 12977868S MAY 12977868S Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
2
MAY 12961402 MAY 12961402 Contact Us For Availability
2
MAY W10464777 MAY W10464777 Contact Us For Availability
2
MAY W10231343 MAY W10231343 Contact Us For Availability
2
MAY W10121282 MAY W10121282 Contact Us For Availability
2
MAY W10378254 MAY W10378254 Contact Us For Availability
2
MAY W10309238 MAY W10309238 Contact Us For Availability
2
MAY 12804701SP MAY 12804701SP Contact Us For Availability
2
MAY W10123795 MAY W10123795 Contact Us For Availability
2
MAY W10316089 MAY W10316089 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
MAY 12698403 MAY 12698403 Contact Us For Availability
3
MAY 12691605 MAY 12691605 Contact Us For Availability
3
SUPPORT, CRISPER (LEFT HAND) MAY 12531001 Contact Us For Availability
3
SUPPORT, CRISPER (RIGHT HAND) MAY 12531002 Contact Us For Availability
3
MAY W10121281 MAY W10121281 Contact Us For Availability
3
MAY W10377998 MAY W10377998 Contact Us For Availability
3
MAY 12369502SP MAY 12369502SP Contact Us For Availability
3
MAY W10443324 MAY W10443324 Contact Us For Availability
3
MAY 12939601 MAY 12939601 Contact Us For Availability
3
MAY W10480110 MAY W10480110 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12921801 MAY 12921801 Contact Us For Availability
4
MAY 12655903 MAY 12655903 Contact Us For Availability
4
MAY W10162697 MAY W10162697 Contact Us For Availability
4
EJECTOR, ARM MAY W10318914 Contact Us For Availability
4
BUCKET, SHELF MAY 12945801SP Contact Us For Availability
4
SCREW MAY W10303465 Contact Us For Availability
4
MAY W10445053 MAY W10445053 Contact Us For Availability
5
TOP HINGE COVER, RIGHT HAND (GREY) MAY 12962302AP Contact Us For Availability
5
MAY W10396902 MAY W10396902 Contact Us For Availability
5
MAY 12227301WD MAY 12227301WD Contact Us For Availability
5
MAY W10123444 MAY W10123444 Contact Us For Availability
5
STRIPPER, ICE MAY W10122563 Contact Us For Availability
5
MAY 12812902WD MAY 12812902WD Contact Us For Availability
5
MAY 12990204 MAY 12990204 Contact Us For Availability
5
MAY 13036201SP MAY 13036201SP Contact Us For Availability
5
CHUTE, EXT/YOKE (INCLUDES SWITCH) (GREY) MAY 13005705 Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
6
MAY 12981401AP MAY 12981401AP Contact Us For Availability
6
SWITCH, ROCKER MAY 12466103 Contact Us For Availability
6
MAY 12531901 MAY 12531901 Contact Us For Availability
6
MAY 12990513 MAY 12990513 Contact Us For Availability
6
MAY 12956603SP MAY 12956603SP Contact Us For Availability
6
MAY W10290336 MAY W10290336 Contact Us For Availability
6
ADAPTER, OUTER BIN MAY 12925403SP Contact Us For Availability
6
MAY W10306059 MAY W10306059 Contact Us For Availability
7
MAY 12961602 MAY 12961602 Contact Us For Availability
7
MAY 12905902 MAY 12905902 Contact Us For Availability
7
MAY 12656902 MAY 12656902 Contact Us For Availability
7
MAY W10151687 MAY W10151687 Contact Us For Availability
7
MAY W10351019 MAY W10351019 Contact Us For Availability
7
GASKET, DOOR RIGHT HAND (GREY) MAY W10443238 Contact Us For Availability
7
GASKET, DOOR LEFT HAND (GREY) MAY W10443240 Contact Us For Availability
7
BIN, UPPER (LEFT HAND) MAY 12924903 Contact Us For Availability
7
MAY 13036302 MAY 13036302 Contact Us For Availability
7
MAY 12958301 MAY 12958301 Contact Us For Availability
7
HARNESS, EVAPORATOR & HEATER MAY W10257095 Contact Us For Availability
8
MAY M0108107 MAY M0108107 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY 13048301 MAY 13048301 Contact Us For Availability
8
MAY W10356556 MAY W10356556 Contact Us For Availability
8
MAY W10068250 MAY W10068250 Contact Us For Availability
8
MAY W10291144 MAY W10291144 Contact Us For Availability
8
ADAPTER, CENTER BIN MAY 12925404SP Contact Us For Availability
8
MAY W10310688 MAY W10310688 Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
9
Screw, Hinge Cover MAY 12992602 Contact Us For Availability
9
BULB, LIGHT MAY W10311505 Contact Us For Availability
9
MAY 13029504 MAY 13029504 Contact Us For Availability
9
MAY 12920001SP MAY 12920001SP Contact Us For Availability
9
MAY W10460384 MAY W10460384 Contact Us For Availability
9
BULB, LIGHT MAY W10311527 Contact Us For Availability
9
TUBE, WATER MAY W10275942 Contact Us For Availability
9
BRACKET AND GLIDE ASSEMBLY MAY W10235357 Contact Us For Availability
9
MAY M0108106 MAY M0108106 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
HINGE, TOP RIGHT HAND MAY 12963205ED Contact Us For Availability
10
Socket, Light MAY 12570701V Contact Us For Availability
10
MAY 13048401 MAY 13048401 Contact Us For Availability
10
MAY W10372218 MAY W10372218 Contact Us For Availability
10
SWITCH, ROCKER MAY 2313326 Contact Us For Availability
10
HOUSING, FOIL MAY W10277466 Contact Us For Availability
10
BUCKET, GALLON MAY 12840005 Contact Us For Availability
10
MAY W10235367 MAY W10235367 Contact Us For Availability
10
YOKE AND PAD ASSEMBLY MAY W10185233 Contact Us For Availability
10
MAY 12729122 MAY 12729122 Contact Us For Availability
11
SCREW, CENTER HINGE MAY W10339086 Contact Us For Availability
11
MAY 12960101 MAY 12960101 Contact Us For Availability
11
GLIDE, DRAWER MAY W10235370 Contact Us For Availability
11
MAY W10127427 MAY W10127427 Contact Us For Availability
11
MAY W10312691 MAY W10312691 Contact Us For Availability
11
MAY W10308422 MAY W10308422 Contact Us For Availability
11
MAY W10287601 MAY W10287601 Contact Us For Availability
11
RETAINER, GLIDE (LEFT HAND) MAY 12925501SP Contact Us For Availability
11
RETAINER, GLIDE (RIGHT HAND) MAY 12925502SP Contact Us For Availability
11
MAY W10204187 MAY W10204187 Contact Us For Availability
12
MAY 12960301 MAY 12960301 Contact Us For Availability
12
MAY W10404019 MAY W10404019 Contact Us For Availability
12
MULLION, DOOR (GREY) MAY 12722813AP Contact Us For Availability
12
START DEVICE, COMBINATION (START RELAY AND OV MAY W10197428 Contact Us For Availability
13
TOP HINGE COVER, LEFT HAND (STAINLESS) MAY W10337648 Contact Us For Availability
13
MAY 12960001 MAY 12960001 Contact Us For Availability
13
MAY 13047701 MAY 13047701 Contact Us For Availability
13
MAY 13047801 MAY 13047801 Contact Us For Availability
13
MAY W10118612 MAY W10118612 Contact Us For Availability
13
BRACKET, DOOR SLIDE (LEFT HAND) MAY W10330991 Contact Us For Availability
13
BRACKET, DOOR SLIDE (RIGHT HAND) MAY W10330993 Contact Us For Availability
13
MAY 12945601SP MAY 12945601SP Contact Us For Availability
13
MAY W10137529 MAY W10137529 Contact Us For Availability
14
Screw, Top Hinge MAY 12992403 Contact Us For Availability
14
MAY UKF8001 MAY UKF8001 Contact Us For Availability
14
PAN, CRISPER MAY 12530505SP Contact Us For Availability
14
ASSEMBLY, MODULE MAY W10377147 Contact Us For Availability
14
MAY W10315248 MAY W10315248 Contact Us For Availability
14
MAY 12028505AP MAY 12028505AP Contact Us For Availability
14
THERMOSTAT MAY 12639311SP Contact Us For Availability
15
CENTER HINGE, RIGHT HAND (GREY) MAY 13000002AP Contact Us For Availability
15
MAY 12955901 MAY 12955901 Contact Us For Availability
15
MAY 12227303WD MAY 12227303WD Contact Us For Availability
15
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
15
CLIP, FAN MAY 12956601 Contact Us For Availability
15
MAY 12968202AP MAY 12968202AP Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
16
MAY 12957601 MAY 12957601 Contact Us For Availability
16
MAY W10444032 MAY W10444032 Contact Us For Availability
16
MAY W10251965 MAY W10251965 Contact Us For Availability
16
MAY W10251968 MAY W10251968 Contact Us For Availability
16
MAY W10465946 MAY W10465946 Contact Us For Availability
16
SWITCH, LIGHT MAY 12466111SP Contact Us For Availability
16
MAY 12945501SP MAY 12945501SP Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
MAY W10334463 MAY W10334463 Contact Us For Availability
17
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
17
MAY 12990504 MAY 12990504 Contact Us For Availability
17
YOKE, ICE (DISPENSER) MAY 63052A001 Contact Us For Availability
17
CLIP, BUSHING MAY 12996601 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
18
HINGE, TOP LEFT HAND MAY 12963204ED Contact Us For Availability
18
MAY W10463663 MAY W10463663 Contact Us For Availability
18
MAY 12204822 MAY 12204822 Contact Us For Availability
18
MAY 12945701SP MAY 12945701SP Contact Us For Availability
18
MAY W10346420 MAY W10346420 Contact Us For Availability
19
MAY 12664501SP MAY 12664501SP Contact Us For Availability
19
MAY W10273464 MAY W10273464 Contact Us For Availability
19
MAY 12990521 MAY 12990521 Contact Us For Availability
19
MAY W10488000 MAY W10488000 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY W10312696 MAY W10312696 Contact Us For Availability
20
GASKET, FOAM MAY A3189395 Contact Us For Availability
20
NAMEPLATE (STAINLESS) MAY W10170766 Contact Us For Availability
20
MAY W10292802 MAY W10292802 Contact Us For Availability
21
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
21
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
21
MAY 12960902 MAY 12960902 Contact Us For Availability
21
ADAPTER, SIDE (LEFT HAND) MAY W10284682 Contact Us For Availability
21
ADAPTER, SIDE (RIGHT HAND) MAY W10284683 Contact Us For Availability
21
MAY 13107853S MAY 13107853S Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
MAY W10236194 MAY W10236194 Contact Us For Availability
22
Screw MAY 12990515 Contact Us For Availability
22
MAY 12959901 MAY 12959901 Contact Us For Availability
22
MAY W10314606 MAY W10314606 Contact Us For Availability
23
MAY W10296536 MAY W10296536 Contact Us For Availability
23
MAY 12987301 MAY 12987301 Contact Us For Availability
23
MAY 12990512 MAY 12990512 Contact Us For Availability
23
MAY 12951401 MAY 12951401 Contact Us For Availability
23
MAY 12963002SP MAY 12963002SP Contact Us For Availability
23
MAY 12963102SP MAY 12963102SP Contact Us For Availability
24
CENTER HINGE, LEFT HAND (GREY) MAY 13000001AP Contact Us For Availability
24
MAY 12530805SP MAY 12530805SP Contact Us For Availability
24
MAY 12986101 MAY 12986101 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
MAY 12990702 MAY 12990702 Contact Us For Availability
25
MAY W10118193 MAY W10118193 Contact Us For Availability
25
MAY 13048201 MAY 13048201 Contact Us For Availability
25
MAY 12951101 MAY 12951101 Contact Us For Availability
26
MAY W10118194 MAY W10118194 Contact Us For Availability
26
MAY 13048501SP MAY 13048501SP Contact Us For Availability
26
MOTOR, EVAPORATOR MAY W10162809 Contact Us For Availability
26
MAY W10234027 MAY W10234027 Contact Us For Availability
27
MAY 12655204 MAY 12655204 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY 12990302 MAY 12990302 Contact Us For Availability
28
Rail, Center Crisper MAY 12530701 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR MAY W10200250 Contact Us For Availability
29
GASKET-HV BOX MAY 12957801 Contact Us For Availability
29
MAY 12656820 MAY 12656820 Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
30
MAY W10211849 MAY W10211849 Contact Us For Availability
30
FRAME, CRISPER MAY 12802302SP Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
TUBE-DRAIN MAY W10344402 Contact Us For Availability
31
MAY 13048601SP MAY 13048601SP Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
MAY 12990501 MAY 12990501 Contact Us For Availability
32
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
33
MAY 12820505 MAY 12820505 Contact Us For Availability
33
MAY 13048801 MAY 13048801 Contact Us For Availability
33
MAY 12791405SP MAY 12791405SP Contact Us For Availability
34
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
34
MAY 13042603 MAY 13042603 Contact Us For Availability
34
MAY 13042604 MAY 13042604 Contact Us For Availability
34
MAY W10334458 MAY W10334458 Contact Us For Availability
35
MAY W10312695 MAY W10312695 Contact Us For Availability
36
ROLLER ASSEMBLY (RIGHT HAND) MAY W10515762 Contact Us For Availability
36
ROLLER ASSEMBLY (LEFT HAND) MAY W10515763 Contact Us For Availability
100
ASSEMBLY, ICEMAKER MAY W10377151 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM MAY 212643 Contact Us For Availability
NI
ENAMEL, WHITE MAY 350930 Contact Us For Availability
NI
ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
WHITE PRIMER MAY 350942 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, ADHESIVE MAY 542639 Contact Us For Availability
NI
MISCELLANEOUS, BAG MAY 606755 Contact Us For Availability
NI
MISCELLANEOUS, ICE CONTAINER (COMPLETE) MAY 67007112 Contact Us For Availability
NI
ENAMEL, (BOTTLE) (WHITE) MAY 72017 Contact Us For Availability
NI
ENAMEL, (BOTTLE) (BLACK) MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (WHITE) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, TERMINAL MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FOAM MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION MAY 978941 Contact Us For Availability
× ![]()
