Model Maytag MER8650FZ1 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

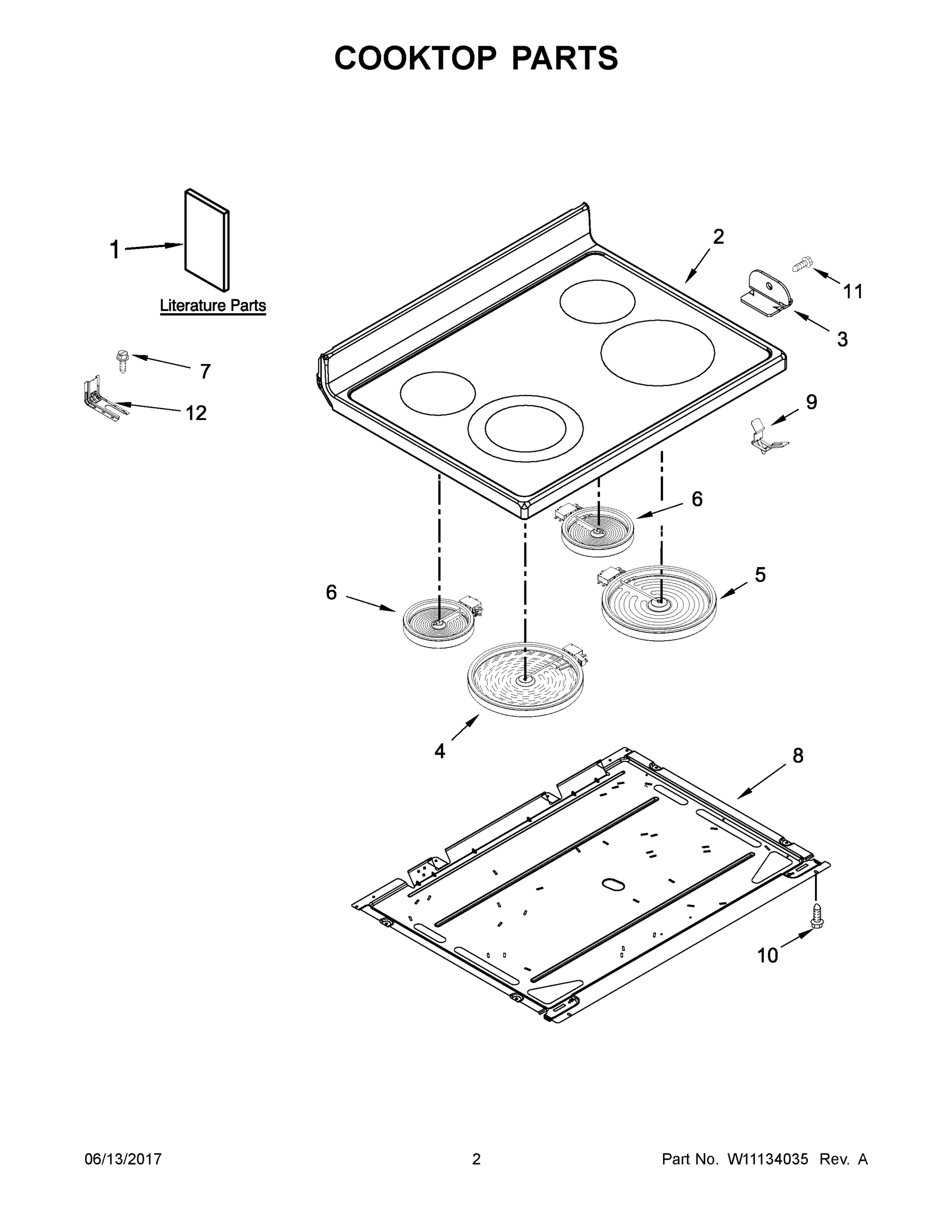

02 - COOKTOP PARTS

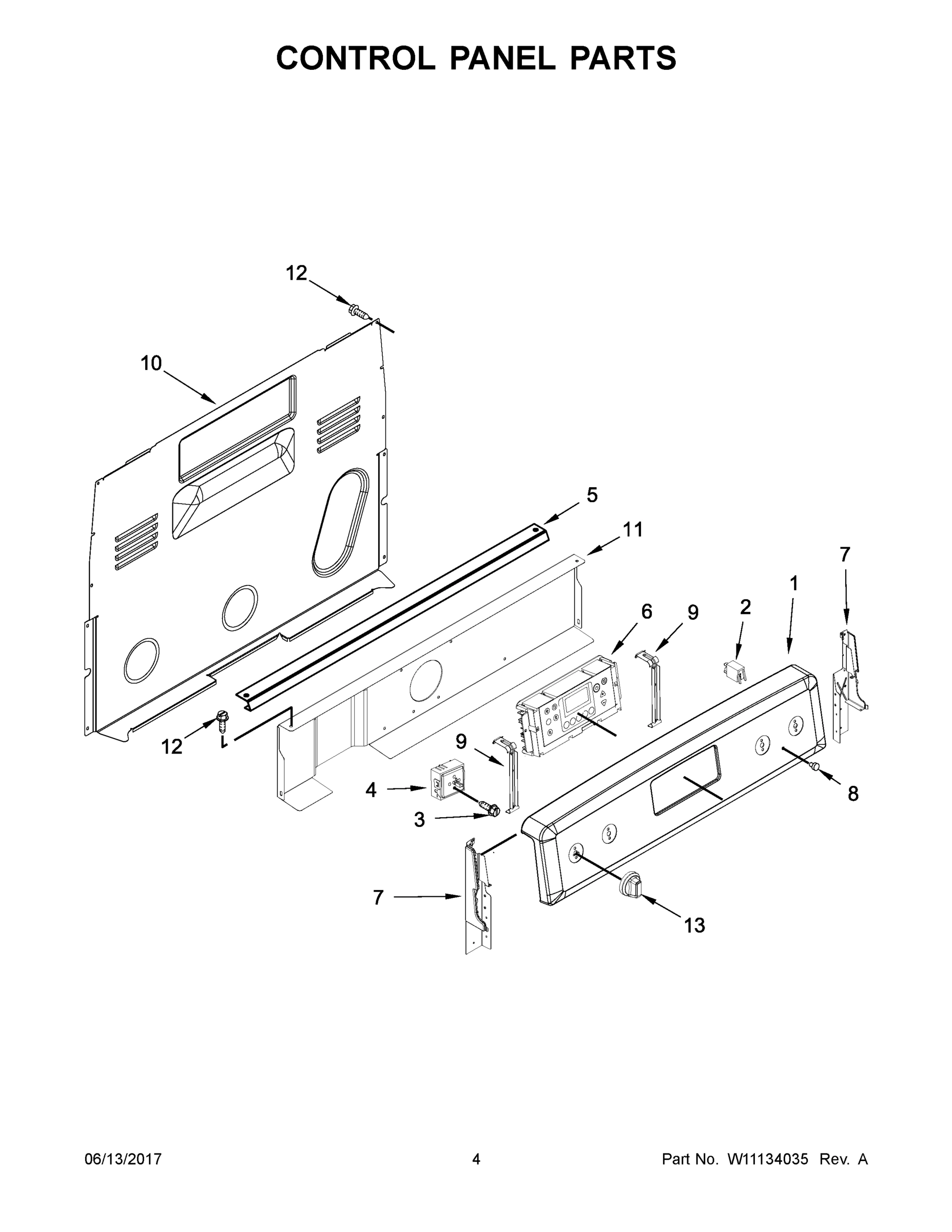

03 - CONTROL PANEL PARTS

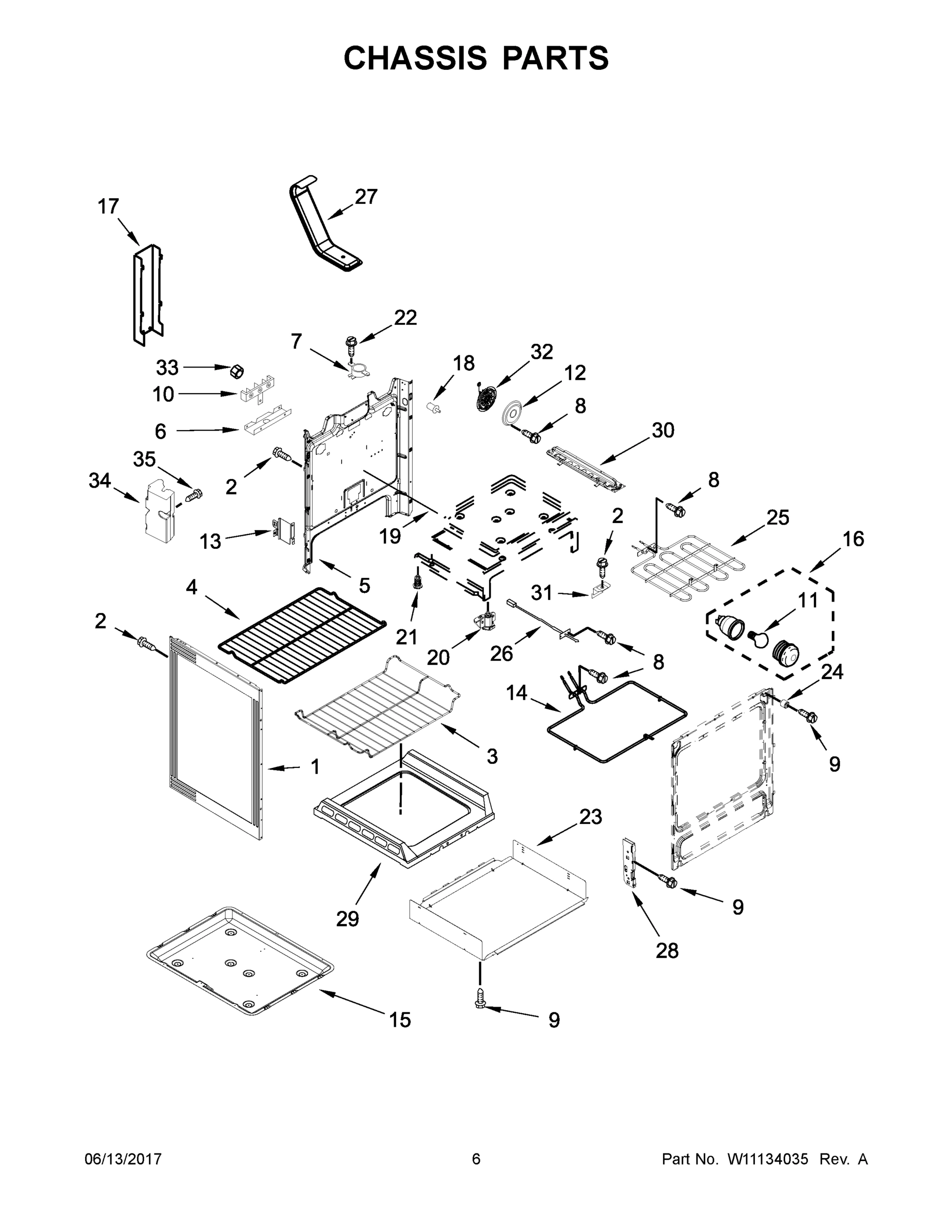

04 - CHASSIS PARTS

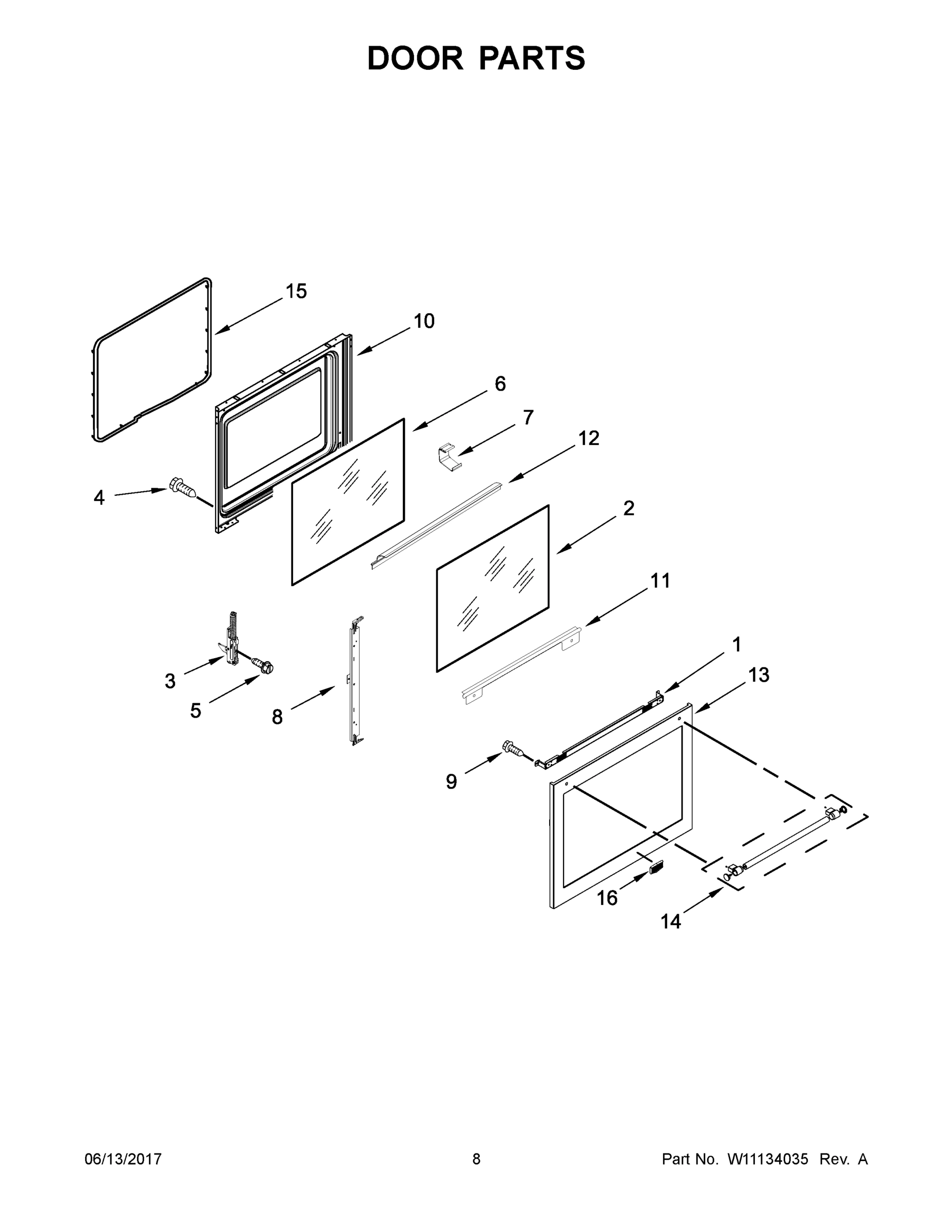

05 - DOOR PARTS

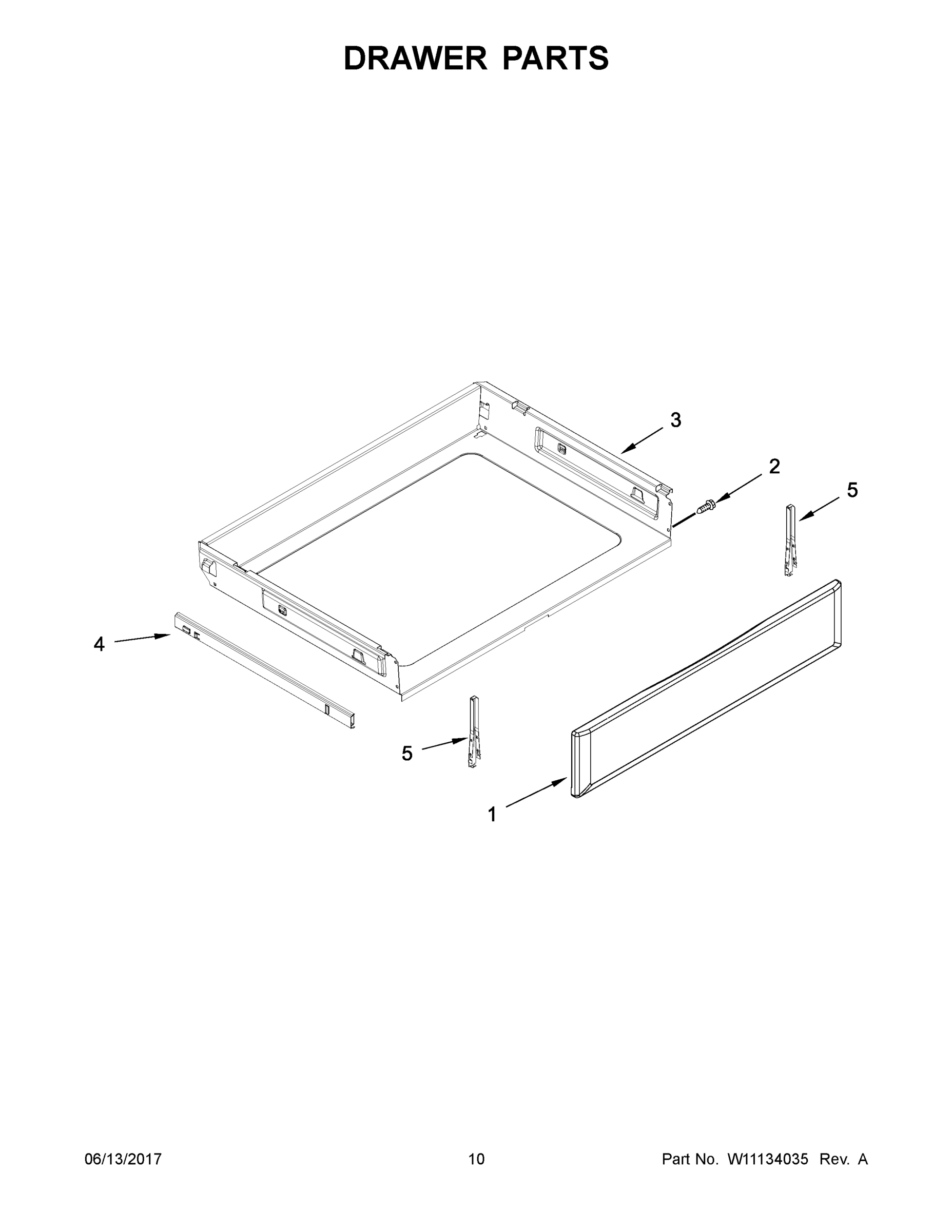

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MER8650FZ1 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
GUIDE, USE AND CARE MAY W10667165 Contact Us For Availability
1
CONSOLE (STAINLESS) MAY W10655836 Contact Us For Availability
1
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
1
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
1
PANEL, DRAWER (STAINLESS) MAY W10861551 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W10403811 Contact Us For Availability
1B
SHEET, TECH MAY W10667168 Contact Us For Availability
1C
GUIDE, QUICK START (ENGLISH) MAY W10400064 Contact Us For Availability
1D
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
2
COOKTOP (BLACK) MAY W10655896 Contact Us For Availability
2
SCREW MAY 3196165 Contact Us For Availability
2
SCREW MAY 3196178 Contact Us For Availability
2
LIGHT, INDICATOR (125V) MAY 8523265 Contact Us For Availability
2
GLASS, OUTER (STAINLESS) MAY W10693388 Contact Us For Availability
3
BRACKET, COOKTOP (LEFT) MAY W10607641 Contact Us For Availability
3
SCREW MAY 3400882 Contact Us For Availability
3
HINGE, DOOR (ACTIVE) MAY W10885519 Contact Us For Availability
3
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3A
BRACKET, COOKTOP (RIGHT) MAY W10607642 Contact Us For Availability
4
ELEMENT (3000/1400W) (LEFT FRONT) MAY W10275048 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT) MAY W10437092 Contact Us For Availability
4
RACK, OVEN MAY W10531060 Contact Us For Availability
4
SCREW MAY W10031790 Contact Us For Availability
4
SLIDE, DRAWER (LEFT) MAY W10441804 Contact Us For Availability
4A
SWITCH, INFINITE (LEFT REAR & RIGHT REAR) MAY W10578768 Contact Us For Availability
4A
SLIDE, DRAWER (RIGHT) MAY W10441805 Contact Us For Availability
4B
SWITCH, INFINITE (RIGHT FRONT) MAY W10437094 Contact Us For Availability
5
ELEMENT (3200W) (RIGHT FRONT) MAY W10251108 Contact Us For Availability
5
BACK, MAIN (NOT SERVICED) MAY N/P Contact Us For Availability
5
SCREW MAY W10362924 Contact Us For Availability
5
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
5
BRACKET, DRAWER MAY W10318027 Contact Us For Availability
6
ELEMENT (1200W) (LEFT REAR & RIGHT REAR) MAY 8273994 Contact Us For Availability
6
BOARD, CONTROL (STAINLESS) MAY W10888768 Contact Us For Availability
6
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
6
GLASS, INNER MAY W10813616 Contact Us For Availability
7
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
7
ENDPOST, CONSOLE (BLACK (LEFT)) MAY W10184437 Contact Us For Availability
7
FUSE, THERMAL MAY 3196548 Contact Us For Availability
7
CLIP, PANEL MAY W10137382 Contact Us For Availability
7A
ENDPOST, CONSOLE (BLACK (RIGHT)) MAY W10184438 Contact Us For Availability
8
PAN, RADIANT ELEMENT MAY W10691223 Contact Us For Availability
8
LENS, INDICATOR MAY 3196068 Contact Us For Availability
8
RAIL, HORIZONTAL SUPPORT MAY W10813140 Contact Us For Availability
9
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
9
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
9
SCREW MAY 3196560 Contact Us For Availability
9
SCREW MAY 8533988 Contact Us For Availability
10
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
10
BLOCK, TERMINAL MAY W10245259 Contact Us For Availability
10
LINER, DOOR MAY W10826568 Contact Us For Availability
11
SHIELD, HEAT MAY W10134247 Contact Us For Availability
11
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
11
RAIL, VERTICAL SUPPORT MAY W10813139 Contact Us For Availability
12
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
12
COVER, CONVECTION MAY W10346154 Contact Us For Availability
12
SCOOP, DOOR (BLACK) MAY W10613791 Contact Us For Availability
13
KNOB (STAINLESS) MAY W10858252 Contact Us For Availability
13
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
13
ASSEMBLY, DOOR SKIN (STAINLESS) MAY W10867480 Contact Us For Availability
14
ELEMENT, BAKE MAY W10774342 Contact Us For Availability
14
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10834521 Contact Us For Availability
15
PAN, BAKE MAY W10346147 Contact Us For Availability
15
GASKET, DOOR MAY W10162385 Contact Us For Availability
16
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
16
BADGE MAY W10612925 Contact Us For Availability
17
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
18
SWITCH, DOOR MAY W10627802 Contact Us For Availability
19
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
20
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
21
FOOT, LEVELING MAY W10058460 Contact Us For Availability
22
SCREW MAY 3196169 Contact Us For Availability
23
SHIELD, HEAT MAY W10726740 Contact Us For Availability
24
SPACER, DOOR MAY 9758701 Contact Us For Availability
25
ELEMENT, BROIL MAY W10544951 Contact Us For Availability
26
SENSOR MAY W10586204 Contact Us For Availability
27
TUBE, VENT MAY W10134285 Contact Us For Availability
28
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
29
BOTTOM, OVEN MAY W10774446 Contact Us For Availability
30
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
30A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
31
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
32
FAN, CONVECTION MAY W10617485 Contact Us For Availability
33
NUT MAY 3400029 Contact Us For Availability
34
COUNTERWEIGHT MAY W10910404 Contact Us For Availability
35
SCREW MAY W11034869 Contact Us For Availability
NI
HARNESS, SENSOR MAY W10083650 Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
HARNESS, COOKTOP (RIGHT) MAY W10744210 Contact Us For Availability
NI
HARNESS, MAIN MAY W10753408 Contact Us For Availability
NI
HARNESS, COOKTOP (LEFT) MAY W10844296 Contact Us For Availability
NI
ACCESSORIES, RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
INSULATION, WRAP MAY W10194393 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10225523 Contact Us For Availability
NI
INSULATION, BACK MAY W10225524 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463A Contact Us For Availability
NI
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORIES, KIT, OVEN CLEANING MAY W10423113RP Contact Us For Availability
NI
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
