Model Maytag MER6600FW0 RANGE/OVEN, ELECTRIC, FREESTANDING – Common Parts & Diagrams
01 - COVER SHEET

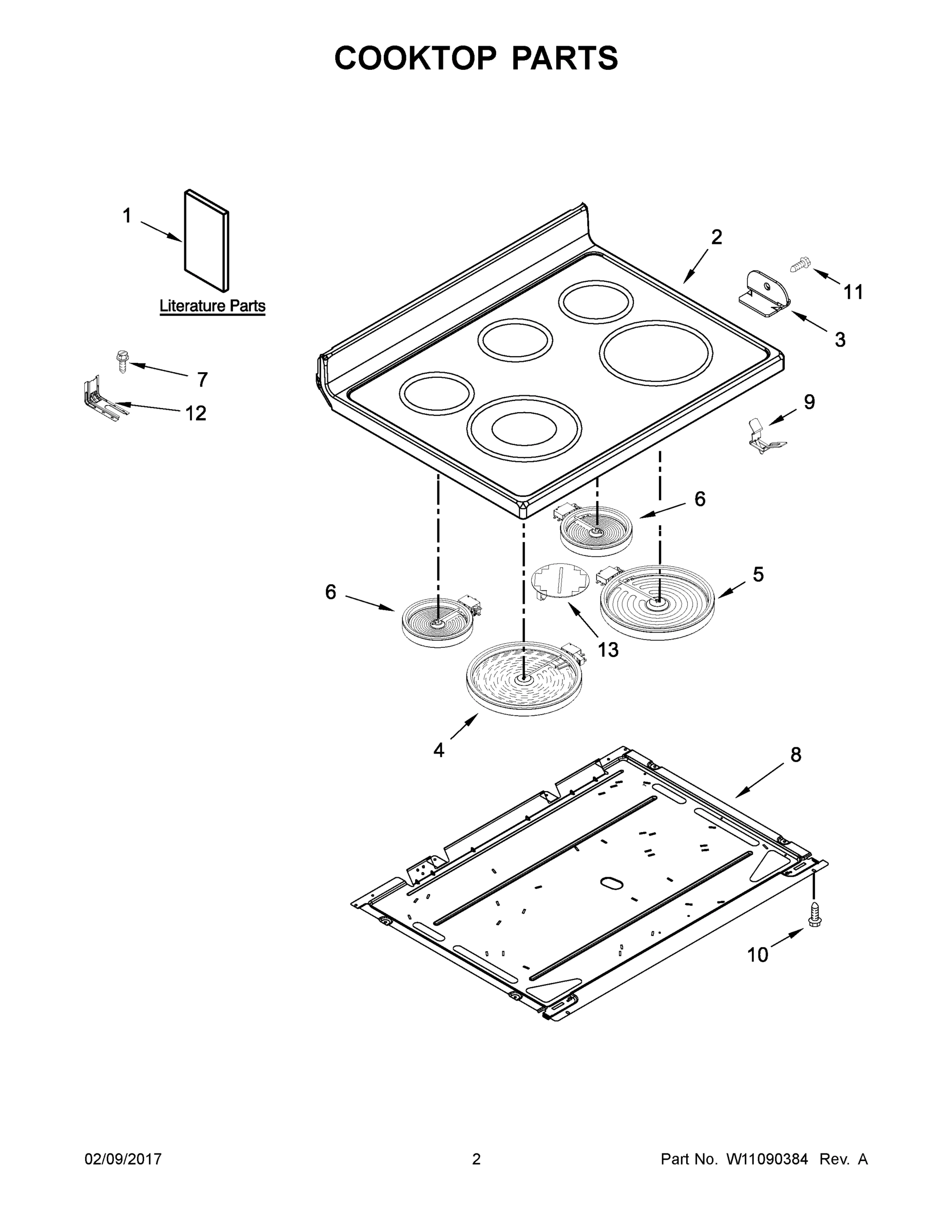

02 - COOKTOP PARTS

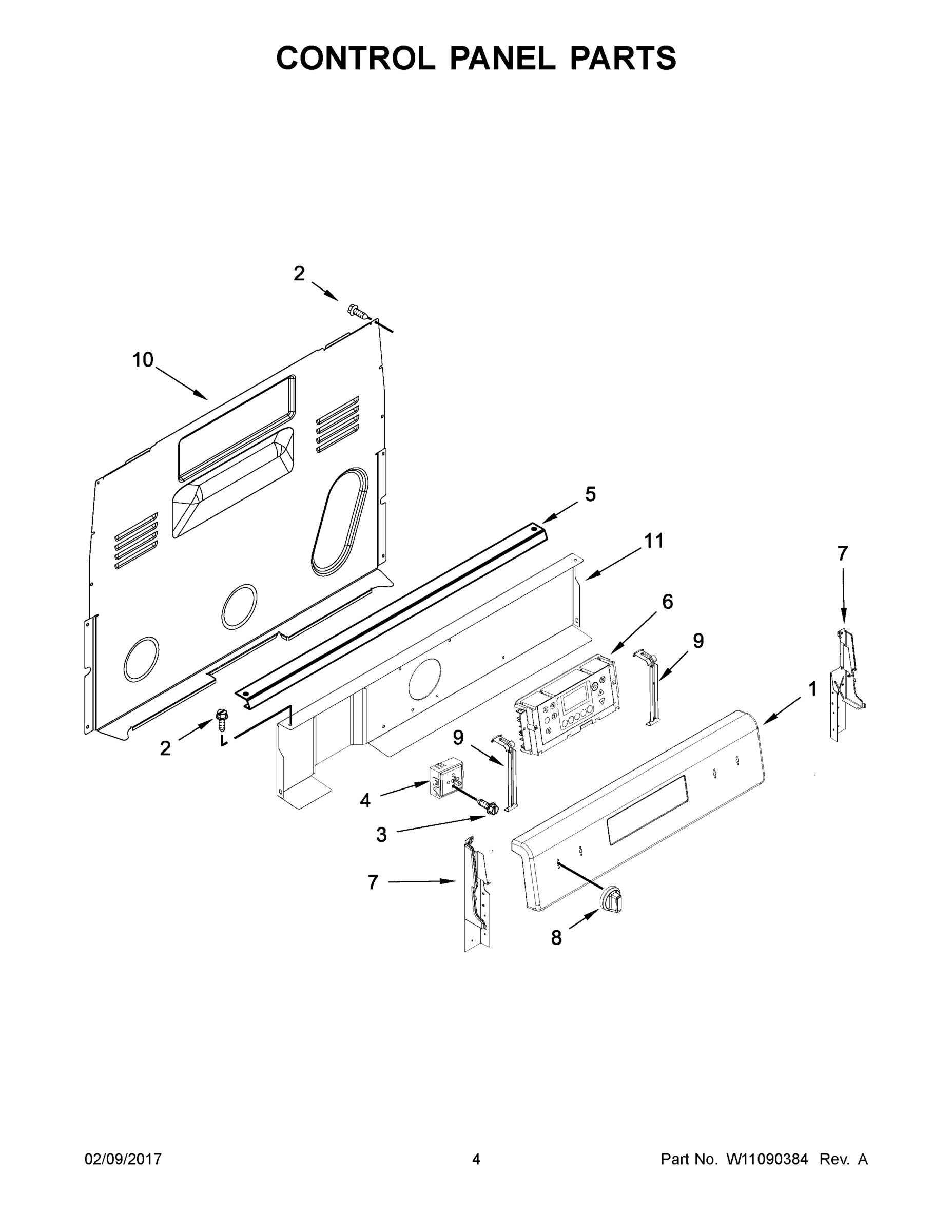

03 - CONTROL PANEL PARTS

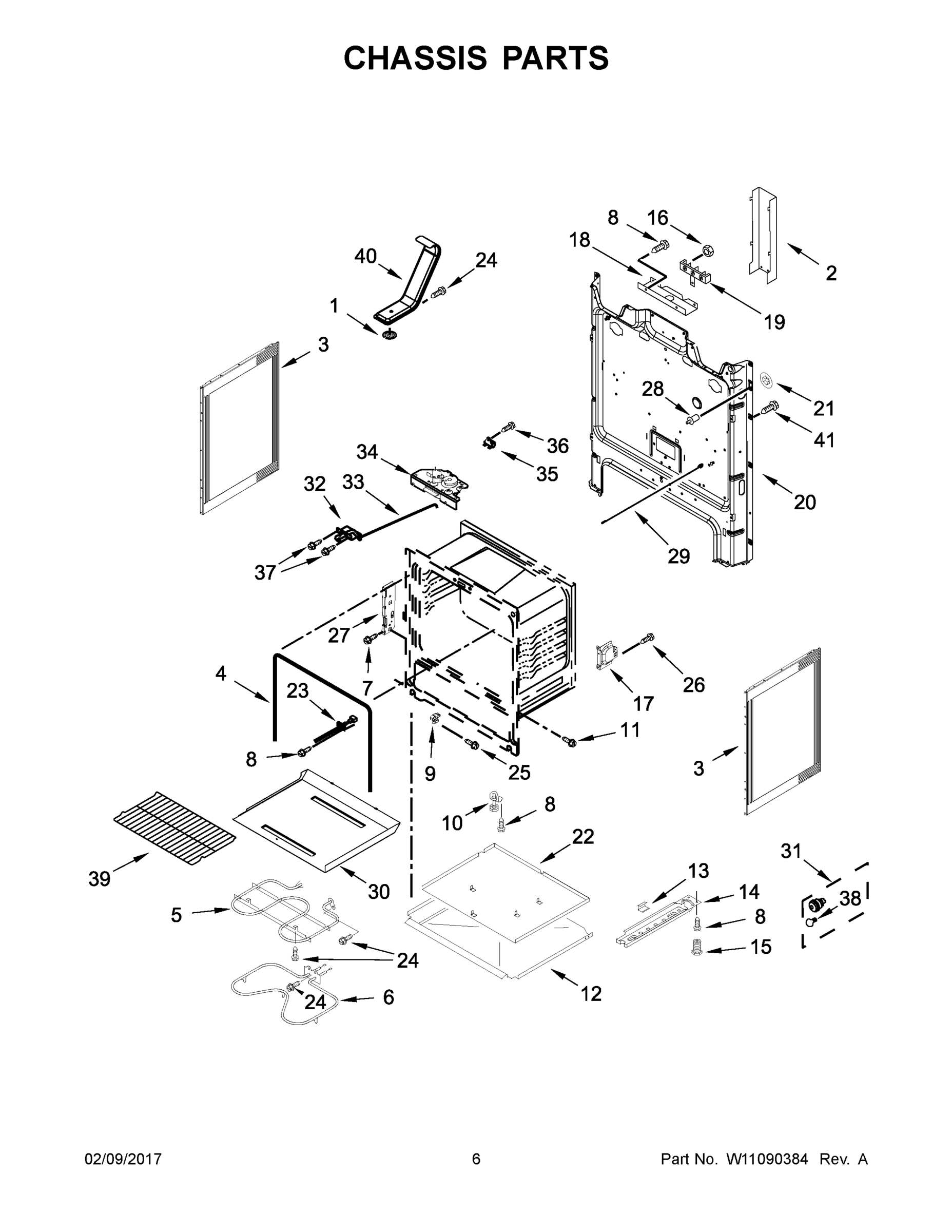

04 - CHASSIS PARTS

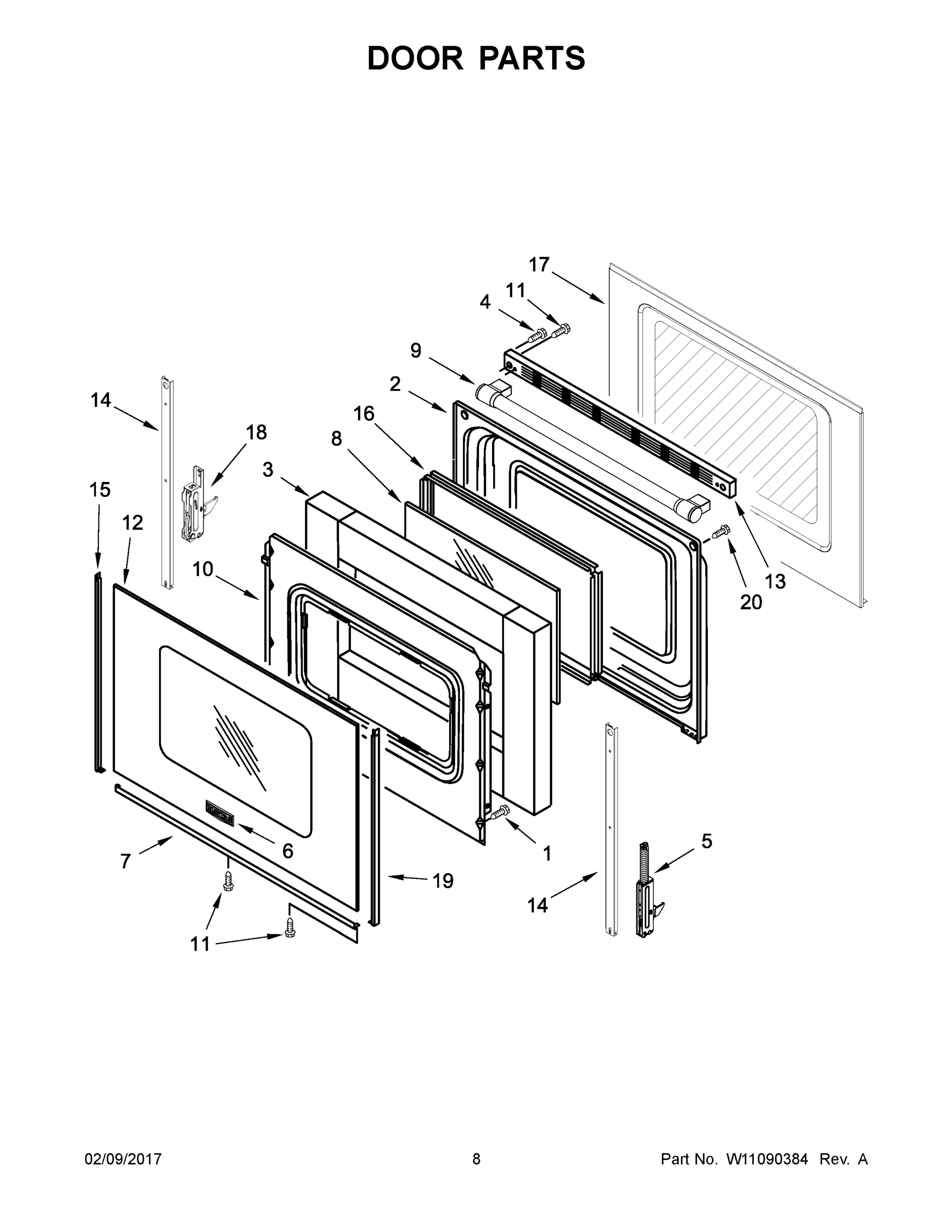

05 - DOOR PARTS

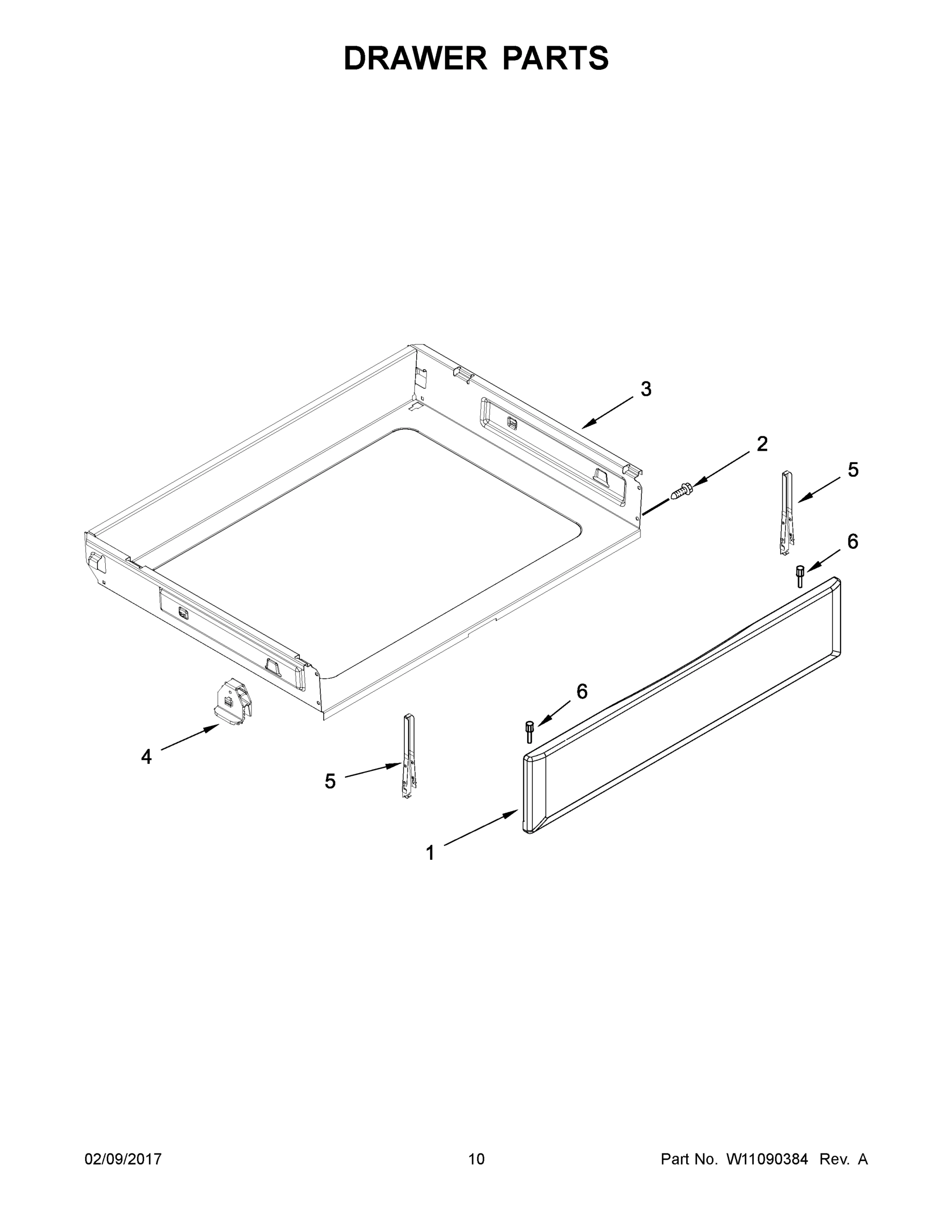

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MER6600FW0 RANGE/OVEN, ELECTRIC, FREESTANDING
1
MAY W11037227 MAY W11037227 Contact Us For Availability
1
MAY W10885609 MAY W10885609 Contact Us For Availability
1
SCREEN, VENT MAY 9761301 Contact Us For Availability
1
SCREW MAY W10031790 Contact Us For Availability
1
PANEL, DRAWER (BLACK) MAY 8053341 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W10403811 Contact Us For Availability
1A
MAY W10885608 MAY W10885608 Contact Us For Availability
1A
PANEL, DRAWER (WHITE) MAY 8053339 Contact Us For Availability
1B
SHEET, TECH MAY W10842032 Contact Us For Availability
1B
MAY W10885607 MAY W10885607 Contact Us For Availability
1B
MAY W10861542 MAY W10861542 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
2
MAY W11022824 MAY W11022824 Contact Us For Availability
2
SCREW MAY 3196165 Contact Us For Availability
2
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
2
LINER, DOOR MAY 9761344 Contact Us For Availability
2A
MAY W11022825 MAY W11022825 Contact Us For Availability
3
BRACKET, COOKTOP (LEFT) MAY W10607641 Contact Us For Availability
3
SCREW MAY 3400882 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
3
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3A
BRACKET, COOKTOP (RIGHT) MAY W10607642 Contact Us For Availability
3A
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
4
ELEMENT (3000/1400W) (LEFT FRONT) MAY W10275048 Contact Us For Availability
4
SWITCH, INFINITE (DUAL) (LEFT FRONT) MAY W10434452 Contact Us For Availability
4
SEAL, DOOR MAY W10658354 Contact Us For Availability
4
SCREW MAY W10200660 Contact Us For Availability
4
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
4A
SWITCH, INFINITE (LEFT REAR & RIGHT REAR) MAY 3148951 Contact Us For Availability
4B
SWITCH, INFINITE (RIGHT FRONT) MAY 3148954 Contact Us For Availability
5
ELEMENT (2500W) (RIGHT FRONT) MAY 8273992 Contact Us For Availability
5
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
5
ELEMENT, BROIL MAY 9757340 Contact Us For Availability
5
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
5
BRACKET, MOUNTING DRAWER (WHITE AND BLACK MOD MAY W10462912 Contact Us For Availability
5A
BRACKET, MOUNTING DRAWER (STAINLESS MODEL) MAY W10462910 Contact Us For Availability
6
ELEMENT (1200W) (LEFT REAR & RIGHT REAR) MAY 8273994 Contact Us For Availability
6
MAY W10904688 MAY W10904688 Contact Us For Availability
6
ELEMENT, BAKE MAY 9755770 Contact Us For Availability
6
BADGE MAY W10612925 Contact Us For Availability
6
RIVET, PUSH (BLACK) MAY 3196813 Contact Us For Availability
6A
MAY W10904686 MAY W10904686 Contact Us For Availability
6A
RIVET, PUSH (WHITE) MAY 3196814 Contact Us For Availability
7
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
7
ENDPOST, CONSOLE (BLACK (LEFT)) MAY W10184437 Contact Us For Availability
7
SCREW MAY W10031780 Contact Us For Availability
7
TRIM, LOWER DOOR (BLACK) MAY 8523177 Contact Us For Availability
7A
ENDPOST, CONSOLE (WHITE (LEFT)) MAY W10184433 Contact Us For Availability
7A
TRIM, LOWER DOOR (WHITE) MAY 8523175 Contact Us For Availability
7B
ENDPOST, CONSOLE (BLACK (RIGHT)) MAY W10184438 Contact Us For Availability
7C
ENDPOST, CONSOLE (WHITE (RIGHT)) MAY W10184434 Contact Us For Availability
8
PAN, RADIANT ELEMENT MAY W10691223 Contact Us For Availability
8
SCREW MAY 3196178 Contact Us For Availability
8
MAY W10892251 MAY W10892251 Contact Us For Availability
8
GLASS, INNER MAY 9758162 Contact Us For Availability
8A
MAY W10892250 MAY W10892250 Contact Us For Availability
8B
MAY W10858250 MAY W10858250 Contact Us For Availability
9
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
9
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
9
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
9
HANDLE, OVEN DOOR (BLACK) MAY W10889624 Contact Us For Availability
9A
HANDLE, OVEN DOOR (WHITE) MAY W10889625 Contact Us For Availability
9B
HANDLE, OVEN DOOR (STAINLESS) MAY W10834521 Contact Us For Availability
10
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
10
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
10
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
11
SHIELD, HEAT MAY W10134247 Contact Us For Availability
11
SCREW MAY W10067840 Contact Us For Availability
11
SCREW MAY W10480830 Contact Us For Availability
12
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
12
TRAY, INSULATION MAY W10134121 Contact Us For Availability
12
GLASS, WINDOW (BLACK) MAY W10884159 Contact Us For Availability
12A
GLASS, WINDOW (WHITE) MAY W10409945 Contact Us For Availability
13
ELEMENT, WARM ZONE MAY W10799048 Contact Us For Availability
13
CLIP, PANEL MAY W10137382 Contact Us For Availability
13
MAY W10875233 MAY W10875233 Contact Us For Availability
13A
MAY W10875232 MAY W10875232 Contact Us For Availability
13B
MAY W11047800 MAY W11047800 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
14
STRAP, DOOR MAY W10544179 Contact Us For Availability
14A
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
FOOT, LEVELING MAY W10058460 Contact Us For Availability
15
TRIM, DOOR (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
15A
TRIM, DOOR (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
16
NUT MAY 3400029 Contact Us For Availability
16
FRAME, GLASS MAY W10316950 Contact Us For Availability
17
CLIP, OVEN SUPPORT MAY W10404688 Contact Us For Availability
17
MAY W10861544 MAY W10861544 Contact Us For Availability
18
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
18
HINGE, ACTIVE (WITH SPRING) MAY W10299224 Contact Us For Availability
19
BLOCK, TERMINAL MAY W10245259 Contact Us For Availability
19
TRIM, DOOR (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
19A
TRIM, DOOR (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
20
BACK, MAIN MAY W10289149 Contact Us For Availability
20
SCREW MAY W10327235 Contact Us For Availability
21
NUT MAY 3400968 Contact Us For Availability
22
SHIELD, HEAT MAY W10134125 Contact Us For Availability
23
SENSOR, OVEN MAY W10181986 Contact Us For Availability
24
SCREW MAY 3196154 Contact Us For Availability
25
SCREW MAY 3400080 Contact Us For Availability
26
SCREW MAY 3196169 Contact Us For Availability
27
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
28
SWITCH, DOOR MAY W10627802 Contact Us For Availability
29
ROD, DOOR SWITCH MAY 9757239 Contact Us For Availability
30
TRAY, HIDDEN BAKE MAY W10183712 Contact Us For Availability
31
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
32
ASSEMBLY, DOOR LATCH (FRONT) MAY 9761013 Contact Us For Availability
33
ROD, LATCH MAY W10078380 Contact Us For Availability
34
ASSEMBLY, DOOR LATCH (REAR) MAY W10107820 Contact Us For Availability
35
FUSE, THERMAL MAY 3196548 Contact Us For Availability
36
SCREW MAY 3196172 Contact Us For Availability
37
SCREW MAY 3196560 Contact Us For Availability
38
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
39
RACK, OVEN MAY W10268578 Contact Us For Availability
40
TUBE, VENT MAY W10134285 Contact Us For Availability
41
SCREW MAY 3400016 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, WARM ZONE MAY W10174460 Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
HARNESS, HIDDEN BAKE MAY W10465644 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP RIGHT) MAY W10848522 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10848523 Contact Us For Availability
NI
MAY W10891469 MAY W10891469 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
INSULATION, BACK MAY W10326347 Contact Us For Availability
NI
INSULATION, FLUE MAY W10333344 Contact Us For Availability
NI
CARD, INSULATOR MAY W10646923 Contact Us For Availability
NI
INSULATION, WRAP MAY W10774939 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463A Contact Us For Availability
NI
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORIES, KIT, OVEN CLEANING MAY W10423113RP Contact Us For Availability
NI
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
