Model Electrolux MEF302PBDE RANGE – Common Parts & Diagrams
01 - COVER

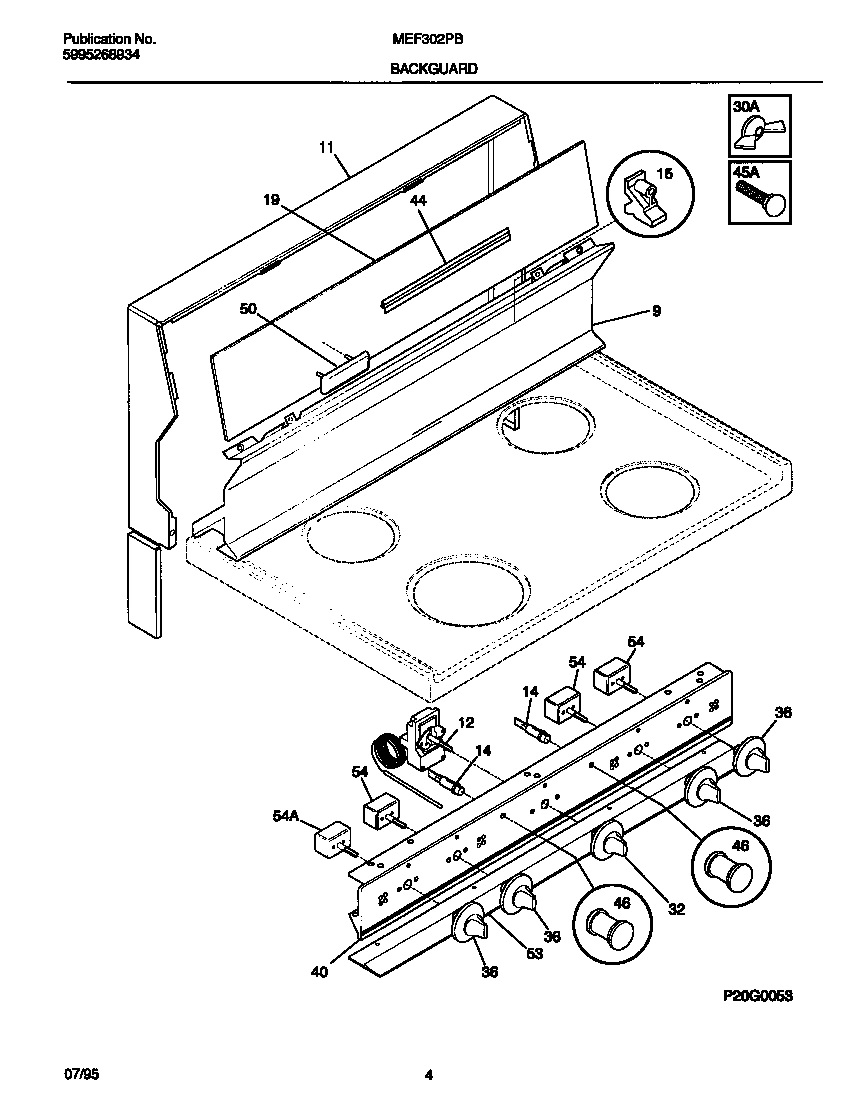

03 - BACKGUARD

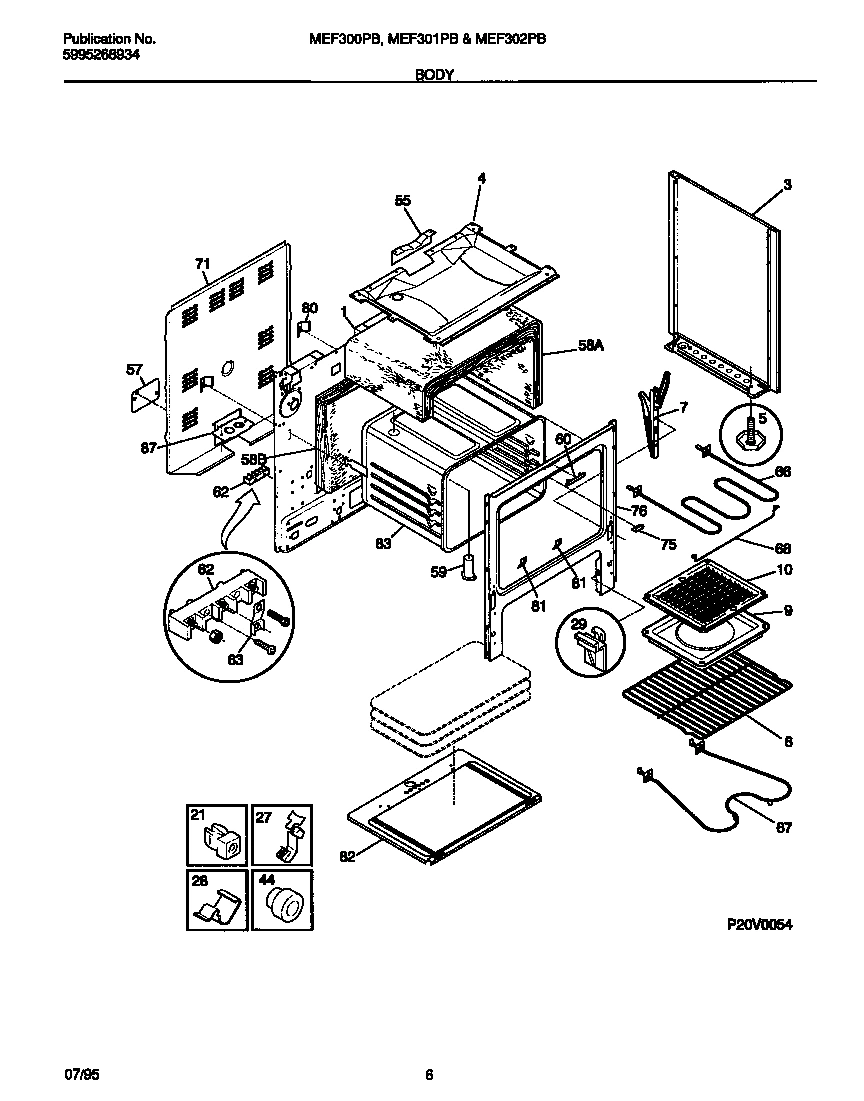

04 - BODY

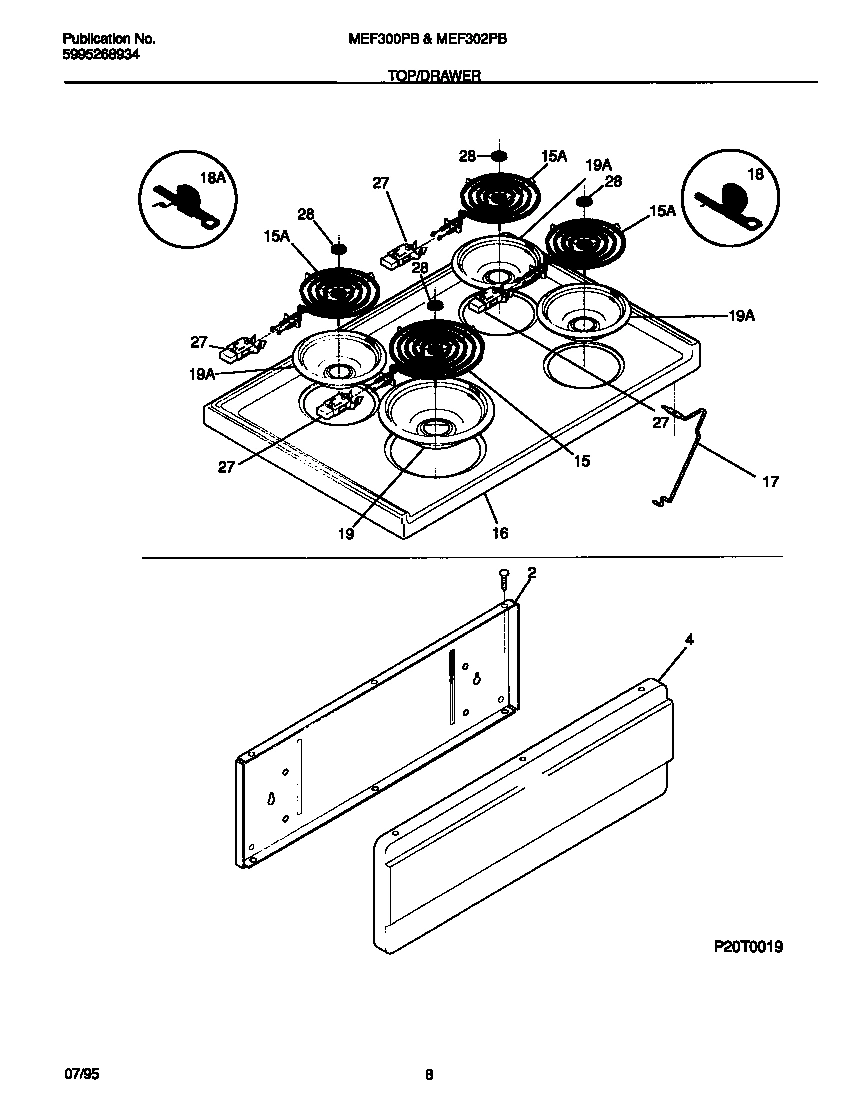

05 - TOP/DRAWER

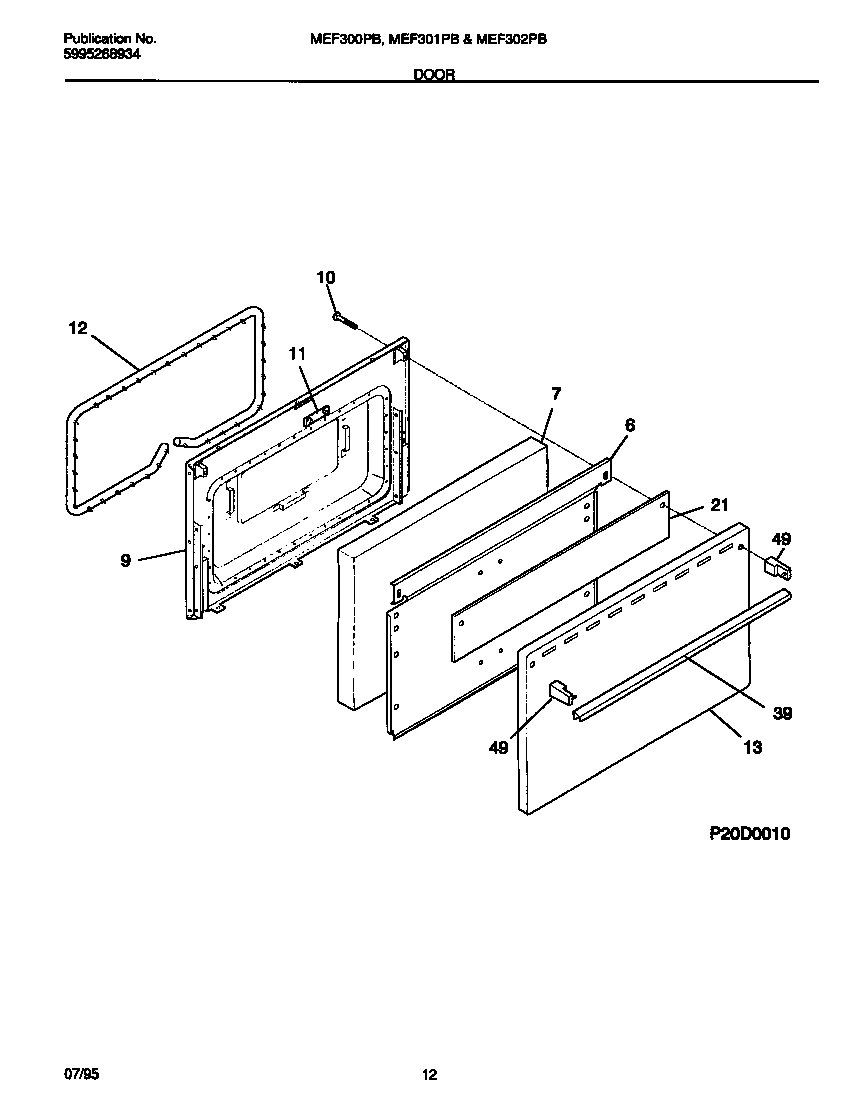

07 - DOOR

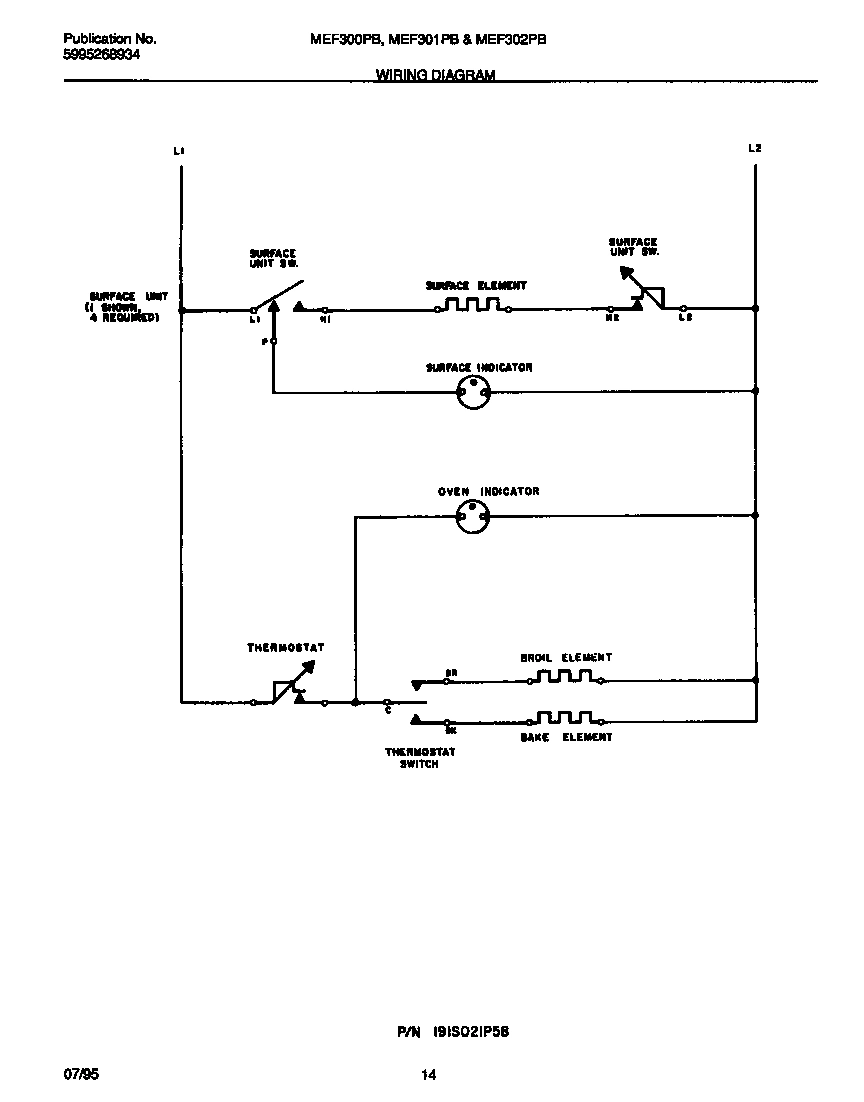

08 - WIRING DIAGRAM
Common parts from model Electrolux MEF302PBDE RANGE
*38844
WCI 316073400 WCI 316073400 Contact Us For Availability
*38845
WCI 316077000 WCI 316077000 Contact Us For Availability
*38848
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*38850
WCI 316071600 WCI 316071600 Contact Us For Availability
*38851
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*38854
WCI 5303280311 WCI 5303280311 Contact Us For Availability
1
WCI 316029406 WCI 316029406 Contact Us For Availability
1
WIRING DIAGRAM WCI 19100210058 Contact Us For Availability
1A
WCI 316029410 WCI 316029410 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316081006 WCI 316081006 Contact Us For Availability
3A
WCI 316081007 WCI 316081007 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
PANEL-DUMMY, ALMOND WCI 3051202 Contact Us For Availability
4A
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5A
WCI 3934058 WCI 3934058 Contact Us For Availability
5C
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
WCI 316007003 WCI 316007003 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 316066602 WCI 316066602 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
13
Panel,oven door ,almond WCI 3202316 Contact Us For Availability
16
WCI 3051380 WCI 3051380 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
58A
WCI 316047702 WCI 316047702 Contact Us For Availability
58B
WCI 5303274967 WCI 5303274967 Contact Us For Availability
59
WCI 316073601 WCI 316073601 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
68
SUPPORT-ELEMENT WCI 3205756 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
75
COVER-OVEN SEAM WCI 3202082 Contact Us For Availability
76
WCI 316066702 WCI 316066702 Contact Us For Availability
80
SPRING-OVEN REAR WCI 3016281 Contact Us For Availability
81
WCI 316072700 WCI 316072700 Contact Us For Availability
82
WCI 316072600 WCI 316072600 Contact Us For Availability
83
WCI 316073001 WCI 316073001 Contact Us For Availability
87
WCI 316081201 WCI 316081201 Contact Us For Availability
× ![]()
