Model Maytag MEDX700XW1 ELECTRIC DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

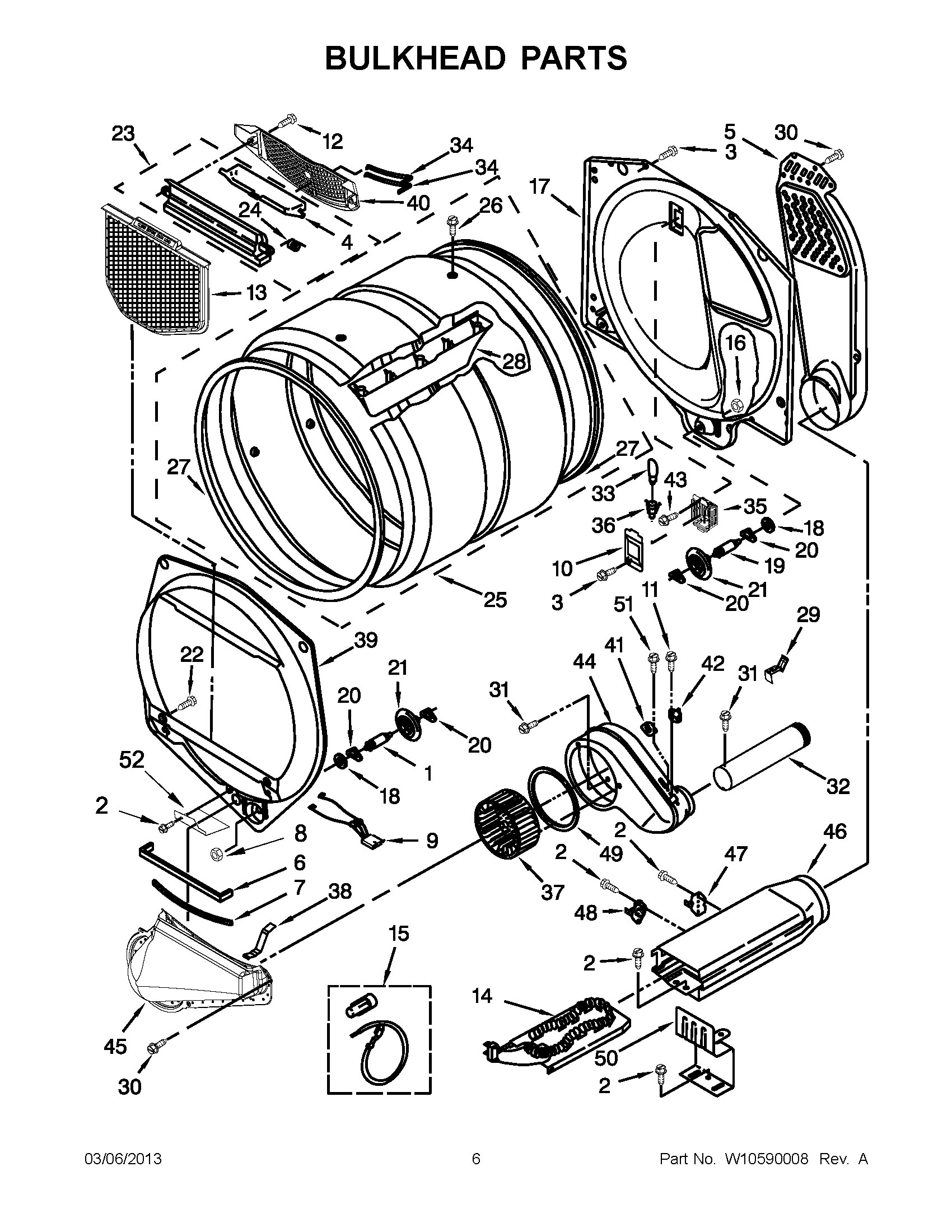

03 - BULKHEAD PARTS

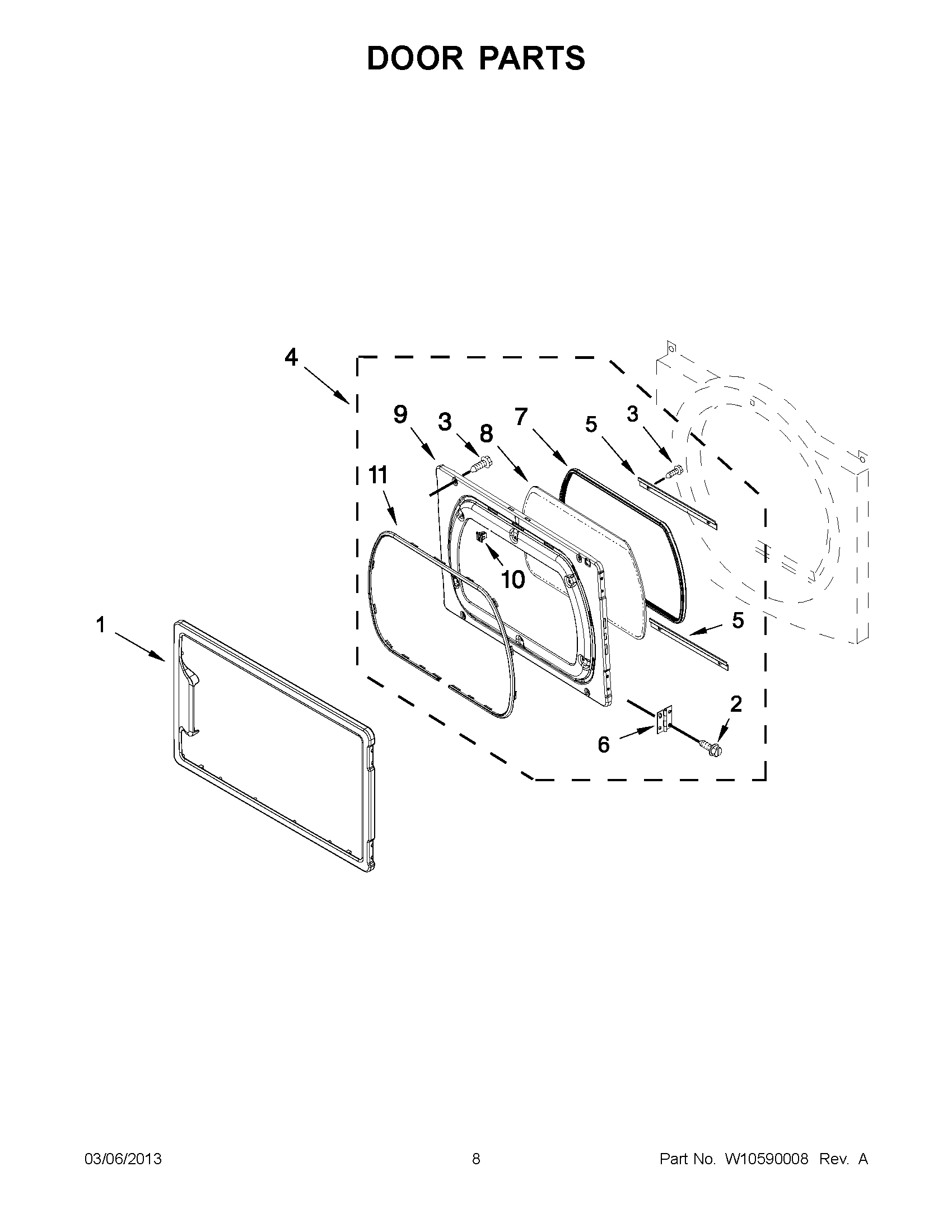

04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDX700XW1 ELECTRIC DRYER
1
MAY W10096989 MAY W10096989 Contact Us For Availability
1
MAY W10287249 MAY W10287249 Contact Us For Availability
1
MAY W10417013 MAY W10417013 Contact Us For Availability
1
MAY W10563341 MAY W10563341 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10284127 MAY W10284127 Contact Us For Availability
1
OUTER DOOR ASSEMBLY (SILVER) MAY W10284144 Contact Us For Availability
2
MAY W10293248 MAY W10293248 Contact Us For Availability
2
MAY W10293249 MAY W10293249 Contact Us For Availability
2
MAY 693152 MAY 693152 Contact Us For Availability
2
MAY 342055 MAY 342055 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
KNOB ASSEMBLY (INCLUDE NO. 18) (CHROME) MAY W10251381 Contact Us For Availability
3
KNOB ASSEMBLY (INCLUDE NO. 18) (SILVER) MAY W10251384 Contact Us For Availability
3
SCREW MAY 3390647 Contact Us For Availability
3
Screw MAY 3393258 Contact Us For Availability
4
USER INTERFACE ASSEMBLY MAY W10272644 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10153413 MAY W10153413 Contact Us For Availability
4
MAY W10513690 MAY W10513690 Contact Us For Availability
5
MAY W10326923 MAY W10326923 Contact Us For Availability
5
MAY W10411936 MAY W10411936 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
RETAINER, LOWER WINDOW MAY 8519354 Contact Us For Availability
6
TENSIONER, FASCIA MAY W10274524 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
HINGE & PIN ASSEMBLY (SILVER) MAY 3389247 Contact Us For Availability
6
MAY W10330875 MAY W10330875 Contact Us For Availability
7
NUT, ``U`` MAY W10298336 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
MAY W10547698 MAY W10547698 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY W10284122 MAY W10284122 Contact Us For Availability
8
MAY W10280079 MAY W10280079 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10284121 MAY W10284121 Contact Us For Availability
9
MAY W10550615 MAY W10550615 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
MAY W10298258 MAY W10298258 Contact Us For Availability
9
MAY W10470571 MAY W10470571 Contact Us For Availability
10
MAY 3196172 MAY 3196172 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
11
PLUG, UPPER REAR PANEL MAY W10279552 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
Screw MAY 693995 Contact Us For Availability
11
MAY W10354795 MAY W10354795 Contact Us For Availability
12
MAY W10268730 MAY W10268730 Contact Us For Availability
12
TOP (SILVER) MAY W10268731 Contact Us For Availability
12
PLUG, MULTIVENT (WHITE) MAY 49252 Contact Us For Availability
12
MAY W10151499 MAY W10151499 Contact Us For Availability
12
SCREW MAY 3357011 Contact Us For Availability
13
MAY W10468057 MAY W10468057 Contact Us For Availability
13
Screen, Lint MAY W10049370 Contact Us For Availability
14
MAY 8312709 MAY 8312709 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
14
MAY 3387747 MAY 3387747 Contact Us For Availability
15
MAY W10286180 MAY W10286180 Contact Us For Availability
15
MAY 488729 MAY 488729 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
16
MAY W10236068 MAY W10236068 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
SCREW MAY 3390814 Contact Us For Availability
17
Strike, Door MAY 3403431 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
CLIP, SPRING MAY 8536939 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
WIRING HARNESS MAY W10287252 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
WASHER, TRI RING MAY 690997 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
21
CCU-CONTROL MAY W10214009 Contact Us For Availability
21
TOE PANEL (WHITE) MAY 697215 Contact Us For Availability
21
TOE PANEL (SILVER) MAY W10096974 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10492808 MAY W10492808 Contact Us For Availability
22
MAY 3393657 MAY 3393657 Contact Us For Availability
22
MAY 3393008 MAY 3393008 Contact Us For Availability
23
MAY W10305134 MAY W10305134 Contact Us For Availability
23
SEAL, SPILL GUARD MAY W10312811 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10153423 Contact Us For Availability
24
MAY W10285494 MAY W10285494 Contact Us For Availability
24
MAY W10354249 MAY W10354249 Contact Us For Availability
24
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
25
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
25
MAY W10545923 MAY W10545923 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
26
PLUG, HINGE SCREW (WHITE) MAY W10191265 Contact Us For Availability
26
MAY W10304147 MAY W10304147 Contact Us For Availability
27
MAY W10396038 MAY W10396038 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
ELBOW MAY 49026 Contact Us For Availability
28
Baffle, Drum MAY 697693 Contact Us For Availability
29
MAY 3389729 MAY 3389729 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
Screw MAY 8533971 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
31
SEAL, FOAM MAY W10336128 Contact Us For Availability
31
Screw MAY 489463 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
Switch, Door MAY 3406107 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
PIPE, EXHAUST MAY 8563750 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
MAY W10214261 MAY W10214261 Contact Us For Availability
37
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
SCREW MAY 343641 Contact Us For Availability
38
MAY W10345456 MAY W10345456 Contact Us For Availability
39
MAY 3388674 MAY 3388674 Contact Us For Availability
39
MAY 697557 MAY 697557 Contact Us For Availability
40
MAY W10153412 MAY W10153412 Contact Us For Availability
41
MAY 3387242 MAY 3387242 Contact Us For Availability
41
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
42
MAY W10362983 MAY W10362983 Contact Us For Availability
42
MAY W10362984 MAY W10362984 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
Retainer MAY 3388229 Contact Us For Availability
43
SCREW MAY 695240 Contact Us For Availability
44
Clip, Door Hinge MAY 3390902 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
MAY 8066168 MAY 8066168 Contact Us For Availability
46
PLUG, STRIKE (WHITE) MAY W10521429 Contact Us For Availability
46
PLUG, STRIKE (SILVER) MAY W10521430 Contact Us For Availability
46
ASSEMBLY, WELD HEATER BOX MAY 3392537 Contact Us For Availability
47
MAY 8318314 MAY 8318314 Contact Us For Availability
48
MAY W10470674 MAY W10470674 Contact Us For Availability
48
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
49
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
SCREW MAY 697773 Contact Us For Availability
52
MAY W10128629 MAY W10128629 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6`, 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, DRYER RACK MAY W10071550A Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (MERCURY SILVER) MAY W10268217 Contact Us For Availability
× ![]()
