Model Maytag MEDC415EW1 LAUNDRY, ELECTRIC, DRYER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CONSOLE PARTS

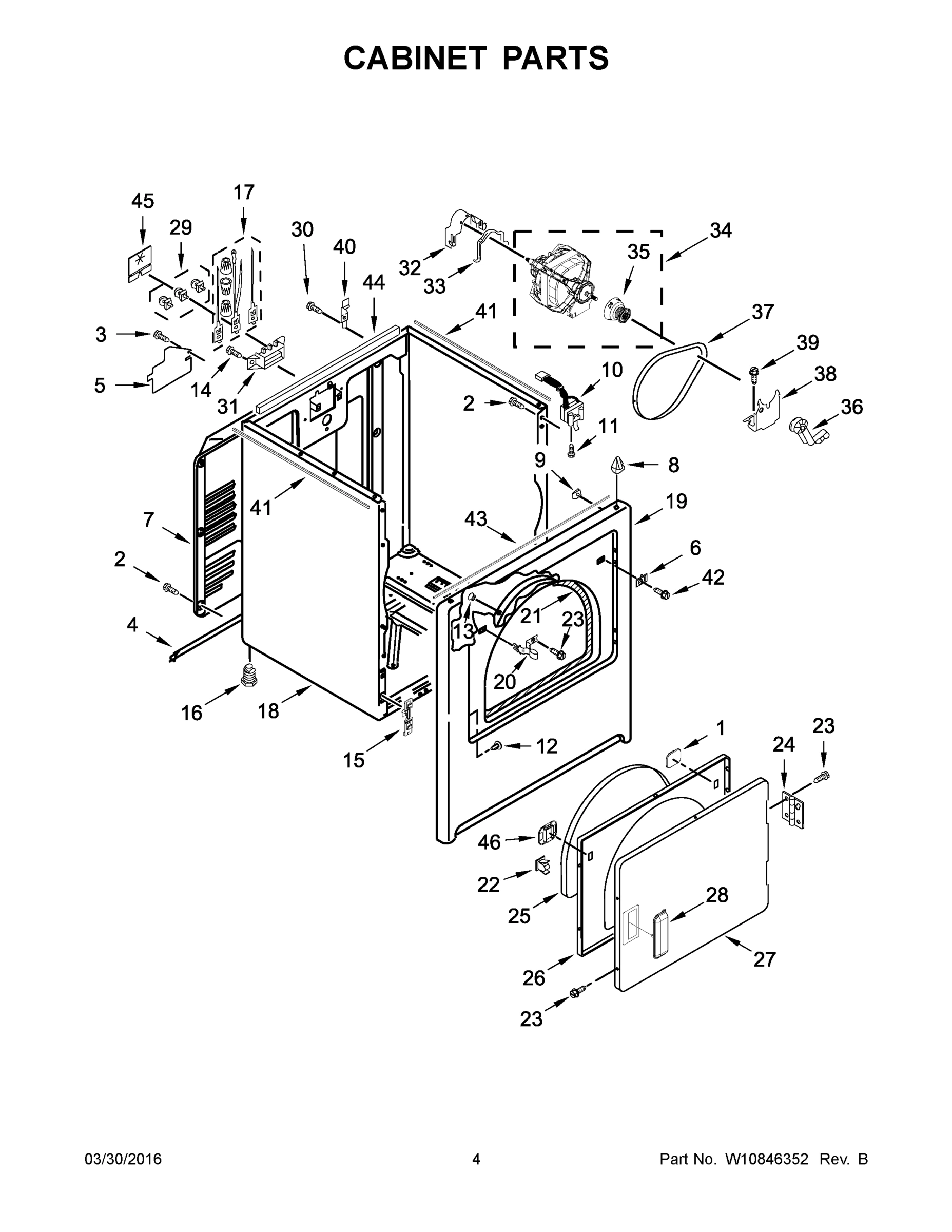

03 - CABINET PARTS

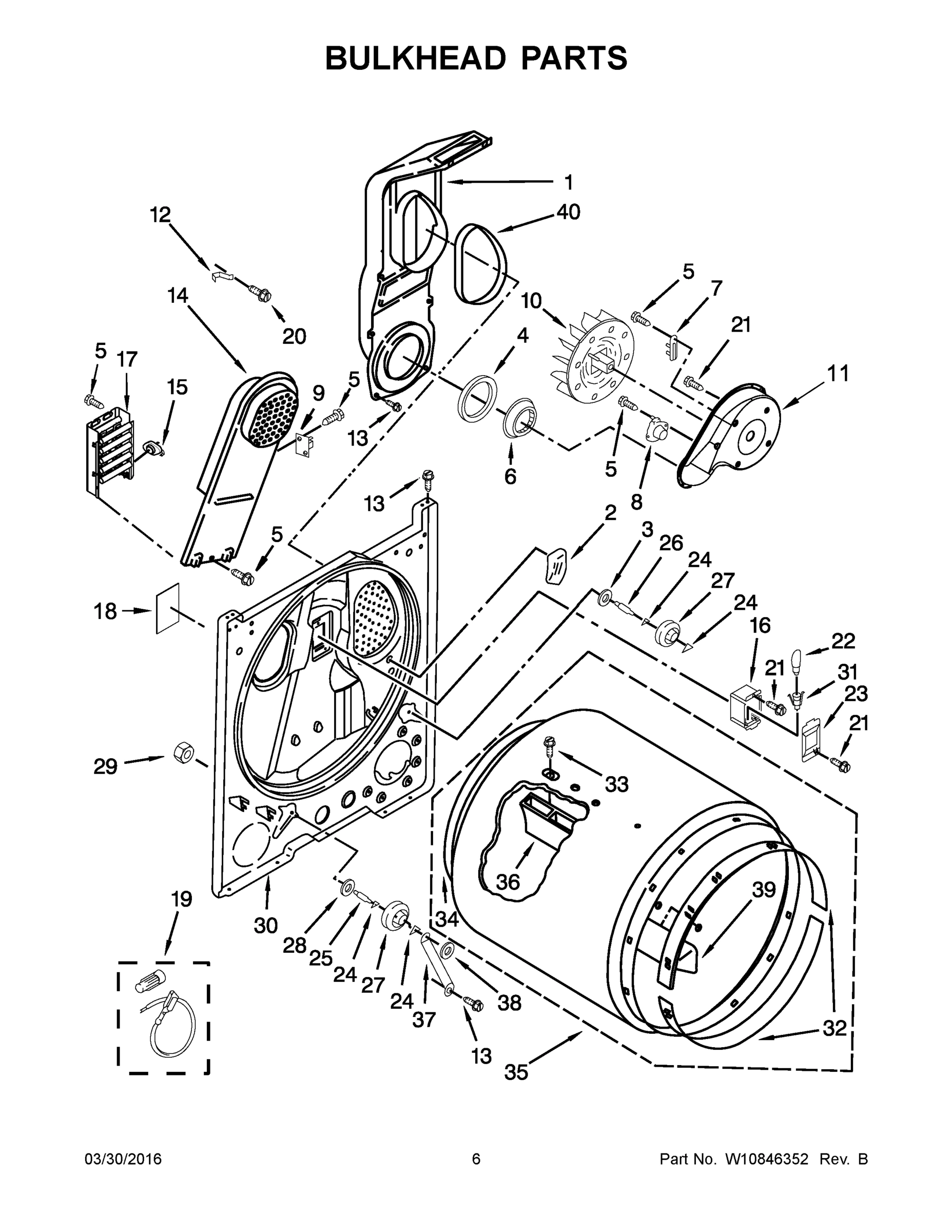

04 - BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDC415EW1 LAUNDRY, ELECTRIC, DRYER
1
MAY W10562354 MAY W10562354 Contact Us For Availability
1
MAY W10529198 MAY W10529198 Contact Us For Availability
1
ASSEMBLY, LINT CHUTE MAY 348368 Contact Us For Availability
1A
MAY W10185993 MAY W10185993 Contact Us For Availability
1B
MAY W10562358 MAY W10562358 Contact Us For Availability
2
SCREW MAY 8533971 Contact Us For Availability
2
MAY W10681051 MAY W10681051 Contact Us For Availability
3
SCREW MAY 693995 Contact Us For Availability
3
WASHER MAY 3388703 Contact Us For Availability
4
MAY W10692612 MAY W10692612 Contact Us For Availability
4
MAY W10224768 MAY W10224768 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
5
MAY W10612925 MAY W10612925 Contact Us For Availability
5
MAY W10571619 MAY W10571619 Contact Us For Availability
5
SCREW MAY 90767 Contact Us For Availability
6
MAY 8312709 MAY 8312709 Contact Us For Availability
6
MAY W10567345 MAY W10567345 Contact Us For Availability
6
MAY W10389567 MAY W10389567 Contact Us For Availability
7
MAY 694419 MAY 694419 Contact Us For Availability
7
MAY W10571724 MAY W10571724 Contact Us For Availability
7
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
8
MAY W10476828 MAY W10476828 Contact Us For Availability
8
MAY 8066092 MAY 8066092 Contact Us For Availability
8
MAY 8318268 MAY 8318268 Contact Us For Availability
9
MAY 3348629 MAY 3348629 Contact Us For Availability
9
CLIP, GROUND MAY 98234 Contact Us For Availability
9
MAY 3977393 MAY 3977393 Contact Us For Availability
10
MAY W10117655 MAY W10117655 Contact Us For Availability
10
MAY W10569603 MAY W10569603 Contact Us For Availability
10
WHEEL, BLOWER MAY 694089 Contact Us For Availability
11
MAY 8578354 MAY 8578354 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
MAY W10562155 MAY W10562155 Contact Us For Availability
12
PLUG, HOLE MAY 3404413 Contact Us For Availability
12
MAY 3398161 MAY 3398161 Contact Us For Availability
13
MAY W10185992 MAY W10185992 Contact Us For Availability
13
SCREW MAY 3390631 Contact Us For Availability
13
CLIP, FELT PAD MAY 685203 Contact Us For Availability
14
MAY W10316616 MAY W10316616 Contact Us For Availability
14
MAY 3393008 MAY 3393008 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
MAY W10717210 MAY W10717210 Contact Us For Availability
15
MAY W10775448 MAY W10775448 Contact Us For Availability
15
MAY 3977767 MAY 3977767 Contact Us For Availability
16
MAY 8559800 MAY 8559800 Contact Us For Availability
16
MAY W10561321 MAY W10561321 Contact Us For Availability
16
MAY 3977373 MAY 3977373 Contact Us For Availability
17
MAY W10558463 MAY W10558463 Contact Us For Availability
17
MAY 279318 MAY 279318 Contact Us For Availability
17
MAY W10724237 MAY W10724237 Contact Us For Availability
18
SCREW MAY 688983 Contact Us For Availability
18
CABINET (WHITE) MAY 8530603 Contact Us For Availability
18
MAY W10653662 MAY W10653662 Contact Us For Availability
19
SWITCH, ROATARY (2 POS) MAY 3405156 Contact Us For Availability
19
MAY W10664697 MAY W10664697 Contact Us For Availability
19
MAY 279457 MAY 279457 Contact Us For Availability
20
END CAP (RIGHT) (WHITE) MAY W10193821 Contact Us For Availability
20
STRIKE, DOOR MAY 3403431 Contact Us For Availability
20
SCREW MAY 489463 Contact Us For Availability
21
END CAP (LEFT) (WHITE) MAY W10193824 Contact Us For Availability
21
MAY W10803476 MAY W10803476 Contact Us For Availability
21
SCREW MAY 3390647 Contact Us For Availability
22
MAY W10640709 MAY W10640709 Contact Us For Availability
22
MAY W10610880 MAY W10610880 Contact Us For Availability
22
MAY 3406124 MAY 3406124 Contact Us For Availability
23
MAY W10103406 MAY W10103406 Contact Us For Availability
23
MAY 342055 MAY 342055 Contact Us For Availability
23
MAY 3402841 MAY 3402841 Contact Us For Availability
24
MAY W10837732 MAY W10837732 Contact Us For Availability
24
MAY W10362431 MAY W10362431 Contact Us For Availability
24
MAY W10512946 MAY W10512946 Contact Us For Availability
25
SCREW MAY 343641 Contact Us For Availability
25
MAY W10730752 MAY W10730752 Contact Us For Availability
25
MAY W10359270 MAY W10359270 Contact Us For Availability
26
MAY W10463967 MAY W10463967 Contact Us For Availability
26
MAY W10359269 MAY W10359269 Contact Us For Availability
27
DOOR, FRONT (WHITE) MAY W10714510 Contact Us For Availability
27
MAY W10314171 MAY W10314171 Contact Us For Availability
28
MAY W10714516 MAY W10714516 Contact Us For Availability
28
WASHER MAY 348197 Contact Us For Availability
29
MAY 279393 MAY 279393 Contact Us For Availability
29
MAY W10298789 MAY W10298789 Contact Us For Availability
30
MAY 8533974 MAY 8533974 Contact Us For Availability
30
MAY W10714469 MAY W10714469 Contact Us For Availability
31
MAY 3397659 MAY 3397659 Contact Us For Availability
31
MAY W10214261 MAY W10214261 Contact Us For Availability
32
CLAMP, MOTOR (WITH SHIELD) MAY 3404162 Contact Us For Availability
32
BEARING, RING MAY 692526 Contact Us For Availability
33
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
33
MAY W10219342 MAY W10219342 Contact Us For Availability
34
MAY W10396032 MAY W10396032 Contact Us For Availability
34
MAY W10725245 MAY W10725245 Contact Us For Availability
35
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
35
MAY W10757750 MAY W10757750 Contact Us For Availability
36
IDLER ASSEMBLY MAY 691366 Contact Us For Availability
36
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
37
MAY W10198086 MAY W10198086 Contact Us For Availability
37
MAY 3976434 MAY 3976434 Contact Us For Availability
38
MAY 348780 MAY 348780 Contact Us For Availability
38
NUT, PUSH ON MAY 90296 Contact Us For Availability
39
BOLT MAY 3400500 Contact Us For Availability
39
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
40
HINGE, TOP MAY 8066217 Contact Us For Availability
40
MAY 339956 MAY 339956 Contact Us For Availability
43
MAY W10316619 MAY W10316619 Contact Us For Availability
44
MAY W10316529 MAY W10316529 Contact Us For Availability
45
MAY W10782659 MAY W10782659 Contact Us For Availability
46
MAY W10529197 MAY W10529197 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS WASHER, INLET HO MAY 3976300 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS 4', 30 AMP, 4 WI MAY PT220L Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS 4', 30 AMP, 4 WI MAY PT400L Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS 6', 30 AMP, 4 WI MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS WASHER, HOSE MAY W10242307 Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS CONNECTOR, HOSE MAY W10336486 Contact Us For Availability
× ![]()
