Model Maytag MEDB765FW0 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

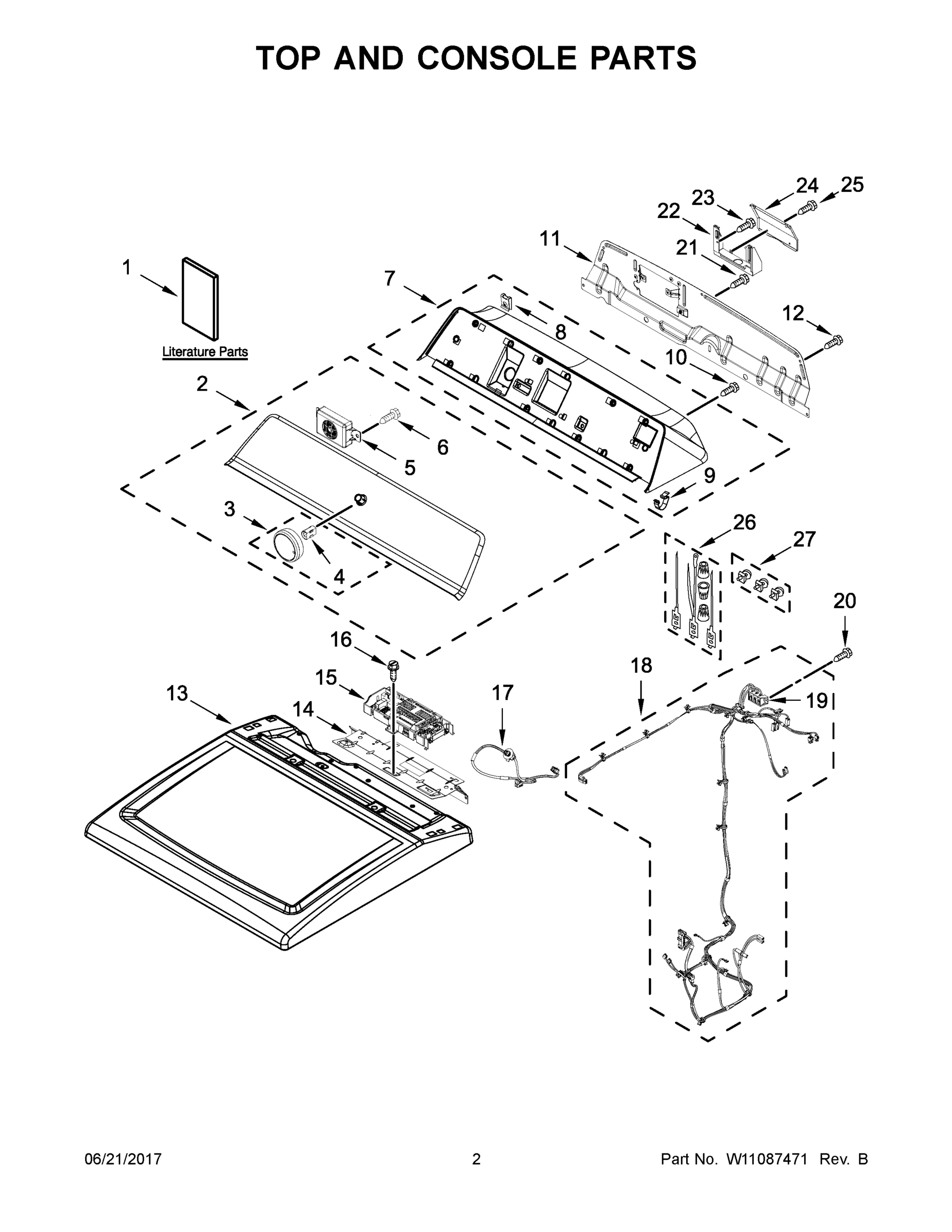

02 - TOP AND CONSOLE PARTS

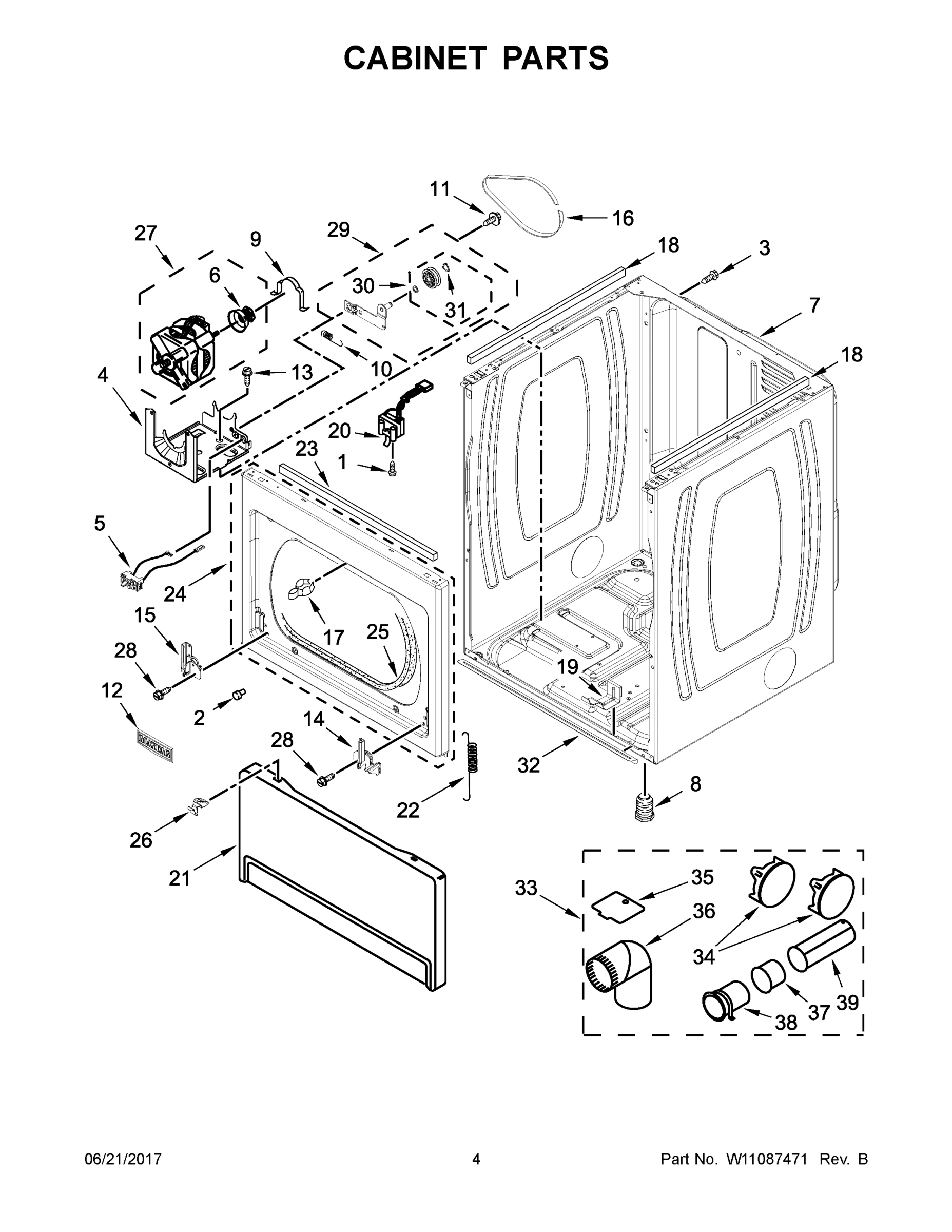

03 - CABINET PARTS

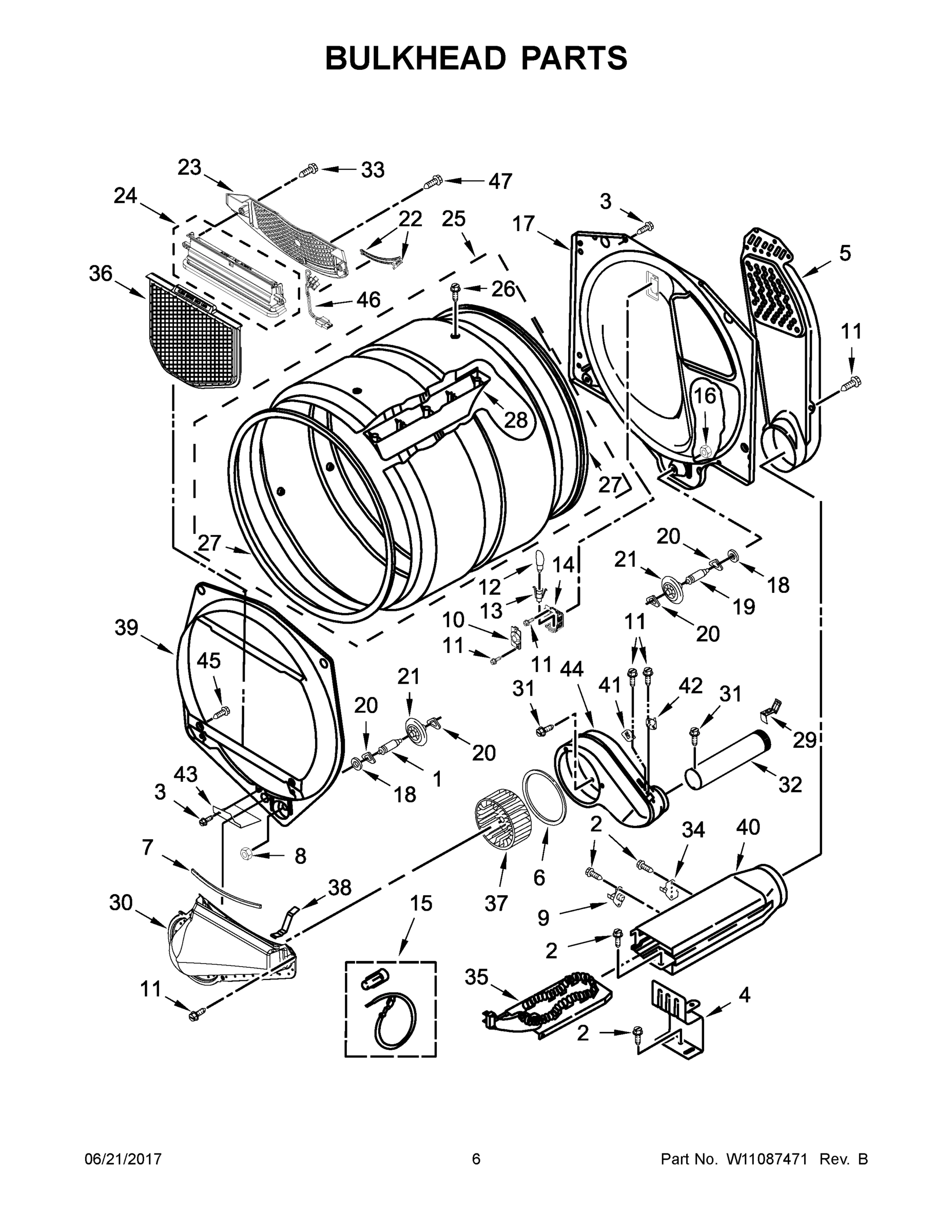

04 - BULKHEAD PARTS

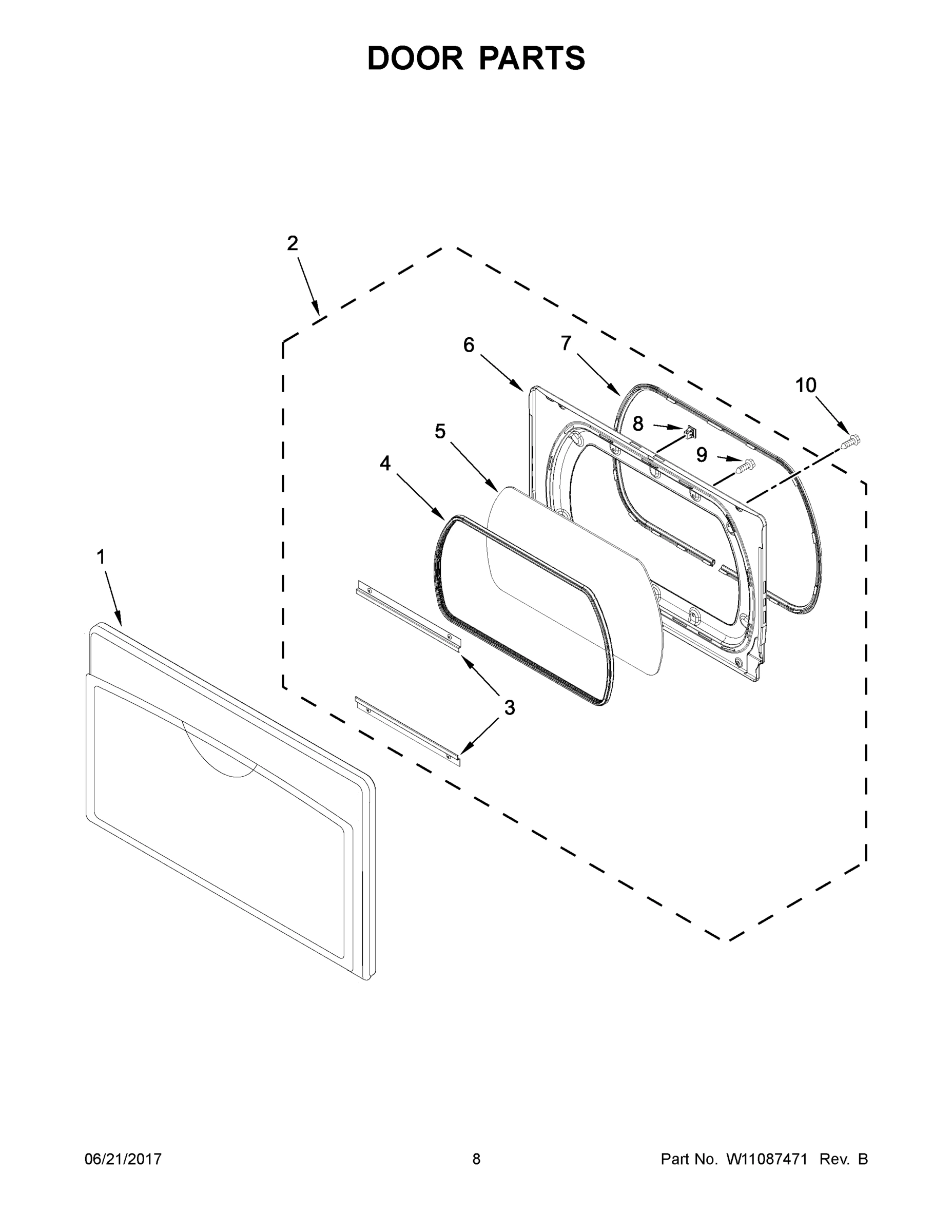

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDB765FW0 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER
1
INSTALLATION INSTRUCTIONS MAY W10904260 Contact Us For Availability
1
SCREW MAY 697773 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
ASSEMBLY, OUTER DOOR (WHITE) MAY W11033594 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W10904263 Contact Us For Availability
1B
TECH SHEET MAY W10913969 Contact Us For Availability
1C
QUICK START GUIDE MAY W10904265 Contact Us For Availability
2
FASCIA ASSEMBLY MAY W10913337 Contact Us For Availability
2
BUMPER MAY 693152 Contact Us For Availability
2
SCREW MAY 359625 Contact Us For Availability
2
ASSEMBLY, INNER DOOR (WHITE) MAY W10513691 Contact Us For Availability
3
ASSEMBLY, CONTROL KNOB (CHROME) MAY W10727011 Contact Us For Availability
3
SCREW MAY 3390647 Contact Us For Availability
3
SCREW MAY 8533971 Contact Us For Availability
3
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
4
CLIP, SPRING MAY 8536939 Contact Us For Availability
4
BRACKET, MOTOR MOUNTING MAY W10242878 Contact Us For Availability
4
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
4
SEAL, WINDOW MAY W10284122 Contact Us For Availability
5
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
5
SWITCH, BROKEN BELT MAY W10724631 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
GLASS, DOOR MAY W10284121 Contact Us For Availability
6
SCREW MAY 9740849 Contact Us For Availability
6
PULLEY, MOTOR MAY W10460106 Contact Us For Availability
6
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
6
DOOR, INNER (WHITE) MAY W10470569 Contact Us For Availability
7
CONSOLE (WHITE) MAY W10897838 Contact Us For Availability
7
CABINET (WHITE) MAY W10547697 Contact Us For Availability
7
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
7
SEAL, DOOR MAY W10284123 Contact Us For Availability
8
NUT, "U" MAY W10298336 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
ASSEMBLY, DOOR CATCH MAY 3389441 Contact Us For Availability
9
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
9
SCREW MAY 3393258 Contact Us For Availability
10
SCREW MAY 9740848 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
10
SCREW MAY 8534022 Contact Us For Availability
11
PANEL, REAR CONSOLE MAY W10896065 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
12
BADGE MAY W10612925 Contact Us For Availability
12
BULB, LIGHT MAY 3406124 Contact Us For Availability
13
TOP (WHITE) MAY W10260246 Contact Us For Availability
13
SCREW MAY 343641 Contact Us For Availability
13
SOCKET, LIGHT MAY W10214261 Contact Us For Availability
14
BRACKET, ELECTRONIC CONTROL MAY W10896068 Contact Us For Availability
14
ASSEMBLY, HINGE (RIGHT) MAY W10284141 Contact Us For Availability
14
BRACKET, DRUM LIGHT MAY 8578825 Contact Us For Availability
15
CONTROL, ELECTRONIC MAY W10914394 Contact Us For Availability
15
ASSEMBLY, HINGE (LEFT) MAY W10284140 Contact Us For Availability
15
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
16
BELT, DRIVE MAY W10131172 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
CABLE, USER INTERFACE MAY W10906300 Contact Us For Availability
17
STRIKE, DOOR MAY W10675495 Contact Us For Availability
17
BULKHEAD, REAR MAY 8520836 Contact Us For Availability
18
WIRING HARNESS MAY W10907915 Contact Us For Availability
18
SEAL, FOAM MAY W10336128 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
19
CLIP MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
SCREW MAY 3393008 Contact Us For Availability
20
SWITCH, DOOR MAY 3406107 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
21
SCREW MAY W10773242 Contact Us For Availability
21
TOE PANEL (WHITE) MAY 697215 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
22
HOUSING, POWER CORD MAY W11032547 Contact Us For Availability
22
SPRING, DOOR MAY 3387565 Contact Us For Availability
22
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
23
SEAL, SPILL GUARD MAY W10312811 Contact Us For Availability
23
GRILL, OUTLET MAY W10692558 Contact Us For Availability
24
MAY W11032548 MAY W11032548 Contact Us For Availability
24
UPPER FRONT PANEL (WHITE) MAY 697227 Contact Us For Availability
24
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
25
SCREW MAY 3390631 Contact Us For Availability
25
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10545923 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
26
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
26
RETAINER MAY 3388229 Contact Us For Availability
27
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
27
ASSEMBLY, MOTOR MAY W10396038 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
28
BAFFLE, DRUM MAY 697693 Contact Us For Availability
29
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
30
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
31
SCREW MAY 489463 Contact Us For Availability
32
BRACKET, CABINET MAY W10236068 Contact Us For Availability
32
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
33
SCREW MAY 3357011 Contact Us For Availability
33
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY W10323246 Contact Us For Availability
34
MULTIVENT PLUG (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
34
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 279973 Contact Us For Availability
35
PLATE, COVER MAY W10354249 Contact Us For Availability
35
ELEMENT, HEATER MAY 3387747 Contact Us For Availability
36
ELBOW MAY W10416072 Contact Us For Availability
36
LINT SCREEN (WHITE) MAY W10596627 Contact Us For Availability
37
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
37
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
38
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
38
CLIP, SPRING MAY W10345456 Contact Us For Availability
39
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
39
BULKHEAD, FRONT MAY 697557 Contact Us For Availability
40
ASSEMBLY, WELD HEATER BOX MAY W10608837 Contact Us For Availability
41
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
SHIELD, BLOWER MAY W10128629 Contact Us For Availability
44
HOUSING, BLOWER MAY 8544362 Contact Us For Availability
45
SCREW MAY 695240 Contact Us For Availability
46
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
47
SCREW MAY 3387230 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, DRYER RACK MAY 8212450A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 3 WIRE, DRYER CORD MAY PT500L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
× ![]()
